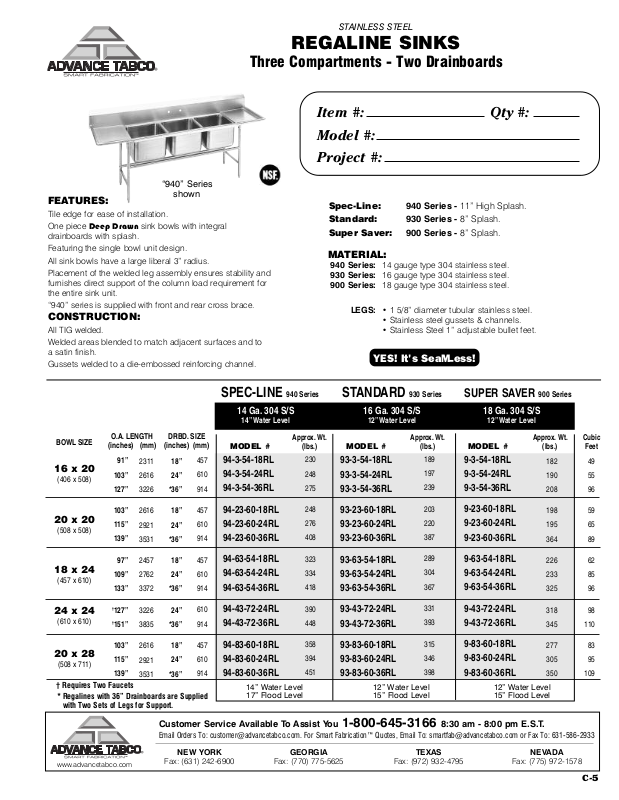

Three Compartments - Two Drainboards
YES! It's SeaM ess!
“940” Series
FEATURES:
Tile edge for ease of installation.
One piece Deep Drawn sink bowls with integral
rainboards with splash.
d
Featuring the single bowl unit design.
All sink bowls have a large liberal 3” radius.
Placement of the welded leg assembly ensures stability and
furnishes direct support of the column load requirement for
the entire sink unit.
“940” series is supplied with front and rear cross brace.
CONSTRUCTION:
All TIG welded.
Welded areas blended to match adjacent surfaces and to
a satin finish.
Gussets welded to a die-embossed reinforcing channel.
shown
STAINLESS STEEL
REGALINE SINKS
Item #: Qty #:
Model #:
Project #:
Spec-Line: 940 Series - 11” High Splash.
Standard: 930 Series - 8” Splash.
Super Saver: 900 Series - 8” Splash.
MATERIAL:
940 Series: 14 gauge type 304 stainless steel.
930 Series: 16 gauge type 304 stainless steel.
900 Series: 18 gauge type 304 stainless steel.
LEGS: • 1 5/8” diameter tubular stainless steel.
• Stainless steel gussets & channels.
• Stainless Steel 1” adjustable bullet feet.
BOWL SIZE
16 x 20
(406 x 508)
20 x 20
(508 x 508)
18 x 24
(457 x 610)
24 x 24
(610 x 610)
20 x 28
(508 x 711)
† Requires Two Faucets
* Regalines with 36” Drainboards are Supplied
with Two Sets of Legs for Support.
O.A. LENGTH DRBD. SIZE
(inches) (mm) (inches) (mm)
103”
127”
103”
115”
139”
109”
133”
†
127”
†
151”
103”
115”
139”
91”
97”
2311
2616
3226
2616
2921
3531
2457
2762
3372
3226
3835
2616
2921
3531
18”
24”
*36”
18”
24”
*36”
18”
24”
*36”
24”
*36”
18”
24”
*36”
SPEC-LINE 940 Series STANDARD 930 Series SUPER SAVER 900 Series
14 Ga. 304 S/S 16 Ga. 304 S/S 18 Ga. 304 S/S
14”Water Level 12”Water Level 12”Water Level
Approx. Wt. Approx. Wt. Approx. Wt. Cubic
(lbs.)
230
248
275
248
276
408
323
334
418
390
448
358
394
451
MODEL #
93-3-54-18RL
93-3-54-24RL
93-3-54-36RL
93-23-60-18RL
93-23-60-24RL
93-23-60-36RL
93-63-54-18RL
93-63-54-24RL
93-63-54-36RL
93-43-72-24RL
93-43-72-36RL
93-83-60-18RL
93-83-60-24RL
93-83-60-36RL
(lbs.)
189
197
239
203
220
387
289
304
367
331
393
315
346
398
MODEL #
9-3-54-18RL
9-3-54-24RL
9-3-54-36RL
9-23-60-18RL
9-23-60-24RL
9-23-60-36RL
9-63-54-18RL
9-63-54-24RL
9-63-54-36RL
9-43-72-24RL
9-43-72-36RL
9-83-60-18RL
9-83-60-24RL
9-83-60-36RL
457
610
914
457
610
914
457
610
914
610
914
457
610
914
MODEL #
94-3-54-18RL
94-3-54-24RL
94-3-54-36RL
94-23-60-18RL
94-23-60-24RL
94-23-60-36RL
94-63-54-18RL
94-63-54-24RL
94-63-54-36RL
94-43-72-24RL
94-43-72-36RL
94-83-60-18RL
94-83-60-24RL
94-83-60-36RL
14” Water Level 12” Water Level 12” Water Level
17” Flood Level 15” Flood Level 15” Flood Level
(lbs.) Feet
182
190
208
198
195
364
226
233
325
318
345
277
305
350
49
55
96
59
65
89
62
85
96
98
110
83
95
109
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: [email protected]. For Smart Fabrication™ Quotes, Email To: [email protected] or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
C-5
Page 2
DIMENSIONS and SPECIFICATIONS
Drainboard
Size
Overall
Length
TOL Overall: ± .500” ALL DIMENSIONS ARE TYPICAL
Interior: ± .250”
Front
940 Series Cross Bracing
DESCRIPTION
OWL Overall DRBD Recommended
B
(SIZE) Length (SIZE) Use
91”
16x20
103”
127”
103”
20x20
115”
139”
97”
18x24
109”
133”
†
24x24
127”
†
151”
103”
20x28
115”
139”
† Requires Two Faucets
* Regalines with 36” Drainboards are Supplied with Two Sets of Legs for Support.
18”
24”
*36”
18”
24”
*36”
18”
24”
*36”
24”
*36”
18”
24”
*36”
DISH
SINKS
DISH &
POT SINKS
POT & PAN
SINKS
POT SINKS
PAN SINKS
AB C DVWXYZVWXYZ
20”
20”
24”
24”
28”
16”
20”
18”
24”
20”
13 5/8”
13 5/8”
15 5/8”
15 5/8”
17 5/8”
27”
27”
31”
31”
35”
940 SERIES 900 & 930 SERIES
38”
38”
38”
38”
38”
11”
11”
11”
11”
11”
14”
14”
14”
14”
14”
20”
20”
20”
20”
20”
45”
45”
45”
45”
45”
38”
38”
38”
38”
38”
8”
12”
8”
12”
8”
12”
8”
12”
8”
12”
22”
22”
22”
22”
22”
42”
42”
42”
42”
42”
C-5a
PLUMBING ROUGH-IN
MECHANICAL:
• Supply is 1/2” IPS hot & cold.
• Faucet holes on 8” centers.
• Faucets are not included
(see accessories).
• Waste drains are 1 1/2” IPS
S/S basket type, located in
center of sink bowl, and are
included.
200 Heartland Boulevard, Edgewood, NY 11717-8380
SECTION
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, DECEMBER 2006
