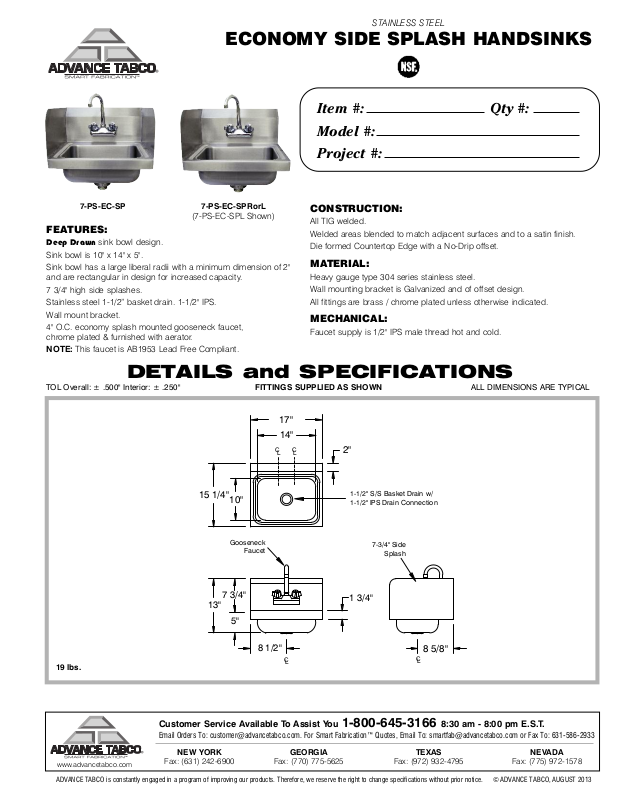

Advance Tabco 7PSECSPX Specifications

STAINLESS STEEL

1-1/2" S/S Basket Drain w/
1-1/2" IPS Drain Connection

8 1/2"

5"

13"

7 3/4"

L

C

1 3/4"

14"

17"

L

C

10"

15 1/4"

L

C

2"

7-3/4" Side

Splash

8 5/8"

C

L

Gooseneck

Faucet

ECONOMY SIDE SPLASH HANDSINKS

Item #: Qty #:

Model #:

Project #:

7-PS-EC-SP 7-PS-EC-SPRorL

(7-PS-EC-SPL Shown)

FEATURES:

Deep Drawn sink bowl design.
Sink bowl is 10" x 14" x 5".
Sink bowl has a large liberal radii with a minimum dimension of 2"

and are rectangular in design for increased capacity.
7 3/4" high side splashes.
Stainless steel 1-1/2” basket drain. 1-1/2" IPS.
Wall mount bracket.
4" O.C. economy splash mounted gooseneck faucet,

chrome plated & furnished with aerator.
NOTE: This faucet is AB1953 Lead Free Compliant.

CONSTRUCTION:

All TIG welded.
Welded areas blended to match adjacent surfaces and to a satin finish.
Die formed Countertop Edge with a No-Drip offset.

MATERIAL:

Heavy gauge type 304 series stainless steel.
Wall mounting bracket is Galvanized and of offset design.
All fittings are brass / chrome plated unless otherwise indicated.

MECHANICAL:

Faucet supply is 1/2" IPS male thread hot and cold.

DETAILS and SPECIFICATIONS

TOL Overall: ± .500" Interior: ± .250" FITTINGS SUPPLIED AS SHOWN ALL DIMENSIONS ARE TYPICAL

19 lbs.
