Page 1
L
CC
L
C
L
C
L
17"
15 1/4"
10"
14"
5"
7 3/4"
13"
8 1/2"
8 3/4"
2"
1 3/4"
1-1/2" S/S Bas ket Drain w/
1-1/2" IPS Drain Connect ion
Gooseneck
Faucet
FEATURES:
Deep Drawn sink bowl design.
Sink bowl is 10" x 14" x 5".
Sink bowl has a large liberal radii with a minimum dimension of
2" and are rectangular in design for increased capacity.
Stainless steel 1-1/2” basket drain. 1-1/2" IPS.
4" O.C. economy splash mounted gooseneck faucet,
chrome plated & furnished with aerator.

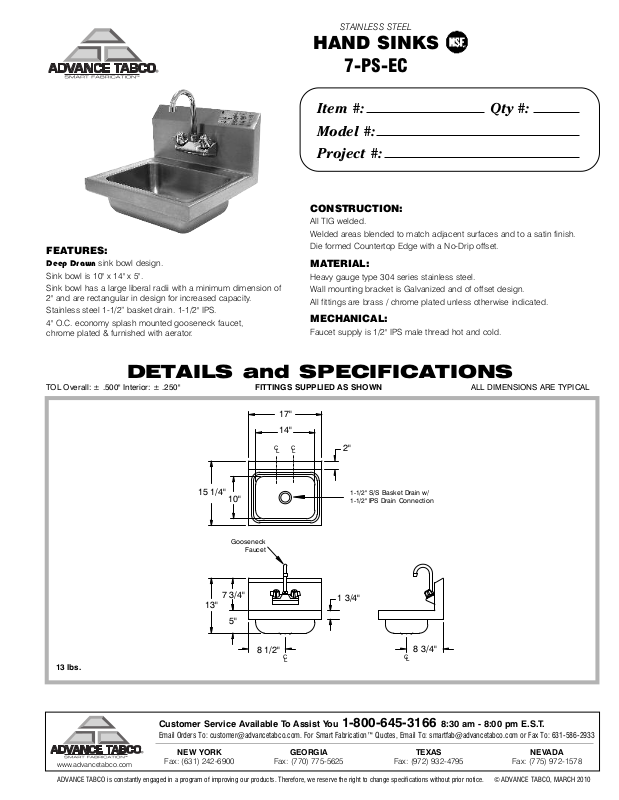

STAINLESS STEEL
HAND SINKS
7-PS-EC
Item #: Qty #:
Model #:
Project #:
CONSTRUCTION:
All TIG welded.
Welded areas blended to match adjacent surfaces and to a satin finish.
Die formed Countertop Edge with a No-Drip offset.
MATERIAL:
Heavy gauge type 304 series stainless steel.
Wall mounting bracket is Galvanized and of offset design.
All fittings are brass / chrome plated unless otherwise indicated.
MECHANICAL:
Faucet supply is 1/2" IPS male thread hot and cold.
DETAILS and SPECIFICATIONS
TOL Overall: ± .500" Interior: ± .250" FITTINGS SUPPLIED AS SHOWN ALL DIMENSIONS ARE TYPICAL
13 lbs.
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: [email protected]. For Smart Fabrication™ Quotes, Email To: [email protected] or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
www.advancetabco.com
ADVANCE TABCO is constantly engaged in a program of improving our products. Therefore, we reserve the right to change specifications without prior notice. © ADVANCE TABCO, MARCH 2010
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
