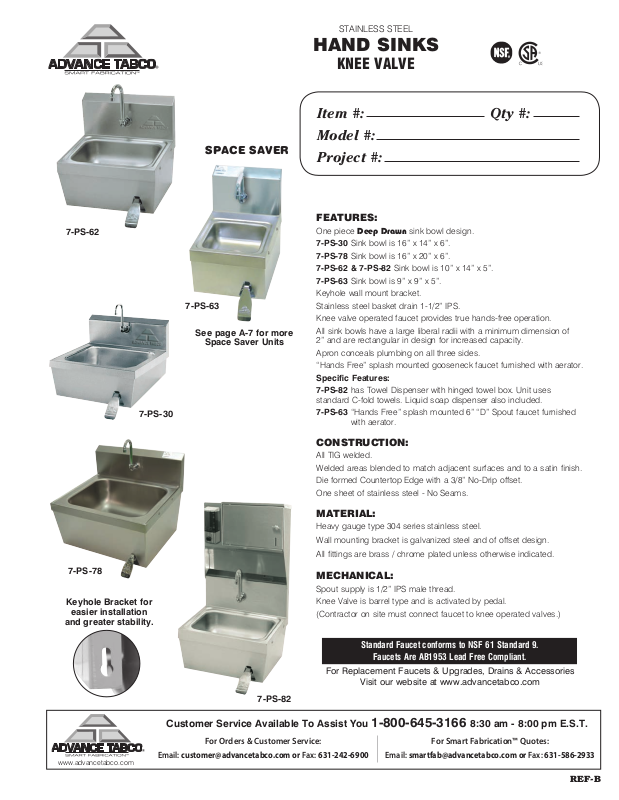

Page 1
7-PS-62
7-PS-30
SPACE SAVER
7-PS-63
See page A-7 for more
Space Saver Units
STAINLESS STEEL
HAND SINKS
KNEE VALVE
Item #: Qty #:
Model #:
Project #:
FEATURES:
One piece Deep Drawn sink bowl design.
7-PS-30 Sink bowl is 16” x 14” x 6”.
7-PS-78 Sink bowl is 16” x 20” x 6”.
7-PS-62 & 7-PS-82 Sink bowl is 10” x 14” x 5”.
7-PS-63 Sink bowl is 9” x 9” x 5”.
Keyhole wall mount bracket.
Stainless steel basket drain 1-1/2” IPS.
Knee valve operated faucet provides true hands-free operation.
All sink bowls have a large liberal radii with a minimum dimension of
2” and are rectangular in design for increased capacity.
Apron conceals plumbing on all three sides.
“Hands Free” splash mounted gooseneck faucet furnished with aerator.
Specific Features:
7-PS-82 has Towel Dispenser with hinged towel box. Unit uses
standard C-fold towels. Liquid soap dispenser also included.
7-PS-63 “Hands Free” splash mounted 6” “D” Spout faucet furnished
with aerator.
7-PS-78
Keyhole Bracket for
easier installation
and greater stability.
www.advancetabco.com
CONSTRUCTION:
All TIG welded.
Welded areas blended to match adjacent surfaces and to a satin finish.
Die formed Countertop Edge with a 3/8” No-Drip offset.
One sheet of stainless steel - No Seams.
MATERIAL:
Heavy gauge type 304 series stainless steel.
Wall mounting bracket is galvanized steel and of offset design.
All fittings are brass / chrome plated unless otherwise indicated.
MECHANICAL:
Spout supply is 1/2” IPS male thread.
Knee Valve is barrel type and is activated by pedal.
(Contractor on site must connect faucet to knee operated valves.)
Standard Faucet conforms to NSF 61 Standard 9.
Faucets Are AB1953 Lead Free Compliant.
For Replacement Faucets & Upgrades, Drains & Accessories
Visit our website at www.advancetabco.com
7-PS-82
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
For Orders & Customer Service:
Email: [email protected] or Fax: 631-242-6900
Email: [email protected] or Fax: 631-586-2933
For Smart Fabrication™ Quotes:
REF-B
Page 2
DIMENSIONS and SPECIFICATIONS
15 1/4"
2"
17 1/4"
10"
14"
2"
Knee Valve
Gooseneck
Faucet
8"
5"
Soap Dispenser
Towel Dispenser
30 5/8"
Water Outlet To Faucet
3/8" IPS Female
Knee Pedal
Cold Water Inlet
3/8" IPS Female
Hot Water Inlet
3/8" IPS Female
Water Outlet To Faucet
3/8" IPS Female
TOL Overall: ± .500” Interior: ± .250” FITTINGS SUPPLIED AS SHOWN ALL DIMENSIONS ARE TYPICAL
7-PS-62
15 1/4"
25 lbs.
7-PS-30
21 1/4"
17 1/4"
2"
10"
14"
8"
5"
Knee Valve
17 1/4"
14"
2"
16"
Gooseneck
Faucet
2"
17 1/4"
7-PS-82
38 lbs.
7-PS-63
16"
12 1/4"
9"
2"
9"
8 5/8"
8"
6"
33 lbs. 20 lbs.
Knee Valve
2"
Gooseneck
Faucet
17 1/4"
7-PS-78
23 1/4”
21 7/8”
40 lbs.
REF-B
20”
16”
200 Heartland Boulevard, Edgewood, NY 11717-8380
2”
8”
Knee Pedal
Gooseneck Faucet
6”
18 7/16”
8"
5"
KNEE VALVE DETAIL
Mounting Holes
Hot Water Control Valve
3/8” IPS FEMALE
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
2"
Knee Valve
Knee Pedal
“D” Spout
Faucet
16 1/8"
© ADVANCE TABCO, APRIL 2015
