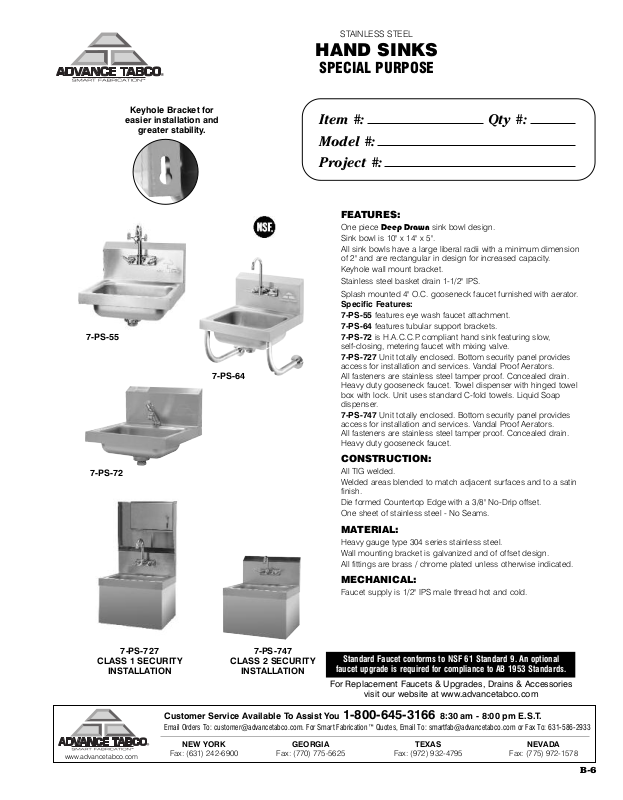

Advance Tabco 7-PS-55 Specifications
7-PS-55
7-PS-72
Keyhole Bracket for
easier installation and
reater stability.
g
7-PS-64
STAINLESS STEEL
HAND SINKS
SPECIAL PURPOSE
Item #: Qty #:
Model #:
Project #:
FEATURES:
One piece Deep Drawn sink bowl design.
Sink bowl is 10" x 14" x 5".
All sink bowls have a large liberal radii with a minimum dimension
of 2" and are rectangular in design for increased capacity.
Keyhole wall mount bracket.
Stainless steel basket drain 1-1/2" IPS.
Splash mounted 4" O.C. gooseneck faucet furnished with aerator.
Specific Features:
7-PS-55 features eye wash faucet attachment.
7-PS-64 features tubular support brackets.
7-PS-72 is H.A.C.C.P. compliant hand sink featuring slow,
self-closing, metering faucet with mixing valve.
7-PS-727 Unit totally enclosed. Bottom security panel provides
access for installation and services. Vandal Proof Aerators.
All fasteners are stainless steel tamper proof. Concealed drain.
Heavy duty gooseneck faucet. Towel dispenser with hinged towel
box with lock. Unit uses standard C-fold towels. Liquid Soap
dispenser.
7-PS-747 Unit totally enclosed. Bottom security panel provides
access for installation and services. Vandal Proof Aerators.
All fasteners are stainless steel tamper proof. Concealed drain.
Heavy duty gooseneck faucet.
CONSTRUCTION:
All TIG welded.
Welded areas blended to match adjacent surfaces and to a satin
finish.
Die formed Countertop Edge with a 3/8" No-Drip offset.
One sheet of stainless steel - No Seams.
7-PS-727
CLASS 1 SECURITY
INSTALLATION
www.advancetabco.com
MATERIAL:
Heavy gauge type 304 series stainless steel.
Wall mounting bracket is galvanized and of offset design.
All fittings are brass / chrome plated unless otherwise indicated.
MECHANICAL:
Faucet supply is 1/2" IPS male thread hot and cold.
7-PS-747
CLASS 2 SECURITY
INSTALLATION
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
Standard Faucet conforms to NSF 61 Standard 9. An optional
faucet upgrade is required for compliance to AB 1953 Standards.
For Replacement Faucets & Upgrades, Drains & Accessories
visit our website at www.advancetabco.com
B-6
DIMENSIONS and SPECIFICATIONS
Faucet
Eye Wash
Attachment
17 1/4"
15 1/4"
2"
10"
14"
13"
8"
5"
2"
17 1/4"
10"
1
4"
2
"
1
7 1/4"
8 5/8"
13"
8"
5"
M
etered Faucet
2"
11 1/8"
C
L
2"
15 1/4"
10"
1
4"
1
7 1/4"
8
"
5"
Faucet
2
"
1 1/2"
10 1/2"
17 1/4"
15 1/4"
10"
14"
2"
15 7/8"
5"
23 1/2"
2"
Faucet
P-Trap
37"
TOL Overall: ± .500" Interior: ± .250" FITTINGS SUPPLIED AS SHOWN ALL DIMENSIONS ARE TYPICAL
7-PS-64
25 lbs.
7-PS-55
7-PS-72
15 lbs.
EYE WASH DETAIL
B-6a
15 lbs.
7-PS-747
45 lbs.
200 Heartland Boulevard, Edgewood, NY 11717-8380
Mounting
Detail
Security Skirt Enclosure
7-PS-727
Unit with Towel Dispenser
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, JULY 2009
