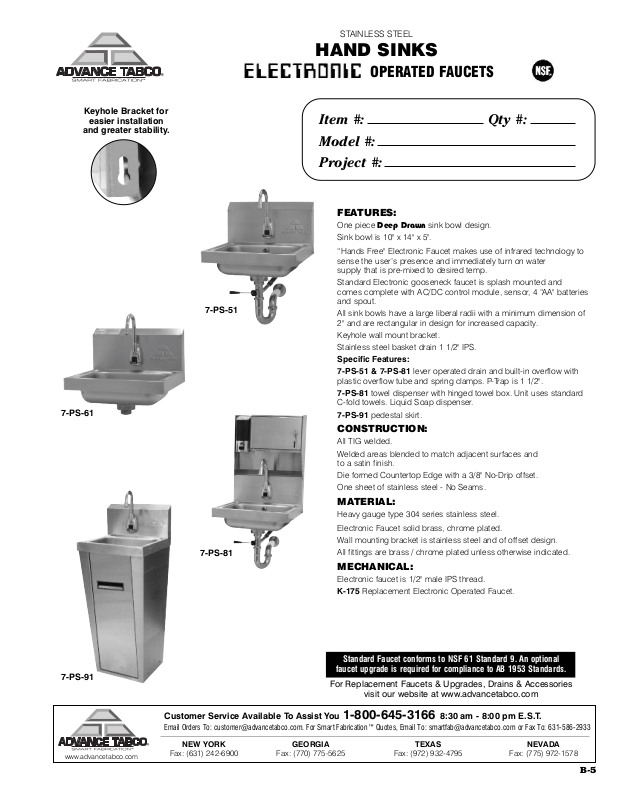

Page 1
Keyhole Bracket for
easier installation
and greater stability.
7-PS-61
7-PS-51
7-PS-81
STAINLESS STEEL
HAND SINKS
OPERATED FAUCETS
Item #: Qty #:
Model #:
Project #:
FEATURES:
One piece Deep Drawn sink bowl design.
Sink bowl is 10" x 14" x 5".
“Hands Free" Electronic Faucet makes use of infrared technology to
sense the user’s presence and immediately turn on water
supply that is pre-mixed to desired temp.
Standard Electronic gooseneck faucet is splash mounted and
comes complete with AC/DC control module, sensor, 4 “AA" batteries
and spout.
All sink bowls have a large liberal radii with a minimum dimension of
2" and are rectangular in design for increased capacity.
Keyhole wall mount bracket.
Stainless steel basket drain 1 1/2" IPS.
Specific Features:
7-PS-51 & 7-PS-81 lever operated drain and built-in overflow with
plastic overflow tube and spring clamps. P-Trap is 1 1/2".
7-PS-81 towel dispenser with hinged towel box. Unit uses standard
C-fold towels. Liquid Soap dispenser.
7-PS-91 pedestal skirt.
CONSTRUCTION:
All TIG welded.
Welded areas blended to match adjacent surfaces and
to a satin finish.
Die formed Countertop Edge with a 3/8" No-Drip offset.
One sheet of stainless steel - No Seams.
MATERIAL:
Heavy gauge type 304 series stainless steel.
Electronic Faucet solid brass, chrome plated.
Wall mounting bracket is stainless steel and of offset design.
All fittings are brass / chrome plated unless otherwise indicated.
MECHANICAL:
Electronic faucet is 1/2" male IPS thread.
K-175 Replacement Electronic Operated Faucet.
7-PS-91
www.advancetabco.com
Standard Faucet conforms to NSF 61 Standard 9. An optional
faucet upgrade is required for compliance to AB 1953 Standards.
For Replacement Faucets & Upgrades, Drains & Accessories
visit our website at www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: [email protected]. For Smart Fabrication™ Quotes, Email To: [email protected] or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
B-5
Page 2
DIMENSIONS and SPECIFICATIONS
8"
5"
13"
8
5
8
"
8
5
8
"
P-Trap
Lever Drain
L
C
C
Electronic Faucet
Electronic Faucet
13"
8"
5"
15 1/2"
2"
B
asket Drain
Electronic Faucet
Soap Dispenser
T
owel Dispenser
Lever Drain
P-Trap
13"
8"
5"
26 1/2"
2"
Electronic Faucet
Pedestal Base
42"
34"
8"
2"
37 1/2"
L
C
17 1/4"
15 1/4"
17 1/4"
15 1/4"
2"
TOL Overall: ± .500" Interior: ± .250" FITTINGS SUPPLIED AS SHOWN ALL DIMENSIONS ARE TYPICAL
7-PS-51
21 lbs.
7-PS-81
7-PS-61
19 lbs.
7-PS-91
32 lbs.
B-5a
TOP VIEW for 7-PS-81
200 Heartland Boulevard, Edgewood, NY 11717-8380
41 lbs.
Sink Bowl 10" x 14" x 5"
TOP VIEW for 7-PS-61,
7-PS-81 & 7-PS-91
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, JULY 2009
