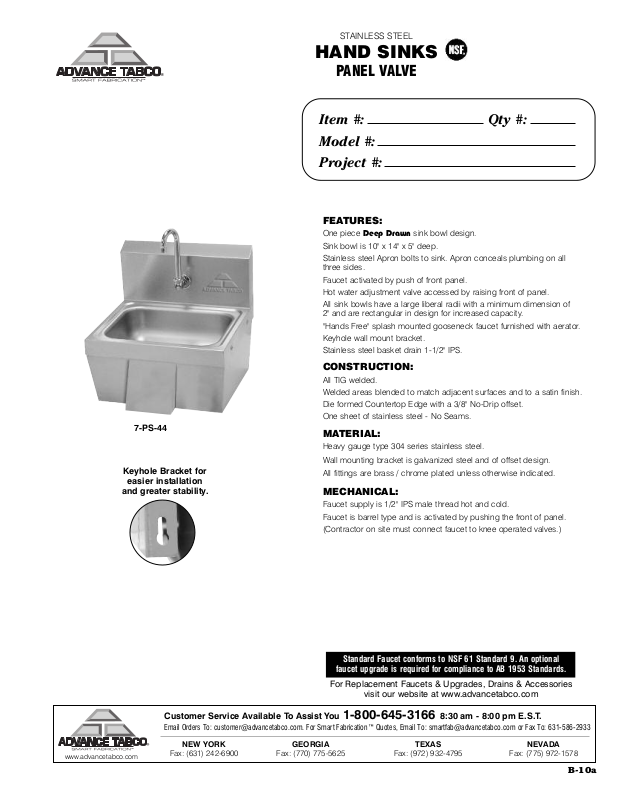

Advance Tabco 7-PS-44 Specifications

STAINLESS STEEL

HAND SINKS

PANEL VALVE

Item #: Qty #:

Model #:

Project #:

FEATURES:

One piece Deep Drawn sink bowl design.
Sink bowl is 10" x 14" x 5" deep.

tainless steel Apron bolts to sink. Apron conceals plumbing on all

S
three sides.

Faucet activated by push of front panel.
Hot water adjustment valve accessed by raising front of panel.
All sink bowls have a large liberal radii with a minimum dimension of

2" and are rectangular in design for increased capacity.
"Hands Free" splash mounted gooseneck faucet furnished with aerator.
Keyhole wall mount bracket.
Stainless steel basket drain 1-1/2" IPS.

7-PS-44

Keyhole Bracket for

easier installation

and greater stability.

CONSTRUCTION:

All TIG welded.
Welded areas blended to match adjacent surfaces and to a satin finish.
Die formed Countertop Edge with a 3/8" No-Drip offset.
One sheet of stainless steel - No Seams.

MATERIAL:

Heavy gauge type 304 series stainless steel.

Wall mounting bracket is galvanized steel and of offset design.

All fittings are brass / chrome plated unless otherwise indicated.

MECHANICAL:

Faucet supply is 1/2" IPS male thread hot and cold.
Faucet is barrel type and is activated by pushing the front of panel.
(Contractor on site must connect faucet to knee operated valves.)

www.advancetabco.com

Standard Faucet conforms to NSF 61 Standard 9. An optional

faucet upgrade is required for compliance to AB 1953 Standards.

For Replacement Faucets & Upgrades, Drains & Accessories

visit our website at www.advancetabco.com

Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.

Email Orders To: [e-mail]. For Smart Fabrication™ Quotes, Email To: [e-mail] or Fax To: 631-586-2933

NEW YORK GEORGIA TEXAS NEVADA

Fax: [phone] Fax: [phone] Fax: [phone] Fax: [phone]

B-10a

DIMENSIONS and SPECIFICATIONS

17 1/4”

15 1/4”

2”

9”

8 1/4”

14”

10”

Gooseneck

Faucet

Plunger Panel

17 1/4”

Mounting Holes

Hot Water Control Valve

Water Outlet To Faucet
1/2" IPS Female

Cold Water Inlet

1/2" IPS Female

Hot Water Inlet
1/2" IPS Female

TOL Overall: ± .500" Interior: ± .250" FITTINGS SUPPLIED AS SHOWN ALL DIMENSIONS ARE TYPICAL

7-PS-44

Panel Lifts to
Access Hot Water

djustment Valve

A

Hot water can be adjust­ed by inserting flat head
screwdriver into hot
water port and turning to
desired temperature.

VALVE DETAIL

1/2" IPS FEMALE

B-10a

200 Heartland Boulevard, Edgewood, NY 11717-8380

ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.

© ADVANCE TABCO, JULY 2009
