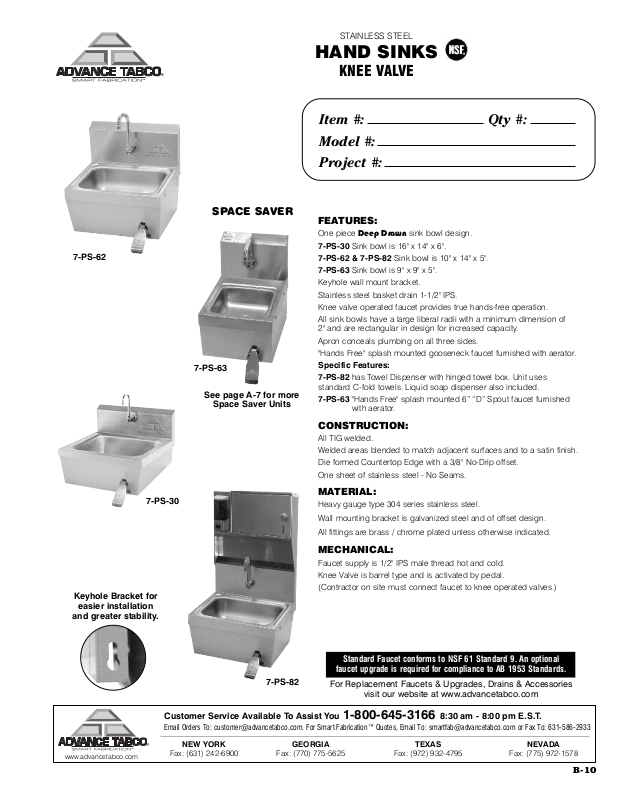

Advance Tabco 7-PS-30 Specifications

STAINLESS STEEL

HAND SINKS

KNEE VALVE

Item #: Qty #:

Model #:

Project #:

7-PS-62

7-PS-30

SPACE SAVER

7-PS-63

See page A-7 for more

Space Saver Units

FEATURES:

One piece Deep Drawn sink bowl design.

7-PS-30 Sink bowl is 16" x 14" x 6".

-PS-62 & 7-PS-82 Sink bowl is 10" x 14" x 5".

7
7-PS-63 Sink bowl is 9" x 9" x 5".

Keyhole wall mount bracket.
Stainless steel basket drain 1-1/2" IPS.
Knee valve operated faucet provides true hands-free operation.
All sink bowls have a large liberal radii with a minimum dimension of

2" and are rectangular in design for increased capacity.
Apron conceals plumbing on all three sides.
"Hands Free" splash mounted gooseneck faucet furnished with aerator.

Specific Features:
7-PS-82 has Towel Dispenser with hinged towel box. Unit uses

standard C-fold towels. Liquid soap dispenser also included.
7-PS-63 "Hands Free" splash mounted 6” “D” Spout faucet furnished

with aerator.

CONSTRUCTION:

All TIG welded.
Welded areas blended to match adjacent surfaces and to a satin finish.
Die formed Countertop Edge with a 3/8" No-Drip offset.
One sheet of stainless steel - No Seams.

MATERIAL:

Heavy gauge type 304 series stainless steel.

Wall mounting bracket is galvanized steel and of offset design.

All fittings are brass / chrome plated unless otherwise indicated.

Keyhole Bracket for

easier installation

and greater stability.

www.advancetabco.com

MECHANICAL:

Faucet supply is 1/2" IPS male thread hot and cold.
Knee Valve is barrel type and is activated by pedal.
(Contractor on site must connect faucet to knee operated valves.)

Standard Faucet conforms to NSF 61 Standard 9. An optional

faucet upgrade is required for compliance to AB 1953 Standards.

7-PS-82

Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.

Email Orders To: [e-mail]. For Smart Fabrication™ Quotes, Email To: [e-mail] or Fax To: 631-586-2933

NEW YORK GEORGIA TEXAS NEVADA

Fax: [phone] Fax: [phone] Fax: [phone] Fax: [phone]

For Replacement Faucets & Upgrades, Drains & Accessories

visit our website at www.advancetabco.com

B-10

DIMENSIONS and SPECIFICATIONS

15 1/4"

2

"

1

7 1/4"

10"

14"

8

"

5

"

2"

1

7 1/4"

G

ooseneck

F

aucet

K

nee Valve

21 1/4"

1

7 1/4"

16"

14"

2"

Gooseneck

Faucet

Knee Valve

2"

8"

6"

8 5/8"

17 1/4"

15 1/4"

2"

17 1/4"

1

0"

14"

2"

Knee Valve

G

ooseneck

F

aucet

8

"

5"

S

oap Dispenser

T

owel Dispenser

3

0 5/8"

Hot Water Control Valve

Knee Pedal

Mounting Holes

Cold Water Inlet

1/2" IPS Female

Hot Water Inlet
1/2" IPS Female

Water Outlet To Faucet
1/2" IPS Female

16"

9"

2"

9"

1

2 1/4"

8"

5"

“D” Spout

Faucet

Knee Valve

2"

16 1/8"

TOL Overall: ± .500" Interior: ± .250" FITTINGS SUPPLIED AS SHOWN ALL DIMENSIONS ARE TYPICAL

7-PS-62

25 lbs.

7-PS-30

7-PS-82

38 lbs.

7-PS-63

33 lbs.

B-10a

200 Heartland Boulevard, Edgewood, NY 11717-8380

1/2" IPS FEMALE

KNEE VALVE DETAIL

20 lbs.

ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.

© ADVANCE TABCO, SEPTEMBER 2009
