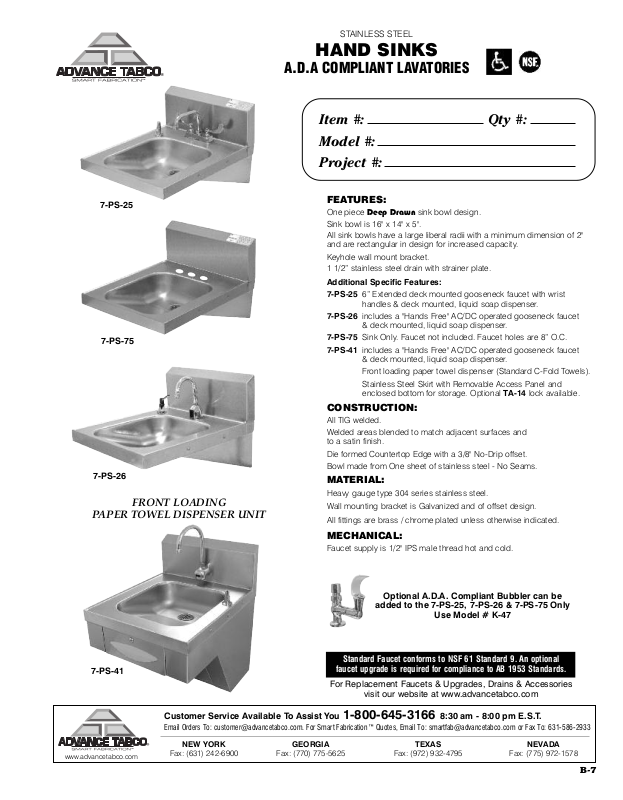

Page 1
STAINLESS STEEL
HAND SINKS
A.D.A COMPLIANT LAVATORIES
Item #: Qty #:
Model #:
Project #:
-PS-25
7
7-PS-75
7-PS-26
FRONT LOADING
PAPER TOWEL DISPENSER UNIT
FEATURES:
One piece Deep Drawn sink bowl design.
Sink bowl is 16" x 14" x 5".
All sink bowls have a large liberal radii with a minimum dimension of 2"
and are rectangular in design for increased capacity.
Keyhole wall mount bracket.
1 1/2” stainless steel drain with strainer plate.
Additional Specific Features:
7-PS-25 6” Extended deck mounted gooseneck faucet with wrist
handles & deck mounted, liquid soap dispenser.
7-PS-26 includes a "Hands Free" AC/DC operated gooseneck faucet
& deck mounted, liquid soap dispenser.
7-PS-75 Sink Only. Faucet not included. Faucet holes are 8” O.C.
7-PS-41 includes a "Hands Free" AC/DC operated gooseneck faucet
& deck mounted, liquid soap dispenser.
Front loading paper towel dispenser (Standard C-Fold Towels).
Stainless Steel Skirt with Removable Access Panel and
enclosed bottom for storage. Optional TA-14 lock available.
CONSTRUCTION:
All TIG welded.
Welded areas blended to match adjacent surfaces and
to a satin finish.
Die formed Countertop Edge with a 3/8" No-Drip offset.
Bowl made from One sheet of stainless steel - No Seams.
MATERIAL:
Heavy gauge type 304 series stainless steel.
Wall mounting bracket is Galvanized and of offset design.
All fittings are brass / chrome plated unless otherwise indicated.
MECHANICAL:
Faucet supply is 1/2" IPS male thread hot and cold.
7-PS-41
www.advancetabco.com
Optional A.D.A. Compliant Bubbler can be
added to the 7-PS-25, 7-PS-26 & 7-PS-75 Only
Use Model # K-47
Standard Faucet conforms to NSF 61 Standard 9. An optional
faucet upgrade is required for compliance to AB 1953 Standards.
For Replacement Faucets & Upgrades, Drains & Accessories
visit our website at www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: [email protected]. For Smart Fabrication™ Quotes, Email To: [email protected] or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
B-7
Page 2
DIMENSIONS and SPECIFICATIONS
13"
5"
8"
2"
Wrist Handle
Faucet
Deck Mounted
Soap Dispenser
1-1/2" IPS
Drain Plug
24"
20"
16"
14"
2"
13"
5"
8"
2"
Electronic Faucet
Deck Mounted
Soap Dispenser
1-1/2" IPS
Drain Plug
7"
9"
8"
19"
16"
24"
14"
8 1/4"
27"
20"
Removable Access Panel
2"
24"
20"
8" O.C.
16"
14"
2"
13"
5"
8"
2"
1-1/2" IPS
Drain Plug
TOL Overall: ± .500" Interior: ± .250" FITTINGS SUPPLIED AS SHOWN ALL DIMENSIONS ARE TYPICAL
7-PS-25
25 lbs.
7-PS-26
TOP VIEW
25 lbs.
7-PS-75
25 lbs.
B-7a
200 Heartland Boulevard, Edgewood, NY 11717-8380
CENTER FAUCET HOLE ONLY
Optional 8” O.C.
Faucets
Available
Heavy Duty
5-1/2”
Gooseneck
K-132
Heavy Duty
9” Swing
Spout
K-133
FOR 7-PS-26
7-PS-41
43 lbs.
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, JULY 2009
