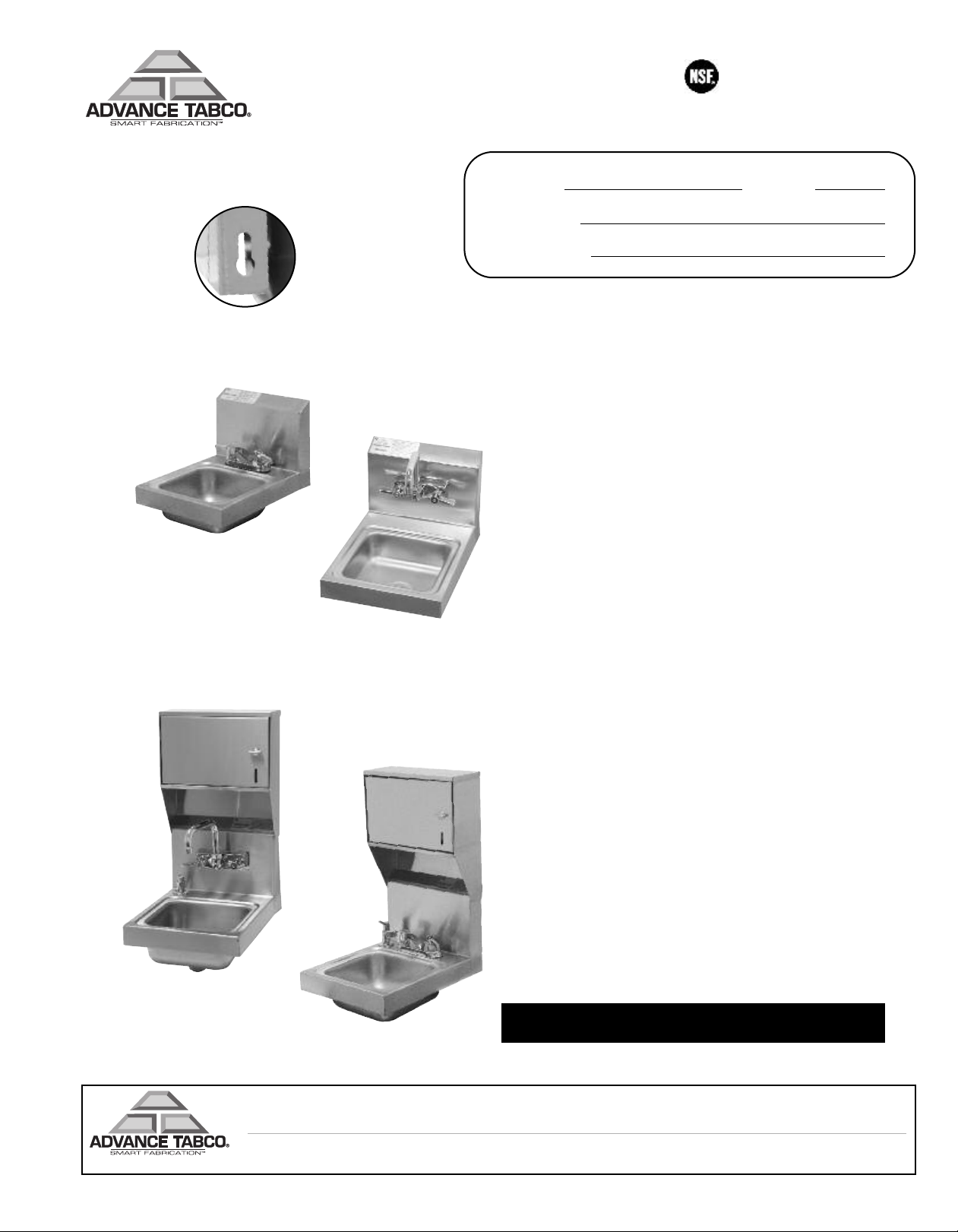

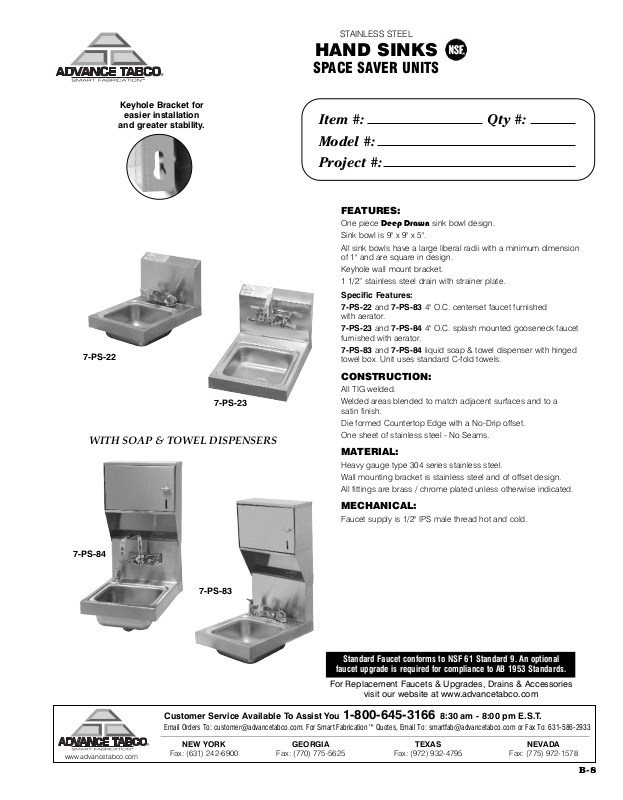

7-PS-22
Keyhole Bracket for
easier installation
and greater stability.
STAINLESS STEEL
HAND SINKS
SPACE SAVER UNITS
Item #: Qty #:
Model #:
Project #:
FEATURES:
One piece Deep Drawn sink bowl design.
Sink bowl is 9" x 9" x 5".
All sink bowls have a large liberal radii with a minimum dimension
of 1" and are square in design.
Keyhole wall mount bracket.
1 1/2” stainless steel drain with strainer plate.
Specific Features:
7-PS-22 and 7-PS-83 4" O.C. centerset faucet furnished
with aerator.
7-PS-23 and 7-PS-84 4" O.C. splash mounted gooseneck faucet
furnished with aerator.
7-PS-83 and 7-PS-84 liquid soap & towel dispenser with hinged
towel box. Unit uses standard C-fold towels.
7-PS-23
WITH SOAP & TOWEL DISPENSERS
7-PS-84
7-PS-83
CONSTRUCTION:
All TIG welded.
Welded areas blended to match adjacent surfaces and to a
satin finish.
Die formed Countertop Edge with a No-Drip offset.
One sheet of stainless steel - No Seams.
MATERIAL:
Heavy gauge type 304 series stainless steel.
Wall mounting bracket is stainless steel and of offset design.
All fittings are brass / chrome plated unless otherwise indicated.
MECHANICAL:
Faucet supply is 1/2" IPS male thread hot and cold.
Standard Faucet conforms to NSF 61 Standard 9. An optional
faucet upgrade is required for compliance to AB 1953 Standards.
For Replacement Faucets & Upgrades, Drains & Accessories
visit our website at www.advancetabco.com
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: [email protected]. For Smart Fabrication™ Quotes, Email To: [email protected] or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
B-8
Page 2

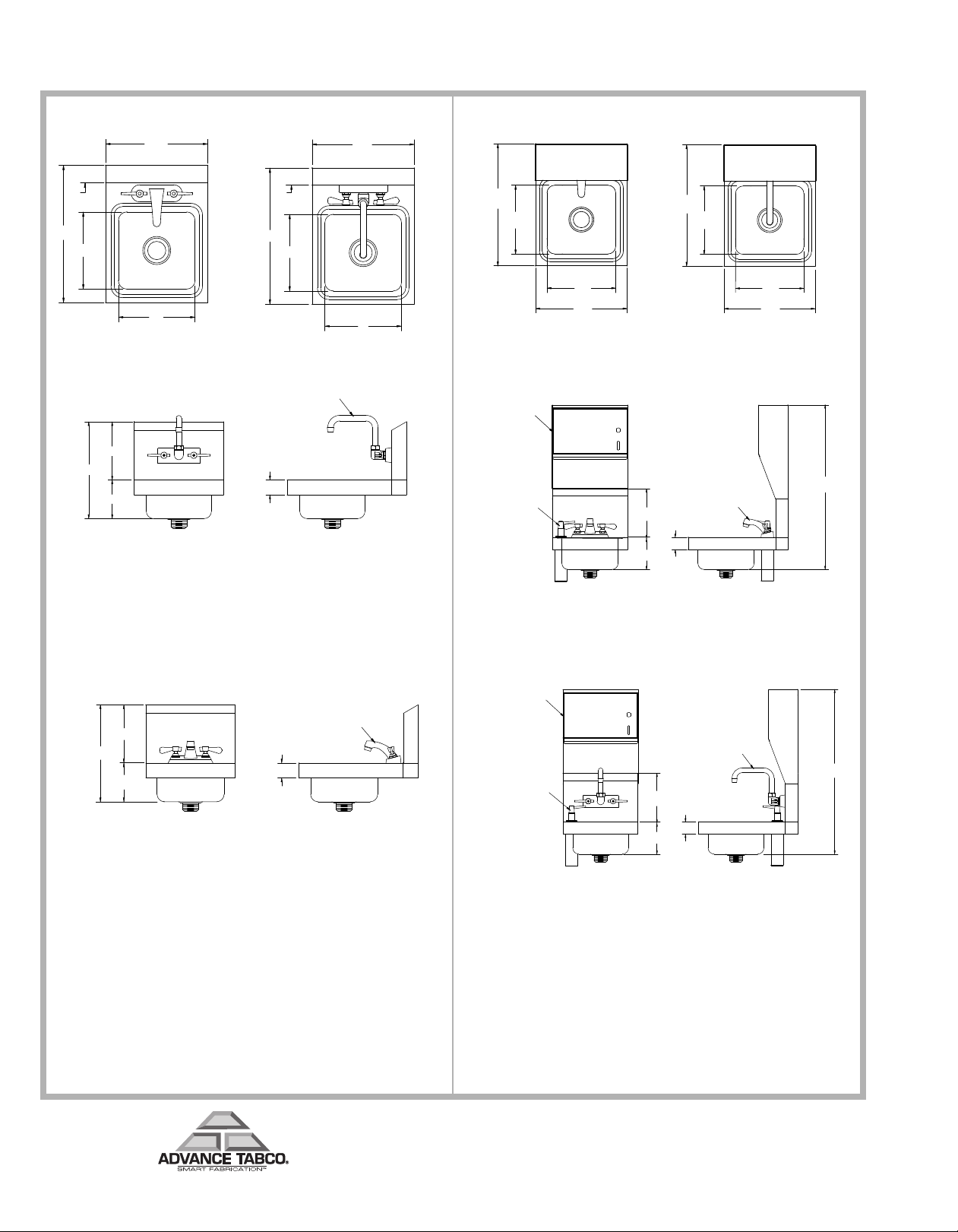

DIMENSIONS and SPECIFICATIONS
“D” Spout Faucet
1
3"
8
"
5"
2"
Faucet
13"
8"
5"
2"
5”
Towel
Dispenser
Deck
Mounted
Soap
Dispenser
8”
26 1/2”
2”
Faucet
2"
5"
Towel
Dispenser
Deck Mounted
Soap Dispenser
8"
26 1/2"
“D” Spout
Faucet
9
"
1
6"
12"
9
"
1
2"
16"
2"
9"
9"
12"
16"
2"
9"
9"
9"
16"
12"
9"
TOL Overall: ± .500" Interior: ± .250" FITTINGS SUPPLIED AS SHOWN ALL DIMENSIONS ARE TYPICAL
TOP VIEW FOR 7-PS-22
7-PS-23
TOP VIEW FOR 7-PS-23
TOP VIEW FOR 7-PS-83
7-PS-83
TOP VIEW FOR 7-PS-84
12 lbs.
7-PS-22
12 lbs.
B-8a
200 Heartland Boulevard, Edgewood, NY 11717-8380
20 lbs.
7-PS-84
20 lbs.
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, JULY 2009
