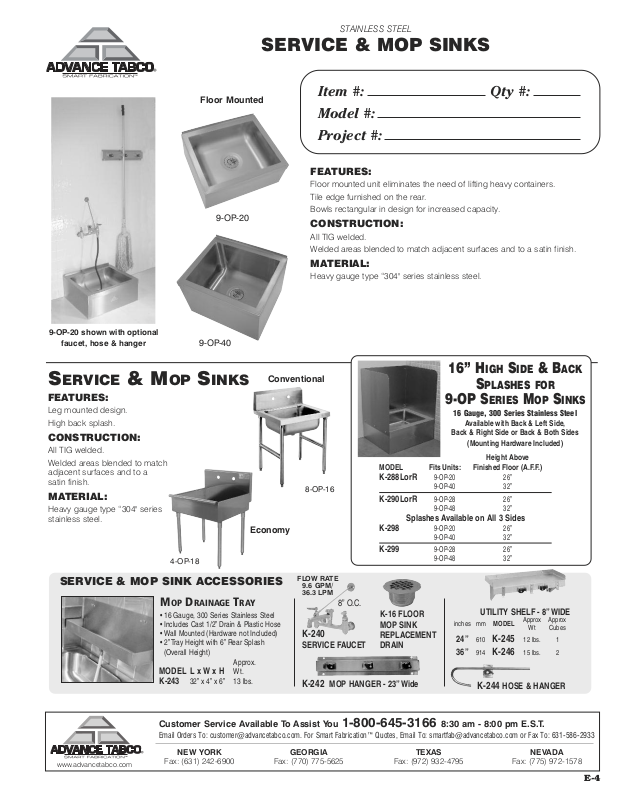

Advance Tabco K-288L, 4-OP-18 Specifications
STAINLESS STEEL
SERVICE & MOP SINKS
Floor Mounted
9-OP-20
9-OP-20 shown with optional
faucet, hose & hanger
9-OP-40
SERVICE & MOP SINKS
FEATURES:
Leg mounted design.
High back splash.
CONSTRUCTION:
All TIG welded.
Welded areas blended to match
adjacent surfaces and to a
satin finish.
MATERIAL:
Heavy gauge type “304" series
stainless steel.
Economy
4-OP-18
SERVICE & MOP SINK ACCESSORIES
MOP DRAINAGE TRAY
• 16 Gauge, 300 Series Stainless Steel
• Includes Cast 1/2” Drain & Plastic Hose
• Wall Mounted (Hardware not Included)
• 2”Tray Height with 6” Rear Splash
(Overall Height)
MODEL L x W x H Wt.
K-243 32” x 4” x 6” 13 lbs.
Approx.
FEATURES:
Floor mounted unit eliminates the need of lifting heavy containers.
Tile edge furnished on the rear.
owls rectangular in design for increased capacity.
B
CONSTRUCTION:
All TIG welded.
Welded areas blended to match adjacent surfaces and to a satin finish.
MATERIAL:
Heavy gauge type “304" series stainless steel.
Conventional
8-OP-16
FLOW RATE
9.6 GPM/
36.3 LPM
K-240
SERVICE FAUCET
K-242 MOP HANGER - 23” Wide
Item #: Qty #:
Model #:
Project #:
16” HIGH SIDE & BACK
SPLASHES FOR
9-OP SERIES MOP SINKS
16 Gauge, 300 Series Stainless Steel
Available with Back & Left Side,
Back & Right Side or Back & Both Sides
(Mounting Hardware Included)
Height Above
MODEL Fits Units: Finished Floor (A.F.F.)
K-288LorR
K-290LorR
K-298
K-299
8” O.C.
K-16 FLOOR
MOP SINK
REPLACEMENT
DRAIN
9-OP-20 26”
9-OP-40 32”
9-OP-28 26”
9-OP-48 32”
Splashes Available on All 3 Sides
9-OP-20 26”
9-OP-40 32”
9-OP-28 26”
9-OP-48 32”
UTILITY SHELF - 8” WIDE
inches mm MODEL
24” 610 K-245 12 lbs. 1
36” 914 K-246 15 lbs. 2
K-244 HOSE & HANGER
Approx Approx
Wt Cubes
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
E-4
DIMENSIONS
10
1
2
"
21"
25"
L
C
1
2
3
3"
25"
1
2
"
C
L
Rubber Gasket
Fiber Washer
Die Cast Nut
Exterior Thread
Interior Thread
Interior Rubber Bladder
Interior Compression Ring
Flat Strainer Plat
2
3
4
"
2" IPS Pipe
30"
6"
15"
6"
3"
2"
1/4" x 1 1/2"
Slotted Mounting Holes
1/2" IPS Drain
L
C
L
C
TOL Overall: ± .500" ALL DIMENSIONS ARE TYPICAL
Interior: ± .250"
SUGGESTED INSTALLATION
MOP SINK DRAIN ASSEMBLY
9-OP-20: 16" x 20" x 6" Bowl with 10" Overall Height.
9-OP-28: 20" x 28" x 6" Bowl with 10" Overall Height.
9-OP-40: 16" x 20" x12" Bowl with 16" Overall Height.
-OP-48:
9
20" x 28" x 12" Bowl with 16" Overall Height.
9-OP-20
9-OP-40
K-243 MOP DRAINAGE TRAY
9-OP-28
9-OP-48
E-4a
8-OP-16
CONVENTIONAL DESIGN
200 Heartland Boulevard, Edgewood, NY 11717-8380
13 lbs.
4-OP-18
ECONOMY DESIGN
1 1/2" IPS
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, DECEMBER 2010
