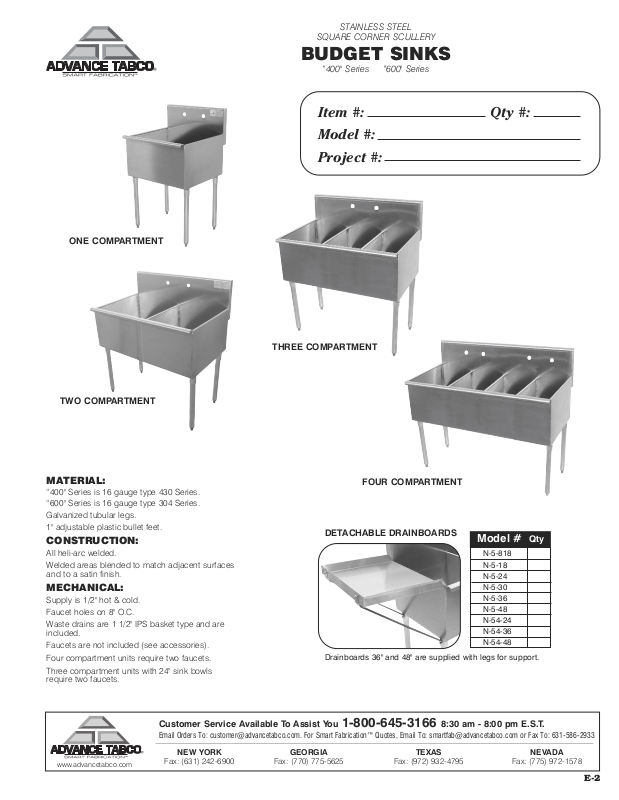

Advance Tabco 4-41-36 Specifications

ONE COMPARTMENT

STAINLESS STEEL

QUARE CORNER SCULLERY

S

BUDGET SINKS

“400" Series “600" Series

Item #: Qty #:

Model #:

Project #:

TWO COMPARTMENT

MATERIAL:

“400" Series is 16 gauge type 430 Series.
“600" Series is 16 gauge type 304 Series.
Galvanized tubular legs.
1" adjustable plastic bullet feet.

CONSTRUCTION:

All heli-arc welded.
Welded areas blended to match adjacent surfaces

and to a satin finish.

MECHANICAL:

Supply is 1/2" hot & cold.
Faucet holes on 8" O.C.
Waste drains are 1 1/2" IPS basket type and are

included.
Faucets are not included (see accessories).

Four compartment units require two faucets.

Three compartment units with 24" sink bowls
require two faucets.

THREE COMPARTMENT

FOUR COMPARTMENT

DETACHABLE DRAINBOARDS

Drainboards 36" and 48" are supplied with legs for support.

Model #

N-5-818
N-5-18
N-5-24
N-5-30
N-5-36
N-5-48
N-54-24
N-54-36
N-54-48

Qty

www.advancetabco.com

Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.

Email Orders To: [e-mail]. For Smart Fabrication™ Quotes, Email To: [e-mail] or Fax To: 631-586-2933

NEW YORK GEORGIA TEXAS NEVADA

Fax: [phone] Fax: [phone] Fax: [phone] Fax: [phone]

E-2

DIMENSIONS and SPECIFICATIONS

8"

41"

14"

8"

12"

L

C

L

C

37 1/2"

7 1/2"

2"

19"

14"

33"

1 1/2"

L

C

L

C

B

D

A

C

B

A

C

B

A

C

B

C

A

D

D

TOL Overall: ± .500" Interior: ± .250" ALL DIMENSIONS ARE TYPICAL

ONE COMPARTMENT

hip

400" Series

A

18" 18" 21 1/2" 4-81-18 6-81-18 45 lbs.

21" 18" 24 1/2" 4-1-18 6-1-18 47 lbs.

21" 24" 24 1/2" 4-1-24 6-1-24 53 lbs.

21" 36" 24 1/2" 4-1-36 6-1-36 66 lbs.

24" 24" 27 1/2" 4-41-24 6-41-24 53 lbs.

24" 36" 27 1/2" 4-41-36 6-41-36 69 lbs.

A

B

21" 36" 24 1/2" 18" 4-2-36 6-2-36 73 lbs.

21" 48" 24 1/2" 24" 4-2-48 6-2-48 86 lbs.

21" 60" 24 1/2" 30" 4-2-60 6-2-60 100 lbs.

24" 48" 27 1/2" 24" 4-42-48 6-42-48 88 lbs.

24" 60" 27 1/2" 30" 4-42-60 6-42-60 108 lbs.

A

B

21" 36" 24 1/2" 12" 4-3-36 6-3-36 78 lbs.

21" 48" 24 1/2" 16" 4-3-48 6-3-48 91 lbs.

21" 54" 24 1/2" 18" 4-3-54 6-3-54 98 lbs.

21" 72" 24 1/2" 24" 4-3-72 6-3-72 115 lbs.

24" 60" 27 1/2" 20" 4-43-60 6-43-60 105 lbs.

24" 72" 27 1/2" 24" 4-43-72 6-43-72 120 lbs.

C

B

CD

THREE COMPARTMENTS

CD

“

16 Ga. S/S “430"

TWO COMPARTMENTS

400" Series

“

16 Ga. S/S “430"

400" Series

“

16 Ga. S/S “430"

“600" Series

6 Ga. S/S “300"

1

“600" Series

6 Ga. S/S “300"

1

“600" Series

6 Ga. S/S “300"

1

S

Weight

hip

S

Weight

hip

S

Weight

E-2a

FRONT VIEW

200 Heartland Boulevard, Edgewood, NY 11717-8380

A

21" 48" 24 1/2" 12" 4-4-48 6-4-48 96 lbs.

21" 60" 24 1/2" 15" 4-4-60 6-4-60 115 lbs.

21" 72" 24 1/2" 18" 4-4-72 6-4-72 120 lbs.

PLUMBING ROUGH-IN

FOUR COMPARTMENTS

B

CD

“400" Series

16 Ga. S/S “430"

“600" Series

16 Ga. S/S “300"

DETACHABLE DRAINBOARDS

Size

18 x 18 N-5-818 10 lbs.

21 x 18 N-5-18 11 lbs.

21 x 24 N-5-24 12 lbs.

21 x 30 N-5-30 22 lbs.

21 x 36 N-5-36 25 lbs.

21 x 48 N-5-48 28 lbs.

24 x 24 N-54-24 18 lbs.

24 x 36 N-54-36 32 lbs.

24 x 48 N-54-48 36 lbs.

ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.

18 Ga. S/S “430"

© ADVANCE TABCO, JANUARY 2005
