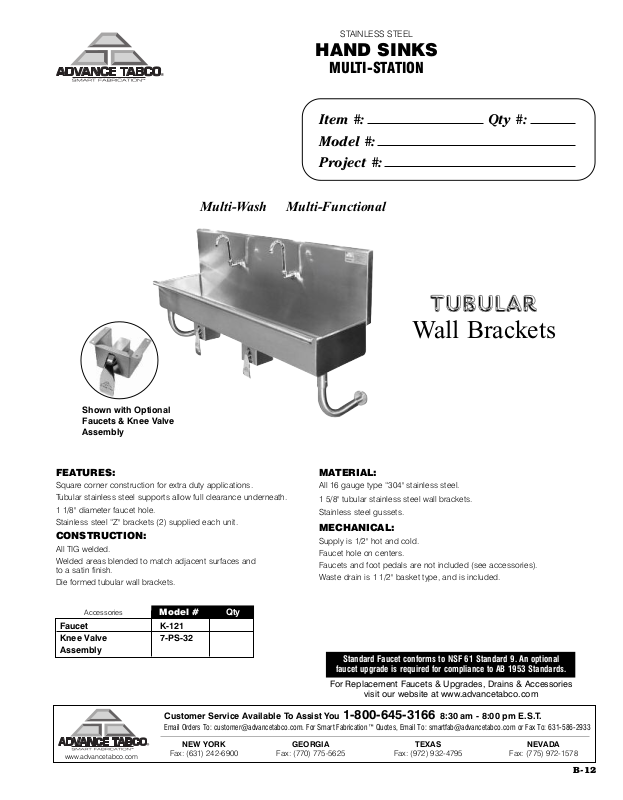

Advance Tabco 19-18-48, 19-18-23 Specifications
STAINLESS STEEL
HAND SINKS
MULTI-STATION
Item #: Qty #:
Model #:
Project #:
Multi-Wash Multi-Functional
TUBULAR
Shown with Optional
Faucets & Knee Valve
Assembly
FEATURES:
Square corner construction for extra duty applications.
Tubular stainless steel supports allow full clearance underneath.
1 1/8" diameter faucet hole.
Stainless steel “Z" brackets (2) supplied each unit.
CONSTRUCTION:
All TIG welded.
Welded areas blended to match adjacent surfaces and
to a satin finish.
Die formed tubular wall brackets.
Accessories
Faucet
Knee Valve
Assembly
Model # Qty
K-121
7-PS-32
Wall Brackets
MATERIAL:
All 16 gauge type “304" stainless steel.
1 5/8" tubular stainless steel wall brackets.
Stainless steel gussets.
MECHANICAL:
Supply is 1/2" hot and cold.
Faucet hole on centers.
Faucets and foot pedals are not included (see accessories).
Waste drain is 1 1/2" basket type, and is included.
Standard Faucet conforms to NSF 61 Standard 9. An optional
faucet upgrade is required for compliance to AB 1953 Standards.
For Replacement Faucets & Upgrades, Drains & Accessories
visit our website at www.advancetabco.com
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
B-12
DIMENSIONS and SPECIFICATIONS
Length
17 1/2"
1 1/2"
2
"
14"
A
A
20"
8"
10 3/4"
1 5/8" S/S Tubing
10 3/4"
Flanged Adj. Wall Support
TOL ± .500" FITTINGS SUPPLIED AS SHOWN ALL DIMENSIONS ARE TYPICAL
LENGTH
20”
48”
60”
72”
96”
NOTE: 96” Unit provided with 2 Drains.
MODEL #
19-18-23
19-18-48
19-18-60
19-18-72
19-18-96
OPTIONAL ACCESSORIES
7-PS-32
K-121
K-175
NO. OF
FAUCETS
1
2
2
3
19 3/16"
4
KNEE VALVE ASSEMBLY
FAUCET
ELECTRONIC FAUCET
A
12"
16"
20”
18"
WEIGHT
50
90
102
114
138
B-12a
200 Heartland Boulevard, Edgewood, NY 11717-8380
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, AUGUST 2009
