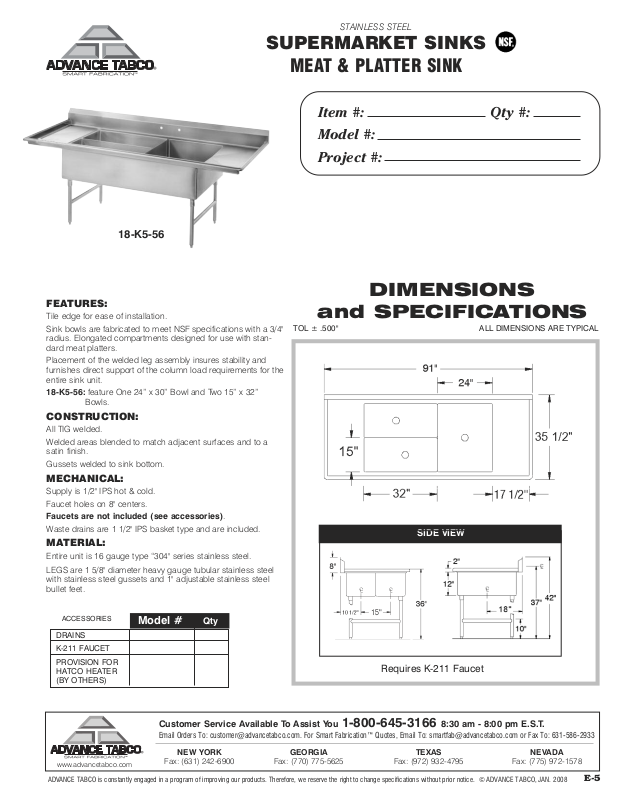

Advance Tabco 18-K5-56 Specifications

SUPERMARKET SINKS

18-K5-56

FEATURES:

Tile edge for ease of installation.
Sink bowls are fabricated to meet NSF specifications with a 3/4"

radius. Elongated compartments designed for use with stan­dard meat platters.

Placement of the welded leg assembly insures stability and
furnishes direct support of the column load requirements for the
entire sink unit.

18-K5-56: feature One 24” x 30” Bowl and Two 15” x 32”

Bowls.

CONSTRUCTION:

All TIG welded.
Welded areas blended to match adjacent surfaces and to a

satin finish.
Gussets welded to sink bottom.

MECHANICAL:

Supply is 1/2" IPS hot & cold.
Faucet holes on 8" centers.
Faucets are not included (see accessories).
Waste drains are 1 1/2" IPS basket type and are included.

MATERIAL:

Entire unit is 16 gauge type “304" series stainless steel.

LEGS are 1 5/8" diameter heavy gauge tubular stainless steel
with stainless steel gussets and 1" adjustable stainless steel
bullet feet.

STAINLESS STEEL

MEAT & PLATTER SINK

Item #: Qty #:

Model #:

Project #:

DIMENSIONS

and SPECIFICATIONS

TOL ± .500" ALL DIMENSIONS ARE TYPICAL

SIDE VIEW

ACCESSORIES

DRAINS

K-211 FAUCET

PROVISION FOR
HATCO HEATER
(BY OTHERS)

www.advancetabco.com

ADVANCE TABCO is constantly engaged in a program of improving our products. Therefore, we reserve the right to change specifications without prior notice. © ADVANCE TABCO, JAN. 2008

Model #

Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.

Email Orders To: [e-mail]. For Smart Fabrication™ Quotes, Email To: [e-mail] or Fax To: 631-586-2933

Fax: [phone] Fax: [phone] Fax: [phone] Fax: [phone]

Qty

Requires K-211 Faucet

NEW YORK GEORGIA TEXAS NEVADA

E-5
