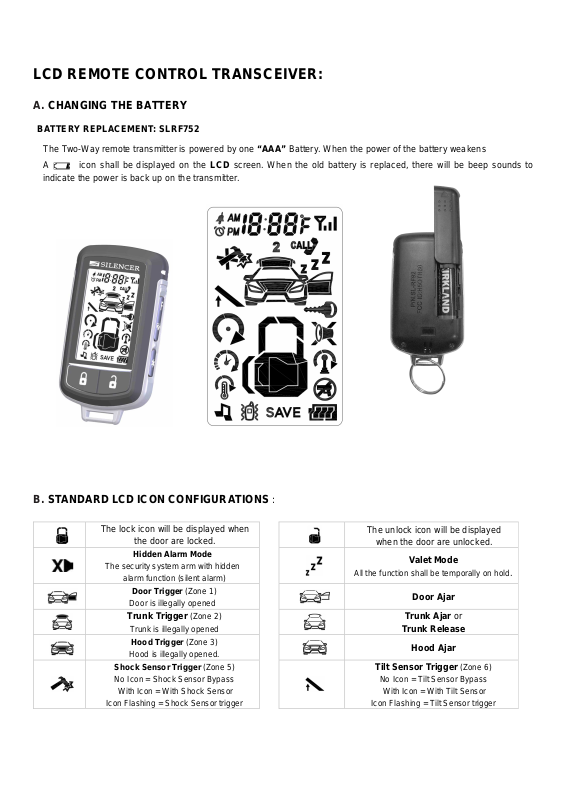

LCD REMOTE CONTROL TRANSCEIVER:
A. CHANGING THE BATTERY
BATTERY REPLACEMENT: SLRF752
The Two-Way remote transmitter is powered by one “AAA” Battery. When the power of the battery weakens
A icon shall be displayed on the LCD screen. When the old battery is replaced, there will be beep sounds to
indicate the power is back up on the transmitter.
B. STANDARD LCD ICON CONFIGURATIONS :
The lock icon will be displayed when
The security system arm with hidden
the door are locked.
Hidden Alarm Mode
alarm function (silent alarm)
Door Trigger (Zone 1)
Door is illegally opened
Trunk Trigger
Trunk is illegally opened
Hood Trigger (Zone 3)
Hood is illegally opened.
Shock Sensor Trigger (Zone 5)
No Icon = Shock Sensor Bypass
With Icon = With Shock Sensor
Icon Flashing = Shock Sensor trigger
(Zone 2)
The unlock icon will be displayed
when the door are unlocked.
Valet Mode
All the function shall be temporally on hold
Door Ajar
Trunk Ajar or
Trunk Release
Hood Ajar
Tilt Sensor Trigger
No Icon = Tilt Sensor Bypass
With Icon = With Tilt Sensor
Icon Flashing = Tilt Sensor trigger
(Zone 6)
.
Page 2
Ignition Trigger
(
Icon flash) Ignition switch was illegally
turned on.
Engine Cranking
Your vehicle engine cranking by remote
control.
Timer Control Start
Engine starts automatically every
2 or 3 hours
Temperature Control Start
Engine will start at a specified temperature
Manual Transmission Mode
Driver Paging
Someone is paging you from of your
vehicle.
Remote Transmission
You are transmitting the signal to control
unit.
Low Battery
Melody Mode
Alarm Clock
(Zone 4)
2222
System Trigger or Panic mode
Engine Running
Your vehicle’s engine is running
Display the set up Running time
interval 2 / 3 / 24 Hours
Display the set up start temperature
2nd Car Operation
Button Lock
In – Range Indicator
You are within the range of the remote
Power Save
Vibration Mode
Parking Meter
Reminder when time is up for parking
control
(Icon on)
.
C. REMOTE TRANSMITTER OPERATION:
Transmitter
Button
-
-
- -
-
Arm & Lock Doors
Silent Arm & Lock Doors
Panic Function
Car Locator
Arm and Delete the
2 Stage Shock Sensor
Arm and Delete the
Tilt Sensor
Arm and Delete the
2 Stage Shock & Tilt Sensor
Arm and Hidden Alarm Function
Disarm & Unlock Doors
Silent Disarm & Unlock Doors
System Function Remark
Press the Lock button for a half second
Press and hold for 1.0 seconds
Press and hold for 3 seconds to Activate or
Deactivate panic function
Press when in Armed Mode
Press Twice within 3 seconds.
Press the
Press Twice then Press button within 3
seconds.
Press the button first then Press button
Press the Unlock button for a half second
Press and hold for 1.0 seconds
button
first then Press button
-
Disarm & Two Steps Door Unlock
(optional)
Press twice within 3 seconds
Page 3
1.0sec.
-
Silent Disarm & Two Steps Door Unlock
Press and hold the button for 1.0 seconds first
then press button.
-
+
+
+
+
+
+
Trunk Release (Aux 1)
Passive Arming By-Pass
Activate or Deactivate the Remote Start
Running Time Extender
Timer Start
Turbo Mode
Aux 2 Timer Output
Aux 3 Timer Output
Aux 4 Timer Output
Switch Code for 2nd Car Operation
Shutdown Diagnostic Press together & release
Level Setting. Press and release F button once.
Press and hold for 3 seconds
While the system is disarmed
Press button once.
- Press twice if set to start safety mode.
Press and hold for 2 seconds
Press the button first then tap Press button.
Press together & release.
Press together & release.
Press together & release.
Press together & release
Press together & release.
FFFF
Light up LCD indicator & Function Setting Press and hold for 1.0 seconds
LCD Remote Program Setting Press and hold for 3.0 seconds
D. LCD TRANSCEIVER REMOTE CONTROL:
1.
Press the F buttons the number of times corresponding to the Level you wish to select; the LCD will display LEVEL
number ( )
2.
Press the button while LEVEL number text is still on to perform the command.
Button Direct Access
Arm & Lock
1 sec.
F
1 sec
Vehicle’s Status Check: Press F button first then press and hold buttons for 1 second. The LCD remote transceiver
Silent Arming
Disarm & Unlock or
Silent Disarming
Trunk Release
(Aux 1)
Remote Start or
Running Time Extender
F
x 1 Level 1
Arm & Bypass the
Shock Sensor
Vehicle’s
Status Check
Remote Valet ON / OFF Car 1 / Car 2 operation
Aux 2 Aux 3
Timer Start ON / OFF
Melody /
Vibration Mode
F
x 2 Level 2
Arm & Bypass the
Tilt Sensor
Temperature Check
Daily Timer Start
ON / OFF
Power Save Mode
ON / OFF
F
x 3 Level 3
Hidden Alarm
Voltage Check
Aux 4
Button Lock
ON / OFF
will display the current status of the vehicle.
Page 4
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
