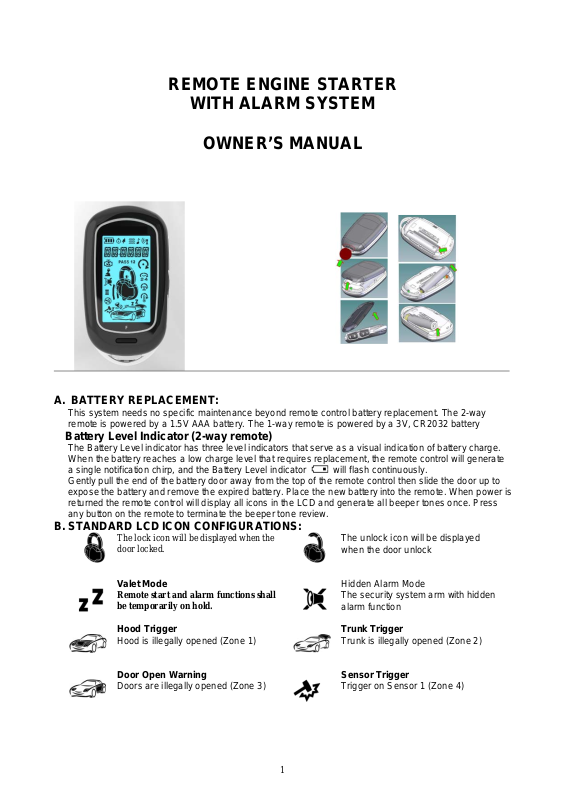

REMOTE ENGINE STARTER

WITH ALARM SYSTEM

OWNER’S MANUAL

A. BATTERY REPLACEMENT:

This system needs no specific maintenance beyond remote control battery replacement. The 2-way remote is powered by a 1.5V AAA battery. The 1-way remote is powered by a 3V, CR2032 battery

Battery Level Indicator (2-way remote)

The Battery Level indicator has three level indicators that serve as a visual indication of battery charge. When the battery reaches a low charge level that requires replacement, the remote control will generate a single notification chirp, and the Battery Level indicator Gently pull the end of the battery door away from the top of the remote control then slide the door up to expose the battery and remove the expired battery. Place the new battery into the remote. When power is returned the remote control will display all icons in the LCD and generate all beeper tones once. Press any button on the remote to terminate the beeper tone review.

will flash continuously.

B. STANDARD LCD ICON CONFIGURATIONS:

The lock icon will be displayed when the door locked.

Valet Mode

Remote start and alarm functions shall be temporarily on hold.

Hood Trigger

Hood is illegally opened (Zone 1)

The unlock icon will be displayed when the door unlock

Hidden Alarm Mode The security system arm with hidden alarm function

Trunk Trigger

Trunk is illegally opened (Zone 2)

Door Open Warning

Doors are illegally opened (Zone 3)

1

Sensor Trigger

Trigger on Sensor 1 (Zone 4)

PASS 1

Ignition Trigger

Ignition switch is illegally turned on (Zone 5)

Remote Transmission

You are transmitting the signal to control unit

Anti Car-Jack Mode

Activate the anti car-jacking mode

Engine Cranking

Your vehicle engine Cranking by remote control

Timer Control Start

Engine start automatically every 2 or 3 hours.

Sensor Bypass

Sensor 1bypass under Arm mode

Manual Gear

Engine Start Memorizing for the car with manual gear was set up

System trigger

In – Range Indicator

Your are within the remote control range.

nd

Car Operation

2

Engine Running

Your vehicle's engine is running

Daily Start

Engine start automatically at the same time next day

Turbo Timer

Turbo timer was set up

Activate Channel 3 (Trunk Release).

12:00

0:10 P

Activate Channel 3

Time Monitor

Parking Meter

Reminder when time is up for parking

Melody Mode

Remote Control alert user through melody sound

12:00

Activate Channel 4

Alarm Clock

You have set morning call alarm

Low Battery

You have to replace the battery of remote control.

Vibration Mode

Remote Control vibrates when the system is triggered

C. 2-way LCD REMOTE CONTROL TRANSCEIVER OPERATION:

Table 1: Enter : Press & hold “ F “ button until one beep, release F-button and continue press

F button within 5 sec. to move forward to feature option you want to program.

EXIT: Press & hold " F " button for 2 sec. or do nothing wait for 5 sec. automatic exit

2-way LCD (1 beep) => Confirm Exit.

F Button LCD Display Button

Press and hold the F

Button until 1 beeps sound

Press F Button 2nd time

(HHU 1 beep) within 5 seconds

SENSOR BYPASS and

PASS 1 icon On

HIDDEN ALARM and

icon On

Press button Enable to arm the alarm and bypass sensor 1.

Press system and with Hidden Alarm Function.

button Enable to arm

2

Press

F Button 3rd time

(HHU 1 beep) within 5 seconds

Press F Button 4th time

(HHU 1 beep) within 5 seconds

ANTI- HIJACK and

icon On

CH 4 flashing

Under ignition in "on" position Press

button Enable to activate anti car jacking functions. Press button Enable CH#4 output

Note : Press and release F Button 2-way LCD Backlight turns on for 5 seconds

Table 2 : Enter : Press & hold “ F “ button until 2 beeps heard, release F-button.

Continue press F button within 5 sec. to move forward to feature option

you want to program.

EXIT: Press & hold " F " button for 2 sec. or do nothing wait for 5 sec. automatic exit

2-way LCD (1 beep) => Confirm Exit.

F Button LCD display Button

Press and hold the F

Button until 2 beeps sounded

Press F Button 2

time (HHU 1 beep) within 5 seconds

Press F Button 3rd

times (HHU 1 beep) within 5 seconds

Press F Button 4th

times (HHU 1 beep) within 5 seconds

Press F Button 5th

time (HHU 1 beep) within 5 seconds

nd

Table 4 : Return 2-way HHU to default setting

Enter : Press & hold “ F “ button until 4 beeps heard, release F-button.

EXIT: Press & release " F " button or do nothing wait for 5 sec. automatic exit

2-way LCD (1 beep) => Confirm Exit.

MENU flashing Press button to enter 2-way

HHU menu mode

STATUS CHECK

ALARM CHECK

VOLTS CHECK

Press button Enable to check the vehicle’s status.

Press button Enable to check vehicle’s trigger status.

Press button Enable to check vehicle’s Voltage.

TEMP CHECK

Press button Enable to check temp. status

F Button LCD display Button

Press and hold the F

Button until 4 beeps sounded

D. 2-way LCD HHU PROGRAMMING (Select and Adjusting Table-2-Menu options):

Enter:

1. Press and hold

2. The Matrix show MENU flash, press (LCD display show Hours of current time set up, set up hour(s) first.)

3. Press

4. Press

5. Press button to confirm its selection, move to the next option.

EXIT: Press & hold " F " button or do nothing wait for 15 sec. automatic exit

2-way LCD (1 beep) => Confirm Exit.

button to increase value, or Enable the selected feature. button to decrease value, or Disable the selected feature .

F button until 2 beeps heard then release the F button.

RESET flashing Press & hold button for 2

seconds to back to default setting and 1 chip for confirm

button to enter HHU menu mode.

3

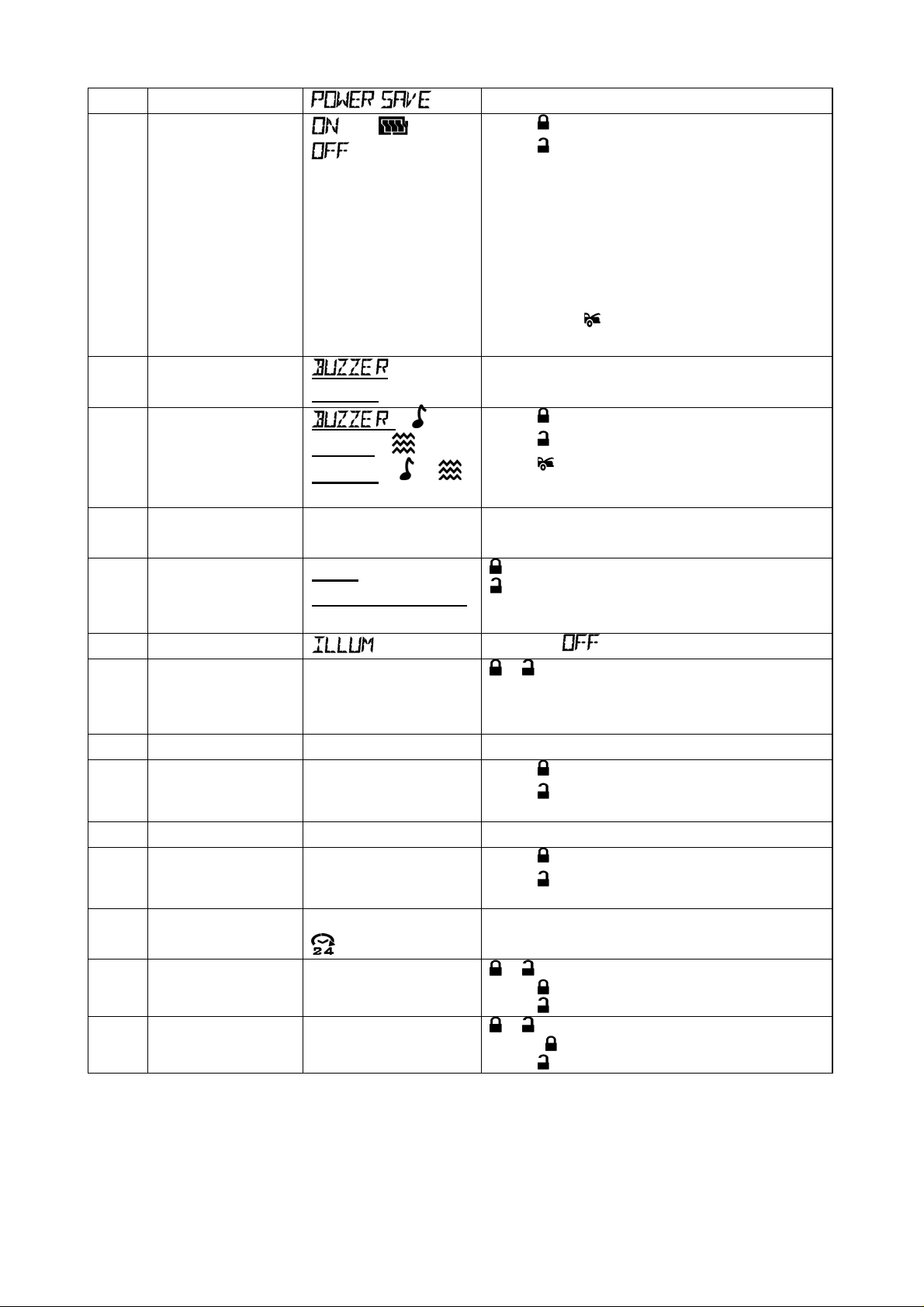

Order Menu Option LCD display Functions

1 Current time set

up

2 Alarm Clock set

3 Parking Meter

Adjust clock hours from 0 to 12

Adjust clock minutes from 0 to 59

up

Adjust Alarm Clock hours from 0 to 12

Adjust Alarm Clock minutes from 0 to 59

Select Alarm Clock Enable or Disable

countdown

Adjust Parking Meter countdown hours from 0 to 2

Adjust Parking Meter countdown minutes from 0 to

59. Select Parking

meter countdown Enable or Disable

12 : 00

12 is flashing

12:

00 is flashing

12 :00

12 is flashing

12: 00 is flashing

ON + or

OFF

PARK METER Default is OFF

0 :00

0 is flashing

0 : 30

30 is flashing

P-- ON + or

P -- OFF

Default is 12:00

Press Press Press next option.

00

Press Press Press next option.

Default is OFF

Press Press Press next option.

Press Press Press next option. There is a beep sound at 5 min. before Parking countdown reach 0.

button = (+) or button = (-)
