MAY/03/2004
ALERT
MODEL 750R
REMOTE ENGINE STARTER
WITH ALARM SYSTEM
OWNER’S MANUAL
WARNINGS:
As with any product that performs automatic functions, there are certain safety precautions that you must
practice and be aware of.
1. Keep the transmitter out of children’s reach.
2. Do not leave anyone in the vehicle while running on remote control.
3. Alert servicing personnel that the vehicle can be started automatically.
4. Do not start the vehicle by remote while it’s in an enclosed area or garage.
5. Always apply the parking brake and lock the vehicle as you exit the vehicle.
6. The vehicle windows must be rolled up.
7. Should the unit malfunction, disconnect the fuse until the problem is corrected.
8. The use and operations of this system is the sole responsibility of the operator.
9. Some areas may have local ordinances that prohibit leaving a vehicle running on public streets.
10. Do not start the vehicle by remote while the standard transmission vehicle is parked at a steep place.
TABLE OF CONTENTS
A. REMOTE TRANSMITTER OPERATION ……………………………………….….………………….………..4
B. 2-WAY LCD REMOTE CONTROL TRANSCEIVER OPERATION. ……………..…………………………. 4
C. LED DISPLAY .……………..…………………………………………………………….………….………..….. 4
D. CHIRP INDICATOR ..………..……………………………………………………………..………………..….... 4
E. PARKING LIGHT …….……..……………………………………………………………….………….……..…. 4
F. ALARM OPERATION CONDITION .…………………………………………………………..………….….…. 4
G. ACTIVE ARMING – ARM & LOCK .……………………………………………………………..…………..…. 4
Ajar Warning
Silent Arming / Disarming
Shock Sensor By-Pass
Noiseless Mode
Passive Starter Disable
Hidden Alarm Function
H. PASSIVE ARMING .……………………………………………....………………………………………………. 5
Passive Arming with Passive Door Locking
Passive Arming By-Pass
I. ACTIVE DISARMING – UNLOCK & DISARM .……………………………….…………………..……………. 5
Tamper Disarming
Pathway Illumination
Two Steps Door Unlock
Automatic Re-Arm
J. DISARMING WITHOUT A TRANSMITTER .……….……..…………………..………………………………... 6
Overrides the Alarm without Password Pin Code
Overrides the Alarm With Password Pin Code
K. VALET MODE .……………..……………………………………………………….…………….…………...…. 6
Enter Valet Mode
Exit Valet Mode
Remote Valet
L. CAR LOCATOR .…………………………………………………………………….….……………………….... 7
M. PANIC FUNCTION .…………………………………………………………………….………..….………….... 7
N. TRIGGER THE SYSTEM .………………………………………..……………………….….………….……..…7
Clear The Trigger Icons and Melody Sound
Stop The Melody Sound Only
Noise Abatement Circuit
O. ANTI CAR- JACKING .………………………………………….……………………………………………...…. 8
Active Anti Car Jacking
Passive Anti Car Jacking
Trigger The Anti Car Jacking Mode
750R OP
1
MAY/03/2004
Override The System To Turn Off Anti Car Jacking
P. SYSTEM’S TRIGGER CHECK ……………………………………………………………..….….….…..….…. 8
Q. SYSTEM’S STATUS CHECK ………………………………………………………………….…….……….…...
8
R. DRIVER PAGING ..……………………..…………………………….…………..……………………...……….. 9
S. DOME LIGHT CONVENIENCE DELAY & SUPERVISION ……………………..…………….….……....…..9
T. IGNITION CONTROL THE DOOR LOCK/UNLOCK. ………..………………….……………….…………….9
U. TRUNK RELEASE (CHANNEL 3) OUTPUT ………..……………………………..………………...………… 9
V. CHANNEL 4 TIMER CONTROL OUTPUT ………..………………………………….………..……...…..….. 9
W. CHANNEL 5 TIMER CONTROL OUTPUT ………..…………………………………………….……….….... 9
X. CHANNEL 6 TIMER CONTROL OUTPUT ………..………………………………………………..……….… 9
Y. POWER ON MEMONRY: ………..……………………………………………………………...………...…... 10
REMOTE START OPERATION
A. TO REMOTE START THE
VEHICLE ………….…………………………………………..……………..…...…10
Safe Start (Child safety mode)
B. ENGINE START MEMORIZING FOR THE VEHICLE WITH MANUAL TRANSMISSION GEAR ……...10
C. TO OPERATE THE VEHICLE WHILE RUNNING ON THE REMOTE START ……………….….…..…. 10
D. TEMPORARY STOP FEATURE ………….………………………………….……………………….……..… 11
E. TURBO TIMER MODE …………………….………………………………….………………………….…..… 11
F. TIMER / TEMPERATURE START …………………………………………….…………….………..…….… 11
3 (2) Hours Timer Start With Temperature-Control Off
3 (2) Hours Timer Start With Temperature-Control
Daily Timer Start
Exit the Timer Start
G. TEMPERATURE CHECK …………….…………………………………………………..….……….…….… 12
H. TO TURN OFF THE REMOTE START ………………….………………………………..….…….……….… 12
I. SHUT-DOWN INPUT FOR REMOTE STARTER ……………………………….………….…………….……12
J. DISABLING THE REMOTE START SYSTEM ……………………………….……..………………..…….…..12
LCD REMOTE TRANSCEIVER
A. BATTERY REPLACEMENT ……………………………….…………………………….…………………..… 13
B. THE REMOTE LCD ICONS WITH FUNCTION ……….…………………….………….…………………..… 13
C. PROGRAMMING OF THE LCD REMOTE TRANSCEIVER ………………………….………………….… 13
1. Screen Lamp ON
2. Power Save Mode
3. Clear The Flash Icon and Melody Sound
4. Stop The Melody Sound.
5. Button Lock
6. Vibration / Melody Mode
7. Enable / Disable Bi Sound While Pressing Button:
8. Low Battery Indication.
9. Set Up Fixed Count Down Timer
10. Out Of The Range Check
D. TIMER SETTING ……………………………….…………………………..………..……………….…….….… 14
1. Timer Setting.
2. Alert Alarm Timer Setting
3. Count Down Timer Setting
4. Time Set-Up For “Daily Timer Start”
OPERATION
A. REMOTE TRANSMITTER OPERATION:
Transmitter Button System Function Remark
-
- -
-
Lock Doors & Arm System
Arm and Delete The 2 Stage Shock Sensor. Press twice within 3 seconds
Arm and Noiseless Mode Press within 3 seconds
Arm System and Hidden Alarm Function Press within 3 seconds
750R OP
2
MAY/03/2004
(3-second)
+
+ (2-second)
-
(2-second)
-
- -
-
+
+
+
Car Locator Upon armed
Panic function Press and Hold for 3 seconds.
Silent Arming / Disarming Ignition in "off" position.
Active Anti Car-Jacking Mode Ignition in "on" position press and
hold for 2 seconds
Unlock Doors & Disarm System
Two Steps Door Unlock & Disarm System Press twice within 3 seconds.
Trunk Release (Channel 3) Press and Hold for 2 seconds
Passive Arming By-pass While the system Disarmed.
Remote Control Entry/Exit Valet Mode While the system Disarmed, Press
within 3 seconds
Activate or Turn Off The Remote Start Press twice within 3 seconds.
Channel # 4 Timer Output
Channel # 5 Timer Output
Channel # 6 Timer Output
B. 2-WAY LCD REMOTE CONTROL TRANSCEIVER OPERATION ONLY:
Transceiver Button System Function Remark
F - (C)
F - F - (C)
F - ( )
F - ( )
F (1 second)
F - F - F
System’s Trigger Check Press within 3 seconds
System’s Status Check Press within 3 seconds
Monitor Indoor Temperature Press within 3 seconds
Daily Timer Start Press within 3 seconds
LCD screen lamp turns on for 5 seconds. Press and hold for 1 second
Clear the Flash Icon and Melody Sound on
the LCD Screen Transmitter
Press within 3 seconds
C. LED display:
LED Function LED Function
Off Disarmed Zone 1 / Warn-Away Trigger
Slow Flash Armed 2 flashes... pause Zone 2 / Trigger on Trunk/Hood
Flash Passive Starter Disable 3 flashes... pause Zone 3 / Trigger on Door Switch
Fast Flash Passive Arming 4 flashes... pause Zone 4 / Trigger on Shock Sensor
On (Solid) Valet Mode 5 flashes... pause Zone 5 / Trigger on Ignition Switch
Pause On Password Lock-Out
D. CHIRP INDICATORS: E. PARKING LIGHT:
Chirp Function Parking light Function
1 chirp Arm 1 flash Arm
2 chirps Disarm 2 flashes Disarm
3 chirps Ajar Warning 3 flashes Disarm / Triggered
4 chirps Disarm / Triggered 12 flashes Car Locator
6 chirps Car Locator Constant On Under Remote Start
F. ALARM OPERATING CONDITION:
Siren / Horn Parking Light LED Doors Starter Dome Light
1. Arming 1 or 3 Chirps 1 Flash Slow Flash Locking Disable
2. Disarming 2 or 4 Chirps 2 or 3 Flashes Unlocking Turns on for 30 -second
3. Trigger Alarming Flashes Slow Flash Disable Flashes
4. Passive
Starter Disable
5. Panic Alarming Flashes Flashes
6. Car-Jacking Alarming Flashes Disable Flashes
7. Car Locator 6 Chirps 12 Flashes Locking
Fast Flash Disable
750R OP
3
MAY/03/2004
G. ACTIVE ARMING – LOCK & ARM:
1. Press button on the transmitter.
2. The siren will chirp once and parking light will flash once indicating that the system is now armed. The
vehicle door will lock upon arming when interfaced with the security system.

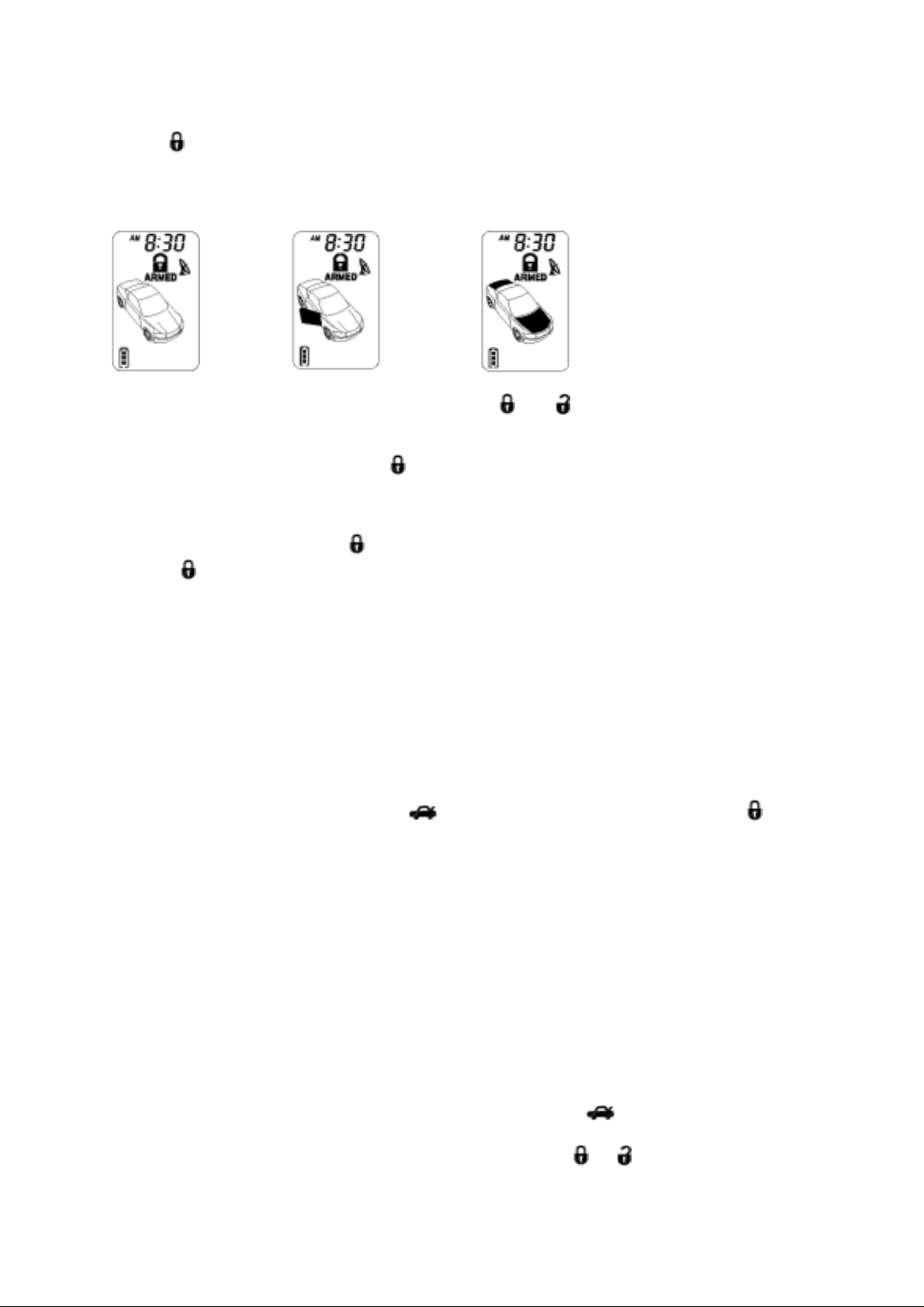

System Arm
Door Ajar
Trunk / Hood Ajar
Clear The Flash Icon:
Press the
times within 3 seconds
will clear the flash icon on
the LCD screen
transceiver.
F button 3
AJAR WARNING: If the siren sounds 3 chirps, then you have left a door, trunk, or hood lid ajar.
SILENT ARMING / DISARMING:
disarm your security system, No chirp sound will be heard, arm / disarm confirmation will be through the
vehicles parking lights only.
SHOCK SENSOR BY-PASS: Press the
the security system and by-pass the shock sensor. The system will chirp one additional time to confirm the
sensor bypass mode was activated. The sensor bypass feature is programmed to activate for one arming
cycle only. The security system will return to normal operation during the next arming cycle.
NOISELESS MODE: Press button
Press the
Noiseless mode, On this mode trigger the zone 4 shock sensor, the trigger timer will reduced from 30
seconds to 15 seconds. .
The noiseless feature is programmed to activate for one arming cycle only. The security system will return
to normal operation during the next arming cycle.
PASSIVE STARTER DISABLES: This security system is equipped with an optional Passive Starter
disable feature, the purpose of the feature is to protect the vehicle from being stolen at all times, regardless
of whether or not the alarm is armed.
The starter of the vehicle will be disable 60 seconds after the ignition is turned off. Once the key is turned
off, the LED will flash fast for 60 seconds.
After 60-second timer has elapsed, the LED will flash slowly (one-half its normal armed rate) to indicate the
passive starter disable is activated and the system will not respond to any trigger input except the ignition
trigger.
HIDDEN ALARM FUNCTION: Press the
activate the hidden alarm function. The security system will arm and with “Hidden Alarm Function”. The
siren / horn will be silenced even if the sensor is triggered in the armed status.
button twice more within 3 seconds: The siren chirps once again, the system is now in
Press the transmitter and buttons at the same time will arm or
once the siren chirps once, The system is armed.
button on the transmitter two times within 3 seconds will arm
button first; within 3 seconds press the button to
H. PASSIVE ARMING
Active arming / disarming is controlling your security system via the remote transmitter. This security
system is equipped with an optional Passive Arming feature, which allows the security system to arm 30
seconds after the last door is closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for 30 seconds. If you reopen any
door / hood / trunk, the security system LED will stop flashing. It will begin flashing again once the
vehicle all entrances are closed.
3. After 30-second timer has elapsed, the security system will automatically “ARM”. The siren will chirp [1]
time and the parking lights will flash [1] time.
PASSIVE ARMING WITH PASSIVE DOOR LOCKING
The vehicle doors will automatically lock after passive arming cycle has been completed.
PASSIVE ARMING BY-PASS: While the system disarmed, Press the
respond with [1] chirp and LED will turn “ON”. The security system will remain in this temporally state for
as long as you wish. To exit passive by-pass, press the transmitter
return to normal status.
button twice, the security will
or button and the system will
750R OP
4
MAY/03/2004
I. ACTIVE DISARMING – UNLOCK & DISARM:
1. Press button on the transmitter.
2. The siren will chirp twice and parking light flash twice to indicating that the security system is now
disarmed. The vehicle’s door will unlock and dome light turns on for 30 seconds upon disarming when
interfaced with the security system.

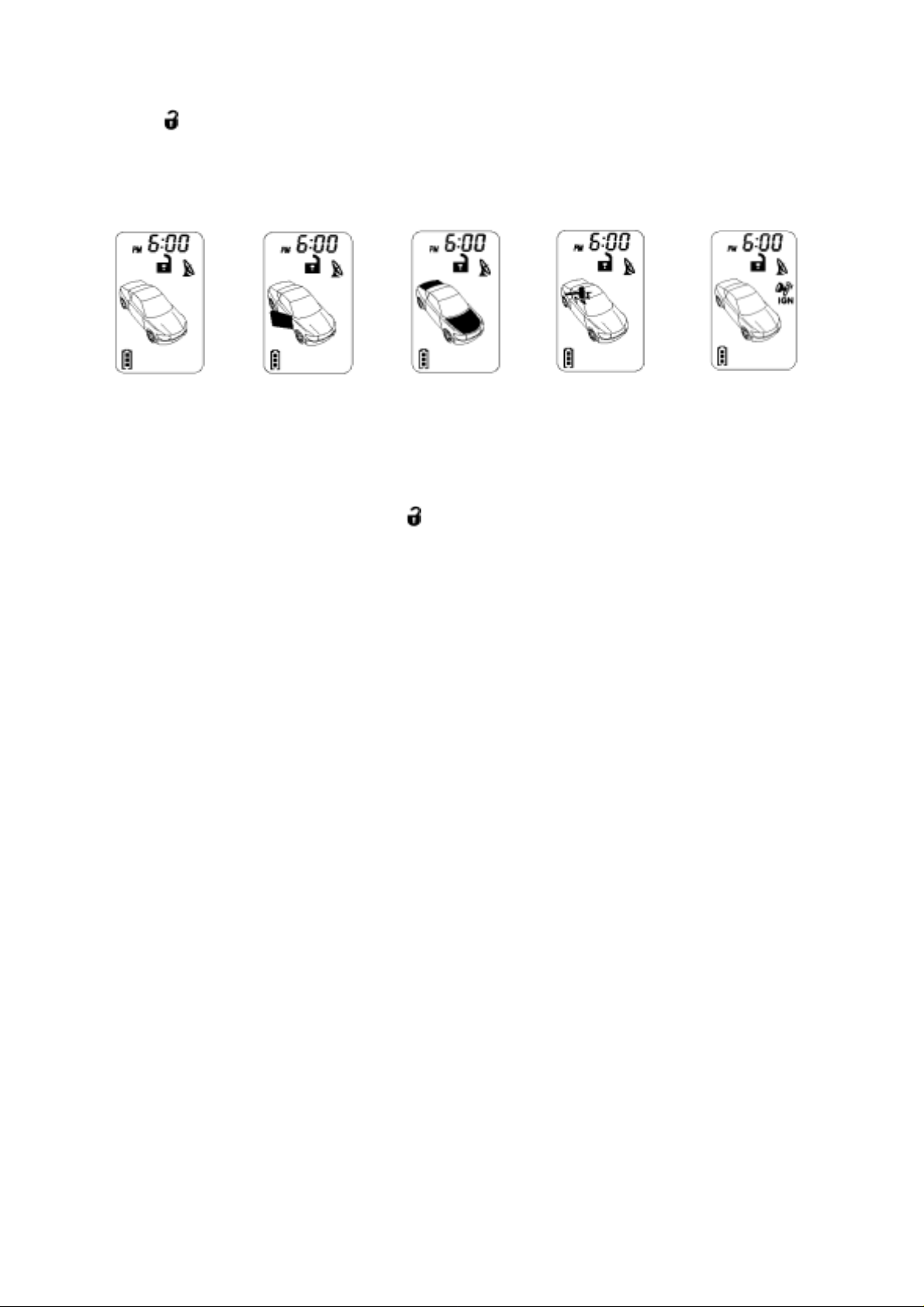

System Disarm
Doors Trigger
Trunk/Hood Trigger Shock Sensor Trigger
Ignition Trigger
CLEAR THE FLASH ICON: Press the
the LCD screen transceiver.
TAMPER DISARMING: If alarm triggered, upon disarm the system, siren chirp 4 times, parking light flash
3 times.
PATHWAY ILLUMINATION: This feature turns the parking light “ON” for 30 seconds upon a unlock signal
and for 10 seconds upon the lock signal.
TWO STEPS DOOR UNLOCK: This feature will independently unlock the driver’s door only when
disarming the security system. Pushing the
doors.
AUTOMATIC RE-ARM: If this feature is selected, the security system will automatically re-arm itself in 60
seconds after disarming with remote transmitter. Automatic rearm will cancel if any door is opened before
the 60 seconds timer has elapsed.
F button 3 times within 3 seconds will clear the flash icon on
button a second time within 3 seconds will unlock the other
J. DISARMING WITHOUT A TRANSMITTER
OVERRIDES THE ALARM WITHOUT PASSWORD PIN CODE: (Factory Default Setting)
The Override function may be used if the remote transmitter is lost or inoperative.
1. Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm will sound.)
2. Within 10 seconds push and release the valet switch
The alarm will stop sounding and enter the disarm mode. You can now start and operate the vehicle
normally.
OVERRIDE THE ALARM WITH PASSWORD PIN CODE:
Unlike valet switch easily found, and defeated, this security system allows the consumer to program a
password pin code. Offering a higher level of security.
1. Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm will sound.)
2. Within 5 seconds, enter your chosen the first digit code by press and release the Valet Switch.
(When finished above procedures, system's siren stop alarming, parking light stop flashing, but the
vehicle cannot be start and drive away.)
3. Within 15 seconds of the last digit code enter (the 1st code), turn the Ignition Switch “OFF” and then
“ON”.
4. Within 15 seconds, enter your chosen of the second digit code by press and release the Valet Switch.
5. Turn the ignition switch “OFF” position. [4] Chirps form siren/horn, [3] flash from parking light to
indicate the system was disarmed.
Note: You must override the alarm within 60 seconds. If not, the system will automatically re-arm.
EXAMPLE: To Override The System With The Password Code 83, you would;
1. Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm will sound.)
2. Within 5 seconds, Press and Release the Valet Switch 8 times
(When finished above procedures, system's siren stops alarming, parking light stop flashing, other
sensor stop trigger, but the vehicle can not be start and drive away.)
3. Within 15 seconds of the last digit code enter (the 1
4. Within 15 seconds, Press and Release the Valet Switch 3 times
5. Turn the Ignition Switch to “Off” position. [4] Chirps form siren/horn, [3] flash from parking light to
indicate the system was disarmed.
st
code), turn the Ignition Switch “Off” and then “ON”.
K. VALET MODE: (System in Disarm or Valet mode)
750R OP
5
Loading...
