Advance Multimedia Internet Technology CDE570AM User Manual
User Manual
ZALiP
CDE570AM-U
WiFi Gigabit Router
1
Copyright
The contents of this publication may not be reproduced in any part or as a whole, stored,
transcribed in an information retrieval system, translated into any language, or transmitted
in any form or by any means, mechanical, magnetic, electronic, optical, photocopying,
manual, or otherwise, without the prior written permission.
Trademarks
All products, company, brand names are trademarks or registered trademarks of their
respective companies. They are used for identification purpose only. Specifications are
subject to be changed without prior notice.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against radio interference in a commercial environment. This
equipment can generate, use and radiate radio frequency energy and, if not installed and
used in accordance with the instructions in this manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause
interference, in which case the user, at his own expense, will be required to take whatever
measures are necessary to correct the interference.
CE Declaration of Conformity
This equipment complies with the requirements relating to electromagnetic compatibility,
EN 55022/A1 Class B.
2
TABLE OF CONTENTS
COPYRIGHT ......................................................................................................................... 2
FCC INTERFERENCE STATEMENT................................................................................... 2
CHAPTER 1 INTRODUCTION.......................................................................................... 4
1.1 PACKAGE LIST ........................................................................................................ 4
1.2 HARDWARE INSTALLATION .................................................................................. 5
CHAPTER 2 GETTING STARTED ................................................................................... 8
2.1 EASY SETUP BY WINDOWS UTILITY .................................................................... 8
2.2 EASY SETUP BY UTILITY FOR PRINTER SHARING .......................................... 12
2.3 EASY SETUP BY CONFIGURING WEB PAGES .................................................. 17
CHAPTER 3
3.1 BASIC SETTING ..................................................................................................... 22
3.2 FORWARDING RULES .......................................................................................... 36
3.3 SECURITY SETTING .............................................................................................. 39
3.4 ADVANCED SETTING............................................................................................ 44
CHAPTER 4 TROUBLESHOOTING ...................................................................... 64
APPENDIX A. SPEC SUMMARY TABLE.......................................................................... 67
APPENDIX B. LICENSING INFORMATION ...................................................................... 69
MAKING CONFIGURATION ..................................................................... 21
3
Chapter 1 . Introduction
Congratulations on your purchase of this outstanding product: WiFi Broadband Router.
This product is specifically designed for those who need to have the file sharing and P2P
download services beyond his home and office. It provides a complete solution for Internet
surfing and broadband sharing. Instructions for installing and configuring this product can
be found in this manual. Before you install and use this product, please read this manual
carefully for fully exploiting the functions of this product.
1.1 Package List
Items Description Contents Quantity
1 WiFi Broadband Router
2 Antenna
1
2
3 Power adapter
4 CD
1
1
4
1.2 Hardware Installation
1.2.1 Hardware configuration
WPS/USB OFF Button
ANTENNA Connector
Power Switch Button
Power Connector
ANTENNA Connector
Status LED
Power LED
USB LED
WiFi LED
USB Connector
Reset Button
WAN LED
LAN LED 1－4
WAN Port
LAN Port 1－4
5
1.2.2 LED indicators
Status LED
USB LED
LED Status Description
Green Power ON
Green USB storage attached
Green in flash Data access
Green in flash
then stop
Press ‘USB off’ button till LED flashing, then
can remove USB storage when LED stop
flashing.
WAN LED
Ethernet LED
WiFi LED
Power LED Green Power ON
Green It is connected to local Ethernet.
Green in flash Data access
Green RJ45 cable is plugged
Green in flash Data access
Green WLAN is on
Green in flash Data access
How to Operate
DO NOT connect WiFi Broadband Router to power before performing the
installation steps below.
Step 1.
Screw the antenna in a clockwise direction
to the back panel of the unit.
Step 2.
Plug the RJ45 cable into LAN port 1~4 and
connect with your PC or NB.
6
Step 3.
Plug your RJ-45 into the WAN port and
connect with your xDSL modem.
Step 4.
Plug the power jack into it.
Step 5.
Power ON.
Step 6.
Prepare a USB Storage or Printer, and then
plug into the USB port.
7
Chapter 2 . Getting Started
Please use windows EZ setup utility or Web UI wizard to enter the setup process.
2.1 Easy Setup by Windows Utility
Step 1.
Install the Easy Setup Utility
from the provided CD then
follow the steps to configure
the device.
Step 2.
Select Language then click
“Next” to continue.
Step 3.
Then click the “Wizard” to
continue.
8
Step 4.
Click “Next” to continue.
Step 5.
One free DDNS account
‘ MAC address.ezguard.net’
for end user to access the
NAS router remotely, you can
rename an alias name to
remember it easily. Once you
type in a name, you can click
‘ check’ to see if the name
server accept it or not. You
also can click ‘Ignore’ to pass
it.
Step 6.
Select Wireless Enable, and
then click “Next” to continue.
9
Step 7.
Enter SSID, Channel and
Security options, and then
click “Next” to continue.
Step 8.
Select Auto Detect WAN
service.
Step 9.
Save the setting.
10
Step 10.
Congratulations!
Setup is completed.
Now you have already
connected to Internet
successfully.
11
2.2 Utility for Printer Sharing
Step 1.
Install the Easy Setup Utility
from the provided CD then
follow the steps to configure
the device.
Step 2.
Select Language then click
“Next” to continue.
Step 3.
Please enter your information
Then press next to continue.
Step 4.
Install USB Device Server to
Your PC.
12
Step 5.
Click Install to begin the
installation.
Step 6.
Processing.
Step 7.
Install Completed. Then you
can click icon at your PC to
run the program of printer
sharing.
Once you accomplish the utility of printer sharing, you can execute the program
and follow the following steps to setup the printer and start to print.
13
Step 8.
When you run the utility, you
can go to
‘tool‘->‘Configuration’ to
change the language you
wish.
Step 8-1.
Select Language
Step 9.
Once your printer is ready to
plug in router, please make
sure your PC already installed
the printer driver in Windows.
After you plug in USB printer,
you can see the printer’s
name on Utility, then please
click ‘ Connect’ to connect
with system.
you can print successfully
through network now.
Note: You can uninstall this
utility through Windows
Program files.
14
Step 9-1.
If you want your printer to
connect automatically next
time, you can click on the icon
of ‘Auto Connect Printer’.
Step 10.
We only allow one printer job
to be printed at the same
network, so once 2
to be executing, the system
will send a warning message
on both PCs.
nd
print job
15
Step 10.
nd
If 2
print job want to be
printed immediately, the user
st
of 1
print job can accept the
user of 2
the printer, if the user of 1
print job free to release, then
the user of 2
control the printer.
nd
print job to control
nd
print job can
st
16
2.3 Easy Setup by Configuring Web UI
You can also browse UI of the web to configure the device.
Browse to Activate the Setup Wizard
Type in the IP Address
(http://192.168.123.254
Type the default
Username and password
‘admin’ in the System
Password and then click
‘login’ button.
Select your language.
Select “Wizard” for basic
settings in simple way.
)
Press “Next” to start the
Setup Wizard.
17
Configure with the Setup Wizard
Step 1

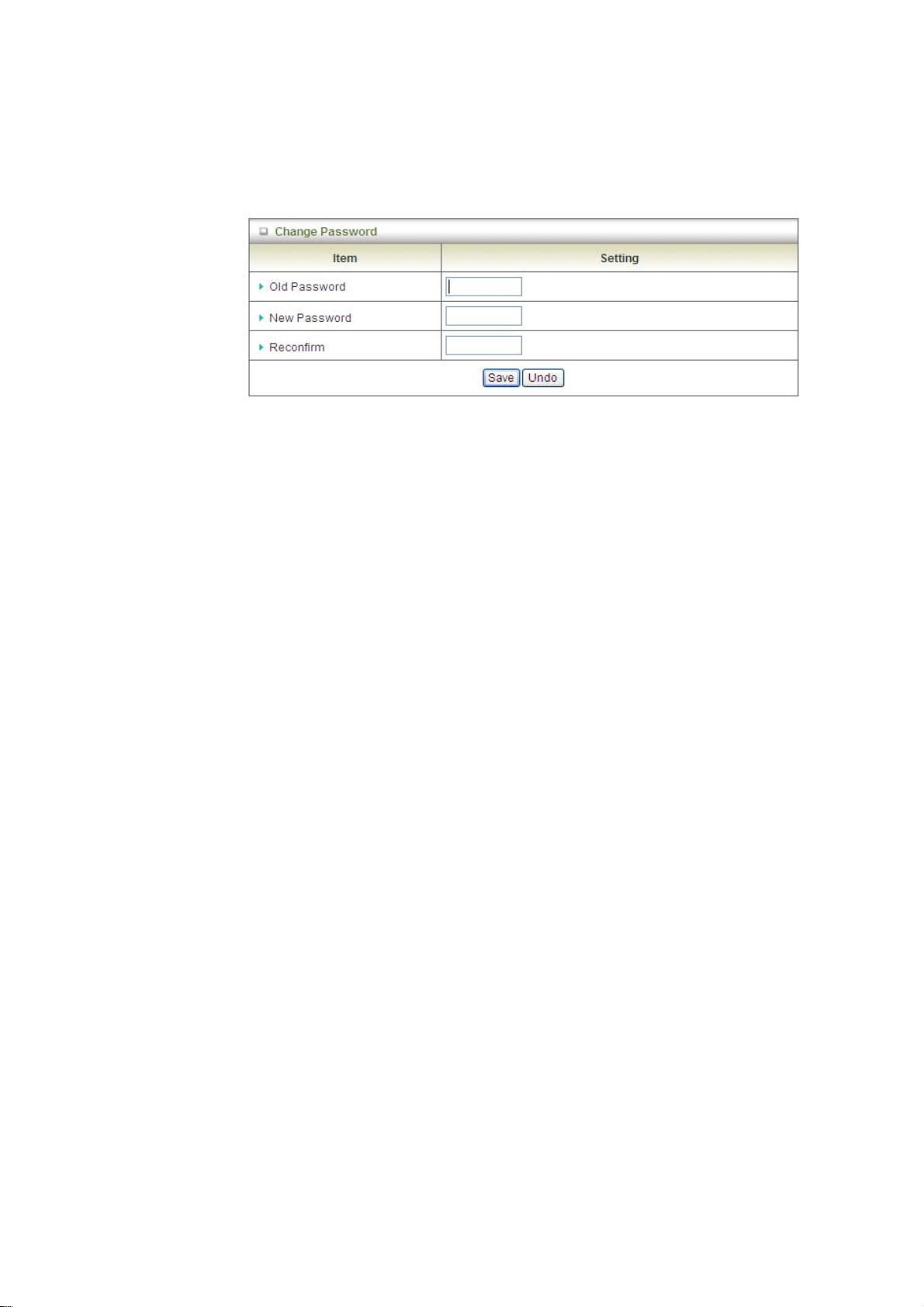

You can change the
password of administrator
here.
Step 2
Select Time Zone.
Step 3
You can select Auto
detecting WAN type or
setup WAN type
manually.
18
Step 4
The system will detect the
WAN type if you choose
to let the system detect
automatically.
Step 5
Type in Host name and
ISP registered MAC
address. (if no such
information, you can go
next)
Step 5-1

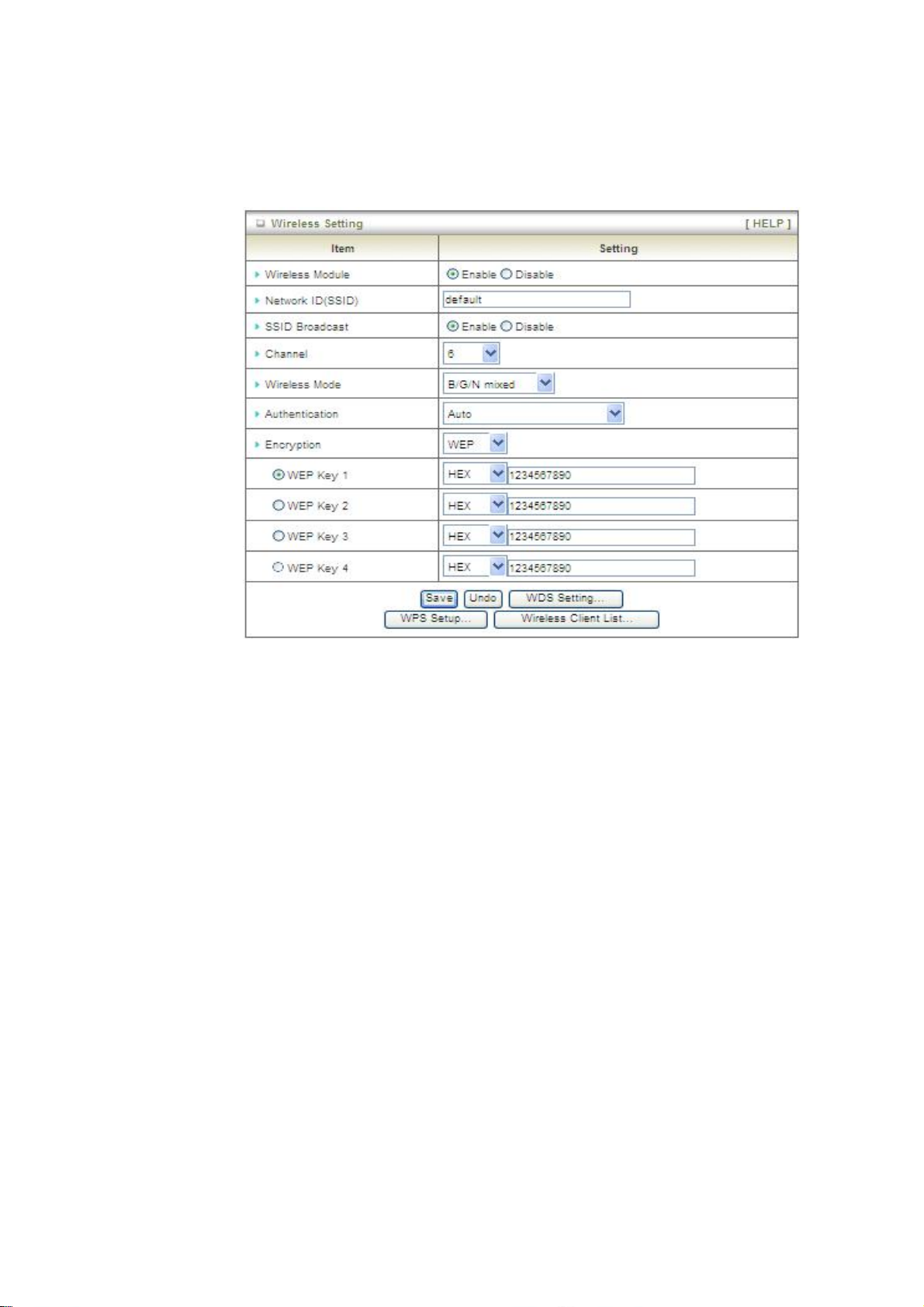

Wireless setting.
Step 5-2
Wireless authentication
and encryption.
19
Step 6
Check the information
again.
Step 7
System is applying the
setting.
Step 8
Click finish to complete it.
20
Chapter 3 . Making Configuration
Whenever you want to configure your network or this device, you can access the
Configuration Menu by opening the web-browser and typing in the IP Address of the
device. The default IP Address is: 192.168.123.254.
Enter the default username and password “admin” in the System Password and then click
‘login’ button.
Afterwards, select ‘Advanced’ indicated in the user interface for further configuring this
device. In the “Advanced” page, it could be categorized several sections, respectively
Basic Setting, Forwarding Rules, Security Setting, NAS and Advanced Setting.
DDNS support
This NAS router provide one free DDNS account, so that end user can enter the NAS
router by using this DDNSaccount remotely.
Username and password support
This NAS router provides another model for guest to enter it with lower level authorization.
Note : Once you type in username and password ‘ guest/guest’, you can see as below
WebHDD contents, which means your guest can only be allowed to check the ‘public’ area
in the Hard drive under this NAS router.
21
3.1 Basic Setting
3.1.1 Network Setup
There are two ways to configure the network, respectively LAN Setup and Internet
setup.
3.1.1.1 LAN type
1. LAN IP Address: The local IP address of this device. The computer on your
network must use the LAN IP address of this device as their Default Gateway.
You can change it if necessary.
2. Subnet Mask: Input your Subnet mask. (All devices in the network must have the
same
subnet mask.) The defaul t subnet mask is 255.255.255.0.
3.1.1.1 Internet Setup
1. WAN Interface: Select Ethernet WAN or Wireless WAN to continue.
2. WAN Type: WAN connection type of your ISP. You can click WAN Type combo
button to choose a correct one from the following options:
Ethernet WAN
22
A. Static IP Address
1. Activate WWAN for Auto-Failover: With this function enabled, when the
Ethernet WAN connection is broken, the device will automatically activate the
WWAN connection and keep you connected to internet with the alternative
WWAN broadband service. Meanwhile, if the device detected that the Ethernet
WAN connection is recovered, your broadband connection will be switched to use
the Ethernet WAN service.
2. WAN IP Address, Subnet Mask, Gateway, Primary and Secondary DNS: Enter
the proper settings provided by your ISP.
3. NAT disable: The device would not send private IP to other LAN PC if you select
disable.
23
