Advance Multimedia Internet Technology CDD531AMU03 User Manual

User Manual

CDD530AM-003/ CDD531AM-U03

WiFi ADSL2/2+ RG

The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission.

Trademarks

All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice.

This equipment has been tested and found to comply with the limits for a lass B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for

help.

FCC Part 15.21 information for user

You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

CE Declaration of Conformity

This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B.

FCC Part 15.19 Caution:

1. This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including

interference that may cause undesired operation

2. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

3. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. IMPORT ANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

TABLE OF CONTENTS

Chapter 1 Introduction..............................................5

Chapter 2 Getting Started.......................................10

Chapter 3 Making Configuration............................18

Chapter 4 Troubleshooting.....................................82

Chapter 1 . Introduction

Congratulations on your purchase of this outstanding product: CDD531AM-U03 WiFi ADSL

RG. This residential gateway is specifically designed for those who need to have the data,

voice, video and file sharing services beyond his home and office. It provides a complete

solution for Internet surfing and broadband sharing. Instructions for installing and configuring

this product can be found in this manual. Before you install and use this product, please read

this manual carefully for fully exploiting the functions of this product.

1.1Package List

Items Description Contents Quantity

WiFi ADSL RG

2 Power adapter

3 CD

1.2 Hardware Installation

1.2.1 Hardware configuration

Antenna

Receptor for

Power Adapter

USB Port

Note : CDD530-003 without USB Port

Auto MDI/MDIX RJ-45 Ports

Automatically sense the types of WAN

and LAN when connecting to Ethernet

RJ-11 Port

Status LED

Wi-Fi/ WPS

ADSL LED

LED

LAN1~LAN4 LEDs

WPS/Wireless/

Reset Button

1.2.2 LED indicators

LED Status Description

Green in flash power is on

Status (USB)

ADSL

WLAN

LAN

Green in fast

Reset mode

flash

USB storage attached ( only for

Green

CDD531-U03)

Green in flash Data access

Green in flash xDSL connection is established

Green in fast

Data packet transferred via DSL Line

flash

Green WiFi is on.

Green in flash Data access

RJ45 cable is plugged, and Ethernet

Green

connection is established.

Green in flash Data access

How to Operate

Step 1.

Plug the RJ45 cable into LAN port 1~4 and

connect with your PC or NB.

Step 2.

Plug your RJ-11 into the DSL port and

connect with your xDSL modem.

Step 3.

Plug the power jack into it.

Step 4

Prepare a USB Storage or 3G dongle, and

then plug into the USB port.

Chapter 2 Getting Started

Please use windows EZ setup utility or Web UI wizard to enter the setup process.

2.1 Easy Setup by Windows Utility

Step 1.

Install the Easy Setup Utility

from the provided CD then

follow the steps to configure

the device.

Step 2.

Select Language then click

“Next” to continue.

Step 3.

Then click the “Wizard” to

continue.

Step 4.

Click “Next” to continue.

Step 6.

Select Wireless Enable, and

then click “Next” to continue.

Step 7.

Enter SSID, Channel and

Security options, and then

click “Next” to continue.

Step 8.

Select Auto Detect WAN

service.

Step 9.

Save the setting.

Step 10.

Congratulations!

Setup is completed.

Now you have already

connected to Internet

successfully.

2.3 Easy Setup by Configuring Web UI

You can also browse UI of the web to configure the device.

Browse to Activate the Setup Wizard

Type in the IP Address

(http://192.168.123.254

Type the default

Username and password

‘admin’ in the System

Password and then click

‘login’ button.

Select your language.

Select “Wizard” for basic

settings in a simple way.

Or, you can go to

basic/advance/application

/system to setup the

configuration by your own

selection.

)

Press “Next” to start the

Setup Wizard.

Configure with the Setup Wizard

Step 1

You can change the

password of administrator

here.

Step 2

Select Time Zone.

Step 3

You can select Auto

detecting WAN type or

setup WAN type

manually.

Step 4

The system will detect the

WAN type if you choose

to let the system detect

automatically.

Step 5

Type in Host name and

ISP registered MAC

address. (if no such

information, you can go

next)

Step 5-1

Wireless setting.

Step 5-2

Wireless authentication

and encryption.

Step 6

Check the information

again.

Step 7

System is applying the

setting.

Step 8

Click finish to complete it.

Chapter 3 Making Configuration

Whenever you want to configure your network or this device, you can access the Configuration

Menu by opening the web-browser and typing in the IP Address of the device. The default IP

Address is: 192.168.123.254.

Enter the default username and password “admin” in the System Password and then click

‘login’ button.

Afterwards, you can go Wizard, Basic Network, Advanced Network, Application or System

respectively on left hand side of web page.

3.1 Basic Network

Status page.

Note : You can see all the status of this RG on ‘Status’ page.

3.1.1 LAN & WAN Setup

You can enter Basic Network, LAN(WiFi) & WAN for LAN and Internet setting as

below.

3.1.1.1 Network Setup

3.1.1.1.1 IPv4

1. LAN IP Address: The local IP address of this device. The computer on your

network must use the LAN IP address of this device as their Default Gateway. You

can change it if necessary.

2. Subnet Mask: Input your Subnet mask. (All devices in the network must have the same

subnet mask.) The default subnet mask is 255.255.255.0

3.1.1.1.2 IPv6

1. IPv6 setting: Disable or enable the IPv6 settings.

2. IPv6 Connection: you may select the connection of Static IPv6/ DHCPv6/

PPPoE/ PPPoA / 6to4/IP 6 in IPv4 tunel.

3. DNS Setting: you may select to obtain DNS server address automatically or

use following DNS address.

4. IPv6 address setting: you may add IPv6 address Primary DNS address and

secondary DNS address.

5. LAN IPv6 address setting: LAN IPv6 address and LAN IPv6 Link-Local

address.

6. Address auto configuration setting: Disable or enable this auto configuration

setting. You may set stateless or stateful ( Dynamic IPv6), and also check if

need to send Router advertisement messages periodically.

1. WAN IPv6 address setting for 6to4: you may obtain IPv6 DNS automatically

or set DNS address manually for Primary DNS address and secondary DNS

address.

2. LAN IPv6 address setting: LAN IPv6 address and LAN IPv6 Link-Local

address.

3. Address auto configuration setting: Disable or enable this auto configuration

setting. You may set stateless or stateful ( Dynamic IPv6), and also check if

need to send Router advertisement messages periodically.

1. WAN IPv6 address setting forIPv6 in IPv4 Tunnel: you may add remote /

local IPv4 address and local IPv6 address, then set DNS address manually for

Primary DNS address and secondary DNS address.

2. LAN IPv6 address setting: LAN IPv6 address and LAN IPv6 Link-Local

address.

3. Address auto configuration setting: Disable or enable this auto configuration

setting. You may set stateless or stateful ( Dynamic IPv6), and also check if

need to send Router advertisement messages periodically.

3.1.1.2 Internet Setup

1. WAN Interface: You may select the following WAN type for your internet

connection

ADSL WAN Type: WAN connection type of your ISP. You can click WAN Type to choose

a correct one from the following options and select PVC0~7 :

z Ethernet Over ATM(RFC1483 Bridged) with NAT

z IP over ATM(RFC 1483 Routed)

z PPP over Ethernet

z PPP over ATM

Multiple-PVC Summary table can list PVC0~7 for PVCs’ WAN type you selected.

Note : PVC0 = as main ADSL WAN

A. Ethernet Over ATM(RFC1483 Bridged) with NAT

1. Activate WWAN for Auto-failover : Once you enable this function, you have

to input WWAN information for 3G Auto-Backups (see as WWAN 3G portion).

Host Name : ISP host name

2. IP mode: select Dynamic IP address or Static IP address

3. Host Name: input your host name if you have one.

4. ISP registered MAC Address if you have one.

5. Connection Control : you can choose Connect-on-demand, Auto

Reconnect(always-on) and Manually.

6. Maximum idle time : 600 seconds

7. NATdisable : If you enable this option, it will act with a non-NAT function.

8. Bridge mode : If you enable this option, it will act with a bridge mode for

ADSL function.

9. Data Encapsulation: Vc-MUX and LLC, these two options depend on your

ISP setting.

10. VPI and VCI, Schedule Type: these values depend on your ISP setting.

11. Schedule type : UBR / CBR / VBR / GFR, depend on your ISP setting.

12. Multicast : you may enable as auto mode or select by IGMP v1, IGMP v2,

IGMP v3.

13. IGMP Snooping : enable or disable IGMP snooping function.

14. VLAN TAG : you may input the value of VLAN Tag by your ISP setting.

(Range : 1~4094)

B. PPPoE

1. Activate WWAN for Auto-failover : Once you enable this function, you have

to input WWAN information for 3G Auto-Backups (see as WWAN 3G portion).

Host Name : ISP host name

2. IPv6 Dual-stack : You can enable / disable the function of IPv4/IPv6 stack.

3. PPPoE Account and Password : The account and password your ISP

assigned to you. For security, this field appears blank. If you don't want to

change the password, leave it blank.

4. Primary DNS/ Secondary DNS : input the Primary/Secondary DNS if

necessary.

5. Connection Control : you can choose Connect-on-demand, Auto

Reconnect(always-on) and Manually.

6. PPPoE Service name and assigned IP address : input the value if

necessary.

7. MTU : put all information here.

8. NATdisable : If you enable this option, it will act with a non-NAT function.

9. Bridge mode : If you enable this option, it will act with a bridge mode for

ADSL function.

10. Data Encapsulation: Vc-MUX and LLC, these two options depend on your

ISP setting.

11. VPI and VCI, Schedule Type: these values depend on your ISP setting.

12. Schedule type : UBR / CBR / VBR / GFR, depend on your ISP setting.

13. Multicast : you may enable as auto mode or select by IGMP v1, IGMP v2,

IGMP v3.

14. IGMP Snooping : enable or disable IGMP snooping function.

15. VLAN TAG : you may input the value of VLAN Tag by your ISP setting.

(Range : 1~4094)

C. PPPoA

1. Activate WWAN for Auto-failover : Once you enable this function, you have

to input WWAN information for 3G Auto-Backups (see as WWAN 3G portion).

Host Name : ISP host name

2. IPv6 Dual-stack : You can enable / disable the function of IPv4/IPv6 stack.

3. PPPoE Account and Password : The account and password your ISP

assigned to you. For security, this field appears blank. If you don't want to

change the password, leave it blank.

4. Primary DNS/ Secondary DNS : input the Primary/Secondary DNS if

necessary.

5. Connection Control : you can choose Connect-on-demand, Auto

Reconnect(always-on) and Manually.

6. PPPoE Service name and assigned IP address : input the value if

necessary.

7. MTU : put all information here.

8. NATdisable : If you enable this option, it will act with a non-NAT function.

9. Bridge mode : If you enable this option, it will act with a bridge mode for

ADSL function.

10. Data Encapsulation: Vc-MUX and LLC, these two options depend on your

ISP setting.

11. VPI and VCI, Schedule Type: these values depend on your ISP setting.

12. Schedule type : UBR / CBR / VBR / GFR, depend on your ISP setting.

13. Multicast : you may enable as auto mode or select by IGMP v1, IGMP v2,

IGMP v3.

14. IGMP Snooping : enable or disable IGMP snooping function.

15. VLAN TAG : you may input the value of VLAN Tag by your ISP setting.

(Range : 1~4094)

E. Wireless WAN - 3G

( USB 3G support only for CDD561-U03 model )

1. Auto-Detection and Manually : If you select auto-detection, then system will

check the information automatically.

2. Pin Code: Enter the Pin Code for your SIM card(Optional)

3. Connection Control: select your connection control

4. Allow connection time : you can select always or by schedule for connection

method. If you choose schedule rule, you can add a new schedule for this

connection.

5. MTU and Keep alive : you can diagnose your connection by it.

6. IGMP Snooping : enable or disable IGMP snooping function.

7. VLAN TAG : you may input the value of VLAN Tag by your ISP setting.

(Range : 1~4094)

Ethernet WAN

A. Dynamic IP Address

1. Activate WWAN for Auto-Failover: With this function enabled, when the

Ethernet WAN connection is broken, the device will automatically activate the

WWAN connection and keep you connected to internet with the alternative

WWAN broadband service. Meanwhile, if the device detected that the

Ethernet WAN connection is recovered, your broadband connection will be

switched to use the Ethernet WAN service.

2. Host Name: Optional, required by some ISPs, for example, @Home.

3. ISP registered MAC Address: Enter MAC address of your ISP. (Optional)

4. Connection Control: Connect-on-demand is the device will link up with ISP

when the clients send outgoing packets. Auto Reconnect (Always-on) is the

device will link with ISP until the connection is established. Manually mode is

the device will not make the link until someone clicks the connect-button in the

Status-page.

5. NATdisable : If you enable this option, it will act with a non-NAT function.

6. Multicast : you may enable as auto mode or select by IGMP v1, IGMP v2,

IGMP v3.

7. IGMP Snooping : enable or disable IGMP snooping function.

8. VLAN TAG : you may input the value of VLAN Tag by your ISP setting.

(Range : 1~4094)

B. Static IP Address

1. Activate WWAN for Auto-failover : Once you enable this function, you have

to input WWAN information for 3G Auto-Backups (see as WWAN 3G portion).

Host Name : ISP host name

2. WAN assigned IP address/ Subne mask/ Gateway IP.

3. Primary DNS/ Secondary DNS : input the Primary/Secondary DNS if

necessary.

4. NAT : If you enable this option, it will act with a NAT function.

5. NATdisable : If you enable this option, it will act with a non-NAT function.

6. Multicast : you may enable as auto mode or select by IGMP v1, IGMP v2,

IGMP v3.

7. IGMP Snooping : enable or disable IGMP snooping function.

8. VLAN TAG : you may input the value of VLAN Tag by your ISP setting.

(Range : 1~4094)

C. PPP over Ethernet

1. Activate WWAN for Auto-failover : Once you enable this function, you have

to input WWAN information for 3G Auto-Backups (see as WWAN 3G portion).

Host Name : ISP host name

2. IPv6 Dual-stack : You can enable / disable the function of IPv4/IPv6 stack.

3. PPPoE Account and Password : The account and password your ISP

assigned to you. For security, this field appears blank. If you don't want to

change the password, leave it blank.

4. Connection Control : you can choose Connect-on-demand, Auto

Reconnect(always-on) and Manually.

5. Service name and assigned IP address.

6. Primary DNS/ Secondary DNS : input the Primary/Secondary DNS if

necessary.

7. MTU : Most ISP offers MTU value to users. The default MTU value is 0 (auto)

8. NATdisable : If you enable this option, it will act with a non-NAT function.

9. Multicast : you may enable as auto mode or select by IGMP v1, IGMP v2,

IGMP v3.

10. IGMP Snooping : enable or disable IGMP snooping function.

11. VLAN TAG : you may input the value of VLAN Tag by your ISP setting.

(Range : 1~4094)

D. PPTP

1. Activate WWAN for Auto-Failover: With this function enabled, when the Ethernet

WAN connection is broken, the device will automatically activate the WWAN

connection and keep you connected to internet with the alternative WWAN broadband

service. Meanwhile, if the device detected that the Ethernet WAN connection is

recovered, your broadband connection will be switched to use the Ethernet WAN

service

2. IP Mode: Please check the IP mode your ISP assigned, and select “Static IP Address”

or “Dynamic IP Address”.

3. Server IP and Server IP Address/Name: The IP address of the PPTP server and

designated Gateway provided by your ISP.

4. PPTP Account and Password: The account and password your ISP assigned to you.

If you don't want to change the password, keep it blank.

5. Connection ID: Optional. Input the connection ID if your ISP requires it.

6. Connection Control: Connect-on-demand is the device will link up with ISP when the

clients send outgoing packets. Auto Reconnect (Always-on) is the device will link with

ISP until the connection is established. Manually mode is the device will not make the

link until someone clicks the connect-button in the Status-page.

7. Maximum Transmission Unit (MTU): Most ISP offers MTU value to users. The

default MTU value is 0 (auto).

8. MPPE (Microsoft Point-to-Point Encryption): enable or disable this function.

9. Multicast : you may enable as auto mode or select by IGMP v1, IGMP v2, IGMP v3.

10. IGMP Snooping : enable or disable IGMP snooping function.

11. VLAN TAG : you may input the value of VLAN Tag by your ISP setting. (Range :

1~4094)

E. L2TP

1. Activate WWAN for Auto-Failover: With this function enabled, when the Ethernet

WAN connection is broken, the device will automatically activate the WWAN

connection and keep you connected to internet with the alternative WWAN broadband

service. Meanwhile, if the device detected that the Ethernet WAN connection is

recovered, your broadband connection will be switched to use the Ethernet WAN

service

2. IP Mode: Please check the IP mode your ISP assigned, and select “Static IP Address”

or “Dynamic IP Address”.

3. My IP Address and My Subnet Mask: The private IP address and subnet mask your

ISP assigned to you.

4. Gateway IP and Server IP Address/Name: The IP address of the L2TP server and

designated Gateway provided by your ISP.

5. L2TP Account and Password: The account and password your ISP assigned to you.

If you don't want to change the password, keep it blank.

6. Maximum Idle Time: The time of no activity to disconnect your L2TP session. Set it to

zero or enable “Auto-reconnect” to disable this feature. If Auto-reconnect is enabled,

this device will connect with ISP automatically, after system is restarted or connection

is dropped.

7. Connection Control: Connect-on-demand is the device will link up with ISP when the

clients send outgoing packets. Auto Reconnect (Always-on) is the device will link with

ISP until the connection is established. Manually mode is the device will not make the

link until someone clicks the connect-button in the Status-page.

8. Maximum Transmission Unit (MTU): Most ISP offers MTU value to users. The

default MTU value is 0 (auto).

3.1.1.2 Wireless Settings

Wireless settings allow you to set the wireless configuration items.

1. Wireless Module: You can enable or disable wireless function.

2. Network ID (SSID): Network ID is used for identifying the Wireless LAN (WLAN).

Client stations can roam freely over this device and other Access Points that have the

same Network ID. (The factory default setting is “default”)

3. SSID Broadcast: The router will broadcast beacons that have some information,

including SSID so that wireless clients can know how many AP devices by scanning

the network. Therefore, if this setting is configured as “Disable”, the wireless clients

can not find the device from beacons.

4. Channel: The radio channel number. The permissible channels depend on the

Regulatory Domain. The factory default setting is as the following: channel 6 for North

America; channel 7 for European (ETSI); channel 7 for Japan.

5. Wireless Mode: Choose “B/G mixed”, “B only”, “G only”, “N only”, “G/N mixed” or

“B/G/N mixed”. The factory default setting is “B/G/N mixed”.

6. Authentication mode: You may select one of the following authentications to secure

your wireless network: Open, Shared, Auto, WPA-PSK, WPA, WPA2-PSK, WPA2,

WPA-PSK/WPA2-PSK, or WPA /WPA2.

z Open

Open system authentication simply consists of two communications. The first is an

authentication request by the client that contains the station ID (typically the MAC

address). This is followed by an authentication response from the AP/router containing

a success or failure message. An example of when a failure may occur is if the client's

MAC address is explicitly excluded in the AP/router configuration.

z Shared

Shared key authentication relies on the fact that both stations taking part in the

authentication process have the same "shared" key or passphrase. The shared key is

manually set on both the client station and the AP/router. Three types of shared key

authentication are available today for home or small office WLAN environments.

z Auto

The AP will Select the Open or Shared by the client’s request automatically.

z WPA-PSK

Select Encryption and Pre-share Key Mode

If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits.

If you select ASCII, the length of pre-share key is from 8 to 63.

Fill in the key, Ex 12345678

z WPA

Check Box was used to switch the function of the WPA. When the WPA function is

enabled, the Wireless user must authenticate to this router first to use the Network

service. RADIUS Server IP address or the 802.1X server’s domain-name.

Select Encryption and RADIUS Shared Key.

If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits.

If you select ASCII, the length of pre-share key is from 8 to 63.

Key value shared by the RADIUS server and this router. This key value is consistent

with the key value in the RADIUS server.

z WPA2-PSK

WPA2-PSK user AES and TKIP for Same the encryption, the others are same as the

WPA2-PSK.

z WPA-PSK/WPA2-PSK

Another encryption options for WPA-PSK-TKIP and WPA2-PSK-AES, the others are

same as the WPA-PSK.

z WPA/WPA2

Another encryption options for WPA-TKIP and WPA2-AES, the others are same the

WPA.

Press “WDS Setting” and It allows PC to get connected to wireless network within the area.

1. Wireless Bridging: You could enable this function by selecting “Enable”.

2. Remote AP MAC 1~Remote AP MAC 2: Enter the wireless MAC into the blank.

3. Encryption type: Select the appropriate category. Once you set up that type of

encryption, second LAN PC must enter the same encryption type as the first one.

4. Encryption key: Set up encryption key based on the rule of encryption type. Once

you set up encryption, second LAN PC must enter the same encryption type as the

first one.

Press “WPS Setup”, you can configure and enable the easy setup feature WPS (Wi-Fi

Protection Setup) for your wireless network.

1. WPS:.You can enable this function by selecting “Enable”. WPS offers a safe and

easy way to allow the wireless clients connected to your wireless network.

2. AP PIN: You can press Generate New Pin to get an AP PIN.

3. Config Mode: Select your config Mode from “Registrar” or “Enrollee”.

4. Config Status: It shows the status of your configuration.

5. Config Method: You can select the Config Method here from “Pin Code” or “Push

Button”.

6. WPS status: According to your setting, the status will show “Start Process” or “No

used”.

Press “Wireless Clients List” and the list of wireless clients will be shown consequently.

3.1.2 Client Server Proxy

3.1.2.1 DHCP Server

1. DHCP Server: Choose either Disable or Enable. If you enable the DHCP Server

function, the following settings will be effective.

2. IP Pool Starting/Ending Address: Whenever there is a request, the DHCP server

will automatically allocate an unused IP address from the IP address pool to the

requesting computer. You must specify the starting / ending address of the IP address

pool.

3. Lease Time: DHCP lease time to the DHCP client.

4. Domain Name: Optional, this information will be passed to the clients.

Press “More>>” and you can find more settings.

5. Primary DNS/Secondary DNS: Optional. This feature allows you to assign a DNS

Servers

6. Primary WINS/Secondary WINS: Optional. This feature allows you to assign a WINS

Servers

7. Gateway: Optional. Gateway Address would be the IP address of an alternate

Gateway. This function enables you to assign another gateway to your PC, when

DHCP server offers an IP to your PC.

Press “Clients List” and the list of DHCP clients will be shown consequently.

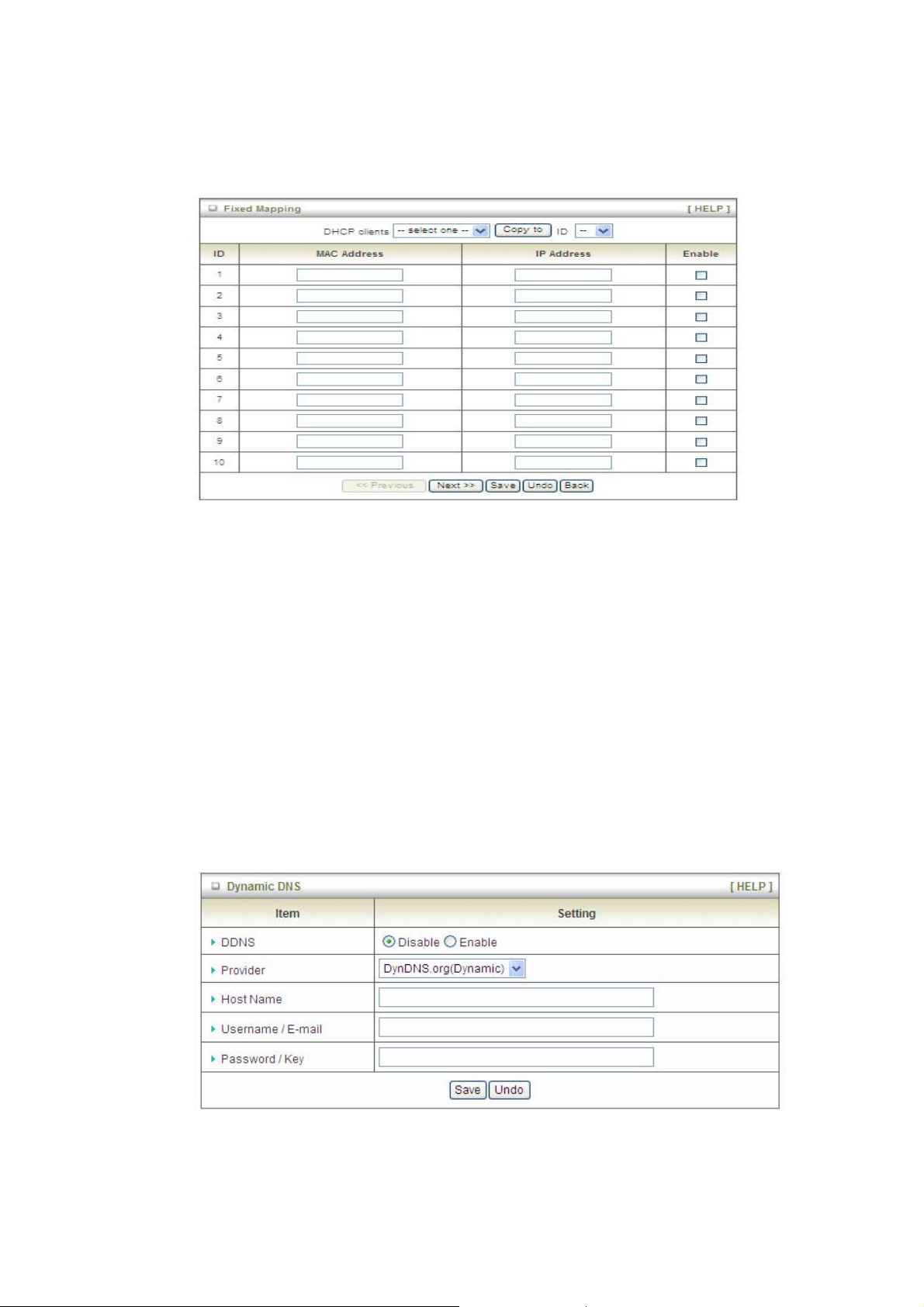

Press “Fixed Mapping” and the DHCP Server will reserve the special IP for designated

MAC address.

3.1.2.2 Dynamic DNS

To host your server on a changing IP address, you have to use dynamic domain name

service (DDNS). Therefore, anyone wishing to reach your host only needs to know the

name of it. Dynamic DNS will map the name of your host to your current IP address, which

changes each time you connect your Internet service provider.

Before you enable Dynamic DNS, you need to register an account on one of these

Dynamic DNS servers that we list in Provider field.

1. DDNS: Select enable if you would like to trigger this function.

2. Provider: The DDNS provider supports service for you to bind your IP(even private

IP) with a certain Domain name. You could choose your favorite provider.

3. Host Name: Register a domain name to the DDNS provider. The fully domain name

is concatenated with hostname(you specify) and a suffix(DDNS provider specifies).

4. Username/E-mail: Input username or E-mail based on the DDNS provider you

select.

5. Password/Key:

Input password or key based on the DDNS provider you select.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

3.1.3 NAT

3.1.3.1 Virtual Server

This product’s NAT firewall filters out unrecognized packets to protect your Intranet, so all

hosts behind this product are invisible to the outside world. If you wish, you can make

some of them accessible by enabling the Virtual Server Mapping.

A virtual server is defined as a Service Port, and all requests to this port will be redirected

to the computer specified by the Server IP. Virtual Server can work with Scheduling

Rules, and give user more flexibility on Access control. For the details, please refer to

Scheduling Rule.

For example, if you have an FTP server (port 21) at 192.168.123.1, a Web server (port 80)

at 192.168.123.2, and a VPN server at 192.168.123.6, then you need to specify the

following virtual server mapping table:

Service Port Server IP Enable

21 192.168.123.1 V

80 192.168.123.2 V

1723 192.168.123.6 V

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

3.1.3.2 Special AP

Some applications require multiple connections, like Internet games, Video conferencing,

Internet telephony, etc. Because of the firewall function, these applications cannot work

with a pure NAT router. The Special Applications feature allows some of these

applications to work with this product. If the mechanism of Special Applications fails to

make an application work, try setting your computer as the DMZ host instead.

This device provides some predefined settings. Select your application and click “Copy to” to add the predefined setting to your list.

1. Trigger: The outbound port number issued by the application.

2. Incoming Ports: When the trigger packet is detected, the inbound packets sent to the

specified port numbers are allowed to pass through the firewall.

Afterwards, Click on “Save” to store your settings or click “Undo” to give up the changes.

Miscellaneous

1. IP Address of DMZ Host

DMZ (Demilitarized Zone) Host is a host without the protection of firewall. It allows a

computer to be exposed to unrestricted 2-way communication for Internet games,

Video conferencing, Internet telephony and other special applications.

2. UPnP Setting

The device supports the UPnP function. If the OS of your client computer supports this

function, and you enabled it, like Windows XP, you can see the following icon when the

client computer gets IP from the device.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

3.1.4 Routing

3.1.4.1 Routing Table

If you have more than one routers and subnets, you will need to enable routing table to

allow packets to find proper routing path and allow different subnets to communicate with

each other. The routing table allows you to determine which physical interface addresses

are utilized for outgoing IP data grams.

1. Dynamic Routing: Routing Information Protocol (RIP) will exchange information

about destinations for computing routes throughout the network. Please select RIPv2

only if you have different subnets in your network. Otherwise, please select RIPv1 if

you need this protocol.

2. Static Routing: For static routing, you can specify up to 8 routing rules. You can enter

the destination IP address, subnet mask, gateway, and hop for each routing rule,

and then enable or disable the rule by checking or un-checking the Enable checkbox.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

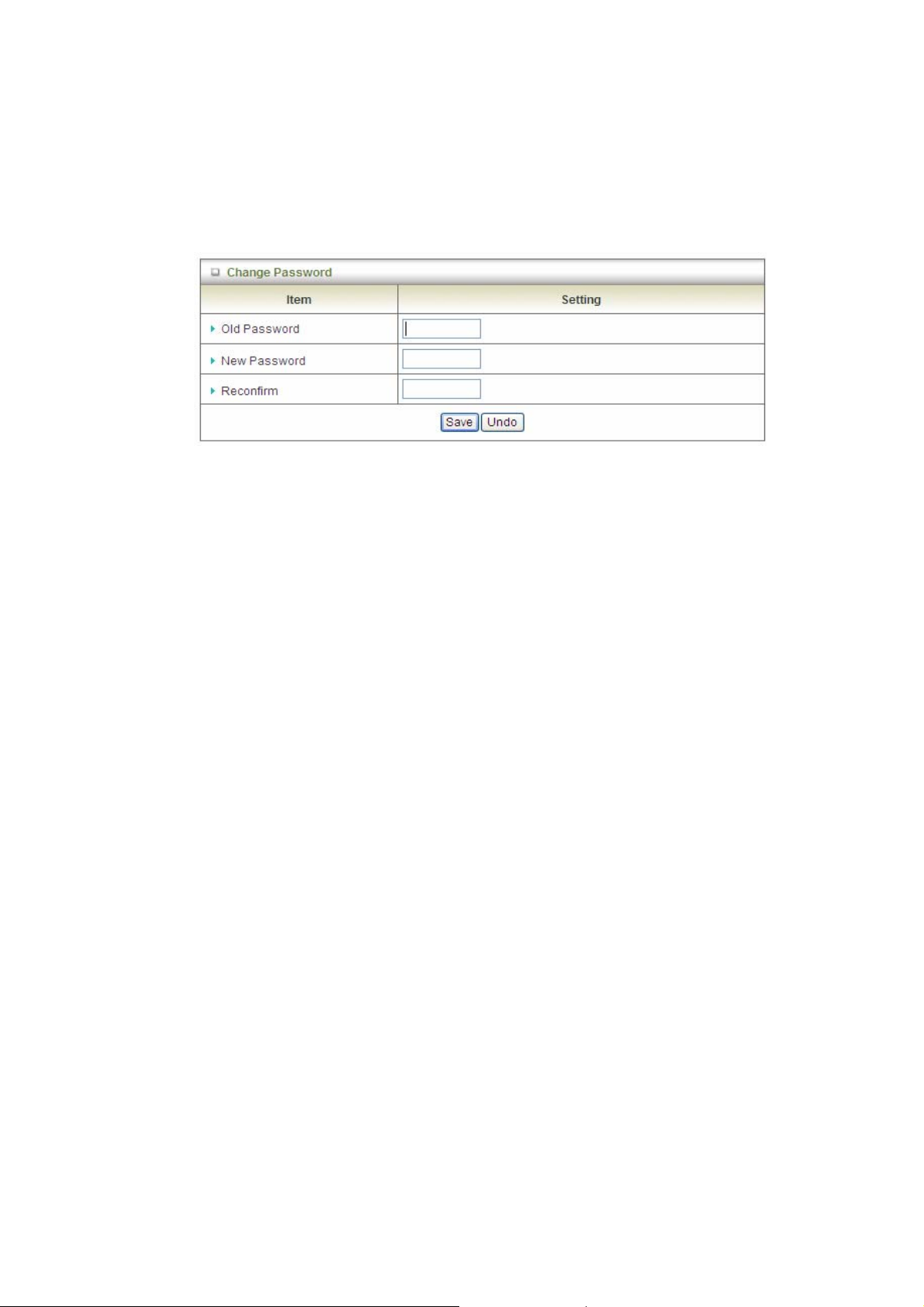

3.1.4 Change Password

You can change the System Password here. We strongly recommend you to change the

system password for security reason. Click on “Save” to store your settings or click “Undo”

to give up the changes.

3.2. Advance Network

3.2.1. Firewall

3.2.1.1.

Packet Filters

Packet Filter includes both outbound filter and inbound filter. And they have same way to

setting. It enables you to control what packets are allowed to pass the router. Outbound

filter applies on all outbound packets. However, inbound filter applies on packets that

destined to Virtual Servers or DMZ host only. You can select one of the two filtering

policies:

1. Allow all to pass except those match the specified rules.

2. Deny all to pass except those match the specified rules.

You can specify 8 rules for each direction: inbound or outbound. For each rule, you can

define the following:

• Source IP address

• Source port

• Destination IP address

• Destination port

• Protocol: TCP or UDP or both.

• Use Rule#

For source or destination IP address, you can define a single IP address (4.3.2.1) or a

range of IP addresses (4.3.2.1-4.3.2.254). An empty implies all IP addresses.

For source or destination port, you can define a single port (80) or a range of ports

(1000-1999). Add prefix "T" or "U" to specify TCP or UDP protocol. For example, T80, U53,

U2000-2999, No prefix indicates both TCP and UDP are defined. An empty implies all port

addresses. Packet Filter can work with Scheduling Rules, and give user more flexibility

on Access control. For Detail, please refer to Scheduling Rule.

Each rule can be enabled or disabled individually.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

3.2.1.2. Domain Filters

Domain Filter prevents users under this device from accessing specific URLs.

1. Domain Filter: Check if you want to enable Domain Filter.

2. Log DNS Query: Check if you want to log the action when someone accesses the

specific URLs.

3. Privilege IP Address Range: Setting a group of hosts and privilege these hosts to

access network without restriction.

4. Domain Suffix: A suffix of URL can be restricted, for example, ".com", "xxx.com".

5. Action: When someone is accessing the URL met the domain-suffix, what kind of

action you want.

Check “Drop” to block the access. Check “Log” to log these access.

6. Enable: Check to enable each rule.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

3.2.1.3.

URL Blocking will block LAN computers to connect with pre-define Websites. The major

difference between “Domain filter” and “URL Blocking” is Domain filter requires user to

URL Blocking

input suffix (like .com or .org, etc), while URL Blocking requires user to input a keyword

only. In other words, Domain filter can block specific website, while URL Blocking can

block hundreds of websites by simply a keyword.

1. URL Blocking: Check if you want to enable URL Blocking.

2. URL: If any part of the Website's URL matches the pre-defined word, the connection

will be blocked.

For example, you can use pre-defined word "sex" to block all websites if their URLs

contain pre-defined word "sex".

3. Enable: Check to enable each rule.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the

changes.

3.2.1.4.

MAC Address Control allows you to assign different access right for different users and to

assign a specific IP address to a certain MAC address.

MAC Control

1. MAC Address Control: Check “Enable” to enable the “MAC Address Control”. All of

the settings in this page will take effect only when “Enable” is checked.

2. Connection control: Check "Connection control" to enable the controlling of which

wired and wireless clients can connect with this device. If a client is denied to connect

with this device, it means the client can't access to the Internet either. Choose "allow"

or "deny" to allow or deny the clients, whose MAC addresses are not in the "Control

table" (please see below), to connect with this device.

3. Association control: Check "Association control" to enable the controlling of

which wireless client can associate to the wireless LAN. If a client is denied to

associate to the wireless LAN, it means the client can't send or receive any data via

this device. Choose "allow" or "deny" to allow or deny the clients, whose MAC

addresses are not in the "Control table", to associate to the wireless LAN.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the

changes.

3.2.1.5. Miscellaneous

1. Administrator Time-out: The time of no activity to logout automatically, you may set it

to zero to disable this feature.

2. Remote Administrator Host/Port

In general, only Internet user can browse the built-in web pages to perform

administration task. This feature enables you to perform administration task from

remote host. If this feature is enabled, only the specified IP address can perform

remote administration. If the specified IP address is 0.0.0.0, any host can connect with

this product to perform administration task. You can use subnet mask bits "/nn"

notation to specified a group of trusted IP addresses for example, "10.1.2.0/24".

NOTE: When Remote Administration is enabled, the web server port will be shifted to

80. You can change web server port to other port, too.

3. Discard PING from WAN side: When this feature is enabled, any host on the WAN

cannot ping this product.

4. DoS Attack Detection: When this feature is enabled, the router will detect and log the

DoS attack coming from the Internet. Currently, the router can detect the following

DoS attack: SYN Attack, WinNuke, Port Scan, Ping of Death, Land Attack etc.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

3.2.2. QoS

3.2.2.1.

Quality of service is the ability to provide different priority to different applications, users, or

data flows, or to guarantee a certain level of performance to a data flow.

QoS

3.2.2.1.1. Smart QoS

1. Cross-layer QoS : you can select enable/disable the QoS control

2. QoS Mode : you can select Smart-QoS or User defined QoS rule for your own QoS

control

3. Bandwidth of upstream / bandwidth of Downstream : you can input the value of

maximize of upstream and downstream bandwidth from your ISP

4. Enable Flexible Bandwidth management : If you enable this management, system

will share the bandwidth of those selected applications to other applications if user do

not run those selected application, for example, If you select Game/ VoIP/ Video 3

applications for higher priority in your system, then the system will automatically

reserve 10% of bandwidth to other application, and share the rest of bandwidth

(100-10)/3=30% each to Game/VoIP/Video, so if user do not play a game, then the

system will flexible share the 30% of bandwidth to other application.

Example for Smart-QoS with FBM enable : Mr. Wang selects Game/ VoIP/ Video 3

applications for higher priority in his system, the system will automatically reserve 10% of

minimum rate of bandwidth to other application, and share the rest minimum rate of

bandwidth (100-10)/3=30% each to Game/VoIP/Video. If Mr. Wang’s son plays on-line

game in the morning, the total bandwidth will all reserve to his son. By the evening, when

Mr. Wang back home and wants to watch IPTV, then he will get the same priority with his

son, and share the bandwidth.

5. Disable Flexible Bandwidth Management : If you disable this management,

system will allow you to input percentage of bandwidth

manually.

3.2.2.1.2. User defined QoS rule

1. Cross-layer QoS : you can enable/disable this QoS system.

2. QoS Mode : you can select User defined QoS rule for your own QoS control

3. Bandwidth of upstream / bandwidth of Downstream : you can input the value of

maximize of upstream and downstream bandwidth from your ISP

4. Advance setting : you can press the button of ‘Add New Rule’ to create a new QoS

rule.

5. Create a QoS Rule : you can enable the rule, and select QoS class type as below.

Class : You can create your own QoS rule by different classes as below.

Class Description

IP IP address base

N TCP port

UDPPORT UDP port

MAC MAC base

DSCP DSCP base

Function : you can set your own function value to enable your QoS rule as below.

Function Description Data

PRI Priority 1~6

MAXR Maximum bandwidth Rate KBps/MBps

MINR Minimum bandwidth Rate KBps/MBps

SESSION Connection session number

DROP Drop packet None

LOG Log event None

ALERT Alert event None

Direction : you can select inbond/ outbond for your direction.

Direction

IN inbond

OUT outbond

BOTH inbond & outbond

6. DSCP setting : you can set your own DSCP value here.

DiffServ Code Point : you can select code value.

Service Type : you can select their service type.

Function : PRI

Function data- Priority : 1~6

DSCP marking : you can add your inbound / outbound packets a DCSP marking,

please see one example as below.

Ex. Please mark CS3 when an packet in/ out via UDP port 5060.

Once you saved the QoS rule, system will show you the rule as below, you can add

another new rule accordingly.

System will show you all your QoS rule as below

Note 1. : You can move up or down the priority of all rules by pointing the ‘↑’or ’↓’ if

you want to change the priority.

Note 2. : You can unmark any rule if you do not want it enable now.

3.2.3. VLAN

The VLAN function allows you to divide local network into different “virtual LAN”. In some

cases, ISP may need router to support “VLAN tag” for certain kinds of services (e.g. IPTV)

to work properly.

There are four LAN ports with this router, so you can have up to 4 VLAN if required. Those

four LAN ports belong to one VLAN by default. If you want to divide them into different

VLAN, you just need to assign different “VID” for them. If ISP requests a “VLAN Tag” with

your outgoing data, please remember to check the checkbox of “Tx TAG”.

If you want to mapping WAN ID, you can enter WAN VLAN setting, and change router type to Bridge and add WAN Map VLAN ID to your value.

3.2.4. Management

3.2.4.1.

In brief, SNMP, the Simple Network Management Protocol, is a protocol designed to give a

user the capability to remotely manage a computer network by polling and setting terminal

values and monitoring network events.

SNMP

1. Enable SNMP: You must check “Local”, “Remote” or both to enable SNMP function. If

“Local” is checked, this device will respond request from LAN. If “Remote” is checked,

this device will respond request from WAN.

2. Get Community: The community of GetRequest is that this device will respond.

3. Set Community: The community of SetRequest is that this device will accept.

4. IP 1, IP 2, IP 3, IP 4: Enter the IP addresses of your SNMP Management PCs. User

has to configure where this device should send SNMP Trap message.

5. SNMP Version: Select proper SNMP Version that your SNMP Management software

supports.

6. WAN Access IP Address: If you want to limit the remote SNMP access to specific

computer, please enter the PC’s IP address. The default value is 0.0.0.0, and it means

that any Internet connected computer can get some information of the device with

SNMP protocol.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

3.2.4.2. TR-069

1. TR-069: Disable or enable the TR-069 settings.

2. ACS setting: you may add ACS URL/ Username/ Password.

3. CPE setting: you may add CPE connection request port/ username /password.

4. Inform setting: you may enable/disable the interval of informing CPE.

5. Interval : you may input seconds for every interval.

Note: TR-069 is a customized feature for ISP, please contact with us once you get

any problem to configure.

3.3. Application

3.3.1. NAS

( This section is only for CDD561-U03 model)

3.3.1.1. Disk Utility

1. Format

This utility would format the certain partition.

Please be noted! This action will clear all your data in this partition. You will not be

able to recover it any more.

2. Check

This utility could help you check the partition, find the lost files, try to fix some problems.

3.3.1.2. File Sharing

These settings are for Samba Server (Windows Network Neighbors).

1. Computer Name

The name that is showed on the windows network neighbors search result.

2. WorkGroup

This name MUST be the same as your computer, or you could not search this device

via windows.

3. Server Comment

Just a comment for recognize.

3.3.1.3. FTP Service

These settings are for FTP service.

1. FTP Port:

The default port is 21, but sometimes you might want to hide your FTP service by

changing it. We have the ability to receive the request on non-standard FTP port, but

please be noted, some NAT router could not support non-standard FTP port, that

means some of your clients might have to use passive mode to get file.

2. Client Support UTF8:

This option is used when your FTP client could support UTF8. Usually, the default

value “No” is okay for most clients.

3. Codepage:

Please set correct value to suit your language.

3.3.1.4. Access Control

The default setting is “Guest mode”, all clients could access as anonymous users.

If you want to control the permission, change to “Authorization mode” and save it, then go to

“User Configuration”.

3.3.1.5. User Configuration

In this page, you can manage the user account.

Key in the user name and password then press “Add” could let you add a new user.

If you want to delete an account, select it and click “Delete” button.

3.3.1.6. iTunes Server

This function could enable the built-in iTunes Server to support iTunes which is a media player

released by Apple.

1. Server Name:

The name of this server, it will be shown on the iTunes.

2. Service Port:

The TCP port for WEB management interface, for example, if the default value is 3689,

then your iTunes server URL will be http://This_Device_IP:3689

3. Access Password:

The password for iTunes Server WEB management interface.

3.3.1.7. Download Assistant

3.3.1.7.1. FTP

If you want to download something from a FTP site regularly but you don’t want to spend time

on remembering doing this, this FTP download assistant could help you.

1. Job Name:

It’s for you to remember the job easily, and the device would use this name to info you

when the job is done.

2. URL:

The URL for the file you want to download.

You have to use this format:

IP/path/file, you don’t have to add protocol part such like “ftp://”.

3. Save To:

The destination path on USB disk that you want to save files.

Default value is /C/Download/FTP

4. Login method:

Anonymous, you can access this site without any authentication

Account, you have to enter the username and password to login.

5. Start Time:

Schedule: this device will start FTP download on the time that you specified. The

schedule job that is saved could be check on Status page by selecting “View

Scheduled Download Status”.

At Once: the FTP download would be started immediately.

3.3.1.8. HTTP

1. Job Name:

2. URL:

It’s for you to remember the job easily, and the device would use this name to info you

when the job is done.

The URL for the file you want to download.

You have to use this format:

IP/path/file, you don’t have to add protocol part such like “http://”.

3. Save To:

The destination path on USB disk that you want to save files.

Default value is /C/Download/HTTP

4. Start Time:

Schedule: this device will start FTP download on the time that you specified. The

schedule job that is saved could be check on Status page by selecting “View

Scheduled Download Status”.

At Once: the FTP download would be started immediately.

3.3.2. How to access data on the NAS?

3.3.2.1. Windows User

3.3.2.1.1. By network place

Then start your “file manager”, type the IP with “\\” on the beginning, as follow picture shown. Then press enter.

You could find a folder named “Storage”. It is what you are looking for.

3.3.2.1.2. By Web HDD

This Web HDD can allow you to enter HDD by web UI, and also can allow you to let ‘guest’ to enter the ‘public’ area only.

3.3.2.2. Unix User

We do not provide NFS support, so the only way for UNIX to get files is FTP.

Use your FTP client to connect the FTP server.

3.4. System

3.4.1.

Scheduling

You can set the schedule time to decide which service will be turned on or off.

1. Schedule: Check to enable the schedule rule settings.

2. Add New Rule: To create a schedule rule, click the “New Add” button. You can edit the

Name of Rule, Policy, and set the schedule time (Week day, Start Time, and End

Time). The following example configures “wake-up time“ everyday from 06:00 to

07:00.

Afterwards, click save” to store your settings or click “Undo” to give up the changes.

3.4.2.

System Tools

3.4.2.1. System Log

This page supports two methods to export system logs to specific destination by means of

syslog (UDP) and SMTP(TCP). The items you have to setup include:

1. IP Address for Syslog: Host IP of destination where syslog will be sent to. Check

Enable to enable this function.

2. Setting of Email alert: Check if you want to enable Email alert (send syslog via

email).

3. SMTP Server: Port: Input the SMTP server IP and port, which are connected with ':'. If

you do not specify port number, the default value is 25.

For example, "mail.your_url.com" or "192.168.1.100:26".

4. SMTP Username: Enter the Username offered by your ISP.

5. SMTP Password: Enter the User name offered by your ISP.

6. E-mail Addresses: The recipients are the ones who will receive these logs. You can

assign more than 1 recipient, using ';' or ',' to separate these email addresses.

7. E-mail Subject: The subject of email alert is optional.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

3.4.2.2.

1. Time Zone: Select a time zone where this device locates.

2. Auto-Synchronization: Check the “Enable” checkbox to enable this function. Besides,

you can select a NTP time server to consult UTC time.

System Time

3. Sync with Time Server: Click on the button if you want to set Date and Time by NTP

Protocol .

4. Sync with my PC: Click on the button if you want to set Date and Time using PC’s

Date and Time.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

3.4.2.3.

System Info

You can view the System Information and System log, and download/clear the System log,

in this page.

3.4.2.4.

You can upgrade firmware by clicking “Upgrade” button.

Firmware Upgrade

3.4.2.5. Backup Setting

You can backup your settings by clicking the “Backup Setting” function item and save it

as a bin file. Once you want to restore these settings, please click Firmware Upgrade

button and use the bin file you saved.

3.4.2.6.

You can also reset this device to factory default settings by clicking the Reset to default

function item.

Reset to Default

3.4.2.7.

Reboot

You can also reboot this device by clicking the Reboot function item.

3.4.2.8.

1. MAC Address for Wake-on-LAN: It enables you to power up a networked device

Miscellaneous

remotely. If you would like to trigger this function, you have to know the MAC address

of this device. For instance if the MAC address is 00-11-22-33-44-55, enter it into the

blank of MAC Address for Wake-on-LAN. Afterwards. Afterwards, click "Wake up"

button which makes the router to send the wake-up frame to the target device

immediately.

2. Domain Name or IP address for Ping Test: Allow you to configure an IP, and ping

the device. You can ping a specific IP to test whether it is alive.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

4 . Troubleshooting

This Chapter provides solutions to problems for the installation and operation of the WiFi

Broadband Router. You can refer to the following if you are having problems.

1 Why can’t I configure the router even the cable is

plugged and the LED is lit?

Do a Ping test to make sure that the WiFi

Broadband Router is responding.

Go to Start > Run.

1. Type cmd.

Note: It is recommended that you use an

2. Press OK.

3. Type ipconfig to get the IP of default gateway.

4. Type “ping 192.168.123.254”. Assure that you ping the correct IP Address

assigned to the WiFi Broadband Router. It will show four replies if you ping

correctly.

Ensure that your Ethernet Adapter is working, and that all network drivers are installed

properly. Network adapter names will vary depending on your specific adapter. The

installation steps listed below are applicable for all network adapters.

1. Go to Start > Right click on “My Computer” > Properties.

2. Select the Hardware Tab.

3. Click Device Manager.

4. Double-click on “Network Adapters”.

5. Right-click on Wireless Card bus Adapter or your specific network adapter.

6. Select Properties to ensure that all drivers are installed properly.

7. Look under Device Status to see if the device is working properly.

8. Click “OK”.

2 What can I do if my Ethernet connection does not

work properly?

A. Make sure the RJ45 cable connects with the router.

B. Ensure that the setting on your Network Interface Card adapter is “Enabled”.

C. If settings are correct, ensure that you are not using a crossover Ethernet cable, not

all Network Interface Cards are MDI/MDIX compatible, and use a patch cable is

recommended.

D. If the connection still doesn’t work properly, then you can reset it to default.

3 Something wrong with the wireless connection?

A. Can’t setup a wireless connection?

I. Ensure that the SSID and the encryption settings are exactly the same to the

Clients.

II. Move the WiFi Broadband Router and the wireless client into the same room,

and then test the wireless connection.

III. Disable all security settings such as WEP, and MAC Address Control.

IV. Turn off the WiFi Broadband Router and the client, then restart it and then turn

on the client again.

V. Ensure that the LEDs are indicating normally. If not, make sure that the power

and Ethernet cables are firmly connected.

VI. Ensure that the IP Address, subnet mask, gateway and DNS settings are

correctly entered for the network.

VII. If you are using other wireless device, home security systems or ceiling fans,

lights in your home, your wireless connection may degrade dramatically. Keep

your product away from electrical devices that generate RF noise such as

microwaves, monitors, electric motors…

B. What can I do if my wireless client can not access the Internet?

I. Out of range: Put the router closer to your client.

II. Wrong SSID or Encryption Key: Check the SSID or Encryption setting.

III. Connect with wrong AP: Ensure that the client is connected with the correct

Access Point.

i. Right-click on the Local Area Connection icon in the taskbar.

ii. Select View Available Wireless Networks in Wireless Configure. Ensure

you have selected the correct available network.

iii. Reset the WiFi Broadband Router to default setting

C. Why does my wireless connection keep dropping?

I. Antenna Orientation.

i. Try different antenna orientations for the WiFi Broadband Router.

ii. Try to keep the antenna at least 6 inches away from the wall or other

objects.

II. Try changing the channel on the WiFi Broadband Router, and your Access

Point and Wireless adapter to a different channel to avoid interference.

III. Keep your product away from electrical devices that generate RF noise, like

microwaves, monitors, electric motors, etc.

4 What to do if I forgot my encryption key?

1. Go back to advanced setting to set up your Encryption key again.

2. Reset the WiFi Broadband Router to default setting

5 How to reset to default?

1. Ensure the WiFi Broadband Router is powered on

2. Find the Reset button on the right side

3. Press the Reset button for 8 seconds and then release.

4. After the WiFi Broadband Router reboots, it has back to the factory default settings.

Appendix A. Spec Summary Table

Device Interface CDD531AM-U03

ADSL2+ connector, 1 x RJ-11 port

ITU 992.1 (G.dmt) Annex A,

ADSL2 /2+

Standard Module

Wireless WAN

Ethernet WAN 1 xRJ45 port LAN/WAN configurable 1

Ethernet LAN

USB Sharing

Antenna 1.8 dBi Fixed antenna 1

Reset / WPS /

Wireless On/Off

Button

LED Indication

ITU 992.2 (G.lite),

●

ITU 992.3 ADSL2 (G.dmt.bis),

ITU 992.5 ADSL2+

USB 2.0 for external HSPA

modem(only for CDD531AM-U03)

3 xRJ-45 port, 10/100Mbps,

auto-MDI/MDIX

USB 2.0 for file sharing, same as 3G

USB port (only for CDD531AM-U03)

3-in-1 Reset / WPS / Wireless On/Off

Button

Status(USB)/ADSL/ LAN1 ~ LAN4/

●

WiFi

DC Power Jack, powered via external

Power Jack

Wireless LAN (WiFi)

Standard IEEE 802.11b/g/n (1x1) compliance ●

SSID SSID broadcast or in stealth mode ●

Channel Auto-selection, manually ●

Security

WPS WPS (Wi-Fi Protected Setup) ●

WMM WMM (Wi-Fi Multimedia) ●

Functionality

ADSL WAN

WAN Connection Auto-reconnect, dial-on-demand, ●

DC 5V/2A switching power adapter

(CDD530AM-003 for DC5V/1.2A)

WEP, WPA, WPA-PSK, WPA2,

WPA2-PSK

PPPoE / PPPoA / IPoA / Static IP /

Dynamic IP/Bridge

up to 8 PVCs supported

●

manually

Connection

Fail-over Backup ●

scheme

ADSL as primary, LAN Port 1

configures to WAN for WAN

Ethernet WAN

●

connection when ADSL line is not

working

IPv6 support Support IPv4/IPv6 dual stack protocol ●

Virtual server, special application,

One-to-Many NAT

DMZ, IPTV IGMP V1 V2 Pass

●

through

NAT Session Support NAT session ●

IP/Service filter, URL blocking, MAC

SPI Firewall

●

control

DoS (Deny of Service) detection and

DoS Protection

●

protection

Routing Protocol Static route, dynamic route (RIP v1/v2) ●

Support IPTV IGMPv1/v2/v3 snooping

IPTV features

and filtering, VLAN tagged/ Untagged

●

frames Support QoS mechanism for

QoS

●

TOS/DSCP to 802.1p mapping

(DiffServ)

prioritizing the various type of traffics,

Storage/File

Sharing

FAT16/FAT32, EXT2, NTFS ( Read only)

Samba server, FTP server

●

Media server UPnP AV media server, iTunes server ●

Scheduling

Download

FTP HTTP

●

management

Management SNMP, UPnP IGD, syslog ●

Remote

TR069 (support ACS 2-wire) ●

Management

Web-based UI, remote login,

Administration

●

backup/restore setting

Environment & Certification

Package Content CDD531AM-U03, Power adapter,

●

Quick Installation Guide, CD

Package

Device dimension (mm)

150x112x20

Information

Package dimension (246x210x62mm)

●

SP/MP/ZP

Package dimension (214x146x69mm)

○

Package dimension

○

(290x234x100mm) AP

Package weight Package weight (g) TBD

Operation Temp.

Temp.: 0~40°C, Humidity 10%~90%

●

non-condensing

EMI Certification CE/FCC compliance ●

RoHS RoHS compliance ●

*Specifications are subject to change without prior notice.

Appendix B. Licensing information

This product includes copyrighted third-party software licensed under the terms of the GNU

General Public License. Please refer to the GNU General Public License below to check the

detailed terms of this license.

The following parts of this product are subject to the GNU GPL, and those software packages

are copyright by their respective authors.

Linux Kernel GPLv2 Linux-2.6.21

busybox GPLv2 busybox_1.3.2

bridge-utils GPLv2 bridge-utils 1.1

udhcp server GPLv2 udhcp-0.9.9

udhcp client

fdisk GPLv2 util-linux 2.12q

mke2fs, e2fsck GPLv2 e2fsprogs v1.40.2

samba GNUv2 samba 3.0.20

wireless tools GPLv2 wireless tools

vsfptd GPLv2 vsftpd-2.0.3

Transmission MIT Transmission-1.74

mt-daapd GNUv2 mt-daapd-0.2.4

dnrd GNUv2 DNRD-2.17

libcurl cURL-7.19.6

OpenSSL BSD openssl-1.00b3

ntfs-3g GNUv2 ntfs-3g-2009.4.4

Zebra GNUv2 zebra-0.95a

snmpd CMU snmp-4.1.2

pptp GNUv2 pptp-1.7.1

pppoe GPLv2 pppoe-3.8

pppd BSD ppp-2.4

l2tpd GPLv2 l2tp-0.4

iptables GNUv2 iptables-1.4.2

tc GNUv2 iproute2-2.6.11

wget GNU wget-1.7.1

Availability of source code

Please visit our web site or contact us to obtain more information.

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

Everyone is permitted to copy and distribute verbatim copies

of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the

copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the

term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it,

in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work

based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the

files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or

is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modified program normally reads commands interactively when run, you must cause

it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object

code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machine-readable source code,

which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a

charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange;

or,

c) Accompany it with the information you received as to the offer to distribute corresponding

source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly

provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing

else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient

automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other

reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the

rest of this License.

8. If the distribution and/or use of the Program is restricted in certain countries either by

patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new versions of the General

Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of the Program into other free programs whose distribution

conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO

WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN

WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

Advance Multimedia Internet Technology CDD531AMU03 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
