Advanced Wireless AWR391 Users Manual

Monitor

Channel Up

Channel Dn

Volume Up

Volume Dn

Power

AW391USL

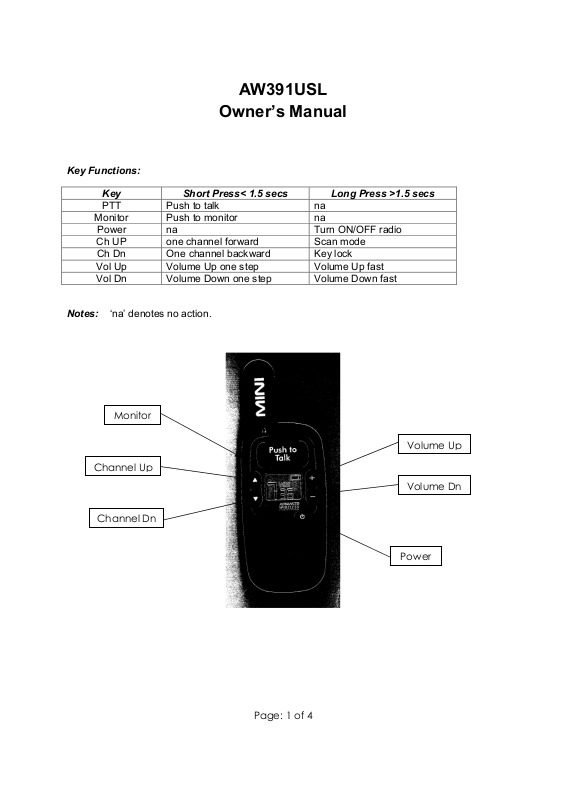

Owner’s Manual

Key Functions:

Key Short Press< 1.5 secs Long Press >1.5 secs

PTT Push to talk na

Monitor Push to monitor na

Power na Turn ON/OFF radio
Ch UP one channel forward Scan mode
Ch Dn One channel backward Key lock
Vol Up Volume Up one step Volume Up fast
Vol Dn Volume Down one step Volume Down fast

Notes: ‘na’ denotes no action.

Page: 1 of 4

Direct Key Operation:

1. Power ON/OFF: A long press will turn the radio ON or OFF.

The unit will power up in normal mode.

• Turn on the 500Hz for 100msecs.

• Turn on the display with full segments for 0.5 seconds.

• Turn on the back light for 5 seconds at maximum brightness.

• Recall the last channel and CTCSS/CDCSS code.

o If no last channel information go to default channel.

2. Volume Up/Down: In the normal mode the ‘+’, ‘ -‘ buttons effect the volume in single
steps. When pressed for a period greater than 1.5 seconds the volume will be affected
in repeated steps in 125msec intervals.

There is no menu mode.

3. Monitor: In normal mode, when pressed and held the radio will enable the
speaker on the currently selected channel regardless of the CTCSS/CDCSS status.
Upon button release the radio will return to normal.

4. Channel Up/Down

In the normal mode the buttons change the channel

selection in single steps.

There is no menu mode.

5. All Scan/Dual Watch: A long press of greater than 1.5 seconds of the
Channel Up button will put the radio into the All Scan or Dual watch mode (PC program
selectable).

All Scan:
This is the function to scan for broadcast channels. When an available active channel is
detected the receiver will stop scanning at that channel. It will again continue to scan
should the channel cease activity for more than 5 seconds.

If CTCSS/CDCSS is set, only the signal with matched CTCSS/CDCSS will be detected.

All Scan: CH1-CH2-CH3-…………CH8-CH1 etc.

Page: 2 of 4
