The PSR78 is an over-the-air repeater system that operates in both the 700 and 800 MHz public safety
frequencies.
1.1.1 Highlights
• Supports up to 2 frequency bands simultaneously
o Covers the entire 700 MHz Public Safety Frequencies (12 MHz)
o Covers the entire 800 MHz Public Safety Frequencies (18 MHz)
• Composite Output Power of 30 dBm
• 30 dB AGC Range @ 0.5 dB Step
• Adjustable AGC Output Power Level
• Adjustable ALC Level

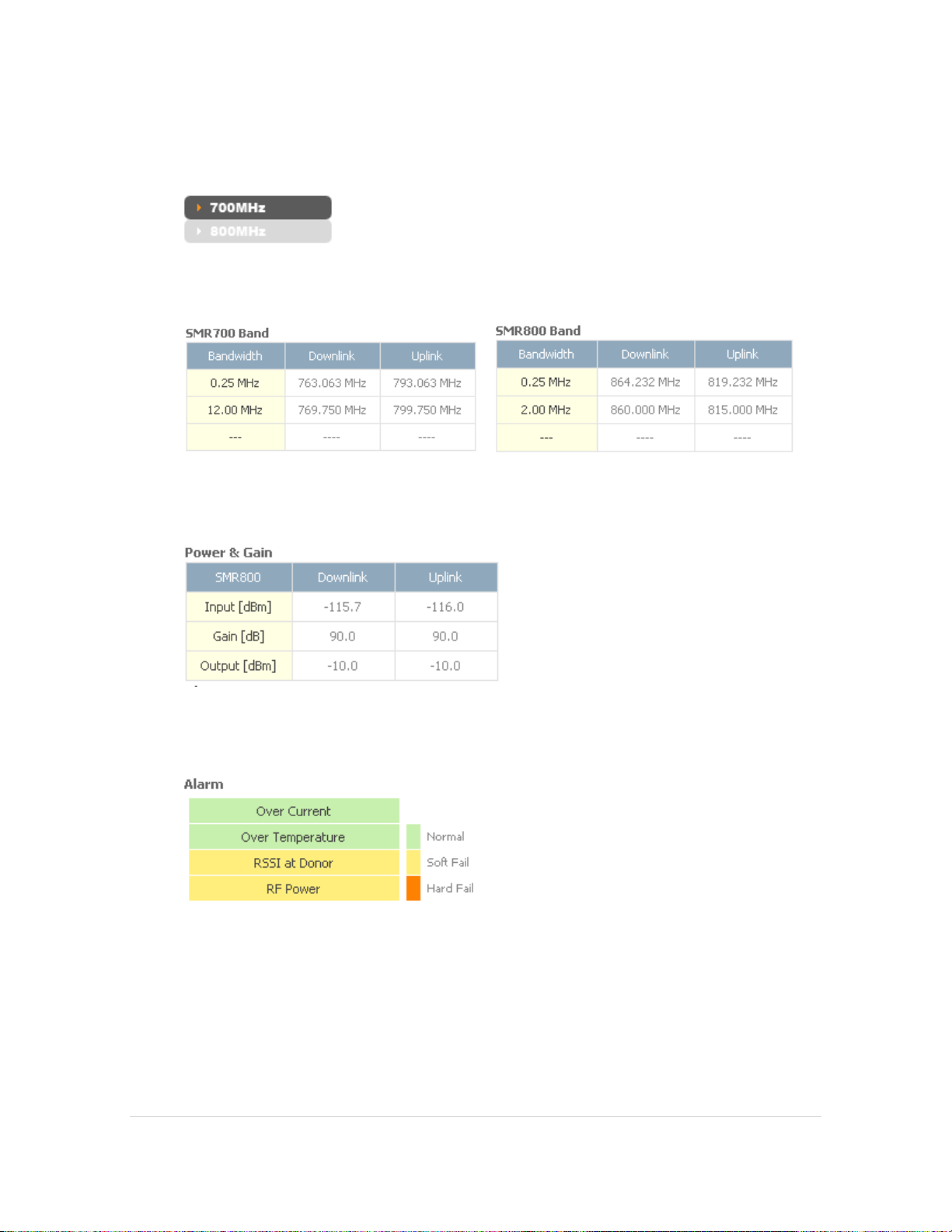

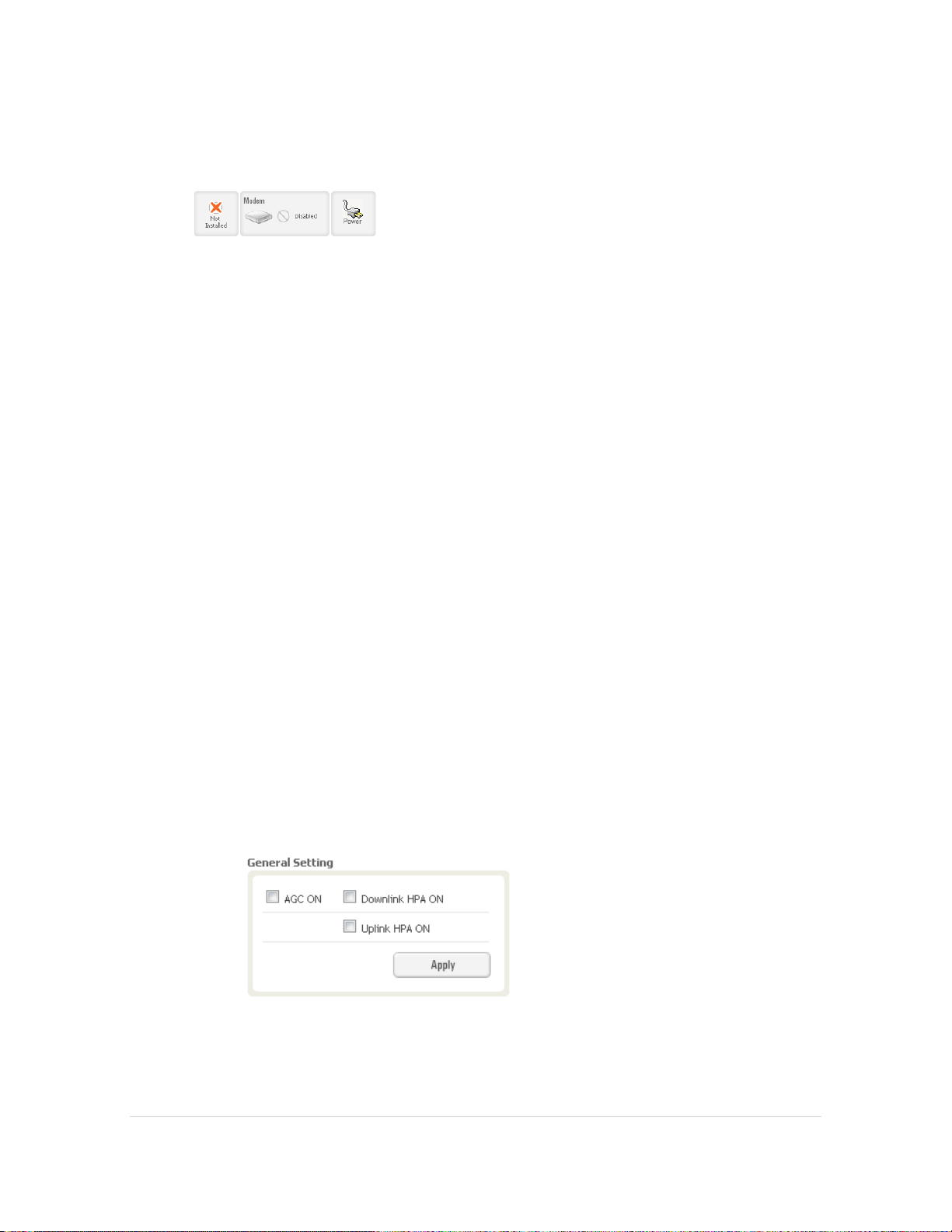

• Band Selectable via Web-GUI
• Can Support up to 6 total Non-Contiguous Bands
• External Alarming capabilities via dry contact AAI alarms
• Digital filtering
• Incremental Automatic Shutdown/Resumption Time: PSR78 gradually increases the time span between
automatic shutdown and resumption before it permanently shuts itself down
• Versatility and Usability: PSR78 gives total control to the user. Most of the control parameters, e.g., gain,
output power, alarm threshold, etc. can be changed using the Web-GUI so that the user can adjust the
system perfectly to the given RF environment
• Web-GUI connectivity via DHCP
• Supports DHCP; No 3
• Automated installation
rd
party GUI software required
Page | 6
Label
Quantity
Description
A
1
PSR78 Repeater
C
1
AC Power Cable
D
1
Ethernet Cable (Crossover)
E
1
Documentation CD**
F
1
Ground Cable
G
8
Rack Mount Bolt/Nut
Figure A – PSR78 Repeater Parts List
Table 1 – Parts List
A
C
D
E
F
G
PSR78 Repeater
User Manual V0.1
1.1.2 Parts List
** CD includes: User Manual, Quick-Start Guide, and Troubleshooting Guide
Page | 7
Door Latches
AC IN Port
External AAI Alarm Port
Battery Backup Port
RJ-45 Port and
Host/Remote Switch
Server Ports
Donor Ports
PSR78 Repeater
User Manual V0.1
1.1.3 Repeater Quick View
Page | 8
PSR78 Repeater
User Manual V0.1
2. Warnings and Hazards
WARNING!ELECTRICSHOCK
Opening the PSR78 could result in electric shock and may cause severe injury.
WARNING! EXPOSURE TO RF
Working with the repeater while in operation, may expose the technician to RF electromagnetic fields that
exceed FCC rules for human exposure. Visit the FCC website at www.fcc.gov/oet/rfsafety to learn
more about the effects of exposure to RF electromagnetic fields.
WARNING! DAMAGE TO REPEATER
Operating the Axiom with antennas in very close proximity facing each other could lead to severe
damage to the repeater.
RF EXPOSURE & ANTENNA PLACEMENT Guidelines
Actual separation distance is determined upon gain of antenna used.
Please maintain a minimum safe distance of at least 50 cm while operating near the donor and the server antennas. Also, the donor
antenna needs to be mounted outdoors on a permanent structure.
Page | 9
Double Pole/Neutral Fusing.
CAUTION
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at their own expense.
FCC Part 15 Class A
Lithium Battery: CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS.
Ethernet Instructions: This equipment is for indoor use only. All cabling should be limited to inside the
building.
Opening or tampering the Axiom will void all warranties.
WARRANTY
PSR78 Repeater
User Manual V0.1
Page | 10
PSR78
Specifications
Power
Solid Green
Module power is ON
OFF
Module is powered OFF
Soft Fail
Solid Yellow
Soft Fail alarm exist in the system
OFF
No Soft Fail alarm are present in the system
Hard Fail
Solid Red
Hard Fail alarm exist in the system
OFF
No Hard Fail alarms are present in the system
Parameters
Remark
AC fail
Power supply out of range
DC fail
Power supply out of range
Communication failure
Internal Communication failure
RMF
Field replaceable module failure
RESET
Reset alarm
Heartbeat
Heartbeat
OSC
Oscillation detected
UL RSSI fail
Power at coverage port too high
UL PLL fail
UL Synthesizer failure
H/W fail
Hardware failure
S/W fail
Software failure
UL Emission fail
UL Out-of-band emissions out of spec
DL RSSI fail
Donor Power too high/low
ISO fail
Low isolation
DL PLL fail
DL Synthesizer failure
DL Spur fail
DL Spurious emissions out of spec
Interfere
Interferer power exceeded
PSR78 Repeater
User Manual V0.1
3. PSR78 Overview
3.1 Switches & Fault Indicators
3.1.1 LEDs
The PSR78 has 3 LED’s located on inside of the repeater.

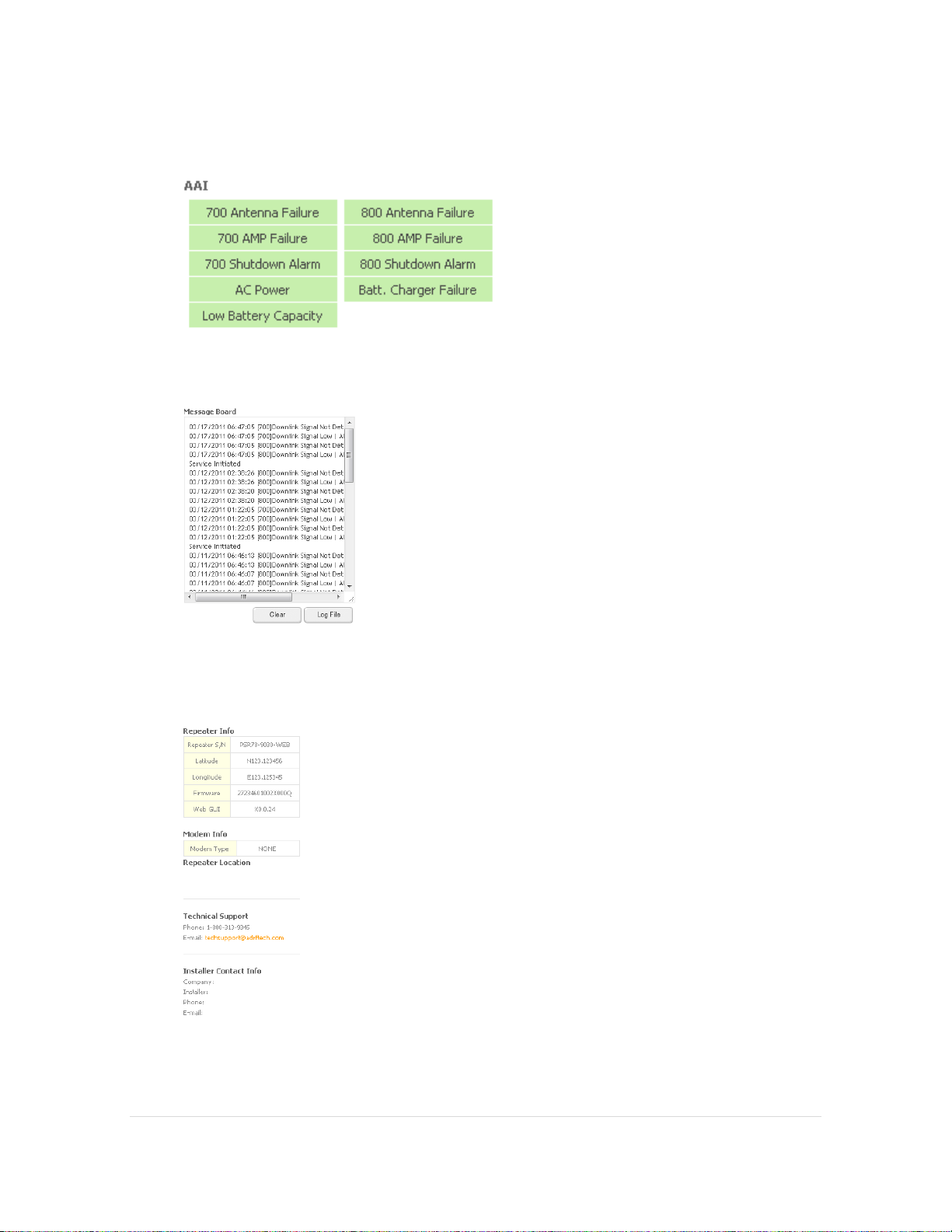

3.1.2 Message Board Alarms and Notification
Figure 1: Module LED
Page | 11
PSR78 Repeater
User Manual V0.1
3.2 Switches and Ports
3.2.1 AC In Port
The AC In Port is designed to work with the power cable that is included with the system.
Figure 2: AC In Port
3.2.2 Battery Port
The PSR78 can be connected to an ADRF-BBU (ADRF Battery Backup) to provide power during a power failure.
If an ADRF-BBU is utilized, connect the ADRF-BBU to the PSR78 via the external battery port as shown in Figure
4.
Figure 3: Battery Backup Port
(WARNING: The circuit switch on the ADRF-BBU must be set to OFF before connecting the ADRF-BBU
to the PSR78 to prevent damage to the repeater or the ADRF-BBU and personal injury.)
Note: Please contact ADRF Technical Support for assistance if you are unfamiliar with the installation
procedure of our battery box.
3.2.3 Power Switch
The power switch is located on the inside of the repeater. Open the 2 latches on the side of the repeater to
open the top cover. Once opened, the power switch is located on the bottom left of the power supply.
Figure 4: Battery Backup Port
Page | 12
