Advanced RF Technologies EPOCHS028002W User Manual

EPOCH-S02-8002W

USER MANUAL

Version 1.1

Epoch-S02-8002W RF Repeater

User Manual V1.0

Version 1.1 (Released March 25, 2008)

Information in this document is subject to change without notice.
Advanced RF Technologies, Inc. 2002-2008. All rights reserved.

Please send comments to:

E-Mail: [e-mail]

Phone: [phone]

[phone]

Fax: [phone]

Address:

Advanced RF Technologies, Inc.

Attention: Technical Publications Department

2607 Colorado Blvd., 1st Floor
Los Angeles, CA 90041
USA

www.adrftech.com

Revision History
Version Author Description Date

1.0 Peter Son March 11, 2007

1.1 Namchul Lee March 25, 2008

Advanced RF Technologies, Inc. Proprietary Document Page 2 of 33

Epoch-S02-8002W RF Repeater

User Manual V1.0

TABLE OF CONTENTS

1. Installation Guide for Epoch-S02-8002W............................................................5

1.1 Environmental Requirements ........................................................................5

1.1.1 Antenna Separation/Isolation..........................................................5

1.1.2 Line of Sight ...................................................................................6

1.2 Warnings and Hazards ..................................................................................7

1.3 Tools and Recommendations for Installation.................................................9

1.4 Epoch-S02-8002W Parts List ........................................................................9

1.5 Epoch-S02 OMS V1.XX Installation and Requirements .................................10

1.5.1 Minimum Requirements...........................................................................10

1.5.2 Epoch-S02 OMS V1.XX Installation...........................................................10

1.6 Pre-Installation using Epoch-S02 OMS V1.XX..............................................11

1.7 Step by Step Instructions for Installation .....................................................11

1.7.1 Repeater Setup .............................................................................11

2 User Manual V1.2 using OMS V1.XX ..............................................................16

2.1 Menu Structure ...........................................................................................16

2.1.1 Window Overview .........................................................................16

2.1.2 Status Window..............................................................................16

2.1.3 Control Menu ...............................................................................18

2.1.3.1 General Setting Window..................................................18

** You will lose your current saved settings once you click on
“System Factory Setting”

2.1.3.2 Alarm Setting Window ....................................................20

2.1.4 Install Window ..............................................................................21

2.1.5 System Information ......................................................................23

2.2 Using the Epoch-S02 OMS V1.XX ................................................................23

2.2.1 Changing Parameters ...................................................................23

2.3 Alarms........................................................................................................24

2.3.1 General (Fixed Parameter) Alarms .................................................25

2.3.2 Downlink/Uplink Alarms...............................................................25

2.4 Default Control Settings..............................................................................26

2.4.1 Default General Setting.................................................................26

2.4.2 Default Alarm Setting ...................................................................26

3 Maintenance Guide for Epoch-S02-8002W....................................................27

3.1 Periodic Inspection Checklist ......................................................................27

3.2 Preventive Measures for Optimal Operation.................................................27

3.2.1 Recommendations........................................................................27

3.2.2 Precautions ..................................................................................27

4 Troubleshooting...........................................................................................28

4.1 Epoch-S02 OMS V1.XX Scenarios ................................................................28

...............................................................19

Advanced RF Technologies, Inc. Proprietary Document Page 3 of 33

Epoch-S02-8002W RF Repeater

User Manual V1.0

4.2 Common Installation Problems ...................................................................28

5 Warranty and Repair Policy............................................................................30

5.1 General Warranty ........................................................................................30

5.2 Limitations of Warranty...............................................................................30

Appendix A: Specifications ..........................................................................................32

A.1 Repeater Specifications ..............................................................................32

Advanced RF Technologies, Inc. Proprietary Document Page 4 of 33

Epoch-S02-8002W RF Repeater

User Manual V1.0

1. Installation Guide for Epoch-S02-8002W

1.1 Environmental Requirements

1.1.1 Antenna Separation/Isolation

Separation between antennas is necessary to prevent oscillation.
Oscillation occurs when the signal entering the system continually
reenters, due to the lack of separation between the donor and server
antennas. In other words, the signal is being fed back into the system.
This creates a constant amplification of the same signal. As a result, the
noise level rises above the signal level.

Donor Server

RF Repeater

Figure 1 - RF Repeater Oscillation

To prevent feedback, the donor and server antennas must be separated
by an appropriate distance to provide sufficient isolation. Isolation is
attained by separating antennas a sufficient distance so that the output
of one antenna does not reach the input of the other. This distance is
dependent on the gain of the repeater.

A sufficient isolation value is 13 ~ 15 dB greater than the maximum gain
of the repeater. For example, if the gain of the repeater is 50 dB, then an
isolation of 63 ~ 65 dB or greater is required. In the same manner,
because the Epoch-S02-8002W has a maximum gain of 96 dB, it requires
an isolation of at least 103 ~ 105 dB.

Advanced RF Technologies, Inc. Proprietary Document Page 5 of 33

Epoch-S02-8002W RF Repeater

User Manual V1.0

1.1.2 Line of Sight

The donor antenna which points towards the base station typically has a
narrow beam antenna pattern. As a result, a slight deviation away from
the direction of the BTS can lead to less than optimum results. In
addition, obstacles between the repeater and the BTS may impair the
repeater from obtaining any BTS signal. As a result, the repeater cannot
transmit signal to the coverage area. Therefore, a direct line of sight to
the BTS for the donor antenna is vital to the function of a repeater. For
the same reason, placing the server antenna in direct line of sight of the
coverage area is also necessary.

Figure 2 - Direct Line of Sight to the BTS

Advanced RF Technologies, Inc. Proprietary Document Page 6 of 33

Epoch-S02-8002W RF Repeater

User Manual V1.0

1.2 Warnings and Hazards

WARNING! ELECTRIC SHOCK

Tampering with the modules within the Epoch-S02-8002W
repeater exposes the user to electric shock and the risk of
damaging the unit. DO NOT TAMPER with modules within the unit.
Opening or tampering with any modules inside the Epoch-S02-

8002W will void all warranties.

WARNING! HIGH VOLTAGE

In installing donor or server antennas, avoid close proximity to
overhead power lines or high power components. Contact with
high power components will severely damage the repeater and may
cause serious injury and/or death to the user. Exercise extreme
caution when installing antennas near high power lines.

WARNING! EXPOSURE TO RF

Working with the repeater while in operation, may expose the
technician to RF electromagnetic fields that exceed FCC rules for
human exposure. Visit the FCC website at
to learn more about the effects of exposure to RF electromagnetic
fields.

www.fcc.gov/oet/rfsafety

MPE WARNING!

Please maintain a safe distance of 27 cm while operating near the donor and the
server antennas (assuming the maximum gain of either of the antennas do not exceed

15 dBi).

Advanced RF Technologies, Inc. Proprietary Document Page 7 of 33

Epoch-S02-8002W RF Repeater

User Manual V1.0

WARNING!

Operating the Epoch-S02-8002W with antennas in
very close proximity facing each other could lead to

severe damage to the repeater.

FCC Part 15 Class A

NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.

Advanced RF Technologies, Inc. Proprietary Document Page 8 of 33

Epoch-S02-8002W RF Repeater

User Manual V1.0

Tools and Recommendations for Installation

The following may be necessary (not required) for installation of the repeater:

a. Crescent Wrench

b. Philips Screw Driver
c. Lift, Ladder, or Boom Truck
d. Spectrum Analyzer
e. Sweep Tester
f. Signal Generator
g. Pilot Scanner
h. RF Power Meter
i. Voltmeter
j. Coaxial Cables
k. Compass
l. PC with an RS-232 serial port (with Epoch-S02 OMS V1.XX Software installed)

The list above may vary depending on if brackets are used to install the repeater.
Bring additional tools that may be useful during installation. It is recommended
that two people install the Epoch-S02-8002W repeater system.

1.3 Epoch-S02-8002W Parts List

The Epoch-S02-8002W repeater system includes:

PART ID

QUANTITY
a. Epoch-S02-8002W Repeater EPOCHSO202 1
b. Repeater I-Bracket (Added Option) ISRB01 1
c. Nuts and Bolts BLTS01 4
d. Screws (Added Option) SC01 8
e. Epoch-S02 OMS V1.XX SO2OMS V1.XX 1
f. Ground Cable GNDSTD01 1

g. Straight-Through Serial Cable SCST01 1
h. Keys KEYS01 4

Advanced RF Technologies, Inc. Proprietary Document Page 9 of 33

Epoch-S02-8002W RF Repeater

User Manual V1.0

1.4 Epoch-S02 OMS V1.XX Installation and Requirements

1.5.1 Minimum Requirements

Hardware (PC Platform)

CPU: 200 MHz
Memory: 32 MB
Hard Disk: 10 MB (Free Space)
Serial Port: 1 Port (RS-232)
CD-ROM Drive

Compatible Operating System:
Microsoft Windows2000, XP (Preferred)

1.5.2 Epoch-S02 OMS V1.XX Installation

Installing the Epoch-S02 OMS V1.XX

a. Insert the CD into the CD-ROM drive.

b. Click on “My Computer.”

c. In the “My Computer” window, click on your CD-ROM drive (usually

labeled D:).

d. Double-click the file labeled “setup.exe.”

e. The installation wizard will guide you through the conclusion of the

Epoch-S02 OMS V1.XX installation process.

1.5.3 Initial Startup of Epoch-S02 OMS V1.XX

a. Using the straight-through serial cable (SCST01) that is provided,

connect one end of the cable to the PC RS-232 serial port and the
other end to the repeater’s DB9 port (labeled as NMS) located on the
bottom of the repeater.

b. Open the Epoch-S02 OMS V1.XX software

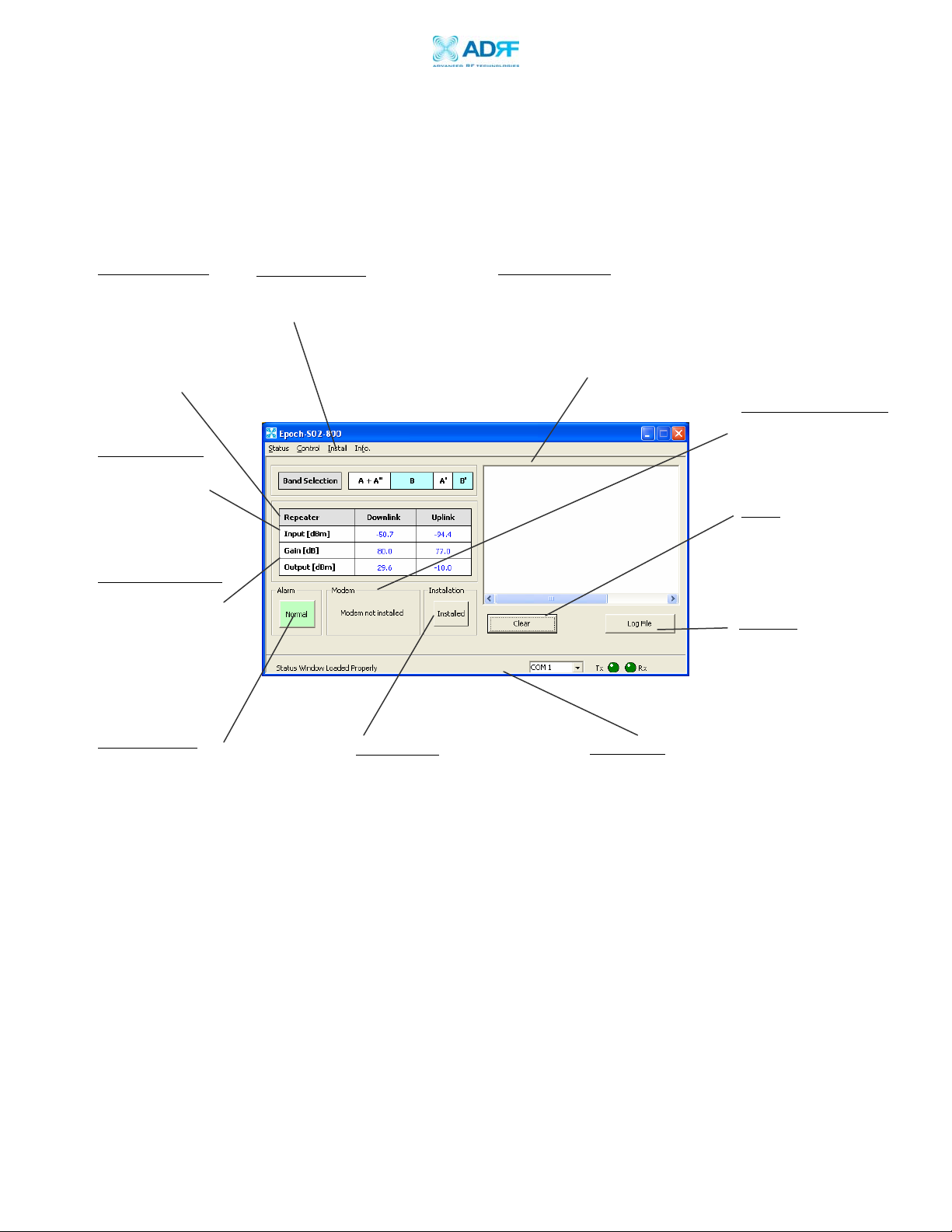

c. In the Status Window, choose the right communication port: COM1,

COM2, COM3, or COM4 (the default setting is COM1). Refer to
section 2.1.1 for additional information on page 15.

** If your PC does not have a serial port and only supports USB

connection, you will then need a USB-to-Serial adapter so that it can

connect to the straight-through serial cable that is provided.

d. Click on

the Status Window again to refresh the window.

Advanced RF Technologies, Inc. Proprietary Document Page 10 of 33
