2729-125
125 Watts, 36 Volts, 100µs, 10%
Radar 2700-2900 MHz
GENERAL DESCRIPTION
The 2729-125 is an internally matched, COMMON BASE bipolar transistor
capable of providing 125 Watts of pulsed RF output power at 100µs pulse
width, 10% duty factor across the 2700 to 2900 MHz band. The transistor
prematch and test fixture has been optimized through the use of Pulsed
Automated Load Pull. This hermetically solder-sealed transistor is specifically
designed for S-band radar applications. It utilizes gold metallization and emitter
ballasting to provide high reliability and supreme ruggedness.
ABSOLUTE MAXIMUM RATINGS
Maximum Power Dissipation
Device Dissipation @ 25°C
Maximum Voltage and Current
Collector to Base Voltage (BV
Emitter to Base Voltage (BV
Collector Current (I
c
Maximum Temperatures
Storage Temperature -65 to +200 °C
Operating Junction Temperature +200 °C
1
350 W
) 15 A
) 65 V
ces
) 3.0 V
ebo

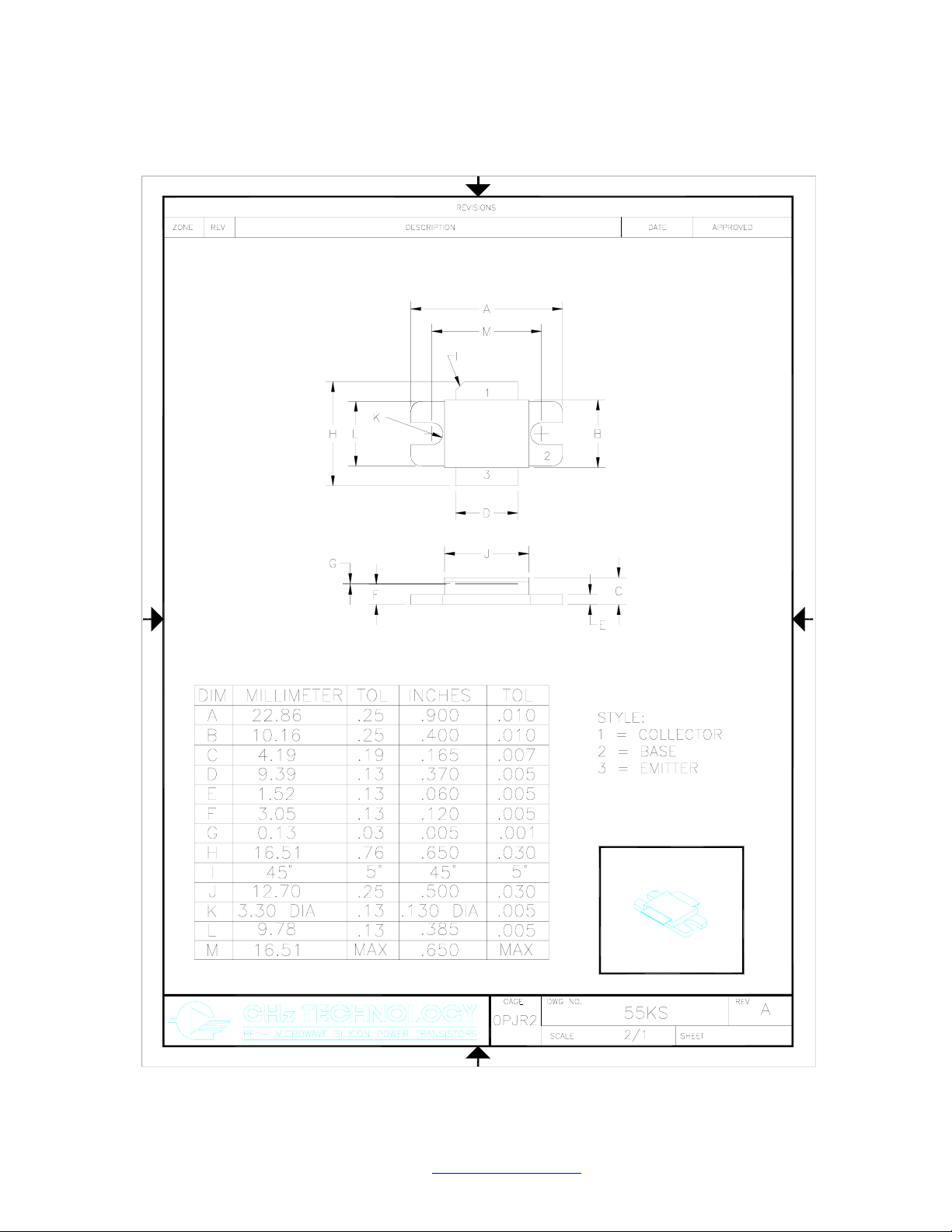

CASE OUTLINE
55KS-1
Common Base
ELECTRICAL CHARACTERISTICS @ 25°C
SYMBOL CHARACTERISTICS TEST CONDITIONS MIN TYP MAX UNITS
P
out
Power Output
Pin Power Input
P
g
η
c
Power Gain
Collector Efficiency Duty Factor = 10% 45 55 %
VSWR Load Mismatch Tolerance
1
F=2700-2900 MHz 125 W
Vcc = 36 Volts 15.7 W
Pulse Width = 100 µs 9.0 9.5 dB
F = 2900 MHz, Po = 125W 2:1
FUNCTIONAL CHARACTERISTICS @ 25°C
BV
ebo
BV
ces
h
FE
1
θjc
NOTE: 1. At rated output power and pulse conditions
Issue April 2003
Emitter to Base Breakdown Ie = 30 mA 3.0 V
Collector to Emitter Breakdown Ic = 120 mA 56 65 V
DC – Current Gain Vce = 5V, Ic = 600 mA 18 50
Thermal Resistance 0.5
°C/W
Advanced Power Technology reserves the right to change, without notice, the specifications and information
contained herein. Visit our web site at www.advancedpower.com or contact our factory direct.
2729-125
Vcc = 36 Volts, Pulse Width = 100µs, Duty = 10%
G2747-2, Unit 7, TF040803P2
Gain vs. Pow er Input -dBm
36 Volts, 100µs, 10%
12.0
11.0
10.0
9.0
8.0
7.0
6.0
5.0
4.0
Power Gain (dB)
3.0
2.0
1.0
0.0
36.0 37.0 38.0 39.0 40.0 41.0 42.0
Power Input (dBm)
2.7
2.8
2.9
Power Output vs. Power In (Watts)
36Volts, 100µ s, 10%
150.0
140.0
130.0
120.0
110.0
100.0
90.0
80.0
70.0
Pout (W)
60.0
50.0
40.0
30.0
20.0
10.0
0.0
4.0 6.0 8.0 10.0 12.0 14.0 16.0
Pin (W)
2.7
2.8
2.9
Expected Pout
Gain vs. Pow er Input - dBm
36 Volts, 100µs, 10%
12.0
11.0
10.0
9.0
8.0
7.0
6.0
5.0
4.0
Power Gain (dB)
3.0
2.0
1.0
0.0
36.0 37.0 38.0 39.0 40.0 41.0 42.0
Power Input (dBm)
70.0
60.0
50.0
2.7
2.8
2.9
40.0
EFF(%)
30.0
20.0
10.0
0.0
4.0 6.0 8.0 10.0 12.0 14.0 16.0
Efficiency (%) vs Power Input (W)
36 Volts, 100µs
, 10%
Pin (W)
2.7
2.8
2.9
