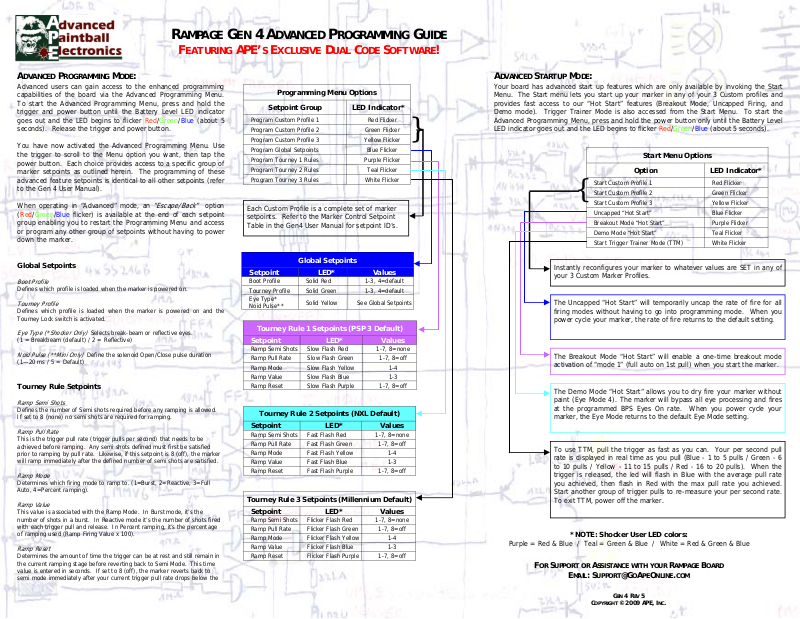

RAMPAGE GEN 4 ADVANCED PROGRAMMING GUIDE
FEATURING APE’S EXCLUSIVE DUAL CODE SOFTWARE!
ADVANCED PROGRAMMING MODE:
Advanced users can gain access to the enhanced programming
capabilities of the board via the Advanced Programming Menu.
To start the Advanced Programming Menu, press and hold the
trigger and power button until the Battery Level LED indicator
goes out and the LED begins to flicker Red/Green/Blue (about 5
seconds). Release the trigger and power button.
You have now activated the Advanced Programming Menu. Use
the trigger to scroll to the Menu option you want, then tap the
power button. Each choice provides access to a specific group of
marker setpoints as outlined herein. The programming of these
advanced feature setpoints is identical to all other setpoints (refer
to the Gen 4 User Manual).
When operating in “Advanced” mode, an
(Red/Green/Blue flicker) is available at the end of each setpoint
group enabling you to restart the Programming Menu and access
or program any other group of setpoints without having to power
down the marker.
Global Setpoints
Boot Profile
Defines which profile is loaded when the marker is powered on.
Tourney Profile
Defines which profile is loaded when the marker is powered on and the
Tourney Lock switch is activated.
Eye Type (*Shocker Only)
(1 = Breakbeam (default) / 2 = Reflective)
Noid Pulse (**Mini Only)
(1—20 ms / 5 = Default)
Selects break-beam or reflective eyes.
Define the solenoid Open/Close pulse duration
Tourney Rule Setpoints
Ramp Semi Shots
Defines the number of Semi shots required before any ramping is allowed.
If set to 8 (none) no semi shots are required for ramping.
Ramp Pull Rate
This is the trigger pull rate (trigger pulls per second) that needs to be
achieved before ramping. Any semi shots defined must first be satisfied
prior to ramping by pull rate. Likewise, if this setpoint is 8 (off), the marker
will ramp immediately after the defined number of semi shots are satisfied.
Ramp Mode
Determines which firing mode to ramp to. (1=Burst, 2=Reactive, 3=Full
Auto, 4=Percent ramping).
Ramp Value
This value is associated with the Ramp Mode. In Burst mode, it’s the
number of shots in a burst. In Reactive mode it’s the number of shots fired
with each trigger pull and release. In Percent ramping, it’s the percentage
of ramping used (Ramp Firing Value x 100).
Ramp Reset
Determines the amount of time the trigger can be at rest and still remain in
the current ramping stage before reverting back to Semi Mode. This time
value is entered in seconds. If set to 8 (off), the marker reverts back to
semi mode immediately after your current trigger pull rate drops below the
“Escape/Back”
option
Programming Menu Options
Setpoint Group LED Indicator*
Program Custom Profile 1 Red Flicker
Program Custom Profile 2 Green Flicker
Program Custom Profile 3 Yellow Flicker
Program Global Setpoints Blue Flicker
Program Tourney 1 Rules Purple Flicker
Program Tourney 2 Rules Teal Flicker
Program Tourney 3 Rules White Flicker
}
Each Custom Profile is a complete set of marker
setpoints. Refer to the Marker Control Setpoint
Table in the Gen4 User Manual for setpoint ID’s.
Global Setpoints
Setpoint LED* Values
Boot Profile Solid Red 1-3, 4=default
Tourney Profile Solid Green 1-3, 4=default
Eye Type*
Noid Pulse**
Solid Yellow See Global Setpoints
Tourney Rule 1 Setpoints (PSP 3 Default)
Setpoint LED* Values
Ramp Semi Shots Slow Flash Red 1-7, 8=none
Ramp Pull Rate Slow Flash Green 1-7, 8=off
Ramp Mode Slow Flash Yellow 1-4
Ramp Value Slo w Flash Blue 1-3
Ramp Reset Slow Flash Purple 1-7, 8=off
Tourney Rule 2 Setpoints (NXL Default)
Setpoint LED* Values
Ramp Semi Shots Fast Flash Red 1-7, 8=none
Ramp Pull Rate Fast Flash Green 1-7, 8=off
Ramp Mode Fast Flash Yellow 1-4
Ramp Value Fast Flash Blue 1-3
Ramp Reset Fast Flash Purple 1-7, 8=off
Tourney Rule 3 Setpoints (Millennium Default)
Setpoint LED* Values
Ramp Semi Shots Flicker Flash Red 1-7, 8=none
Ramp Pull Rate Flicker Flash Green 1-7, 8=off
Ramp Mode Flicker Flash Yellow 1-4
Ramp Value Flicker Flash Blue 1-3
Ramp Reset Flicker Flash Purple 1-7, 8=off
ADVANCED STARTUP MODE:
Your board has advanced start up features which are only available by invoking the Start
Menu. The Start menu lets you start up your marker in any of your 3 Custom profiles and
provides fast access to our “Hot Start” features (Breakout Mode, Uncapped Firing, and
Demo mode). Trigger Trainer Mode is also accessed from the Start Menu. To start the
Advanced Programming Menu, press and hold the power button only until the Battery Level
LED indicator goes out and the LED begins to flicker Red/Green/Blue (about 5 seconds).
Start Menu Options
Option LED Indicator*
Start Custom Profile 1 Red Flicker
Start Custom Profile 2 Green Flicker
{
Start Custom Profile 3 Yellow Flicker
Uncapped “Hot Start” Blue Flicker
Breakout Mode “Hot Start” Purple Flicker
Demo Mode “Hot Start” Teal Flicker
Start Trigger Trainer Mode (TTM) White Flicker
Instantly reconfigures your marker to whatever values are SET in any of
your 3 Custom Marker Profiles.
The Uncapped “Hot Start” will temporarily uncap the rate of fire for all
firing modes without having to go into programming mode. When you
power cycle your marker, the rate of fire returns to the default setting.
The Breakout Mode “Hot Start” will enable a one-time breakout mode
activation of “mode 1” (full auto on 1st pull) when you start the marker.
The Demo Mode “Hot Start” allows you to dry fire your marker without
paint (Eye Mode 4). The marker will bypass all eye processing and fires
at the programmed BPS Eyes On rate. When you power cycle your
marker, the Eye Mode returns to the default Eye Mode setting.
To use TTM, pull the trigger as fast as you can. Your per second pull
rate is displayed in real time as you pull (Blue - 1 to 5 pulls / Green - 6
to 10 pulls / Yellow - 11 to 15 pulls / Red - 16 to 20 pulls). When the
trigger is released, the led will flash in Blue with the average pull rate
you achieved, then flash in Red with the max pull rate you achieved.
Start another group of trigger pulls to re-measure your per second rate.
To exit TTM, power off the marker.
Purple = Red & Blue / Teal = Green & Blue / White = Red & Green & Blue
FOR SUPPORT OR ASSISTANCE WITH YOUR RAMPAGE BOARD
*NOTE: Shocker User LED colors:
E
MAIL: SUPPORT@GOAPEONLINE.COM
C
OPYRIGHT © 2009 APE, INC.
EN 4 REV 5
