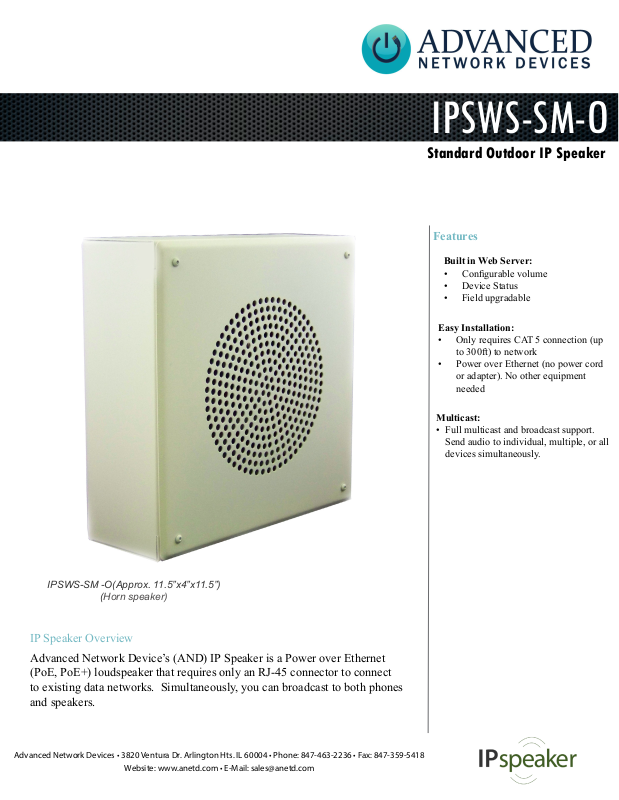

Advanced Network Devices IPSWS-SM-O-IC, IPSWS-SM-O Data Sheet

IPSWS-SM-O
Standard Outdoor IP Speaker
Features
Built in Web Server:
Congurable volume
Device Status
Field upgradable
Easy Installation:
Only requires CAT 5 connection (up to 300ft) to network
Power over Ethernet (no power cord or adapter). No other equipment needed
Multicast:
• Full multicast and broadcast support. Send audio to individual, multiple, or all devices simultaneously.
IPSWS-SM -O(Approx. 11.5”x4”x11.5”)
(Horn speaker)
IP Speaker Overview
Advanced Network Device’s (AND) IP Speaker is a Power over Ethernet (PoE, PoE+) loudspeaker that requires only an RJ-45 connector to connect to existing data networks. Simultaneously, you can broadcast to both phones and speakers.
Website: www.anetd.com • E-Mail: sales@anetd.com
Supported Protocols
• SIP
• IPv4
• DHCP
• IGMP
Software Options
• AND Clockwise: Instantly nds all of your AND devices, it is a clock/alarm program
for scheduling, alarms, events, stopwatch, timer, optional theme sound library, sending News/RSS/Twitter/Weather/Stock feeds, etc.
• HTTP
• SLP
• TFTP
• NTP
• SNMPV1 & SNMPV2c
• ICMP
• TCP/IP
• UDP
• MDNS and MDNS-SD
Specications
• Weight: 10lbs
• Approx: 11.5”x4”x11.5”
• PoE (IEEE802.3af) 15.4 W
• PoE+ (IEEE802.3at) 30.0 W
• 10/100 Mb network connection
Speaker Size compression
horn
Average Sensitivity 104 dB, 1W/1M
Audio Power 8 W/ 16W
Frequency Response
Polar Plot See diagram 1
600 Hz - 14 kHz
• Third Party Software: AND has a long-standing relationship with InformaCast (Sin­gleWire), and also supports IPSession (IPCelerate), SA-Announce (Syn-Apps), Mes­sageNet Systems, BellCommander (AcroVista), and others. AND devices will also work with SIP-compatible products/PBX, such as Asterisk, 3CX, Shoretel, etc.
• Multiple: Can run Clockwise and 3rd party software concurrently.
Diagram 1
8” Horn Polar Plot
2 kHz Octave Band,
Grid Spacing = 6dB/Division
Advanced Network Devices • 3820 Ventura Dr. Arlington Hts. IL 60004 • Phone: 847-463-2236 • Fax: 847-359-5418
Back
Front
Website: www.anetd.com • E-Mail: sales@anetd.com
