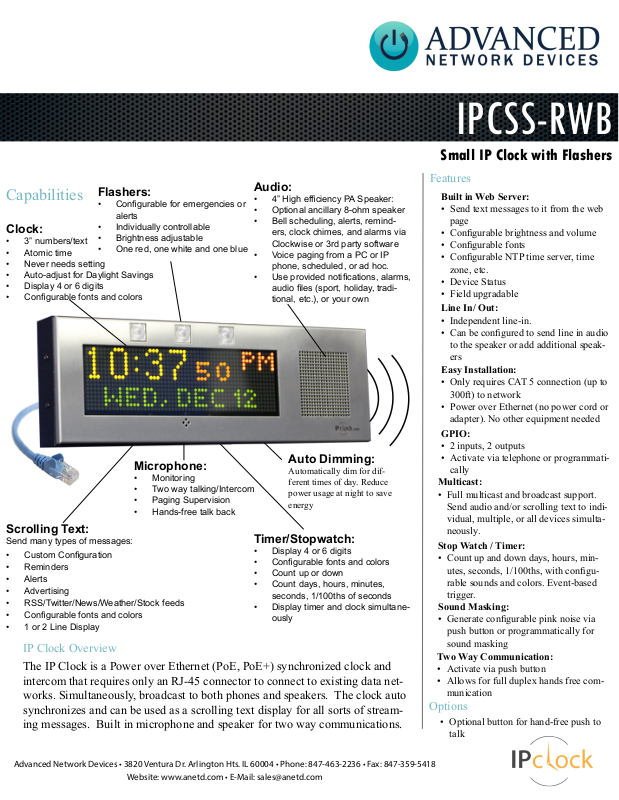

Advanced Network Devices IPCSS-RWB-IC Data Sheet

IPCSS-RWB

Small IP Clock with Flashers

Capabilities

Clock:

• 3” numbers/text

• Atomic time

• Never needs setting

• Auto-adjust for Daylight Savings

• Display 4 or 6 digits

• Congurable fonts and colors

Flashers:

• Congurable for emergencies or
alerts

• Individually controllable

• Brightness adjustable

• One red, one white and one blue

Microphone:

• Monitoring

• Two way talking/Intercom

• Paging Supervision

• Hands-free talk back

Audio:

• 4” High efciency PA Speaker:

• Optional ancillary 8-ohm speaker

• Bell scheduling, alerts, remind-

ers, clock chimes, and alarms via
Clockwise or 3rd party software

• Voice paging from a PC or IP
phone, scheduled, or ad hoc.

• Use provided notications, alarms,
audio les (sport, holiday, tradi­tional, etc.), or your own

Auto Dimming:

Automatically dim for dif­ferent times of day. Reduce
power usage at night to save
energy

Scrolling Text:

Send many types of messages:

• Custom Conguration

• Reminders

• Alerts

• Advertising

• RSS/Twitter/News/Weather/Stock feeds

• Congurable fonts and colors

• 1 or 2 Line Display

Timer/Stopwatch:

• Display 4 or 6 digits

• Congurable fonts and colors

• Count up or down

• Count days, hours, minutes,

seconds, 1/100ths of seconds

• Display timer and clock simultane­ously

IP Clock Overview

The IP Clock is a Power over Ethernet (PoE, PoE+) synchronized clock and
intercom that requires only an RJ-45 connector to connect to existing data net­works. Simultaneously, broadcast to both phones and speakers. The clock auto
synchronizes and can be used as a scrolling text display for all sorts of stream­ing messages. Built in microphone and speaker for two way communications.

Features

Built in Web Server:

• Send text messages to it from the web
page

• Congurable brightness and volume

• Congurable fonts

• Congurable NTP time server, time
zone, etc.

• Device Status

• Field upgradable

Line In/ Out:

• Independent line-in.

• Can be congured to send line in audio
to the speaker or add additional speak­ers

Easy Installation:

• Only requires CAT 5 connection (up to
300ft) to network

• Power over Ethernet (no power cord or

adapter). No other equipment needed

GPIO:

• 2 inputs, 2 outputs

• Activate via telephone or programmati­cally

Multicast:

• Full multicast and broadcast support.
Send audio and/or scrolling text to indi­vidual, multiple, or all devices simulta­neously.

Stop Watch / Timer:

• Count up and down days, hours, min­utes, seconds, 1/100ths, with congu­rable sounds and colors. Event-based
trigger.

Sound Masking:

• Generate congurable pink noise via
push button or programmatically for
sound masking

Two Way Communication:

• Activate via push button

• Allows for full duplex hands free com­munication

Options

• Optional button for hand-free push to

talk

Advanced Network Devices • 3820 Ventura Dr. Arlington Hts. IL 60004 • Phone: [phone] • Fax: [phone]

Website: www.anetd.com • E-Mail: [e-mail]

Supported Protocols

• SIP

• IPv4

• HTTP

• SLP

• TFTP

• NTP

• SNMPV1 &

SNMPV2c

• DHCP

• IGMP

• ICMP

• TCP/IP

• UDP

• M D N S a n d

MDNS-SD

Specications

• Weight: 5 lbs

• Approx. 18”x 2.25”x 6”

• PoE (IEEE802.3af) 15.4 W

• PoE+(IEEE802.3at) 30.0 W

• 10/100 Mb network connection

Software Options

• No software: External software is not required for atomic timekeeping and sending text

messages from the device’s web server. The devices can operate stand-alone. However,
application software can be used to augment the devices capabilities and integrate the

device into a mass notication system, on the phone network, etc.

• AND Clockwise: Instantly nds all of your AND devices, it is a clock/alarm program

for scheduling, alarms, events, stopwatch, timer, optional theme sound library, sending

News/RSS/Twitter/Weather/Stock feeds, etc.

• 3rd Party Software: AND has a long-standing relationship with InformaCast (Sin-

gleWire), and also supports IPSession (IPCelerate), SA-Announce (Syn-Apps), Mes-

sageNet Systems, BellCommander (AcroVista), Application Gateway 2000 (Nortel), UC
Server by Objectworld (Adtran) and others. AND devices also work will with SIP-com-

patible products/PBX, such as Asterisk, 3CX, ShoreTel, etc.

• Multiple: Can run Clockwise and 3rd party software concurrently.

Speaker Size: 4”

Average

Sensitivity: 96dB, 1W/1M

Audio Power: 8 W/ 16 W

Frequency
Response:

Polar Plot: See diagram 1

4” Speaker Polar Plot

2 kHz Octave Band,

Grid Spacing = 6dB/Division

130 Hz - 9 kHz

Diagram 1
