Advance Adapters KJ09138BK User Manual

TOOLS NEEDED

BILL OF MATERIALS

• Metric tools

• Floor jack

• Jack stand (s) 4

• Wheel chocks

Other Jeep JK Products

• KU09059 EVS Foam bump-stops

• KU09060 EVS Foam bump-stops

• KU70034 Ft lower control arms

• KU70033 Rear upper control arms

• KU70037 Rear lower control arms

• KU70091 poly flex tool

• KU11005 Poly lube gun

• KJ71020 Upper dash panel

• KJ71030 Lower switch panel

• KU01005 FT Shock

• KU01008 Rear shocks

BOM FOR 3/4 KIT

Part # Description Qty

M03759
M03762

M03758
M03761

S11090
S10373

S11051
P11183

3/4 FT spacers 2

3/4 Rear spacers 2

BOM FOR 1 3/4 KIT

1 3/4 FT Spacers 2

1 3/4 Rear spacers 2

Drop brackets 2

Bolts 4

Washers 4

Loctite 1

KJ09138 / KJ09137

2007 to Current Jeep JK 3/4 & 1 3/4 lift kits

Hells gate, Moab UT

www.Daystarweb.com

Tech Support Contact Info

[e-mail]

Phone: [phone]

Fax: [phone]

841 South 71

st

Avenue

Instruction Sheet P11162
2007 Daystar Products International Inc.

Thank you for choosing Daystar Products

Daystar recommends a certified technician install this system . In addition to
these instructions, professional knowledge of disassemble/reassembly proce­dures as well as post instructions checks must be known. Attempts to install this
system without this knowledge and expertise may jeopardize the integrity and/or
operating of the vehicle.

Please read all the instructions before beginning the installation. Check the kit
hardware against the parts list. Be sure you have all the needed parts and under­stand where they go. If anything is missing , do not proceed with the installa­tion, Call Daystar Products to obtain needed items.

.

With the coil removed , install the rear lift spacer over the stock

11

spring isolator and install the coil springs.

Product Use Information

As a general rule, the taller a vehicle is the easier it will roll. We strongly recom­mend , because of rollover possibility, that seat belts and shoulder harness be
worn at all times. Avoid situations where a side rollover may occur.

Braking performance and capabilities are decreased when significantly large/
heavier tires and wheels are used. Take this into consideration while driving,
Also , speedometer recalibration is necessary when larger tires are installed.

Do not add, alter, or fabricate any factory or after-market pa rt s whi ch inc rease
vehicle height over the intended height of the Daystar Product purchased. Mixing
component brands, lifts, and/or combining body lift with suspension lift voids all
warranties. Daystar makes no claims regarding lifting devices and excludes any
and all implied claims. We will not be responsible for any products that is al­tered.

Notice to Dealer and Vehicle Owner

Any vehicle equipped with any Daystar Product must have the “Warning to
driver” decal installed on the sun visor or dash. The decal is to act a constant re­minder for whoever is operating the vehicle of its uniq ue h andl i n g characteristics.
INSTALLING DEALER— Its is your responsibility to install the warning decal
and forward these instructions on too the vehicle owner for review and to be kept
in the vehicle for service life.

After installation occurs, a qualified alignment facility is required to align the
vehicle to factory specs.

Raise up the rear axle to reconnect the shocks and install the rear

12.

sway bar and brake line bracket.
For 1 3/4 lift you will need to install the sway bar drop bracket be-

13.

tween the sway bar mount and the frame. Install the 2 sleeves into
the drop bracket and place between the frame and sway bar, using
the supplied longer bolts and loctite.
Install the rear wheels and lower back on the ground.

14.

You will need to have your wheel alignment checked.

15.

Check all bolts and nuts after 500 miles and lug nuts.

16.

Sleeve

Drop bracket

7.

Install the front wheels and lower off the jack stands
Place the wheel chock at the front wheels and jack up the rear sus-

8.

pension and support the vehicle at the frame and remove the rear
tires.
With the jack under the rear axle, jack up it up so you can disconnect

9.

the rear shocks and rear sway bar at the frame and the bracket that
holds the brake line to the frame.

10. Lower the axle down to remove the coil springs.

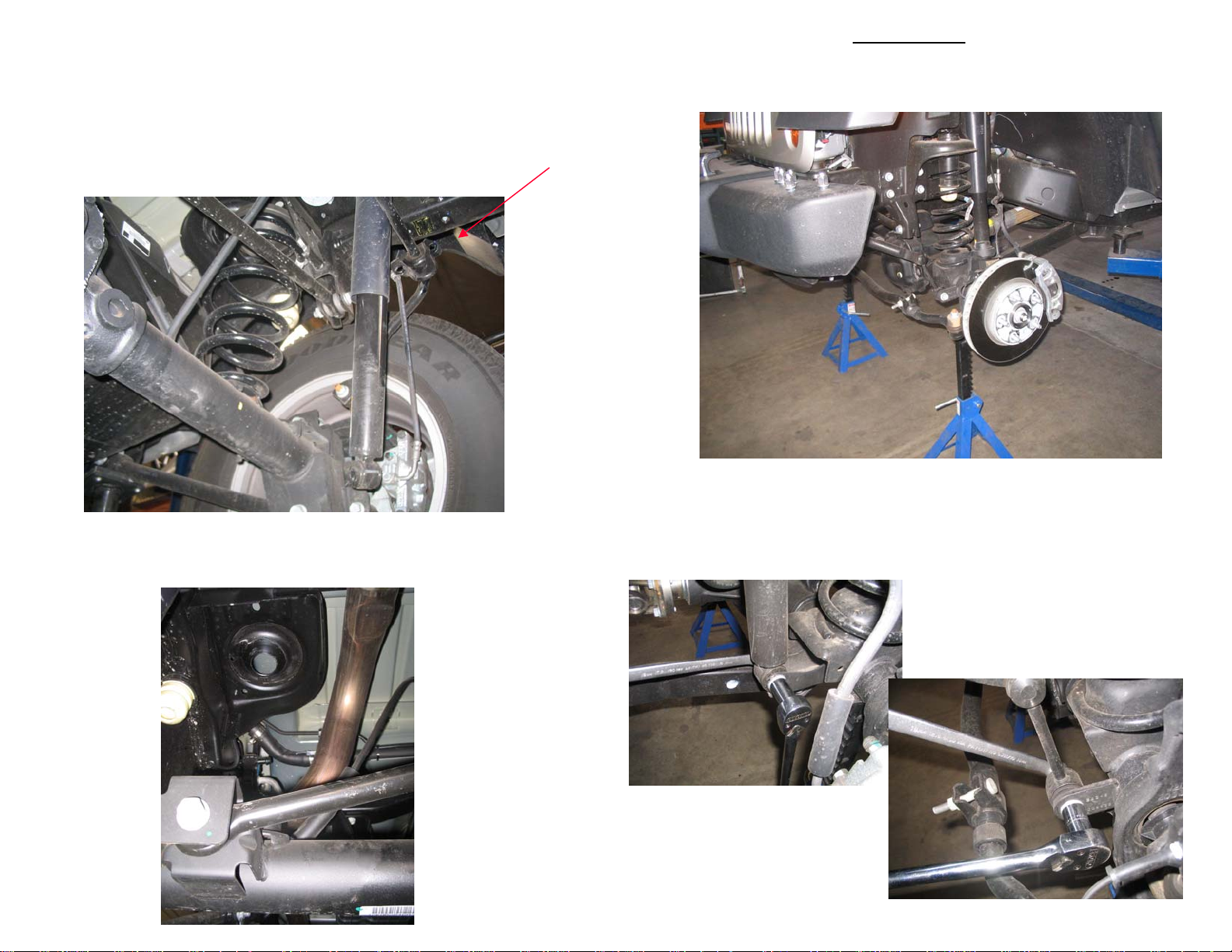

Installation steps

1.

Jack up the front of the vehicle and support the vehicle at the frame with
jack stands. Put wheel chocks behind the rear tires.

2. With the jack under the front axle, jack up the axle to remove the driver

side and the passenger side wheels and disconnect the sway bar end link on
the driver side then the passenger side.

3.

Disconnect the ABS line form the bracket on the steering knuckle on
the driver side then the passenger side.

4. With the shocks , sway bar end link and ABS line disconnected lower

the axle down to remove the coil springs on the driver side first then
the passenger side.

5.

With the coil spring removed install our lift spacer over the stock
spring isolator.

6. Install the coil spring on the driver side first then the passenger side
and jack up the axle and reconnect the shocks , sway bar and ABS
line.
