ADVANCE ADAPTERS INC. P/N: 50-8404

P.O. Box 247, 4320 Aerotech Center Way New Item: (3/93)
Paso Robles, CA 93447 PAGE 1 OF 3
Telephone: [phone] Fax: [phone] Page Rev. Date: 10-01-14

FORD AOD 4 SPEED OVERDRIVE AUT OMA TIC

TO BORG WARNER BRONCO II & RANGER T/C

KIT CONSISTS OF:

No. Qty Part No. Description

1. 1 51-8403 ADAPTER HOUSING 9" LONG

2. 1 52-1803 23 x 25 BRONCO II T/C SPUD SHAFT

3. 1 52-2706 SHAFT- AOD 88-93 OUTPUT TO 23 SPL.

4. 6 720010 SPECIAL METRIC BOLTS

5. 5 723704 3/8" LOCK WASHERS

6. 5 723722 H.H.C.S. 3/8"-16 x 1-1/4"

NOTE: This kit was updated to a spud shaft design on 10/01/14.

GENERAL INFORMATION:

This adapter kit can be used for the Bronco II V8 engine conversion installations that are replacing either the A4LD automatic
transmission. The overall length of the new AOD transmission case plus the length of the new adapter housing will be
the same overall length as the original A4LD. If you are attempting to use this transmission for replacement of the original
5 speed, it may be necessary to modify the drive lines and transfer case location. The AOD adapter kit is only available
in the one length and if your existing transmission assembly is not 29-1/2", plan on transfer case relocation.

Every attempt has been made to duplicate the original AOD tailhousing. Before final assembly into the vehicle, you must
verify that the shift linkage clearance in the tailhousing is sufficient. A test on the linkage lever will make sure that the proper

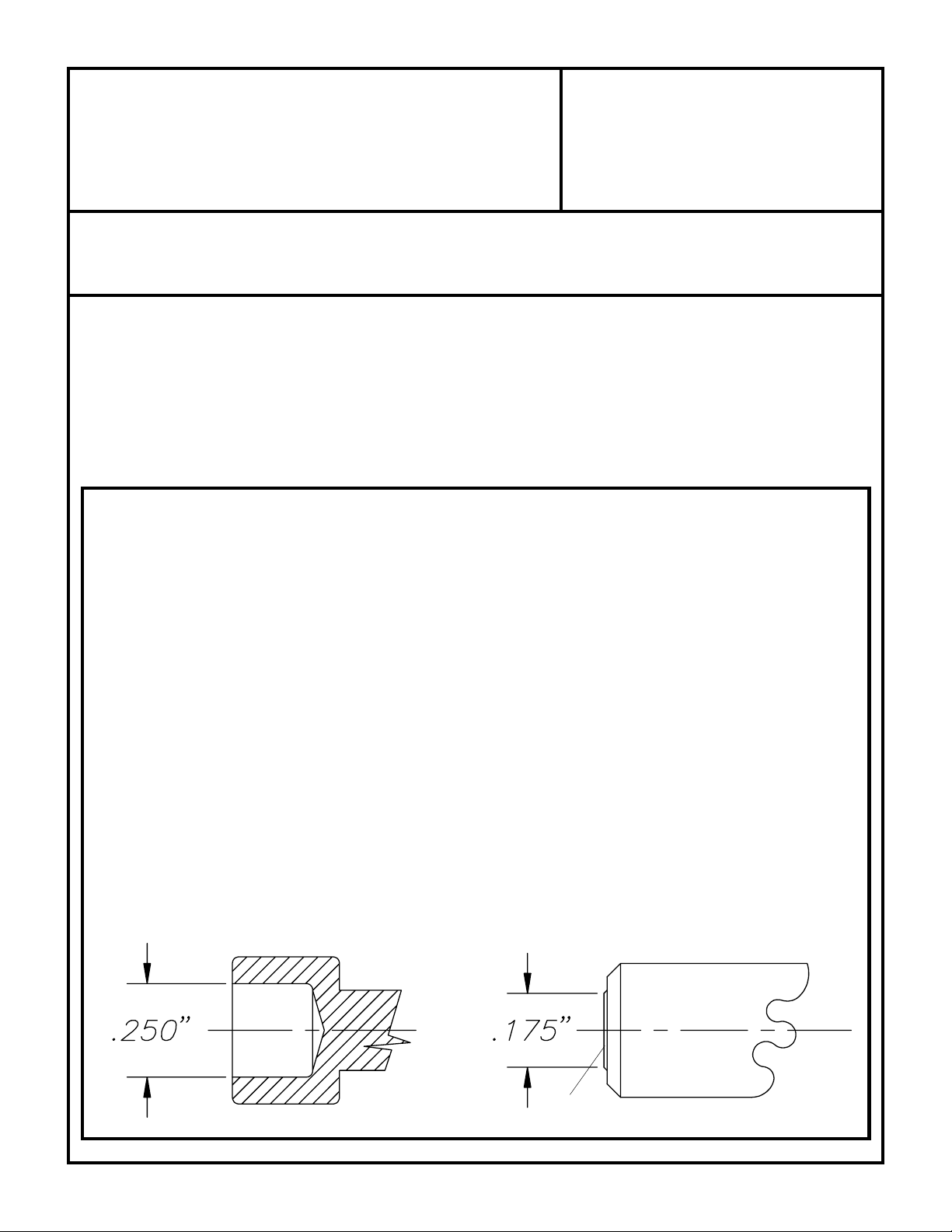

clearances have been achieved. The new main shaft must be installed into the AOD transmission.

The transfer case adapter has been furnished with a transfer case linkage mounting holes and crossmember support holes
identical in location to the original A4LD adapter. Slight modifications may be necessary.

OPTIONAL ITEMS:

P/N 716057 AOD Shaft Kit to fit an
AODE Transmission

SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will
void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend
that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a
service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive
dealerships and parts stores.

ADVANCE ADAPTERS INC. P/N: 50-8404

P.O. Box 247, 4320 Aerotech Center Way New Item: (3/93)
Paso Robles, CA 93447 PAGE 2 OF 3
Telephone: [phone] Fax: [phone] Page Rev. Date: 10-01-14

FORD AOD 4 SPEED OVERDRIVE AUT OMA TIC

TO BORG WARNER BRONCO II & RANGER T/C

SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components
will void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly
recommend that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We
recommend that a service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally
available at automotive dealerships and parts stores.
