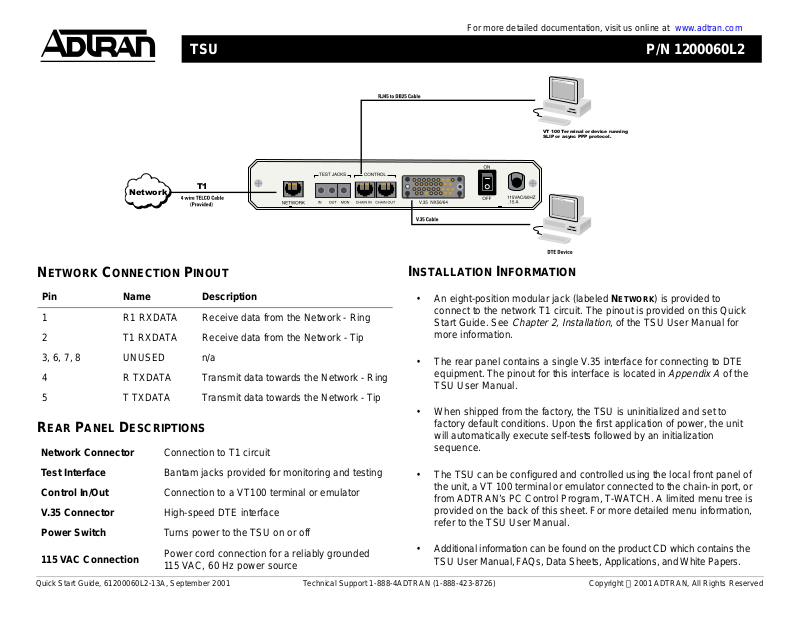

ADTRAN TSU INSTALLATION INFORMATION

For more detailed docum en tati on, visit us online at www.adtran.com

TSU P/N 1200060L2

VT 100 Terminal or device running
SLIP or async PPP protocol.

Network

ETWORK CONNECTION PINOUT

N

Pin Name Description

1 R1 RXDATA Receive data from the Network - Ring
2 T1 RXDATA Receive data from the Network - Tip
3, 6, 7, 8 UNUSED n/a
4 R TXDATA Transmit data towards the Network - Ring
5 T TXDATA Transmit data towards the Network - Tip

EAR PANEL DESCRIPTIONS

R

Network Connector Connection to T1 circuit
Test Interface Bantam jacks provided for monitoring and testing
Control In/Out Connection to a VT100 terminal or emulator
V.35 Connector High-speed DTE interface
Power Switch Turns power to the TSU on or off

115 VAC Connection

Power cord connect ion for a re li abl y gr oun ded
115 VAC, 60 Hz power source

T1

NSTALLATION INFORMATION

I

• An eight-position modu lar ja ck (labe led N
connect to the ne twork T1 circuit. The pinout is provided on this Quick
Start Guide. See

more information.

• The rear panel contains a single V.35 interface for connecting to DTE
equipment. The pinout for this interface is located in
TSU User Manual.

• When shipped from the factory, the TSU is uninitialized and set to
factory default conditions. Upon the first application of power, the unit
will automatically exec ute se lf-t ests follo w ed by an ini tia li za tio n
sequence.

• The TSU can be configured and controlled using the local front panel of
the unit, a VT 100 terminal or emulator connected to the chain-in port, or
from ADTRAN’s PC Control Program, T-WATCH. A limited menu tree is
provided on the back of this sheet. For more detailed menu information,
refer to the TSU User Manual.

• Additional information can be fo un d on th e p r oduct CD wh ic h contains the
TSU User Manual, FAQs, Data Sheets, Applicatio ns, and White Papers.

Chapter 2, Installa tion

ETWORK

, of the TSU User Manual for

) is provided to

Appendix A

of the

Quick Start Guide, 61200060L2-13A, September 2001 Technical Support 1-888-4ADTRAN (1-888-423-8726) Copyright  2001 ADTRAN, All Rights Reserved

TSU P/N 1200060L2

ENU TREE

M

MAIN MENU 3) PORT

VERVIEW

- O

1) NI PERF REPORTS

1) STATUS 2) CURR ERR/ALM

3) ERR/ALM HISTORY

2) CONFIG 2) UNIT

1) TIME/DATE

2) SOFTWARE REV Displays the current software revision

3) UTIL 3) REINIT UNIT

4) ADDRESS

5) FACTO RY RESTORE Restores all configuratio ns to fact ory settings

1) NETWORK TESTS

4) TEST 2) RUN SELF TEST

3) PORT TESTS

1) NETWORK (NI)
