Quick Start Guide
®
For more detailed documentation, visit us online at www.adtran.com.

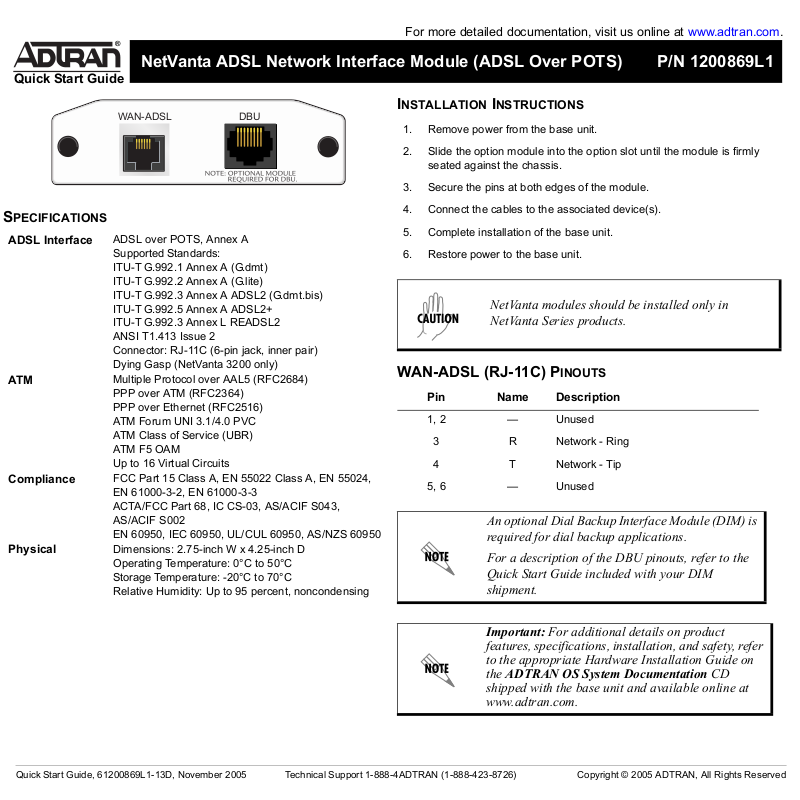

NetVanta ADSL Network Interface Module (ADSL Over POTS) P/N 1200869L1
SPECIFICATIONS
ADSL Interface
ATM
Compliance
Physical
WAN-ADSL DBU
ADSL over POTS, Annex A
Supported Standards:
ITU-T G.992.1 Annex A (G.dmt)
ITU-T G.992.2 Annex A (G.lite)
ITU-T G.992.3 Annex A ADSL2 (G.dmt.bis)
ITU-T G.992.5 Annex A ADSL2+
ITU-T G.992.3 Annex L READSL2
ANSI T1.413 Issue 2
Connector: RJ-11C (6-pin jack, inner pair)
Dying Gasp (NetVanta 3200 only)
Multiple Protocol over AAL5 (RFC2684)
PPP over ATM (RFC2364)
PPP over Ethernet (RFC2516)
ATM Forum UNI 3.1/4.0 PVC
ATM Class of Service (UBR)
ATM F5 OA M
Up to 16 Virtual Circuits
FCC Part 15 Class A, EN 55022 Class A, EN 55024,
EN 61000-3-2, EN 61000-3-3
ACTA/FCC Part 68, IC CS-03, AS/ACIF S043,
AS/ACIF S002
EN 60950, IEC 60950, UL/CUL 60950, AS/NZS 60950
Dimensions: 2.75-inch W x 4.25-inch D
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent, noncondensing
INSTALLATION INSTRUCTIONS
1. Remove power from the base unit.
2. Slide the option module into the option slot until the module is firmly
seated against the chassis.
3. Secure the pins at both edges of the module.
4. Connect the cables to the associated device(s).
5. Complete installation of the base unit.
6. Restore power to the base unit.
NetVanta modules should be installed only in
NetVanta Series products.
WAN-ADSL (RJ-11C) PINOUTS
Pin Name Description
1, 2 — Unused
3 R Network - Ring
4TNetwork - Tip
5, 6 — Unused
An optional Dial Backup Interface Module (DIM) is
required for dial backup applications.
For a description of the DBU pinouts, refer to the
Quick Start Guide included with your DIM
shipment.
Important: For additional details on product
features, specifications, installation, and safety, refer
to the appropriate Hardware Installation Guide on
the ADTRAN OS System Documentation CD
shipped with the base unit and available online at
www.adtran.com.
Quick Start Guide, 61200869L1-13D, November 2005 Technical Support 1-888-4ADTRAN (1-888-423-8726) Copyright © 2005 ADTRAN, All Rights Reserved
®
NetVanta ADSL Network Interface Module (ADSL Over POTS) P/N 1200869L1
Quick Start Guide
ADSL NIM COMMANDS
retrain
Forces the modem to retrain.
snr-margin [showtime monitor l training monitor] <margin>
Enables monitoring and sets the minimum signal-to-noise (SNR) ratio
during training and showtime. Use the no form of this command to disable
monitoring.
showtime monitor Enables margin monitoring to retrain the ADSL
interface if the specified minimum margin is violated
during showtime.
training monitor Enables margin monitoring to retrain the ADSL
interface if the specified minimum margin is violated
during training.
<margin> Sets the minimum SNR margin in dB. Range is
1 to 15.
training-mode [G.DMT | G.LITE | Multi-Mode | T1.413 | ADSL | ADSL2+
| READSL2]
Configures the ADSL training mode. This setting must match the service
provider’s DSLAM.
G. DM T Specifies ANSI full-rate mode.
G. LI T E Specifies ANSI splitterless mode.
Multi-Mode Specifies auto detect mode.
T1.413 Specifies ANSI T1.413 mode.
ADSL Specifies ITU G.992.3 Annex A mode (G.dmt.bis).
ADSL2+ Specifies ITU G.992.5 ADSL2+ mode.
READSL2 Specifies ITU G.992.3 Annex L mode.
ATM COMMANDS
snmp trap link-status
Controls the Simple Network Management Protocol (SNMP) variable
ifLinkUpDownTrapEnable (RFC2863) to enable (or disable) the interface to
send SNMP traps when there is an interface status change. Use the no
form of this command to disable this trap.
See the AOS Command Reference Guide on the
ADTRAN OS System Documentation CD for a
complete list of ATM commands.
For more detailed documentation, visit us online at www.adtran.com.
ATM S UB-INTERFACE COMMANDS
access-policy <policyname>
Assigns a specified access policy for the inbound traffic on an interface.
Use the no form of this command to remove an access policy association.
<policyname> Identifies the configured access policy using an
alphanumeric descriptor (all access policy descriptors
are case-sensitive).
dynamic-dns [dyndns | dyndns-custom | dyndns-static] <hostname>
<username> <password>
Configures Dynamic DNS service provided by Dynamic Network Services,
Inc. (www.dyndns.org).
dyndns Allows you to alias a dynamic IP address to a static
hostname in various domains. This service is provided
for up to five hostnames.
dyndns-custom Gives complete control over an entire domain name. A
web-based interface provides two levels of control
(basic or advanced) over the domain. Can be used
with both static and dynamic IPs.
dyndns-static Allows a hostname such as yourname.dyndns.org to
point to your IP address. This service is provided for
up to five hostnames.
encapsulation [aal5mux | aal5snap]
Configures the encapsulation type for the ATM Adaption Layer (AAL) of the
ATM Protocol Reference Model.
aal5mux Specifies encapsulation type for multiplexed virtual
circuits. A protocol must be specified.
aal5snap Specifies encapsulation type that supports LLC/SNAP
protocols.
oam-pvc managed <frequency>
Enables end-to-end F5 Operation, Administration, and Maintenance (OAM)
loopback cell generation and OAM management for an ATM interface. Use
the no form of this command to disable generation of OAM loopback cells.
<frequency> Specifies the time delay between transmitting OAM
loopback cells. Range is 0 to 600 seconds.
oam retry <up-count> <down-count> <retry-frequency>
Configures parameters related to OAM management for an ATM interface.
Use the no form of this command to disable OAM management
parameters.
<up-count> Specifies number of consecutive end-to-end F5 OAM
loopback cell responses that must be received in order
to change a PVC connection state to up. Range is
1 to 255.
<down-count> Specifies number of consecutive end-to-end F5 OAM
loopback cell responses that are not received in order
to change a PVC state to down. Range is 1 to 255.
<retry-frequency> Specifies frequency (in seconds) that end-to-end F5
OAM loopback cells are transmitted when a change in
the up/down state of a PVC is being verified. Range is
1 to 600.
Quick Start Guide, 61200869L1-13D, November 2005 Technical Support 1-888-4ADTRAN (1-888-423-8726) Copyright © 2005 ADTRAN, All Rights Reserved
