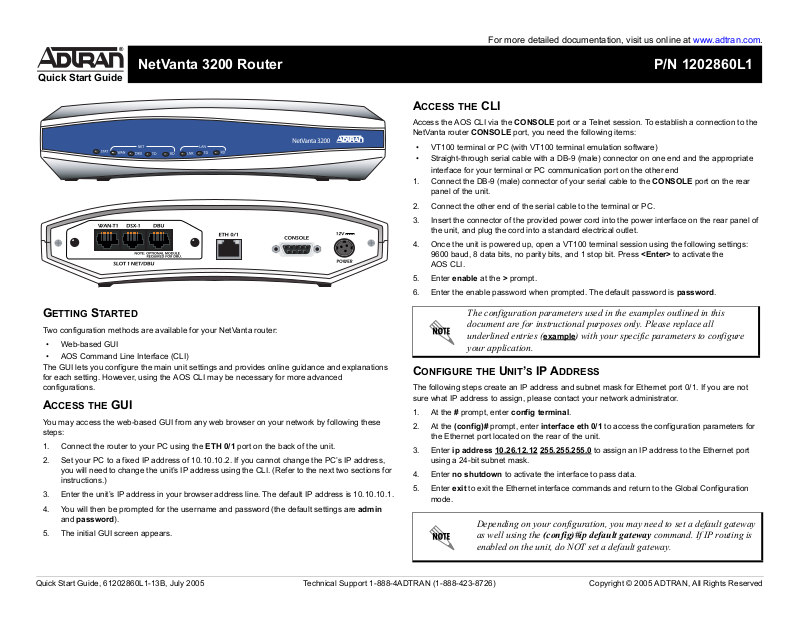

ADTRAN NetVanta 3200 Quick Start Guide

Quick Start Guide

For more detailed documentation, visit us online at www.adtran.com.

NetVanta 3200 Router P/N 1202860L1

ACCESS THE CLI

Access the AOS CLI via the CONSOLE port or a Telnet session. To establish a connection to the NetVanta router CONSOLE port, you need the following items:

• VT100 terminal or PC (with VT100 terminal emulation software)

• Straight-through serial cable with a DB-9 (male) connector on one end and the appropriate interface for your terminal or PC communication port on the other end

1. Connect the DB-9 (male) connector of your serial cable to the CONSOLE port on the rear

panel of the unit.

2. Connect the other end of the serial cable to the terminal or PC.

3. Insert the connector of the provided power cord into the power interface on the rear panel of the unit, and plug the cord into a standard electrical outlet.

4. Once the unit is powered up, open a VT100 terminal session using the following settings: 9600 baud, 8 data bits, no parity bits, and 1 stop bit. Press <Enter> to activate the AOS CLI.

5. Enter enable at the > prompt.

6. Enter the enable password when prompted. The default password is password.

GETTING STARTED

Two configuration methods are available for your NetVanta router:

• Web-based GUI

• AOS Command Line Interface (CLI)

The GUI lets you configure the main unit settings and provides online guidance and explanations for each setting. However, using the AOS CLI may be necessary for more advanced configurations.

ACCESS THE GUI

You may access the web-based GUI from any web browser on your network by following these steps:

1. Connect the router to your PC using the ETH 0/1 port on the back of the unit.

2. Set your PC to a fixed IP address of 10.10.10.2. If you cannot change the PC’s IP address, you will need to change the unit’s IP address using the CLI. (Refer to the next two sections for instructions.)

3. Enter the unit’s IP address in your browser address line. The default IP address is 10.10.10.1.

4. You will then be prompted for the username and password (the default settings are admin and password).

5. The initial GUI screen appears.

CONFIGURE THE UNIT’S IP ADDRESS

The following steps create an IP address and subnet mask for Ethernet port 0/1. If you are not sure what IP address to assign, please contact your network administrator.

1. At the # prompt, enter config terminal.

2. At the (config)# prompt, enter interface eth 0/1 to access the configuration parameters for

the Ethernet port located on the rear of the unit.

3. Enter ip address 10.26.12.12

using a 24-bit subnet mask.

4. Enter no shutdown to activate the interface to pass data.

5. Enter exit to exit the Ethernet interface commands and return to the Global Configuration

mode.

The configuration parameters used in the examples outlined in this document are for instructional purposes only. Please replace all underlined entries (

example) with your specific parameters to configure

your application.

255.255.255.0 to assign an IP address to the Ethernet port

Depending on your configuration, you may need to set a default gateway as well using the (config)#ip default gateway command. If IP routing is enabled on the unit, do NOT set a default gateway.

Quick Start Guide

For more detailed documentation, visit us online at www.adtran.com.

NetVanta 3200 Router P/N 1202860L1

ENABLE TELNET ACCESS

The following steps create a password of adtran for Telnet access. By default, Telnet access is enabled with a password of password.

1. Verify that the prompt of your unit displays (config)#.

2. Enter line telnet 0 4 to change the configuration parameters for the Telnet sessions.

3. Enter login to initiate Telnet access.

4. Enter password adtran

5. Enter exit to return to the Global Configuration mode.

6. Verify that the prompt of your unit displays (config)#.

7. Enter do write memory to save the current configuration.

to change the login password for the Telnet sessions.

CONSOLE PINOUTS

Pin Name Description

1 DCD Data Carrier Detect (output)

2 RD Receive Data (output)

3 TD Transmit Data (input)

4 DTR Data Terminal Ready (input)

5 SG Signal Ground

6 DSR Data Set Ready (output)

7 — Unused

8 CTS Clear to Send (output)

9 — Unused

ETHERNET PINOUTS

Pin Name Description

1 TX1 Transmit Positive

2 TX2 Transmit Negative

3 RX1 Receive Positive

4, 5 — Unused

6 RX2 Receive Negative

7, 8 — Unused

CONFIGURE YOUR APPLICATION

More detailed documentation for configuring your ADTRAN unit is provided on the ADTRAN OS Documentation CD included in your shipment. For more detail on hardware setup, refer to the

appropriate NIM Quick Start Guides and the Hardware Installation Guide. For more detail on configuring your system, refer to the ADTRAN Operating System (AOS) Command Reference Guide, configuration guides, and technical support notes.

Important: For additional details on product features, specifications, installation, and safety, refer to the appropriate Hardware Installation Guide on the ADTRAN OS System Documentation CD shipped with the base unit and available online at www.adtran.com.
