Adtran NetVanta 1000 User Manual

NetVanta 1000 Series Switch
Hardware Installation Guide
1200500L1 NetVanta 1224
1200504L1 NetVanta 1224ST
1200510L1 NetVanta 1224STR
1200520L1 NetVanta 1224R
61200500L1-34C July 2004
Trademarks
Any brand names and product names included in this manual are trademarks, registered trademarks, or trade names of their respective holders.
To the Holder of the Manual
The contents of this manual are current as of the date of publication. ADTRAN reserves the right to change the contents without prior notice.
In no event will ADTRAN be liable for any special, incidental, or consequential damages or for commercial losses even if ADTRAN has been advised thereof as a result of issue of this publication.
901 Explorer Boulevard
P.O. Box 140000
Huntsville, AL 35814-4000
Phone: (256) 963-8000
© 2004 ADTRAN, Inc.
All Rights Reserved.
Printed in U.S.A.
2 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide Conventions
Conventions
Notes provide additional useful information.
Cautions signify information that could prevent service interruption.
Warnings provide information that could prevent damage to the equipment or endangerment to human life.
61200500L1-34C © 2004 ADTRAN, Inc. 3
Safety Instructions NetVanta 1000 Series Switch Hardware Installation Guide
Safety Instructions
When using your telephone equipment, please follow these basic safety precautions to reduce the risk of fire, electrical shock, or personal injury:
1. Do not use this product near water, such as a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
2. Avoid using a telephone (other than a cordless-type) during an electrical storm. There is a remote risk of shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord, power supply, and/or batteries indicated in the manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for special disposal instructions.
5. The socket-outlet shall be installed near the equipment and shall be easily accessible.
Double pole/neutral fusing.
Save These Important Safety Instructions
4 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide FCC-Required Information
FCC-Required Information
FCC regulations require that the following information be provided in this manual:
1. This equipment complies with Part 68 of FCC rules and requirements adopted by ACTA. Each registered interface has a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, provide this information to the telephone company.
2. If this equipment causes harm to the telephone network, the telephone company may temporarily discontinue service. If possible, advance notification is given; otherwise, notification is given as soon as possible. The telephone company will advise the customer of the right to file a complaint with the FCC.
3. The telephone company may make changes in its facilities, equipment, operations, or procedures that could effect the proper operation of this equipment. Advance notification and the opportunity to maintain uninterrupted service are given.
4. If experiencing difficulty with this equipment, please contact ADTRAN for repair and warranty information. The telephone company may require this equipment to be disconnected from the network until the problem is corrected or it is certain the equipment is not malfunctioning.
5. This unit contains no user-serviceable parts.
6. This equipment is designed to connect to the telephone network or premises wiring using an FCC­compatible modular jack, which is compliant with Part 68 and requirements adopted by ACTA.
7. The following information may be required when applying to the local telephone company for leased line facilities:
Registration
Part Number
1200861L1 US:HDCDENAN1200861L1 56 Kbps Digital Interface
1200862L1
1200863L1
1202862L1
1202863L1
1200872L1 US: HDCDENAN1200872L1
1200864L1 US: HDCM504A1200864L1 Analog Loop Start 0.4A/9.0F 02LS2 RJ-11C
1200865L1 US: HDCDENAN1200865L1 Basic Rate ISDN 6.0F 021S5 RJ-49C
US: HDCDENAN1200863L1
US: HDCDENAN1202863L1
Number Service Type REN/SOC FIC USOC
64 Kbps Digital Interface
1.544 Mbps - SF
1.544 Mbps - SF and B8ZS
1.544 Mbps - ESF
1.544 Mbps - ESF and B8ZS
6.0F 04DU5-56 04DU5-64
04DU9-BN
6.0N
04DU9-DN 04DU9-1KN 04DU9-1SN
RJ-48S
RJ-48C
8. The REN is useful in determining the quantity of devices you may connect to your telephone line and still have all of those devices ring when your number is called. In most areas, the sum of the RENs of all devices should not exceed five. To be certain of the number of devices you may connect to your line as determined by the REN, call your telephone company to determine the maximum REN for your calling area.
9. This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs. Contact your state public utility commission or corporation commission for information.
61200500L1-34C © 2004 ADTRAN, Inc. 5
FCC Radio Frequency Interference Statement NetVanta 1000 Series Switch Hardware Installation Guide
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio frequencies. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Electromagnetic Compatibility (EMC) Table for the NetVanta 1224STR/1224R
NetVanta Module P/N and Name NetVanta 1224STR/1224R
1200861L1 56K/64K NIM FCC Part 15, Class A
EN55022 Class A
1200862L1 T1/FT1 NIM FCC Part 15, Class A
1202862L1 T1/FT1 NIM, 2nd Gen FCC Part 15, Class A
1200863L1 T1/FT1+DSX-1 NIM FCC Part 15, Class A
1202863L1 T1/FT1+DSX-1 NIM, 2nd Gen FCC Part 15, Class A
1200866L1 Serial NIM FCC Part 15, Class A
1200867L1 SHDSL NIM FCC Part 15, Class A
1200864L1 Analog Modem DIM FCC Part 15, Class A
1200865L1 1200875L1
1200868L1 E1/FE1 NIM FCC Part 15, Class A
1200872L1 Dual T1 NIM FCC Part 15, Class A
1200878L1 E1/FE1 w/ G.703 Drop FCC Part 15, Class A
1202368L1 VPN Accelerator Card FCC Part 15, Class A
ISDN BRI DIM ISDN S/T DIM
EN55022 Class A
EN55022 Class A
EN55022 Class A
EN55022 Class A
EN55022 Class A EN55024 EN61000-3-2 EN61000-3-3
EN55022 Class A EN55024 EN61000-3-2 EN61000-3-3
EN55022 Class A
FCC Part 15, Class A EN55022 Class A EN55024 EN61000-3-2 EN61000-3-3
EN55022 Class A EN55024 EN61000-3-2 EN61000-3-3
EN55022 Class A
EN55022 Class A EN55024 EN61000-3-2 EN61000-3-3
EN55022 Class A EN55024 EN61000-3-2 EN61000-3-3
6 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide Industry Canada Compliance Information
Industry Canada Compliance Information
Notice: The Industry Canada label applied to the product (identified by the Industry Canada logo or the “IC:” in front of the certification/registration number) signifies that the Industry Canada technical specifications were met.
Notice: The Ringer Equivalence Number (REN) for this terminal equipment is supplied in the documentation or on the product labeling/markings. The REN assigned to each terminal device indicates the maximum number of terminals that can be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices should not exceed five (5).
Canadian Emissions Requirements
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of the Department of Communications.
Cet appareil numérique respecte les limites de bruits radioelectriques applicables aux appareils numériques de Class A prescrites dans la norme sur le materiel brouilleur: “Appareils Numériques,” NMB-003 edictee par le ministre des Communications.
61200500L1-34C © 2004 ADTRAN, Inc. 7
Affidavits NetVanta 1000 Series Switch Hardware Installation Guide
Affidavits
Affidavit Requirements for Connection to Digital Services
An affidavit is required to be given to the telephone company whenever digital terminal equipment without encoded analog content and billing protection is used to transmit digital signals containing encoded analog content which are intended for eventual conversion into voiceband analog signals and transmitted on the network.
The affidavit shall affirm that either no encoded analog content or billing information is being transmitted or that the output of the device meets Part 68 encoded analog content or billing protection specifications.
End user/customer will be responsible for filing an affidavit with the local exchange carrier when connecting unprotected customer premise equipment (CPE) to 1.544 Mbps or subrate digital services.
Until such time as subrate digital terminal equipment is registered for voice applications, the affidavit requirement for subrate services is waived.
8 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide Affidavits
Affidavit for Connection Of Customer Premises Equipment to 1.544 Mbps And/or Subrate Digital Services
For the work to be performed in the certified territory of ___________________(telco name)
State of ________________
County of ________________
I, _______________________ (name), _____________________________(business address),
____________________ (telephone number) being duly sworn, state:
I have responsibility for the operation and maintenance of the terminal equipment to be connected to 1.544 Mbps and/or ________ subrate digital services. The terminal equipment to be connected complies with Part 68 of the FCC rules except for the encoded analog content and billing protection specifications. With respect to encoded analog content and billing protection:
( ) I attest that all operations associated with the establishment, maintenance, and adjustment of the digital CPE with respect to analog content
and encoded billing protection information continuously complies with Part 68 of the FCC Rules and Regulations.
( ) The digital CPE does not transmit digital signals containing encoded analog content or billing information which is intended to be decoded
within the telecommunications network.
( ) The encoded analog content and billing protection is factory set and is not under the control of the customer.
I attest that the operator(s)/maintainer(s) of the digital CPE responsible for the establishment, maintenance, and adjustment of the encoded analog content and billing information has (have) been trained to perform these functions by successfully having completed one of the following (check appropriate blocks):
( ) A training course provided by the manufacturer/grantee of the equipment used to encode analog signals; or
( ) A training course provided by the customer or authorized representative, using training materials and instructions provided by the
manufacturer/grantee of the equipment used to encode analog signals; or
( ) An independent training course (e.g., trade school or technical institution) recognized by the manufacturer/grantee of the equipment used to
encode analog signals; or
( ) In lieu of the preceding training requirements, the operator(s)/maintainer(s) is (are) under the control of a supervisor trained in accordance with
_________ (circle one) above.
I agree to provide ______________________ (telco’s name) with proper documentation to demonstrate compliance with the information as provided in the preceding paragraph, if so requested.
_________________________________Signature
_________________________________Title
_________________________________ Date
Transcribed and sworn to before me
This ________ day of _______________, _______
_________________________________ Notary Public
My commission expires:
_________________________________
61200500L1-34C © 2004 ADTRAN, Inc. 9
FCC Radio Frequency Interference Statement NetVanta 1000 Series Switch Hardware Installation Guide
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio frequencies. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
10 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide Warranty and Customer Service
Warranty and Customer Service
ADTRAN will repair and return this product within the warranty period if it does not meet its published specifications or fails while in service. Warranty information can be found at: http://support.adtran.com (Click on Warranty and Repair Information, under Support.)
Product Registration
Registering your product helps ensure complete customer satisfaction. Please take time to register your products on line at http://support.adtran.com
. Click on Service/Support and then on Product Registration
under Support.
Product Support Information
A return material authorization (RMA) is required prior to returning equipment to ADTRAN. For service, RMA requests, training, or more information, use the following contact information:
Repair and Return
If you determine that a repair is needed, please contact our Customer and Product Service (CaPS) department to have an RMA number issued. CaPS should also be contacted to obtain information regarding equipment currently in house or possible fees associated with repair.
CaPS Department (256) 963-8722
Identify the RMA number clearly on the package (below address), and return to the following address:
ADTRAN Customer and Product Service 901 Explorer Blvd. (East Tower) Huntsville, Alabama 35806
RMA # _____________
Pre-Sales Inquiries and Applications Support
Your reseller should serve as the first point of contact for support. If additional pre-sales support is needed, the ADTRAN Support web site provides a variety of support services such as a searchable knowledge base, latest product documentation, application briefs, case studies, and a link to submit a question to an Applications Engineer. All of this, and more, is available at:
http://support.adtran.com
When needed, further pre-sales assistance is available by calling our Applications Engineering Department.
Applications Engineering (800) 615-1176
61200500L1-34C © 2004 ADTRAN, Inc. 11
Product Support Information NetVanta 1000 Series Switch Hardware Installation Guide
Post-Sale Support
Your reseller should serve as the first point of contact for support. If additional support is needed, the ADTRAN Support web site provides a variety of support services such as a searchable knowledge base, updated firmware releases, latest product documentation, service request ticket generation and trouble­shooting tools. All of this, and more, is available at:
http://support.adtran.com
When needed, further post-sales assistance is available by calling our Technical Support Center. Please have your unit serial number available when you call.
Technical Support (888) 4ADTRAN
Installation and Maintenance Support
The ADTRAN Custom Extended Services (ACES) program offers multiple types and levels of installation and maintenance services which allow you to choose the kind of assistance you need. This support is available at:
http://www.adtran.com/aces
For questions, call the ACES Help Desk.
ACES Help Desk (888) 874-ACES (2237)
Training
The Enterprise Network (EN) Technical Training Department offers training on our most popular products. These courses include overviews on product features and functions while covering applications of ADTRAN's product lines. ADTRAN provides a variety of training options, including customized training and courses taught at our facilities or at your site. For more information about training, please contact your Territory Manager or the Enterprise Training Coordinator.
Training Phone (800) 615-1176, ext. 7500
Training Fax (256) 963-6700
Training Email training@adtran.com
12 © 2004 ADTRAN, Inc. 61200500L1-34C

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
NetVanta 1224 and NetVanta1224ST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
NetVanta 1224STR and NetVanta 1224R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Unpacking and Inspecting the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Physical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Front Panel RJ-45 Ports and LEDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Front Panel Gigabit Ethernet Interfaces and LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Other Front Panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Reviewing the Rear Panel Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Option Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Network Interface Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Dial Backup Interface Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

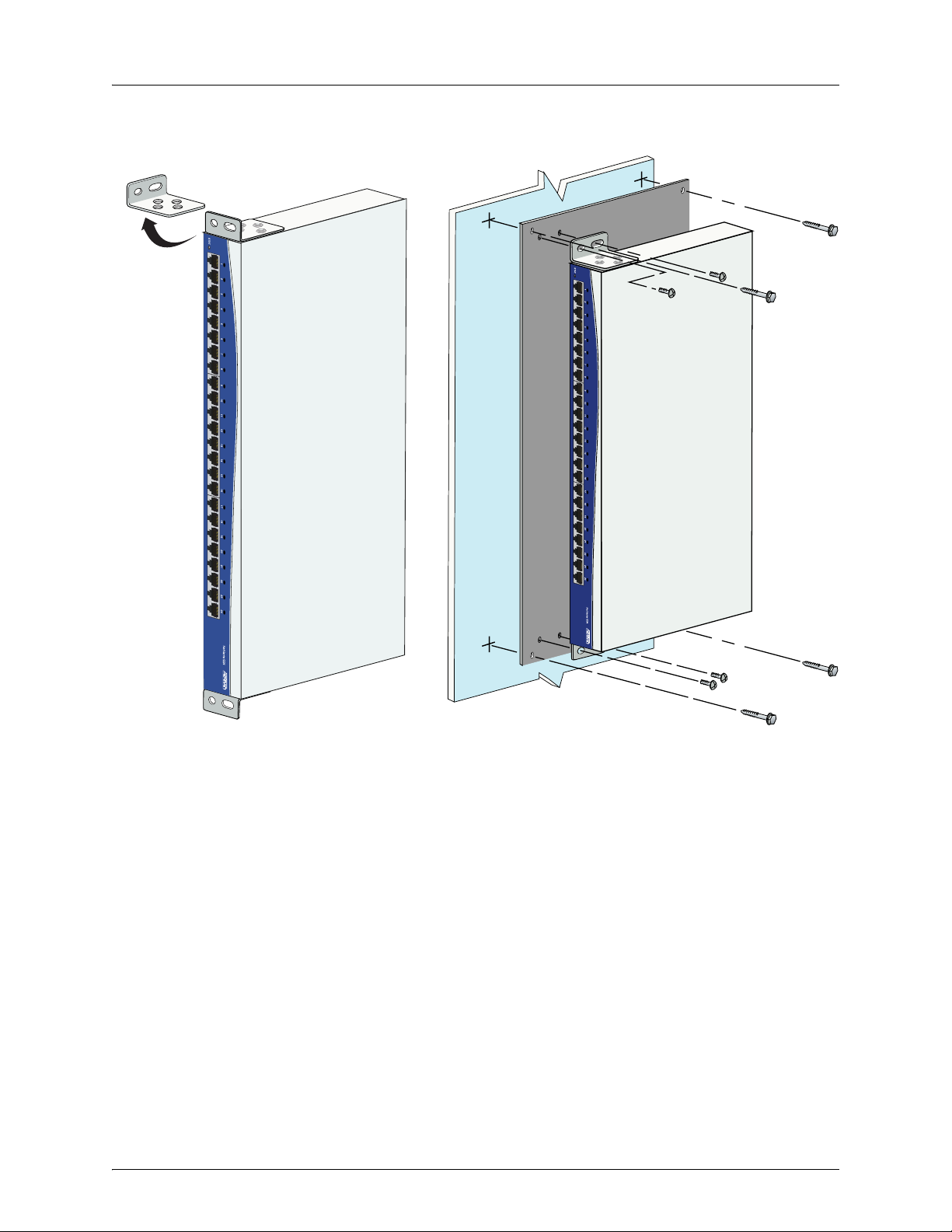

Mounting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Supplying Power to the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Installing Dial Backup and Network Interface Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Installing the NetVanta VPN Accelerator Card (1202368L1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Appendix A. Connector Pin Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
61200500L1-34C © 2004 ADTRAN, Inc. 13
Table of Contents NetVanta 1000 Series Switch Hardware Installation Guide
14 © 2004 ADTRAN, Inc. 61200500L1-34C

List of Figures

Figure 1. NetVanta 1224 Front Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 2. NetVanta1224ST Front Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 3. NetVanta 1224STR Front Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Figure 4. NetVanta 1224R Front Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Figure 5. NetVanta 1224 and NetVanta1224ST Rear Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 6. NetVanta 1224STR and NetVanta 1224R Rear Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . 24

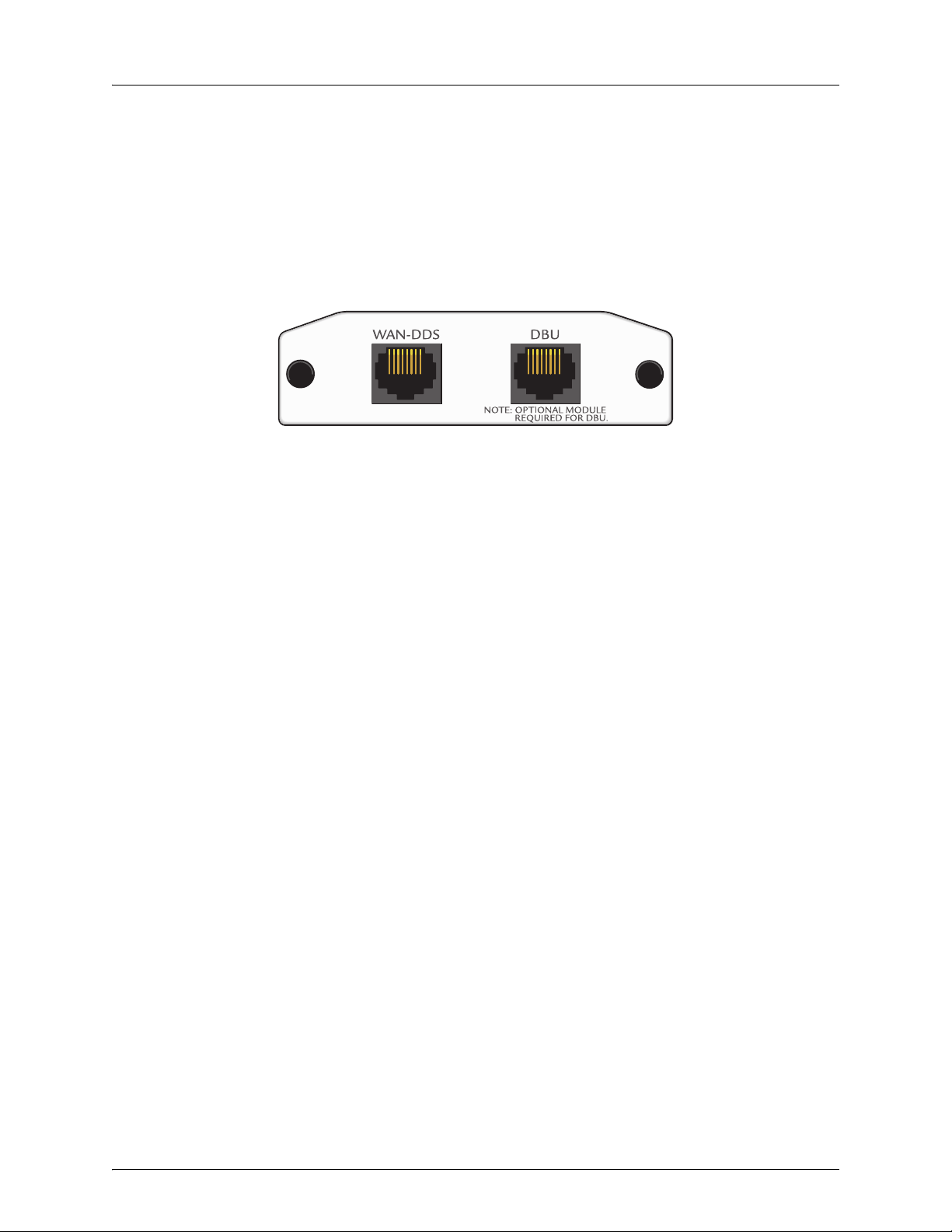

Figure 7. NetVanta 56K/64K NIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Figure 8. NetVanta T1/FT1 NIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Figure 9. NetVanta T1/FT1+DSX-1 NIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Figure 10.NetVanta Dual T1 NIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 11.NetVanta Serial NIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Figure 12.NetVanta E1/FE1 NIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Figure 13.Repositioning the Mounting Bracket for a Wallmount Installation . . . . . . . . . . . . . . . . . . . . . . 37
Figure 14.Installing DIMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Figure 15.NIM and DIM Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Figure 16.VPN Card Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
61200500L1-34C © 2004 ADTRAN, Inc. 15
List of Figures NetVanta 1000 Series Switch Hardware Installation Guide
16 © 2004 ADTRAN, Inc. 61200500L1-34C

List of Tables

Table 1. Front Panel LED Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Table A-1. Console Port Interface (DCE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Table A-2. SFP Slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Table A-3. 10/100 BaseT Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Table A-4. 1000 BaseT Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Table A-5. WAN-DDS Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Table A-6. WAN-T1 Connector Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Table A-7. WAN-E1 Connector Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Table A-8. DSX-1 Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Table A-9. G.703 Connector Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Table A-10. Serial NIM Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Table A-11. DBU Connector Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Table A-12. E1 DBU Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
61200500L1-34C © 2004 ADTRAN, Inc. 17
List of Tables NetVanta 1000 Series Switch Hardware Installation Guide
18 © 2004 ADTRAN, Inc. 61200500L1-34C

1. INTRODUCTION

This hardware installation guide lists the NetVanta 1000 Series units’ specifications, describes the physical characteristics of the units, introduces basic functionality, and provides installation instructions. All NetVanta 1000 Series units run the ADTRAN Operating System (OS) and are managed through an EIA-232 CONSOLE port (DB-9) located on the rear panel. See Console Interface on page 24 for more information. For more information on switch configuration for a specific application, refer to the documents provided on the ADTRAN OS Documentation CD. For details on the command line interface, refer to the Command Reference Guide (also included on the CD).
In this document, the term “NetVanta” means the NetVanta 1224, NetVanta1224ST, NetVanta 1224STR, and NetVanta 1224R. If a statement only applies to one particular unit, the text refers to the unit individually.

NetVanta 1224 and NetVanta1224ST

The NetVanta 1224 and the NetVanta1224ST are managed switches housed in a 1U-high metal enclosure that can be rackmounted. The rear panel EIA-232 includes a universal AC power supply. Both the NetVanta 1224 contain twenty-four 10/100BaseT Mbps Ethernet ports (RJ-45). In addition, the NetVanta1224ST front panel contains two Gigabit Ethernet interfaces which provide two fixed RJ-45 connectors and two standard small form-factor pluggable (SFP) slots for connectivity over fiber. (Use either the RJ-45 connectors or the SFP slots.)
CONSOLE port (DB-9) manages the unit, which
and the NetVanta1224ST front panels

NetVanta 1224STR and NetVanta 1224R

The NetVanta 1224STR and NetVanta 1224R are managed switches containing a multi-service router, housed in a 1-U high rackmountable metal enclosure that includes a universal AC power supply. The front panels of the NetVanta 1224STR and NetVanta 1224R contain twenty-four 10/100 Mbps Ethernet ports, with the NetVanta 1224STR including a single Gigabit Ethernet interface, accessed via a fixed RJ-45 connector or an SFP (small form-factor pluggable) slot for fiber connectivity. In addition, both units contain a single Network Interface Module (NIM) slot on the rear panel which supports the following modules:
1200861L1 NetVanta 56k/64k Network Interface Module
1200862L1 NetVanta T1/FT1 Network Interface Module
1200863L1 NetVanta T1/FT1+DSX-1 Network Interface Module
1200872L1 NetVanta Dual T1 Network Interface Module
1200864L1 NetVanta V.34 DBU Module
1200865L1 NetVanta ISDN BRI DBU Module
1200866L1 NetVanta Serial Interface Module
1202368L1 NetVanta Encryption Module
1200868L1 E1/FE1 NIM
61200500L1-34C © 2004 ADTRAN, Inc. 19
Introduction NetVanta 1000 Series Switch Hardware Installation Guide

Unpacking and Inspecting the System

Each NetVanta 1000 Series unit is shipped in its own cardboard shipping carton. Open each carton carefully and avoid deep penetration into the carton with sharp objects. After unpacking the unit, inspect it for possible shipping damage. If the equipment has been damaged in transit, immediately file a claim with the carrier and contact ADTRAN Customer Service (see Warranty and Customer Service on page 11).

Contents of ADTRAN NetVanta 1000 Series Shipments

The NetVanta 1000 Series ships with the following items:
NetVanta 1000 Series Unit
A detachable power cable with a grounded, three-prong plug
ADTRAN OS Documentation CD
Warranty Card
20 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide Product Specifications

2. PRODUCT SPECIFICATIONS

Physical Interfaces
10/100BaseT Ethernet ports on the front panel
1000BaseT Gigabit Ethernet interfaces on the front panel (SFP slots for connectivity over fiber / RJ-45 connectors for copper connectivity)
Integrated DB-9, EIA-232 console port (DCE) on the rear panel
Modular network interface on the rear panel
Front Panel Status LEDs
Power
LAN: link, activity
Stacking
Spanning Tree Support (802.1D and 802.1w)
Link Aggregation (802.3ad)
VLAN Support (802.1Q), up to 255 active VLANs
Priority QoS (802.1p)
Management
Console
Telnet CLI
SSH CLI
SNMP V2
Port Mirroring
Power
AC Power: 100-250 VAC, 50/60 Hz
Power Dissipation: 25 Watts (85 BTUs/hour)
Mechanical Specifications
1224
1224ST
1224R
1224STR
24 24 24 24
0210
1111
N/A N/A 1 1
DDDD
DDDD
DDDD
DDDD
DDDD
DDDD
DDDD
DDDD
DDDD
DDDD
DDDD
DDDD
DDDD
DDDD
Housing: 1-U high metal enclosure (17.22” W x 8” H x 1.72” D)
10/100 BaseT Ethernet: Twenty-four ganged RJ-45 jacks
10/100/1000BaseT Ethernet: SFP slots / standard RJ-45 jacks
Console Port: DB-9, female
Environmental Specifications
AC Input Power: 100–250 VAC, 400 mA
Storage Temperature: -20 °C to 70 °C
Operating Temperature: 0 °C to 50 °C
Humidity: Up to 95% noncondensing
61200500L1-34C © 2004 ADTRAN, Inc. 21
DDDD
DDDD
0210
DDDD
DDDD
DDDD
DDDD
DDDD
Physical Description NetVanta 1000 Series Switch Hardware Installation Guide

3. PHYSICAL DESCRIPTION

Front Panel RJ-45 Ports and LEDS

The NetVanta front panels contain twenty-four 10/100BaseT Mbps Ethernet ports (RJ-45). Theses ports are consecutively numbered one through twenty-four, from left to right, with the numbers screened directly above each port. Status LEDs for each of these ports are located directly over these numbers. (See Figures 1 through 4.)

Front Panel Gigabit Ethernet Interfaces and LEDs

In addition to the Ethernet ports, the NetVanta1224ST front panel contains two Gigabit Ethernet interfaces, and the NetVanta 1224STR contains one Gigabit Ethernet interface. These interfaces are provided as SFP slots and RJ-45 jacks. Use either the SFP slots (see SFP Modules on page 23) or the RJ-45 jacks. These interfaces are labeled
G1 and G2), above the LED labeled STAT.
as
G1 / G2, and their status LEDs are located to the left of RJ-45 port 1 (they are labeled

Other Front Panel LEDs

To the lower left of RJ-45 port 1 is an LED labeled STAT which indicates the unit’s status. The NetVanta 1224STR and NetVanta 1224R also contain LEDs labeled the status of the interfaces added by an installed module (WAN-network interface module or DBU-dial backup module). Table 1 on page 23 describes all of these LEDs, and Appendix A shows the pinouts for the connectors.
Figure 1. NetVanta 1224 Front Panel Layout
Figure 2. NetVanta1224ST Front Panel Layout
WAN and DBU. These LEDs indicate
22 © 2004 ADTRAN, Inc. 61200500L1-34C
Figure 3. NetVanta 1224STR Front Panel Layout
Figure 4. NetVanta 1224R Front Panel Layout

SFP Modules

The NetVanta1224ST contains two SFP slots and the NetVanta 1224STR has one. All accept a number of industry-standard SFP modules. The SFP modules provide Gigabit connectivity over fiber for high-speed uplinks or switch stacking. The following modules are available for purchase (both of these modules require fiber optic cable with LC connectors):
1200480L1 1000BaseSX Multi-Mode SFP Module
1200481L1 1000BaseLX Single-Mode SFP Module
Table 1. Front Panel LED Descriptions
LED Color Indication
STAT
PORT
WAN Off No NIM is installed or interface is administratively down.
Green (blinking) On power-up STAT LED blinks rapidly for five seconds,
during which time the user may escape to boot mode from the CONSOLE port.
Green (solid) The power is on and self-test passed.
Red (solid) The power is on, but the self-test failed or the boot code
could not be booted.
Off The port is administratively disabled or does not have a
link.
Green (solid) The port is enabled and has a link.
Amber (blinking) The port has activity (transmit or receive).
Green (solid) The link is up and everything is okay.
Red (solid) An alarm condition is occurring on the WAN interface, or
there is a self-test failure.
Yellow (solid) The unit is in test.
61200500L1-34C © 2004 ADTRAN, Inc. 23
Physical Description NetVanta 1000 Series Switch Hardware Installation Guide
Table 1. Front Panel LED Descriptions (Continued)
LED Color Indication
DBU Off No DIM is installed.
Green (solid) The DIM is ready. For the ISDN BRI DIM, green solid
indicates that the negotiation with the switch is complete.
Green (blinking) The unit is in dial backup.
Red (solid) An alarm condition is occurring on the DBU interface, or
there is a self-test failure.
Yellow (solid) The unit is in test.

Reviewing the Rear Panel Design

Figures 5 and 6 show the rear panels. All NetVanta rear panels contain a power connection and a single DB-9 (female) interface, labeled terminal emulation software. In addition, the NetVanta 1224STR and NetVanta 1224R contain a modular network interface that accepts a variety of modules (see Option Modules on page 25). Appendix A shows the pinouts for the connectors.
CONSOLE, for connecting to a VT100 terminal or a PC running VT100

Console Interface

The CONSOLE interface is an integrated EIA-232 console port (DCE) which provides local management and configuration (via the DB-9 female connector).
Connection directly to an external modem requires a cross-over cable.
Figure 5. NetVanta 1224 and NetVanta1224ST Rear Panel Layout
Figure 6. NetVanta 1224STR and NetVanta 1224R Rear Panel Layout
24 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide Option Modules

4. OPTION MODULES

The NetVanta 1224STR and NetVanta 1224R offer several option modules designed to meet a variety of networking requirements. The option modules are of two types: plug-in Network Interface Modules (NIMs) and plug-on Dial Backup Interface Modules (DIMs).
NIMs are cards which plug directly into the option module slot (labeled
SLOT x NET/DBU), located on the
rear of the base unit. These cards provide the following types of interfaces:
NetVanta 56K/64K NIM (P/N 1200861L1) on page 26
NetVanta T1/FT1 NIM (P/N 1200862L1 and 61202862L1) on page 27
NetVanta T1/FT1+DSX-1 NIM (P/N 1200863L1 and 61202863L1) on page 28
NetVanta Dual T1 NIM (P/N 1200872L1) on page 29
NetVanta Serial NIM (P/N 1200866L1) on page 30
NetVanta E1/FE1 NIM (P/N 1200868L1) on page 31
DIMs are plug-on cards which plug directly on to the NIM prior to installation into the base unit. A DIM must be plugged on to a NIM in order for the
DBU port on the NIM to be active. The NetVanta supports
two DIMs:
NetVanta Analog Modem DIM (P/N 1200864L1) on page 32
NetVanta ISDN BRI DIM (P/N 1200865L1) on page 33
This section describes each module, providing individual card specifications and features. Refer to
Connector Pin Definitions on page 41 for pinout information. Installing Dial Backup and Network Interface Modules on page 38 provides information on card installation.
61200500L1-34C © 2004 ADTRAN, Inc. 25
Option Modules NetVanta 1000 Series Switch Hardware Installation Guide
Network Interface Modules

NetVanta 56K/64K NIM (P/N 1200861L1)

The 56K/64K NIM (shown in Figure 7) provides a WAN interface for the NetVanta. This module provides a single 56K or 64K DDS network interface. Refer to Table A-5 on page 43 for the WAN-DDS connector pinout, and Table A-11 on page 46 for the DBU connector pinout. An optional DIM is required for dial backup applications.
Figure 7. NetVanta 56K/64K NIM
Features and Specifications
Operating Modes
Dedicated DDS (leased line)
DDS Interface
•RJ-48C
4-wire, full duplex
-45 dB receiver sensitivity all rates
Data Rates: 56K, 64K, and Auto
Clock Source
•Network
•Internal
Diagnostics
CSU and DSU Loopbacks
Relevant Requirements/Standards
EMC - see Electromagnetic Compatibility
(EMC) Table for the NetVanta 1224STR/1224R on page 6.
ACTA/FCC Part 68
Industry Canada CS03
•UL and CUL
AT&T TR 62310
Environmental
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -40 °C to 85 °C
Relative Humidity: Up to 95% non-condensing
Physical
Dimensions: 4.25" x 2.75"
26 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide Option Modules

NetVanta T1/FT1 NIM (P/N 1200862L1 and 61202862L1)

The T1/FT1 NIM (shown in Figure 8) provides a T1 WAN interface for the NetVanta. This provides a full T1 or fractional T1 network interface. Refer to Table A-6 on page 43 for the WAN-T1 connector pinout, and Table A-11 on page 46 for the DBU connector pinout. An optional DIM is required for dial backup applications.
WAN-T1 DBU
Figure 8. NetVanta T1/FT1 NIM
Features and Specifications
Operating Modes
T1/FT1 Frame Relay
T1/FT1 PPP
T1/FT1 Interface
Line Rate: 1.544 Mbps +/- 75 bps
Line Code: AMI or B8ZS
Framing: D4 (SF) or ESF
FT1 Line Rate: DS0 Channelized (multiples of 56/64 kbps)
Input Signal: 0 to -36 dB (DS-1)
Line Build-Out: 0, -7.5, -15, -22.5 dB
Connector: RJ-48C
DS0 Assignment: Programmable
Clock Source
•Network
•Internal
Diagnostics
Test pattern generation and detection: QRSS and 511
Network loopbacks (local and remote); responds to both INBAND and FDL loop
codes
Alarm generation and detection
Network and user sets of performance data (15 minute and 24 hour)
Relevant Requirements/Standards
EMC - see Electromagnetic Compatibility (EMC) Table for the NetVanta 1224STR/1224R on page 6.
ACTA/FCC Part 68
Industry Canada CS03
•UL and CUL
T1 Interface: Pub 62411
ESF Format Interface: TR. 194
ESF Performance Monitoring: TR. 54016 and T1.403
Environmental
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -40 °C to 85 °C
Relative Humidity: Up to 95% noncondensing
Physical
Dimensions: 4.25" x 2.75"
61200500L1-34C © 2004 ADTRAN, Inc. 27
Option Modules NetVanta 1000 Series Switch Hardware Installation Guide

NetVanta T1/FT1+DSX-1 NIM (P/N 1200863L1 and 61202863L1)

The T1/FT1 + DSX-1 NIM (see Figure 9) provides a T1 WAN interface for the NetVanta, a full or fractional T1 network interface, and a DSX-1 interface. See the pinouts in Table A-6 on page 43 for the WAN-T1 connector, Table A-8 on page 44 for the DSX-1 connector, and Table A-11 on page 46 for the DBU connector. An optional DIM is required for dial backup applications.
WAN-T1 DSX-1 DBU
Figure 9. NetVanta T1/FT1+DSX-1 NIM
Features and Specifications
Operating Modes
T1/FT1 Frame Relay
T1/FT1 PPP
T1/FT1 Interface
Line Rate: 1.544 Mbps +/- 75 bps
Line Code: AMI or B8ZS
Framing: D4 (SF) or ESF
FT1 Line Rate: DS0 Channelized (multiples of 56/64 kbps)
Input Signal: 0 to -36 dB (DS-1)
Line Build-Out: 0, -7.5, -15, -22.5 dB
Connector: RJ-48C
DS0 Assignment: Programmable
DSX-1 Interface
Line Interface: DSX-1 per ANSI T1.102
DSX Receiver Input Range: -10 dB dsx to +6 dB dsx
Line Rate: 1.544 Mbps
Capacity: 1 to 24 DS0s
Line Codes: AMI, B8ZS
Framing: D4 (SF) or ESF
Line Length: 0 to 655 feet and -7.5 dB
Connector: RJ-48C
DSX-1 Interface to PBX
Clock Source
•Network
•Internal
•DSX-1
Diagnostics
Test pattern generation and detection: QRSS and 511
Network loopbacks (local and remote); responds to both INBAND and FDL loop codes (T1 interface only)
Alarm generation and detection
Network and user sets of performance data (15 minute and 24 hour)
Relevant Requirements/Standards
EMC - see Electromagnetic Compatibility (EMC) Table for the NetVanta 1224STR/1224R on page 6.
ACTA/FCC Part 68
Industry Canada CS03
•UL and CUL
T1 Interface: Pub 62411
ESF Format Interface: TR. 194
ESF Performance Monitoring: TR. 54016 and T1.403
Environmental
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -40 °C to 85 °C
Relative Humidity: Up to 95% noncondensing
Physical
Dimensions: 4.25" x 2.75"
28 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide Option Modules

NetVanta Dual T1 NIM (P/N 1200872L1)

The NetVanta Dual T1 NIM (see Figure 10) provides two WAN T1 interfaces for the NetVanta. Refer to Table A-6 on page 43 for the pinouts. Refer to Table A-11 on page 46 for the DBU connector pinout. An optional DIM is required for dial backup applications.
Figure 10. NetVanta Dual T1 NIM

Features and Specifications

Operating Modes
T1/ FT1
T1 Interface
Line Rate: 1.544 Mbps +/- 75 bps
Line Code: AMI or B8ZS
Framing: D4 (SF) or ESF
FT1 Line Rate: DS0 Channelized (multiples of 64 kbps)
Input Signal: 0 to -36 dB (DS-1)
Line Build-Out: 0, -7.5, -15, -22.5 dB
Connector: RJ-48C
DS0 Assignment: Programmable
Clock Source
•Network
•Internal
Through
Diagnostics
Test pattern generation and detection: QRSS, 2
15
-1, 220-1, 511
Network loopbacks (local and remote)
Responds to both inband and FDL loop codes
Alarm generation detection
Network performance data (15 minutes and 24 hours)
Relevant Requirements/Standards
EMC - see Electromagnetic
Compatibility (EMC) Table for the NetVanta 1224STR/1224R on page 6.
ACTA/FCC Part 68
Industry Canada CS03
•UL and CUL
T1 Interface: Pub 62411
ESF Format Interface: TR. 194
ESF Performance Monitoring: TR. 54016 and T1.403
Environmental
Operating temperature: 0 °C to 50 °C
Storage Temperature: -40 °C to 85 °C
Relative Humidity: Up to 95% noncondensing
Physical
Dimensions: 4.25” x 2.75”
61200500L1-34C © 2004 ADTRAN, Inc. 29
Option Modules NetVanta 1000 Series Switch Hardware Installation Guide

NetVanta Serial NIM (P/N 1200866L1)

The NetVanta Serial NIM (shown in Figure 11) is user-configurable to be either a V.35 or X.21 (V.11) interface. This module supports rates up to a maximum of 10 Mbps. An additional V.35 (ADTRAN P/N 1200873L1) or X.21 (ADTRAN P/N 1200874L1) cable is required (see Caution, below). Refer to Table A-10 on page 45 for the connector pinout. An optional DIM is required for dial backup applications.
Cable length for the Serial NIM should not exceed 25 feet.
SERIAL connector pinout, and Table A-11 on page 46 for the DBU
SERIAL DBU

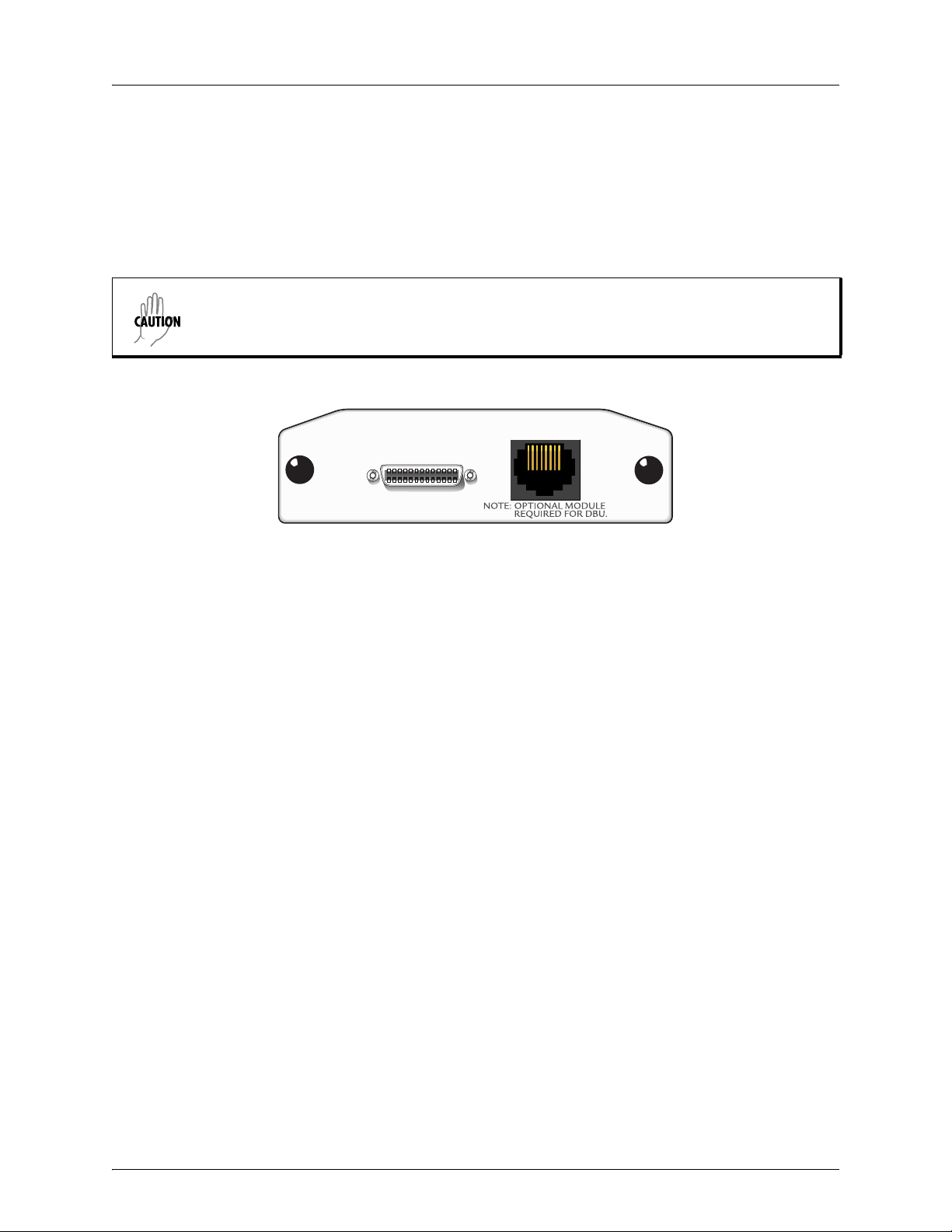

Figure 11. NetVanta Serial NIM
Features and Specifications
Operating Mode
DTE only
Serial Interface
Provides V.35 or X.21 (V.11) electrical interface
CTS, DCD, DSR, TM options are
IGNORE
or CONNECT
DTR, RTS options are NORMAL or FORCED
O
N
0 to 2.048 Mbps
26-pin smart serial (DTE) connector
Clock Source
•Network
•Internal
Relevant Requirements/Standards
EMC - see Electromagnetic Compatibility
(EMC) Table for the NetVanta 1224STR/1224R on page 6.
EN60950
•UL and CUL
ISO 4903 (X.21)
CCITT V.35 Synchronous (V.35)1
Environmental
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -40 °C to 85 °C
Relative Humidity: Up to 95% noncondensing
Physical
Dimensions: 4.25" x 2.75"
30 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide Option Modules

NetVanta E1/FE1 NIM (P/N 1200868L1)

The NetVanta E1 module (see Figure 12) provides a WAN/E1 interface for the NetVanta meeting the requirements of ITU-T G.703/G.704. The module provides a single 2.048 Mbps network interface. Refer to Table A-7 on page 43 for the pinouts. Refer to Table A-11 on page 46 for the DBU connector pinout.
WAN-E1 DBU
Figure 12. NetVanta E1/FE1 NIM
Features and Specifications
Operating Modes
E1/FE1
WAN-E1 Interface
Connector: RJ-48C
Line Rate: 2.048 Mbps +/- 50 PPM
Line Code: AMI or HDB3
Framing: FAS with optional CRC-4
FE1 Line Rate: Channelized Timeslot (in multiples of 64 kbps)
Timeslot Assignment: Programmable
Receiver Sensitivity: -30 dB
Clock Source
•Network
•Internal
Diagnostics
Network loopbacks
Network performance data (15-minute and
24-hour)
Test pattern generation and detection: QRSS, 511
Alarm generation and detection
Relevant Requirements/Standards
ACIF S016
ACA TS001
ETSI TBR 12 / TBR 13
EMC - see Electromagnetic Compatibility
(EMC) Table for the NetVanta 1224STR/1224R on page 6.
ITU G.703, ITU-T G.704 (CRC-4), ITU-T G.823, ITU-T G.797
Environmental
Operating temperature: 0 °C to 50 °C
Physical
Dimensions: 4.25” x 2.75”
61200500L1-34C © 2004 ADTRAN, Inc. 31
Option Modules NetVanta 1000 Series Switch Hardware Installation Guide
Dial Backup Interface Modules

NetVanta Analog Modem DIM (P/N 1200864L1)

The Analog Modem DIM provides a modem with data rates up to 33.6 kbps for the NetVanta. This DIM is a plug-on card that connects to the NIM. For installation instructions, see Installing Dial Backup and Network Interface Modules on page 38.

Features and Specifications

Features
ITU V.90 compliant
•Async
Relevant Requirements/Standards
EMC - see Electromagnetic Compatibility (EMC) Table for the NetVanta 1224STR/1224R on page 6.
ACTA/FCC Part 68
Industry Canada CS03
•UL and CUL
Environmental
Operating Temperature: 0 °C to 50 oC
o
Storage Temperature: -40 °C to 85
C
Relative Humidity: Up to 95% noncondensing
Physical
Dimensions: 3.75" x 2.5"
32 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide Option Modules

NetVanta ISDN BRI DIM (P/N 1200865L1)

The NetVanta ISDN BRI DIM provides dial backup access to the public switched telephone network (PSTN) via Basic Rate ISDN for the NetVanta. This DIM is a plug-on module that connects to the NIM. For installation instructions, see Installing Dial Backup and Network Interface Modules on page 38.

Features and Specifications

Features
Clear Channel and BONDING Mode 1 call protocols
Network support for 64 kbps (1B channel) or 128 kbps (2B channels)
D channel switch compatibility with AT&T 5ESS, Northern Telecom DMS-100, and National ISDN-1
V.54 network loopback support
Relevant Requirements/Standards
EMC - see Electromagnetic Compatibility (EMC) Table for the NetVanta 1224STR/1224R on page 6.
ACTA/FCC Part 68
Industry Canada CS03
•UL and CUL
Environmental
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -40 °C to 85 °C
Relative Humidity: Up to 95% non-condensing
Physical
Dimensions: 3.75" x 2.5”
61200500L1-34C © 2004 ADTRAN, Inc. 33
Unit Installation NetVanta 1000 Series Switch Hardware Installation Guide

5. UNIT INSTALLATION

The instructions and guidelines provided in this section cover hardware installation topics such as mounting options, supplying power to the unit, and installing option cards. These instructions are presented as follows:
Mounting Options on page 35
Supplying Power to the Unit on page 37
Installing Dial Backup and Network Interface Modules on page 38
Installing the NetVanta VPN Accelerator Card (1202368L1) on page 40
For information on configuring a specific application, refer to the quick start documents provided on your
ADTRAN OS Documentation CD or the Command Line Reference Guide (also included on your CD).
To prevent electrical shock, do not install equipment in a wet location or during a lightning storm.
Electronic modules can be damaged by static electrical discharge. Before handling modules, put on an antistatic discharge wrist strap to prevent damage to electrical components. Place modules in antistatic packing material when transporting or storing. When working on modules, always place them on an approved antistatic mat that is electrically grounded.

Tools Required

The customer-provided tools required for the hardware installation of the NetVanta are:
Ethernet cables
Network cables (module-dependent)
DSX-1 cable (T1/FT1 + DSX-1 module only)
DBU cable (dial backup functions require an optional DIM)
Phillips-head screwdriver (rackmounting applications only)
To access the command line interface (CLI) of the NetVanta, you will also need a VT100 terminal or PC with terminal emulation software and a console port cable. Instructions on how to access the CLI are given in the Command Reference Guide (provided on the ADTRAN OS Documentation CD).
34 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide Unit Installation
Mounting Options
If you have purchased the VPN Accelerator Card, install it first (see Installing the NetVanta VPN Accelerator Card (1202368L1) on page 40).
The unit may be installed in a rackmount, wallmount, or tabletop configuration. The following sections provide step-by-step instructions for rackmounting and wallmounting.

Rack Mounting the NetVanta

The NetVanta is a 1-U high, rack-mountable unit which can be installed into a19-inch equipment rack. The following steps guide you in mounting the NetVanta into a rack.
Instructions for Rack Mounting the NetVanta
Step Action
1 To allow proper grounding, scrape the paint from the rack around the mounting holes where the
NetVanta will be positioned.
2 Position the NetVanta in a stationary equipment rack. This unit takes up 1 U of space.
3 Have someone else hold the unit in position as you install two mounting bolts through the unit’s
brackets and into the equipment rack using a #2 Phillips-head screwdriver.
4 Apply power to the unit (see Supplying Power to the Unit on page 37).
Be careful not to upset the stability of the equipment mounting rack when installing this product.
61200500L1-34C © 2004 ADTRAN, Inc. 35
Unit Installation NetVanta 1000 Series Switch Hardware Installation Guide

Wall Mounting the NetVanta

By following these instructions exactly, the NetVanta can be safely mounted to the wall.
Instructions for Wall Mounting the NetVanta
Step Action
1 Remove the mounting ears. Rotate them 90 degrees so that the portion of the bracket with the
mounting holes is flush with the bottom of the chassis. Reattach the mounting ears to the chassis (see Figure 13 on page 37).
2 Decide on a location for the NetVanta. Keep in mind that the unit needs to be mounted at or
below eye-level so that the LEDs are viewable.
3 Prepare the mounting surface by attaching a board (typically plywood, 3/ 4" to 1" thick) to a wall
stud.
Important! Mounting to a stud ensures stability. Using sheetrock anchors may not provide sufficient long-term stability.
4 Have someone else hold the unit in position as you install two #6 to #10 (1 1/ 2" or greater in
length) wood screws through the unit’s brackets and into the mounted board (see Figure 13 on page 37).
5 Proceed to the steps given in Supplying Power to the Unit on page 37.
To avoid damaging the unit, use only the screws included in the shipment when attaching mounting ears to the chassis.
36 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide Unit Installation
Figure 13. Repositioning the Mounting Bracket for a Wallmount Installation

Supplying Power to the Unit

The NetVanta comes equipped with an auto-sensing 100-250 VAC, 50/60 Hz power supply for connecting to a properly grounded power receptacle. (A detachable power cable with a grounded, three-prong plug comes with the shipment.) To power-up the unit, connect the power cable to an appropriate power source.
61200500L1-34C © 2004 ADTRAN, Inc. 37
Unit Installation NetVanta 1000 Series Switch Hardware Installation Guide
Installing Dial Backup and Network Interface Modules
The DIM plugs on to the NIM. The NIM is then installed into the rear panel option module slot. The following tables list the installation steps. Also see Figure 15 on page 39.
Always remove power from the unit prior to removing or installing a module.
Improper installation may result in damage to the modules.
Instructions for Installing the DIMs
Step Action
1 Remove power from the unit.
2 If the NIM is already in the NetVanta chassis, release the pins at both edges of the NIM
faceplate and slide the module out of the chassis.
3 Carefully align the P1 connector on the NIM with the J1 connector on the DIM. Using only
fingertip pressure so that neither circuit board bends or flexes, ensure that the connectors are firmly seated. Secure the DIM to the NIM using the screws and standoff posts supplied. See Figure 14.
4 Slide the NIM with the DIM attached into the NetVanta chassis, continuing with the normal NIM
installation (see Instructions for Installing the NIMs on page 39).
WAN-T1
DBU
NOTE: OPTIONAL MODULE
REQUIRED FOR DBU
Figure 14. Installing DIMs
38 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide Unit Installation
Instructions for Installing the NIMs
Step Action
1 Remove power from the unit.
2 Slide the option module into the option slot until the module is firmly seated against the front of
the chassis.
3 Secure the pins at both edges of the module.
4 Connect the cables to the associated device(s).
5 Restore power to the unit.
Figure 15. NIM and DIM Installation
Your NetVanta is now ready to be configured and connected to the network. For more information on configuration for a specific application, refer to the quick start documents provided on your ADTRAN OS Documentation CD. For details on the command line interface, refer to the Command Reference Guide (also included on your CD).
61200500L1-34C © 2004 ADTRAN, Inc. 39
Unit Installation NetVanta 1000 Series Switch Hardware Installation Guide
Installing the NetVanta VPN Accelerator Card (1202368L1)
The optional VPN Accelerator Card plugs into a 32-bit PCI slot and is designed to be used in the NetVanta 1224STR to provide encryption/decryption and security acceleration services. The card provides the following security services to the host processor: DES, Triple-DES, AES, SHA-1, MD5, and Random Number Generation. Performance metrics include 528 Mbps-DES, 176 Mbps-3DES, and 422 Mbps-AES. The power consumption of the card does not exceed 2 Watts.
Instructions for Installing the VPN Accelerator Card
Step Action
1 Remove power from the unit.
2 Remove the nine screws and, if necessary, two mounting brackets (see Figure 16).
3 Using a 3/16” hex driver, remove the two jack screws located on either side of the DB-9 port.
4 Carefully lift and remove the unit’s cover to expose the circuit board.
5 Gently slide the accelerator card into the PC card slot as shown. The card is keyed to fit into the
slot only one way. To avoid damaging the card pins, do not use excessive force.
6 Replace the unit cover, screws, and mounting brackets.
7 Restore power to the unit.
Figure 16. VPN Card Installation
40 © 2004 ADTRAN, Inc. 61200500L1-34C

APPENDIX A. CONNECTOR PIN DEFINITIONS

Table A-1. Console Port Interface (DCE)
Pin Description
1 Carrier Detect (output)
2 Receive Data (output)
3 Transmit Data (input)
4 Data Terminal Ready (input)
5 Signal Ground
6 Data Set Ready (output)
7 Request to Send (input)
8 Clear to Send (output)
9 No Connect
Table A-2. SFP Slots
Pin Description Pin Description
1RX_LOS 11RGND
2RGND 12RX_DAT-
3RGND 13RX_DAT+
4MOD_DEF(0) 14RGND
5MOD_DEF(1) 15VddR
6MOD_DEF(2) 16VddT
7 TX_DISABLE 17 TGND
8TGND 18TX_DAT+
9TGND 19TX_DAT-
10 TX_FAULT 20 TGND
61200500L1-34C © 2004 ADTRAN, Inc. 41
Appendix A. Connector Pin Definitions NetVanta 1000 Series Switch Hardware Installation Guide
Table A-3. 10/100 BaseT Ports
Pin Description
1TD+
2TD-
3RD+
4 No Connect
5 No Connect
6RD-
7 No Connect
8 No Connect
Table A-4. 1000 BaseT Ports
Pin Description
1 TRD0+
2 TRD0-
3 TRD1+
4 TRD2+
5 TRD2-
6 TRD1-
7 TRD3+
8 TRD3-
42 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide Appendix A. Connector Pin Definitions
Network Interface Module Pinouts
Table A-5. WAN-DDS Connector Pinouts
Pin Name Description
1 R1 Transmit data to the network–Ring 1
2 T1 Transmit data to the network–Tip 1
3-6 Unused
7 T Receive data from the network–Tip
8 R Receive data from the network–Ring
Table A-6. WAN-T1 Connector Pinouts
Pin Name Description
1 R1 Receive data from the network–Ring 1
2 T1 Receive data from the network–Tip 1
3 Unused
4 R Transmit data toward the network–Ring
5 T Transmit data toward the network–Tip
6-8 Unused
Table A-7. WAN-E1 Connector Pinouts
Pin Name Description
1 R1 Receive data from the network
2 T1 Receive data from the network
3 Unused
4 R Transmit data toward the network
5 T Transmit data toward the network
6-8 Unused
61200500L1-34C © 2004 ADTRAN, Inc. 43
Appendix A. Connector Pin Definitions NetVanta 1000 Series Switch Hardware Installation Guide
Table A-8. DSX-1 Connector Pinouts
Pin Name Description
1 R Transmit data toward the DTE–Ring
2 T Transmit data toward the DTE–Tip
3 Unused
4 R1 Receive data from the DTE–Ring 1
5 T1 Receive data from the DTE–Tip 1
6-8 Unused
Table A-9. G.703 Connector Pinouts
Pin Name Description
1 R Transmit data toward the DTE
2 T Transmit data toward the DTE
3 Unused
4 R1 Receive data from the DTE
5 T1 Receive data from the DTE
6-8 Unused
44 © 2004 ADTRAN, Inc. 61200500L1-34C
NetVanta 1000 Series Switch Hardware Installation Guide Appendix A. Connector Pin Definitions
Table A-10. Serial NIM Connector Pinouts
Pin Name Pin Name
1 TD_A 14 TD_B
2 ETC_A 15 ETC_B
3 TCLK_A 16 TCLK_B
4 RCLK_A 17 RCLK_B
5 RD_A 18 RD_B
6 DCD_A 19 Unused
7 DTR_A 20 Unused
8 RTS_A 21 Unused
9 RTS_B (V.11 only) 22 Unused
10 CTS_B (V.11 only) 23 Unused
11 CTS_A 24 Unused
12 DSR_A 25 Unused
13 TM_A 26 Ground
61200500L1-34C © 2004 ADTRAN, Inc. 45
Appendix A. Connector Pin Definitions NetVanta 1000 Series Switch Hardware Installation Guide
Dial Backup Interface Module Connectors
Table A-11. DBU Connector Pinouts
Pin Name Description
1-3 Unused
4T NetworkTip
5 R Network–Ring
6-8 Unused
Table A-12. E1 DBU Connector Pinouts
Pin Name Description
1,2 Unused
3 R1 Network–Ring1
4 R Network–Ring
5T NetworkTip
6 T1 Network–Tip1
7,8 Unused
An optional DIM is required for dial backup applications.
46 © 2004 ADTRAN, Inc. 61200500L1-34C

Index

Numerics

1202368L1, accelerator (encryption) card 40
C
connecting to an external modem 24 console port description
24
D
DBU LED 24 Dial Backup Interface Modules (DIMs)
1200864L1, Analog Modem card 1200865L1, ISDN BRI card 33
DIMs, installing 38
32
E
E1/FE1 31 external modem, connecting to 24
F
front panel
description LEDs 23
22
I
installation
rackmount instructions 35 wallmount instructions 36
installing DIMs installing the unit 34
38
L
LEDs, description of 23
N
NetVanta 1224, brief description 19 NetVanta 1224R, brief description 19 NetVanta 1224ST, brief description NetVanta 1224STR, brief description Network Interface Modules
1200861L1, 56K/64K module 1200862L1, T1/FT1 module 1200863L1, T1/FT1+DSX-1 module 1200866L1, Serial module 30 1200868L1, E1/FE1 module 1200872L1, Dual T1 module
19
19
26
27
28
31
29
O
option modules discussion 25
P
physical description of products 22 pinouts
10/100 BaseT ports 1000 BaseT ports 42 console port interface (DCE) DBU Interface 46 DSX-1 Interface 44 E1 DBU Interface Serial Interface 45 SFP slots 41 WAN/DDS WAN/T1 Interface WAN-E1 Interface
power, supplying to unit product overview 22 product registration 11 product specifications
environmental specifications 21 management mechanical specifications 21 physical interfaces 21
21
power stacking 21
42
46
43
43 43
37
21
21
R
rackmounting 35 rear panel
24
S
SFP module descriptions 23 shipment
contents of damage during transit 20 inspection of
20
22
W
wallmount instructions 36 WAN LED warranty 11
23
41
61200500L1-34C © 2004 ADTRAN, Inc. 47
Index NetVanta 1000 Series Switch Hardware Installation Guide
