Chapter 1
Introduction
QUAD FXS VOICE MODULE OVERVIEW
The Quad FXS Voice Module (see Figure 1-1) is for use in the Total Access
750/850/1500 (TA 750/850/1500) platforms to provide analog voice exten-
sion. The Quad FXS resides in the TA chassis that is next to or close to the
customer’s telephone and is usually located on the customer’s premises.
This unit can be used in conjunction with the TA 750/850/1500 FXO Voice
Module, which resides in the TA 750/850/1500 that is located next to the
Central Office switch.
Figure 1-1. Quad FXS Voice Module
If TR-08 signaling format is not readily available at the CO switch, both FXO
and FXS access modules can be used for deployment. The TA 850 at the CO
will combine a number of analog lines and then multiplex them for T1 transmission to the TA 850 at the customer premise. If using the TR-08 signaling
option, the Quad FXS can communicate directly with the Central Office
Switch without needing a Quad FXO.
61175408L1 Octal FXS Voice Module User Manual 1-1
Chapter 1. Introduction
Functional Description
The Quad FXS Voice Module installs in any available option slot in the TA
850 chassis. You can view the status of the module itself, as well as the
circuits to which i t interfaces, from the TA 850 front panel. Additional status
information is available via the terminal menus, accessible through either a
VT-100 terminal connected to the TA 850 control port or via a Telnet session
established through the Base Unit’s Ethernet port.
Features
Features of the Quad FXS Voice Module are listed here:
•Fourvoiceports
• Automatic short loop provisioning
• µ-law encoding and decoding
• Support for ground start, loop start, and TR-08 signaling
• Longloop capability -- 1200 ohms including telephone set (16 kfeet @ 24
AWG)
• Hot-swappable
•V.90Modemcompliant
• Support for CLASS
• Transmit attenuation setting of 0 to -9 dB
• Receive attenuation setting of 0 to -9 dB
•Selectable600 ohm, 900 ohm, 600 ohm + 2.16µF, or 90 0 ohm + 2.16µF
2-wire VF interface
• NEBS Level 3 and UL 1950 compliant
• Extended temperature range of -40 to +65 °C
features such as Caller ID
1-2 Octal FXS Voice Module User Manual 61175408L1
QUAD FXS VOICE MODULE SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
Power 6 Watts (off hook)
Loop Current 23 mA nominal
20 mA minimum
Loop Resistance 1200 ohms nominal/1650 ohms maximum*
(900 ohms/1350 ohms - line, 300 ohms - phone)
Loop Length 16 kfeet
Terminating Impedance 900 ohm + 2.16µF,
600 ohm + 2.16µF,
900 ohm, and 600 ohm
Return Loss 900 ohm + 2.16µF,
ERL > 28 dB,
SRL > 20 dB
Chapter 1. Introduction
Trans Hybrid Loss 900 ohm + 2.16µF,
ERL > 28 dB,
SRL > 20 dB
Longitudinal Balance 200, 500, and 1000 Hz: > 58 dB min., > 63 dB avg.
3000 Hz: > 53 dB min., > 58 dB avg.
Frequency Response 300 to 3400 Hz: -0.5 and 1.0 dB
Idle Channel Noise <20dBrnC
Signal-to-Distortion Ratio 0 to -30 dBm0: > 33 dB
-30to-40dBm0:>27dB
-40to-45dBm0:>22dB
PHYSICAL SPECIFICATIONS
Dimensions 31/4"Hx10"D
Weight 1lb.
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature -40 to 64 °C
Storage Temperature -40 to 70 °C
Relative Humidity Up to 95% noncondensing
*Measured with -48 VDC input, 20 mA loop current
61175408L1 Octal FXS Voice Module User Manual 1-3
Chapter 1. Introduction
1-4 Octal FXS Voice Module User Manual 61175408L1
Chapter 2
Installation
BEFORE INSTALLING THE QUAD FXS VOICE MODULE
Carefully unpack and inspect the Quad FXS Voice Module for shipping
damages. If you suspect damage occurred during shipping, file a claim immediately with the carrier and then contact ADTRAN Technical Support
(see the last page of this manual for pertinent information). If possible, keep
the original shipping container for returning the Quad FXS Voice Module
for repair or for verification of shipping damage.
Shipping Contents
The ADTRAN shipment includes the following items:
•QuadFXSVoiceModule
•QuadFXSVoiceModuleUser Manual
(Insert into the TA 850 User Manual.)
INSTALLING THE Q UAD FXS VOICE MODULE
The following Step/Action table describes the actions required to install the
Quad FXS Voice Module.
Instructions for Installing the Quad FXSVoice Module
Step Action
1
2
3
4 Lock the unit in place by pushing in on the locking lever.
Hold the Quad FXS Module by the faceplate while supporting
the bottom side.
Align the module edges to the guide grooves for the
designated slot.
Insert the module until the edge connector seats firmly into the
backplane.
61175408L1 Quad FXS Voice Module User Manual 2-1
Chapter 2. Installation
WIRING
Instructions for Installing the Quad FXSVoice Module (Continued)
Step Action
5 Connect the cables to the associated device(s).
Complete installation of remaining modules and Base Unit as
6
specified in the Installation chapter of the TA 850 User
Manual.
Asingle50-pinmaleamphenolconnectorontherearoftheTA850chassis
provides the interconnect wiring for the four analog circuits on each access
module. Figure 2-1 shows the pinout connection.
5025
P
4924
P
4823
P
4722
P
4621
P
4520
P
4419
P
4318
P
4217
P
4116
P
4015
P
3914
P
3813
P
3712
P
3611
P
3510
P
349
P
338
P
327
P
316
P
305
P
294
P
283
P
272
P
261
Slot 6
Slot5
Slot 4
Slot 3
Slot 2
Slot 1
50 PIN
AMP
RECEPTACLE
NC
T
Circuit 4
R
T
Circuit 3
R
T
Circuit 2
R
T
Circuit 1
R
T
Circuit 4
R
T
Circuit 3
R
T
Circuit 2
R
T
Circuit 1
R
T
Circuit 4
R
T
Circuit 3
R
T
Circuit 2
R
T
Circuit 1
R
T
Circuit 4
R
T
Circuit 3
R
T
Circuit 2
R
T
Circuit 1
R
T
Circuit 4
R
T
Circuit 3
R
T
Circuit 2
R
T
Circuit 1
R
T
Circuit 4
R
T
Circuit 3
R
T
Circuit 2
R
T
Circuit 1
R
Figure 2-1. Connector Pin Assignments
2-2 Quad FXS Voice Module User Manual 61175408L1
Chapter 3
OVERVIEW
LED Status
Operation
TheQuadFXSVoiceModulegoesoperationaluponinsertionintoanactive
TA 750/850/1500 chassis. Once the unit is inserted, it must be mapped to a
network interface for proper operation. Refer to the TA 850 User Manual
Channel Bank chapter (DS0 mapping section) for information.
After the initialization sequence, faceplate LEDs show the status of the analog service for each customer loop, as follows:
Off On Hook
Flashing Ringing
On Off Hook (Busy)
TESTING
Self-Test
Initiated Tests
A self-test is performed on the Quad FXS Voice Module when it is inserted
into an active TA 850 chassis. The test verifies proper operation of critical circuits. If the test is successful, all four LEDs turn on in a predefined sequence,
the unit is placed in service, and the LEDs then return to normal operation
showing current status of the FXS.
Other tests conducted on the Quad FXS Voice Module are initiated via the
screen menus and VT 100 terminal. (See Quad FXS Voice Module Test Options
on page 3-5 for more information.)
61175408L1 Quad FXS Voice Module User Manual 3-1
Chapter 3. Operation
METHODS OF OPERATION
You can control and configure the Quad FXS Voice Module from the following sources:
• The terminal menus, allowing detailed configuration, status, and diagnostics
• SNMP, primarily for reporting alarm conditions and system status
The remainder of this chapter describes the menu items presented when
managingtheQuadFXSVoiceModuleviatheterminalmenu.
Access the terminal menu using either a VT-100 terminal attached to the TA
850 Base Unit’scontrol port or a Telnet session established through the Base
Unit’s Ethernet port. The TA 850 User Manual provides detailed instructions
on the operation of each of these management approaches.
The factory default password is
specified password.
TERMINAL MENU STRUCTURE
The TA 850 uses a hierarchical menu structure to provide access to all of its
features. The top-most menu level leads to submenus which are grouped by
functionality. All menu items display in the terminal window. To access the
Quad FXS Voice Module, activate the M
Refer to the TA 850 User Manual for detailed instructions on
navigating through the terminal menu.
From the M
to access the features of the Quad FXS card.
ODULES
PASSWORD
menu, select the Q
. It can be changed to a user-
ODULES
UAD
menu.
FXS menu, and then press
Enter
3-2 Quad FXS Voice Module User Manual 61175408L1
QUAD FXS VOICE MODULE MENU OPTIONS
Chapter 3. Operation
PRT
MODE

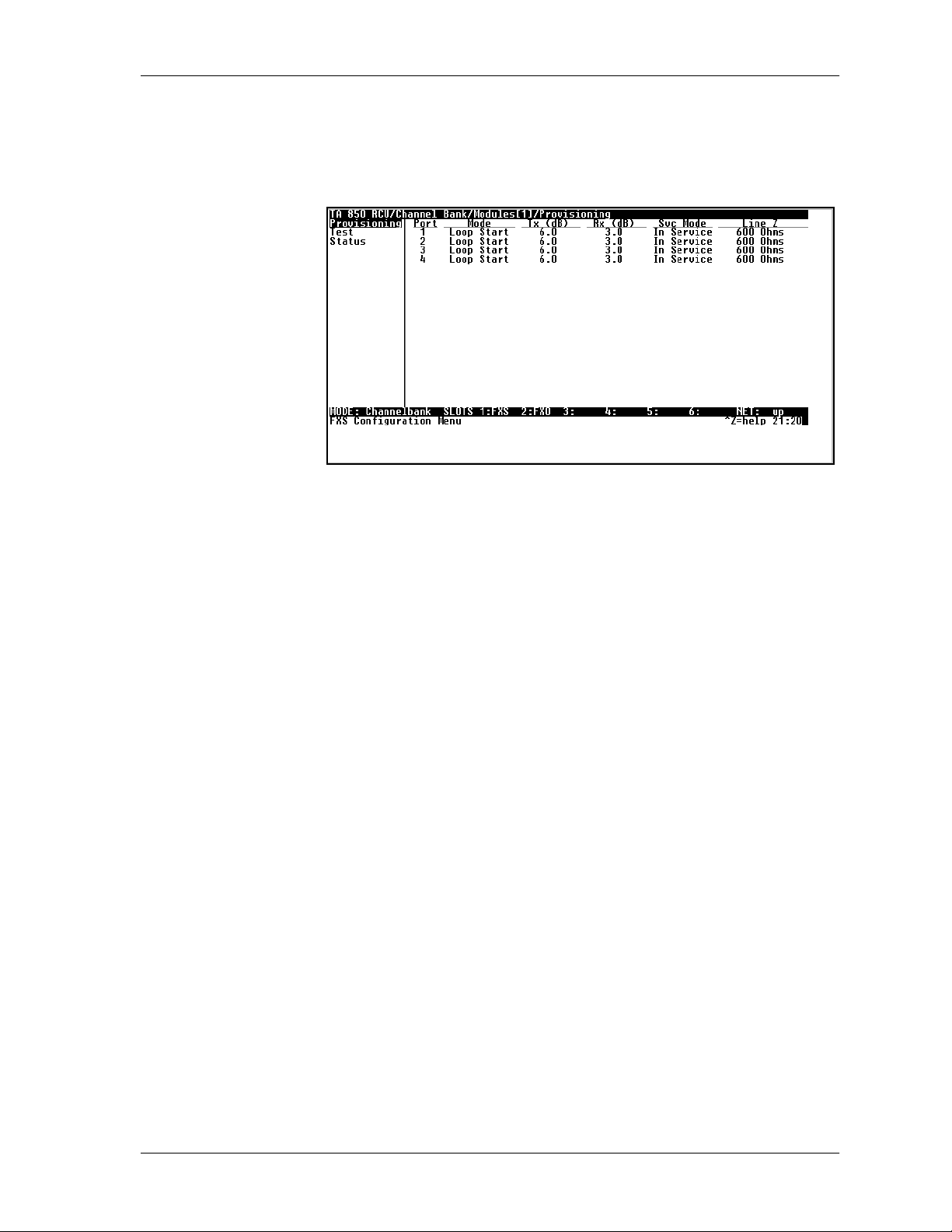

Figure 3-1 shows the menu options available for the
The following sections describe these options.
Figure 3-1. Quad FXS Voice Module Menu Options
Identifies the port involved.
Options are given below.
Quad FXS Voice Module.
OOPSTART
L
Sets the port to use FXS loop start signalling on theT-span and loop start
supervision on the analog 2-wire interface.
ROUNDSTART
G
Sets the port to use FXS ground start signalling on theT-span and ground
start supervision on the analog 2-wire interface.
TR08 S
INGLE
Sets the port to use Single Party Channel Unit signalling on theT-span (as
defined by TR-TSY-000008) and loop start supervision on the analog 2-wire
interface.
TR08 UVG Sets the port to use UniversalVoice Grade signalling on theT-span (as
defined by TR-TSY-000008) and either loop start or ground start supervision on the analog 2-wire interface.
DPO Sets the port to use Dial Pulse signalling to originate dialed numbers.
ANDEM
T
(E&M) Sets the port to use E&M signalling on theT-span and either loop start or
groundstart supervisionon the analog 2-wire interface. See the Tandemsubmenus for more information.
61175408L1 Quad FXS Voice Module User Manual 3-3
Chapter 3. Operation
TX (DB)
RX (DB)
SVC MODE
LINE Z
TANDEM
ONVERSION
C
ODE
M
UPERVISION
S
Sets the Tx direction transmit level points. The transmission level is indicated in dBm. Range is from 0 to 9.9 dBm. Default is 6.0.
Sets the Rx direction transmit level points. The transmission level is indicated in dBm. Range is from 0 to 9.9 dBm. Default is 3.0.
Indicates whether the module is I
NSERVICE
or O
UT OFSVC
.Thisdoesnotin-
dicate whether the port has been mapped. For proper operation, the port
must be mapped using the DS0 M
Setsthelineimpedance.Choicesare600
2.16
µ
F, 900
OHMS
+2.16µF,andA
APS
UTO
menu.
OHMS
.
, 900
OHMS
, 600
OHMS
+
Displays additional Tandem information about the module when it is used
in Tandem (E&M) mode. (To access submenus for this item, use the arrow
keys to scroll to the T
then press
Enter
ANDEM
column for the module you want to edit, and
.)
Sets the port to either loop start or ground start mode.
Sets the supervision method used to either I
MMEDIATE
or W
INK
.
IALTONE
D
INGBACK
R
ONE
T
NSWER
A
UPERVISION
S
DNIS O
DNIS D
PTIONS
ELAY
Used to enable or disable the on-board dial tone generation.
Used to enable or disable the option of generating ring back tone towards
the T-span.
Causes the polarity of tip and ring to be reversed when the far-end answers.
Can be enabled or disable.
Enable/disable.
Sets the amount of time the FXS will wait after sending a wink before sending answer supervision toward the CO.
3-4 Quad FXS Voice Module User Manual 61175408L1
QUAD FXS VOICE MODULE TEST OPTIONS
Chapter 3. Operation
PRT
TEST
IGITAL
D
OOPBACKTEST
L
ETWORKON
N
OOK/OFF
H
OOKTEST
H
1004 H
DBM0TONE
0
ENERATION
G
EST
T
-
Z
-
Identifies the port involved.
To initiate a module test, scroll to the T
EST
column and press
Enter
are detailed below.
The Digital Loopback Test is used to loop back DS0 data coming from the
network for each channel. Received data is latched In on the appropriate receive time slot on the receive bus. This data is then placed on the transmit
bus in the unit’s transmit time slot.
The Network On-Hook/Off-Hook Test is used to test signalling sent to the
-
network by the unit. When On-Hook Test is selected, On-Hook signalling is
sent to the network. When Off-Hook Test is selected, Off-Hoo k signalling is
sent to the network. The customer loop is forced On-Hook while this test is
active.
The 1004 Hz - 0dbm0 Tone Gen eration Test is used to send DRSsignal on the
receive path to the loop. The loop receive level that should be received is determined by the following equation:
Receive Level = 0 dB - Attenuation
.Options
USTOMERRING
C
EST
T
TEST STATUS
The Customer Ring Test will activate the unit’s ring relay in a 2-on/4-off ring
cadence, providing ringing to the customer loop.
Tells whether a test is in progress.
QUAD FXS VOICE MODULE STATUS OPTIONS
The transmit and receive signalling bits are shown in the S
the Quad FXS module.
TATUS
TA 850 FEATURES USED WITH QUAD FXS VOICE MODULE
OPTIONS
Two additional TA 850 menu items can operate in conjunction with the
Quad FXS Voice Module: F
ACTORYRESTORE
and R
UNSELFTEST
Factory Restore
YoucanrestorethefactorydefaultsettingsforaQuadFXSVoiceModuleby
pressing F whilethecursorisovertheSLT
number (this action restores the
menu of
.
61175408L1 Quad FXS Voice Module User Manual 3-5
Chapter 3. Operation
factory settings for all of the module options), while the cursor is over the
RT
number (this action restores the factory settings for the port), or while
P
the cursor is over an individual field (this action restores factory settings for
the particular field only).
3-6 Quad FXS Voice Module User Manual 61175408L1
Index
Numerics
1004 Hz - 0dbm0 tone generation test 3-5
A
answer supervision 3-4
C
connectors 1-3
conversion mode 3-4
customer ring test 3-5
customer service iii
D
description 1-2
dial pulse signalling 3-3
dial tone 3-4
digital loopback test 3-5
DNIS delay 3-4
DNIS options 3-4
DPO 3-3
F
factory restore 3-5
features 1-2
TA 850 3-5
G
ground start 3-3
M
menu
structure 3-2
terminal menu structure 3-2
menu options 3-3
mode 3-3
N
network on-hook/off-hook test 3-5
O
operation 3-1, 3-2
overview 1-1
operation 3-1
P
power connection
connection 2-2
prt 3-3, 3-5
Q
Quad FXS module
description 1-2
features 1-2
installing 2-1
operation 3-1
overview 1-1
specifications 1-3
I
initiated tests 3-1
installing 2-1
Quad FXS module 2-1
introduction 1-1
L
LEDs 3-1
line z 3-4
loop start 3-3
61175408L1 Quad FXS Module User Manual Index-1
R
restore 3-5
ring back tone 3-4
RMA requests iii
RX (dB) 3-4
S
self-test 3-1
service iii
specifications 1-3
status options 3-5
Index
supervision 3-4
svc mode 3-4
T
TA 850 features 3-5
tandem 3-4
tandem (E&M) 3-3
terminal menu 3-2
terminal menu structure 3-2
test 3-5
test options 3-5
test status 3-5
testing 3-1
tests
initiated 3-1
self-test 3-1
TR08 single 3-3
TR08 UVG 3-3
TX (dB) 3-4
W
warranty iii, iv
wiring 2-2
Index-2 Quad FXS Module User Manual 61175408L1
Product Support Information
Presales Inquiries and Applications Support
Please contact your local distributor, ADTRAN Applications Engineering, or ADTRAN Sales:
Applications Engineering (800) 615-1176
Sales (800) 827-0807
Post-Sale Support
Please contact your local distributor first. If your local distributor cannot help, please contact ADTRAN
Technical Support and have the unit serial number available.
Technical Support (888) 4ADTRAN
Repair and Return
If ADTRAN Technical Support determines that a repair is needed, Technical Support will coordinate with
the Customer and Product Service (CAPS) department to issue an RMA number. For information regarding equipment currently in house or possible fees associated with repair, contact CAPS directly at the following number:
CAPS Department (256) 963-8722
Identify the RMA number clearly on the package (below address), and return to the following address:
ADTRAN Customer and Product Service
6767 Old Madison Pike
Building #6 Suite 690
Huntsville, Alabama 35807
RMA # _____________
Loading...
