UHRS & UHCM Series
Unit Heaters
SG-UHCM-02
September 2020
Specification Guide
2175 West Park Place Blvd., Stone Mountain, GA 30087
www.adpnow.com
Product improvement is a continuous process at Advanced Distributor Products. Therefore, product specifications are subject to change without notice
and without obligation on our part. Please contact your ADP representative or distributor to verify details.
© by Advanced Distributor Products. All rights reserved.
Page 2
2
PRODUCT NOMENCLATURE
UH RS - 45 N A - 1
Series
UH = Unit Heater
Configuration
RS = Residential / Low Profile
Heat Exchanger
A = Aluminized Steel
Note: All heaters are 115V / 1ph / 60 Hz
Nominal Input
30 = 30,000 (BTUH)
45 = 45,000 (BTUH)
60 = 60,000 (BTUH)
75 = 75,000 (BTUH)
90 = 90,000 (BTUH)
105 = 105,000 (BTUH)
Fuel Type
N = Natural Gas
P = Propane
Design Revision
Blank = None
1 = Revision #1 etc.
UH CM -175 N A - 1
Series
UH = Unit Heater
Configuration
CM = Commercial
Heat Exchanger
A = Aluminized Steel
S = Stainless Steel
Note: All heaters are 115V / 1ph / 60 Hz
Nominal Input
125 = 125,000 (BTUH)
150 = 150,000 (BTUH)
175 = 175,000 (BTUH)
200 = 200,000 (BTUH)
250 = 250,000 (BTUH)
300 = 300,000 (BTUH)
350 = 350,000 (BTUH)
400 = 400,000 (BTUH)
Fuel Type
N = Natural Gas
P = Propane
Design Revision
Blank = None
1 = Revision #1 etc.
Page 3
3
Efficiency
ADP gas-fired unit heaters deliver between 83% and 82%
thermal efficiency. This excellent efficiency sets a new
standard when using gas-fired unit heaters.
Reliability
ADP heater designs have proven superior for o ver a
decade a nd during hundreds of thousands of hours
in the toughest winter cl im ates of N orth America and
under extreme conditions in laboratory life cycle
testing. A DP unit heaters have been designed t o
provide a l on g, trouble free s er vice life.
Quality
Every heater undergoes continuo us q uality checks at
all sta ges of manufacturing. After assembly, each
heater is tes t f ired and function ally tested to provide
fi nal assuranc e that it is performi ng in accordance
with ADP’s rigo ro us quality stan da rds.
Approvals
All ADP heaters are built in the USA in an ISO
9001:2008 facil it y. The rating plate of each heater
carries the mark si gnifying that t he heater is design
certified b y CSA. In addition, th e heater series is
listed by t he C alifornia Energy Co mmission (CEC).
Warranty
ADP unit heaters feature a standard 2-year limited
warranty. For UHRS, and UHCM Series, the warranty
provides extended coverage on aluminized heat
exchangers for 10 years. For UHCM Series, the warranty
provides extended coverage on stainless steel heat
exchangers for 15 years.
Power Exhaust
All heaters have a sealed fl ue collector and a po wer
exhaust s ystem which e nable conventional vertical
venting or horizontal ven ting. Power exhau st , wh en
used with ho ri zontal ven ti ng, lowers operating co st
because it red uces stack los ses. It also allows the
option of not penetrati ng the roof, or multiple floors.
The versatile powe r e xhaust (on some models)
reduces installation cost f ur ther by allowi ng the
exhaust to be directed upward, left or ri ght, just by
rotating the ex haust assembly.
In Shot Burners
These lightweight aluminized steel burners are
maintenance-free and never require adjustment. The
burner venturi mixes air and gas in the correct proportion
for efficient combustion. The entire burner assembly is
removable as one piece for ease of service.
Patented Tubular Heat Exchangers
Constructed of aluminized st eel for superior
resistance to corro sion and oxidati on ; for additional
protection, some models h ave an o ptional stainle ss
steel he at exchanger. The pat en ted curvin g design
provides for co mplete exposure of the heati ng
surface to the supply air st re am. Rounded su rf aces
minimize air resistance and permit air t o surround all
heat tran sf er surfaces for excell ent heat transf er.
Tubular des ign means lighter wei ght and significa ntly
longer service life du e to lo we r thermal -induced
stresses. .
Direct Spark Ignition
In combination with the 24 -volt main gas valve wit h
100% shutoff for safety, the di rect spark ignition
control p ro vides positive, re liable and safe main
burner ignition. This eli minates the need fo r a pilot
light, improving system e ff ic iency and reliability. A
separate f la me sensor p rovides pr oof of ma in burner
ignition. If loss of main burner flame should occu r,
the control wil l reinitiate ign ition three times bef or e
locking o ut, thus re ducing nuis ance servic e calls.
The unit will reinitiate ignition after the one h our
lockout. The prepurge o peration safety removes al l
gas and flue products from the system prior to
ignition.
Cabinet
Constructed heavy gauge p ainted steel, each
cabinet h as a two-poin t suspension s ystem fo r easy
installatio n (larger and two-fan models have four point suspensions). The wiring junction box i s
conveniently l oc ated o n the s id e of the cabinet
(UHCM only) for easy access and ad equa te
protection.
PRODUCT FEATURES
Page 4
4
UHRS SERIES
Product Features
• Residential – low profile units.
• Great for garages & shops.
• Sidewall venting eliminates roof penetrations.
• Wiring junction box is located inside of unit.
• 1” clearance from ceiling for easy installation.
• Now with 30% quitter operation compared to previous models.
• Heating capacities from 30,000 – 105,000 BTUH.
• Up to 85% thermal efficiency.
• Self-diagnostic board with LED display improves
troubleshooting.
• Power exhaust system allows horizontal venting to 25 ft.
• Patented tubular heat exchangers made of aluminized steel.
• Aluminized steel in shot burners provide efficient trouble free operation.
• Direct drive propeller fans are dynamically balanced for quiet and smooth operation.
[1] Sold in pallet quantities of four(4) per model. No mix or match of models.
[2[ 2 x 4 in. (51 x 102 mm) diameter adaptor is furnished with unit for flue connection.
Note: All models have aluminized steel heat exchanger; all models are 115 V, 60 Hz, 1 phase.

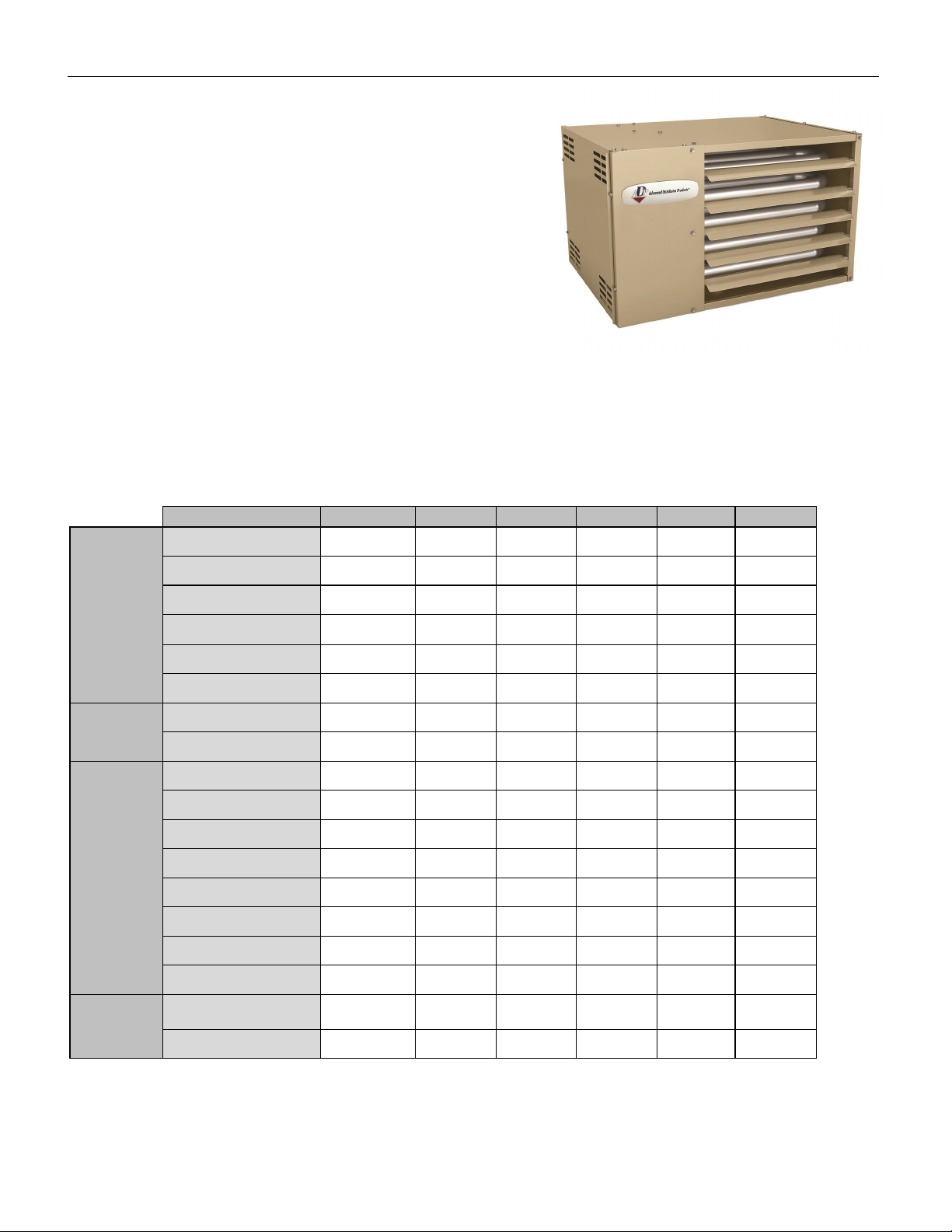

Technical Data
Low Profile Unit Heaters
Model UHRS -30
[1]
UHRS -45
[1]
UHRS -60 UHRS -75 UHRS -90 UHRS -105
Gas Heating
Performance
Heating Capacity Input
(BTUH)
30,000 45,000 60,000 75,000 90,000 105,000
NG Heating Output
(BTUH)
25,020 37,665 50,220 62,550 75,420 87,675
LP Heating Output
(BTUH)
25,560 38,385 51,180 63,825 77,130 89,250
Steady State Efficiency --
Natural Gas
83% 83% 83% 83% 83% 83%
Steady State Efficiency --
LPG / Propane
85% 85% 85% 85% 85% 85%
Temp Rise (deg F) 37 52 47 65 43 59
Connections
Flue Size Round (in) 4
[2]
4
[2]
4
[2]
4
[2]
4
[2]
4
[2]
Gas Piping Size (in, NPT) 1/2 1/2 1/2 1/2 1/2 1/2
Fan Data
Num of Fans 1 1 1 1 1 1
Diameter (in) 10 10 14 14 16 16
Num of Blades 4 4 4 4 4 4
Motor Output (hp) 1/25 1/25 1/15 1/15 1/10 1/10
Motor Full Load Amps 0.45 0.45 0.9 0.9 1.5 1.5
Motor RPMs 1550 1550 1075 1075 1075 1075
Air Volume (CFM) 625 665 1000 1200 1600 1500
Throw Ft. 27 29 34 41 46 43
Physical Data
Overall Dimensions H x
W x D (in)
12.375 x 29 x
27.5
12.375 x 29 x
27.5
17.5 x 29 x
27.5
17.5 x 29 x
27.5
23 x 29 x
28.875
23 x 29 x
28.875
Ship Weight (lbs) 60 65 90 95 120 125
Page 5
5
UHRS SERIES
Dimensions
Low Profile Unit Heaters

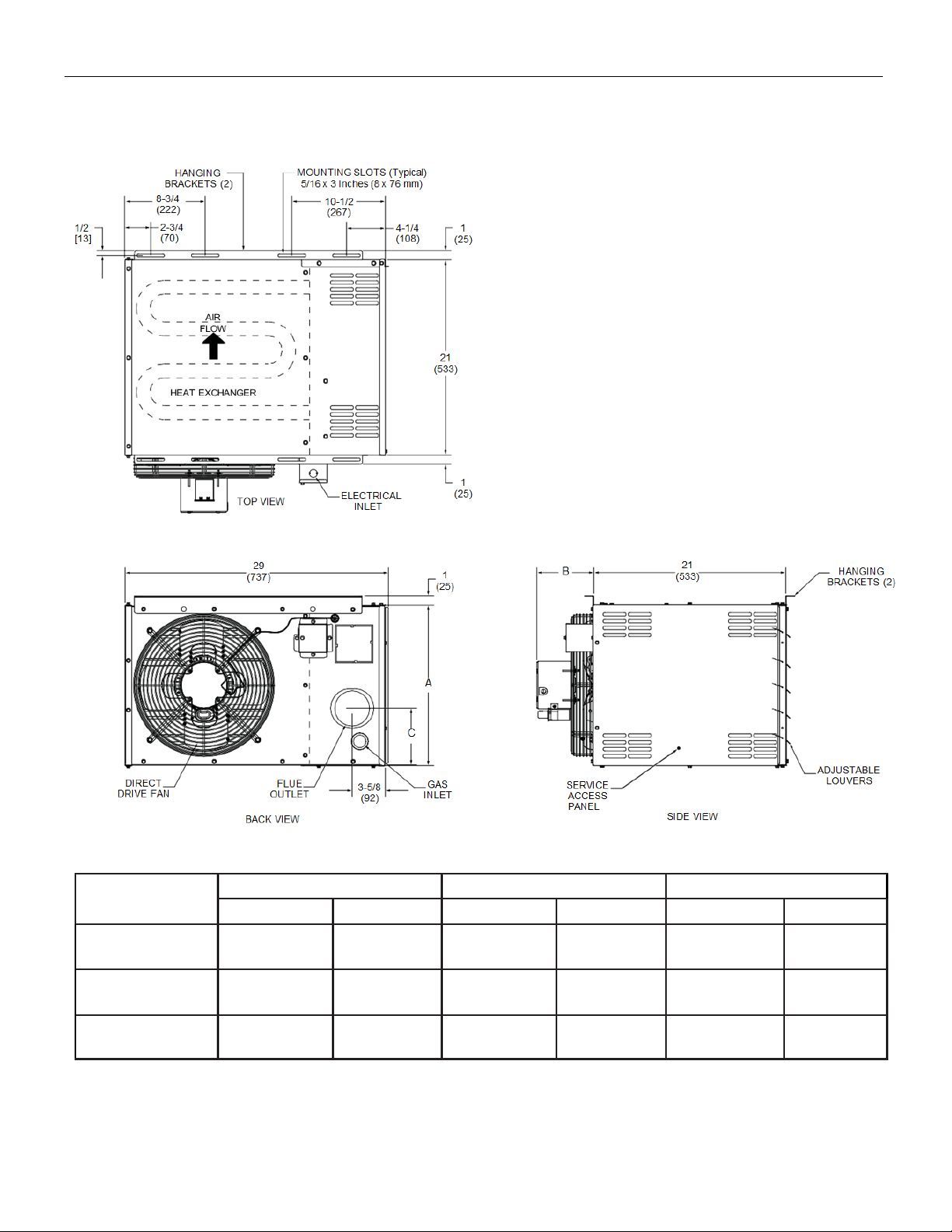

NOTE: Unit may be rotated 180° top for bottom to
change gas, electrical and flue positions. Hanging
brackets may be installed on either top or bottom
of unit.
Model
No.
A B C
in. mm in. mm in. mm
UHRS-030A
UHRS-045A
12-3/8 314 6-1/2 165 3-7/8 98
UHRS-060A
UHRS-075A
17-1/2 445 6-1/4 159 6-1/8 156
UHRS-090A
UHRS-105A
23 584 7-7/8 200 9-1/8 232
Page 6
6
UHCM SERIES
Product Features
• Heating capacities from 125,000 – 400,000 BTUH.
• Up to 85% thermal efficiency.
• Stainless steel heat exchanger is available for longer product life.
• 2-stage models (see chart below) provide improved efficiency and system
cycle reduction.
• Patented tubular heat exchangers made of aluminized steel or stainless steel.
• Aluminized steel in shot burners provide efficient trouble free operation.
• Sidewall venting eliminates roof penetrations.
• Now with 30% quitter operation compared to previous models.
• Wiring junction box is located outside of unit.
• Safe direct spark ignition. No standing pilot light.
• Self-diagnostic board with LED display improves troubleshooting efficiency and accuracy.
• 3/8 x 16 rivet nuts are located on the top of cabinet for suspending unit using threaded rod.
• Power exhaust system with a sealed flue collector allows conventional vertical or horizontal venting to 35 ft (depends
on unit size).
• Direct drive propeller fans are dynamically balanced for quiet, smooth operation.
Commercial Unit Heaters
[1] 2-1/8 x 4 in. (54 x 102 mm) diameter adaptor is furnished with unit for flue connection.
[2] 2-1/4 x 2-3/4 in. (57 x 70 mm) rectangular to 5 in. (127 mm) round adaptor is furnished with unit for flue connection.
[3] 2-1/4 x 2-3/4 in. (57 x 70 mm) rectangular to 6 in. (152 mm) round adaptor is furnished with unit for flue connection.
All models are 115 volts, 60 Hz, 1 phase.
Note: UHCM unit heaters are not approved for residential applications.

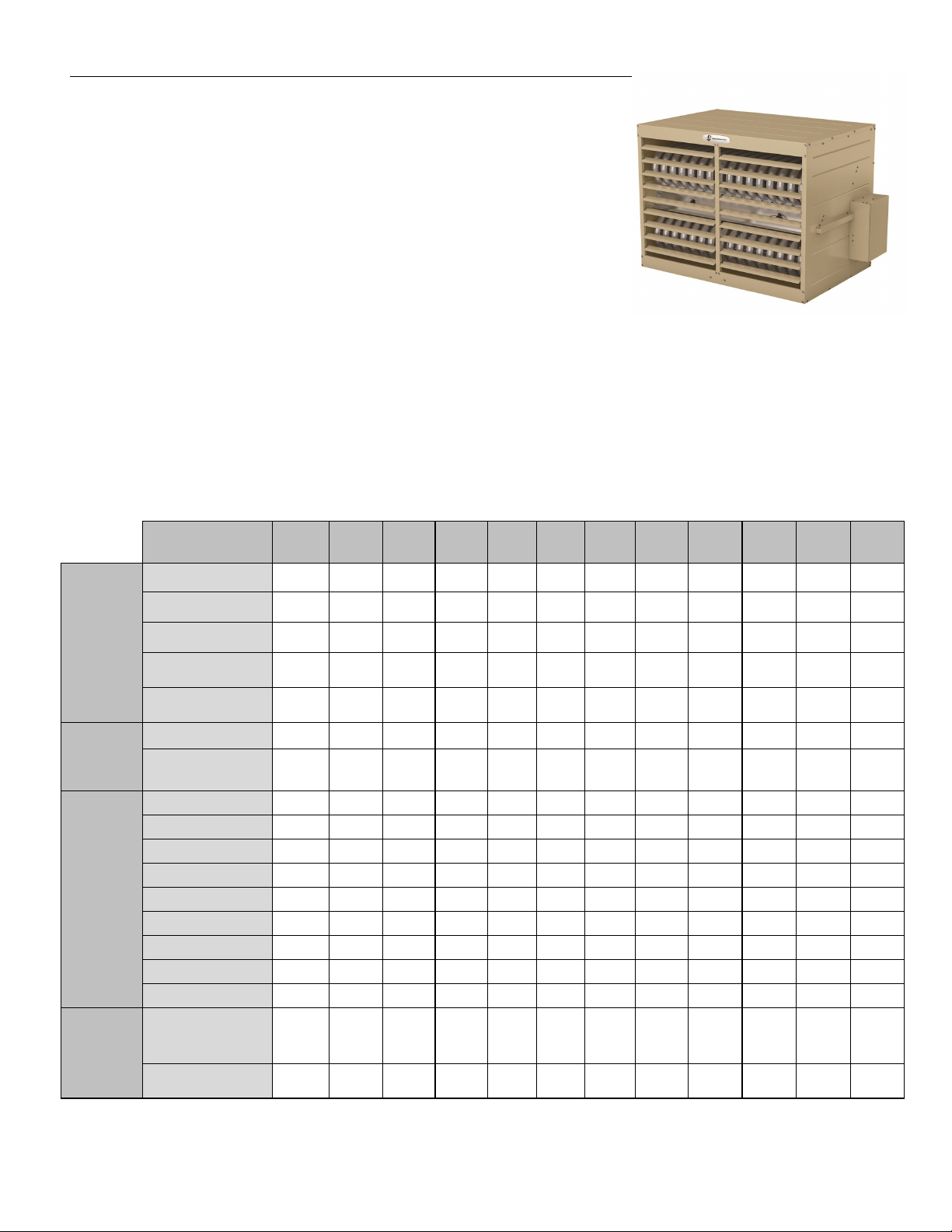

Technical Data
Model
UHCM UHCM UHCM UHCM UHCM UHCM UHCM UHCM UHCM UHCM UHCM UHCM
-125 -150 -175 -200 -250 -250-1 -300 -300-1 -350 -350-1 -400-1 -400
Gas Heating
Performance
Heating Capacity Input 125,000 150,000 175,000 200,000 250,000 250,000 300,000 300,000 350,000 350,000 400,000 400,000
Output Natural Gas
(BTUH)
103,750 124,500 145,250 166,000 207,500 207,500 246,000 246,000 290,500 290,500 328,000 328,000
Output LPG/Propane
(BTUH)
106,250 127,500 148,750 170,000 212,500 212,500 252,000 252,000 294,000 294,000 336,000 336,000
Steady State Efficien-
cy -- Natural Gas
83% 83% 83% 83% 83% 83% 82% 82% 83% 83% 82% 82%
Steady State Efficien-
cy -- LPG / Propane
85% 85% 85% 85% 85% 85% 84% 84% 84% 84% 84% 84%
Connections
Flue Size Round (in) 4
[1]
4
[1]
5
[2]
5
[2]
5
[2]
5
[2]
5
[2]
5
[2]
6
[3]
6
[3]
6
[3]
6
[3]
Gas Piping Size
1/2 1/2 1/2 1/2 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4
(in, NPT)
Fan Data
Number of Fans 1 1 1 1 2 2 2 2 2 2 2 2
Diameter (in) 16 16 18 18 16 16 16 16 18 18 18 18
Stages 1 1 1 1 1 2 1 2 1 2 2 1
Number of Blades 4 4 5 5 4 4 4 4 5 5 5 5
Motor Output (hp) 1/5 1/5 1/3 1/3 1/5 (2) 1/5 1/5 (2) 1/5 1/3 (2) 1/3 (2) 1/3 1/3
Motor Full Load Amps 5 5 7 7 8 8 8 8 11 11 11 11
Motor RPMs 1075 1075 1075 1075 1075 1075 1075 1075 1075 1075 1075 1075
Air Volume (CFM) 1950 1950 2350 2650 3400 4000 4000 4000 4500 5500 5500 4750
Throw Ft. 49 49 52 59 60 60 71 71 70 70 78 78
Physical
Data
Overall Dimensions
35-1/4 x
24 x 42-
1/2
35-1/4 x
24 x 42-
1/2
35-1/4 x
29-1/2 x
42-1/2
35-1/4 x
29-1/2 x
42-1/5
35-1/4 x
41-1/8 x
42-1/2
35-1/4 x
41-1/8 x
42-1/2
35-1/4 x
41-1/8 x
42-1/2
35-1/4 x
41-1/8 x
42-1/2
35-1/4 x
51-1/2 x
42-1/2
35-1/4 x
51-1/2 x
42-1/2
35-1/4 x
51-1/2 x
42-1/2
35-1/4 x
51-1/2 x
42-1/2
H x W x D (in)
Ship Weight (lbs) 167 177 190 200 310 310 330 330 340 340 380 380
Page 7
7
UHCM SERIES

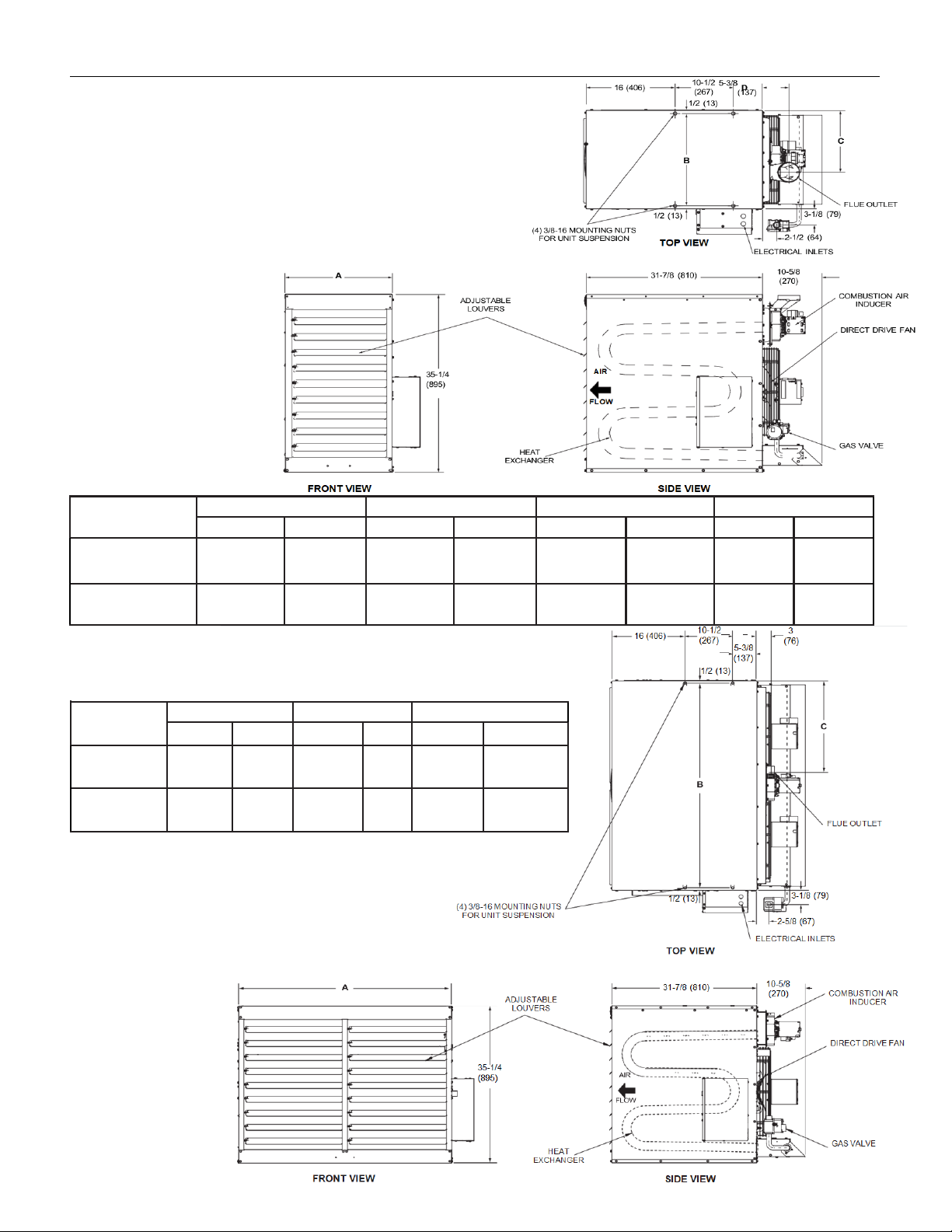

NOTE: Single fan model shown.
UHCM models 250, 300, 350 and 400 have two fans.
Commercial Unit Heaters
Dimensions
Model
No.
A B C D
in. mm in. mm in. mm in. mm
UHCM-125
UHCM-150
19-1/2 495 18-1/2 470 12-1/4 311 4-3/4 121
UHCM-175
UHCM-200
25 635 23-3/4 603 9-1/2 241 3 76
Model No.
A B C
in. mm in. mm in. mm
UHCM-250
UHCM-300
37-5/8 956 36- 1/2
927
15- 7/8 403
UHCM-350
UHCM-400
47 1194 45- 3/4
1162
20-1/2 521
Page 8
Loading...
