Admiral Craft BDCTF75LPG Specifications

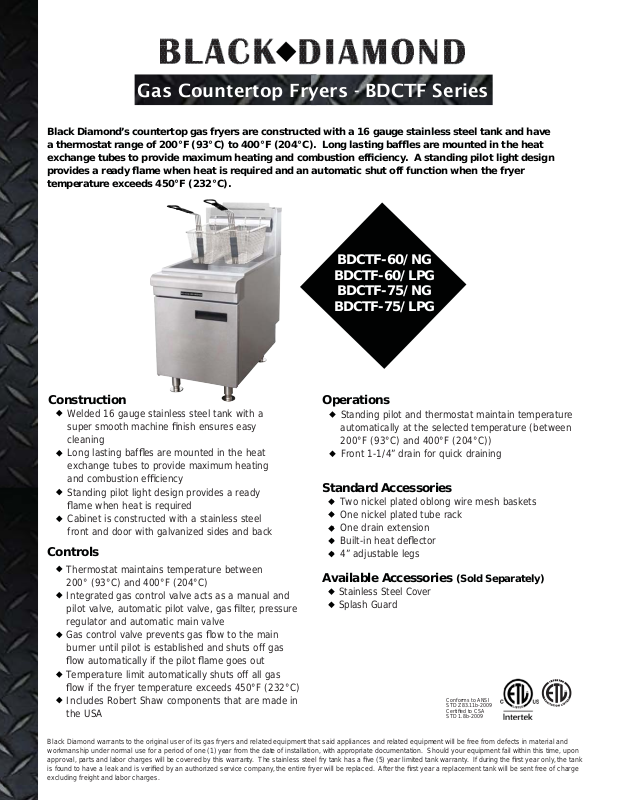

Gas Countertop Fryers - BDCTF Series

Standard Accessories

Controls

Available Accessories

(Sold Separately)

Operations

Construction

Black Diamond’s countertop gas fryers are constructed with a 16 gauge stainless steel tank and have
a thermostat range of 200°F (93°C) to 400°F (204°C). Long lasting baffl es are mounted in the heat
exchange tubes to provide maximum heating and combustion effi ciency. A standing pilot light design
provides a ready fl ame when heat is required and an automatic shut off function when the fryer
temperature exceeds 450°F (232°C).

BDCTF-60/NG

BDCTF-60/LPG

BDCTF-75/NG

BDCTF-75/LPG

Construction

• Welded 16 gauge stainless steel tank with a
super smooth machine fi nish ensures easy
cleaning

• Long lasting baffl es are mounted in the heat
exchange tubes to provide maximum heating
and combustion effi ciency

• Standing pilot light design provides a ready
fl ame when heat is required

• Cabinet is constructed with a stainless steel
front and door with galvanized sides and back

Controls

• Thermostat maintains temperature between
200° (93°C) and 400°F (204°C)

• Integrated gas control valve acts as a manual and
pilot valve, automatic pilot valve, gas fi lter, pressure
regulator and automatic main valve

• Gas control valve prevents gas fl ow to the main
burner until pilot is established and shuts off gas
fl ow automatically if the pilot fl ame goes out

• Temperature limit automatically shuts off all gas
fl ow if the fryer temperature exceeds 450°F (232°C)

• Includes Robert Shaw components that are made in
the USA

Operations

• Standing pilot and thermostat maintain temperature
automatically at the selected temperature (between
200°F (93°C) and 400°F (204°C))

• Front 1-1/4” drain for quick draining

Standard Accessories

• Two nickel plated oblong wire mesh baskets

• One nickel plated tube rack

• One drain extension

• Built-in heat defl ector

• 4” adjustable legs

Available Accessories

• Stainless Steel Cover

• Splash Guard

(Sold Separately)

Conforms to ANSI
STD Z83.11b-2009
Certifi ed to CSA
STD 1.8b-2009

Black Diamond warrants to the original user of its gas fryers and related equipment that said appliances and related equipment will be free from defects in material and
workmanship under normal use for a period of one (1) year from the date of installation, with appropriate documentation. Should your equipment fail within this time, upon
approval, parts and labor charges will be covered by this warranty. The stainless steel fry tank has a fi ve (5) year limited tank warranty. If during the fi rst year only, the tank
is found to have a leak and is verifi ed by an authorized service company, the entire fryer will be replaced. After the fi rst year a replacement tank will be sent free of charge
excluding freight and labor charges.

Gas Countertop Fryers - BDCTF Series

Plan View

BDCTF-60

Legs are adjustable 4-5”
Legs are removable and unit can sit fl ush on a fl at surface

BDCTF-75

Specifi cations

Model Number Burners Orifi ce (mm) BTU Oil Capacity Frying Area

BDCTF-60/NG 3 #45 (2.083) 60,000 35-40 lbs (16-18kgs) 13” x 12”

BDCTF-60/LPG 3 #45 (2.083) 60,000 35-40 lbs (16-18kgs) 13” x 12”

BDCTF-75/NG 3 #41 (2.44) 75,000 45-50 lbs (21-23kgs) 13.5” x 14”

BDCTF-75/LPG 3 #41 (2.44) 75,000 45-50 lbs (21-23kgs) 13.5” x 14”

Shipping Info

Model Number Dimensions DxWxH (in)* Net Weight (lb) Gross Weight (lb)

BDCTF-60/NG 27” x 14.75” x 31” 115 lbs 132 lbs
BDCTF-60/LPG 27” x 14.75” x 31” 115 lbs 132 lbs
BDCTF-75/NG 29.5” x 14.75” x 31” 121 lbs 139 lbs
BDCTF-75/LPG 29.5” x 14.75” x 31” 121 lbs 139 lbs

*Height is with legs set at 4”
