ReadyBoard™ 620

Single Board Computer

Reference Manual

P/N 5001820B Revision B

Page 2

Notice Page

DISCLAIMER

ADLINK Technology, Incorporated makes no representations or warranties with respect to the contents of this manual or of the associated ADLINK products, and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. ADLINK shall under no circumstances be liable for incidental or consequential damages or related expenses resulting from the use of this product, even if it has been notified of the possibility of such damages. ADLINK reserves the right to revise this publication from time to time without obligation to notify any person of such revisions. If errors are found, please contact ADLINK at the address listed below this Disclaimer.

TRADEMARKS

CoreModule and the Ampro logo are registered trademarks, and ADLINK, Little Board, LittleBoard, MightyBoard, MightySystem, MilSystem, MiniModule, ReadyBoard, ReadyPanel, ReadySystem, and RuffSystem are trademarks of ADLINK Technology, Inc. All other marks are the property of their respective companies.

REVISION HISTORY

Revision Reason for Change Date

A, A Initial Release Apr/07

A, B Correct ethernet p/n in blk diag. May/07

A, C Added ISA bridge section to BIOS chapter June/07

A, D Corrected pin 1 on J19; removed reference to JP5 from pin 41 in

table 3-4

A, E Corrected jumper pins for JP6 in fig 2-5; changed JP1 to “Not

Used” in table 2-3

B, A Changed operating temperature in Table 2-6; added mechanical

dimension drawing; added pinout tables to ch. 3

B, B Changed UHCI legacy USB references to OHCI; revised callouts

in figs 3-1, 3-2, & 3-3

Nov/07

Dec/07

Apr/08

May/09

Audience

This manual provides reference only for computer design engineers, including but not limited to hardware and software designers and applications engineers. ADLINK Technology, Inc. assumes you are qualified to design and implement prototype computer equipment.

ii Reference Manual ReadyBoard 620

Page 3

Contents

Chapter 1 About This Manual ....................................................................................................1

Purpose of this Manual ....................................................................................................................1

References ......................................................................................................................................1

Chapter 2 Product Overview......................................................................................................3

EPIC Architecture ............................................................................................................................3

Product Description..........................................................................................................................4

Board Features ...........................................................................................................................4

Block Diagram..................................................................................................................................7

Major Components (ICs)..................................................................................................................8

Header, Connector, and Socket Definitions.....................................................................................9

Jumper Header Definitions ............................................................................................................11

Specifications.................................................................................................................................12

Physical Specifications .............................................................................................................12

Power Specifications ................................................................................................................12

Mechanical Specifications ........................................................................................................13

Environmental Specifications....................................................................................................14

Thermal/Cooling Requirements ................................................................................................14

Chapter 3 Hardware .................................................................................................................15

Overview ........................................................................................................................................15

Interrupt Channel Assignments......................................................................................................16

Memory Map ..................................................................................................................................17

I/O Address Map ...........................................................................................................................17

Floppy/Parallel Interface ................................................................................................................18

Serial Interfaces ............................................................................................................................20

USB Interfaces ..............................................................................................................................22

USB 2.0 Support.......................................................................................................................22

Legacy USB Support ...............................................................................................................22

Secondary USB2 and USB3 ....................................................................................................23

Audio Interface...............................................................................................................................23

Video Interfaces ............................................................................................................................24

CRT features: .....................................................................................................................24

LVDS and TTL Flat Panel features: ....................................................................................24

TTL Flat Panel Interface ...........................................................................................................25

LVDS Flat Panel Interface .......................................................................................................27

Miscellaneous ................................................................................................................................28

Utility Interface .........................................................................................................................28

Reset Switch ............................................................................................................................28

User GPIO Signals ...................................................................................................................28

Infrared (IrDA) Port ..................................................................................................................29

System Management Bus (SMBus)..........................................................................................29

Real Time Clock (RTC) ............................................................................................................30

Oops! Jumper (BIOS Recovery) ...............................................................................................30

Temperature Monitoring ..........................................................................................................30

Remote Access (Serial Console)..............................................................................................31

Serial Console Setup...........................................................................................................31

Hot (Serial) Cable ...............................................................................................................31

Watchdog Timer (WDT)............................................................................................................31

ReadyBoard 620 Reference Manual iii

Page 4

Contents

Power Interfaces ........................................................................................................................... 32

Power In .................................................................................................................................. 32

Power On ................................................................................................................................. 32

Power and Sleep States................................................................................................................ 33

Power On Switch ..................................................................................................................... 33

Sleep States (ACPI) ................................................................................................................. 33

Wake-Up Activities ................................................................................................................... 34

Chapter 4 BIOS Setup Utility ................................................................................................... 35

Introduction.................................................................................................................................... 35

Entering BIOS Setup (VGA Display) ........................................................................................ 35

Entering BIOS Setup (Remote Access) ................................................................................... 35

PCI-ISA Bridge Mapping ............................................................................................................... 36

OEM Logo Utility (Splash Screen)................................................................................................. 37

Logo Image Requirements...................................................................................................... 37

Appendix A Technical Support .................................................................................................. 39

Index .................................................................................................................................................. 41

List of Figures

Figure 2-1. Typical ReadyBoard and PC/104 Module Stack ..................................................... 3

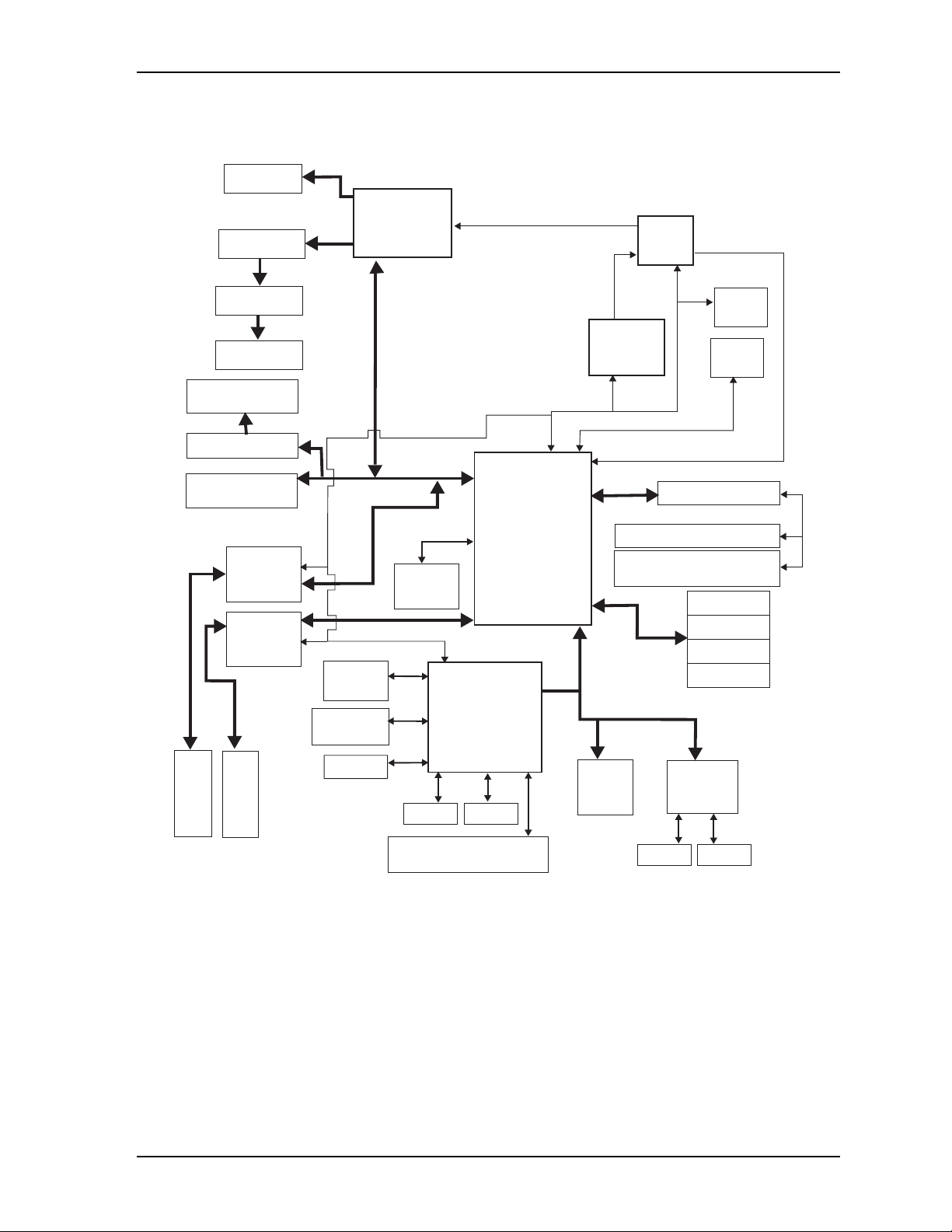

Figure 2-2. Functional Block Diagram ....................................................................................... 7

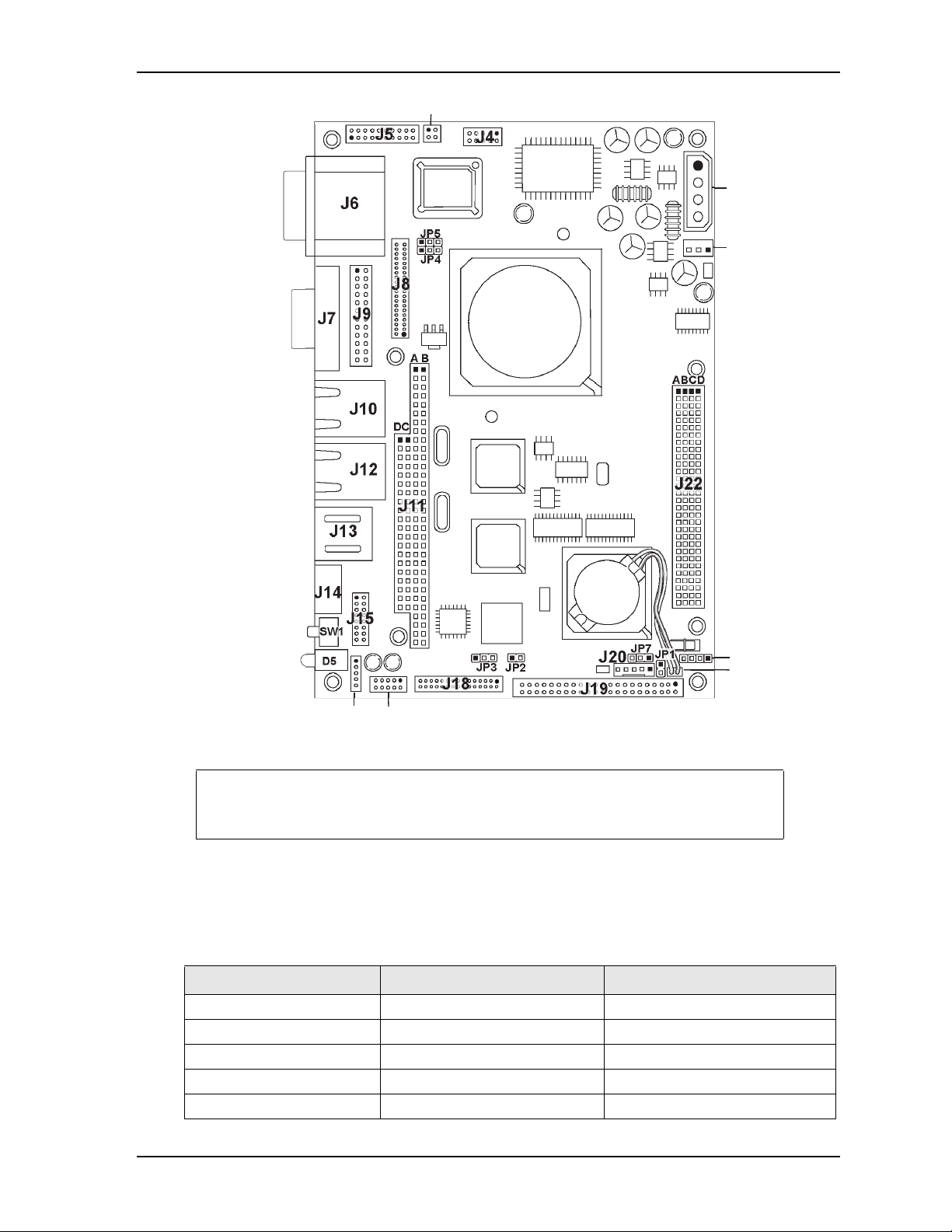

Figure 2-3. Component Locations ............................................................................................. 9

Figure 2-4. Connector Pin Identifications................................................................................. 10

Figure 2-5. Connector Locations ............................................................................................. 11

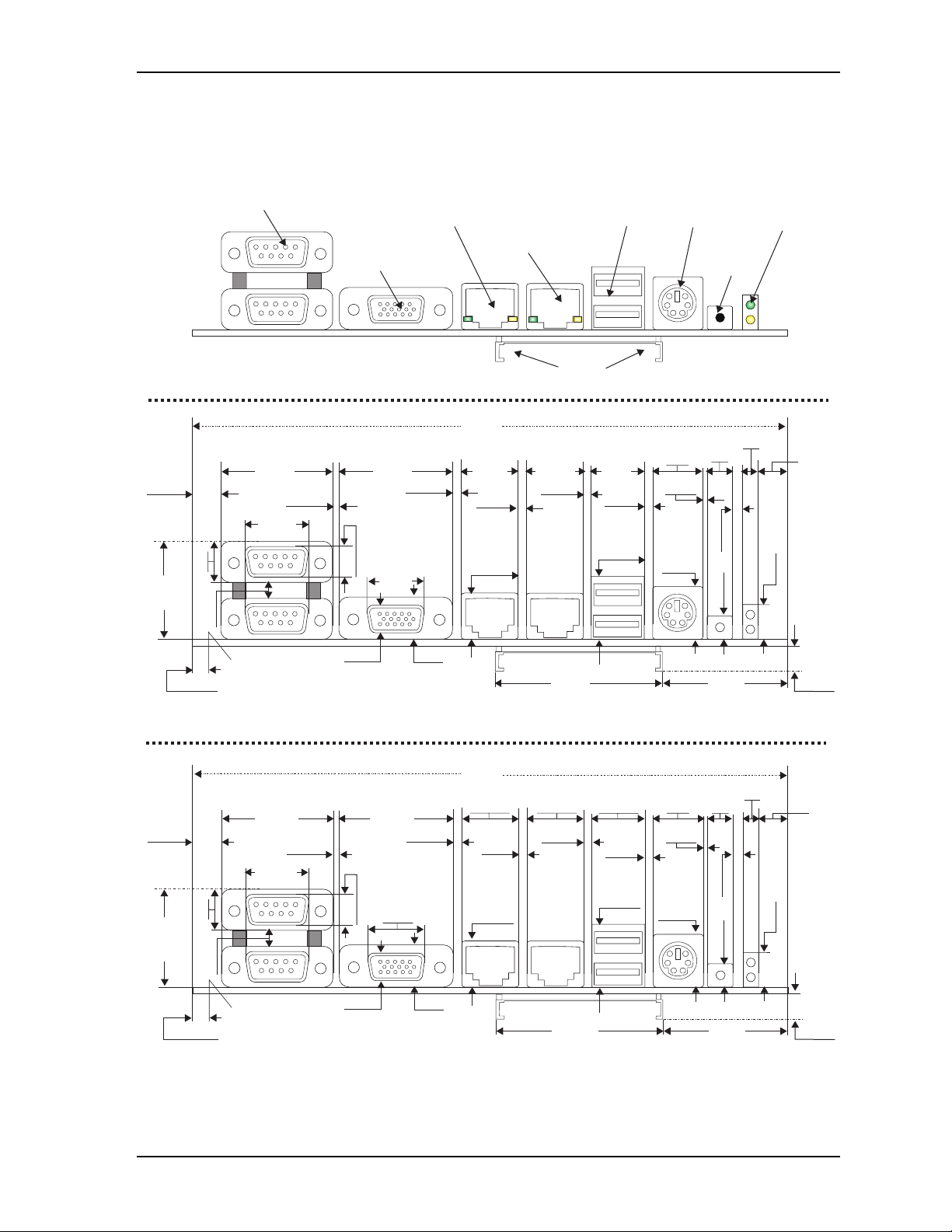

Figure 2-6. ReadyBoard 620 I/O Panel Dimensions (Side view) ............................................. 13

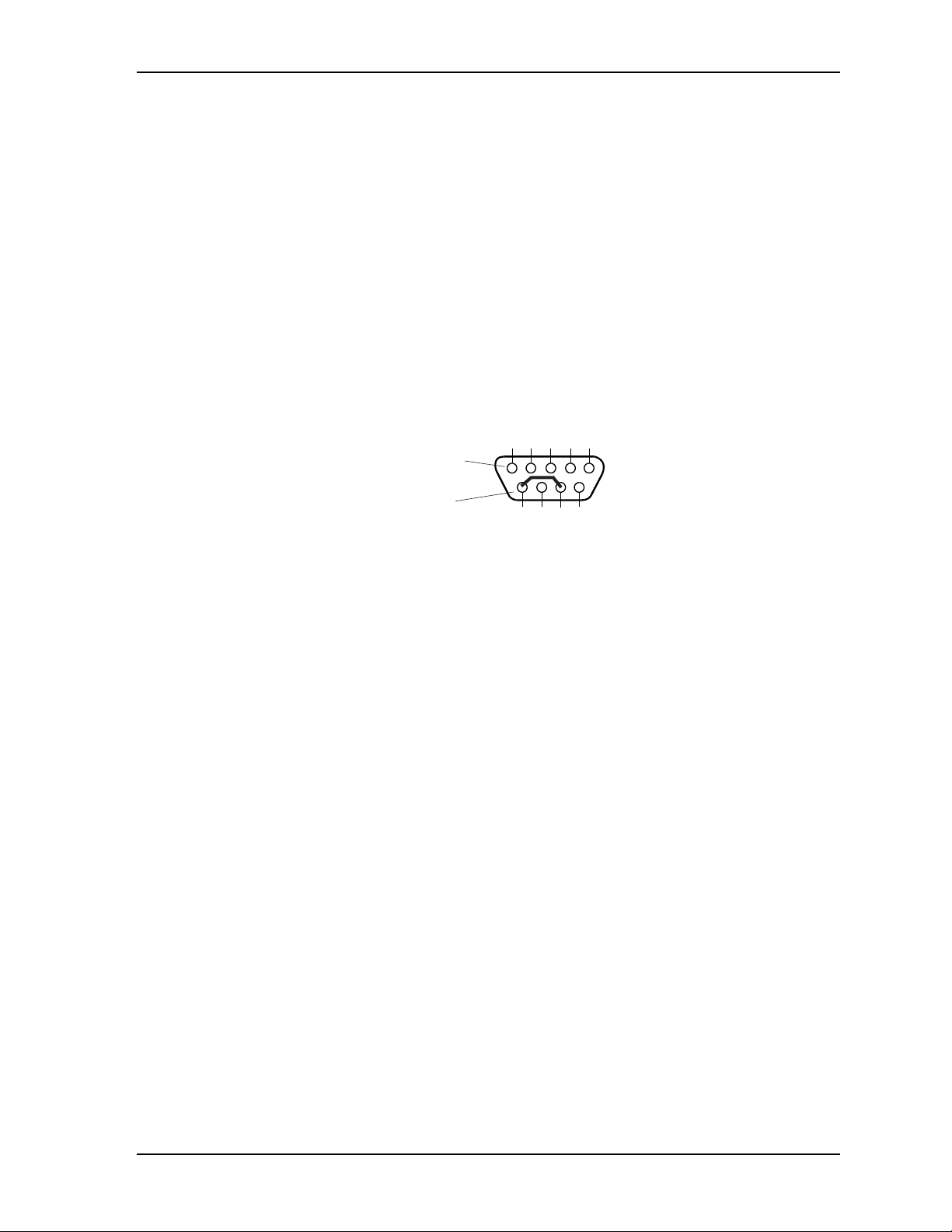

Figure 3-1. RS-485 Serial Port Implementation....................................................................... 20

Figure 3-2. Oops! Jumper Connection..................................................................................... 30

Figure 3-3. Hot Cable Jumper ................................................................................................. 31

List of Tables

Table 2-1. Major Integrated Circuit Description and Function .................................................. 8

Table 2-2. Connector Descriptions ........................................................................................... 9

Table 2-3. Jumper Settings .................................................................................................... 11

Table 2-4. Weight and Footprint Dimensions ......................................................................... 12

Table 2-5. Power Supply Requirements................................................................................. 12

Table 2-6. Environmental Requirements ................................................................................ 14

Table 3-1. Interrupt Channel Assignments (Typical) .............................................................. 16

Table 3-2. Memory Map ......................................................................................................... 17

Table 3-3. I/O Address Map ................................................................................................... 17

Table 3-4. Floppy/Parallel Interface Pin/Signal Descriptions (J18) ........................................ 18

Table 3-5. Serial B (COM3 and COM4) Interface Pin/Signal Descriptions (J5) ..................... 21

Table 3-6. USB 2 & 3 Interface Pin/Signal Descriptions (J17A/B).......................................... 23

Table 3-7. Audio Interface Pin/Signal Descriptions (J15) ....................................................... 23

Table 3-8. TTL Flat Panel Interface Pin/Signal Descriptions (J8)........................................... 25

Table 3-9. LVDS Interface Pin/Signal Descriptions (J9) ......................................................... 27

Table 3-10. Utility Interface Pin/Signal Descriptions (J16) ....................................................... 28

Table 3-11. User GPIO Signals Pin/Signal Descriptions (J4) ................................................... 28

Table 3-12. Infrared Interface Pin/Signal Descriptions (J21) .................................................... 29

Table 3-13. SMBus Reserved Addresses ................................................................................ 29

Table 3-14. SMBus Signals Pin/Signal Descriptions (J20)....................................................... 30

iv Reference Manual ReadyBoard 620

Page 5

Contents

Table 3-15. Power In Interface Pin/Signal Descriptions (J2).....................................................32

Table 3-16. Power On Connector Pin/Signal Descriptions (J1) ................................................32

Table 3-17. Wake-Up Activities and Conditions ........................................................................34

Table A-1. Technical Support Contact Information..................................................................39

ReadyBoard 620 Reference Manual v

Page 6

Contents

vi Reference Manual ReadyBoard 620

Page 7

Chapter 1 About This Manual

Purpose of this Manual

This manual is for designers of systems based on the ReadyBoard™ 620 Single Board Computer (SBC). This manual contains information that permits designers to create an embedded system based on specific design requirements.

Information provided in this reference manual includes:

• ReadyBoard 620 Specifications

• Environmental requirements

• Major integrated circuits (chips) and features implemented

• ReadyBoard 620 connector/pin numbers and definitions

• BIOS Setup Utility information

Information not provided in this reference manual includes:

• Detailed chip specifications

• Internal component operation

• Internal registers or signal operation

• Bus or signal timing for industry standard busses and signals

References

The following list of references may be helpful for you successfully to complete your design. Most of this material is also available on the Ampro By ADLINK web site in the InfoCenter. The InfoCenter was created for embedded system developers to share ADLINK’s knowledge, insight, and expertise.

Specifications

• EPIC Specification Revision 1.0, March 22, 2004

Web site: http://www.ampro.com/RP/EPIC_Specification_v1.0.pdf

• PC/104™ Specification Revision 2.5, November 2003

• PC/104-Plus™ Specification Revision 2.0, November 2003

• PCI-104™ Specification Revision 1.0, November 2003

For latest revision of the PC/104, PC/104-Plus, and PCI-104 specifications, contact the PC/104 Consortium, at:

Web site: http://www.pc104.org

• PCI™ 2.3 Specifications

For latest revision of the PCI specifications, contact the PCI Special Interest Group Office at:

Web site: http://www.pcisig.com/specifications/conventional

• Compact Flash Specifications Revision 3.0, December 2004

For the latest revision of the Compact Flash specifications, contact the Compact Flash association at:

Web site: http://www.CompactFlash.org

ReadyBoard 620 Reference Manual 1

Page 8

Chapter 1 About This Manual

Major Integrated Circuit specifications used on the ReadyBoard 620:

• AMD, Inc., Geode LX 800 processor (with integrated Northbridge)

Web site:

http://www.amd.com/us-en/ConnectivitySolutions/ProductInformation/

• AMD, Inc., CS5536, used for the I/O Hub (Southbridge)

Web site: http://www.amd.com/us-en/ConnectivitySolutions/ProductInformation/

0,,50_2330_9863_9864^13054^13056,00.html

• Winbond Electronics, Corp. and the W83627HF chip used for the Super I/O controller

Web site: http://www.winbond-usa.com/products/winbond_products/pdfs/PCIC/

W83627HF_F_HG_Ga.pdf

• Fintek and the F81216D chip used for the Secondary I/O (LPC UART) controller (48-pin)

Web site: http://www.fintek.com.tw/eng/

• Intel Corporation and the 82551QM, used for the Ethernet 1 and Ethernet 2 controllers

Web site: http://www.intel.com/design/network/datashts/82551QM_ds.htm

NOTE If you are unable to locate the datasheets using the links provided, go to the

manufacturer’s web site where you can perform a search using the chip datasheet number or name listed, including the extension, (htm for web page, pdf for files name, etc.)

2 Reference Manual ReadyBoard 620

Page 9

Chapter 2 Product Overview

This introduction presents general information about the EPIC Architecture and the ReadyBoard 620 Single Board Computer (SBC). After reading this chapter you should understand:

• EPIC Architecture

• ReadyBoard 620 architecture

• ReadyBoard 620 features

• Major components

• Connectors

• Specifications

EPIC Architecture

In 2004, five companies collaborated to fill the void between the EBX size and the PC/104 size with a new industry standard form factor (115 mm x 165 mm, or 4.5" x 6.5") called “Embedded Platform for Industrial Computing™ (EPIC).” The EPIC standard principally defines physical size, mounting hole pattern, and power connector locations. It does not specify processor type or electrical characteristics. There are recommended connector placements for serial, parallel, Ethernet, graphics, and memory expansion. This embedded SBC standard ensures that embedded system OEMs can standardize their designs and that full featured embedded computing solutions can be designed into even more space constrained environments than ever before.

The EPIC standard boasts the same highly flexible and adaptable system expansion as EBX, allowing easy and modular addition of functions such as Firewire or wireless networking not usually contained in standard product offerings. The EBX system expansion is based on popular existing industry standards, PC/104™, PC/104-Plus™, and PCI-104™. PC/104 places the ISA bus on compact 3.6" x 3.8" modules with selfstacking capability. PC/104-Plus adds the power of a PCI bus to PC/104 while retaining the basic form factor, but PCI-104 expansion cards only provide the PCI bus to the PC/104 form factor. Using PC/104 expansion cards, an EPIC board can be easily adapted to meet a variety of embedded applications. See

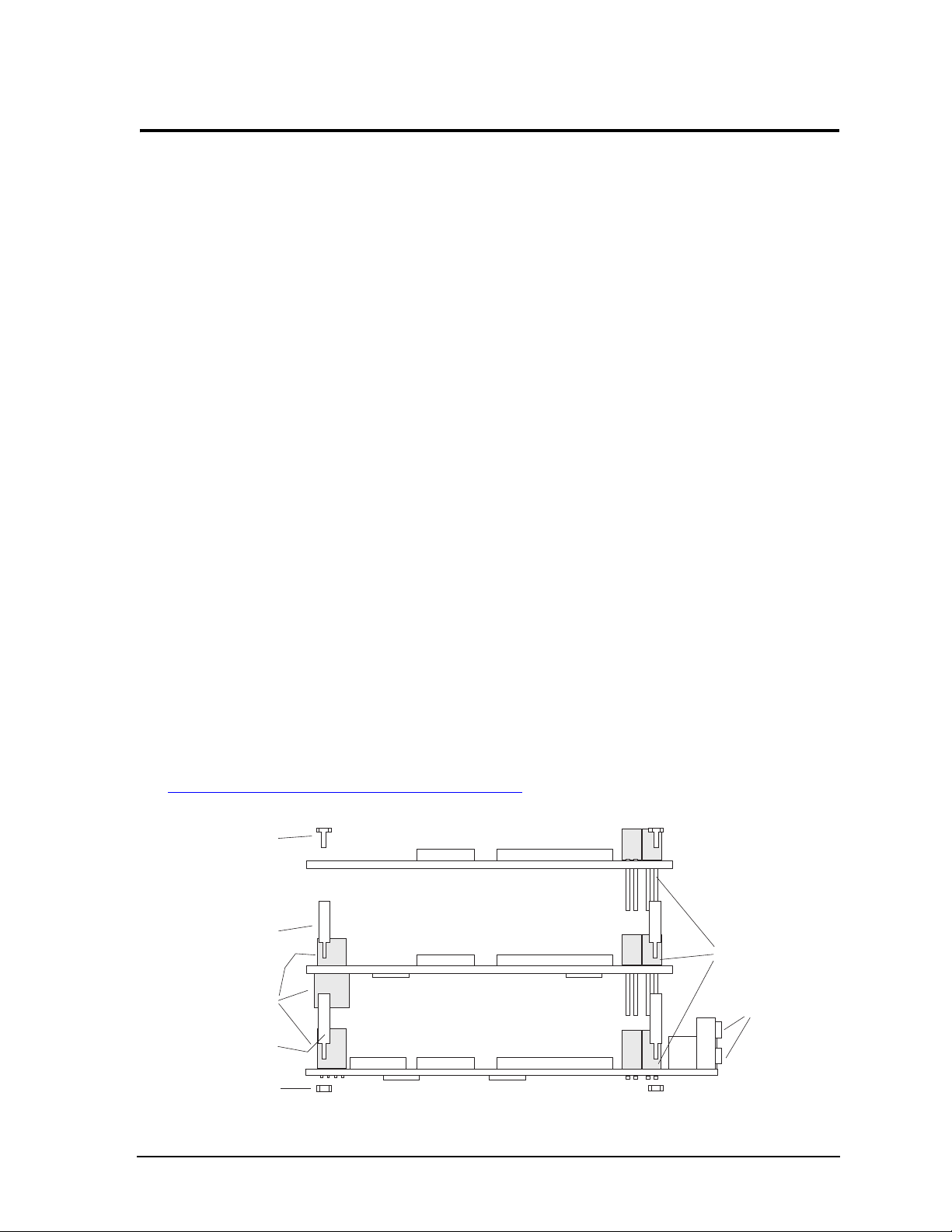

Figure 2-1.

The EPIC standard also brings stability to the mid-sized embedded board market and offers OEMs assurance that a wide range of products will be available from multiple sources – now and in the future. The EPIC specification is freely available to all interested companies, and may be used without licenses or royalties. For further technical information on the EPIC standard Rev 1.0, visit the web site at:

http://www.ampro.com/RP/EPIC_Specification_v1.0.pdf

screws or

(0.6 inch spacers(4)

for next board)

0.6 inch spacers(4)

PCIBus

Stack

through

Connectors

0.8 inch spacers(4)

nuts

or chassis standoffs

(4)

PC/104 Module

PC/104 Plus Module

ReadyBoard (EPIC-Compatible)

ISA Bus Expansion Stackthrough Connectors

I/O Connectors

EPICstackthru

Figure 2-1. Typical ReadyBoard and PC/104 Module Stack

ReadyBoard 620 Reference Manual 3

Page 10

Chapter 2 Product Overview

Product Description

The ReadyBoard 620 is a mid-sized, EPIC-compatible, affordable, high quality single-board system, which contains all the component subsystems of a PC/AT PCI motherboard plus the equivalent of several PCI expansion boards. The ReadyBoard 620 is based on the AMD Geode™ LX 800 processor. This processor and the matching chip set give designers a complete integration solution with a high performance embedded processor based on the EPIC form factor.

Each ReadyBoard 620 incorporates an AMD Geode CS5536 chipset for the Graphics and Memory Hub (the Northbridge integrated in the CPU) and I/O Hub (Southbridge) controllers. The Winbond Electronics Corp. Super I/O controller, W83627HF, and Fintek LPC controller add I/O functions. Together, the AMD, Winbond, and Fintek chips provide four serial ports, a floppy or EPP/ECP parallel port, four USB 2.0 ports, PS/2 keyboard and mouse interfaces, an Ultra/DMA 33/66 IDE controller supporting two IDE drives and one Compact Flash socket, which provides CRT and LVDS/TTL flat panel video interfaces, and an audio AC’97 CODEC on the board. The ReadyBoard 620 also supports two 10/100BaseT Ethernet interfaces, and up to 1 GB of non-ECC DDR RAM in a single 200-pin SODIMM socket.

The ReadyBoard 620 can be expanded through the PC/104 and PC/104-Plus expansion buses to accept PC/104 and PC/104-Plus cards that offer compact, self-stacking, modular expandability for additional system functions. The PCI bus operates at 33 MHz clock speed and if included as an option, the ISA bus operates at 8 MHz clock speed. See Figure 2-1.

Among the many enhancements provided on the ReadyBoard 620 to ensure system operation and application versatility are a watchdog timer, serial console (remote access) support, battery-free boot, customizable splash logo screen, on-board high-density Compact Flash socket, and ACPI support for sleep states.

The ReadyBoard 620 is particularly well suited to embedded applications by meeting the size, power consumption, temperature range, quality, and reliability demands of embedded system applications. It can be stacked with ADLINK MiniModules™ or other PCI-104 compliant expansion boards, or it can be used as a powerful computing engine. The ReadyBoard 620 only requires a single +5V power supply.

Board Features

• CPU features

♦

Provides a 500 MHz AMD Geode LX800 processor

♦

64-bit DDR memory interface up to 400 MHZ

• Memory

♦

Provides a single standard 200-pin DDR SODIMM socket

♦

Supports a single +2.5V DDR RAM SODIMM up to 1 GB

♦

Supports PC2700, DDR 333

• PC/104-Plus Bus Interface

♦

Supports PCI 2.3 standard

♦

Supports 8 MHz ISA

♦

Supports 33 MHz PCI Bus speed

♦

Supports PC/104 standard at 8 MHz

• IDE Interface

♦

Provides one enhanced IDE controller

♦

Supports one IDE drive on the IDE bus (two drives if Compact Flash card not installed)

♦

Supports dual bus master mode

♦

Supports Ultra DMA 33/66/100 modes

♦

Supports ATAPI and DVD peripherals

4 Reference Manual ReadyBoard 620

Page 11

Chapter 2 Product Overview

♦

Supports IDE native and ATA compatibility modes

♦

Provides Compact Flash socket (on IDE bus with Master/Slave jumper)

♦

Supports bootable IDE compact flash card

• Floppy/Parallel Interface

♦

Shared floppy/parallel connector

♦

Supports one floppy disk drive (1 standard 34-pin floppy drive)

♦

Supports all standard PC/AT formats: 360 kB, 1.2 MB, 720 kB, 1.44 MB, 2.88 MB

♦

Supports standard printer port

♦

Supports IEEE standard 1284 protocols of EPP and ECP outputs

♦

Bi-directional data lines

♦

Supports 16 byte FIFO for ECP mode

• Serial Ports

♦

Provides four buffered serial ports with full handshaking

♦

Provides two DB9 connectors serial 1 & 2 (COM1 & COM2)

♦

Provides serial ports 3 & 4 (COM3 & COM4) through a 20-pin header

♦

Provides 16550-equivalent controllers, each with a built-in 16-byte FIFO buffer

♦

Supports full modem capability on three of the four ports

♦

Supports RS-232 operation on all four ports

♦

Supports RS-485 or RS-422 operation on two ports, serial 3 & 4 (COM3 & COM4)

♦

Supports programmable word length, stop bits, and parity

♦

Supports 16-bit programmable baud-rate generator

• USB Ports

♦

Provides two root USB hubs

♦

Provides four USB ports

♦

Provides two standard USB connectors (USB 0 & 1) and one 10-pin header (USB 2 & 3)

♦

Supports USB v2.0 and legacy v1.1 devices

♦

Supports one USB floppy disk drive

♦

Provides over-current shared fuses on board

• Audio interface

♦

Supports AC’97 audio standard

♦

Provides AC’97 CODEC

♦

Provides non-amplified Stereo Line In/Out

♦

Provides non-amplified MIC in (Mono)

• Ethernet Interfaces

♦

Provides two fully independent Ethernet (RJ45) ports

♦

Provides two Intel 82551QM Ethernet controllers

♦

Provides integrated LEDs on each port (Link/Activity and Speed)

♦

Supports IEEE 802.3 10BaseT/100BaseTX compatible physical layer

♦

Supports Auto-negotiation for speed, duplex mode, and flow control

ReadyBoard 620 Reference Manual 5

Page 12

Chapter 2 Product Overview

♦

Supports full duplex or half-duplex mode

♦

Full-duplex mode supports transmit and receive frames simultaneously

♦

Supports IEEE 802.3x flow control in full duplex mode

♦

Half-duplex mode supports enhanced proprietary collision reduction mode

• Video Interfaces (CRT/TTL/LVDS)

♦

Support CRT (1920 x 1440) with 254 MB UMA (Unified Memory Architecture)

♦

Provides TTL, 24-bit, flat panel outputs pared with resolution up to 1600 x 1200

♦

Provides standard 15-pin VGA connector

♦

Provides LVDS flat panel outputs (single channel; four differential signal pairs; or one 24-bit noninterleaved) on 30-pin header

• Infrared Interface

♦

Provides IrDA v1.1 signals on separate connector (J21)

♦

Supports HPSIR and ASKIR infrared modes

♦

Supports IR mode select from the Super I/O chip

• Keyboard/Mouse Interface

♦

Provides PS/2 keyboard (shared with mouse) interface

♦

Provides PS/2 mouse (shared with keyboard) interface

♦

Provides shared over-current fuse

• Miscellaneous

♦

Provides real-time clock (RTC) with replaceable battery

♦

Supports battery-free boot

♦

Supports external battery option

♦

Provides Thermal and Voltage monitoring

♦

Supports Remote Access (Serial Console or Console Redirection)

♦

Provides General Purpose I/O (GPIO) capability

♦

Provides SMBus header for external device connection

♦

Oops! Jumper (BIOS Recovery)

♦

Supports LAN Boot (PXE)

♦

Supports Watchdog Timer (WDT)

♦

Supports logo (splash) screen customization

6 Reference Manual ReadyBoard 620

Page 13

Chapter 2 Product Overview

Block Diagram

Figure 2-2 shows the functional components of the ReadyBoard 620.

CRT VGA

AMD

Geode,

TTL LCD

LX800

CPU

Clock

Transmitter

LVDS LCD

PC/104

Connector

ISA Bridge

PC/104-Plus

Connector

Ethernet Controller 82551QM

Ethernet

Controller

82551QM

Floppy/ Parallel

Keyboard/ Mouse

PCI Bus

AC’97 Link

AC’97

CODEC

ALC203

Super I/O

W83627HF

Memory Bus

SMBus

I/O Hub CS5536

(Southbridge)

DDR

SODIMM

P ATA

Compact Flash Socket

IDE Device,

(HDD, )CD-ROM, etc.

USB Port 1

USB Port 2

USB 2.0

USB Port 3

USB Port 4

LPC Bus

Ext

SMBus

Temp

IDE

RJ45

Magnetics-

RJ45

Magnetics-

IrDA 1.1

COM1

COM2

GPIO (User Defined)

512kB ROM BIOS

COM3

LPC I/O F81216D

RB620Blkdiagm

COM4

Figure 2-2. Functional Block Diagram

ReadyBoard 620 Reference Manual 7

Page 14

Chapter 2 Product Overview

Major Components (ICs)

Table 2-1 lists the major integrated circuits (ICs) on the ReadyBoard 620, including a brief description of

each, and Figure 2-3 on page 9 shows the locations of ICs.

Table 2-1. Major Integrated Circuit Description and Function

Chip Type Mfg. Model Description Function

CPU (U9) AMD Geode

LX800

I/O Hub (B1)

Super I/O (U6)

LPC I/O UART Controller (U18 - on back of the board)

Ethernet Controllers (U11, U12)

PCI to ISA Bridge (U10)

AMD CS5536 Southbridge functions (provides some

Winbond Electronics, Corp.

Fintek F81216D LPC controller for Serial Ports 3 and 4

Intel 82551QM Ethernet chips provide two independent

ITE ITE8888G PCI to ISA interface ISA Bus

W83627HF Super I/O controller (provides

500 MHz CPU and Northbridge Integrated

CPU, memory, and video

I/O Functions

of the standard I/O functions)

I/O Functions

remaining standard I/O functions)

UART (I/O)

(COM 3 and COM4)

10/100BaseT based network channels

Controller

Ethernet Functions

8 Reference Manual ReadyBoard 620

Page 15

Chapter 2 Product Overview

U11

U12

U10

RB_620_2_4_BA

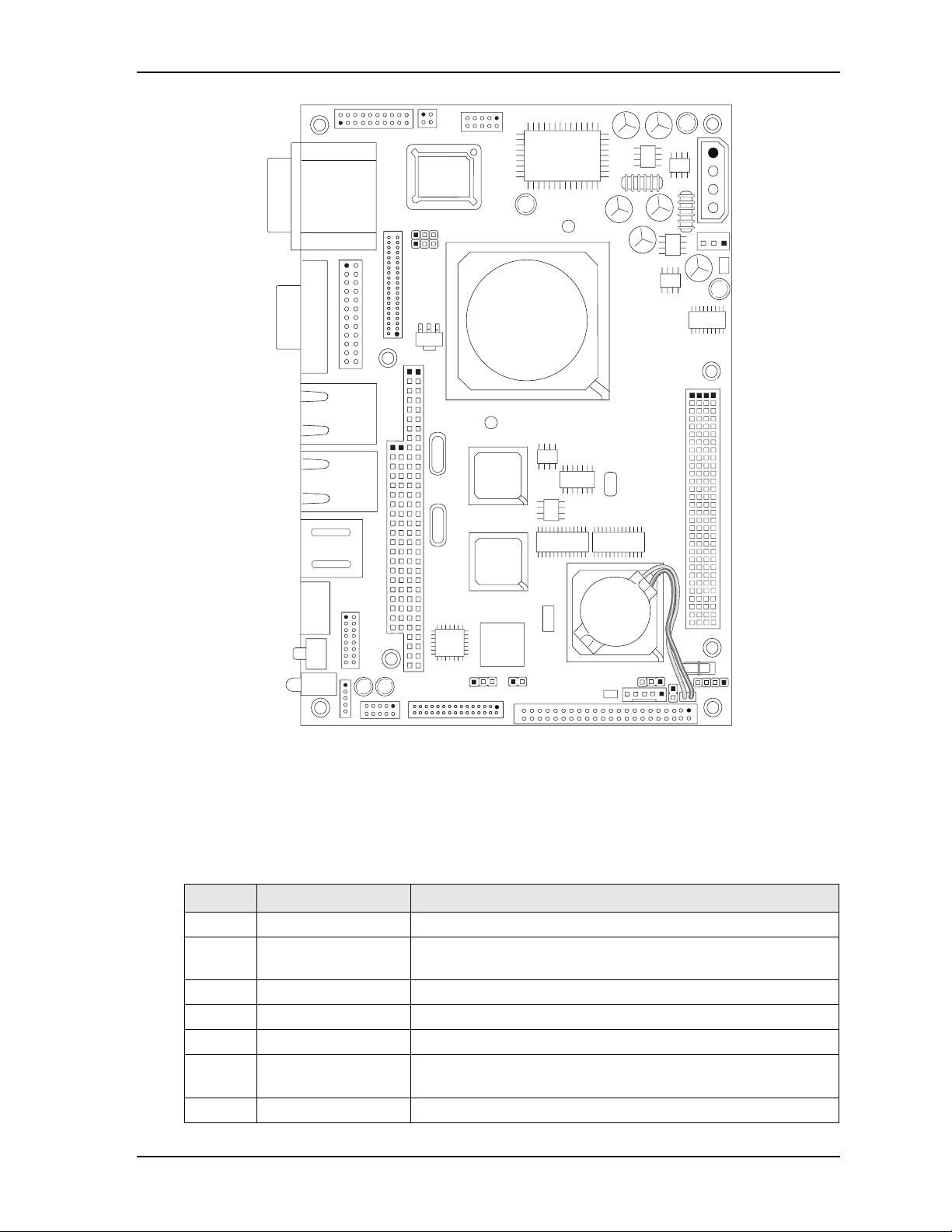

Figure 2-3. Component Locations

Header, Connector, and Socket Definitions

Table 2-2 describes the interfaces shown in Figures 2-4 and 2-5. All I/O headers and connectors use 2.54

mm (0.100") pitch, unless otherwise indicated.

Table 2-2. Connector Descriptions

Jack # Signal/Device Description

BTI RTC battery (B1) 2-pin, 1.25mm (0.049") header for battery input

DIMM1 Memory (on back of

the board)

D5 IDE LED Yellow and green IDE and power activity indicators

SW1 Reset switch 4-pin, 5V, momentary push-button switch

J1 Power On 3-pin, 2 mm header for Power-On and +5V standby voltages

J2 Power In 4-pin, 5.08 mm (0.200") connector for input power +5V, +12V,

J3 NC Not connected

200-pin socket for DDR SDRAM SODIMM

GND

ReadyBoard 620 Reference Manual 9

Page 16

Chapter 2 Product Overview

Table 2-2. Connector Descriptions (Continued)

J4 GPIO 10-pin, 2 mm (0.079") header for GPIO signals

J5 Serial B 20-pin, 2 mm (0.079") header for serial ports 3 & 4 (COM3 &

COM4)

J6A/B Serial A 9-pin dual connectors for serial ports 1 & 2 (COM1 & COM2,

DB9)

J7 Video (CRT VGA) 15-pin connector for output to a CRT monitor

J8 Video (LCD TTL) 50-pin, 1 mm (0.039") header 36-bit output for LCD flat panels

J9 Video (LCD LVDS) 30-pin, 2 mm (0.079") header for LVDS video display

J10 Ethernet 1 + LEDs 14-pin connector for 8-pin RJ45 and LEDs for Ethernet port 1

J11

PC/104 104-pin, connector for ISA functions

A/B/C/D

J12 Ethernet 2 + LEDs 14-pin connector for 8-pin RJ45 and LEDs for Ethernet port 2

J13A/B USB 0 & 1 8-pin connector for two 4-pin interfaces provides USB0 and USB1

J14 Keyboard/Mouse 6-pin, PS/2 Keyboard/Mouse connector (dual output cable)

J15 Audio In/Out 16-pin, 2 mm (0.079") header for Line In L/R, Line Out L/R, Mic

J16 Utility 5-pin header for power and reset buttons and speaker

J17 USB 2 & 3 10-pin, 2 mm (0.079") header provides USB2 and USB3 output

J18 Floppy/Parallel Port 26-pin, 2 mm (0.079") header for floppy/parallel port interface

J19 IDE 44-pin, 2 mm (0.079") header for IDE interface

J20 SMBus 5-pin, 2 mm (0.079") SMBus header for external device

connection

J21 IrDA 5-pin header for infrared signals

J22

PC/104-Plus 120-pin, 2 mm (0.079") connector for PCI bus

A/B/C/D

J23 Compact Flash

Socket (on back of the

50-pin, 1.27 mm (0.050") socket accepts compact flash cards (Type I or II)

board)

NOTE The pinout tables in Chapter 3 of this manual identify pin sequence using the

following methods: A 20-pin header with two rows of pins, using odd/even numbering, where pin 2 is directly across from pin 1, is noted as 20-pin, 2 rows, odd/ even (1, 2). Alternately, a 20-pin connector using consecutive numbering, where pin 11 is directly across from pin 1, is noted in this way: 20-pin, 2 rows, consecutive (1,

11). The second number in the parenthesis is always directly across from pin-1. See

Figure 2-4.

20-pin, two rows, Odd/Even, (1, 2)

20-pin, two rows,

Consecutive, (1, 11)

678910

234

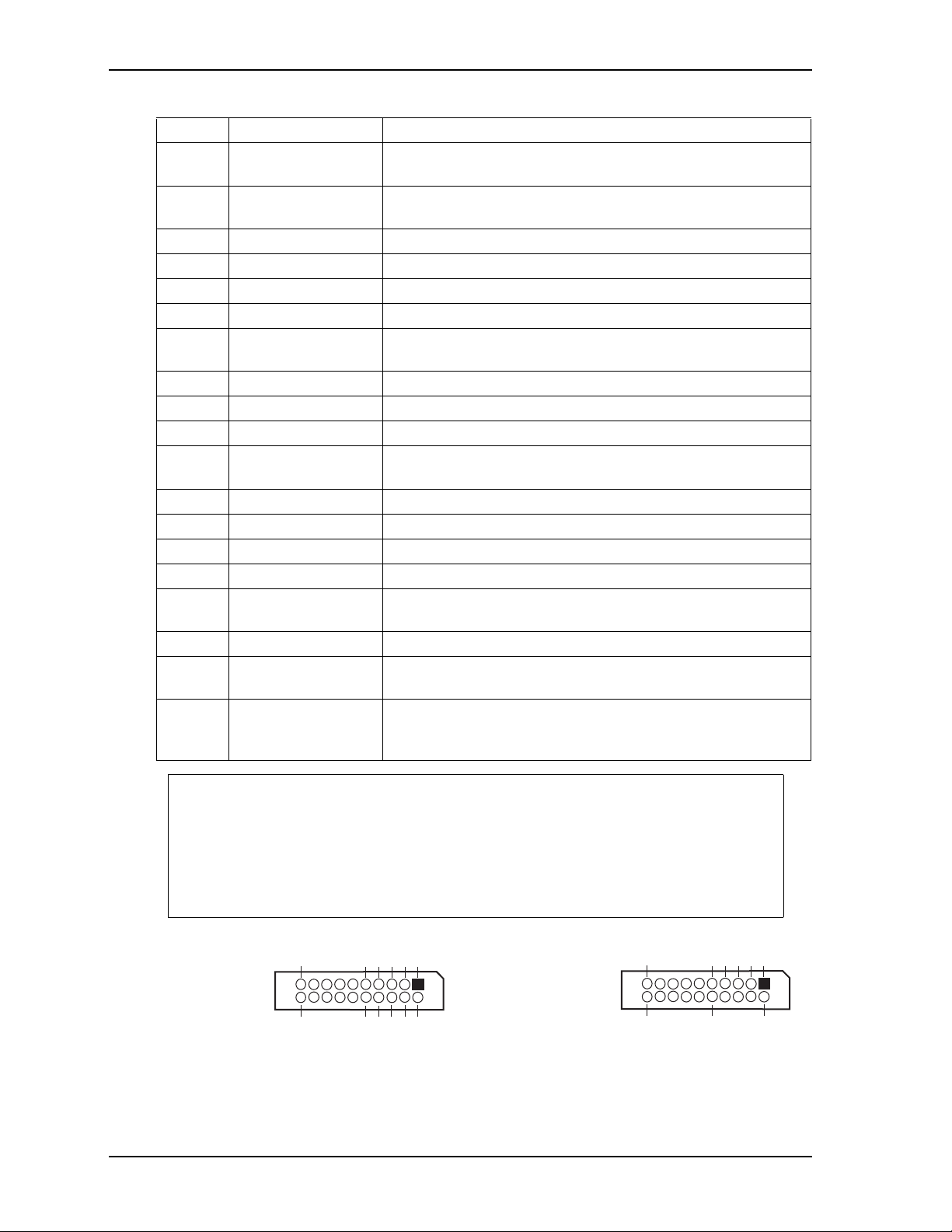

Figure 2-4. Connector Pin Identifications

15 1120

124

10 Reference Manual ReadyBoard 620

Page 17

Chapter 2 Product Overview

JP6

A B

J11

JP5

JP4

ABCD

J22

J15

SW1

JP7

JP3

JP2

J18

J16

J17

Figure 2-5. Connector Locations

J20

J19

JP1

J21 BT1

NOTE Pin 1 is shown as a black pin (circle or square) in all connectors and jumper

headers. To comply with the PC/104, PC/104-Plus, or PCI-104 specifications, some pins in the connectors/headers are missing or have keys blocking the pins.

Jumper Header Definitions

Table 2-3 describes the jumper header locations shown in Figure 2-5. Refer to the Oops! Jumper on page 30

for BIOS recovery.

Table 2-3. Jumper Settings

Jumper # Installed/Enabled Removed/Enabled

JP1 – Not Used Reserved Reserved Default

JP2 – Compact Flash Master (pins 1-2) Slave (removed) Default

JP3 – CF Voltage Select Enable +3.3V (pins 1-2) Default Enable +5V (pins 2-3)

JP4 – LCD Voltage Type Enable +3.3V (pins 1-2) Default Enable +5V (pins 2-3)

JP5 – INTVR Enable +5V (pins 1-2) Default Enable +12V (pins 2-3)

ReadyBoard 620 Reference Manual 11

Page 18

Chapter 2 Product Overview

Table 2-3. Jumper Settings (Continued)

JP6 – COM3 RS485 Termination (pins 1-2) No Termination (removed)

Default

JP6 – COM4 RS485 Termination (pins 3-4) No Termination (removed)

Default

JP7 – CMOS Reset Normal (pins 1-2) Default Clear (Reset CMOS, pins 2-3)

Specifications

Physical Specifications

Table 2-4 lists the physical dimensions of the board.

Table 2-4. Weight and Footprint Dimensions

Parameter Dimensions

Weight 0.117 kg. (0.26 lb.)

Height (overall) 28.44 mm (1.12")

Width 115 mm (4.5")

Length 165 mm (6.5")

PCB Thickness 1.574 mm (0.062")

NOTE Overall height is measured from the upper board

surface to the highest permanent component (at Serial A) on the upper board surface. This measurement does not include the heatsinks available for these boards.

Power Specifications

Table 2-5 lists the ReadyBoard 620 current measurements.

Table 2-5. Power Supply Requirements

Parameters Characteristics (500 Mhz Geode, LX800)

Input Type Regulated DC voltages

In-rush Current 14.20A/71.00W

Idle Power 1.51A/7.54W

BIT Current 2.19A/10.94W

Operating configurations:

• In-rush operating configurations include video and 512MB DDR RAM.

• Idle operating configurations include the in-rush configurations as well as one IDE hard drive with

Windows XP SP2, floppy, keyboard, and mouse.

• BIT = Burn-In-Test. Operating configurations include idle configurations as well as four serial loop-

backs, one USB Jump Drive, one on-board Compact Flash drive with 64MB Compact Flash, two Ethernet connections, one USB Compact Flash reader with 64MB Compact Flash, one external-power USB hard drive, one external-power USB CD-ROM drive.

12 Reference Manual ReadyBoard 620

Page 19

Chapter 2 Product Overview

Mechanical Specifications

Figure 2-6 shows the side view of the ReadyBoard 620 with the mechanical mounting dimensions.

ReadyBoard 620 (Side view)

0.345

1.113

Serial 1 & 2

(Serial 1 Lower)

1.213

0.051

0.696

0.497

0.120

Ethernet 1

USB 0 & 1 (USB 0 Lower)

Ethernet 2

CRT

Compact Flash Socket

6.500

1.214

This graphic under development

0.067

0.624

0.068

0.100

0.361

0.547

0.640

0.602

0.055

0.650

Keyboard/ Mouse

0.275

0.554

0.072

0.510

Power/IDE Activity LED

Reset Switch

RB620sideviewa

0.180

0.370

0.080

0.390

0.275

8.763

0.200

28.270

5.080

Mounting

0.311

0.500

Hole Center at (4) Corners

All dimensions in this drawing section are in inches and are approximate. Board thickness is 0.062 inches.

165.1

15.849 15.849

2.54

13.893

12.623

30.810

17.678

1.295

30.835

1.701

9.169

16.256

3.048

Mounting

7.899

12.700

Hole Center at (4) Corners

All dimensions in this drawing section are in millimeters Board thickness is 1.574mm.

Figure 2-6. ReadyBoard 620 I/O Panel Dimensions (Side view)

1.875

1.727

47.625

1.350

15.290

14.071

6.985

1.828

1.391

16.510

12.954

34.29

and are approximate.

0.338

4.572

9.398

2.032

9.906

6.985

8.588

ReadyBoard 620 Reference Manual 13

Page 20

Chapter 2 Product Overview

Environmental Specifications

Table 2-6 provides the most efficient operating and storage condition ranges required for this board.

Table 2-6. Environmental Requirements

Parameter Temperature Humidity

Model Operating Storage Extended

(Optional)

500 MHz Geode, LX800

0° to +60°C (+32° to +140°F)

–20° to +75°C (–4° to +167°F)

–20° to +70°C (–4° to +158°F)

Operating Non-operating

5% to 90% relative humidity, noncondensing

5% to 95% relative humidity, noncondensing

Thermal/Cooling Requirements

The CPU, I/O Hub (Southbridge), Super I/O, and voltage regulators are the sources of heat on the board. The ReadyBoard 620 is designed to operate at its maximum CPU speed of 500 MHz. Only the CPU requires a heatsink, but no fan.

14 Reference Manual ReadyBoard 620

Page 21

Chapter 3 Hardware

Overview

This chapter discusses the following features of the ReadyBoard 620 connectors:

• Interrupt Channel Assignments

• Memory Map

• I/O Address Map

• Floppy/Parallel Interface

• Serial Interfaces

• USB Interface

• Audio Interface

• Video Interfaces

• Miscellaneous

♦

Utility Interfaces

♦

Reset Switch

♦

Keyboard/Mouse

♦

User GPIO signals

♦

Infrared (IrDA) Port

♦

System Management Bus (SMBus)

♦

Real Time Clock (RTC)

♦

Oops! Jumper (BIOS Recovery)

♦

Temperature Monitoring

♦

Remote Access (Serial Console)

♦

Watchdog timer

• Power In Interface

• Power On Interface

• Power and Sleep States

NOTE ADLINK Technology, Inc. only supports the features/options tested and listed in

this manual. The main integrated circuits (ICs) used in the ReadyBoard 620 may provide more features or options than are listed for the ReadyBoard 620, but some of these IC features/options are not supported on the board and may not function as specified in the IC documentation.

This chapter does not include pinout tables for standard headers and connectors such as PC/104, PC/104-Plus, Ethernet RJ45, 44-pin IDE, and Compact Flash.

ReadyBoard 620 Reference Manual 15

Page 22

Chapter 3 Hardware

Interrupt Channel Assignments

The interrupt channel assignments are listed in Table 3-1.

Table 3-1. Interrupt Channel Assignments (Typical)

Device vs IRQ No. 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Timer X

Keyboard X

Secondary Cascade X

COM1 O D

COM2 D O

COM3 O O O D

COM4 O O D O

Floppy D

Parallel O D

RTC X

IDE DO

Math Coprocessor X

PS/2 Mouse X

PCI INTA Automatically Assigned

PCI INTB Automatically Assigned

PCI INTC Automatically Assigned

PCI INTD Automatically Assigned

USB Automatically Assigned

VGA Automatically Assigned

Ethernet Automatically Assigned

Legend: D = Default, X = Fixed, O = Optional

NOTE The IRQs for the Ethernet, Video, and USB are automatically assigned by the

BIOS Plug and Play logic. Local IRQs assigned during initialization can not be used by external devices.

16 Reference Manual ReadyBoard 620

Page 23

Chapter 3 Hardware

Memory Map

The following table provides the common PC/AT memory allocations. Memory below 000500h is used by the BIOS. Refer to Tab le 3-2.

Table 3-2. Memory Map

Base Address Function

00000000h - 0009FFFFh Conventional Memory

000A0000h - 000AFFFFh Graphics Memory

000B0000h - 000B7FFFh Mono Text Memory

000B8000h - 000BFFFFh Color Text Memory

000C0000h - 000C7FFFh Standard Video BIOS

000D0000h - 000DFFFFh Reserved for Extended BIOS

000E0000h - 000FFFFFh System BIOS Area (Storage and RAM Shadowing)

00100000h - Top of DRAM Extended Memory (If on-board VGA is enabled, then the amount of

memory assigned is subtracted from extended memory.)

FFF80000h - FFFFFFFFh System Flash

I/O Address Map

Table 3-3 lists the I/O addresses.

Table 3-3. I/O Address Map

Address (hex) Subsystem

000-00F Primary DMA Controller

020-021 Master Interrupt Controller

040-043 Programmable Interrupt Timer (Clock/Timer)

060-06F Keyboard Controller

070-07F CMOS RAM, NMI Mask Reg, RT Clock

080-09F DMA Page Registers

092 Fast A20 Gate and CPU Reset

094 Motherboard Enable

102 Video Subsystem Register

0A0-0BF Slave Interrupt Controller

0C0-0DF Slave DMA Controller #2

0F0-0FF Math Coprocessor

1F0-1F8 IDE Hard Disk Controller

201 Watchdog Timer (WDT)

278-27F Parallel Printer

2E8-2FF Serial Port 4 (COM4)

2F8-2FF Serial Port 2 (COM2)

378-37F Parallel Port (Standard and EPP)

3C0-3DF VGA

3E8-3EF Serial Port 3 (COM3)

3F0-3F7 Floppy Disk Controller

ReadyBoard 620 Reference Manual 17

Page 24

Chapter 3 Hardware

Table 3-3. I/O Address Map (Continued)

3F8-3FF Serial Port 1 (COM1)

778-77A Parallel Port (ECP Extensions) (Port 378+400)

CF8-CFF PCI Bus Configuration Address and Data

Floppy/Parallel Interface

The Super I/O controller (W83627HF) provides the floppy controller and the parallel port controller. The floppy controller and the parallel port controller share the same output connector (J18) on the board and the device selection is made in the BIOS Setup Utility.

• Floppy port controller only supports one floppy drive, in the standard formats, such as 360 kB, 720 kB,

1.2 MB, 1.44 MB, or 2.88 MB drives.

• Parallel port controller supports standard parallel, bi-directional, ECP and EPP protocols.

NOTE Due to the multiplexed nature of the signals for the floppy and parallel

ports, you can only connect one of these devices at a time. Refer to Chapter 4, BIOS Setup Utility later in this manual to enter the BIOS Setup for selecting the floppy or parallel device. A reboot is necessary for the change of BIOS settings to take affect.

Table 3-4 describes the floppy/parallel port pin/signals with 26-pins, 2 rows, consecutive (1, 14) with 2 mm

pin spacing.

Table 3-4. Floppy/Parallel Interface Pin/Signal Descriptions (J18)

Pin # Signal Description

1 Strobe* Parallel Strobe* – This is an output signal used to strobe data into the printer. I/

O pin in ECP/EPP mode.

2PD0

INDEX*

3PD1

TRK0*

4PD2

WPRT*

5PD3

RDATA*

6PD4

DSKCHG*

7 PD5 Parallel Port Data 5 – See pin 2 (PD0) for more information.

8 PD6 Parallel Port Data 6 – See pin 2 (PD0) for more information.

9 PD7 Parallel Port Data 7 – See pin 2 (PD0) for more information.

10 ACK*

Parallel Port Data 0 – These pins (0 to 7) provide parallel port data signals.

Floppy Index – Detects head positioned over the beginning of a track.

Parallel Port Data 1 – See pin 2 (PD0) for more information.

Floppy Track 0 – Detects when head is positioned over track 0.

Parallel Port Data 2 – See pin 2 (PD0) for more information.

Floppy Write Protect – Senses if diskette is write protected.

Parallel Port Data 3 – See pin 2 (PD0) for more information.

Floppy Read Data – Raw serial bit stream from the drive for read operations.

Parallel Port Data 4 – See pin 2 (PD0) for more information.

Floppy Disk Change – Senses when drive door is open or the diskette has been changed since the last drive selection.

Parallel Acknowledge * – This is a status output signal from the printer. A Low State indicates it has received the data and is ready to accept new data.

DS1*

18 Reference Manual ReadyBoard 620

Floppy Drive Select 1 – Select drive 1.

Page 25

Chapter 3 Hardware

Table 3-4. Floppy/Parallel Interface Pin/Signal Descriptions (J18) (Continued)

11 BUSY

Parallel Busy – This is a status output signal from the printer. A High State indicates the printer is not ready to accept data.

MTR1*

12 PE

WDATA*

13 PSLCT

WGATE*

14 AFD*

DRVEN0*

15 ERR*

HDSEL*

16 PINIT*

DIR*

17 SLIN

Floppy Motor Control 1 – Select motor on drive 1.

Parallel Paper End – This is a status output signal from the printer. A High State indicates it is out of paper.

Floppy Write Data – Encoded data to the drive for write operations.

Printer Select – This is a status output signal from the printer. A High State indicates it is selected and powered on.

Floppy Write Enable – Drive signal to enable current flow in the write head.

Parallel Auto Feed* – This is a request signal into the printer to automatically feed one line after each line is printed.

Floppy Drive Density Select Bit 0

Parallel Error – This is a error status output signal from the printer. A Low State indicates an error condition on the printer.

Floppy Head Select – Selects the side for Read/Write operations (0 = side 1, 1 = side 0)

Printer Initialize* – This signal is used to Initialize printer. Output in standard mode, I/O in ECP/EPP mode.

Floppy Direction – Direction of head movement (0 = inward motion, 1 = outward motion).

Parallel Select In – This output signal to the printer is used to select the printer. I/O pin in ECP/EPP mode.

STEP*

GND Ground

Floppy Step – Low pulse for each track-to-track movement of the head.

26 NC Not Connected

Note: The shaded areas denote power or ground. The signals marked with * = Negative true logic.

ReadyBoard 620 Reference Manual 19

Page 26

Chapter 3 Hardware

Serial Interfaces

The ReadyBoard 620 supports four independent serial ports, using two separate chips. The Super I/O controller (W83627HF) provides serial ports 1 and 2 through the Serial A DB9 connectors (J6A/B), and the I/O Hub (CS5536) and LPC I/O controller (F81216D) provide serial ports 3 and 4 through Serial B header (J5). The four serial ports support the following features:

• Four individual 16550-compatible UARTs

• Programmable word length, stop bits and parity

• 16-bit programmable baud rate generator

• Interrupt generator

• Loop-back mode

• Four individual 16-bit FIFOs

• Serial A supports ports 1 and 2 using the Super I/O Controller

♦

Serial Port 1 (COM1) supports RS-232 and full modem support

♦

Serial Port 2 (COM2) supports RS-232 and full modem support

• Serial B supports ports 3 and 4 using the I/O Hub (Southbridge)

♦

Serial Port 3 (COM3) supports RS-232 and RS-485/RS-422 and full modem support

♦

Serial Port 4 (COM4) supports RS-232 and RS-485/RS-422 and modem support

NOTE The RS-232 and RS-485/RS-422 modes are selected in BIOS Setup Utility under the

submenu, Super I/O Configuration in the Advanced menu screen for Serial Ports 3 (COM3) and 4 (COM4). However, the RS-232 mode is the default (Standard) for any serial port.

RS-485 mode termination is selected with jumper JP6, pins 1-2 (COM3), and pins 3-4 (COM4), when the RS-485 mode is selected in BIOS Setup Utility.

To implement the two-wire RS-485 mode on either serial port, you must tie the equivalent pins together for each port.

For example: on Serial Port 3, tie pin 3 (RX3-) to 5 (TX3-) and pin 4 (TX3+) to 6 (RX3+) at the Serial B interface connector (J5). As an alternate, tie pin 2 to pin 3 and pin 7 to pin 8 at the DB9 serial connector for Serial Port 3. See Figure 3-1. Refer to the following table for the specific pins of the Serial B interface. The RS-422 mode uses a four-wire interface and does not require tying pins together, but you must select RS-485 in BIOS Setup Utility.

5432

987

Serial B Interface (J5) for Serial Port 3 (or COM3 Port)

Top View

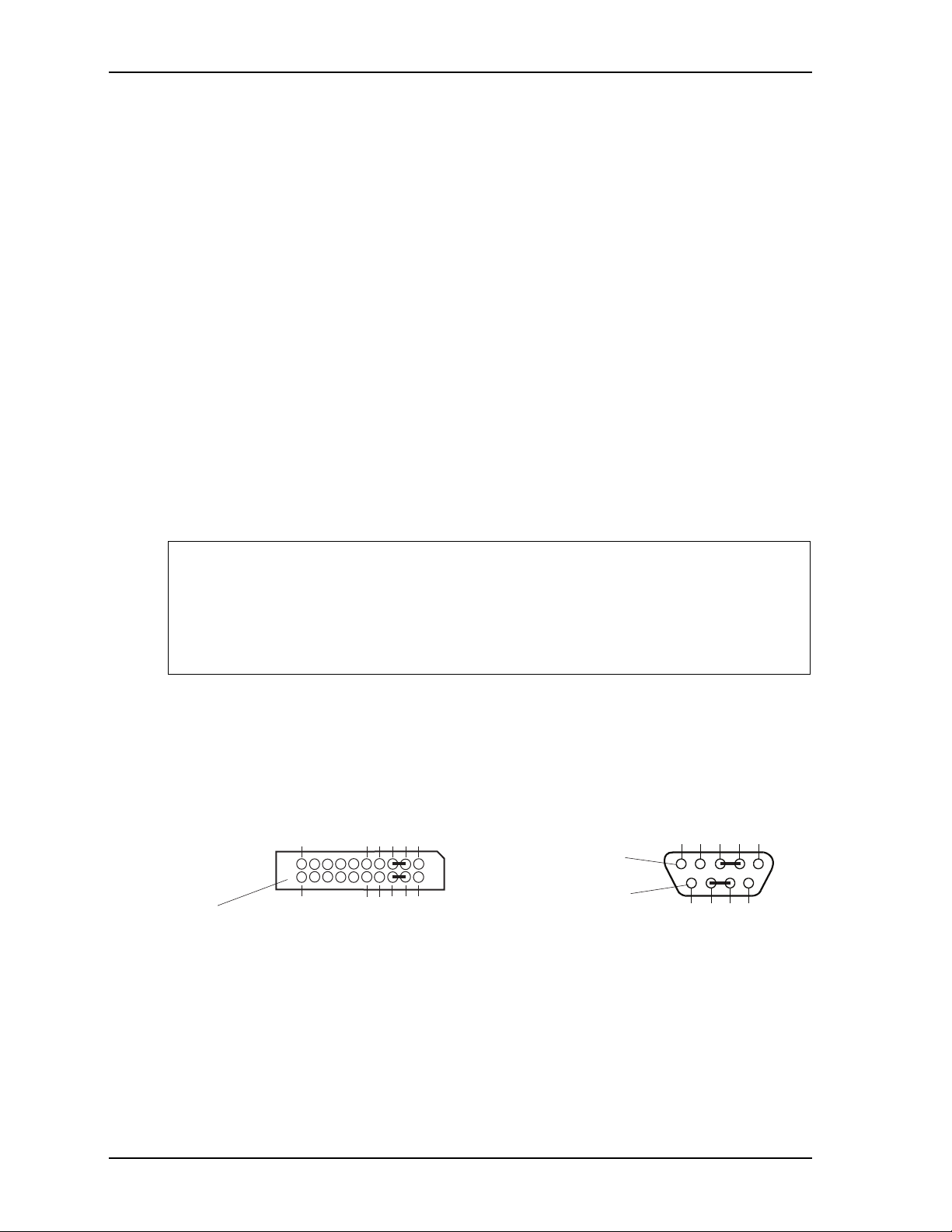

Figure 3-1. RS-485 Serial Port Implementation

Standard DB9 Serial

Port Connector (Male)

678910

234

Front View

RB620RS485Con_b

20 Reference Manual ReadyBoard 620

Page 27

Chapter 3 Hardware

Table 3-5. Serial B (COM3 and COM4) Interface Pin/Signal Descriptions (J5)

Pin # Signal Description

1 DCD3* Data Carrier Detect 3 – Indicates external serial communications device is

detecting a carrier signal (i.e., a communication channel is currently open). In direct connect environments, this input will be driven by DTR3 as part of the DTR3/DSR3 handshake.

2 DSR3* Data Set Ready 3 – Indicates external serial communications device is powered,

initialized, and ready. Used as hardware handshake with DTR3 for overall readiness to communicate.

3RXD3

Receive Data 3 – Serial port 3 receive data in

RX3-

4RTS3*

RX3- – If in RS485 or RS422 mode, this pin is Receive Data 3 -.

Request To Send 3 – Indicates Serial port 3 is ready to transmit data. Used as hardware handshake with CTS3 for low level flow control.

TX3+

5 TXD3

TX3-

6CTS3*

TX3+ – If in RS485 or RS422 mode, this pin is Transmit Data 3 +.

Transmit Data 3 – Serial port 3 transmit data out

TX3- – If in RS485 or RS422 mode, this pin is Transmit Data 3 -.

Clear To Send 3 – Indicates external serial communications device is ready to receive data. Used as hardware handshake with RTS3 for low level flow control.

RX3+

RX3+ – If in RS485 or RS422 mode, this pin is Receive Data 3 -.

7 DTR3* Data Terminal Ready 3 – Indicates Serial port 3 is powered, initialized, and ready.

Used as hardware handshake with DSR3 for overall readiness to communicate.

8 RI3* Ring Indicator 3 – Indicates external serial communications device is detecting a

ring condition. Used by software to initiate operations to answer and open the communications channel.

GND Ground

10 NC Not connected

11 DCD4* Data Carrier Detect 4 – Indicates external serial communications device is

detecting a carrier signal (i.e., a communication channel is currently open). In direct connect environments, this input will be driven by DTR4 as part of the DTR4/DSR4 handshake.

12 DSR4* Data Set Ready 4 – Indicates external serial communications device is powered,

initialized, and ready. Used as hardware handshake with DTR4 for overall readiness to communicate.

13 RXD4

Receive Data 4 – Serial port 4 receive data in

RX4-

14 RTS4*

RX4- – If in RS485 or RS422 mode, this pin is Receive Data 4 -.

Request To Send 4 – Indicates Serial port 4 is ready to transmit data. Used as hardware handshake with CTS4 for low level flow control.

TX4+

15 TXD4

TX4-

16 CTS4*

TX4+ – If in RS485 or RS422 mode, this pin is Transmit Data 4 +.

Transmit Data 4 – Serial port 4 transmit data out

TX4- – If in RS485 or RS422 mode, this pin is Transmit Data 4 -.

Clear To Send 4 – Indicates external serial communications device is ready to receive data. Used as hardware handshake with RTS4 for low level flow control.

RX4+

RX4+ – If in RS485 or RS422 mode, this pin is Receive Data 4 +.

ReadyBoard 620 Reference Manual 21

Page 28

Chapter 3 Hardware

Table 3-5. Serial B (COM3 and COM4) Interface Pin/Signal Descriptions (J5) (Continued)

17 DTR4* Data Terminal Ready 4 – Indicates Serial port 3 is powered, initialized, and ready.

Used as hardware handshake with DSR4 for overall readiness to communicate.

18 NC Not connected

GND Ground

20 NC Not connected

Note: The shaded area denotes power or ground. Signals are listed in the following order: RS232

followed by RS485/RS422. The signals marked with * = Negative true logic.

USB Interfaces

The I/O Hub (CS5536) provides the USB solution for both legacy OHCI controllers and EHCI controller (USB 2.0) support. The I/O Hub (Southbridge) contains port-routing logic that determines which controller (OHCI or EHCI) handles the USB data signals. The PC style (or Standard) connector (J13A/B) provides two of the four USB ports (USB0 and USB1). The other two USB ports share a single 10-pin header (J17A/B) on the board.

USB 2.0 Support

The I/O Hub contains an Enhanced Host Controller Interface (EHCI) compliant host controller, which supports up to 4 high-speed USB 2.0 Specification compliant root ports. The higher speed USB 2.0 specification allows data transfers up to 480 Mbps using the same pins as the 4 Full-speed/Low-speed USB OHCI ports. The I/O Hub port-routing logic determines which of the controllers (OHCI or EHCI) processes the USB signals. The following list provides some of the ReadyBoard 620’s EHCI features.

• One EHCI host controller for all four USB ports on connectors (J17A/B, and/or J13A/B)

• Support for USB v2.0 Specification

• Over-current fuses, located on the board, where USB0 and USB1 share a single fuse (F3) and USB2 and

USB3 share a single fuse (F2).

Legacy USB Support

The I/O Hub supports two USB Open Host Controller Interfaces (OHCI) and each Host Controller includes a root hub with two USB ports each, for a total of 4 USB ports. The USB Legacy features implemented on the USB ports include the following:

• One root hub and two USB ports on connector (J17A/B)

• One root hub and two USB ports on connector (J13A/B)

• Supports USB v.1.1 OHCI with integrated physical layer transceivers

• Supports improved arbitration latency for OHCI controllers

• OHCI controllers support Analog Front End (AFE) embedded cell instead of USB I/O buffers to allow

for USB high-speed signaling rates

• Over-current fuses, located on the board, are used on all four USB ports

22 Reference Manual ReadyBoard 620

Page 29

Chapter 3 Hardware

Secondary USB2 and USB3

Table 3-11 describes USB 2 & 3, J17A/B at 10-pins, 2 rows, odd/even (1, 2) with 2 mm pitch.

Table 3-6. USB 2 & 3 Interface Pin/Signal Descriptions (J17A/B)

Pin # Signal Description

1, 2

3 USBP2- Universal Serial Bus Port 2 Data Negative

4 USBP3- Universal Serial Bus Port 3 Data Negative

5 USBP2+ Universal Serial Bus Port 2 Data Positive

6 USBP3+ Universal Serial Bus Port 3 Data Positive

7, 8, 9, 10

Note: The shaded area denotes power or ground.

VCC USB Voltage – +5V through shared fuse (F2)

GND Ground

Audio Interface

The audio solution on the ReadyBoard 620 is provided by the (Southbridge) I/O Hub (CS5536) and the onboard Audio CODEC (ALC203). These two chips use a digital interface to communicate between the two, which is defined by AC’97 and is revision 2.3 compliant. The input or output signals for the audio interface go through the 16-pin connector (J15) to an external cable and/or board, which has the respective audio connections. The PC Beep Speaker signal from the I/O Hub is also fed to the on board Audio CODEC to provide a PC Beep signal for the stereo line out connections.

Audio CODEC (ALC203) features

• AC’97 Rev 2.3 compliant

• 18-bit full duplex performance

• Independent variable sampling rate

• Stereo (Left and Right) Line In

• Stereo (Left and Right) Line Out

• Microphone (Mono) In

• PC “Beep” speaker signal is also fed to the CODEC for the Line Out (Left and Right) channels

Table 3-7 describes the Audio interface pin/signals on 16-pins, 2 rows, odd/even (1, 2) with

2 mm pin spacing.

Table 3-7. Audio Interface Pin/Signal Descriptions (J15)

Pin # Signal Description

1, 3 NC Not Connected

2, 4, 7, 8, 11, 12, 13, 14, 16

5 LINE_OUTL Line Out signal left channel

6 LINE_OUTR Line Out signal right channel

9 LINE_INL Line In signal left channel

10 LINE_INR Line In signal right channel

15 MICIN Microphone signal In

GND_AUD Audio ground

Note: The shaded area denotes power or ground.

ReadyBoard 620 Reference Manual 23

Page 30

Chapter 3 Hardware

Video Interfaces

The Graphics and Memory Hub (Northbridge)—integrated in the Geode LX processor—provides the graphics control and video signals to the traditional glass CRT monitors and the LVDS and TTL flat panel displays. The chip features are listed below:

• Supports 2D graphics with extensive set of instructions including:

♦

BLT operations

♦

Hardware video up/down scalar

♦

Legacy RGB mode

CRT features:

• Provide an integrated 350 MHz, 24-bit RAMDAC to drive a progressive scan analog monitor and

outputs to three 8-bit DACs provide the R, G, and B signals to the monitor.

• Support resolutions up to 1920 x 1440.

• Support a maximum allowable video frame buffer size of 254 MB UMA (Unified Memory

Architecture).

LVDS and TTL Flat Panel features:

• Supports (3.3V, 5V, or 12V) Output to both LVDS and TTL flat panels through a 24-bit interface.

• Supports TTL panel sizes from VGA (600 x 480) up to UXGA + (1600 x 1200).

• Supports a 24-bit single channel LVDS flat panel interface.

• Supports panel up-scaling (to fit a smaller source image onto a specific native panel size) as well as

panning and centering.TTL Flat Panel Interface.

24 Reference Manual ReadyBoard 620

Page 31

Chapter 3 Hardware

TTL Flat Panel Interface

Table 3-8. TTL Flat Panel Interface Pin/Signal Descriptions (J8)

Pin # Signal Description

1 NC Not connected

2 NC Not connected

3 NC Not connected

4 NC Not connected

5 NC Not connected

6 NC Not connected

7 NC Not connected

8 NC Not connected

9 NC Not connected

10 NC Not connected

11 NC Not connected

12 NC Not connected

13 NC Not connected

14 FP21 Flat Panel Data Output, R5

15 FP23 Flat Panel Data Output, R7

16 FP22 Flat Panel Data Output, R6

17 FP16 Flat Panel Data Output, R0

18 FP20 Flat Panel Data Output, R4

19 FP17 Flat Panel Data Output, R1

20 FP18 Flat Panel Data Output, R2

21 FP19 Flat Panel Data Output, R3

22 FP14 Flat Panel Data Output, G6

23 FP13 Flat Panel Data Output, G5

24 FP12 Flat Panel Data Output, G4

25 FP15 Flat Panel Data Output, G7

26 FP11 Flat Panel Data Output, G3

27 FP7 Flat Panel Data Output, B7

28 FP10 Flat Panel Data Output, G2

29, 30

31 FP9 Flat Panel Data Output, G1

32 FP8 Flat Panel Data Output, G0

33 FP4 Flat Panel Data Output, B4

34 FP6 Flat Panel Data Output, B6

35 FP3 Flat Panel Data Output, B3

36 FP5 Flat Panel Data Output, B5

37 FP2 Flat Panel Data Output, B2

38 FP1 Flat Panel Data Output, B1

LCDV+ Jumper (JP4) determines voltage (pins 1-2 = +3.3V, or pins 2-3 = +5V).

ReadyBoard 620 Reference Manual 25

Page 32

Chapter 3 Hardware

Table 3-8. TTL Flat Panel Interface Pin/Signal Descriptions (J8) (Continued)

39 FPDEN Flat Panel Data Enable – This signal to settle the horizontal display

position.

40 FP0 Flat Panel Data Output, B0

41 FPCLK Flat Panel Shift Clock

42 DISPEN Reserved

43 ENVDD Flat Panel Enable VDD – This is power sequencing output for LCD

driver.

44 FPVS Flat Panel VSync (FLM) – This signal is digital monitor equivalent of

VSYNC.

45 DISPEN Flat Panel Enable VEE – This signal is used for power sequencing.

46 FPHS Flat Panel HSync (LP) – This signal is the digital monitor equivalent of

HSYNC.

47, 48

49, 50

GND Ground

VCC_BKLT Jumper (JP5) determines back light inverter voltage (pins 1-2 = +5V, or

pins 2-3 = +12V.)

Note: The +12V voltage is supplied externally from the AT/

ATX power supply input connector.

Note: The shaded areas denote power or ground.

26 Reference Manual ReadyBoard 620

Page 33

Chapter 3 Hardware

LVDS Flat Panel Interface

Table 3-9. LVDS Interface Pin/Signal Descriptions (J9)

Pin # Signal Description Line Channel

VCC_INVTR +5 or +12 Volts

(JP5 setting)

VCC_LCD +3.3 Volts or +5 Volts

Depends on JP4 setting (+3.3V Default)

GND Ground GND

GND Ground

5 NC Not connected

6 NC Not connected

7 NC Not connected 3

8 NC Not connected

9 NC Not connected 2

10 NC Not connected

11 NC Not connected 1

12 NC Not connected

13 NC Not connected 0

14 NC Not connected

Channel 2

15 NC Not connected

16 LCD_EN LCD Enable

17 LVDSA_Clk+ Data Positive Output Clk

18 LVDSA_Clk- Data Negative Output

19 LVDSA_Y3+ Data Positive Output 3

20 LVDSA_Y3- Data Negative Output

21 LVDSA_Y2+ Data Positive Output 2

22 LVDSA_Y2- Data Negative Output

23 LVDSA_Y1+ Data Positive Output 1

24 LVDSA_Y1- Data Negative Output

25 LVDSA_Y0+ Data Positive Output 0

26 LVDSA_Y0- Data Negative Output

Channel 1

27 NC Not connected

28 NC Not connected

29 LCD_BKLEN LCD Backlight Enable

30 NC Not connected

NOTE N/A

Note: The shaded areas denote power or ground.

ReadyBoard 620 Reference Manual 27

Page 34

Chapter 3 Hardware

Miscellaneous

Utility Interface

• Power-On – This control signal is provided externally through a switch by connecting ground to pin 1

on the Utility connector (J16).

• Reset Switch – This signal is provided externally through a switch by connecting ground to pin 3 on the

Utility connector (J16). This signal line is shared with Reset Switch (SW1).

• PC Beep Speaker – The output signals from the I/O Hub (CS5536) and the Super I/O (W83627HF) are

fed to pin 5 of the Utility connector (J16) through an OR circuit, and in conjunction with the +5V (pin

4), drives an external PC Beep speaker. The PC Beep speaker signal from the I/O Hub is also fed to the on-board Audio CODEC to provide a PC Beep signal for the Line Out connections.

Table 3-10. Utility Interface Pin/Signal Descriptions (J16)

Pin # Signal Description

1 PWRON Power-On input (connect between pins 1 & 2)

3 RST_SW Reset Switch input or output (connect between pins 3 & 2)

5 Speaker PC Beep Speaker + Output (connect between pins 5 & 4)

GND Ground

+5V +5 Volts

Note: The shaded areas denote power or ground.

Reset Switch

The reset switch (SW1), located on the board edge, provides an internal reset signal (momentary ground) to the ReadyBoard 620. The reset switch shares the reset line with pin 3 of the Utility interface (J16).

User GPIO Signals

The ReadyBoard 620 provides eight GPIO pins for custom use, and the signals are routed to the J4 connector. ADLINK has provided sample applications showing how to use the GPIO pins in the Miscellaneous Source Code Examples on the ReadyBoard 620 Support Software DVD.

For more information about the GPIO pin operation, refer to the datasheet specifications or Programming Manual for the Super I/O (W83627HF) controller at:

http://www.winbond-usa.com/products/winbond_products/pdfs/PCIC/W83627HF_F_HG_Ga.pdf

Table 3-11 lists the GPIO pin/signals on a 10-pin, 2 rows, odd/even (1, 2) with 2 mm pin spacing.

Table 3-11. User GPIO Signals Pin/Signal Descriptions (J4)

Pin # Signal Description

3 GPIO4 User defined

4 GPIO5 User defined

5 GPIO6 User defined

6 GPIO7 User defined

7 GPIO0 User defined

8 GPIO1 User defined

GND Ground

VCC +5 Volts DC +/ 5%

28 Reference Manual ReadyBoard 620

Page 35

Chapter 3 Hardware

Table 3-11. User GPIO Signals Pin/Signal Descriptions (J4) (Continued)

9 GPIO2 User defined

10 GPIO3 User defined

Infrared (IrDA) Port

The Infrared Data Association (IrDA) signals pass through a two-way communications header for an external IrDA device using infrared as the transmission medium. There are two basic infrared implementations provided; the Hewlett-Packard Serial Infrared (HPSIR) and the Amplitude Shift Keyed Infrared (ASKIR) methods. HPSIR is a serial implementation of infrared developed by Hewlett-Packard. The IrDA (HPSIR and ASKIR) signals share the same header as the IrDA model select signals. These signals are operating system (OS) and/or application dependent and are based on the user’s application, but can be configured and enabled in the BIOS Setup Utility.

The HPSIR method allows serial communication at baud rates up to 115k baud. Each word is sent serially beginning with a zero value start bit. A zero is sent when a single infrared pulse is sent at the beginning of the serial bit time. A one is sent when no infrared pulse is sent during the bit time.

The Amplitude Shift Keyed infrared (ASKIR) allows serial communication at baud rates up to 19.2 k baud. Each word is sent serially beginning with a zero value start bit. A zero is sent when a 500 kHz waveform is sent for the duration of the serial bit time. A one is sent when no transmission is sent during the serial bit time.

Both of these methods require an understanding of the timing diagrams provided in the Super I/O controller (W83627HF) specifications available from the manufacture’s web site and referenced earlier in this manual. For more information, refer to the Winbond W83627HF specifications and the Infrared Data Association web site at http://www.irda.org

NOTE For faster speeds and infrared applications not covered in this brief description, refer

to the W83627HF chip specifications by Winbond Electronics Corp.

Table 3-12. Infrared Interface Pin/Signal Descriptions (J21)

Pin # Signal Description

VCC +5 Volts DC +/ 5%

2IRTXIR Transmit Data

3 CIRRX IR Mode Select

4 IRRX IR Receive Data

GND Ground

Note: The shaded areas denote power or ground.

System Management Bus (SMBus)

The I/O Hub (Southbridge) chip (CS5536) contains both a host and slave SMBus port; but the host cannot access the slave internally. The slave port allows an external master access to the I/O Hub through connector (J20). The master contained in the I/O Hub is used to communicate with the SODIMM EPROM, Super I/O, Ethernet 1 and 2, and the clock generator. Table 3-13 lists the device name and corresponding reserved binary addresses on the SMBus.

Table 3-13. SMBus Reserved Addresses

Component Address Binary

SODIMM EPROM 1010,000x

Clock Generator 1101,001x

ReadyBoard 620 Reference Manual 29

Page 36

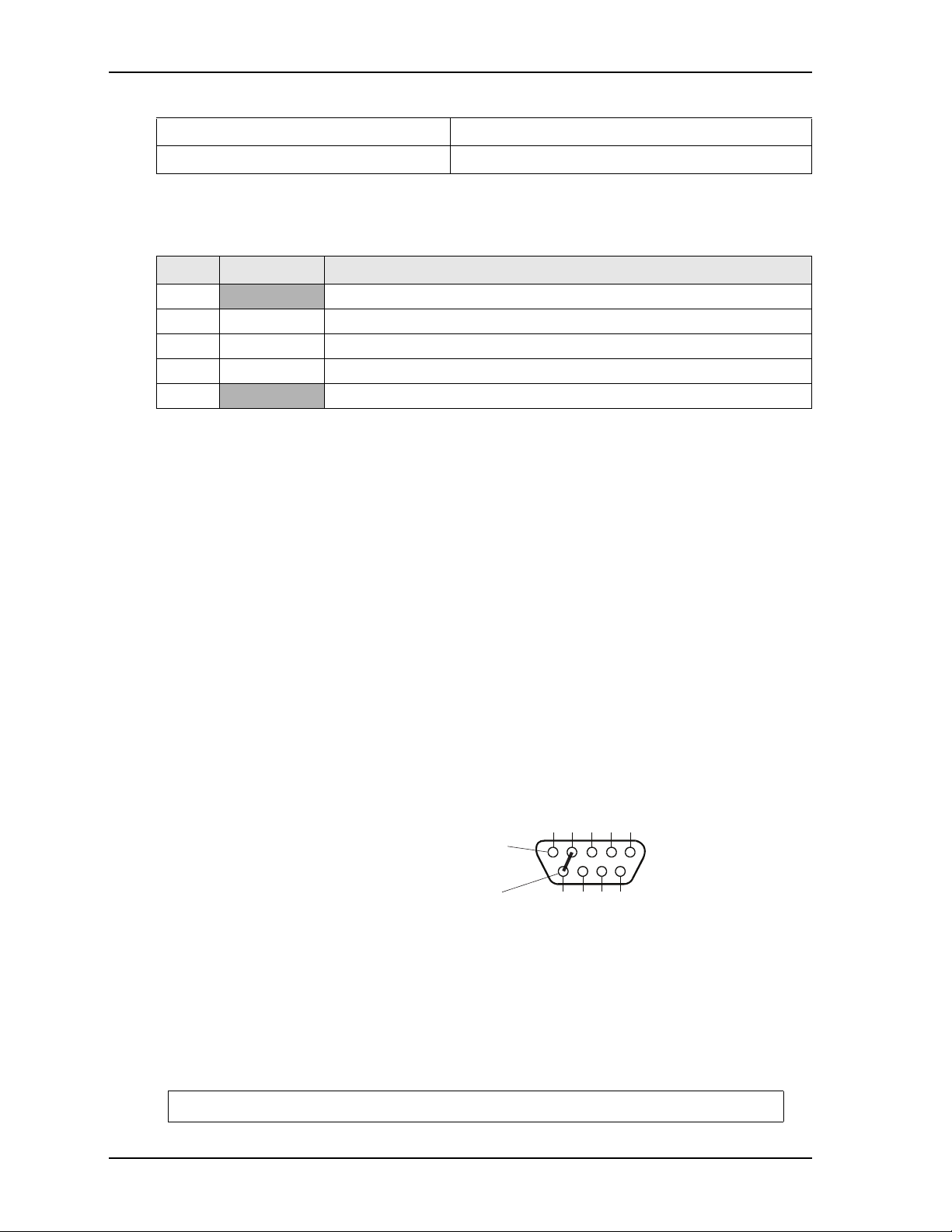

Chapter 3 Hardware

Table 3-13. SMBus Reserved Addresses (Continued)

I/O Hub 1000,100x

I/O Hub 0001,000x

Note: The I/O Hub has two reserved addresses.

Table 3-14. SMBus Signals Pin/Signal Descriptions (J20)

Pin # Signal Description

VCC5Dual +5V standby voltage

2 SMBCLK SMBus Clock

3SMBDATASMBus Data

4 NC Not connected

GND Ground

Note: The shaded area denotes power or ground. The signals marked with * = Negative true logic.

Real Time Clock (RTC)

The I/O Hub contains a Real Time Clock (RTC), and an external Lithium Battery (B1) provides power for the RTC and the CMOS RAM through connector BT1. The CMOS RAM is backed up with a Lithium Battery. If the battery is not present or defective, the BIOS has a battery-free boot option to complete the boot process.

Oops! Jumper (BIOS Recovery)

The Oops! jumper is provided in the event the user selected BIOS settings prevent the system from booting, but does not reset CMOS or change the Time & Date in the BIOS. Refer to the CMOS Normal/Clear jumper (JP7) to reset the BIOS and change the Time & Date.

By using the Oops! jumper, you can prevent the current BIOS settings in Flash from being loaded, forcing the use of the default BIOS settings. Connect the DTR pin to the RI pin on Serial port 1 (COM 1) prior to applying power to prevent the current BIOS settings from loading. After booting with the Oops! jumper in place, remove the Oops! jumper and go into BIOS Setup Utility. Change the desired BIOS settings, or select the default settings, and save the changes before rebooting the system.

To convert the Serial 1 interface to an Oops! jumper, short together the DTR (4) and RI (9) pins on the Serial Port 1 DB9 connector as shown in Figure 3-2.

Serial 1 (J6A) Lower Port Standard DB9 Serial Port Connector (Male)

Figure 3-2. Oops! Jumper Connection

(COM1)

Front View

543

RB620_Oops!jump_b

Temperature Monitoring

The ReadyBoard 620 performs CPU temperature monitoring through an integrated thermal diode in the AMD CS5536 chipset. The CPU temperature monitor appears in the BIOS under the Hardware Health Configuration selection of the Advanced menu.

NOTE The ReadyBoard 620 CPU requires a heatsink.

30 Reference Manual ReadyBoard 620

Page 37

Chapter 3 Hardware

Remote Access (Serial Console)

The ReadyBoard 620 supports the Remote Access (serial console or console redirection) feature. The remote access (serial console) can be accessed by an ANSI-compatible serial terminal, or the equivalent terminal emulation software running on another system. This can be very useful when setting up the BIOS on a production line for systems that are not connected to a keyboard and display.

Serial Console Setup

The serial console feature is implemented by connecting a standard null modem cable or a modified serial cable (or “Hot Cable”) between one of the serial ports, such as Serial 1 (J6A), and the serial terminal or a PC with communications software. The BIOS Setup Utility controls the serial console settings on the ReadyBoard 620. Refer to Chapter 4, BIOS Setup Utility to set the serial console option, using a serial terminal, or PC with communications software.

Hot (Serial) Cable

To convert a standard serial cable to a Hot Cable, certain pins must be shorted together at the Serial port connector or on the DB9 connector. For example, short the RTS (7) and RI (9) on the respective DB9 port connector as shown in Figure 3-3.

RB620_hotcable_b

54 3

Standard DB9 Serial

able Connector (Female)

Rear View

987

Figure 3-3. Hot Cable Jumper

Watchdog Timer (WDT)

The watchdog timer (WDT) restarts the system if an error or mishap occurs, allowing the system to recover from the mishap, even though the error condition may still exist. Possible problems include failure to boot properly, loss of control by the application software, failure of an interface device, unexpected conditions on the bus, or other hardware or software malfunctions.

The WDT (watchdog timer) can be used both during the boot process and during normal system operation.

• During the boot process – If the operating system fails to boot in the time interval set in the BIOS, the

system will reset.

Enable the WDT in the Boot Settings menu of BIOS Setup Utility. Set the WDT for a time-out interval in seconds, between 1 and 255, in one second increments. Ensure you allow enough time for the operating system (OS) to boot. The OS or application must tickle (reset) the WDT before the timer expires. This can be done by accessing the hardware directly or through a BIOS call.

• During System Operation – An application can set up the WDT hardware through a BIOS call, or by

accessing the hardware directly. Some ADLINK Board Support Packages provide an API to the WDT. The application must tickle (reset) the WDT before the timer expires or the system will be reset. The BIOS implements interrupt 15 function 0x0C3h to manipulate the WDT.

• Watchdog Code examples – ADLINK has provided source code examples on the ReadyBoard 620

Support Software DVD illustrating how to control the WDT. The code examples can be easily copied to your development environment to compile and test the examples, or make any desired changes before compiling. Refer to the WDT Readme file in the Miscellaneous Source Code Examples on the ReadyBoard 620 Support Software DVD.

ReadyBoard 620 Reference Manual 31

Page 38

Chapter 3 Hardware

Power Interfaces

The ReadyBoard 620 uses various voltages on board, but only one voltage is required externally (+5 volts) through the external connector, which uses a 4-pin header with 0.200" (5.08 mm) pitch. The optional +12V is also provided on the input connector as a pass through voltage but is not used on the board except for CPU Fan, LVDS power, PCI bus, and optional ISA bus power. All other on board voltages, including the CPU core voltages, are derived from the externally supplied +5 volts DC +/- 5%.

Power In

Table 3-15 lists the pin numbers and signals for the Power In interface header, J2.

CAUTION This table matches the board even though the +5V and +12V are

swapped in comparison to typical AT power supply cables.

Table 3-15. Power In Interface Pin/Signal Descriptions (J2)

Pin # Signal Description

+5V +5.0 volts DC +/- 5%

GND Ground

+12V This pass through +12 voltage is primarily for PCI bus power, CPU fan, and LCD

power (may also be backlight power).

Note: The shaded areas denote power or ground.

Power On

The signals on this connector allow the ATX power supply to be turned off (soft off) from the ReadyBoard 620 by operating system (OS) control. If you use a non-ATX power supply, you will not have the soft off feature for sleep states normally provided by ATX power supplies.

Table 3-16. Power On Connector Pin/Signal Descriptions (J1)

Pin # Signal Description

3 PS_ON* Power Supply On – This signal is sent to the ATX power supply from the

Note: The shaded areas denote power or ground. The signals marked with * = Negative true logic.

VCC5SBY +5V Standby Voltage – Supplied from ATX power supply and is required for

normal operation and sleep states.

GND Ground

ReadyBoard 620 to turn On the ATX power supply. This signal can also be used to turn Off the ATX power supply or to go into a suspended or standby state.

32 Reference Manual ReadyBoard 620

Page 39

Chapter 3 Hardware

Power and Sleep States

The following information only applies if an ATX power supply is used to provide power to the ReadyBoard 620. If a non-ATX power supply is used, then the ReadyBoard 620 is only controlled by the Power-On/Off switch on the power supply and the various sleep states are not available. The sleep states are OS dependent and not available if your OS does not support power management based on the ACPI standard.

Power On Switch

The Power On switch turns on the ReadyBoard 620 and its attached power supply to fully awake conditions, if you are using an ATX power supply. Normally, if the operating system (OS) supports sleep states, the OS will turn off the ReadyBoard and its power supply during the OS shut down process. If the OS supports sleep states, the Power On switch typically will also transition the ReadyBoard and its power supply between fully Powered On states, various sleep states depending on the OS control setting, and fully Powered Off states. If the OS does not support sleep states, then the Power On switch only turns power on or off to the ReadyBoard 620.

An OS supporting ACPI, typically allows the Power On switch to be configured through a user interface. The Power On switch for the ReadyBoard 620 is provided externally by connecting a momentary switch between pin 1 and pin 2 on the Utility connector (J16). The Power On signal occurs when ground is placed on pin 1 of J16.

Sleep States (ACPI)

The ReadyBoard 620 supports the ACPI (Advanced Configuration and Power Interface) standard, which is a key component of certain Operating Systems’ (OSs’) power management. The supported features (sleep states) listed here are only available when an ACPI-compliant OS is used for the operating system, such as Windows 2000/XP. The term “sleep” state refers to a low latency (reduced power consumption) state, which can be re-started (awakened) restoring full operation to the ReadyBoard 620.

If a computer is in one of the various sleep states, the computer appears to be off as indicated by such things as no display on the connected monitor and no activity for the connected floppy drive, CD-ROM, or hard drives. Normally, when a computer is in one of the various sleep states and it detects certain activity (i.e. power switch, mouse, keyboard, or certain types of LAN activity), it returns to a fully operational state.

NOTE The ReadyBoard 620 supports various wake-up activities, including the Power

On switch to wake the ReadyBoard 620 from a powered down state, such as Standby (S1), Hibernate (S4) and Power Off (S5).

The ReadyBoard 620 supports four ACPI power states, depending on the operating system used and its ability to manage sleep states. Typically, the Power On switch is used to wake up from a sleep state, or transition from one state to another, but this is dependent on the OS and the settings in BIOS Setup.

• 1st state is normal Power On (S0).

♦

To go to a fully powered on state, the ReadyBoard 620 must either be powered Off (S5), or in a sleep state (S1 or S4), and then the Power On switch is pressed for less than 4 seconds (default).

♦

The ReadyBoard 620 can transition from this state (S0) to the various states described below, depending on the power management capability of the OS and how it is programmed.

• 2nd state is a standby state (S1).

In this state there are very few internal operations taking place, except for the internal RTC (real time clock), the Power On LED, and the contents of RAM. This includes no activity for the CPU, CD-ROM, or hard disk drives. The ReadyBoard 620 appears to be off except for the Power On LED.

♦

Normally, to enter this sleep state, the ReadyBoard 620 must be fully powered on (S0) and the OS transitions the ReadyBoard into this standby state (S1) under user control.

ReadyBoard 620 Reference Manual 33

Page 40

Chapter 3 Hardware

♦

To exit this sleep state, typically the Power On switch is used to wake up the ReadyBoard 620 to restore full operation, including the Power On LED. Typically, pressing the Power On switch for less than 4 seconds (default) will restore full operation.

• 3rd state is a hibernate or suspend-to-disk state (S4).

In this state there are no internal operations taking place except for the Power On LED and the internal RTC. This includes no activity for the CPU, CD-ROM, or hard disk drives. The ReadyBoard 620 appears to be off, except for the Power On LED. Your system will take longer to wake up from this sleep state, however, since your data is saved to the disk, it is more secure and should not be lost in the event of a power failure.

♦

To enter a hibernate or suspend-to-disk state, the ReadyBoard 620 must be fully powered on and the OS transitions the ReadyBoard 620 into this sleep state (S4) under user control.

♦

To exit this sleep state, typically pressing the Power On switch for less than 4 seconds (default) will restore full operation.

• 4th state is the normal power off or shutdown (S5).

All activity stops except the Power On LED and the internal RTC clock, unless the power cord is removed from the AC power source.

♦

To go to a fully powered down state, the ReadyBoard 620 must either be powered on, or in a sleep state, and then the Power On switch is pressed for 4-to-6 seconds.

♦

To go to a fully powered up state, press the Power On switch for less than 4 seconds (default) and full operation is restored.

The OS may provide additional programming features to change the activation time for each state, and to shutdown or transition the ReadyBoard 620 at certain times, which depends on how the OS interface is programmed. Refer to the OS vendor’s documentation for power management under the ACPI standard.

NOTE Some operating systems use the keyboard, mouse, and Wake-on-LAN (Ethernet port)

as an activity to wake up the system from a sleep state. Refer to Table 3-17 for the conditions the ReadyBoard 620 currently supports for wake-up activity.

Wake-Up Activities

The wake-up events listed in Table 3-17 can be used to wake up the ReadyBoard 620 from any of the states mentioned.

Table 3-17. Wake-Up Activities and Conditions

Signal/Device Condition

Power On Switch If the Power On switch is pressed for more than 4-to-6 seconds, the system

will wake up from any of the sleep states.

LAN Ports (2) If Resume On LAN is [Enabled], then the system will wake from one of the

sleep states through direct addressing, magic packets, or link status changes.

PS/2 Keyboard & Mouse

USB If you use a USB keyboard or mouse instead of a PS/2 device, the USB device

If you use a PS/2 keyboard or mouse, any activity from the keyboard or mouse could wake the system.

could wake the system.

34 Reference Manual ReadyBoard 620

Page 41

Chapter 4 BIOS Setup Utility

Introduction

This section assumes the user is familiar with general BIOS Setup Utility and does not attempt to describe the BIOS functions. Refer to the appropriate PC reference manuals for information about the on-board ROM-BIOS software interface. If ADLINK has added to or modified the standard functions, these functions will be described.

Entering BIOS Setup (VGA Display)

To access the BIOS Setup Utility using a VGA display for the ReadyBoard 620:

1. Turn on the VGA monitor and the power supply to the ReadyBoard 620.

2. Start Setup by pressing the [Del] key, when the following message appears on the boot screen.

Press <Del> to run SETUP

NOTE If the setting for Quick Boot is set to [Enabled], you may not see this prompt

appear on screen if the monitor is too slow to display it on start-up. If this happens, press the <Del> key early in the boot sequence to enter the BIOS Setup Utility.

3. Use the <Enter> key to select the screen menus listed in the Opening BIOS screen.

4. Follow the instructions at the bottom of each screen to navigate through the selections and modify any settings.

Entering BIOS Setup (Remote Access)

Once you set up the BIOS Utility for Remote Access (serial console or console redirection) in VGA mode, entering the BIOS in the remote access mode, is very similar to the method used when entering the BIOS with a VGA display.

1. Turn on the power supply to the ReadyBoard 620 and access the BIOS Setup Utility in VGA mode.

2. Set the BIOS feature Remote Access to [Enabled] under the Advanced menu.

3. Accept the default options or make your own selections for the balance of the Remote Access fields and record your settings.

4. Ensure you select the type of remote serial terminal you will be using and record your selection.

5. Select Save Changes and Exit and then shut down the ReadyBoard 620.

6. Connect the remote serial terminal (or the PC with communications software) to the COM port you selected on the ReadyBoard 620 using a Hot Cable or a standard null-modem serial cable.

7. Turn on the remote serial terminal (or the PC with communications software) and set it to the settings you selected and recorded earlier in the BIOS Setup Utility.

COM1, 115200, 8 bits, 1 stop bit, no parity, no flow control, and [Always] for Redirection After BIOS POST are the default settings for the ReadyBoard 620.

8. Restore power to the ReadyBoard 620 and look for the screen prompt shown below.

Press ^C to run SETUP

9. Press the CTRL–C keys to enter Setup early in the boot sequence if Quick Boot is set to [Enabled].

If Quick Boot is set to [Enabled], you may never see the screen prompt.

ReadyBoard 620 Reference Manual 35

Page 42

Chapter 4 BIOS Setup Utility

10. Use the <Enter> key to select the screen menus listed in the Opening BIOS screen.

NOTE The serial console port is not hardware protected, and is not listed in the COM table

within BIOS Setup Utility. Diagnostic software that probes hardware addresses may cause a loss or failure of the serial console functions.

PCI-ISA Bridge Mapping

The ReadyBoard 620 supports ISA bus based modules with an on-board PCI-ISA bridge. The PCI-ISA bridge optionally maps the following resources to ISA based modules:

• Memory

• I/O Ports

• IRQs

• DMA Channels

The ReadyBoard 620 system BIOS maps the above resources, based on information provided in the BIOS Setup screens. By default, only some of the I/O ports are mapped to ISA modules and any memory, IRQs or DMA channels to be mapped must be explicitly specified by the user in the BIOS Setup screens.

The IRQs are mapped with the “PCIPnP/IRQx” fields in BIOS setup (where x specifies the IRQ number.) The IRQs 3, 4, 5, 7, 9, 10, 11, 14, and 15 can be mapped to ISA based modules by changing the default setting for these IRQs from “Available” to “Reserved”.

ISA I/O ports, Memory, and DMA channels can be mapped to ISA modules on the “Boot/Boot Settings Configuration” BIOS setup screen. Six I/O port “windows” and four memory “windows” are available for mapping I/O Port or Memory regions to ISA modules by specifying the window length and base address.

By default, the following I/O port windows are mapped to ISA modules:

• 200-240h

• 240-260h

• 279h

• 300-340h

• 340-360h

• A79h

NOTE 279h and A79 are the ISA PnP ports used by the BIOS and an OS that supports this

feature to recognize ISA PnP (Plug and Play) cards.

By default, no memory windows are mapped to ISA modules.

Any of the DMA channels 0, 1, 2, 3, 5, 6, 7 can be mapped to ISA modules by changing the default setting of “LPC Bridge” to “ISA Bridge”.

For example, to configure an ISA Soundblaster PnP card with resources 220/5/1/5 (Port/IRQ/DMA/DMA) so that the Soundblaster would work in Windows XP, the following BIOS Setup changes would be required:

• ISA I/O Ports – no changes necessary. 220h is already mapped to ISA by default.

• IRQ – set IRQ5 to “Reserved” in BIOS Setup. See the paragraph above on mapping IRQs.

• DMA1 and DMA5 – set DMA Channels 1 and 5 to “ISA Bridge” in BIOS Setup. See paragraph above

on mapping DMA Channels.

36 Reference Manual ReadyBoard 620

Page 43

Chapter 4 BIOS Setup Utility

OEM Logo Utility (Splash Screen)

The ReadyBoard 620 BIOS supports a graphical logo screen, which can be customized by the user and displayed on screen when enabled through the BIOS Setup Utility. The graphical image can be a company logo or any custom image the user wants to display during the boot process. The custom image can be displayed as the first image displayed on screen during the boot process and remain there, depending on the options selected in BIOS Setup, while the OS boots.

Logo Image Requirements

The user’s image may be customized with any image editing tool, and the system will automatically convert the image into an acceptable format to the tools (files and utilities) provided by ADLINK. The ReadyBoard 620 OEM Logo utility supports the following image formats:

• Bitmap image

♦

16-Color, 640x480 pixels

♦

256-Color, 640x480 pixels

• JPG image

♦

16-Color, 640x480 pixels

• PCX image

♦

256-Color, 640x480 pixels

• A file size of not larger than the sample image

NOTE For procedures on loading custom images, see the OEM logo utility document

available on the Ampro By ADLINK, InfoCenter web page.

ReadyBoard 620 Reference Manual 37

Page 44

Chapter 4 BIOS Setup Utility

38 Reference Manual ReadyBoard 620

Page 45

Appendix A Technical Support

ADLINK Technology, Inc. provides a number of methods for contacting Technical Support listed in the

Table A-1 below. Requests for support through the Ask an Expert are given the highest priority, and usually

will be addressed within one working day.

• ADLINK Ask an Expert – This is a comprehensive support center designed to meet all your technical

needs. This service is free and available 24 hours a day through the Ampro By ADLINK web site at

http://ampro.custhelp.com

will help you with the common information requested by most customers. This is a good source of information to look at first for your technical solutions. However, you must register online if you wish to use the Ask a Question feature.

• Personal Assistance – You may also request personal assistance by creating an Ask an Expert account

and then going to the Ask a Question feature. Requests can be submitted 24 hours a day, 7 days a week. You will receive immediate confirmation that your request has been entered. Once you have submitted your request, you must log in to go to My Stuff area where you can check status, update your request, and access other features.

• InfoCenter – This service is also free and available 24 hours a day at the Ampro By ADLINK web site

at http://www.ampro.com service.

The InfoCenter was created as a resource for embedded system developers to share ADLINK’s knowledge, insight, and expertise. This page contains links to White Papers, Specifications, and additional technical information.

.This includes a searchable database of Frequently Asked Questions, which

. However, you must sign up online before you can login to access this

Table A-1. Technical Support Contact Information

Method Contact Information

Ask an Expert http://ampro.custhelp.com

Web Site http://www.ampro.com

Standard Mail ADLINK Technology, Incorporated

5215 Hellyer Avenue San Jose, CA 95138-1007, USA

ReadyBoard 620 Reference Manual 39

Page 46

Appendix A Technical Support

40 Reference Manual ReadyBoard 620

Page 47

Index

ACPI

Advanced Configuration and Power Interface

allows reduced power consumption

Architecture

EPIC (Embedded Platform for Industrial Com-

puting)

....................................................... 3

.............. 33

BIOS recovery

Oops! jumper

BIOS Setup

splash screen conversion

BIOS Setup Utility

accessing serial console accessing VGA Display can not see entry prompt using remote access watchdog timer (WDT)

................................................ 30

............................... 37

................................ 35

............................... 35

....................................... 35

................................. 31

console redirection

Hot cable serial console serial port settings

Console Redirection See also Remote Access

....................................................... 31

................................................. 31

......................................... 35

dimensions

ReadyBoard 620

............................................ 12

Embedded Platform for Industrial Computing (EPIC)

......................................................................... 3

Environmental specifications

ReadyBoard 620

............................................ 14

headers

header list pin sequence description pin-1 locations

Hot cable

console redirection modified serial cable serial console

........................................................ 9

............................... 10

............................................... 11

........................................ 31

..................................... 31

................................................. 31

Infrared (IrDA)

supported feature

Interrupt (IRQ) list

........................................... 29

.............................................. 16

jumper header locations ...................................... 11

Lithium Battery

Real Time Clock (RTC)

................................ 30

logo screen

requirements

..................................................37

major integrated circuit specifications

web sites

..........................................................2

PCI specifications

references

processor requirements

heatsinks

.........................................................1

........................................................14

ReadyBoard 620

ACPI features audio interface features block diagram can not see BIOS entry prompt CPU features current capability dimensions environmental requirements EPIC Architecture features Geode LX 800 CPU GPIO feature headers heatsink requirements input power major components (ICs) mechanical dimensions pin-1 locations power requirements product description see also supported features serial console features serial port features shared floppy/parallel interface splash screen customization USB port features wake up activity watchdog timer (WDT)

weight Real Time Clock (RTC) supported feature reference material

Infrared (IrDA) interface references

Compact Flash specifications

EPIC specifications

PC/104 specifications

PC/104-Plus specifications

PCI specifications

PCI-104 specifications

web sites

................................................33

..................................23

..................................................7

......................35

....................................................4

...........................................12

.....................................................12

..........................14

............................................3

.............................................................4

.........................................4

..................................................28

.............................................................9

....................................14

....................................................32

..................................8

..................................13

...............................................11

.......................................12

..........................................4

..............................4

....................................31

.........................................20

.....................18

...........................37

..........................................22

.............................................34

.................................31

............................................................12

...............................29

..........................1

..........................................1

......................................1

..............................1

............................................1

.....................................1

..........................................................1

.........30

ReadyBoard 620 Reference Manual 41

Page 48

Index

Remote Access

serial port settings

remote access

accessing BIOS Remote Access See also console redirection Remote Access See also serial console remote access See also serial console

......................................... 35

............................................. 35

Serial B

pin-out list serial communications software

serial console serial console

accessing BIOS

console redirection

Hot cable

modified serial cable

serial port settings

serial terminal

terminal emulation software Serial Console See also Remote Access serial terminal

ANSI-compatible

terminal emulation software sleep states (ACPI)

operating system (OS) power management

reduced power consumption

supported feature

wake up activity SMBus

supported features splash screen

customer defined supported features

200-pin DDR SODIMM socket

AC '97' Audio CODEC

AMD Geode LX800 CPU

audio interface

battery-free boot

Compact Flash socket

console redirection

CRT (VGA) interface

current capability

Ethernet interfaces

external battery

floppy disk drive

GPIO capability

header list

heatsinks

Hot cable

IDE drives

Infrared (IrDA) interface

input power (+5V)

IRQ assignments

jumper headers, on board

.....................................................21

................................................. 31

............................................. 35

........................................31

.......................................................31

.....................................31

......................................... 35

................................................ 31

.......................... 31

.......................................... 31

.......................... 31

......................... 33

........................................... 33

............................................ 34

......................................... 29

........................................... 37

...................... 4

................................. 23

............................... 4

...........................................5, 23

..............................................6

..................................... 5

....................................6, 31

................................6, 24

...........................................12

...........................................5

................................................ 6

.......................................5, 18

.........................................6, 28

........................................................ 9

........................................................ 14

.......................................................31

.......................................................4

...........................6, 29

......................................... 32

........................................... 16

..............................11

.. 33

LAN Boot (PXE) LVDS video interface memory map modified serial cable Oops! jumper (BIOS recovery) Optional PC/104 (ISA) bus parallel port PCI-104 physical dimensions power requirements power-on switch Real Time Clock (RTC) remote access required power-on connection reset switch, external root USB hubs serial console serial ports shared floppy/parallel interface shared keyboard/mouse over-current fuse shared PS/2 keyboard/mouse interface sleep states (ACPI) SMBus capability, external SMBus devices splash screen customization thermal monitoring thermal sensors USB 2.0 ports USB floppy disk drive video interfaces watchdog timer (WDT)

........................................................... 4

............................................ 6

................................... 24

................................................. 17

..................................... 31

................. 6, 30

............................. 4

...............................................5, 18

...................................... 13

....................................... 12

............................................ 28

............................ 6, 30

............................................ 6, 31

...................... 32

..................................... 28

................................................. 5

............................................. 6, 31

.................................................5, 20

................5, 18

........................................ 33

............................. 6

............................................. 29

......................6, 37

......................................... 6

............................................. 30

............................................5, 22

.................................... 5

............................................... 6

............................. 6, 31

Technical Support

Ask an Expert contact information InfoCenter

terminal emulation software

serial console

thermal cooling

heatsinks processor requirements

thermal sensors

supported feature

................................................ 39

....................................... 39

..................................................... 39

................................................. 31

........................................................ 14

................................. 14

........................................... 30

watchdog timer (WDT)

functions ReadyBoard 620 Doc & SW DVD source code examples

web sites

Compact Flash specifications infrared (IrDA) specifications major integrated circuit specifications PC/104 specifications PC/104-Plus specifications PCI-104 specifications

........................................................ 31

................................... 31

......................... 1

....................... 29

..................................... 1

............................. 1

.................................... 1

...... 6

........... 6

............... 31

............ 2

42 Reference Manual ReadyBoard 620

Page 49

Index

references ........................................................ 1

weight

ReadyBoard 620 ............................................12

ReadyBoard 620 Reference Manual 43

Page 50

Index

44 Reference Manual ReadyBoard 620
