Express-IBR

(Computer-on-Module)

Reference Manual

P/N 50-1Z132-1000

Notice Page

DISCLAIMER

ADLINK Technology, Incorporated makes no representations or warranties with respect to the contents of this manual or of the associated ADLINK products, and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. ADLINK shall under no circumstances be liable for incidental or consequential damages or related expenses resulting from the use of this product, even if it has been notified of the possibility of such damages. ADLINK reserves the right to revise this publication from time to time without obligation to notify any person of such revisions. If errors are found, please contact ADLINK at the address listed on this Notice Page.

TRADEMARKS

CoreModule and the Ampro logo are registered trademarks, and ADLINK, Little Board, LittleBoard, MightyBoard, MightySystem, MilSystem, MiniModule, ReadyBoard, ReadyBox, ReadyPanel, RuffSystem, and ReadySystem are trademarks of ADLINK Technology, Inc. All other marks are the property of their respective companies.

REVISION HISTORY

Revision Reason for Change Date

1000 Initial Release Nov/12

Audience

This manual provides reference only for computer design engineers, including but not limited to hardware and software designers and applications engineers. ADLINK Technology, Inc. assumes you are qualified to design and implement prototype computer equipment.

ii Reference Manual Express-IBR

Contents

Chapter 1 About This Manual ....................................................................................................1

Purpose of this Manual ....................................................................................................................1

References ......................................................................................................................................1

Chapter 2 Product Overview .....................................................................................................3

COM Express Concept ...................................................................................................................3

COM Express Architecture ..............................................................................................................4

Product Description..........................................................................................................................5

Module Features ........................................................................................................................5

Block Diagram ............................................................................................................................8

Major Components (ICs) .................................................................................................................9

Connectors, Headers, and Sockets ...............................................................................................11

Specifications ................................................................................................................................13

Physical Specifications ............................................................................................................13

Power Specifications ................................................................................................................14

Environmental Specifications ...................................................................................................17

Thermal/Cooling Requirements ................................................................................................18

Mechanical Specifications ........................................................................................................19

Chapter 3 Hardware .................................................................................................................21

Overview ........................................................................................................................................21

CPU ...............................................................................................................................................22

Graphics ........................................................................................................................................22

Memory ..........................................................................................................................................22

Interrupt Channel Assignments .....................................................................................................23

Memory Map .................................................................................................................................24

I/O Address Map ...........................................................................................................................25

COM Express A-B Connector .......................................................................................................26

LPC Interface............................................................................................................................26

SATA Interface .........................................................................................................................26

USB 2.0 Interface .....................................................................................................................26

Power Interface ........................................................................................................................26

Power Management .................................................................................................................27

Video Interfaces .......................................................................................................................27

Audio Interface .........................................................................................................................27

Ethernet Interface ....................................................................................................................27

I²C™ Bus .................................................................................................................................27

PCI Express™ ..........................................................................................................................27

System Management Bus (SMBus) .........................................................................................28

GPIO.........................................................................................................................................28

COM Express C-D Connector .......................................................................................................31

Digital Display Interface (DDI) ..................................................................................................31

PCI Express™ ..........................................................................................................................31

PCI Express Graphics (PEG) ...................................................................................................31

SDVO .......................................................................................................................................32

USB 3.0 Interface .....................................................................................................................32

Express-IBR Reference Manual iii

Contents

Miscellaneous ............................................................................................................................... 35

Watchdog Timer....................................................................................................................... 35

TPM (Trusted Platform Module)............................................................................................... 35

Hardware Voltage and Temperature Monitor .......................................................................... 35

System Fan ............................................................................................................................. 36

Serial Console.......................................................................................................................... 36

Chapter 4 BIOS Setup .............................................................................................................. 37

Introduction ................................................................................................................................... 37

Entering BIOS Setup (Local Video Display) ............................................................................. 37

Entering BIOS Setup (Serial Port Console) ............................................................................. 37

OEM Logo Screen (Splash Screen) .............................................................................................. 38

Logo Image Requirements....................................................................................................... 38

BIOS Setup Menus ....................................................................................................................... 38

BIOS Main Setup Screen ........................................................................................................ 39

BIOS Advanced Setup Screen ................................................................................................ 40

BIOS Chipset Setup Screen..................................................................................................... 46

BIOS Boot Setup Screen ......................................................................................................... 49

BIOS Security Setup Screen ................................................................................................... 50

BIOS Save & Exit Setup Screen .............................................................................................. 51

Appendix A Technical Support .................................................................................................. 53

Index ................................................................................................................................................. 55

List of Figures

Figure 2-1. Mini, Compact, Basic and Extended Form Factors ................................................. 4

Figure 2-2. Functional Block Diagram ....................................................................................... 8

Figure 2-3. Component Locations (Top Side).......................................................................... 10

Figure 2-4. Component Locations (Bottom Side) .................................................................... 11

Figure 2-5. Connector Locations (Top Side)............................................................................ 12

Figure 2-6. Connector Locations (Bottom Side) ...................................................................... 13

Figure 2-7. i3-3217UE Peak In-Rush Current and Duration .................................................... 15

Figure 2-8. i7-3517UE Peak In-Rush Current and Duration .................................................... 15

Figure 2-9. i7-3555LE Peak In-Rush Current and Duration..................................................... 16

Figure 2-10. i7-3612QE Peak In-Rush Current and Duration.................................................... 16

Figure 2-11. i7-3615QE Peak In-Rush Current and Duration.................................................... 17

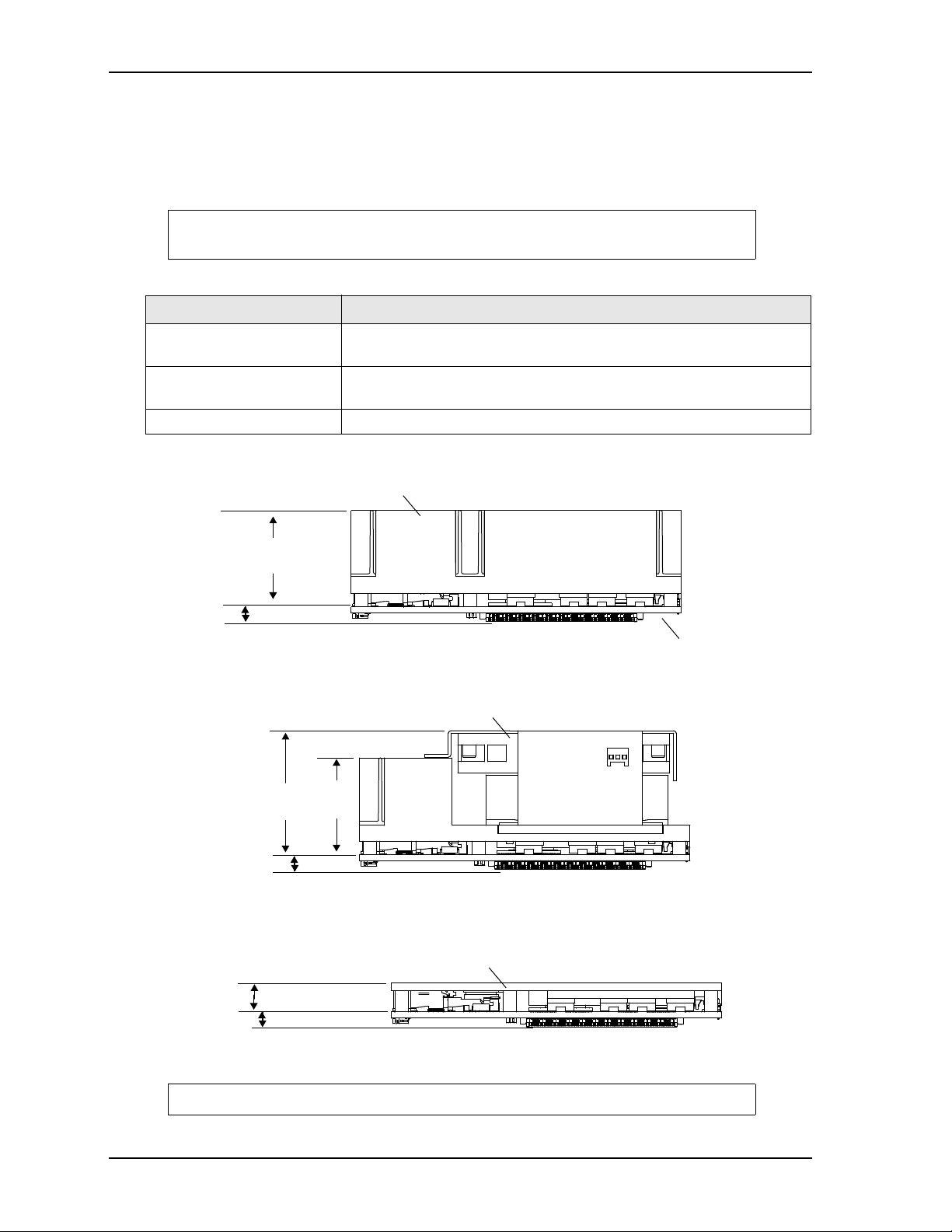

Figure 2-12. Stack Heights of Cooling Assemblies (Side Views) .............................................. 18

Figure 2-13. Mechanical Dimensions (Top Side)....................................................................... 19

Figure 3-1. Hot Cable Jumper ................................................................................................. 36

Figure 4-1. BIOS Main Setup Screen ...................................................................................... 39

Figure 4-2. BIOS Advanced Setup Screen .............................................................................. 40

Figure 4-3. BIOS Chipset Setup Screen.................................................................................. 46

Figure 4-4. BIOS Boot Setup Screen....................................................................................... 49

Figure 4-5. BIOS Security Setup Screen ................................................................................. 50

Figure 4-6. BIOS Save & Exit Setup Screen ........................................................................... 51

iv Reference Manual Express-IBR

List of Tables

Table 2-1. COM Express Pin-out Types ...................................................................................3

Table 2-2. Major Integrated Circuit Descriptions and Functions ...............................................9

Table 2-3. Module Connector and Socket Descriptions..........................................................11

Table 2-4. Weight and Footprint Dimensions..........................................................................13

Table 2-5. Power Supply Requirements ................................................................................14

Table 2-6. Environmental Requirements.................................................................................17

Table 2-7. ADLINK Optional Cooling Solutions.......................................................................18

Table 3-1. Interrupt Channel Assignments..............................................................................23

Table 3-2. Memory Map ..........................................................................................................24

Table 3-3. I/O Address Map ....................................................................................................25

Table 3-4. SMBus Reserved Addresses .................................................................................28

Table 3-5. COM Express A-B Connector Signal Descriptions (CN6)......................................28

Table 3-6. COM Express C-D Connector Signal Descriptions (CN7) .....................................32

Table 3-7. Optional System Fan (FAN1) ................................................................................36

Table 4-1. BIOS Setup Menus ................................................................................................38

Table A-1. Technical Support Contact Information..................................................................53

Contents

Express-IBR Reference Manual v

Contents

vi Reference Manual Express-IBR

Chapter 1 About This Manual

Purpose of this Manual

This manual provides reference for designers of systems based on the Express-IBR Computer-on-Module (COM). This manual contains information that permits designers to create an embedded system based on specific design requirements.

Information provided in this reference manual includes:

• Product Overview

• Hardware Specifications

• BIOS Setup Information

• Technical Support Information

Information not provided in this reference manual includes:

• Detailed chip specifications (refer to References section of this chapter for hyperlinks to chip

specifications)

• Internal component operation

• Internal registers or signal operations

• Bus or signal timing for industry standard buses and signals

• Pin-signal definitions for industry-standard interfaces

References

The following list of references may be helpful for you to complete your custom design successfully.

Specifications

• COM Express Specification Revision 2.0

Web site: http://www.picmg.org/

• PCIe Specification Revisions 2.0 and 3.0

Web site: http://www.pcisig.com/specifications/pciexpress/base

• I

C Bus Specification Version 2.1

Specification: http://www.nxp.com/documents/other/39340011.pdf

• USB Specification Versions 2.0 and 3.0

Web site: http://www.usb.org/developers

• SATA Specification Version 3.1

Web site: http://www.sata-io.org/

• LPC Specification Version 1.1

Web site: http://www.intel.com/design/chipsets/industry/lpc.htm

• SMBus Specification Version 2.0

Specification: http://smbus.org/specs/

• TPM (Trusted Platform Module) Specification 1.2, Level 2 Revision 103

Web site: http://www.trustedcomputinggroup.org/resources/tpm_main_specification

Express-IBR Reference Manual 1

Chapter 1 About This Manual

• ADLINK Intelligent Device Interface (AIDI) Library User’s Manual (See Utilities section of Product

page)

Web site: http://www.adlinktech.com/PD/web/PD_Driver.php?PDNo=1164&kind=UT

• AMI BIOS Aptio TSE User’s Guide

Datasheet: http://www.ami.com/support/doc/AMI_TSE_User_Manual_PUB.pdf

Chip Specifications

• Intel Corporation and the Mobile 3rd Generation Core™ i CPU Family, featured as the integrated

processor core and graphics memory hub

Web site: http://www.intel.com/p/en_US/embedded/hwsw/hardware/core-hm76/hardware

• Intel Corporation and the BD82QM77, 7 Series Express chipset, featured as the Platform Controller

Hub (PCH)

Web site: http://www.intel.com/p/en_US/embedded/hwsw/hardware/core-hm76/hardware

• ON Semiconductor and the ADT7490-D chip, featured as the temperature monitor and fan controller

Datasheet: http://www.onsemi.com/pub_link/Collateral/ADT7490-D.PDF

• Atmel Corporation and the AT97SC3204T-U1A190, featured as the Trusted Platform Module (TPM),

integrated security module

Web sit e : http://www.atmel.com/products/Embedded/default.asp?category_id=172&family_id=620

• Atmel Corporation and the ATMEGA168V-10AU, featured as the Board Controller

Datasheet: http://www.atmel.com/dyn/resources/prod_documents/2545S.pdf

• Atmel Corporation and the AT24C02C, featured as the I2C EEPROM

Datasheet: http://www.atmel.com/Images/doc8700.pdf

• Philips Corporation and the PCA9535BS chip, featured as the GPIO generator

Datasheet: http://www.datasheetcatalog.org/datasheet/philips/PCA9535.pdf

• Intel Corporation and the 82579LM chip used for the Gigabit Ethernet PHY transceiver

Datasheet: h

NOTE If you are unable to locate the datasheets using the links provided, search the internet

ttp://download.intel.com/design/network/datashts/82579.pdf

to find the manufacturer’s web site and locate the documents you need.

2 Reference Manual Express-IBR

Chapter 2 Product Overview

This introduction presents general information about the COM Express™ architecture and the Express-IBR Computer-on-Module (COM). After reading this chapter you should understand:

• COM Express concept

• COM Express architecture

• Express-IBR Product Description

• Express-IBR Major Components

• Express-IBR Connectors, Headers, and Sockets

• Express-IBR Specifications

COM Express Concept

COM Express is an open-industry standard, defined specifically for COM boards. Its creation provides the ability to make a smooth transition from legacy parallel interfaces to the newest technologies based on serial buses available today. COM Express modules are available in the following form factors:

• Mini 84mm x 55mm

• Compact 95mm x 95mm

• Basic 125mm x 95mm

• Extended 155mm x 110mm

The COM Express specification 2.0 defines seven different pinout types.

Table 2-1. COM Express Pin-out Types

Types Connector Rows PCI Express Lanes PCI IDE Channels LAN ports

Type 1 A-B Up to 6 1

Type 2 A-B C-D Up to 22 32 bit 1 1

Type 3 A-B C-D Up to 22 32 bit 3

Type 4 A-B C-D Up to 32 1 1

Type 5 A-B C-D Up to 32 3

Type 6 A-B C-D Up to 24 1

Type 10 A-B Up to 4 1

The Express-IBR utilizes the Basic form factor and the Type 6 pinout definition, featuring two high performance connectors that ensure stable data throughput. The Type 6 pinout removes the PCI interface signals and replaces them with DisplayPort and HDMI display signals, thereby expanding the range of potential video peripherals beyond the familiar VGA, LVDS, and SDVO interfaces.

The COM board integrates all core components and is mounted onto an application specific baseboard. COM boards are legacy-free designs (no Super I/O, PS/2 keyboard, and PS/2 mouse) and provide most of the functional requirements for any application. These functions include, but are not limited to a rich complement of contemporary, high-bandwidth serial interfaces such as PCI Express, SATA, USB 3.0, and Gigabit Ethernet. The robust thermal and mechanical concept of the COM board, combined with extended power management capabilities, is perfectly suited for all applications.

Express-IBR Reference Manual 3

Chapter 2 Product Overview

Mini Form Factor

Compact Form Factor

Basic Form Factor

Note: Measurements are in millimeters

Extended Form Factor

COM_FormFactors_b

Baseboard designers can utilize as little or as many of the I/O interfaces as necessary. The baseboard can therefore provide all the interface connectors required to attach the system to the application specific peripherals. This versatility allows the designer to create a dense and optimized package, which results in a more reliable product while simplifying system integration. Most importantly, COM Express modules are scalable, which means once an application has been created, the ability to diversify the product range is possible through the use of different performance class modules. Simply unplug one module and replace it with another. No redesign is necessary.

COM Express Architecture

The COM Express specification was developed by the PCI Industrial Computer Manufacturing Group (PICMG) in close collaboration with many leading companies across the embedded industry in order to find an implementation solution to handle upcoming new high-speed serial I/Os, processors, and chipsets. COM Express specifies four form factors, as well as seven different types of connector pinouts.

The four form factors are referred to as Mini, Compact, Basic, and Extended. The Mini form factor targets battery powered, mobile, and handheld system designs and features a footprint of just 84mm x 55mm. The Compact form factor is 95mm x 95mm, designed to match the requirements of small applications. The Basic module footprint is 125mm x 95mm and focuses on space-constrained, low power systems which typically do not contain more than one horizontal mounted SODIMM. The Extended footprint is slightly larger at 155mm x 110mm and supports up to two full-size, vertically mounted DIMM modules to accommodate larger memory configurations for high-performance CPUs, chipsets, and multiprocessor systems. The placement of the shielded 220-pin connectors and the mounting holes are identical between these four footprints.

Figure 2-1. Mini, Compact, Basic and Extended Form Factors

4 Reference Manual Express-IBR

Chapter 2 Product Overview

Product Description

The Express-IBR is an exceptionally high integration, high performance, rugged Intel Core™ processor based system compatible with the COM Express standard. This rugged and high quality module system contains all the component subsystems of an ATX motherboard.

The Intel Core processor incorporates a multi processor core with an integrated Graphics Memory Hub (GMH), providing a high-performance processor, a memory controller for up to 16GB of SODIMM memory, and a graphics controller for LVDS, VGA, PCI Express graphics (PEG), SDVO, DisplayPort, and HDMI signals driven by the PCH.

The Intel BD82QM77 chipset provides controllers for the Platform Controller Hub (PCH) featuring eight USB 2.0 ports, four USB 3.0 ports, four SATA ports, eight GPIO ports, and one Gigabit Ethernet interface (external magnetics required).

Expansion for additional system functions is possible on the Express-IBR through the PCIe, LPC, and I²C expansion buses. The PCIe, LPC, and I²C buses operate at clock speeds of 100MHz, 33MHz, and 3.4MHz, respectively.

The Express-IBR is particularly well suited for either embedded or portable applications and meets the size, power consumption, temperature range, quality, and reliability demands of embedded system applications.

Module Features

• CPU



Intel 1.8GHz (i3-3217UE), 1.7GHz (i7-3517UE), 2.1GHz (i7-3612QE), 2.3GHz (i7-3615QE), or

2.5GHz (i7-3555LE) 3rd Generation Core i series processors



DMI (Direct Media Interface) with 2 GB/s of bandwidth in each direction



FDI (Flexible Display Interface) for carrying display traffic to the PCH



Internal 256KB L2 cache



Enhanced Intel SpeedStep® Technology (EIST)

• Memory



Two standard 204-pin DDR3 SODIMM sockets



Supports +1.5V DDR3, 1333/1600MHz RAM up to 16GB total capacity



Supports only ECC, un-buffered memory

• Expansion Buses



PCIe between CPU/PCH and COM Express connectors



LPC (Low Pin Count) for LPC devices



I2C for fast mode I2C devices

• COM Express Interface



SATA Interface

• Provides four SATA ports

• Supports up to 6 Gb/s transfer speed on two ports

• Supports up to 3 Gb/s transfer speed on all ports

• Supports Native Command Queuing

• Provides Auto Activate for DMA

• Supports Hot Plug features

Express-IBR Reference Manual 5

Chapter 2 Product Overview



HD Audio

• Provides Intel HD Audio controller

• Supports Audio Docking

• Provides 32-bit sample depth

• Supports sample rates up to 192kHz



USB Port Interface

• Supports two root USB hubs

• Supports four USB 3.0 ports

• Supports eight EHCI USB 2.0 ports

• Supports legacy UHCI USB 1.1 signals

• Supports Per-Port-Disable



Ethernet Interface

• Provides Intel 82579LM Ethernet PHY transceiver chip

• Supports one Gigabit Ethernet port

• Supports IEEE 802.3, 802.3u, 802.3z, and 802.3ab compatible physical layers

• Supports Auto-negotiation for speed, duplex mode, and flow control

• Supports half duplex at 10/100Mb/s or full duplex at 10/100/1000Mb/s

- Full-duplex mode supports transmit and receive frames simultaneously

- Supports IEEE 802.3x flow control in full duplex mode

- Half-duplex mode supports enhanced proprietary collision reduction mode



Video Interfaces (VGA/LVDS/PEG/SDVO/DisplayPort/HDMI)

• Support the DisplayPort standard

• Support Graphics Performance Modulation Technology

• Support Intel Smart 2D Display Technology

• Support Graphics Render C-State

• Support Intel Seamless Display Refresh Rate Switching with eDP

• Provide an integrated RAMDAC with 32-bit color

• Provide digital HSYNC and VSYNC signals

• Support one SDVO port through Digital Port B at 200 MP/s (Megapixels/second)

• Support DisplayPort resolutions up to 2560x1600 pixels at 60Hz

• Support HDMI (with reduced blanking) resolutions up to 2560x1600 pixels at 60Hz

• Support VGA resolutions up to 2560x1600Hz pixels at 60Hz

• Support LVDS resolutions up to 1920x1200 pixels at 60Hz

• Provide 24-bit dual-channel LVDS output

• Support PCI Express Graphics (PEG)

6 Reference Manual Express-IBR

Chapter 2 Product Overview

• Miscellaneous



Real Time Clock (RTC) with external replaceable battery



Watchdog Timer (WDT)



TPM (Trusted Platform Module)



Hardware Voltage and Temperature Monitor



Logo Screen (Splash)



Serial Port Console

Express-IBR Reference Manual 7

Chapter 2 Product Overview

Express-IBR_blkdiag_a

COM Express Connector - Rows A and B

COM Express Connector - Rows C and D

CPU

Intel Core

i3-3217UE 1.8GHz (17W), i7-3517UE 1.7GHz (17W), i7-3555LE 2.5GHz (25W), i7-3612QE 2.1GHz (35W), i7-3615QE 2.3GHz (45W)

(with integrated Processor Core

and Graphics Memory Hub)

DDR3

SODIMM

Socket

DDR3

SODIMM

Socket

FDI

DMI

1333/1600MHz,

1.5V, 16GB Max. (Total)

PCH Intel

BD82QM77

(Southbridge)

Gigabit

Ethernet

Intel

82579LM

PCIe x1 (6) SMBus

LVDS (24-bit, dual channel)

Intel - HD Audio Link

SATA (4)

PCIe x1 (1), Lane 8

PCIe x1 (1), Lane 7

PCIe x1 (1)

PCIe x1 (6), Lanes 1-6

USB 2.0 (8)

USB 3.0 (4)

LPC

SMBus

VBATT (RTC)

I2C

LVDS DDC I2C

WDT

Board

Controller

I2C EEPROM

GPIO

Generator

Hardware

Monitor

SPI

TPM

SDVO / DisplayPort / HDMI (DDI1)

DisplayPort / HDMI (DDI2)

DisplayPort / HDMI (DDI3)

GPIO

GLAN

PCIe x16 Graphics (1) [PEG], 1x16; 2x8; 1x8 & 2x4

VGA

Channel - A

Channel - B

12V Input

5V Standby

SDVO / DP / HDMI DP / HDMI

PCIe x16 (1) [PEG]

Gb Ethernet

I2C

GPIO (8)

USB 2.0 (8)

USB 3.0 (4)

LPC

VGA

VBATT WDT

HD Audio

SPI

SATA (4)

LVDS

Debug Port

BIOS

PWR Management

Block Diagram

Figure 2-2 provides a functional representation of the module.

Figure 2-2. Functional Block Diagram

8 Reference Manual Express-IBR

Chapter 2 Product Overview

Major Components (ICs)

Table 2- 2 lists the major integrated circuits on the Express-IBR, including a brief description of each IC. Figures 2-3 and 2-4 show the locations of the major ICs.

Table 2-2. Major Integrated Circuit Descriptions and Functions

Chip Type Mfg. Model Description Function

CPU (U1) Intel Core i Series

(i3-3217UE, i7-3517UE, i7-3555LE, i7-3612QE, and i7-3615QE)

PCH (Platform Controller Hub [U3])

Hardware Monitor (U6) [on bottom side; see Figure 2-4

on page 11]

TPM (Trusted Platform Module [U7])

Board Controller (U8) [on bottom side; see

Figure 2-4 on page 11]

GPIO Generator (U9)

Intel BD82QM77

(PCH)

ON Semiconductor

Atmel AT97SC3204-

Atmel ATMEGA168V-

Philips PCA9535BS Module providing 16

ADT7490-D Remote Voltage and

U1A90

10AU

1.8GHz (17W),

1.7GHz (17W),

2.5GHz (25W),

2.1GHz (35W), and

2.3GHz (45W) processors with up to 8MB L3 cache

I/O hub providing Southbridge functions (standard I/O functions)

Temperature Monitor and Fan Controller

Complete turnkey system that integrates industry-leading Atmel AV R  micro-controller architecture, Atmel EEPROM technology, and Atmel Security technology on a single chip

Micro controller for board functions

including I²C, Watchdog Timer, and LV DS

bits of GPIO expansion for I²C/SMBus

applications

Provides integrated processor core, memory hub, and graphics hub

Provides I/O interfaces such as USB, SATA, and video

Provides system thermal protection

Provides an integrated, protected, nonvolatile solution for strong public key security, intellectual property protection, system integrity, authentication, and secure communications

Optimizes power consumption versus processor speed

Provides additional digital control lines

Express-IBR Reference Manual 9

Chapter 2 Product Overview

U46

Key: U1 - CPU U3 - PCH U7 - TPM U9 - GPIO Generator U46 - Gb Ethernet

Express-IBR_Top_Comp_a

Table 2-2. Major Integrated Circuit Descriptions and Functions (Continued)

I²C EEPROM (U42)

Atmel AT24C02C-

XHM-T

2-wire, 2Kb Serial EEPROM

Provides storage for module board status and identification

through the I²C pins on the COM Express interface (B33–I2C_CK and B34–I2C_DAT)

Gigabit Ethernet PHY Transceiver (U46)

Intel 82579LM Ethernet PHY

transceiver for 10T/100TX/1000T Gigabit Ethernet function

Provides a standard IEEE

802.3 Ethernet interface for Ethernet transfer rate up to 1000 Mb/s

Figure 2-3. Component Locations (Top Side)

10 Reference Manual Express-IBR

Chapter 2 Product Overview

Express-IBR_Bottom_Comp_a

Key: U6 - Hardware Monitor U8 - Board Controller U42 - I²C EEPROM

U42

Figure 2-4. Component Locations (Bottom Side)

Connectors, Headers, and Sockets

Table 2- 3 describes the connectors, headers, and sockets shown in Figures 2-5 and 2-6.

Table 2-3. Module Connector and Socket Descriptions

Jack/Plug # Board

Access

J5 – Memory Top 204-pin socket for un-buffered, ECC DDR3 SODIMM -

J6 – Memory Top 204-pin socket for un-buffered, ECC DDR3 SODIMM -

CN1 – XDP Debug (see

Bottom 26-pin, 0.020" (0.50mm) right-angle debug port connector

Figure 2-6 on page 13.)

CN4 – LPC Debug Top 10-pin, .050" (1.27mm) female debug port header for

CN6 – COM Express A-B

Bottom 220-pin standard connector for Northbridge Video and

(see Figure 2-6 on page 13.)

Description

Channel A

Channel B

for the CPU and PCH

issues such as Port 80 POST errors

Southbridge I/O functions

Express-IBR Reference Manual 11

Chapter 2 Product Overview

Pin 1

Pin 2

Pin 4

1 2

Pin 3

SW1 Configuration Switch

CN4

FAN1

Key: J5 - Channel A SODIMM socket J6 - Channel B SODIMM socket FAN1 - CPU Fan CN4 - LPC

Express-IBR_Top_Conn_a

Table 2-3. Module Connector and Socket Descriptions (Continued)

CN7 – COM Express C-D (see Figure 2-6 on page 13.)

Bottom 220-pin standard connector for Northbridge Video and

Southbridge I/O functions

FAN1 – System Fan Top 3-pin, 0.049" (1.25mm) right-angle shrouded header

controlled by the Hardware Monitor for CPU and PCH cooling

SW1 – PCIe x16 Lane Configuration Switch (see

Figure 2-6 on page 13.)

Bottom 4-pin dip switch for selecting CPU PCIe x16 lane

configurations

Switch Positions

Lane Configurations Pin 1, Pin 2 (off, off) = 1x8, 2x4 Pin 1, Pin 3 (off, on) = Reserved Pin 4, Pin 2 (on, off) = 2x8 Pin 4, Pin 3 (on, on) = 1x16 [Default]

Figure 2-5. Connector Locations (Top Side)

12 Reference Manual Express-IBR

NOTE Pin 1 is shown as a black square on connectors in all illustrations.

Chapter 2 Product Overview

Express-IBR_Bottom_Conn_a

Key: CN1 - XDP CN6 - COM Express A1-A110 and B1-B110 CN7 - COM Express C1-C110 and D1-D110 SW1 - PCI Express x16 Configuration Switch

C D

CN7

CN1

SW1

CN6

A B

1 2

Specifications

Physical Specifications

Table 2- 4 lists the physical dimensions of the module.

Table 2-4. Weight and Footprint Dimensions

Item Dimension

Weight 0.14 kg (0.30 lb)

Height (overall) 9.20mm (0.36 inches)

Board thickness 2.362mm (0.093 inches)

Width 95.00mm (3.74 inches)

Length 125.00mm (4.92 inches)

Figure 2-6. Connector Locations (Bottom Side)

NOTE Overall height is measured from the

upper board surface to the highest permanent component on the upper board surface. This measurement does not include the cooling solutions. The heights of the board with the cooling solutions are 36.58mm for the passive heatsink (without fan), 46.74mm for the active heat sink (with fan) and 10.92mm for the heat spreader. See Figure 2-12.

Express-IBR Reference Manual 13

Chapter 2 Product Overview

Power Specifications

Table 2- 5 provides the power requirements for the Express-IBR with 1.7, 1.8, 2.1, 2.3, and 2.5 GHz CPUs

and a 430 watt power supply.

Table 2-5. Power Supply Requirements

Parameter 1.8 GHz CPU

(i3-3217UE)

Input Type (430 watt power supply)

In-Rush Peak Current and Duration

Idle Current & Power (Windows 7)

BIT Current & Power

S1 Mode Current & Power

S3 Mode Current & Power

Note: These measurements are of power consumed only by the module and do not include power

consumed by the baseboard.

Operating configurations:

+12V Regulated DC

See Figure 2-7 See Figure 2-8 See Figure 2-9 See Figure 2-10 See Figure 2-11

0.54A (6.42W)

1.23A (14.74W)

0.03A (0.14W)

0.24A (1.19W)

1.7 GHz CPU (i7-3517UE)

+12V Regulated DC

0.55A (6.59W)

1.88A (22.54W)

0.06A (0.29W)

0.24A (1.19W)

2.5 GHz CPU (i7-3555LE)

+12V Regulated DC

0.54A (6.45W)

2.02A (24.21W)

0.02A (0.11W)

0.24A (1.18W)

2.1 GHz CPU (i7-3612QE)

+12V Regulated DC

0.62A (7.39W)

3.06A (36.75W)

0.03A (0.15W)

0.24A (1.19W)

2.3 GHz CPU (i7-3615QE)

+12V Regulated DC

0.59A (7.08W)

3.52A (42.20W)

0.04A (0.22W)

0.24A (1.18W)

• In-rush operating configuration includes Express-BASE6 baseboard, CRT monitor, 4GB DDR3-1333

RAM with ECC. (Caution: A +5V standby input is applied to the baseboard before the +12V input for the In-Rush measurement is applied separately to the module.)

• Idle (Windows 7) operating configuration includes the in-rush configuration as well as one SATA 3.5"

hard drive, and PS2 keyboard and mouse.

• BIT (Burn-In-Test) operating configuration is the same as the Idle configuration.

• S1 (Standby) operating configuration is the same as Idle configuration.

• S3 (Suspend) operating configuration is the same as Idle configuration.

14 Reference Manual Express-IBR

Chapter 2 Product Overview

Figure 2-7. i3-3217UE Peak In-Rush Current and Duration

Figure 2-8. i7-3517UE Peak In-Rush Current and Duration

Express-IBR Reference Manual 15

Chapter 2 Product Overview

Figure 2-9. i7-3555LE Peak In-Rush Current and Duration

Figure 2-10. i7-3612QE Peak In-Rush Current and Duration

16 Reference Manual Express-IBR

Chapter 2 Product Overview

Figure 2-11. i7-3615QE Peak In-Rush Current and Duration

Environmental Specifications

Table 2- 6 provides the operating and storage temperature ranges required for this module.

Table 2-6. Environmental Requirements

Parameter Conditions

Temperature

Operating –20° to +70°C (–4° to +158°F)

Extended (Optional) –40° to +85°C (–40° to +185°F)

Storage –55° to +85°C (–67° to +185°F)

Humidity

Operating 5% to 90% relative humidity, non-condensing

Non-operating 5% to 95% relative humidity, non-condensing

Express-IBR Reference Manual 17

Chapter 2 Product Overview

IBR_Cooling_Ht_a

0.43

1.84

1.44

0.22

Heat Sink

Fan

Heat Spreader

COM Board

Thermal/Cooling Requirements

The Express-IBR is designed to operate at its maximum CPU speeds of 1.7GHz, 1.8GHz, 2.1GHz, 2.3GHz, or 2.5GHz and requires a thermal solution to cool the CPU, PCH, and voltage regulators. ADLINK offers two optional cooling solutions as well as a heat spreader platform on which to build a cooling solution. (See

Table 2- 7 for descriptions of cooling options.)

NOTE The overall system design must keep the ICs within their operating temperature

specifications.

Table 2-7. ADLINK Optional Cooling Solutions

Cooling Solution Description

Passive Heat Sink (without fan)

Active Heat Sink (with fan)

Heat Spreader Provides a simple thermal platform on which to build a cooling solution.

Qualified to maintain optimal performance up to +70°C.

Qualified to maintain optimal performance up to +85°C. (Note: The i7-3612QE and i7-3615QE CPUs require fans.)

Figure 2-12. Stack Heights of Cooling Assemblies (Side Views)

NOTE All heights are given in inches.

18 Reference Manual Express-IBR

Chapter 2 Product Overview

Express-IBR_mech_dwg_a

0.16

0.65

1.43

0.00

4.76

4.70

4.15

3.15

2.92

4.92

3.74

3.58

3.50

3.03

2.27

0.16

0.00

Mechanical Specifications

The following figure provides mechanical dimensions of the Express-IBR. Figure 2-13 shows the top-side view of the board with measurements between mounting holes.

Figure 2-13. Mechanical Dimensions (Top Side)

NOTE All dimensions are given in inches.

Express-IBR Reference Manual 19

Chapter 2 Product Overview

20 Reference Manual Express-IBR

Chapter 3 Hardware

Overview

This chapter discusses the module features in the following order:

• CPU

• Graphics

• Memory

• Interrupt Channel Assignments

• Memory Map

• I/O Address Map

• COM Express Connector A-B



LPC interface



SATA interface



USB 2.0 interface



Power interface



Power Management



Video interfaces



HD Audio interface



Gigabit Ethernet interface



I²C interface



PCI Express interface



SMBus



GPIO interface

• COM Express Connector C-D



DDI (Digital Display Interface [SDVO / DisplayPort / HDMI])



PCI Express interface



PCI Express Graphics (PEG) interface



USB 3.0 interface

• Miscellaneous



Watchdog Timer



TPM (Trusted Platform Module)



Hardware Monitor (Voltage and Temperature)



System Fan Interface signals



Serial Port Console

Express-IBR Reference Manual 21

Chapter 3 Hardware

NOTE ADLINK Technology, Inc. only supports the features/options tested and listed in

this manual. The main chips used in the Express-IBR may provide more features or options than are listed for the Express-IBR, but some of these features/options are not supported on the module and will not function as specified in the chip documentation.

CPU

The Express-IBR offers five versions of the Intel Core™ i CPU—the i3-3217UE, i7-3517UE, i7-3612QE, i7-3615QE, and i7-3555LE—operating at 1.8GHz, 1.7GHz, 2.1GHz, 2.3GHz, and 2.5GHz, respectively. The CPU integrates a high-performance, 64-bit, x86 multi Processor Core with Memory Controller and 3D Graphics Engine. This single chip is based on 32-nm process technology and provides an Intel Flexible Display Interface and a Direct Media Interface for high-speed connectivity to the PCH. The CPU also supports Intel Hyper-Threading Technology (4 cores, 8 threads) and up to 16GB of DDR3 memory at 1333/1600MHz for high overall performance.

Graphics

The CPU provides a refresh of the seventh generation graphics core, which features a substantial gain in performance and a decrease in power consumption. The next generation Intel Clear Video HD Technology includes a collection of video playback and enhancement features that improve the end user’s viewing experience including Encode/Transcode HD content, HD content playback, and superior image quality. Other graphics features of the CPU include support for DirectX 11.0, OpenGL 3.1, DirectX Video Acceleration (DXAV), Advanced Scheduler 2.0, 1.0, and XPDM.

Memory

The Express-IBR features dual-stacked SODIMM sockets for up to 16GB of DDR3 memory. The CPU provides an Integrated Memory Controller (IMC) with DDR3 protocols and two independent, 64-bit wide channels each supporting one un-buffered ECC SODIMM and employing up to two device ranks per channel. Single-channel mode is available when either Channel A or Channel B is populated, but not both. In dual-channel mode, both Channels must be populated and the SODIMM in Channel A must be greater or equal in size to the SODIMM in Channel B.

22 Reference Manual Express-IBR

Chapter 3 Hardware

Interrupt Channel Assignments

The interrupt channel assignments are shown in Table 3-1.

NOTE Tab le 3- 1 is only for reference. Interrupt channel assignments are tied to the

specific legacy Super I/O device residing on the baseboard. This table can be used with the baseboard in ADLINK’s Quick Start Kit.

Table 3-1. Interrupt Channel Assignments

Device vs IRQ No. 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Timer X

PS/2 Keyboard* X

Secondary Cascade X

COM1* O D

COM2* D O

Floppy* D

Parallel* O D

RTC X

Math Coprocessor X

PS/2 Mouse* X

SATA Primary* X

SATA Secondary* X

Audio Controller Automatically Assigned

PCI INTA Automatically Assigned

PCI INTB Automatically Assigned

PCI INTC Automatically Assigned

PCI INTD Automatically Assigned

USB Automatically Assigned

Video Automatically Assigned

Ethernet Automatically Assigned

*Located on the baseboard

Legend: D = Default, X = Fixed, O = Optional

NOTE The IRQs for the Ethernet, Video, and USB are automatically assigned by the

BIOS Plug and Play logic. Local IRQs assigned during initialization can not be used by external devices.

Express-IBR Reference Manual 23

Chapter 3 Hardware

Memory Map

The following table provides the common PC/AT memory allocations. Memory below 000500h is used by the BIOS.

Table 3-2. Memory Map

Base Address Function

00000000h - 0009FFFFh Conventional Memory

000A0000h - 000AFFFFh Graphics Memory

000B0000h - 000B7FFFh Mono Text Memory

000B8000h - 000BFFFFh Color Text Memory

000C0000h - 000CFFFFh Standard Video BIOS

000D0000h - 000DFFFFh Reserved for Extended BIOS

000E0000h - 000EFFFFh Extended System BIOS Area

000F0000h - 000FFFFFh System BIOS Area (Storage and RAM Shadowing)

Top 32, 64, or 128MB of Physical Memory

FFE00000h - FFFFFFFFh System Flash

Shared memory of Integrated Graphics

24 Reference Manual Express-IBR

Chapter 3 Hardware

I/O Address Map

Table 3- 3 provides the I/O address map.

NOTE Tab le 3- 3 is only for reference. I/O addresses are tied to the specific legacy

Super I/O device residing on the baseboard. This table can be used with the baseboard in ADLINK’s Quick Start Kit.

Table 3-3. I/O Address Map

Address (hex) Subsystem

0000-000F Primary DMA Controller

0020-0021 Master Interrupt Controller

0040-0043 Programmable Interrupt Timer (Clock/Timer)

004E-004F TPM (Trusted Platform Module)

0060 Keyboard Controller*

0061 NMI, Speaker control

0063 NMI Controller

0064 Keyboard Controller*

0065 NMI Controller

0067 NMI Controller

0070-007F CMOS RAM, NMI Mask Reg, RT Clock

0080 System reserved

0081-0083 DMA Page Registers

0084-0086 System reserved

0087 DMA Page Register

0088 System reserved

0089-008B DMA Page Registers

008C-008E System reserved

008F DMA Page Register

0090-0091 System reserved

0092 Fast A20 gate and CPU reset*

0093-009F System reserved

00A0-00A1 Slave Interrupt Controller

00A2-00BF System reserved

00C0-00DF Slave DMA Controller #2

00E0-00EF System reserved

00F0-00FF Math Coprocessor

01F0-01F7 SATA Controller

02F8-02FF Serial Port 2 (COM2)*

03B0-03BB Video (monochrome)

03C0-03DF Video (VGA)

03F8-03FF Serial Port 1 (COM1)*

Express-IBR Reference Manual 25

Chapter 3 Hardware

Table 3-3. I/O Address Map (Continued)

04D0-04D1 Edge/Level Trigger PIC

0CF9 Reset Control Register

*Located on the baseboard.

COM Express A-B Connector

This section provides descriptions of interfaces within the COM Express A-B connector. The COM Express connector interface comprises two identical 220-pin connectors (A-B and C-D). The COM Express A-B connector provides the following features:

• LPC interface

• SATA interface

• USB 2.0 interface

• Power interface

• Power Management

• Video interfaces

• HD Audio interface

• Gigabit Ethernet interface

• I²C interface

• PCI Express

• SMBus

• GPIO

LPC Interface

The Express-IBR offers the LPC (Low Pin Count) bus through the Intel® BD82QM77 (PCH). Many devices already exist for this Intel defined bus. The LPC bus corresponds approximately to a serialized ISA bus yet with a significantly reduced number of signals. Because of the software compatibility to the ISA bus, I/O extensions such as additional serial ports can be easily implemented on an application specific baseboard using this bus.

SATA Interface

Four Serial ATA connections are provided through the Intel BD82QM77 (PCH). SATA is an enhancement of parallel ATA therefore offering higher performance. As a result of this enhancement, the traditional restrictions of parallel ATA are overcome with respect to speed and EMI. SATA starts with a transfer rate of

1.5 Gb/s and can be expanded up to 3Gb/s on all ports and up to 6 Gb/s on SATA0 and SATA1 in order to accommodate future developments. SATA is completely protocol and software compatible to parallel ATA.

USB 2.0 Interface

The PCH offers four UHCI USB host controllers and two EHCI USB host controllers. These controllers comply with USB standard 1.1 and 2.0 and offer a total of eight USB ports through connector A-B. All ports are high-speed, full-speed, and low-speed capable. The port routing logic determines whether a USB port is controlled by one of the UHCI controllers or by one of the EHCI controllers.

Power Interface

A 12V voltage rail on both A-B and C-D COM Express connectors accepts the voltages required for the board. The RTC 3.3V battery feed and 5V standby functions draw power through the A-B connector.

26 Reference Manual Express-IBR

Chapter 3 Hardware

Power Management

The Express-IBR is ACPI 4.0a compliant. The board supports S0, S1, S3, S4, and S5 sleep states.

Video Interfaces

VGA

The Express-IBR graphics are driven by an Intel internal graphics interface which provides the interface for an analog display. A 340-MHz integrated, 32-bit RAM-based, Digital-to-Analog Converter (RAMDAC) converts up to 2048x1536 digital pixels at a maximum refresh rate of 75-Hz. Three 8-bit DACs provide R, G, B signals to the monitor.

LVDS

The Intel BD82QM77 PCH provides direct LVDS output. The output is independent of other panel interfaces. The LVDS interface will support 1 or 2 channels and can support four data pairs and one clock pair of LVDS (18 or 24-bit) in each channel.

Audio Interface

The High Definition (HD) Audio controller resides in the PCH and communicates with external codec(s) (such as audio and modem codecs) over the Intel HD Audio serial link. The PCH implements a single Serial Data Output signal (AC/HDA_SDOUT) that is connected to all external codecs. Four Serial Digital Input signals (AC/HDA_SDIN) support up to four codecs.

Ethernet Interface

The Express-IBR supports one Gigabit Ethernet interface, which can be enabled in BIOS Setup. The Ethernet interface is implemented from the 82579LM Ethernet transceiver and occupies PCI Express port 8. The Ethernet function supports multi-speed operation at 10/100/1000 Mbps and operates in full-duplex at all supported speeds or half duplex at 10/100 Mbps while adhering to the IEEE 802.3x flow control specification.

I²C™ Bus

The I²C bus is implemented through the use of the Atmel ATmega168 board controller. The board controller provides a Fast Mode (400kHz max.) multi-master I²C bus that has maximum I²C bandwidth. Use the ADLINK Intelligent Device Interface (AIDI) Library for access to the I²C bus. AIDI driver information is available on the Express-IBR Product page at: http://www.adlinktech.com AIDI User’s Manual describing how to use the I²C bus also reside in the Utilities tab of the Express-IBR Product page.

PCI Express

The Express-IBR offers six (6) PCI Express x1 lanes (lanes 1-6) through the COM Express A-B connector and one PCI Express x1 lane (lane 7) through the C-D connector. These lanes can be configured to support PCI Express edge cards or ExpressCards. Each x1 lane supports up to 5 GT/s bandwidth in each direction. Lanes 1-4 can be configured through the BIOS setup utility as four x1s or one x4 lane widths. Lanes 5-7 each can be independently enabled or disabled through the BIOS setup utility. The eighth x1 lane (lane 8) is utilized by the on-board Gigabit Ethernet transceiver and is not available as a PCIe lane. The PCI Express interface is based on the PCI Express Specification 2.0. The C-D connector also provides one PCIe x16 interface for a PCIe graphics (PEG) card or other PCIe expansion cards and can be configured using the onboard configuration switch (SW1).

™

. An AIDI demo program and the

Express-IBR Reference Manual 27

Chapter 3 Hardware

System Management Bus (SMBus)

The I/O Hub (PCH) contains an integrated SMBus controller with both a host and slave SMBus port; but the host cannot access the slave internally. The slave port allows an external master access to the PCH through the COM Express A-B connector. Table 3-4 lists the device names and corresponding reserved addresses on the SMBus.

Table 3-4. SMBus Reserved Addresses

Component Address (binary)

SODIMM A 1010,000x

SODIMM B 1010,010x

Hardware Temp and Voltage Monitor 1011,100x

GPIO Generator 1000,000x

Clock Generator 1101,001x

(A0h hex)

(A4h hex)

(2Eh hex)

(40h hex)

(D2h hex)

GPIO

The Express-IBR provides GPIO (General Purpose I/O) pins for custom use through the COM Express A-B connector. Use the ADLINK Intelligent Device Interface (AIDI) Library to configure the GPIO interface. AIDI driver information is available on the Express-IBR Product page at: http://www.adlinktech.com AIDI demo program and the AIDI User’s Manual describing how to use the GPIO pins also reside in the Utilities tab of the Express-IBR Product page.

For more information about GPIO pin operation, refer to the PCA9535BS GPIO Generator datasheet. See

“References” on page 1 for a hyper link to the datasheet.

. An

Table 3- 5 provides the pin signals for the COM Express A-B connector (CN6).

Table 3-5. COM Express A-B Connector Signal Descriptions (CN6)

Pin # Row A Pin # Row B

A1 GND B1 GND

A2 GBE0_MDI3- B2 GBE0_ACT# (PU 330E 3.3V)

A3 GBE0_MDI3+ B3 LPC_FRAME#

A4 GBE0_LINK100# (Ethernet Speed LED) B4 LPC_AD0

A5 GBE0_LINK1000# (Ethernet Speed LED) B5 LPC_AD1

A6 GBE0_MDI2- B6 LPC_AD2

A7 GBE0_MDI2+ B7 LPC_AD3

A8 GBE0_LINK# B8 LPC_DRQ0# (Int. PU 20k in PCH)

A9 GBE0_MDI1- B9 LPC_DRQ1# (Int. PU 20k in PCH)

A10 GBE0_MDI1+ B10 LPC_CLK

A11 GND B11 GND

A12 GBE0_MDI0- B12 PWRBTN# (PU 10k 3.3VStandby)

A13 GBE0_MDI0+ B13 SMB_CK (PU 8.2k 3.3V Standby)

A14 GBE0_CTREF B14 SMB_DAT (PU 8.2k 3.3V Standby)

A15 SUS_S3# B15 SMB_ALERT# (PU 10k 3.3V Standby)

A16 SATA0_TX+ B16 SATA1_TX+

A17 SATA0_TX- B17 SATA1_TX-

A18 SUS_S4# B18 SUS_STAT#

A19 SATA0_RX+ B19 SATA1_RX+

28 Reference Manual Express-IBR

Chapter 3 Hardware

Table 3-5. COM Express A-B Connector Signal Descriptions (CN6) (Continued)

A20 SATA0_RX- B20 SATA1_RX-

A21 GND B21 GND

A22 SATA2_TX+ B22 SATA3_TX+

A23 SATA2_TX- B23 SATA3_TX-

A24 SUS_S5# B24 PWR_OK (PU 10k 3.3V)

A25 SATA2_RX+ B25 SATA3_RX+

A26 SATA2_RX- B26 SATA3_RX-

A27 BATLOW# (PU 8.2k 3.3V S5 Standby;

B27 WDT

Int. PU 20k in PCH)

A28 ATA_ACT# (PU 10k 3.3V) B28 AC_SDIN2 (Int. PD 20k in PCH)

A29 AC/HDA_SYNC (Int. PD 20k in PCH) B29 AC_SDIN1 (Int. PD 20k in PCH)

A30 AC/HDA_RST# B30 AC_SDIN0 (Int. PD 20k in PCH)

A31 GND B31 GND

A32 AC/HDA_BITCLK B32 SPKR (Int. PD 20k in PCH)

A33 AC/HDA_SDOUT B33 I2C_CK (PU 4.7k 3.3V)

A34 BIOS_DISABLE# B34 I2C_DAT (PU 4.7k 3.3V)

A35 THRMTRIP# (PU 330R 3.3V) B35 THRM#

A36 USB6- (Int. PD 20k in PCH) B36 USB7- (Int. PD 20k in PCH)

A37 USB6+ (Int. PD 20k in PCH) B37 USB7+ (Int. PD 20k in PCH)

A38 USB_6_7_OC# (PU 10k 3.3V Standby) B38 USB_4_5_OC# (PU 10k 3.3V Standby)

A39 USB4- (Int. PD 20k in PCH) B39 USB5- (Int. PD 20k in PCH)

A40 USB4+ (Int. PD 20k in PCH) B40 USB5+ (Int. PD 20k in PCH)

A41 GND B41 GND

A42 USB2- (Int. PD 20k in PCH) B42 USB3- (Int. PD 20k in PCH)

A43 USB2+ (Int. PD 20k in PCH) B43 USB3+ (Int. PD 20k in PCH)

A44 USB_2_3_OC# (PU 10k 3.3V Standby) B44 USB_0_1_OC# (PU 10k 3.3V Standby)

A45 USB0- (Int. PD 20k in PCH) B45 USB1- (Int. PD 20k in PCH)

A46 USB0+ (Int. PD 20k in PCH) B46 USB1+ (Int. PD 20k in PCH)

A47 VCC_RTC B47 EXCD1_PERST#

A48 EXCD0_PERST# B48 EXCD1_CPPE# (PU 10k 3.3V)

A49 EXCD0_CPPE# (PU 10k 3.3V) B49 SYS_RESET# (PU 10k 5V )

A50 LPC_SERIRQ (PU 10k 3.3V) B50 CB_RESET#

A51 GND B51 GND

A52 PCIE6_TX+ B52 PCIE6_RX+

A53 PCIE6_TX- B53 PCIE6_RX-

A54 GPI0 (PU 10k 3.3V) B54 GPO1 (PU 10k 3.3V)

A55 PCIE5_TX+ B55 PCIE5_RX+

A56 PCIE5_TX- B56 PCIE5_RX-

A57 GND B57 GPO2 (PU 10k 3.3V)

A58 PCIE4_TX+ B58 PCIE4_RX+

A59 PCIE4_TX- B59 PCIE4_RX-

Express-IBR Reference Manual 29

Chapter 3 Hardware

Table 3-5. COM Express A-B Connector Signal Descriptions (CN6) (Continued)

A60 GND B60 GND

A61 PCIE3_TX+ B61 PCIE3_RX+

A62 PCIE3_TX- B62 PCIE3_RX-

A63 GPI1 (PU 10k 3.3V) B63 GPO3 (PU 10k 3.3V)

A64 PCIE2_TX+ B64 PCIE2_RX+

A65 PCIE2_TX- B65 PCIE2_RX-

A66 GND B66 WAKE0# (PU 1k 3.3V Standby)

A67 GPI2 (PU 10k 3.3V) B67 WAKE1# (PU 10k 3.3V Standby)

A68 PCIE1_TX+ B68 PCIE1_RX+

A69 PCIE1_TX- B69 PCIE1_RX-

A70 GND B70 GND

A71 LVDS_A0+ B71 LVDS_B0+

A72 LVDS_A0- B72 LVDS_B0-

A73 LVDS_A1+ B73 LVDS_B1+

A74 LVDS_A1- B74 LVDS_B1-

A75 LVDS_A2+ B75 LVDS_B2+

A76 LVDS_A2- B76 LVDS_B2-

A77 LVDS_VDD_EN (PD 100k) B77 LVDS_B3+

A78 LVDS_A3+ B78 LVDS_B3-

A79 LVDS_A3- B79 LVDS_BKLT_EN

A80 GND B80 GND

A81 LVDS_A_CK+ B81 LVDS_B_CK+

A82 LVDS_A_CK- B82 LVDS_B_CK-

A83 LVDS_I2C_CK (PU 2.2k 3.3V) B83 LVDS_BKLT_CTRL

A84 LVDS_I2C_DAT (PU 2.2k 3.3V) B84 VCC_5V_SBY

A85 GPI3 (PU 10k 3.3V) B85 VCC_5V_SBY

A86 RSVD B86 VCC_5V_SBY

A87 RSVD B87 VCC_5V_SBY

A88 PCIE_CK_REF+ B88 BIOS_DS1#

A89 PCIE_CK_REF- B89 VGA_RED (PD 150R)

A90 GND B90 GND

A91 SPI_POWER B91 VGA_GRN (PD 150R)

A92 SPI_MISO B92 VGA_BLU (PD 150R)

A93 GPO0 (PU 10k 3.3V) B93 VGA_HSYNC

A94 SPI_CLK B94 VGA_VSYNC

A95 SPI_MOSI B95 VGA_I2C_CK

A96 TPM_PP (PU 10k 3.3V) B96 VGA_I2C_DAT

A97 TYPE10# (Not Connected) B97 SPI_CS#

A98 SER0_TX (Not Connected) B98 RSVD

A99 SER0_RX (Not Connected) B99 RSVD

30 Reference Manual Express-IBR

Chapter 3 Hardware

Table 3-5. COM Express A-B Connector Signal Descriptions (CN6) (Continued)

A100 GND B100 GND

A101 SER1_TX (Not Connected) B101 FAN_PWMOUT

A102 SER1_RX (Not Connected) B102 FAN_TACHIN (PU 47k 3.3V)

A103 LID# (PU 1k 3.3V) B103 SLEEP# (PU 10k 3.3V Standby)

A104 VCC_12V B104 VCC_12V

A105 VCC_12V B105 VCC_12V

A106 VCC_12V B106 VCC_12V

A107 VCC_12V B107 VCC_12V

A108 VCC_12V B108 VCC_12V

A109 VCC_12V B109 VCC_12V

A110 GND B110 GND

COM Express C-D Connector

The COM Express C-D connector is a 220-pin connector providing the following features:

• Digital Display Interface (DDI)

• PCI Express

• PCI Express Graphics (PEG) interface

• SDVO functionality

• USB 3.0

Digital Display Interface (DDI)

The Digital Display Interface resides in the PCH and is divided into three digital ports (B, C, D). Each of these digital ports can be configured natively to drive HDMI and DisplayPort signals. Digital Port B can also be configured to drive SDVO signals.

PCI Express

The Express-IBR offers six (6) PCI Express x1 lanes (lanes 1-6) through the COM Express A-B connector and one PCI Express x1 lane (lane 7) through the C-D connector. These lanes can be configured to support PCI Express edge cards or ExpressCards. Each x1 lane supports up to 5 GT/s bandwidth in each direction. Lanes 1-4 can be configured through the BIOS setup utility as four x1s or one x4 lane widths. Lanes 5-7 can be independently enabled or disabled through the BIOS setup utility. The eighth x1 lane (lane 8) is utilized by the on-board Gigabit Ethernet transceiver and is not available as a PCIe lane. The PCI Express interface is based on the PCI Express Specification 2.0. The C-D connector also provides one PCIe x16 interface for a PCIe graphics (PEG) card or other PCIe expansion cards and can be configured using the on-board configuration switch (SW1).

™

PCI Express Graphics (PEG)

The Express-IBR supports the implementation of a PCIe x16 interface for an external high-performance PCI Express Graphics card or other general purpose PCI Express devices. It supports a theoretical bandwidth of up to 8GT/s and complies with the PCIe Gen3 standard. Each lane of the PEG interface consists of a receive and transmit differential signal pair designated from PEG_RX0 (+ and -) to PEG_RX15 (+ and -) and correspondingly from PEG_TX0 (+ and -) to PEG_TX15 (+ and -).

Express-IBR Reference Manual 31

Chapter 3 Hardware

SDVO

The PCH provides Serial Digital Video Output (SDVO) functionality and may be alternatively used for one third party SDVO compliant device connected to Digital Port B of the PCH.

USB 3.0 Interface

The Express-IBR offers state-of-the-art USB 3.0 support through the PCH using a USB 3.0 xHCI host controller. Features of the USB 3.0 interface include SuperSpeed, High-Speed, and Full-Speed signals, and support for data transfers up to 5Gb/s. The USB 3.0 interface delivers the signals for four USB 3.0 ports, ideal for HDTV, set-top box, and gaming console applications.

Table 3- 6 provides the pin signals for the COM Express C-D connector (CN7).

Table 3-6. COM Express C-D Connector Signal Descriptions (CN7)

Pin # Row C Pin # Row D

C1 GND D1 GND

C2 GND D2 GND

C3 USB3_SSRX0- D3 USB3_SSTX0-

C4 USB3_SSRX0+ D4 USB3_SSTX0+

C5 GND D5 GND

C6 USB3_SSRX1- D6 USB3_SSTX1-

C7 USB3_SSRX1+ D7 USB3_SSTX1+

C8 GND D8 GND

C9 USB3_SSRX2- D9 USB3_SSTX2-

C10 USB3_SSRX2+ D10 USB3_SSTX2+

C11 GND D11 GND

C12 USB3_SSRX3- D12 USB3_SSTX3-

C13 USB3_SSRX3+ D13 USB3_SSTX3+

C14 GND D14 GND

C15 DDI1_PAIR6+ D15 DDI1_CTRLCLK_AUX+

(DisplayPanel 1 Aux+ / HDMI1 / SDVO)

C16 DDI1_PAIR6- D16 DDI1_CTRLDATA_AUX-

(DisplayPane1 1 Aux- / HDMI1 / SDVO)

C17 RSVD D17 RSVD

C18 RSVD D18 RSVD

C19 PCIE_RX7+ D19 PCIE_TX7+

C20 PCIE_RX7- D20 PCIE_TX7-

C21 GND D21 GND

C22 PCIE_RX8+ (Not Available) D22 PCIE_TX8+ (Not Available)

C23 PCIE_RX8- (Not Available) D23 PCIE_TX8- (Not Available)

C24 DDI1_HPD (Hot Plug Detect) D24 RSVD

C25 DDI1_PAIR4+ D25 RSVD

C26 DDI1_PAIR4- D26 DDI1_PAIR0+

C27 RSVD D27 DDI1_PAIR0-

C28 RSVD D28 RSVD

C29 DDI1_PAIR5+ D29 DDI1_PAIR1+

32 Reference Manual Express-IBR

Chapter 3 Hardware

Table 3-6. COM Express C-D Connector Signal Descriptions (CN7) (Continued)

C30 DDI1_PAIR5- D30 DDI1_PAIR1-

C31 GND D31 GND

C32 DDI2_CTRLCLK_AUX+

D32 DDI1_PAIR2+

(DisplayPanel2 Aux+ / HDMI2)

C33 DDI2_CTRLDATA_AUX-

D33 DDI1_PAIR2-

(DisplayPanel2 Aux- / HDMI2)

C34 DDI2_DDC_AUX_SEL

(DisplayPanel2 and HDMI2 Select modes; PD 1M GND)

D34 DDI1_DDC_AUX_SEL

(DisplayPanel 1 and HDMI1 Select modes; PD 1M GND)

C35 RSVD D35 RSVD

C36 DDI3_CTRLCLK_AUX+

D36 DDI1_PAIR3+ (PU 8.2k 3.3V)

(DisplayPanel3 Aux+ / HDMI3)

C37 DDI3_CTRLDATA_AUX-

D37 DDI1_PAIR3-

(DisplayPanel3 Aux- / HDMI3)

C38 DDI3_DDC_AUX_SEL

D38 RSVD (DisplayPanel3 and HDMI3 Select modes; PD 1M GND)

C39 DDI3_PAIR0+ D39 DDI2_PAIR0+

C40 DDI3_PAIR0- D40 DDI2_PAIR0-

C41 GND D41 GND

C42 DDI3_PAIR1+ D42 DDI2_PAIR1+

C43 DDI3_PAIR1- D43 DDI2_PAIR1-

C44 DDI3_HPD (Hot Plug Detect) D44 DDI2_HPD (Hot Plug Detect)

C45 RSVD D45 RSVD

C46 DDI3_PAIR2+ D46 DDI2_PAIR2+

C47 DDI3_PAIR2- D47 DDI2_PAIR2-

C48 RSVD D48 RSVD

C49 DDI3_PAIR3+ D49 DDI2_PAIR3+

C50 DDI3_PAIR3- D50 DDI2_PAIR3-

C51 GND D51 GND

C52 PEG_RX0+ D52 PEG_TX0+

C53 PEG_RX0- D53 PEG_TX0-

C54 TYPE0# (Not Connected) D54 PEG_LANE_RV# (Lane reversal)

C55 PEG_RX1+ D55 PEG_TX1+

C56 PEG_RX1- D56 PEG_TX1-

C57 TYPE1# (Not Connected) D57 TYPE2# (PD 0E GND)

C58 PEG_RX2+ D58 PEG_TX2+

C59 PEG_RX2- D59 PEG_TX2-

C60 GND D60 GND

C61 PEG_RX3+ D61 PEG_TX3+

C62 PEG_RX3- D62 PEG_TX3-

C63 RSVD D63 RSVD

Express-IBR Reference Manual 33

Chapter 3 Hardware

Table 3-6. COM Express C-D Connector Signal Descriptions (CN7) (Continued)

C64 RSVD D64 RSVD

C65 PEG_RX4+ D65 PEG_TX4+

C66 PEG_RX4- D66 PEG_TX4-

C67 RSVD D67 GND

C68 PEG_RX5+ D68 PEG_TX5+

C69 PEG_RX5- D69 PEG_TX5-

C70 GND D70 GND

C71 PEG_RX6+ D71 PEG_TX6+

C72 PEG_RX6- D72 PEG_TX6-

C73 RSVD D73 GND

C74 PEG_RX7+ D74 PEG_TX7+

C75 PEG_RX7- D75 PEG_TX7-

C76 GND D76 GND

C77 RSVD D77 RSVD

C78 PEG_RX8+ D78 PEG_TX8+

C79 PEG_RX8- D79 PEG_TX8-

C80 GND D80 GND

C81 PEG_RX9+ D81 PEG_TX9+

C82 PEG_RX9- D82 PEG_TX9-

C83 RSVD D83 RSVD

C84 GND D84 GND

C85 PEG_RX10+ D85 PEG_TX10+

C86 PEG_RX10- D86 PEG_TX10-

C87 GND D87 GND

C88 PEG_RX11+ D88 PEG_TX11+

C89 PEG_RX11- D89 PEG_TX11-

C90 GND D90 GND

C91 PEG_RX12+ D91 PEG_TX12+

C92 PEG_RX12- D92 PEG_TX12-

C93 GND D93 GND

C94 PEG_RX13+ D94 PEG_TX13+

C95 PEG_RX13- D95 PEG_TX13-

C96 GND D96 GND

C97 RSVD D97 RSVD

C98 PEG_RX14+ D98 PEG_TX14+

C99 PEG_RX14- D99 PEG_TX14-

C100 GND D100 GND

C101 PEG_RX15+ D101 PEG_TX15+

C102 PEG_RX15- D102 PEG_TX15-

C103 GND D103 GND

34 Reference Manual Express-IBR

Chapter 3 Hardware

Table 3-6. COM Express C-D Connector Signal Descriptions (CN7) (Continued)

C104 VCC_12V D104 VCC_12V

C105 VCC_12V D105 VCC_12V

C106 VCC_12V D106 VCC_12V

C107 VCC_12V D107 VCC_12V

C108 VCC_12V D108 VCC_12V

C109 VCC_12V D109 VCC_12V

C110 GND D110 GND

Miscellaneous

Watchdog Timer

The Watchdog Timer (WDT) restarts the system if a mishap occurs, ensuring proper start-up after the interruption. Possible problems include failure to boot properly, the application software’s loss of control, failure of an interface device, unexpected conditions on the bus, or other hardware or software malfunctions. Use the ADLINK Intelligent Device Interface (AIDI) Library to configure the WDT interface. AIDI driver information is available on the Express-IBR Product page at: http://www.adlinktech.com program and the AIDI User’s Manual showing how to use the WDT function also reside in the Utilities tab of the Express-IBR Product page.

The WDT (Watchdog Timer) can be used both during the boot process and during normal system operation.

. An AIDI demo

• During the Boot process – If the OS fails to boot in the time interval set in the BIOS, the system will

reset.

Enable the WDT in the Custom Configuration Screen of BIOS Setup. Set the WDT for a time-out interval in seconds, between 1 and 255, in one second increments. Ensure you allow enough time for the boot process to complete and for the OS to boot. The OS or application must tickle the WDT as soon as it comes up. This can be done by accessing the hardware directly or through a BIOS call.

• During System Operation – The user can set up the WDT hardware through a BIOS call or by accessing

the hardware directly using the AIDI Library. The BIOS call must tickle the WDT in the time set when the WDT is initialized or the system will be reset.

• Watchdog Code example – ADLINK provides a source code example (AIDI demo program) on the

Express-IBR Product page of the web site illustrating how to control the WDT. The code example can be easily copied to your development environment to compile and test or make any desired changes before compiling.

TPM (Trusted Platform Module)

The Express-IBR provides a hardware chip called a Trusted Platform Module which is dedicated for security functions. Trusted Computing is an industry standard created for personal computer security. The BIOS allows you to enable or disable the TPM.

Hardware Voltage and Temperature Monitor

The Express-IBR provides a hardware monitor to ensure the health of your embedded system with built-in support for monitoring and control of system temperatures, fan speeds, and critical module voltage levels. The AIDI Library provides simple APIs at the application level to support these functions and adds alarm functions when voltage or temperature levels exceed the upper or lower limits set by the user. AIDI driver information for the Express-IBR is available on the Express-IBR Product page at:

http://www.adlinktech.com

Hardware Monitor also reside in the Utilities tab of the Express-IBR Product page.

. An AIDI demo program and the AIDI User’s Manual showing how to use the

Express-IBR Reference Manual 35

Chapter 3 Hardware

Standard DB9 Serial Port Connector (Female)

Rear View

Express-IBR_hotcable

System Fan

Table 3- 7 lists the pin signals of the System Fan interface, which provides a 3-pin, single-row header with

0.049" (1.25mm) pitch.

Table 3-7. Optional System Fan (FAN1)

Pin # Signal Description

1 HWM_PWM2 Modulation – This signal controls the fan speed

VCC +5.0/12.0 volts DC +/- 5%

HWM_TACH2 Fan Tachometer – This signal monitors the fan speed

Note: The shaded table cell denotes power or ground.

Serial Console

The Express-IBR supports the serial console (or console redirection) feature. This I/O function is provided by an ANSI-compatible serial terminal, or the equivalent terminal emulation software running on another system. This can be very useful when setting up the BIOS on a production line for systems that are not connected to a keyboard and display.

Serial Console Setup

The serial console feature is implemented by connecting a standard null modem cable or a modified serial cable (or “Hot Cable”) between one of the serial ports on the baseboard, such as COM 1, and the serial terminal or a PC with communications software. The BIOS Setup Utility controls the serial console settings on the Express-IBR. Refer to Chapter 4, BIOS Setup for the settings of the serial console option, the serial terminal, or PC with communications software, and the connection procedure.

Hot (Serial) Cable

To convert a standard serial cable to a Hot Cable, certain pins must be shorted together at the serial port (DB9) connector. For example, short together pins 7 (RTS) and 9 (RI) on COM port 1 (DB9) connector as shown in Figure 3-1.

Figure 3-1. Hot Cable Jumper

36 Reference Manual Express-IBR

Chapter 4 BIOS Setup

Introduction

This section assumes the user is familiar with general BIOS Setup and does not attempt to describe the BIOS functions. Refer to BIOS Setup Menus in this chapter for a map of the BIOS Setup settings. If ADLINK has added to or modified any of the standard BIOS functions, these functions will be described.

Entering BIOS Setup (Local Video Display)

To enter BIOS Setup using a local video display for the Express-IBR:

1. Turn on the display and the power supply to the Express-IBR.

2. Start Setup by pressing the [Delete] or [F2] keys (F2 allows you to load previous settings), when the following message appears on the boot screen.

Press <Delete> to run SETUP

3. Follow the instructions on the right side of each screen to navigate through the selections and modify any settings.

Entering BIOS Setup (Serial Port Console)

This section describes how to enter the BIOS setup through a remote serial terminal or PC.

1. Turn on the power supply to the Express-IBR and enter the BIOS Setup Utility using a local video display.

2. Ensure the BIOS feature Serial Port Console Redirection is set to [Enabled] for COM 1 under the Advanced menu.

3. Accept the default options or make your own selections for the balance of the Console Redirection fields and record your settings.

4. Ensure you select the type of remote serial terminal you will be using and record your selection.

5. Select Save Changes and Exit and then shut down the Express-IBR.

6. Connect the remote serial terminal (or the PC with communications software) to the COM 1 serial port on the Express-IBR baseboard using a standard null modem cable or modified serial cable.

7. Turn on the remote serial terminal or PC and set it to the settings you selected earlier in the procedure.

The default settings for the Express-IBR are:



VT100+



115200 bits per second



8 data bits



no parity (none)



1 stop bit



no flow control (none)



Enabled VT-UTF8 Combo Key Support



Disabled Recorder Mode



Disabled Resolution 100x31



[80x24] for Legacy OS Redirection

8. Restore power to the Express-IBR.

Express-IBR Reference Manual 37

Chapter 4 BIOS Setup

9. Press the <F2> or <Delete> keys to enter Setup.

10. Use the <Enter> key to select the screen menus listed in the Opening BIOS screen.

NOTE The serial console port is not hardware protected. Diagnostic software that

probes hardware addresses may cause a loss or failure of the serial console functions.

OEM Logo Screen (Splash Screen)

The Express-IBR BIOS supports a graphical logo screen, which can be customized by the user (with assistance by an ADLINK Sales Representative) and displayed when enabled through the BIOS Setup Utility. The graphical image can be a company logo or any custom image the user wants to display during the POST process.

NOTE The Quiet Boot feature must be set to Enabled in the Boot settings of BIOS Setup for

the system to recognize the OEM Logo Screen.

Logo Image Requirements

Please contact your ADLINK Sales Representative for more information on OEM Logo Screen requirements.

BIOS Setup Menus

This section provides illustrations of the six main setup screens in the Express-IBR BIOS Setup Utility. Below each illustration is a bullet list of the screen’s submenus and setting selections. The setting selections are presented in brackets after each submenu or menu item, and the optimal default settings are presented in bold. For more detailed definitions of the BIOS settings, refer to the AMI Aptio TSE User Manual: http://www.ami.com/support/doc/AMI_TSE_User_Manual_PUB.pdf

Table 4-1. BIOS Setup Menus

BIOS Setup Utility Menu Item/Topic

Main BIOS, Memory, and Board information, System Language, Date, and

Time

Advanced Launch PXE OpROM, Launch Storage OpROM, Clock Spread

Spectrum, Delay Before PCI Enumeration, ACPI, Trusted Computing, CPU, SATA, Intel TXT(LT), PCH-FW, Intel(R) Anti-Theft Technology, AMT, USB, Hardware Monitor, Super IO, Serial Port Console, and CPU PPM settings

Chipset PCH I/O and System Agent settings

Boot Setup Prompt Timeout, Bootup NumLock State, Quiet Boot, CSM16

Module Version, GateA20 Active, Option ROM Messages, Interrupt 19 Capture, Boot Option Priorities, and Hard Drive BBS Priorities settings

Security Setting or Changing Passwords

Save & Exit Exiting, Saving Changes, Discarding Changes, Resetting,

Restoring Defaults, Boot Override settings

38 Reference Manual Express-IBR

Chapter 4 BIOS Setup

BIOS Information

BIOS Vendor American Megatrends Core Version X.X.X.X Compliency UEFI X.X Project Version Express-IBR REV: XXX Build Date and Time XX/XX/XXXX XX:XX:XX

Access Level Administrator

Version X.XX.XXXX. Copyright (C) 20XX American Megatrends, Inc.

Express-IBR_BIOS_Main_a

Main Advanced Chipset Boot Security Save & Exit

[Setting Description]

: Select Screen

: Select Item

+/- : Change Opt.

F1 : General Help

Enter : Select

F2 : Previous Values F3 : Optimized Defaults F4 : Save & Exit ESC: Exit

System Date [Xxx XX/XX/20XX] System Time [XX:XX:XX]

System Language [Xxxxxxx]

System and Board Information

BIOS Main Setup Screen

• System and Board Information



BIOS Rev. : [XXX]

Figure 4-1. BIOS Main Setup Screen



BC Firmware Rev. : [X.X.X]



Manufacture Date : [XX/XX/20XX]



Last Repair Date : [XX/XX/20XX]



Serial Number : [XXXXXXXXXX]



Hardware Rev : [XXXXX-XXXX-XXXX]



LAN MAC ID : [XX-XX-XX-XX-XX-XX]



Boot Counter : [XXXXXXXX]



Running Time : [XXXXX Hrs]

• System Language, Date, & Time



System Language (English) – This field allows the user to select the language in which the system presents data (if available.)

Express-IBR Reference Manual 39

Chapter 4 BIOS Setup

Legacy OpROM Support

Version X.XX.XXXX. Copyright (C) 20XX American Megatrends, Inc.

Express-IBR_BIOS_Advanced_a

Main Advanced Chipset Boot Security Save & Exit

Launch PXE OpROM [Disabled] Launch Storage OpROM [Enabled]

Clock Spread Spectrum [Disabled] Delay before PCI enumeration [0]

CPU Configuration

ACPI Settings

SATA Configuration Intel TXT (LT) Configuration PCH-FW Configuration Intel (R) Anti-Theft Technology Configuration

Trusted Computing

AMT Configuration USB Configuration

W83627DHG Super IO Configuration

ADT 7490 H/W Monitor

Serial Port Console Redirection

CPU PPM Configuration

Display addon PCI/PCIE at POST

[Setting Description]

: Select Screen

: Select Item

+/- : Change Opt.

F1 : General Help

Enter : Select

F2 : Previous Values F3 : Optimized Defaults F4 : Save & Exit

ESC: Exit

Aptio Setup Utility - Copyright (C) 20XX American Megatrends. Inc.



System Date (day of week, mm:dd:yyyy) – This field requires the alpha-numeric entry of the day of week, day of the month, calendar month, and all 4 digits of the year, indicating the century plus year (Fri XX/XX/20XX).



System Time (hh:mm:ss) – This is a 24-hour clock setting in hours, minutes, and seconds.

BIOS Advanced Setup Screen

• Legacy OpROM Support



Launch PXE OpROM [Disabled; Enabled]



Launch Storage OpROM [Disabled; Enabled]



Clock Spread Spectrum [Disabled; Enabled]



Delay before PCI enumeration [0]

• ACPI Settings



ACPI Sleep State [S1 (CPU Stop Clock); S3 (Suspend to RAM)]



Emulation AT/ATX [Emulation AT; ATX]

40 Reference Manual Express-IBR

Figure 4-2. BIOS Advanced Setup Screen

Chapter 4 BIOS Setup

• Trusted Computing



TPM SUPPORT [Disabled; Enabled]



Current TPM Status Information [depends on board model]

• CPU Configuration



Intel(R) Core(TM) i CPU @ X.XXGHz



CPU Signature XXXxX



Microcode Patch X



Max CPU Speed XXXXMHz



Min CPU Speed XXXMHz



CPU Speed XXXX MHz



Processor Cores X



Intel HT Technology Supported



Intel VT-x Technology Supported



Intel SMX Technology Supported



64-bit Supported



L1 Data Cache 32 kB x 2



L1 Code Cache 32 kB x 2



L2 Cache 256 kB x 2



L3 Cache 4096 kB



Hyper-Threading [Disabled; Enabled]



Active Processor Cores [All; 1; 2]



Limit CPUID Maximum [Disabled; Enabled]



Execute Disable Bit [Disabled; Enabled]



Intel Virtualization Technology [Disabled; Enabled]

• SATA Configuration



SATA Controller(s) [Disabled; Enabled]



SATA Mode Selection [IDE; AHCI; RAID]



Serial ATA Port 0 Empty

• Software Preserve Unknown

• Port 0 [Disabled; Enabled]

• Hot Plug [Disabled; Enabled]



Serial ATA Port 1 Empty

• Software Preserve Unknown

• Port 1 [Disabled; Enabled]

• Hot Plug [Disabled; Enabled]



Serial ATA Port 2 Empty

• Software Preserve Unknown

• Port 2 [Disabled; Enabled]

Express-IBR Reference Manual 41

Chapter 4 BIOS Setup

• Hot Plug [Disabled; Enabled]



Serial ATA Port 3 Empty

• Software Preserve Unknown

• Port 3 [Disabled; Enabled]

• Hot Plug [Disabled; Enabled]

• Intel TXT (LT) Configuration

Intel Trusted Execution Technology Configuration

Intel TXT support only can be enabled/disabled if SMX is enabled. VT and VT-d support must also be enabled prior to TXT.

Secure Mode Extensions (SMX) Enabled

Intel TXT (LT) Support [Disabled]

• PCH-FW Configuration



ME FW Version X.X.XX.XXXX



ME Firmware Mode Normal Mode



ME Firmware Type Full Sku Firmware



ME Firmware SKU XMB

• Intel Anti-Theft Technology Configuration



Intel(R) Anti-Theft Technology [Disabled; Enabled]



Intel(R) Anti-Theft Technology Recovery [3]



Enter Intel(R) AT Suspend Mode [Disabled]

• AMT Configuration



Intel AMT [Disabled; Enabled]

• USB Configuration



USB Devices:

• X Drives, 2 Hubs



Legacy USB Support [Enabled; Disabled]



USB3.0 Support [Enabled; Disabled]



XHCI Hand-Off [Enabled; Disabled]



EHCI Hand-Off [Disabled; Enabled]



USB hardware delays and time-outs:

• USB transfer time-out [1 sec; 5 sec; 10 sec; 20 sec]

• Device reset time-out [10 sec; 20 sec; 30 sec; 40 sec]

• Device power-up delay [Auto; Manual]



Mass Storage Devices

• Xxxxxxxx XGB [Enabled; Disabled; Auto]

• ADT 7490 H/W Monitor



Smart Fan Mode Configuration

• Fan1 Smart Fan Mode [Manual Mode; Auto Mode (Module); Auto Mode (ADT 7490); Auto

Mode (CPU)]

• Fan1 expect PWM Output [255]

42 Reference Manual Express-IBR

Chapter 4 BIOS Setup

• Fan2 Smart Fan Mode [Manual Mode; Auto Mode (Module); Auto Mode (ADT 7490); Auto Mode (CPU)]

• Fan2 expect PWM Output/DC Voltage [255]



Module temperature : +XX C



ADT7490 temperature : +XX C



CPU temperature (By PECI) : +XX C



Module Fan1 Speed (In Module) : N/A



Module Fan2 Speed: (In Carrier) : N/A



Vtt : +X.XXX V



Vccp : +X.XXX V



Vcc : +X.XXX V



+5V : +X.XXX V



+12V : +XX.XXX V

• W83627DHG Super IO Configuration



Serial Port 1 Configuration

• Serial Port [Disabled; Enabled]

• Device Settings IO=3F8h; IRQ=4

• Change Settings [Auto

IO=3F8h; IRQ=4 IO=3F8h; IRQ=3,4,5,6,7,10,11,12 IO=2F8h; IRQ=3,4,5,6,7,10,11,12 IO=3E8h; IRQ=3,4,5,6,7,10,11,12 IO=2E8h; IRQ=3,4,5,6,7,10,11,12]



Serial Port 2 Configuration

• Serial Port [Disabled; Enabled]

• Device Settings IO=2F8h; IRQ=3

• Change Settings [Auto

IO=2F8h; IRQ=3 IO=3F8h; IRQ=3,4,5,6,7,10,11,12 IO=2F8h; IRQ=3,4,5,6,7,10,11,12 IO=3E8h; IRQ=3,4,5,6,7,10,11,12 IO=2E8h; IRQ=3,4,5,6,7,10,11,12]

• Device Mode [Standard Serial Port Mode IrDA Active pulse 1.6 uS IrDA Active pulse 3/16 bit time ASK-IR Inverting IRTX, Routed to IRRX ASK-IR Inverting IRTX 500KHz, Routed to IRRX ASK-IR Inverting IRTX, Demodulation to IRRX ASK-IR Inverting IRTX 500KHz, Demodulation to IRRX

Express-IBR Reference Manual 43

Chapter 4 BIOS Setup

• Serial Port Console Redirection



COM1

• Console Redirection [Disabled; Enabled]

• Console Redirection Settings

- Terminal Type [VT100; VT100+; VT-UTF8; ANSI]

- Bits per second [9600; 19200; 38400; 57600; 115200]

- Data Bits [7; 8]

- Parity [None; Even; Odd; Mark; Space]

- Stop Bits [1; 2]

- Flow Control [None; Hardware RTS/CTS]

- VT-UTF8 Combo Key Support [Disabled; Enabled]

- Recorder Mode [Disabled; Enabled]

- Resolution 100x31 [Disabled; Enabled]

- Legacy OS Redirection [80x24; 80x25]

- Putty KeyPad [VT100; LINUX; XTERMR6; SCO; ESCN; VT400]



COM2

• Console Redirection [Disabled; Enabled]

• Console Redirection Settings

- Terminal Type [VT100; VT100+; VT-UTF8; ANSI]

- Bits per second [9600; 19200; 38400; 57600; 115200]

- Data Bits [7; 8]

- Parity [None; Even; Odd; Mark; Space]

- Stop Bits [1; 2]

- Flow Control [None; Hardware RTS/CTS]

- VT-UTF8 Combo Key Support [Disabled; Enabled]

- Recorder Mode [Disabled; Enabled]

- Resolution 100x31 [Disabled; Enabled]

- Legacy OS Redirection [80x24; 80x25]

- Putty KeyPad [VT100; LINUX; XTERMR6; SCO; ESCN; VT400]

44 Reference Manual Express-IBR

Chapter 4 BIOS Setup



COM (SOL) (Pci Bus0, Dev22, Func3)

• Console Redirection [Disabled; Enabled]

• Console Redirection Settings

- Terminal Type [VT100; VT100+; VT-UTF8; ANSI]

- Bits per second [9600; 19200; 38400; 57600; 115200]

- Data Bits [7; 8]

- Parity [None; Even; Odd; Mark; Space]

- Stop Bits [1; 2]

- Flow Control [None; Hardware RTS/CTS]

- VT-UTF8 Combo Key Support [Disabled; Enabled]

- Recorder Mode [Disabled; Enabled]

- Resolution 100x31 [Disabled; Enabled]

- Legacy OS Redirection [80x24; 80x25]

- Putty KeyPad [VT100; LINUX; XTERMR6; SCO; ESCN; VT400]

• Display addon PCI/PCIE at POST



DAPP Enabled [Disabled; Enabled]

• CPU PPM Configuration



EIST [Disabled; Enabled]

(Enhance Intel SpeedStep Technology)



Turbo Mode [Disabled; Enabled]



CPU Power Consumption [255]



CPU C3 Report [Disabled; Enabled]

(Power Management)



CPU C6 Report [Disabled; Enabled]

(Power Management)



CPU C7 Report [Disabled; Enabled]

(Power Management)

Express-IBR Reference Manual 45

Chapter 4 BIOS Setup

Version X.XX.XXXX. Copyright (C) 20XX American Megatrends, Inc.

Express-IBR_BIOS_Chipset_a

Main Advanced Chipset Boot Security Save & Exit

System Agent (SA) Configuration

PCH-IO Configuration

[Setting Description]

: Select Screen

: Select Item

+/- : Change Opt.

F1 : General Help

Enter : Select

F2 : Previous Values

F3 : Optimized Defaults F4 : Save & Exit ESC: Exit

Aptio Setup Utility - Copyright (C) 20XX American Megatrends. Inc.

BIOS Chipset Setup Screen

Figure 4-3. BIOS Chipset Setup Screen

• PCH-IO Configuration



46 Reference Manual Express-IBR

Intel PCH RC Version X.X.X.X



Intel PCH SKU Name QMXX



Intel PCH Rev ID XX/XX



PCH LAN Controller [Enabled; Disabled]



BatteryMan chip select [LTC1760; LTC4100]



Restore AC Power Loss [Always Off; Always On; Last State]



BC I2C Speed Control [100khz; 200khz; 400khz]



Sleep & LID Button [Enabled; Disabled]

Chapter 4 BIOS Setup



PCH Azalia Configuration

• Azalia [Disabled; Enabled; Auto]

- Azalia Docking Support [Disabled; Enabled]

- Azalia PME [Disabled; Enabled]

- Azalia Internal HDMI Codec [Disabled; Enabled]



USB Configuration

• XHCI Pre-Boot Driver [Enabled; Disabled]

• xHCI Mode [Smart Auto; Auto; Enabled; Disabled]

- HS Port #1 Switchable [Disabled; Enabled]

- HS Port #2 Switchable [Disabled; Enabled]

- HS Port #3 Switchable [Disabled; Enabled]

- HS Port #4 Switchable [Disabled; Enabled]

- xHCI Streams [Disabled; Enabled]

• EHCI1 [Disabled; Enabled]

• EHCI2 [Disabled; Enabled]



PCI Express Configuration

• Target Link Speed [GEN1; GEN2]

• PCIE Ports 1-4 Configuration [Four x1 Ports; One x4 Port]

• PCI Express Root Port 1 (Main Switch) [Disabled; Enabled]

• PCI Express Root Port 2 [Disabled; Enabled]

• PCI Express Root Port 3 [Disabled; Enabled]

• PCI Express Root Port 4 [Disabled; Enabled]

• PCI Express Root Port 5 [Disabled; Enabled]

• PCI Express Root Port 6 [Disabled; Enabled]

• PCI Express Root Port 7 [Disabled; Enabled]

• PCI Express Port 8 is assigned to LAN

• System Agent (SA) Configuration

System Agent Bridge Name IvyBridge

System Agent RC Version X.X.X.X

VT-d Capability Supported



VT-d [Disabled; Enabled]



Graphics Configuration

IGFX VBIOS Version XXXX

IGFX Frequency XXX MHz

• Primary Display [Auto; IGFX; PEG]

• Internal Graphics [Disabled; Enabled]

• GTT Size [1MB; 2MB]

• Aperture Size [128MB; 256MB; 512MB]

Express-IBR Reference Manual 47

Chapter 4 BIOS Setup

• DVMT Pre-Allocated [32M; 64M; 96M; 128M; 160M; 192M; 224M; 256M; 288M; 320M; 352M; 384M; 416M; 448M; 480M; 512M; 1024M]

• DVMT Total Gfx Mem [128M; 256M; MAX]

• LCD Control

- Primary IGFX Boot Display [Auto; CRT; CRT + LVDS; DDI; DDI2; DDI3 or SDVODVI; LVDS]

- DDI function choose [DisplayPort; HDMI; SDVO-DVI]

- LCD Panel Type [640x480 LVDS; 800x600 LVDS; 1024x768 LVDS; 1280x1024 LVDS; 1400x1050 (DCLK 108MHz); 1400x1050 (DCLK 122MHz); 1600x1200 LVDS; 1366x768 LVDS; 1680x1050 LVDS; 1920x1200 LVDS; 1024x600 LVDS; 1280x600 LVDS; 1280x768 LVDS; 1280x800 LVDS; 1920x1080 LVDS; 2048x1536 LVDS]

- Active LFP [No LVDS; Int-LVDS]

- Panel Color Depth [18 Bit; 24 Bit]

- GTT LVDS Backlight Control [0%; 20%; 40%; 60%; 80%; 100%]

- GTT LVDS Backlight Inverter [PWM Inverted; PWM Normal]



NB PCIe Configuration

• PEG0 Not Present

- PEG0 - GEN X [Auto; Gen1; Gen2; Gen3]



Memory Information

Memory RC Version X.X.X.X

Memory Frequency XXXX Mhz

Total Memory XXXX MB (DDR3)

DIMM#1 XXXX MB (DDR3)

DIMM#2 XXXX MB (DDR3)

CAS Latency (tCL) X

Minimum delay time

- CAS to RAS (tRCDmin) X

- Row Precharge (tRPmin) X

- Active to Precharge (tRASmin) XX

48 Reference Manual Express-IBR

Chapter 4 BIOS Setup

Boot Configuration

Boot Option Priorities

CSM16 Module Version XX.XX

Version X.XX.XXXX. Copyright (C) 20XX American Megatrends, Inc.

Express-IBR_BIOS_Boot_a

Main Advanced Chipset Boot Security Save & Exit

Setup Prompt Timeout 1

Quiet Boot [Disabled]

Bootup NumLock State [On]

Option ROM Messages [Force BIOS]

GateA20 Active [Upon Request]

Interrupt 19 Capture [Enabled]

Boot Option #1 [UEFI: Built - in EFI . . . ]

[Setting Description]

: Select Screen

: Select Item

+/- : Change Opt.

F1 : General Help

Enter : Select

F2 : Previous Values F3 : Optimized Defaults F4 : Save & Exit

ESC: Exit

Aptio Setup Utility - Copyright (C) 20XX American Megatrends. Inc.

BIOS Boot Setup Screen

• Boot Configuration



Setup Prompt Timeout 1



Bootup NumLock State [On; Off]



Quiet Boot [Disabled; Enabled]

• CSM16 Module Version XX.XX



Gate A20 Active [Upon Request; Always]



Option ROM Messages [Force BIOS; Keep Current]



Interrupt 19 Capture [Disabled; Enabled]

• Boot Option Priorities



Boot Option #1 [UEFI: Built-in EFI Shell; Disabled]

Figure 4-4. BIOS Boot Setup Screen

Express-IBR Reference Manual 49

Chapter 4 BIOS Setup

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Version X.XX.XXXX. Copyright (C) 20XX American Megatrends, Inc.

Express-IBR_BIOS_Security_a

Main Advanced Chipset Boot Security Save & Exit

Administrator Password

User Password

[Setting Description]

: Select Screen

: Select Item

+/- : Change Opt.

F1 : General Help

Enter : Select

F2 : Previous Values F3 : Optimized Defaults F4 : Save & Exit

ESC: Exit

Aptio Setup Utility - Copyright (C) 20XX American Megatrends. Inc.

BIOS Security Setup Screen

• Administrator Password [Create New Password]

• User Password [Create New Password]

50 Reference Manual Express-IBR

Figure 4-5. BIOS Security Setup Screen

Chapter 4 BIOS Setup

Version X.XX.XXXX. Copyright (C) 20XX American Megatrends, Inc.

Express-IBR_BIOS_Save&Exit_a

Main Advanced Chipset Boot Security Save & Exit

Save Changes and Exit

Save Changes and Reset

Discard Changes and Exit

Discard Changes and Reset

Save Options

Boot Override

Save Changes Discard Changes

Save as User Defaults Restore User Defaults

Restore Defaults

UEFI: Built-in EFI Shell

[Setting Description]

: Select Screen

: Select Item

+/- : Change field

F1 : General Help

Enter : Select

F2 : Previous Values F3 : Optimized Defaults F4 : Save & Exit

ESC: Exit

Aptio Setup Utility - Copyright (C) 20XX American Megatrends. Inc.

BIOS Save & Exit Setup Screen



Save Changes and Exit

• Save configuration and exit? [Ye s ; No]



Discard Changes and Exit

• Quit without saving? [Ye s ; No]



Save Changes and Reset

• Save configuration and reset? [Ye s ; No]



Discard Changes and Reset

Figure 4-6. BIOS Save & Exit Setup Screen

• Reset without saving? [Ye s ; No]

• Save Options



Save Changes

• Save configuration [Ye s ; No]

Express-IBR Reference Manual 51



Discard Changes

• Load Previous Values [Ye s ; No]



Restore Defaults

• Load Optimized Defaults [Ye s ; No]

Chapter 4 BIOS Setup



Save as User Defaults

• Save configuration? [Ye s ; No]



Restore User Defaults

• Restore User Defaults? [Ye s ; No]

• Boot Override



UEFI: Built-in EFI Shell

• Save configuration and reset? [Ye s ; No]

52 Reference Manual Express-IBR

Appendix A Technical Support

ADLINK Technology, Inc.

Address: 9F, No.166 Jian Yi Road, Zhonghe District New Taipei City 235, Taiwan ᄅקؑխࡉ೴৬ԫሁ 166 ᇆ 9 ᑔ Tel: +886-2-8226-5877 Fax: +886-2-8226-5717 Email: service@adlinktech.com

Ampro ADLINK Technology, Inc.

Address: 5215 Hellyer Avenue, #110, San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com

ADLINK Technology (China) Co., Ltd.

Address: Ϟ⍋Ꮦ⌺ϰᮄᓴ∳催⾥ᡔು㢇᯹䏃 300 ো(201203) 300 Fang Chun Rd., Zhangjiang Hi-Tech Park,

Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com

ADLINK Technology, Inc. provides a number of methods for contacting Technical Support listed in the

Table A- 1 below. Requests for support through the Ask an Expert are given the highest priority, and usually

will be addressed within one working day.

• ADLINK Ask an Expert – This is a comprehensive support center designed to meet all your technical

needs. This service is free and available 24 hours a day through the Ampro By ADLINK web page at

http://www.adlinktech.com/AAE/

which will help you with the common information requested by most customers. This is a good source of information to look at first for your technical solutions. However, you must register online if you wish to use the Ask a Question feature.

ADLINK strongly suggests that you register with the web site. By creating a profile on the ADLINK web site, you will have a portal page called “My ADLINK” unique to you with access to exclusive services and account information.

• Personal Assistance – You may also request personal assistance by creating an Ask an Expert account

and then going to the Ask a Question feature. Requests can be submitted 24 hours a day, 7 days a week. You will receive immediate confirmation that your request has been entered. Once you have submitted your request, you must log in to go to the My Question area where you can check status, update your request, and access other features.

• Download Service – This service is also free and available 24 hours a day at

http://www.adlinktech.com

. This includes a searchable database of Frequently Asked Questions,

. For certain downloads such as technical documents and software, you must

Table A-1. Technical Support Contact Information

Method Contact Information

Ask an Expert http://www.adlinktech.com/AAE/

Web Site http://www.adlinktech.com

Standard Mail

Express-IBR Reference Manual 53

Appendix A Technical Support

ADLINK Technology Beijing

Address: ࣫ҀᏖ⍋⎔Ϟഄϰ䏃 1 োⲜ߯ࡼ࡯໻ E ᑻ 801 ᅸ(100085)

Rm. 801, Power Creative E, No. 1, B/D

Shang Di East Rd., Beijing, 100085 China Tel: +86-10-5885-8666 Fax: +86-10-5885-8625 Email: market@adlinktech.com

ADLINK Technology Shenzhen

Address: ⏅ഇᏖቅ⾥ᡔು催ᮄϗ䘧᭄ᄫᡔᴃು

A1 󰶀 2 ὐ C  (518057)

2F, C Block, Bldg. A1, Cyber-Tech Zone, Gao Xin Ave. Sec. 7,

High-Tech Industrial Park S., Shenzhen, 518054 China Tel: +86-755-2643-4858 Fax: +86-755-2664-6353 Email: market@adlinktech.com

ADLINK Technology (Europe) GmbH

Address: Nord Carree 3, 40477 Duesseldorf, Germany Tel: +49-211-495-5552 Fax: +49-211-495-5557 Email: emea@adlinktech.com

ADLINK Technology, Inc. (French Liaison Office)

Address: 15 rue Emile Baudot, 91300 Massy CEDEX, France Tel: +33 (0) 1 60 12 35 66 Fax: +33 (0) 1 60 12 35 66 Email: france@adlinktech.com

ADLINK Technology Japan Corporation

Address: ͱ101-0045 ᵅҀ䛑ҷ⬄⼲⬄䤯ފ⬎ 3-7-4

⼲⬄ 374 ɛɳ 4F

KANDA374 Bldg. 4F, 3-7-4 Kanda Kajicho,

Chiyoda-ku, Tokyo 101-0045, Japan Tel: +81-3-4455-3722 Fax: +81-3-5209-6013 Email: japan@adlinktech.com

ADLINK Technology, Inc. (Korean Liaison Office)

Address: 昢殾柢昢爎割昢爎壟 1506-25 穢壊 B/D 2 猻

2F, Hando B/D, 1506-25, Seocho-Dong, Seocho-Gu,

Seoul 137-070, Korea Tel: +82-2-2057-0565 Fax: +82-2-2057-0563 Email: korea@adlinktech.com

ADLINK Technology Singapore Pte. Ltd.

Address: 84 Genting Lane #07-02A, Cityneon Design Centre,

Singapore 349584 Tel: +65-6844-2261 Fax: +65-6844-2263 Email: singapore@adlinktech.com

ADLINK Technology Singapore Pte. Ltd. (Indian Liaison Office)

Address: No. 1357, "Anupama", Sri Aurobindo Marg, 9th Cross, JP Nagar Phase I, Bangalore - 560078, India Tel: +91-80-65605817 Fax: +91-80-22443548 Email: india@adlinktech.com

Table A-1. Technical Support Contact Information (Continued)

54 Reference Manual Express-IBR

Index

Advanced BIOS screen ....................................... 40

AIDI Library user’s manual AMI BIOS User’s Guide Ask an Expert (on-line) audio

description features

..................................................... 27

............................................................ 6

.................................. 2

...................................... 2

...................................... 53

Basic form factor .................................................. 3

BIOS

access to Setup Utility Advanced setup screen Boot setup screen Main setup screen Save & Exit setup screen Security setup screen serial console access

Setup Utility menus block diagram board

controller description

controller specification reference

dimensions Boot BIOS screen

....................................................... 8

.................................................... 13

............................................... 49

................................... 37

.................................. 40

.......................................... 49

......................................... 39

.............................. 51

..................................... 50

..................................... 37

....................................... 38

...................................... 9

.................... 2

chip specifications ................................................ 2

COM Express

A-B connector interfaces

architecture

C-D connector interfaces

concept

specification reference communications software, serial Compact form factor components (ICs) connectors, headers, and sockets console redirection cooling solutions Core i CPU

description

model descriptions

specification reference CPU description current measurements

...................................................... 4

............................................................ 3

............................................. 3

.................................................. 9

.............................................. 36

................................................. 18

.................................................5, 22

..........................................5, 9, 22

.............................. 26

.............................. 31

.................................... 1

........................ 36

........................ 11

.......................................... 9

.................................... 2

......................................... 14

DDI (Digital Display Interface) description ....... 31

DDR3 SODIMM dimensions DisplayPort

expansion

interface features

.................................................. 5

.......................................................... 13

........................................................ 3

............................................. 6

environmental specifications ...............................17

Ethernet

features interface description

transceiver description expansion buses Extended form factor

.............................................................6

......................................27

...................................10

.....................................................5

.............................................3

features list ............................................................5

form factors

...........................................................3

Gigabit Ethernet

interface description

interface features

transceiver description GPIO

generator description

generator specification reference

interface description graphics description

......................................27

..............................................6

...................................10

.......................................9

.....................2

......................................28

.............................................22

hardware

overview

voltage and temperature monitor HD Audio

interface description

interface features HDMI

expansion

interface features heat sink

descriptions

heights height hot cable (serial console) humidity ranges

........................................................21

.............. 7, 35

......................................27

..............................................6

.........................................................3

..............................................6

....................................................18

............................................................13

...................................................................13

.....................................36

...................................................17

I/O address map ...................................................25

I2C

bus description

EEPROM specification reference

specification reference integrated circuits Interrupt (IRQs) list

...............................................27

....................2

.....................................1

..................................................9

.............................................23

length ...................................................................13

Logo Screen (Splash) LPC

interface description

specification reference

.....................................7, 38

......................................26

.....................................1

Express-IBR Reference Manual 55

Index

LVDS

interface description interface features support

............................................................. 3

...................................... 27

............................................. 6

Main BIOS Screen .............................................. 39

major integrated circuits mechanical diagram memory

Mini form factor miscellaneous features module features

................................................................. 5

description map

..................................................... 22

................................................................24

.................................................... 3

..................................................... 5

....................................... 9

............................................ 19

....................................7, 35

OEM logo screen ................................................38

operating configurations, power measurement

... 14

PCH

description specification reference

PCI Express

bus description graphics (PEG) description graphics features specification reference

PHY transceiver

description

specification reference physical specifications pin-out types power

interface description

management support

measurements product description

....................................................... 9

....................................2

........................................27, 31

........................... 31

.............................................. 6

....................................1

..................................................... 10

....................................2

........................................13

......................................................... 3

...................................... 26

..................................... 27

................................................ 14

............................................... 5

Real Time Clock (RTC) ........................................ 7

references

.............................................................. 1

SATA

interface description

interface features

specification reference Save & Exit BIOS screen SDVO

interface description

interface features

support

............................................................. 3

Security BIOS screen serial

console

...........................................................36

console access to BIOS setup

console feature

...................................... 26

............................................. 5

....................................1

.................................... 51

...................................... 32

............................................. 6

.......................................... 50

........................ 37

................................................ 7

hot cable

terminal emulation software site preparation SMBus

controller description

specification reference SODIMM requirements specifications

board

references Splash Screen (Logo Screen) supported features

console redirection

Core i CPU

DDR3 SODIMM

expansion buses

Gigabit Ethernet interface

hardware voltage and temperature monitor

HD Audio

IRQ assignments

Logo Screen (Splash)

memory map

Real Time Clock (RTC)

SATA

serial console

system fan header

TPM (Trusted Platform Module)

USB ports

video interfaces

Watchdog Timer system fan interface

........................................................ 36

......................... 36

................................................... 17

.................................... 28

.................................... 1

...................................... 22

............................................................. 13

........................................................ 1

.............................. 38

........................................ 36

................................................5, 22

............................................. 5

.............................................. 5

............................... 6

.... 7

........................................................ 6

........................................... 23

................................7, 38

................................................. 24

.................................. 7

.............................................................. 5

................................................. 36

.......................................... 36

.................... 7

........................................................ 6

............................................... 6
