ADLINK DAQe-2502 User Manual

NuDAQ-2500 Series

High Performance Analog Output and

Multi-function Data Acquisition Cards

User’s Manual

Manual Rev. 2.01

Revision Date: March 19, 2006

Part No: 50-11221-2000

Advance Technologies; Automate the World.

Copyright 2007 ADLINK TECHNOLOGY INC.

All Rights Reserved.

The information in this document is subject to change without prior
notice in order to improve reliability, design, and function and does
not represent a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, spe­cial, incidental, or consequential damages arising out of the use or
inability to use the product or documentation, even if advised of
the possibility of such damages.

This document contains proprietary information protected by copy­right. All rights are reserved. No part of this manual may be repro­duced by any mechanical, electronic, or other means in any form
without prior written permission of the manufacturer.

Trademarks

Product names mentioned herein are used for identification pur­poses only and may be trademarks and/or registered trademarks
of their respective companies.

Getting service

Customer satisfaction is our top priority. Contact us should you
require any service or assistance.

ADLINK TECHNOLOGY INC.

Web Site http://www.adlinktech.com
Sales & Service [e-mail]
Telephone No. [phone]
Fax No. [phone]
Mailing Address 9F No. 166 Jian Yi Road, Chungho City,

Taipei Hsien 235, Taiwan, ROC

ADLINK TECHNOLOGY AMERICA, INC.

Sales & Service [e-mail]
Toll-Free +1-866-4-ADLINK (235465)
Fax No. [phone]
Mailing Address 8900 Research Drive, Irvine,

CA 92618, USA

ADLINK TECHNOLOGY EUROPEAN SALES OFFICE

Sales & Service [e-mail]
Toll-Free [phone]
Fax No. [phone]
Mailing Address Nord Carree 3, 40477 Düsseldorf, Germany

ADLINK TECHNOLOGY SINGAPORE PTE LTD

Sales & Service [e-mail]
Telephone No. [phone]
Fax No. [phone]
Mailing Address 84 Genting Lane #07-02A,

Cityneon Design Center, Singapore 349584

ADLINK TECHNOLOGY INDIA LIAISON OFFICE

Sales & Service [e-mail]
Telephone No. [phone]
Fax No. [phone]
Mailing Address No. 1357, Ground Floor, “Anupama”,

Aurobindo Marg JP Nagar (Ph-1)
Bangalore - 560078

ADLINK TECHNOLOGY BEIJING

Sales & Service [e-mail]
Telephone No. [phone]
Fax No. [phone]
Mailing Address 4F, Kostech Building, 262-2,

Yangjae-Dong, Seocho-Gu,
Seoul, 137-130, South Korea

ADLINK TECHNOLOGY BEIJING

Sales & Service [e-mail]
Telephone No. [phone]
Fax No. [phone]
Mailing Address Room 801, Building E, Yingchuangdongli

Plaza, No.1 Shangdidonglu,
Haidian District, Beijing, China

ADLINK TECHNOLOGY SHANGHAI

Sales & Service [e-mail]
Telephone No. [phone]
Fax No. [phone]
Mailing Address Floor 4, Bldg. 39, Caoheting Science and

Technology Park, No.333 Qinjiang Road,
Shanghai, China

ADLINK TECHNOLOGY SHENZHEN

Sales & Service [e-mail]
Telephone No. [phone]
Fax No. [phone]
Mailing Address C Block, 2nd Floor, Building A1,

Cyber-tech Zone, Gaoxin Ave. 7.S,
High-tech Industrial Park S.,
Nanshan District, Shenzhen,
Guangdong Province, China

Using this manual

1.1 Audience and scope

This manual guides you when using ADLINK NuDAQ-2500 Series
card. The card’s hardware, signal connections, and calibration
information are provided for faster application building. This man­ual is intended for computer programmers and hardware engi­neers with advanced knowledge of data acquisition and high-level
programming.

1.2 How this manual is organized

This manual is organized as follows:

Chapter 1 Introduction: This chapter introduces the NuDAQ­2500 Series card including its features, specifications and soft­ware support information.

Chapter 2 Installation: This chapter presents the card’s lay­out, package contents, and installation.

Chapter 3 Signal Connections: This part describes the
NuDAQ-2500 Series card signal connections.

Chapter 4 Operation Theory: The operation theory of the
NuDAQ-2500 Series card functions including A/D conversion,
D/A conversion, and programmable function I/O are discussed
in this chapter.

Chapter 5 Calibration: The chapter offers information on how
to calibrate the NuDAQ-2500 Series card for accurate data
acquisition and output.

Appendix: The Appendix demonstrates several waveform
generation and other related information.

Warranty Policy: This presents the ADLINK Warranty Policy
terms and coverages.

1.3 Conventions

Take note of the following conventions used throughout the man­ual to make sure that you perform certain tasks and instructions
properly.

NOTE Additional information, aids, and tips that help you per-

form particular tasks.

IMPORTANT Critical information and instructions that you MUST perform to

WARNING Information that prevents physical injury, data loss, mod-

complete a task.

ule damage, program corruption etc. when trying to com­plete a particular task.

Table of Contents

Table of Contents..................................................................... i

List of Tables.......................................................................... iii

List of Figures ........................................................................ iv

1 Introduction ........................................................................ 1

1.1 Features............................................................................... 1

1.2 Applications ......................................................................... 2

1.3 Specifications....................................................................... 3

Analog Output (AO) ........................................................ 3

Analog Input (AI) ............................................................. 4

General Purpose Digital I/O (G. P. DIO) ......................... 5

General Purpose Timer/ Counter (GPTC) ...................... 5

Analog Trigger (A.Trig) ................................................... 5

System Synchronous Interface (SSI) .............................. 6

Calibration ....................................................................... 6

Physical .......................................................................... 6

Operating Environment ................................................... 6

Storage Environment ...................................................... 6

1.4 Block Diagram ..................................................................... 7

1.5 Software Support ................................................................. 8

Programming Library ...................................................... 8

DAQ-LVIEW PnP: LabVIEW Driver ................................ 9

D2K-OCX: ActiveX Controls ........................................... 9

2 Installation ........................................................................ 11

2.1 Package Contents ............................................................. 11

2.2 Unpacking.......................................................................... 12

2.3 Card Layout ....................................................................... 13

DAQe-2502/2501 .......................................................... 13

DAQ-2502/2501 ............................................................ 14

DPXI-2501/2502 ........................................................... 15

2.4 PCI Configuration .............................................................. 16

Plug and Play ............................................................... 16

Configuration ................................................................ 16

Troubleshooting ............................................................ 16

Table of Contents i

3 Signal Connections .......................................................... 17

3.1 Connectors Pin Assignment............................................... 17

4 Operation Theory .............................................................. 21

4.1 A/D Conversion.................................................................. 21

AD Data Format ............................................................ 22

Acquisition Modes ......................................................... 23

Scan Timing and Procedure ......................................... 24

Trigger Modes ............................................................... 26

Bus-mastering DMA Data Transfer ............................... 29

4.2 D/A Conversion.................................................................. 31

Architecture ................................................................... 31

Hardware-Controlled Waveform Generation ................ 32

Data Format in FIFO and Mapping ............................... 33

Setting up the DACs ..................................................... 33

Using DACs’ Multiplying Characteristic ........................ 34

Software Update ........................................................... 34

Waveform Generation ................................................... 35

Waveform Generation Timing ....................................... 36

Trigger Modes ............................................................... 38

Iterative Waveform Generation ..................................... 41

4.3 General Purpose Digital I/O .............................................. 45

4.4 General Purpose Timer/Counter Operation ....................... 46

Basics Timer/Counter Function Basics ......................... 46

General Purpose Timer/Counter Modes ....................... 47

4.5 Trigger Sources ................................................................. 52

Software-Trigger ........................................................... 52

External Analog Trigger ................................................ 52

4.6 Timing Signals ................................................................... 56

System Synchronization Interface ................................ 57

5 Calibration ......................................................................... 59

5.1 Loading Calibration Constants........................................... 59

5.2 Auto-calibration .................................................................. 60

5.3 Saving Calibration Constants............................................. 60

Appendix ................................................................................ 61

Warranty Policy ..................................................................... 65

ii Table of Contents

List of Tables

Table 3-1: VHDCI-type (68-pin) Connector Pin Assignment ... 18

Table 3-2: VHDCI-type (68-pin) Connector Legend ................ 19

Table 4-1: Bipolar Input Range and

Converted Digital Codes ......................................... 22

Table 4-2: Unipolar Input Range and

Converted Digital Codes ......................................... 22

Table 4-3: Trigger Modes and

Corresponding Trigger Sources ............................. 23

Table 4-4: Summary of Counters for Programmable Scan ...... 24

Table 4-5: D/A Output Versus Digital Codes ........................... 34

Table 4-6: Trigger Signals and

Corresponding Signal Sources ............................... 35

Table 4-7: Summary of Counters for Waveform Generation ... 36
Table 4-8: Ideal Transfer Characteristic of

Analog Trigger SRC1 (EXTATRIG) ........................ 53

List of Tables iii

List of Figures

Figure 1-1: DAQ-/DAQe-/PXI-2502/2501 Block Diagram ............ 7

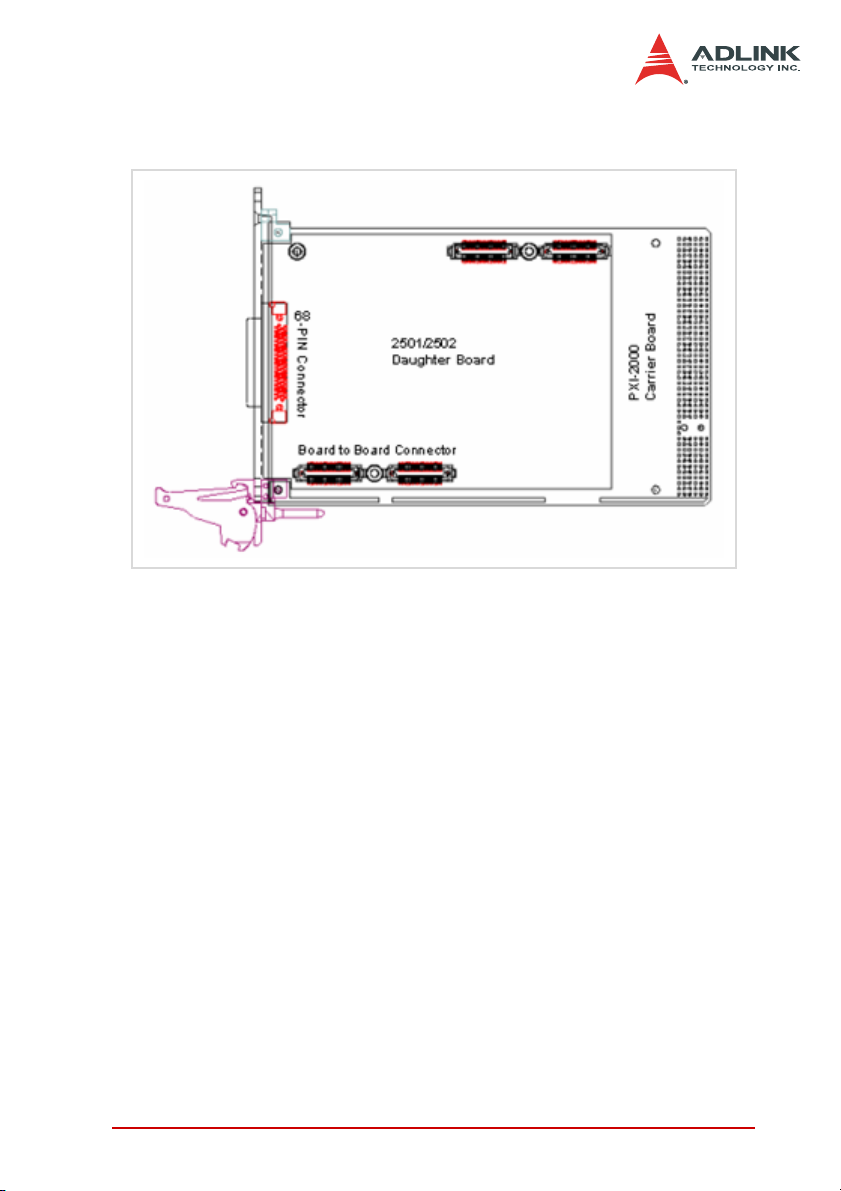

Figure 2-1: DAQe-2502/2501 Card Layout ................................ 13

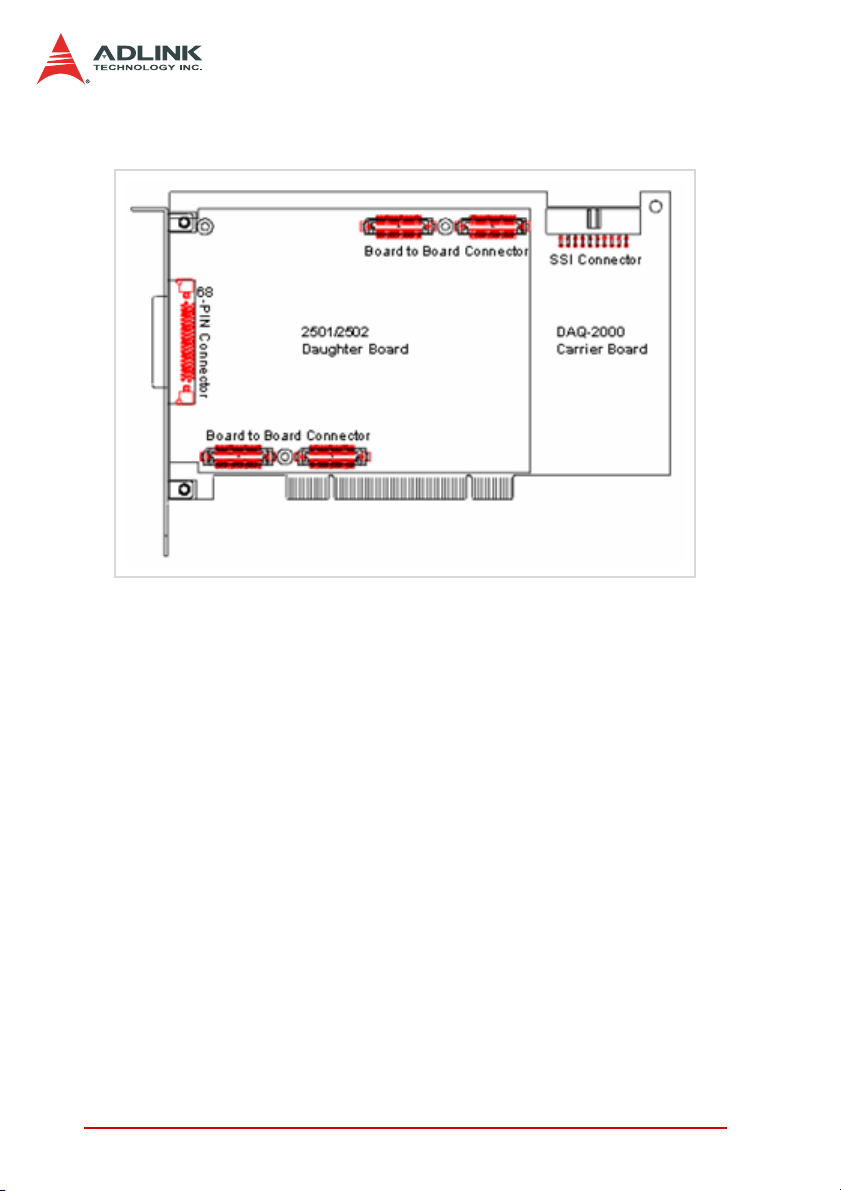

Figure 2-2: DAQ-2502/2501 Card Layout .................................. 14

Figure 2-3: DAQ-2502/2501 Card Layout .................................. 15

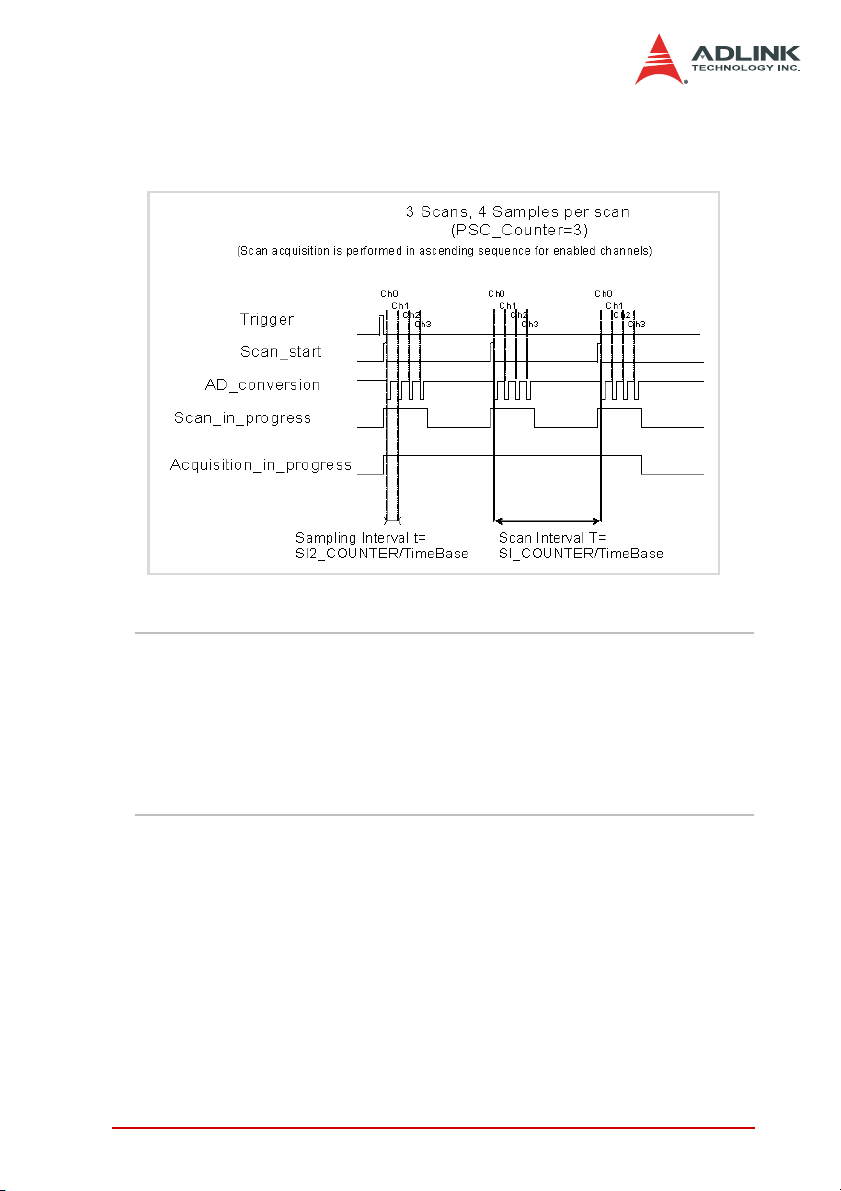

Figure 4-1: Scan Timing............................................................. 25

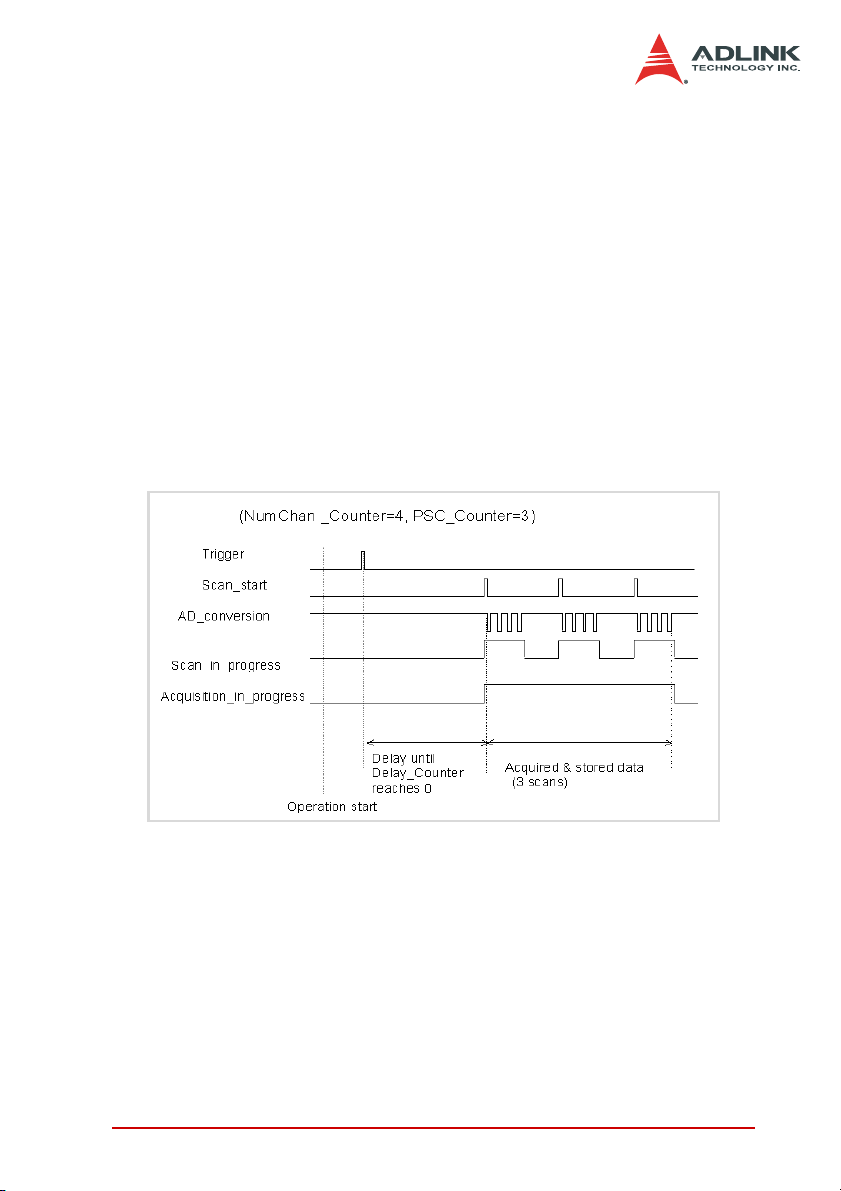

Figure 4-2: Post Trigger ............................................................. 26

Figure 4-3: Delay Trigger ........................................................... 27

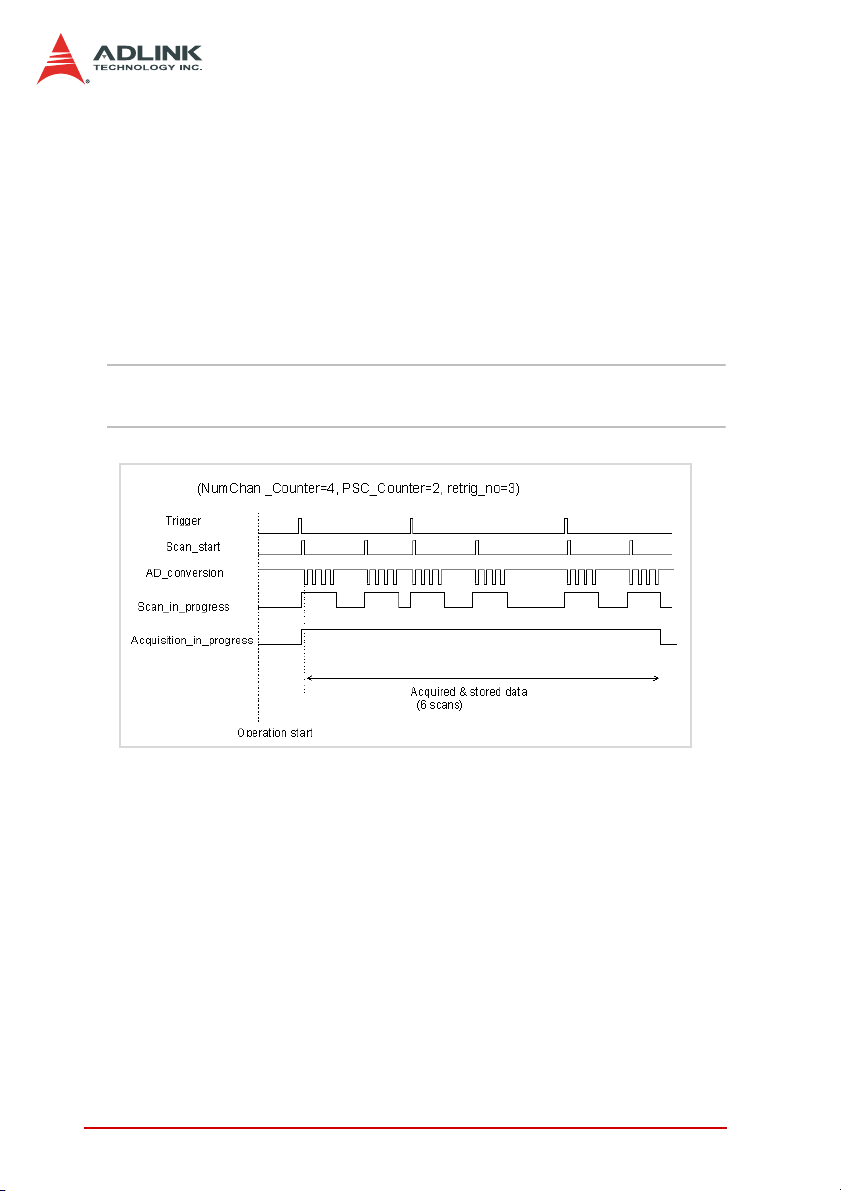

Figure 4-4: Post Trigger with Retrigger ...................................... 28

Figure 4-5: Scatter/gather DMA ................................................. 30

Figure 4-6: Block Diagram of D/A Group ................................... 31

Figure 4-7: FIFO Data Format.................................................... 32

Figure 4-8: Typical D/A Timing of Waveform Generation .......... 37

Figure 4-9: Post Trigger Generation .......................................... 38

Figure 4-10: Delay-Trigger Generation ........................................ 39

Figure 4-11: Post Trigger or Delay-Trigger Generation with

Retrigger .................................................................. 40

Figure 4-12: Finite Iterative Waveform Generation with

Post-trigger .............................................................. 41

Figure 4-13: Post Trigger or Delay-Trigger Generation with

Retrigger .................................................................. 41

Figure 4-14: Stop Mode I ............................................................. 43

Figure 4-15: Stop Mode II ............................................................ 44

Figure 4-16: Stop Mode III ........................................................... 44

Figure 4-17: Mode1 Operation ..................................................... 47

Figure 4-18: Mode2 Operation ..................................................... 48

Figure 4-19: Mode 3 Operation .................................................... 48

Figure 4-20: Mode4 Operation ..................................................... 49

Figure 4-21: Mode5 Operation ..................................................... 49

Figure 4-22: Mode6 Operation ..................................................... 50

Figure 4-23: Mode7 Operation ..................................................... 50

Figure 4-24: Mode8 Operation ..................................................... 51

Figure 4-25: Analog Trigger Block Diagram................................. 52

Figure 4-26: Below-Low Analog Trigger Condition ...................... 53

Figure 4-27: Above-High Analog Trigger Condition ..................... 54

Figure 4-28: Inside-Region Analog Trigger Condition.................. 54

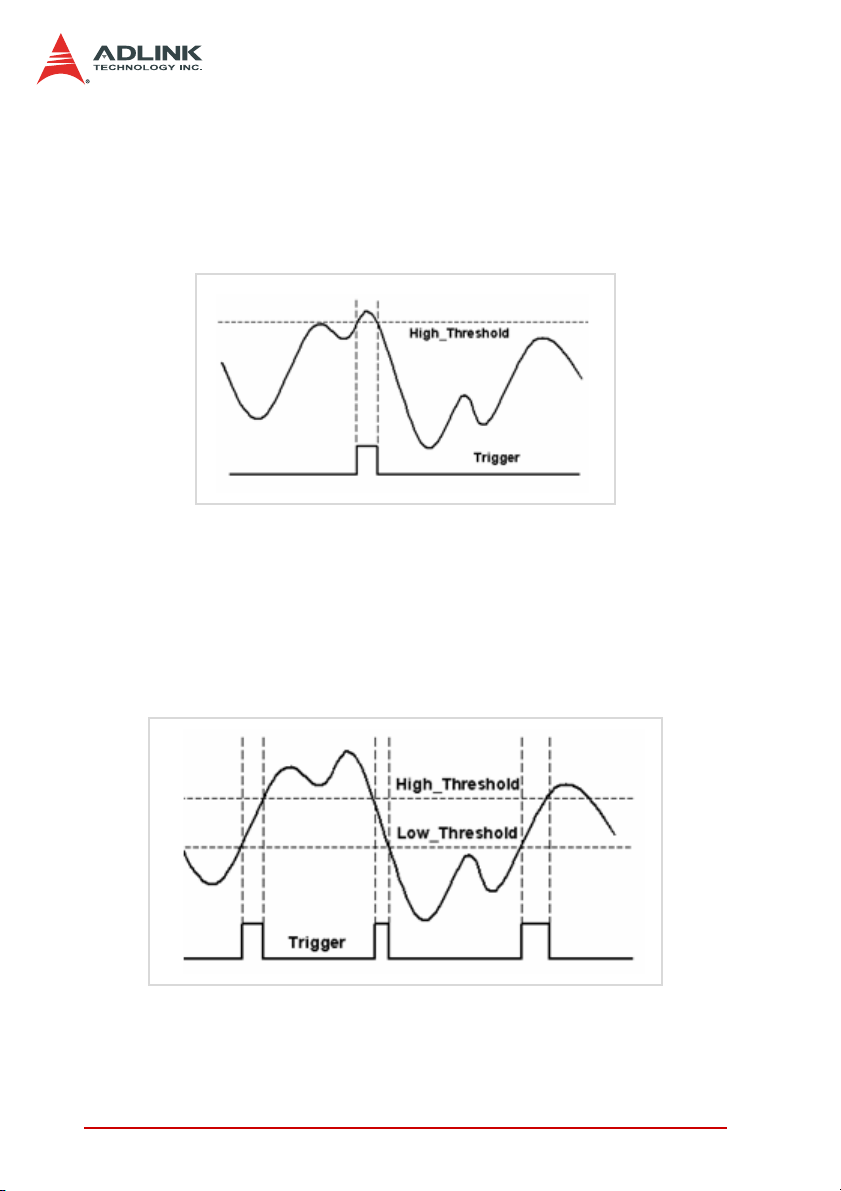

Figure 4-29: High-Hysteresis Analog Trigger Condition............... 55

Figure 4-30: Low-Hysteresis Analog Trigger Condition ............... 55

Figure 4-31: DAQ Signals Routing............................................... 56

iv List of Figures

1 Introduction

The NuDAQ-2500 Series features the DAQ-/DAQe-/PXI-2502/
2501 advanced analog output card based on the 32-bit PCI/PCI
Express
state-of-the-art technology, these cards are ideal for waveform
generation, industrial process control, and signal analysis applica­tions in medical, process control, etc.

1.1 Features

The NuDAQ-2500 Series cards come with the following features:

®

/PXI architecture. With high-performance designs and

X 32-bit PCI/PCI Express/PXI bus, plug and play

X Up to 1 MS/s analog output rate and up to 400 KS/s analog

input rate

X Analog output / input channels

Z DAQ-/DAQe-/PXI-2502: 8 / 4

Z DAQ-/DAQe-/PXI-2501: 4 / 8

X Programmable bipolar/unipolar range for analog input chan-

nels and individual analog output channels

X Programmable internal/external reference for individual

analog output channels

X D/A FIFO size:

Z DAQ-/DAQe-/PXI-2502: 16K samples

Z DAQ-/DAQe-/PXI-2501: 8K samples

X A/D FIFO size: 2K samples

X Versatile trigger sources including software trigger, external

digital trigger, analog trigger, and System Synchronization
Interface (SSI) trigger

X A/D data transfer employing software polling and bus-mas-

tering DMA with scatter/gather

X D/A data transfer employing software update and bus-mas-

tering DMA with scatter/gather

X A/D trigger modes including post-trigger and delay-trigger

with re-trigger functionality

X D/A outputs with waveform generation capability

Introduction 1

X System Synchronization Interface (SSI)

X A/D and D/A fully auto-calibration

X Built-in programmable D/A external reference voltage com-

pensator

X Jumper-less operation and software-configurable

1.2 Applications

X Automotive testing

X Arbitrary waveform generator

X Transient signal measurement

X ATE

X Laboratory automation

X Biotech measurement

2Introduction

1.3 Specifications

Analog Output (AO)

X Channels:

Z DAQ-/DAQe-/PXI-2501: 4-CH

Z DAQ-/DAQe-/PXI-2502: 8-CH

X DA converter: AD7945

X Maximum update rate: 1 MS/s

X Resolution: 12-bit

X FIFO buffer size:

Z DAQ-/DAQe-/PXI-2501: 8K

Z DAQ-/DAQe-/PXI-2502: 16K

X Data transfer: Programmed I/O, and bus-mastering DMA

with scatter/gather

X Voltage reference: Internal 10 V or external up to ±10 V

X Output range:

Z Bipolar: ±10 V or ±external reference

Z Unipolar: 0 V to 10V or 0 V to external reference

X Settling time for –10 V to +10 V step: 2 µs

X Slew rate: 20 V/µs

X Output coupling: DC

X Protection: Short-circuit to ground

X Output impedance: 0.1 Ω max.

X Output current: ±5 mA max.

X Power-on state: 0V steady-state

X Power-on glitch: ±600 mV/500 µs

X Offset error:

Z Before calibration: ±80 mV max

Z After calibration: ±2 mV max

X Gain error:

Z Before calibration: ±0.8% of output max

Z After calibration: ±0.02% of output max

Introduction 3

Analog Input (AI)

X Channels:

Z DAQ-/PXI-2502: 4 single-ended

Z DAQ-/PXI-2501: 8 single-ended

X AD converter: LTC1416

X Max sampling rate: 400 KS/s

X Resolution: 14-bit

X FIFO buffer size: 2K samples

X Input range

Z Bipolar: ±10 V

Z Unipolar: 0 V to 10 V

X Over-voltage protection: Continuous, ±35 V maximum

X Input impedance: 1 GΩ / 6 pF

X Trigger modes: Pre-trigger, post-trigger, middle-trigger, and

delay trigger

X Data transfers: Programmed I/O and bus-mastering DMA

with scatter/gather

X Input coupling: DC

X Offset error:

Z Before calibration: ±40 mV max

Z After calibration: ±1 mV max

X Gain error:

Z Before calibration: ±0.4% of max output

Z After calibration: ±1 mV of max output

4Introduction

General Purpose Digital I/O (G. P. DIO)

X Channels: 24 programmable input/output

X Compatibility: TTL/CMOS

X Input voltage:

Z Logic Low: VIL=0.8 V max; IIL=0.2 mA max

Z High: VIH=2.0 V max; IIH=0.02 mA max

X Output voltage:

Z Low: VOL=0.5 V max; IOL=8 mA max
Z High: VOH=2.7 V min; IOH=400 µA

General Purpose Timer/ Counter (GPTC)

X Channels: Two up/down timer/counters

X Resolution: 16-bit

X Compatibility: TTL/CMOS

X Clock source: Internal or external

X Maximum source frequency: 10 MHz

Analog Trigger (A.Trig)

X Source: External analog trigger (EXTATRIG)

X Level: ±10V external

X Resolution: 8-bit

X Slope: Positive or negative (software selectable)

X Hysteresis: Programmable

X Bandwidth: 400 KHz

X External Analog Trigger Input (EXTATRIG)

X Impedance: 40 KΩ

X Coupling: DC

X Protection: Continuous ±35V maximum

Introduction 5

System Synchronous Interface (SSI)

X Trigger lines: 7

Calibration

X Recommended warm-up time: 15 minutes

X Onboard reference: 5.0 V

X Temperature coefficient: ±2 ppm/°C

X Long-term stability: 6 ppm/1000 hr

Physical

X Dimension: 175 mm by 107 mm

X I/O connector: 68-pin female mini-SCSI type

X Power Requirement: +5 VDC; 1.6 A typical

Operating Environment

X Ambient temperature: 0°C to 55°C

X Relative humidity: 10% to 90% non-condensing

Storage Environment

X Ambient temperature: -20 to 70°C

X Relative humidity: 5% to 95% non-condensing

6Introduction

1.4 Block Diagram

Figure 1-1: DAQ-/DAQe-/PXI-2502/2501 Block Diagram

Introduction 7

1.5 Software Support

ADLINK provides versatile software drivers and packages for
users’ different approach to building up a system. ADLINK not only
provides pro-gramming libraries such as DLL for most Windows­based systems, but also provide drivers for other software pack­ages such as LabVIEW

All software options are included in the ADLINK CD. Non-free soft­ware drivers are protected with licensing codes. Without the soft­ware code, you can install and run the demo version for two hours
for trial/demonstration purposes. Please contact ADLINK dealers
to purchase the formal license.

Programming Library

For customers who are writing their own programs, we provide
function libraries for many different operating systems, including:

X D2K-DASK: Include device drivers and DLL for Windows

98/NT/2000/XP. DLL is binary compatible across Windows
98/NT/2000/XP. This means all applications developed with
D2K-DASK are compatible across Windows 98/NT/2000/
XP. The developing environment can be VB, VC++, Delphi,
BC5, or any Windows programming language that allows
calls to a DLL. The user’s guide and function reference
manual of D2K-DASK are in the CD. (\\Manual\Software
Package\D2K-DASK)

X D2K-DASK/X: Include device drivers and shared library for

Linux. The developing environment can be Gnu C/C++ or
any programming language that allows linking to a shared
library. The user's guide and function reference manual of
D2K-DASK/X are in the CD. (\\Manual\Software Pack­age\D2K-DASK-X.)

®

.

®

8Introduction

DAQ-LVIEW PnP: LabVIEW Driver

DAQ-LVIEW PnP contains the VIs, which are used to interface
with NI’s LabVIEW software package. The DAQ-LVIEW PnP sup­ports Windows 98/NT/2000/XP. The LabVIEW drivers is shipped
free with the card. You can install and use them without a license.
For detailed information about DAQ-LVIEW PnP, refer to the
user’s guide in the CD. (\\Manual\Software Package\DAQ-LVIEW
PnP)

D2K-OCX: ActiveX Controls

Customers who are familiar with ActiveX controls and VB/VC++
programming are suggested to use D2K-OCX ActiveX control
component libraries for developing applications. D2K-OCX is
designed for Windows 98/NT/2000/XP. For more details on D2K­OCX, refer to the user's guide in the CD. (\\Manual\Software Pack­age\D2K-OCX)

The above software drivers are shipped with the card. Refer to the
Software Installation Guide in the package to install these drivers.

In addition, ADLINK supplies ActiveX control software DAQBench.
DAQBench is a collection of ActiveX controls for measurement or
automation applications. With DAQBench, you can easily develop
custom user interfaces to display your data, analyze data you
acquired or received from other sources, or integrate with popular
applications or other data sources. For more detailed information
about DAQBench, refer to the user's guide in the CD. (\\Man­ual\Software Package\DAQBench Evaluation)

You can also get a free 4-hour evaluation version of DAQBench
from the CD. DAQBench is not free. Contact ADLINK or your
dealer to purchase the software license.

Introduction 9

10 Introduction

2 Installation

This chapter describes how to install the DAQ-/DAQe-/PXI-2502/
2501 card. The contents of the package and unpacking informa­tion that you should be aware of are outlined first.

The DAQ-/DAQe-/PXI-2502/2501 card performs an automatic
configuration of the IRQ and port address. You can use the
PCI_SCAN software utility to read the system configuration.

2.1 Package Contents

In addition to this User's Manual, the package includes the follow­ing items:

X DAQ-/DAQe-/PXI-2502/2501 multi-function data acquisi-

tion card

X ADLINK All-in-one CD

X Software Installation Guide

If any of these items are missing or damaged, contact the dealer
from whom you purchased the product. Save the shipping materi­als and carton in case you want to ship or store the product in the
future.

Installation 11

2.2 Unpacking

Your DAQ-/DAQe-/PXI-2502/2501 card contains electro-static
sensitive components that can be easily be damaged by static
electricity.

Therefore, the card should be handled on a grounded anti-static
mat. The operator should be wearing an anti-static wristband,
grounded at the same point as the anti-static mat.

Inspect the card package for obvious damages. Shipping and han­dling may cause damage to the card. Be sure there are no ship­ping and handling damages on the modules carton before
continuing.

After opening the card module carton, extract the system module
and place it only on a grounded anti-static surface with component
side up.

Again, inspect the module for damages. Press down on all the
socketed IC's to make sure that they are properly seated. Do this
only with the module place on a firm flat surface.

You are now ready to install your DAQ-/DAQe-/PXI-2502/2501
card.

NOTE DO NOT APPLY POWER TO THE CARD IF IT HAS

BEEN DAMAGED.

12 Installation

2.3 Card Layout

DAQe-2502/2501

Figure 2-1: DAQe-2502/2501 Card Layout

Installation 13

DAQ-2502/2501

Figure 2-2: DAQ-2502/2501 Card Layout

14 Installation

DPXI-2501/2502

Figure 2-3: DAQ-2502/2501 Card Layout

Installation 15

2.4 PCI Configuration

Plug and Play

With support for plug and play, the card requests an interrupt num­ber via its PCI controller. The system BIOS responds with an inter­rupt assignment based on the card information and on known
system parameters. These system parameters are determined by
the installed drivers and the hardware load seen by the system.

Configuration

The board configuration is done on a board-by-board basis for all
PCI boards in the system. Because configuration is controlled by
the system and software, there is no jumper setting required for
base address, DMA, and interrupt IRQ.

The configuration is subject to change with every boot of the sys­tem as new boards are added or removed.

Troubleshooting

If your system doesn’t boot or if you experience erratic operation
with your PCI board in place, it is likely caused by an interrupt con­flict. The BIOS Setup may be incorrectly configured. Consult the
BIOS documentation that comes with your system to solve this
problem.

16 Installation

3 Signal Connections

This chapter describes DAQ-/DAQe-/PXI-2502/2501 card connec­tors and the signal connection between the DAQ-/DAQe-/PXI­2502/2501 card and external devices.

3.1 Connectors Pin Assignment

The DAQ-/DAQe-/PXI-2502/2501 card is equipped with two 68-pin
VHDCI-type connectors (AMP-787254-1). These are used for digi­tal input/output, analog input/output, timer/counter signals, etc.
The pin assignments of the connectors are defined in Table 3-1.

Signal Connections 17

AO_0 1 35 AGND
AO_1 2 36 AGND
AO_2 3 37 AGND
AO_3 4 38 AGND

AOEXTREF_A/AI_0 5 39 AGND

AI_1 6 40 AGND

EXTATRIG/AI_2 7 41 AGND

AOEXTREF_B/AI_3 8 42 AGND

AO_4/AI_4 9 43 AGND
AO_5/AI_51044 AGND
AO_6/AI_61145 AGND

AO_7/AI_71246 AGND
AO_TRIG_OUTA 13 47 EXTWFTRG_A
AO_TRIG_OUTB 14 48 EXTWFTRG_B

GPTC1_SRC 15 49 VCC
GPTC0_SRC 16 50 DGND

GPTC0_GATE 17 51 GPTC1_GATE

GPTC0_OUT 18 52 GPTC1_OUT

GPTC0_UPDOWN 19 53 GPTC1_UPDOWN

RESERVED 20 54 DGND

AFI1 21 55 AFI0

PB7 22 56 PB6
PB5 23 57 PB4
PB3 24 58 PB2

PB1 25 59 PB0
PC72660 PC6
PC52761 PC4

DGND 28 62 DGND

PC32963 PC2
PC13064 PC0

PA73165 PA6

PA53266 PA4

PA33367 PA2

PA13468 PA0

Table 3-1: VHDCI-type (68-pin) Connector Pin Assignment

18 Signal Connections

Legend:

Pin # Signal Name Reference Direction Description

1~4 AO_<0..3> AGND Output

5 AOEXTREF_A/AI_0 AGND Input

6 AI_1 AGND Input AI input 0

7 EXTATRIG/AI_2 AGND Input

8 AOEXTREF_B/AI_3 AGND Input

9~12 AO_<4..7>/AI_<4..7> AGND Output/Input

13,14 AO_TRIG_OUT_<A,B> DGND Output

15,16 GPTC<0,1>_SRC DGND Input Source of GPTC<0,1>

17,51 GPTC<0,1>_GATE DGND Input Gate of GPTC<0,1>

18,52 GPTC<0,1>_OUT DGND Input Output of GPTC<0,1>

19,53 GPTC<0,1>_UPDOWN DGND Input Up/Down of GPTC<0,1>

20 RESERVED — — Reserved Pin

21,55 AFI<1,0> DGND Input Auxiliary Function Input

,22,56,23,57
,24,58,25,59

26,60,27,61,

29,63,30,64

31,65,32,66,

33,67,34,68

35~46 AGND — — Analog ground

47,48 EXTWFTRIG_<A,B> DGND Input

49 VCC DGND

28,50,54,62 DGND — — Digital ground

PB<7,0> DGND PIO*

PC<7,0> DGND PIO*

PA<7,0> DGND PIO*

Power

(Output)

Table 3-2: VHDCI-type (68-pin) Connector Legend

*PIO means Programmable Input/Output

Voltage output of DA channel
<0..3>

External reference for AO
channel <0..3> / AI input 2

External analog trigger / AI
input 1

External reference for AO
channel <4..7> / AI input 3

Voltage output of DA channel
<4..7> / AI channel <4..7>
(only for DAQ-2501)

AO trigger signal for channel
<0..3> <4..7>

Programmable DIO of 8255
Port B

Programmable DIO of 8255
Port C

Programmable DIO of 8255
Port A

External waveform trigger for
AO channel <0..3> <4..7>

+5V Power Source

Signal Connections 19

20 Signal Connections

4 Operation Theory

The operation theories of the DAQ-/DAQe-/PXI-2502/2501 card
are described in this chapter. The functions include A/D conver­sion, D/A conversion, digital I/O, and general purpose counter/
timer. This operation theory will help you understand how to con­figure and program the DAQ-/DAQe-/PXI-2502/2501 card.

4.1 A/D Conversion

When using an A/D converter, you must know about the properties
of the signal to be measured. You may decide which channel to
use and how to connect the signals to the card. Refer to section

3.4. In addition, users should define and control the A/D signal
configurations, including channels, gains, and polarities (unipolar/
bipolar).

The A/D acquisition is initiated by a trigger source and you must
decide how to trigger the A/D conversion. The data acquisition will
start once a trigger condition is matched.

After the end of an A/D conversion, the A/D data is buffered in a
Data FIFO. The A/D data can now be transferred into the system
memory for further processing.

Software polling and programmable scan acquisition modes are
described in this chapter, as well as timing, trigger modes, trigger
sources, and transfer methods.

Operation Theory 21

AD Data Format

The data format of the acquired 14-bit A/D data is coded in 2’s
complement. Table 4-1 and Table 4-2 lists the valid input ranges
and the ideal transfer characteristics.

Magnitude Bipolar Input Range Digital code

FSR ±10V ±5V ±2.5V ±1.25V

LSB 1120.78uV 610.39uV 305.19uV 152.60uV

FSR-1LSB 9.998779V 4.999389V 2.499694V 1.249847V 1FFF

Midscale + LSB 1120.78uV 610.39uV 305.19uV 152.60uV 0001

Midscale 0V 0V 0V 0V 0000

Midscale - LSB -1120.78uV -610.39uV -305.19uV -152.60uV 3FFF

-FSR -10V -5V -2.5V -1.25V 2000

Table 4-1: Bipolar Input Range and Converted Digital Codes

Magnitude Unipolar Input Range Digital code

FSR 0V ~ 10V 0 ~ +5V 0 ~ +2.5V 0 ~ +1.25V

LSB 610.39uV 305.19uV 152.60uV 76.3uV

FSR - LSB 4.999389V 2.499694V 1.249847V 1.249923V 1FFF

Midscale + LSB 5.000611V 2.500306V 1.250153V 0.625076V 0001

Midscale 5V 2.5V 1.25V 0.625V 0000

Midscale - LSB 4.999389V 2.499694V 1.249847V 1.249923V 3FFF

-FSR 0V 0V 0V 0V 2000

Table 4-2: Unipolar Input Range and Converted Digital Codes

22 Operation Theory

Acquisition Modes

Software Polling

This is the easiest way to acquire a single A/D data. The A/D
converter starts one conversion whenever the dedicated soft­ware command is executed. Then the software would poll the
conversion status and read the A/D data back when it is avail­able.

This method is very suitable for applications that needs to pro­cess A/D data in real time. Under this mode, the timing of the
A/D conversion is fully controlled by the software. However, it is
difficult to control the A/D conversion rate.

Programmable Scan

This method is suitable for applications that need to acquire A/
D data at a precise and fixed rate. A scan is a group of multiple
channel samples and the scan interval is defined by the
SI_counter. Likewise, the sample interval of the multiple chan­nels is defined by the SI2_counter. Refer to Table 4-4 for more
information.

The DAQ-/DAQe-/PXI-2502/2501 card can sample multiple
channels in continuous/discontinuous ascending sequence.
For example, you may program the DAQ-/DAQe-/PXI-2502/
2501 card to perform a scan in the channel sequence of 1-2-4­1-2-4. Three trigger modes are available in programmable
scan: post-trigger, delay-trigger, and post/delay-trigger with
retrigger. Refer to Table 4-3 for a brief summary on trigger
modes and their trigger sources.

Trigger Mode Description Trigger Sources

Post-Trigger

Delay-Trigger

Post/Delay-Trigger

with Retrigger

Table 4-3: Trigger Modes and Corresponding Trigger Sources

Operation Theory 23

Perform a scan right after the trigger
occurs.

Scan delayed by the amount of time
programmed after the trigger.

Perform repeated scan while trigger
occurs and it could be under Post­Trigger or De-lay-Trigger mode.

Software Trigger

Digital Trigger

Analog Trigger

SSI AD Trigger

Scan Timing and Procedure

There are four counters that need to be specified prior to program­mable scans. Refer to Table 4-4 for details.

Counter Name Width Description Notes

SI_counter 24-bit

SI2_counter 24-bit

PSC_counter 24-bit

Delay_counter 16-bit

Table 4-4: Summary of Counters for Programmable Scan

Scan Interval defines the
interval between each
scan.

Sampling Interval defines
the interval between each
sampled channel.

Post Scan Counts defines
how many scans to be
performed with respect to
each trigger.

Define the delay time for
scan after trigger.

Scan Interval =

SI_counter / Time-base*

Sampling Interval =

SI2_counter / Timebase*

Delay Time =

(Delay_counter / Time-

base*), Timebase*=40M

for DAQ/DAQe/PXI-2502/

2501

24 Operation Theory

The relationship between counters and acquisition timing is illus­trated in Figure 4-1.

Figure 4-1: Scan Timing

NOTE The maximum A/D sampling rate is 400 KHz for DAQ-/

DAQe-/PXI-2502/2501 card. The minimum setting of
SI2_counter is 100.

The Scan Interval may not be smaller than the interval of
data Sampling Interval multiplied by the Number of chan­nels per Scan. For example: SI_counter >= SI2_counter
* NumChan_Counter.

Operation Theory 25

Trigger Modes

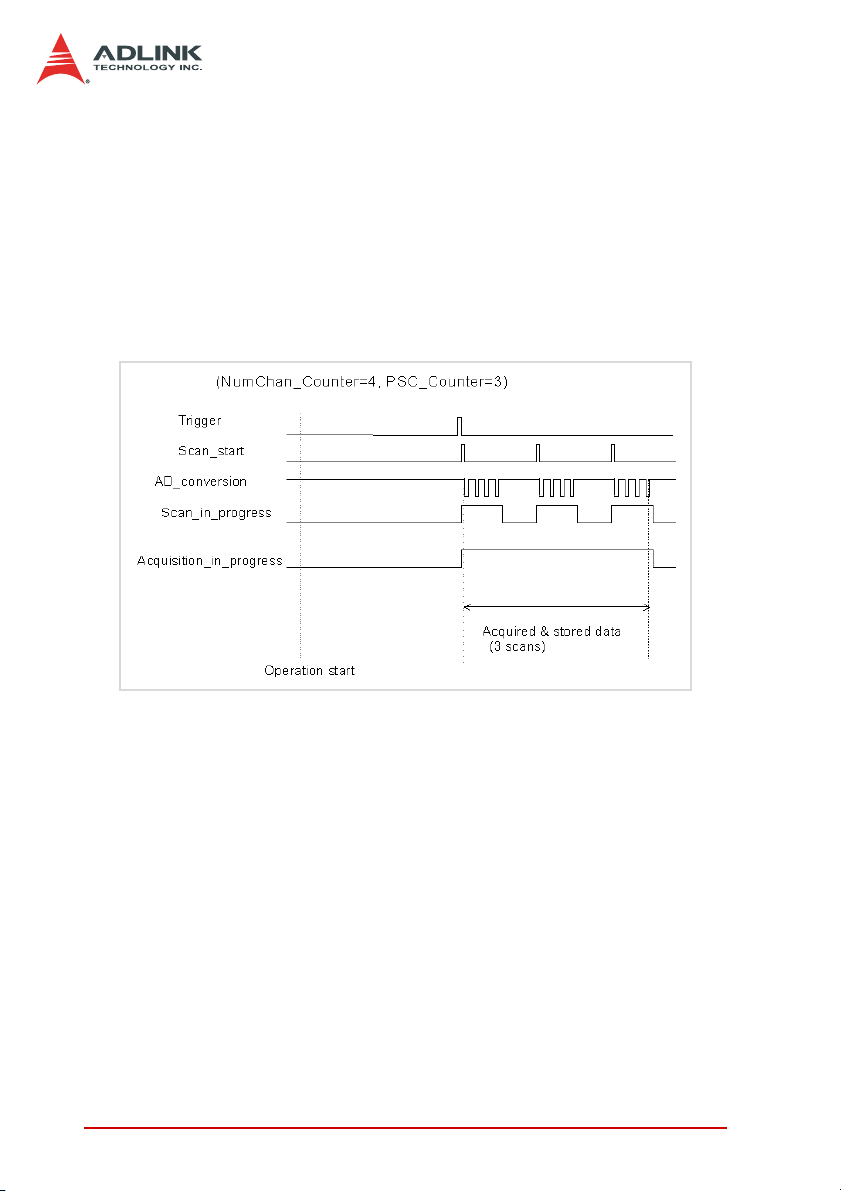

Post-Trigger Acquisition

Use post-trigger acquisition when you want to perform scans right
after a trigger signal. The number of scans to be performed after
the trigger signal is specified by the PSC_counter, as illustrated in
Figure 4-2. The total acquired data length is equal to:

(number_of_channels_enabled_for_scan_acquisition

) * PSC_counter

Figure 4-2: Post Trigger

26 Operation Theory

Delay Trigger Acquisition

Use delay trigger when you want to delay the scan after a trig­ger signal. The delay time is determined by the Delay_counter,
as shown in Figure 4-3.

The counter counts down on the rising edges of Delay_counter
clock source after the trigger signal. When the count reaches 0,
the DAQ-/DAQe-/PXI-2502/2501 card starts to perform the
scan. The acquired data length is equal to the:

(number_of_channels_enabled_for_scan_acquisition

) * PSC_counter

The Delay_counter clock source can be software selected from
internal 40 MHz Timebase, external input (AFI-1), or General
Purpose Timer/Counter Output 0/1.

Figure 4-3: Delay Trigger

Operation Theory 27

Post-Trigger or Delay-trigger Acquisition with Retrigger

Use post-trigger or delay-trigger acquisition with retrigger when
you want to perform repeated scans with respect to the
repeated triggers. Figure 4-4 illustrates this mode. Two scans
are performed after the first trigger signal, and then waits for
the next trigger signal. When the trigger signal occurs, it per­forms two more scans.

When retrigger function is disabled, only one trigger signal is
be accepted after retrigger.

NOTE Retrigger signals asserted during scan process will be ig-

nored.

Figure 4-4: Post Trigger with Retrigger

28 Operation Theory

Bus-mastering DMA Data Transfer

Bus Mastering DMA Mode

PCI bus-mastering DMA is necessary for high speed DAQ in
order to utilize the maximum PCI bandwidth. The bus-master­ing controller, which is built in the PLX PCI controller, controls
the PCI bus when it becomes the master of the bus. Bus mas­tering reduces the required size of the onboard memory and
reduces the CPU loading because data is directly transferred
to the computer’s memory without host CPU intervention.

The hardware temporarily stores the acquired data in the
onboard Data FIFO buffer, then transfers the data to the user­defined DMA buffer in the host PC’s memory. Bus-mastering
DMA utilizes the fastest available transfer rate of PCI-bus.
Once the analog acquisition operation starts, control returns to
your program.

The DMA transfer mode is complicated to program. We recom­mend using a high-level program library to configure this card.
If users would like to know more about software programs that
can handle the DMA bus master data transfer, visit to http://
www.plxtech.com for more information on PCI controllers.

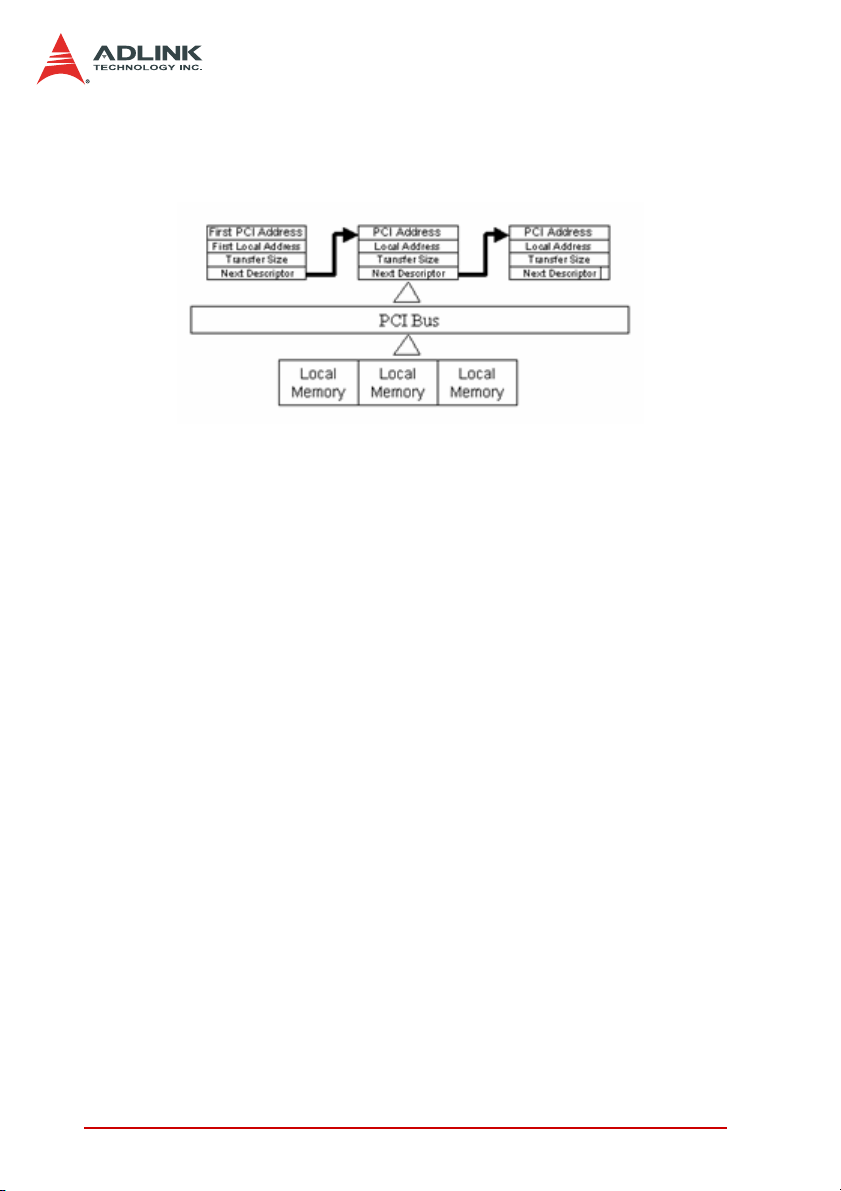

DMA with Scatter Gathering Capability

In multi-user or multi-tasking OS such as Microsoft Windows,
Linux, etc., it is difficult to allocate a large continuous memory
block to do the DMA transfer due to memory fragmentation.
PLX PCI controller provides scatter/gather or chaining mode to
link non-continuous memory blocks into a linked list, so you
can transfer large amounts of data without being limited by the
fragment of memory blocks. You can configure the linked list
for the input DMA channel and the output DMA channel, indi­vidually.

Figure 4-5 shows a linked list that is constructed by three DMA
descriptors. Each descriptor contains a PCI address, a local
address, a transfer size, and the pointer to the next descriptor.
You can collect fragmented memory blocks and chain their
associative DMA descriptors altogether. The DAQ-/DAQe-/
PXI-2502/2501 software driver simple settings for the scatter/

Operation Theory 29

gather function, including some sample programs in the
ADLINK All-in-One CD.

Figure 4-5: Scatter/gather DMA

30 Operation Theory

4.2 D/A Conversion

The DAQ-/DAQe-/PXI-2502/2501 card offers flexible and versatile
analog output scheme to fit your complex field applications. In
order to take full advantages of the DAQ-/DAQe-/PXI-2502/2501
card, it is suggested that you carefully read this section.

Architecture

There are up to eight channels of 12-bit Digital-to-Analog Con­verter (DAC) available in the DAQ-/DAQe-/PXI-2502/2501 card.
Four D/A channels are packed into one D/A group. The DAQ-/
DAQe-/PXI-2502 comes with two D/A groups, while the DAQ-/
DAQe-/PXI-2501 card has only one D/A group.

Figure 4-6: Block Diagram of D/A Group

(Group B of DAQ/DAQe-/PXI-2502 is identical to Group A shown above.)

Figure 4-6 shows the D/A block diagram. DAC are controlled
implicitly by CPLD and have their outputs updated only when digi­tal codes for all enabled DA channels are ready and latched. This
ensures D/A conversions to be synchronized for each channel in
the same D/A group. You can use this property to perform multi­channel waveform generation without any phase-lag.

Operation Theory 31

Hardware-Controlled Waveform Generation

FIFO is a hardware first-in first-out data queue that holds tempo­rary digital codes for D/A conversion. When the DAQ-/DAQe-/PXI­2502/2501 card operates in waveform generation mode, the
waveform patterns are stored in FIFO with 8K maximum samples.
Waveform patterns larger than 8K are also supported by utilizing
bus-mastering DMA transfer supported by the PCI controller. The
data format in FIFO is shown in Figure 4-7.

Figure 4-7: FIFO Data Format

32 Operation Theory

Data Format in FIFO and Mapping

With hardware-based waveform generation, D/A conversions are
updated automatically by CPLD rather than application software.
Unlike the conventional software-based waveform generation, the
precise hardware timing control guarantees non-distorted wave­form generation even when host CPU is under heavy loading.
Detailed function setup are discussed later on this chapter.

NOTE When using waveform generation mode, all the four

DACs in the same D/A group must be configured for the
same mode. However, any one of the DAC can be dis­abled. If you need to use the software update mode, you
can use another D/A group on the DAQ-/DAQe-/PXI­2502 card.

Setting up the DACs

Before using the DACs, you must setup the reference source and
its polarity. Each DAC has its own reference and polarity settings.
For example, the internal voltage reference of D/A Group A is tied
to internal +10V. However, you can still connect external reference
through AOEXTREF (pin 5 on CN2) to a +3.3V voltage source,
giving each DAC in D/A Group A two reference options: 10V or

3.3V. However, DA update timing, trigger source, and trigger/stop
mode are all the same throughout a D/A Group.

The DAQ-/DAQe-/PXI-2502/2501 card provides the capability to
fine tune the voltage reference from the external source. The
external reference is fed thru an onboard calibrated circuit, with
programmable offset. You can use this capability to generate pre­cise D/A outputs.

CAUTION The range of external voltage reference should be within

Operation Theory 33

±10V.

Using DACs’ Multiplying Characteristic

The D/A reference selection let you fully utilize the multiplying
characteristics of the DACs. Digital codes sent to the D/A convert­ers are multiplied by the reference to generate output.

Magnitude

FSR – LSB +Vref * (2046 / 2048) Vref * (4095 / 4096) 0FFF

Midscale + LSB +Vref * (1 / 2048) Vref * (2049 4096) 0801

Midscale 0 Vref * (2048 / 4096) 0800

Midscale – LSB -Vref * ( 1 / 2048) Vref * (2047 / 4096) 07FF

-FSR + LSB -Vref * (2046 / 2048) Vref * ( 1 / 4096) 0001

-FSR -Vref 0 0000

Table 4-5: D/A Output Versus Digital Codes

Bipolar Unipolar

Output Output Digital Code

The DAQ-/DAQe-/PXI-2502/2501 card can generate standard and
arbitrary functions, continuously or piece-wisely. The Appendix
illustrates all possible waveform patterns generated by the DAQ-/
DAQe-/PXI-2502/2501 card in combination with various counters,
clock sources, and voltage references.

Software Update

This method is suitable for applications that need to generate D/A
output controlled by user programs. In this mode, the D/A con­verter generates one output once the software command is
issued. However, it is difficult to determine the software update
rate under a multi-task OS like Windows.

34 Operation Theory

Waveform Generation

This method is suitable for applications that need to generate
waveforms at a precise and fixed rate. Various programmable
counters will facilitate users to generate complex waveforms with
great flexibility.

Three event signals are involved in waveform generation: Start,
DAWR (DA WRite), and Stop. Refer to Table 4-6 for a brief sum­mary of waveform generation events and their corresponding trig­ger sources.

Event

Signal

Start

DAWR

Stop Stop Waveform Generation

Table 4-6: Trigger Signals and Corresponding Signal Sources

Start Waveform Generation pro-

Write data to the DAC on the falling

Descriptions Trigger Sources

Software Trigger

Ext. Digital Trigger

cess.

edges of DAWR.

Analog Trigger

SSI Trigger

Internal Update

External Update

SSI Update

Software Trigger

Ext. Digital Trigger

Analog Trigger

Operation Theory 35

Waveform Generation Timing

Six counters interact with the waveform to generate different
DAWR timing, thus forming different waveforms. These are
described in Table 4-7.

Counter Name Width Description Note

Update Interval, which

UI_counter 24-bit

UC_counter 24-bit

IC_counter 16-bit

DLY1_counter 16-bit

DLY2_counter 16-bit

Trig_counter 16-bit

Table 4-7: Summary of Counters for Waveform Generation

defines the update inter­val between each data
output.

Update Counts, which
defines the number of
data in a waveform.

Iteration Counts, which
defines how many times
the waveform is gener­ated.

Define the delay time for
waveform generation
after the trigger signal.

Define the delay time to
separate consecutive
waveform generation.
Effective only in Iterative
Waveform Generation
mode.

Define the acceptable
start trigger count when
re-trigger function is
enabled

Update Interval =

UI_counter / Time-base*.

When value in UC_counter

is smaller than the size of

waveform patterns, the
waveform is generated

piece-wisely.

Delay Time =

(DLY1_counter / Clock

Timebase)

Delay Time =(DLY2_counter

/ Clock Timebase)

Timebase*=40M for DAQ/

PXI-2500 Series

NOTE The maximum D/A update rate is 1 MHz. The minimum

UI_counter setting is 40.

36 Operation Theory

Figure 4-8: Typical D/A Timing of Waveform Generation

(Assuming the data in the data buffer are 2V, 4V, -4V, 0V)

Operation Theory 37

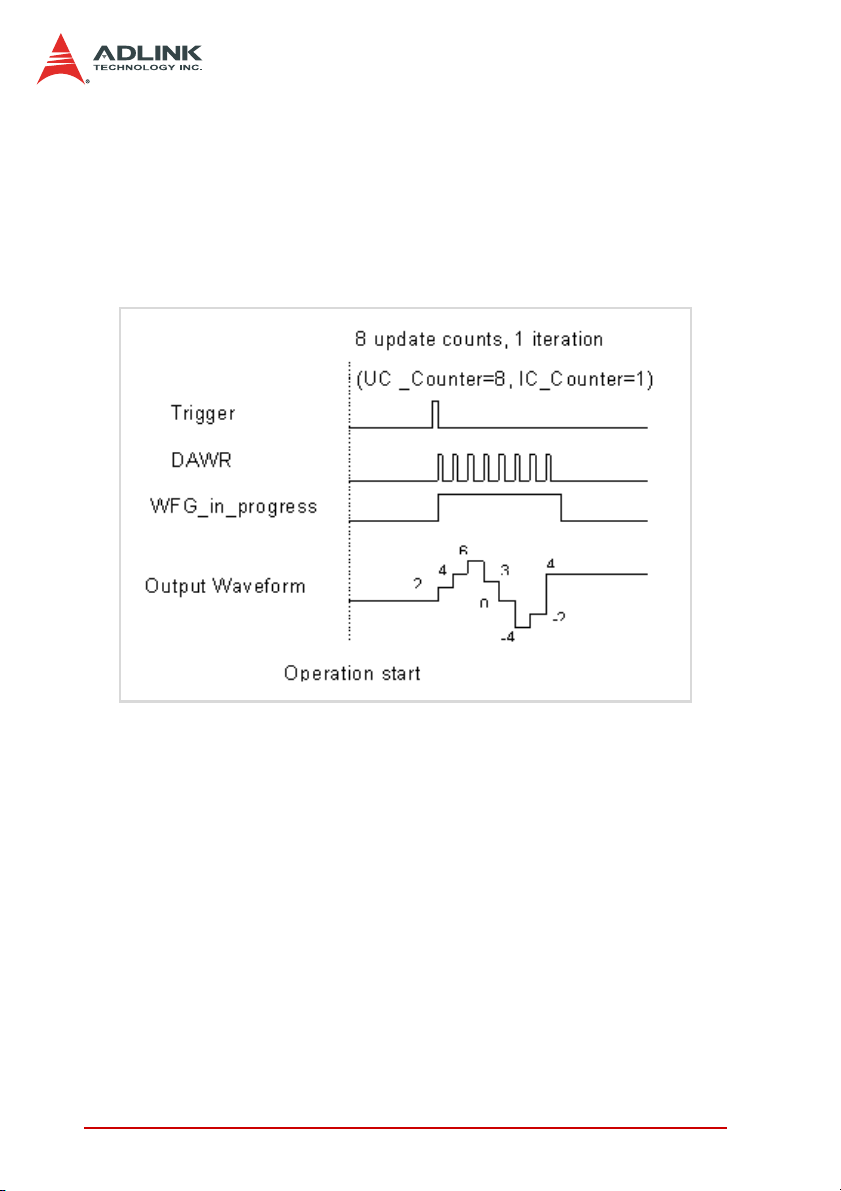

Trigger Modes

Post-Trigger Generation

Use post-trigger generation when you want to generate wave­form right after a trigger signal. The number of patterns to be
updated after the trigger signal is specified by UC_counter*
IC_counter, as illustrated in Figure 4-9.

Figure 4-9: Post Trigger Generation

38 Operation Theory

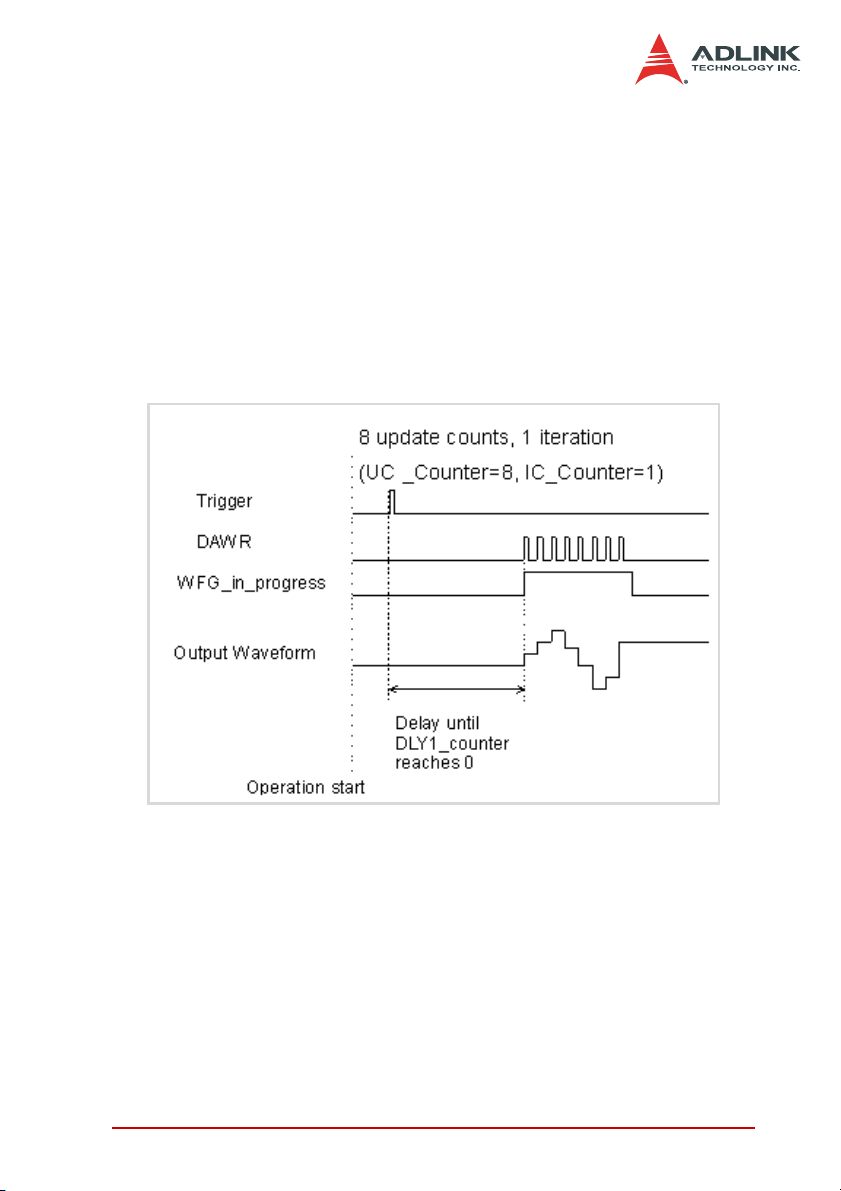

Delay-Trigger Generation

Use delay-trigger when you want to delay the waveform gener­ation after the trigger signal. The delay time is determined by
DLY1_counter as shown in Figure 4-10.

The counter counts down on the rising edges of DLY1_counter
clock source after the start trigger signal. When the count
reaches zero, the DAQ-/DAQe-/PXI-2502/2501 card starts to
generate the waveform. The DLY1_counter clock source can
be software selected from the internal 40 MHz timebase, exter­nal clock input (AFI-0), or GPTC output 0/1.

Figure 4-10: Delay-Trigger Generation

Operation Theory 39

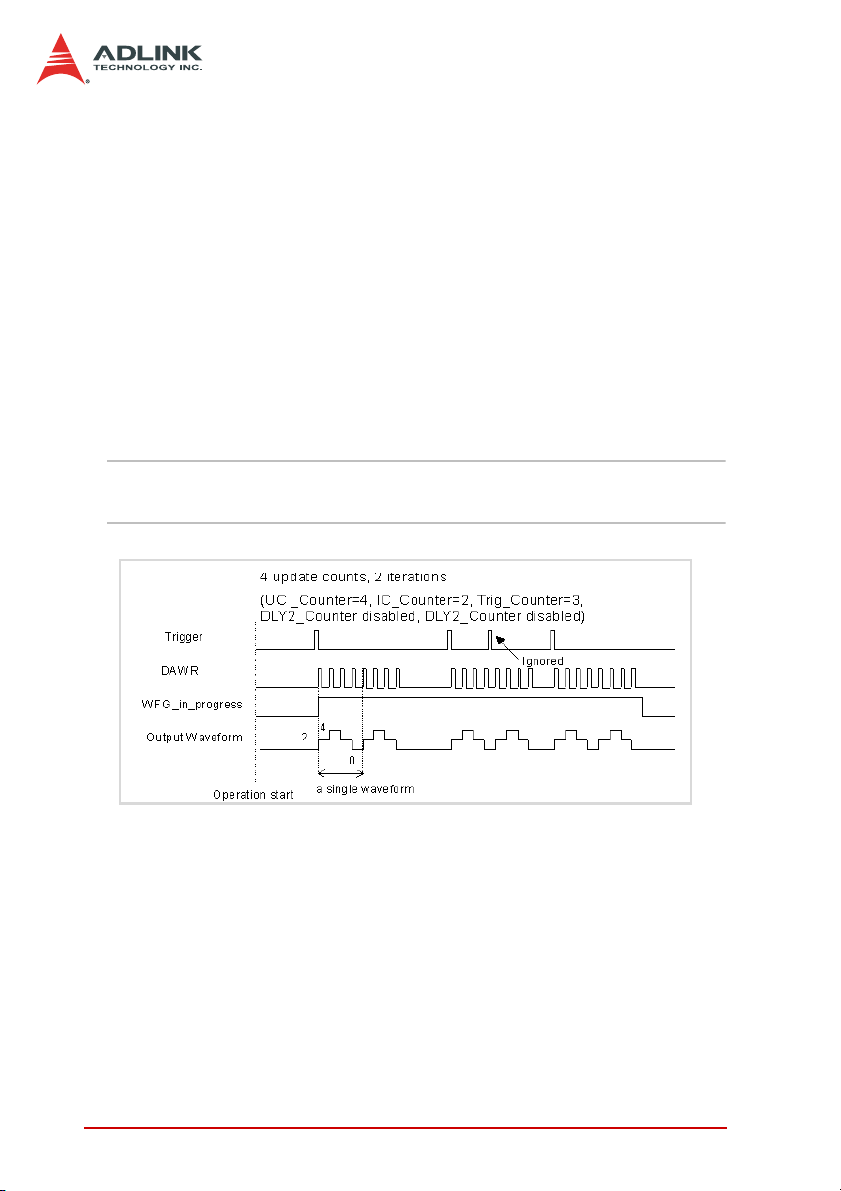

Post-Trigger or Delay-Trigger with Retrigger

Use post-trigger or delay-trigger with retrigger when you want
to generate multiple waveforms with respect to multiple incom­ing trigger signals. You can set Trig_counter to specify the
number of acceptable trigger signals.

Figure 4-11 illustrates this example with an Iterative Waveform
Generation. Refer to next section for details. Two waveforms
are generated after the first trigger signal. The board then waits
for another trigger signal. When the next trigger signal is
asserted, the board generates two more waveforms. After
three trigger signals, as specified in Trig_Counter, no more trig­gers signals are accepted unless software trigger reset com­mand is executed.

NOTE Start Trigger signals asserted during the waveform gen-

eration process are ignored.

Figure 4-11: Post Trigger or Delay-Trigger Generation with Retrigger

40 Operation Theory

Iterative Waveform Generation

You can set the IC_counter to generate iterative waveforms, no
matter which trigger mode is used. The IC_counter stores the iter­ation number. Examples shown in Figure 4-12 and Figure 4-13
assumes that the digital codes in the FIFO are 2V, 4V, 2V, and 0V.

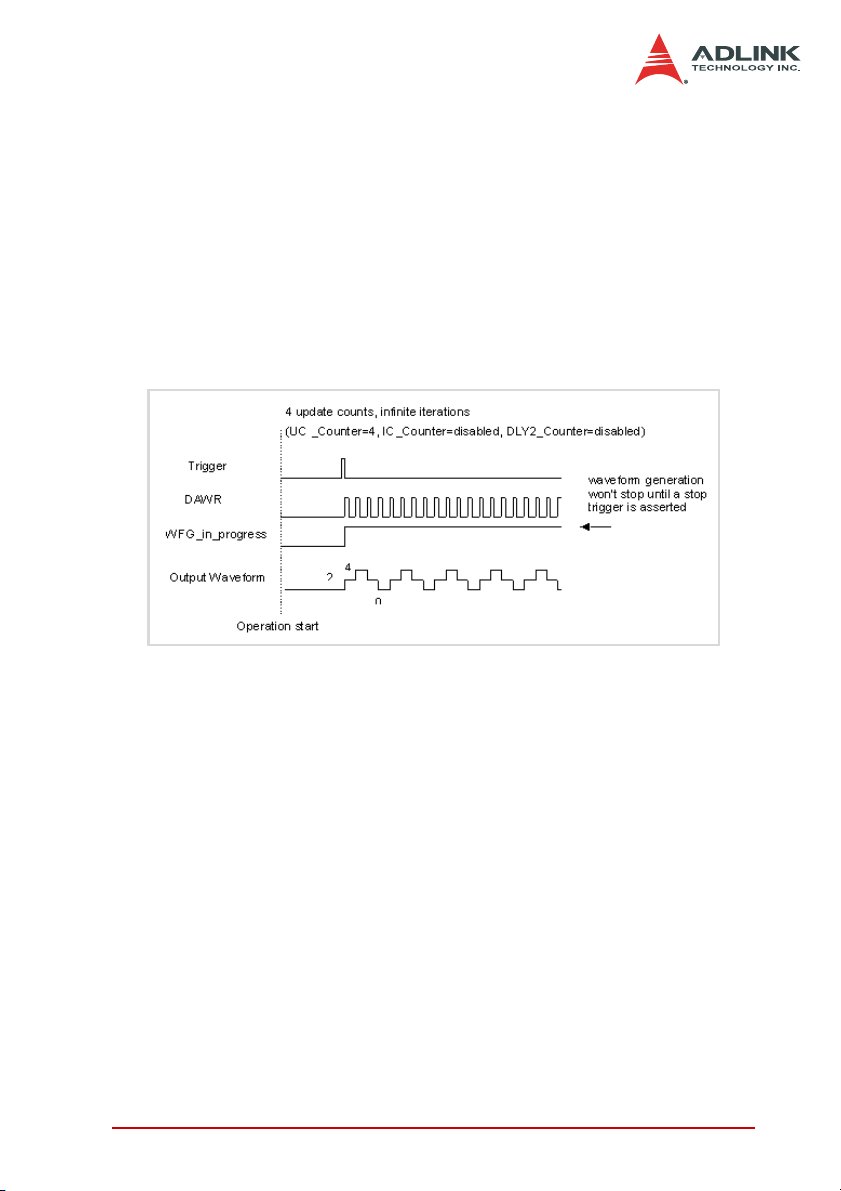

Figure 4-12: Finite Iterative Waveform Generation with Post-trigger

Figure 4-13: Post Trigger or Delay-Trigger Generation with Retrigger

Operation Theory 41

When IC_counter is disabled, the waveform generation does not
stop until a stop trigger is asserted. For Stop Mode, refer to the
next section.

An onboard data FIFO is used to buffer the waveform patterns for
waveform generation. If the size of a single waveform is smaller
than that of the FIFO, after initially loading the data from the host
memory, the data in FIFO is re-used when a single waveform gen­eration is completed. It does not occupy the PCI bandwidth after­wards. However, if the size of a single waveform is larger than that
of the FIFO, it needs to be intermittently loaded from the host
memory via DMA, thus occupying the PCI bandwidth.

If the value specified in UC_counter is smaller than the sample
size of the waveform patterns, the waveform is generated piece­wisely. For example, if you defined a 16-sample sine wave and set
the UC_counter to two, the generated waveform will be a 1/8-cycle
sine wave for every waveform period. A complete sine wave will
be generated for every 8-iterations. If value specified in the
UC_counter is larger than the sample size of waveform LUT, i.e.
32, the generated waveform will be a 2-cycle sine wave for every
waveform period.

In conjunction with different trigger modes and counter setups, you
can manipulate a single waveform to generate different, more
complex waveforms. For more information, refer to the Appendix.

DLY2_Counter in iterative Waveform Generation

To expand the flexibility of Iterative Waveform Generation,
DLY2_counter was implemented to separate consecutive
waveform generations.

The DLY2_counter starts counting down immediately after a
single waveform generation is completed. When it reaches
zero, the next iteration of waveform generation starts. If you are
generating waveform piece-wisely, the next piece of wave­form is generated. The DLY2_counter clock source can be
software selected from internal 40 MHz timebase, external
clock input (AFI-0), or GPTC output 0/1.

42 Operation Theory

Stop Modes

You may stop waveform generation while it is still in progress,
either by hardware or software trigger. The stop trigger sources
can be software selected from internal software trigger, exter­nal digital trigger (AFI-0/1), or analog trigger. Three stop modes
are provided to stop finite or infinite waveform generation.

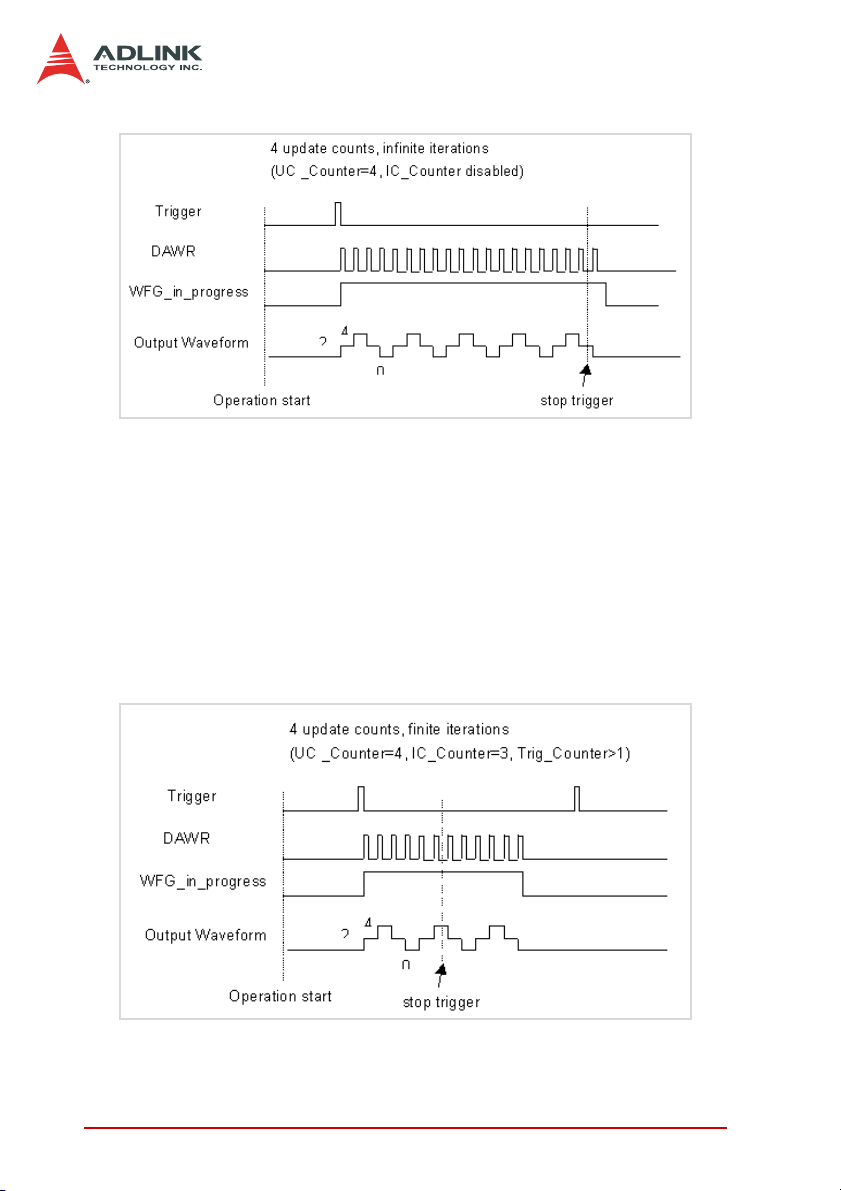

Stop Mode I

After a mode I stop trigger is asserted, the waveform genera­tion stops immediately. Figure 4-14 illustrates this example.

Figure 4-14: Stop Mode I

Stop Mode II

After a mode II stop trigger is asserted, the waveform genera­tion continues to generate a complete waveform, then stops
the operation.Figure 4-15 is an example of Stop Mode II. Since
UC_counter is set to four, the total generated data points must
be a multiple of four.

You can check WFG_in_progress (waveform generation in
progress) status by software read-back to confirm the stop of a
waveform generation.

Operation Theory 43

Figure 4-15: Stop Mode II

Stop Mode III

After a mode III stop trigger is asserted, the waveform genera­tion continues until the iterative number of waveforms specified
in IC_Counter is completed. Figure 4-16 is shown as an exam­ple. Since IC_Counter is set to three, the total generated wave­forms must be a multiple of three.

You can check WFG_in_progress (waveform generation in
progress) status by software read-back to confirm the stop of a
waveform generation.

Figure 4-16: Stop Mode III

44 Operation Theory

4.3 General Purpose Digital I/O

The DAQ-/DAQe-/PXI-2502/2501 card provides a 24-line general­purpose digital I/O (GPIO) via the 82C55A chip.

The 24-line GPIO are separated into three ports: Port A, Port B
and Port C. High nibble (bit[7…4]), and low nibble (bit[3…0]) of
each port can be individually programmed to be either inputs or
outputs. Upon system startup or reset, all GPIO pins are reset to
high impedance inputs.

For more information on 82C55A programmable I/O chip, visit
http://www.intel.com.

Operation Theory 45

4.4 General Purpose Timer/Counter Operation

Two independent 16-bit up/down timer/counter are embedded in
FPGA firmware for user applications. They have the following fea­tures:

X Counting direction can be controlled via hardware or soft-

ware

X Selectable counter clock source from either internal or

external clock up to 10 MHz

X Programmable gate selection

X Programmable input and output signal polarities, either

active-high or active-low

X Initial Count can be loaded via software

X Current count value can be read-back by software without

affecting circuit operation

Basics Timer/Counter Function Basics

Each timer/counter has three inputs that can be controlled via
hardware or software. These are clock input (GPTC_CLK), gate
input (GPTC_GATE), and up/down control input
(GPTC_UPDOWN).

The GPTC_CLK input acts as a clock source to the timer/counter.
Active edges on the GPTC_CLK input increment or decrement the
counter. The GPTC_UPDOWN input determines whether the
counter is counting up or down. The GPTC_GATE input is a con­trol line that acts as a counter enable or a counter trigger signal in
different modes.

The output of timer/counter is GPTC_OUT. After power-up,
GPTC_OUT is pulled high by a 10K resistor. GPTC_OUT goes
low after the DAQ board is initialized.

All the polarities of input/output signals can be programmed via
software. In this section, all timing figures assume that
GPTC_CLK, GPTC_GATE, and GPTC_OUT are set to be posi­tive-logic, meaning they’re triggered on the rising-edge.

46 Operation Theory

General Purpose Timer/Counter Modes

Eight programmable timer/counter modes are provided. All modes
start operations following the software start command. The GPTC
software reset command initializes the status of the counter and
re-loads the initial value to the counter.

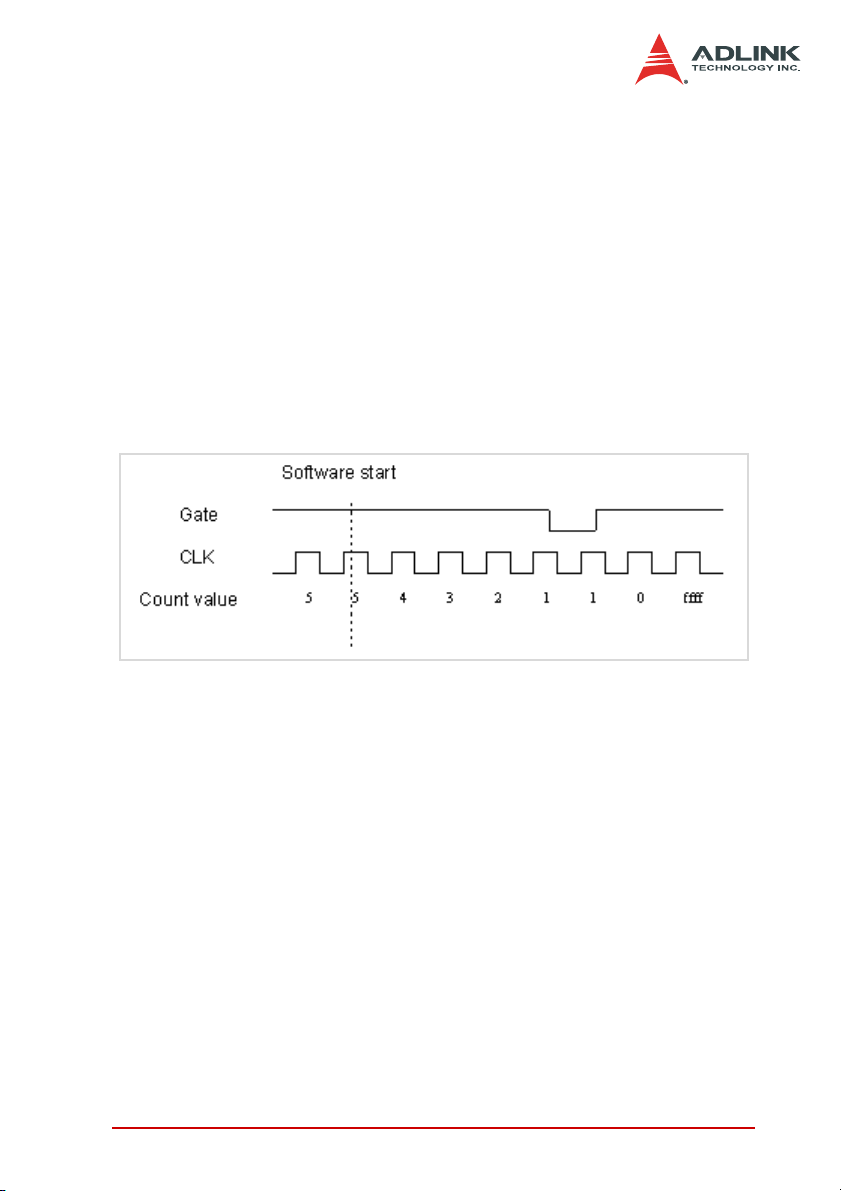

Mode1: Simple Gated-Event Counting

The counter counts the number of pulses on the GPTC_CLK
after the software start. Initial count value can be loaded via
software. Current count value can be read-back by software at
anytime. GPTC_GATE is used to enable/disable counting.
When GPTC_GATE is inactive, the counter halts the current
count value. Figure 4-17 illustrates the operation with initial
count = 5 in down-counting mode.

Figure 4-17: Mode1 Operation

Mode2: Single Period Measurement

The counter counts the period of the signal on GPTC_GATE in
terms of GPTC_CLK. Initial count can be loaded via software.
After the software start, the counter counts the number of
active edges on GPTC_CLK between two active edges of
GPTC_GATE. After the completion of the period measure­ment, GPTC_OUT outputs high and current count value can be
read-back by software. Figure 4-18 illustrates the operation
where initial count = 0, up-counting mode.

Operation Theory 47

Figure 4-18: Mode2 Operation

Mode3: Single Pulse-width Measurement

The counter counts the pulse-width of the signal on
GPTC_GATE in terms of GPTC_CLK. Initial count can be
loaded via software. After the software start, the counter counts
the number of active edges on GPTC_CLK when GPTC_GATE
is active. GPTC_OUT outputs high, and current count value
can be read-back via software after the completion of the
pulse-width measurement. Figure 4-19 illustrates the operation
where initial count = 0 in up-counting mode.

Figure 4-19: Mode 3 Operation

48 Operation Theory

Mode4: Single Gated Pulse Generation

This mode generates a single pulse with programmable delay
and programmable pulse-width following the software start.
These software programmable parameters could be specified
in terms of periods of the GPTC_CLK. GPTC_GATE is used to
enable/disable counting. When GPTC_GATE is inactive, the
counter halts the counting. Figure 4-20 illustrates the genera­tion of a single pulse with pulse-delay of two and pulse-width of
four.

Figure 4-20: Mode4 Operation

Mode5: Single Triggered Pulse Generation

This function generates a single pulse with programmable
delay and programmable pulse-width following an active
GPTC_GATE edge. These software programmable parame­ters can be specified in terms of periods of the GPTC_CLK
input. Once the first GPTC_GATE edge triggers the single
pulse, GPTC_GATE takes no effect until the software start is
re-executed. Figure 4-21 illustrates the generation of a single
pulse with pulse delay of two and pulse-width of four.

Figure 4-21: Mode5 Operation

Operation Theory 49

Mode6: Re-triggered Single Pulse Generation

This mode is similar to mode 5 except that the counter gener­ates a pulse following every active edge on GPTC_GATE.
After the software start, every active GPTC_GATE edge trig­gers a single pulse with programmable delay and pulse-width.
Any GPTC_GATE trigger that occurs during the pulse genera­tion is ignored. Figure 4-22 illustrates the generation of two
pulses with pulse delay of two and pulse-width of four.

Figure 4-22: Mode6 Operation

Mode7: Single Triggered Continuous Pulse Generation

This mode is similar to mode 5, except that the counter gener­ates continuous periodic pulses with programmable pulse inter­val and pulse-width following the first active edge of
GPTC_GATE. Once the first GPTC_GATE edge triggers the
counter, GPTC_GATE takes no effect until the software start is
re-executed. Figure 4-23 illustrates the generation of two
pulses with pulse delay of four and pulse-width of three.

Figure 4-23: Mode7 Operation

50 Operation Theory

Mode8: Continuous Gated Pulse Generation

This mode generates periodic pulses with programmable pulse
interval and pulse-width following the software start.
GPTC_GATE is used to enable/disable counting. When
GPTC_GATE is inactive, the counter halts the current count
value. Figure 4-24 illustrates the generation of two pulses with
pulse delay of four and pulse-width of three.

Figure 4-24: Mode8 Operation

Operation Theory 51

4.5 Trigger Sources

The DAQ-/DAQe-/PXI-2502/2501 card provides flexible trigger
selections. In addition to software trigger, the DAQ-/DAQe-/PXI­2502/2501 card also supports external analog and digital triggers.
You can configure the trigger source for A/D and D/A processes
individually via software.

NOTE A/D and D/A conversions share the same analog trigger.

Software-Trigger

This trigger mode does not need any external trigger source. The
trigger asserts right after you execute the specified function call. A/
D and D/A processes can receive an individual software trigger.

External Analog Trigger

The analog trigger circuitry routing is shown in the Figure 4-25.
The analog multiplexer selects either a direct analog input from
the EXTATRIG pin (SRC1) on the 68-pin connector CN1 or the
input signal of ADC (SRC2). The range of trigger level for SRC1 is
±10V and the resolution is 78mV (refer to Table 4-8), while the
trigger range of SRC2 is the full-scale range of AD input, and the
resolution is the desired range divided by 256.

Figure 4-25: Analog Trigger Block Diagram

52 Operation Theory

Trigger Level digital setting Trigger voltage

0xFF 9.92V

0xFE 9.84V

--- ---

0x81 0.08V

0x80 0

0x7F -0.08V

--- ---

0x01 -9.92V

0x00 -10V

Table 4-8: Ideal Transfer Characteristic of Analog Trigger SRC1

(EXTATRIG)

The trigger signal asserts when an analog trigger condition is met.
There are five analog trigger conditions in DAQ-/DAQe-/PXI-2502/
2501 card. The DAQ-/DAQe-/PXI-2502/2501 card uses two
threshold voltages: Low_Threshold and High_Threshold to com­pose five different trigger conditions. You can configure the trigger
conditions easily via software.

Below-Low Analog Trigger Condition

Figure 4-26 shows the below-low analog trigger condition, the
trigger signal asserts when the input analog signal is lower than
the Low_Threshold voltage. High_Threshold setting is not used
in this trigger condition.

Figure 4-26: Below-Low Analog Trigger Condition

Operation Theory 53

Above-High Analog Trigger Condition

Figure 4-27 shows the above-high analog trigger condition, the
trigger signal asserts when the input analog signal is higher
than the High_Threshold voltage. The Low_Threshold setting
is not used in this trigger condition.

Figure 4-27: Above-High Analog Trigger Condition

Inside-Region Analog Trigger Ccondition

Figure 4-28 shows the inside-region analog trigger condition,
the trigger signal asserts when the input analog signal level
falls in the range between the High_Threshold and the
Low_Threshold voltages.

Figure 4-28: Inside-Region Analog Trigger Condition

54 Operation Theory

High-Hysteresis Analog Trigger Condition

Figure 4-29 shows the high-hysteresis analog trigger condition.
The trigger signal asserts when the input analog signal level is
higher than the High_Threshold voltage, where the hysteresis
region is determined by the Low_Threshold voltage.

Figure 4-29: High-Hysteresis Analog Trigger Condition

Low-Hysteresis Analog trigger condition

Figure 4-30 shows the low-hysteresis analog trigger condition.
The trigger signal asserts when the input analog signal level is
lower than the Low_Threshold voltage where the hysteresis
region is determined by the High_Threshold voltage.

Figure 4-30: Low-Hysteresis Analog Trigger Condition

Operation Theory 55

4.6 Timing Signals

In order to meet the requirements for user-specific timing or syn­chronizing multiple boards, the DAQ-/DAQe-/PXI-2502/2501 card
provides a flexible interface for connecting timing signals with
external circuitry or other boards. The DAQ timing of the DAQ-/
DAQe-/PXI-2502/2501 card is composed of a bunch of counters
and trigger signals in the FPGA on board.

There are seven timing signals related to the DAQ timing, which in
turn influence the A/D, D/A process, and GPTC operation. These
signals are fed through the Auxiliary Function Inputs pins (AFI) or
the System Synchronization Interface bus (SSI). We implemented
a multiplexer in the FPGA to select the desired timing signal from
these inputs as shown in the Figure 4-31.

You can use the SSI to achieve synchronization between multiple
boards, or use the AFI to derive timing signals from an external
timing circuit.

Figure 4-31: DAQ Signals Routing

56 Operation Theory

System Synchronization Interface

SSI uses bi-directional I/O to provide flexible connections between
boards. You can choose each of the seven timing signals and
which board to be the SSI master. The SSI master can drive the
timing signals of the slaves. You can thus achieve better synchro­nization between boards.

Note that during power-up or reset, the DAQ board resets and
uses its internal timing signals.

Operation Theory 57

58 Operation Theory

5 Calibration

This chapter introduces the calibration process to minimize AD
measurement errors and DA output errors.

5.1 Loading Calibration Constants

The DAQ-/DAQe-/PXI-2502/2501 card is factory-calibrated before
shipment. The associated calibration constants of the TrimDACs
firmware to the onboard EEPROM. TrimDACs are devices con­taining multiple DACs within a single package. TrimDACs do not
have memory capability. That means the calibration constants do
not retain their values after the system power is turned off. Load­ing calibration constants is the process of loading the values of
TrimDACs firmware stored in the onboard EEPROM. ADLINK pro­vides a software utility that automatically reads the calibration con­stants automatically, if necessary.

There is a dedicated space for storing calibration constants in the
EEPROM. In addition to the default bank of factory calibration con­stants, there is one user-utilization bank. This bank allows you to
load the TrimDACs firmware values either from the original factory
calibration or from a subsequently-performed calibration.

Because of the fact that measurements and outputs errors may
vary depending on time and temperature, it is recommended that
you calibrate the card when it is integrated in your computing envi­ronment. The auto-calibration function is presented in the follow­ing sections.

Calibration 59

5.2 Auto-calibration

Through the DAQ-/DAQe-/PXI-2502/2501 card auto-calibration
feature, the calibration software measures and corrects almost all
calibration errors without any external signal connections, refer­ence voltage, or measurement devices.

The DAQ-/DAQe-/PXI-2502/2501 card comes with an onboard
calibration reference to ensure the accuracy of auto-calibration.
The reference voltage is measured in the production line through a
digital potentiometer and compensated in the software. The cali­bration constant is memorized after this measurement. We do not
recommended adjustment of the onboard calibration reference
except when an ultra-precision calibrator is available.

NOTES

• Warm the card up for at least 15 minutes before initiating auto-cal­ibration.

• Remove the cable before auto-calibrating the card since the DA
outputs are changed during the process.

5.3 Saving Calibration Constants

When auto-calibration is completed, you can save the new calibra­tion constants to the user-configurable banks in the EEPROM.
The date and the temperature when you ran auto-calibration is
saved with the calibration constants. You can store three sets of
calibration constants according to three different environments
and re-load the calibration constants later. for users to save cali­bration constants in an easy manner.

60 Calibration

Appendix

Waveform Generation Demonstration

Combined with six counters, selectable trigger sources, external
reference sources, and time base, the DAQ-/DAQe-/PXI-2502/
2501 provides the capabilities to generate complex waveforms.
Various modes shown below can be mixed together to generate
waveforms that are even more complex.

Although you can always load a new waveform to generate any
desired waveform, we suggest using hardware capabilities to
maximize the card’s efficiency and flexibility.

Standard Function

Waveforms including sine wave, triangular
wave, saw wave, ramp, etc., can be converted
to Waveform LUT. Using larger waveform
means trading maximum output rate for lower
harmonic distortion.

Arbitrary Function

User-defined arbitrary function without size limit
can be generated. You can also concatenate
various standard functions of same length into
one arbitrary function and setup piece-wise
generation, so each standard function can be
generated in sequence, with a user-definable
intermediate space.

Standard Function w. Frequency Variant

You can alter the frequency of generated wave­forms by driving DAWR from external signal via
AF0/AF1/SSI. The resultant updating rate
should be kept within 1 MHz.

Appendix 61

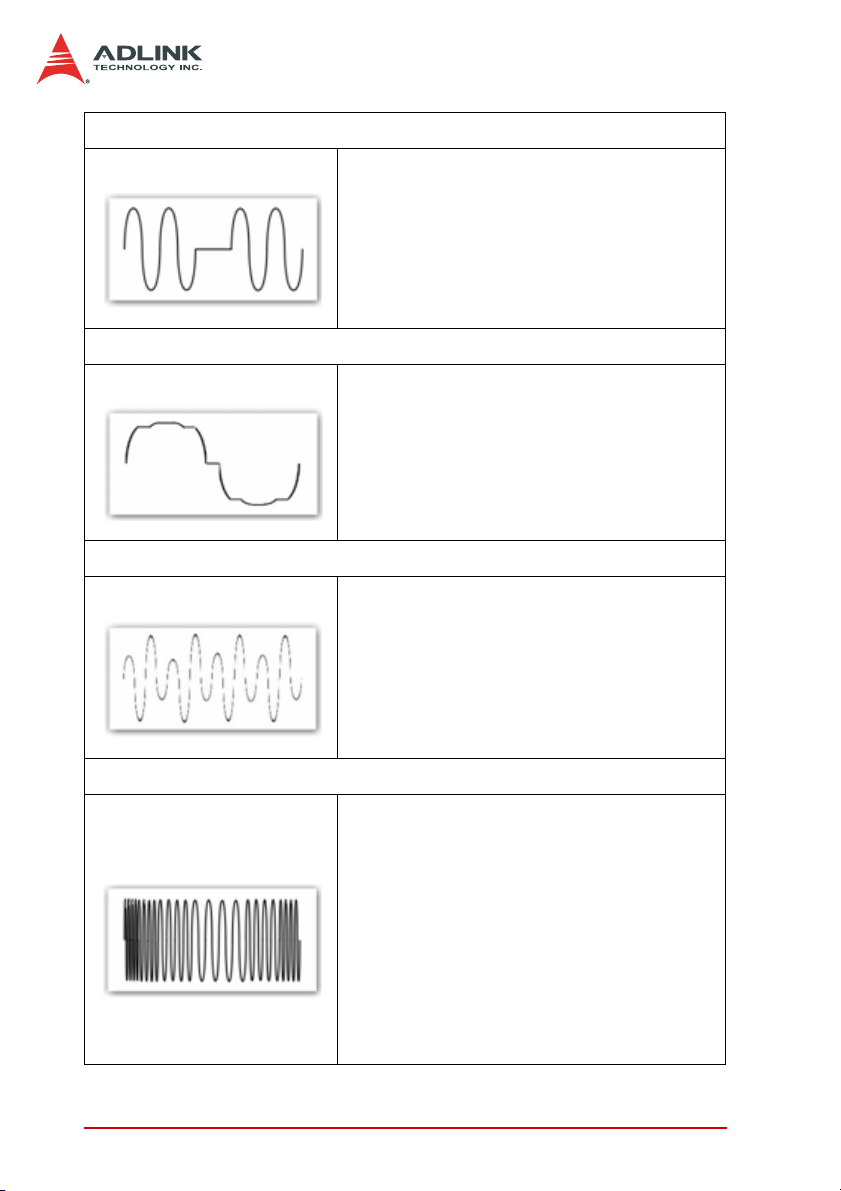

Iterative Generation w. Intermediate Space

Utilize DLY2_counter to separate consecutive
waveform generations in iterative generation
mode. In this demo, the original standard sine
wave is repeated several times as specified in
IC_counter, with intermediate space deter­mined by DLY2_counter.

Piece-wise Generation

When the value specified in UC_counter is
smaller than the sample size of waveform, the
waveform is generated piece-wisely. The inter­mediate space between each piece is deter­mined by DLY2_counter. In this demo, the
UC_counter is set to 1/8 of the sample size of
waveform.

Amplitude Modulated

When external D/A reference is used, applying
sinusoidal voltage reference will result in an
amplitude modulated (AM) waveform genera­tion. You can use one D/A channel to generate
sine wave, loop it back to AOEXTREF_A/B pin,
and generate AM waveform by another D/A
channel using external reference. All can be
done in a single D/A group.

Frequency Modulated

By feeding AFI0/AFI1 with PWM source, pulse
train from VCO, or any time-varying digital signal,
DAQ-/DAQe-/PXI-2502/2501 is capable of
generating frequency modulated (FM) waveform.
Since all four channels are synchronized in a D/A
group, precise quadrature waveform generation is
guarantied, provided the waveform are shifted 90­degree for the other channel. Phase difference of
any degree can also be setup. Combined with
external High-speed programmable Digital I/O
card, Phase-Shift-Keying or Phase-Reversal­Keying can also be achieved.

62 Appendix

Warranty Policy

Thank you for choosing ADLINK. To understand your rights and
enjoy all the after-sales services we offer, please read the follow­ing carefully.

1. Before using ADLINK’s products please read the user man­ual and follow the instructions exactly. When sending in
damaged products for repair, please attach an RMA appli­cation form which can be downloaded from: http://
rma.adlinktech.com/policy/.
