ADLINK DAQ-2204, DAQ-2205, DAQ-2206, PXI-2204, PXI-2205 User Guide

NuDAQ

Recycle Paper

DAQ-2204/2205/2206

PXI-2204/2205/2206

64-CH, High Performance

Multi-function Data Acquisition Cards

User's Guide

Copyright 2002 ADLINK Technology Inc.

All Rights Reserved.

Manual Rev. 1. 13: Oct 15, 2002

Part No: 50-11213-101

The information in this document is subject to change without prior notice in
order to improve reliability, design and function and does not represent a
commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, in­cidental, or consequential damages arising out of the use or inability to use
the product or documentation, even if advised of the possibility of such
damages.

This document contains proprietary information protected by copyright. All
rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.

Trademarks

NuDAQ, NuIPC, NuDAM, NuPRO are registered trademarks of
ADLINK Technology Inc. Other product names mentioned herein are used
for identification purposes only and may be trademarks and/or registered
trademarks of their respective companies.

Getting service from ADLINK

• Customer Satisfaction is the most important priority for ADLINK Tech
Inc. If you need any help or service, please contact us.

ADLINK Technology Inc.

Web Site http://www.adlinktech.com

Sales & Service

NuDAQ + USBDAQ [e-mail]

Technical

Support

TEL [phone] FAX [phone]

Address 9F, No. 166, Jian Yi Road, Chungho City, Taipei, 235 Taiwan.

Automation [e-mail]

NuIPC [e-mail]

NuPRO / EBC [e-mail]

• Please email or FAX us of your detailed information for a prompt,
satisfactory and constant service.

Detailed Company Information

Com pany/Organization
Contact Person
E -mail Address
Address
Country
TEL FAX
Web Site

Product Model

OS:
Computer Brand:
M/B: CPU:

Environment to Use

Detail Description

Chipset: BIOS:
Video Card:
Network Interface Card:
Other:

[e-mail]

Questions

Suggestions to ADLINK

Table of Contents

Tables.......................................................................................iv

Figures......................................................................................v

How to Use This Guide..........................................................vii

Chapter 1 Introduction...........................................................1

1.1 Features ...........................................................................1

1.2 Applications ......................................................................3

1.3 Specifications ....................................................................3

1.4 Software Support............................................................. 12

1.4.1 Programming Library ...................................................................12

1.4.2 D2K-LVIEW: LabVIEW® Driver..............................................12

1.4.3 PCIS-OCX: ActiveX Controls ....................................................13

Chapter 2 Installation............................................................14

2.1 What You Have............................................................... 14

2.2 Unpacking....................................................................... 15

2.3 DAQ/PXI-22XX Layout ................................................... 15

2.4 PCI Configuration............................................................ 16

Chapter 3 Signal Connections ..............................................17

3.1 Connectors Pin Assignment.............................................. 17

3.2 Analog Input Signal Connection ....................................... 21

3.2.1 Types of signal sources................................................................21

3.2.2 Input Configurations.....................................................................21

3.2.2.1 Single-ended Connections.........................................................21

3.2.2.2 Differential input mode .............................................................23

Table of Contents • i

Chapter 4 Operation Theory ................................................24

4.1 A/D Conversion ............................................................... 24

4.1.1 DAQ/PXI-2204 AI Data Format ................................................25

4.1.1.1 Synchronous Digital Inputs (for DAQ/PXI-2204 only).............25

4.1.2 DAQ/PXI-2205/2206 AI Data Format......................................27

4.1.3 Software conversion with polling data transfer acquisition

mode (Software Polling)............................................................................28

4.1.3.1 Specifying Channels, Gains, and input configurations in the

Channel Gain Queue.................................................................28

4.1.4 Programmable scan acquisition mode.......................................29

4.1.4.1 Scan Timing and Procedure......................................................29

4.1.4.2 Specifying Channels, Gains, and input configurations in the

4.1.4.3 Trigger Modes...........................................................................32

4.1.4.4 Bus-mastering DMA Data Transfer..........................................38

4.2 D/A Conversion ............................................................... 40

4.2.1 Software Update ............................................................................41

4.2.2 Timed Waveform Generation .....................................................41

4.2.2.1 Trigger Modes...........................................................................43

4.2.2.2 Iterative Waveform Generation.................................................45

4.2.2.3 Stop Modes of Scan Update.......................................................46

4.3 Digital I/O ....................................................................... 48

4.4 General Purpose Timer/Counter Operation ........................ 49

4.4.1 Timer/Counter functions basics..................................................49

4.4.2 General Purpose Timer/Counter modes....................................49

4.4.2.1 Mode1: Simple Gated-Event Counting......................................50

4.4.2.2 Mode2: Single Period Measurement.........................................50

4.4.2.3 Mode 3: Single Pulse-width Measurement................................51

4.4.2.4 Mode 4: Single Gated Pulse Generation...................................51

4.4.2.5 Mode5: Single Triggered Pulse Generation .............................52

4.4.2.6 Mode6: Re-triggered Single Pulse Generation.........................52

4.4.2.7 Mode7: Single Triggered Continuous Pulse Generation..........53

4.4.2.8 Mode8: Continuous Gated Pulse Generation ...........................53

Channel Gain Queue.................................................................31

ii • Table of Contents

4.5 Trigger Sources............................................................... 54

4.5.1 Software-Trigger ........................................................................... 54

4.5.2 External Analog Trigger..............................................................54

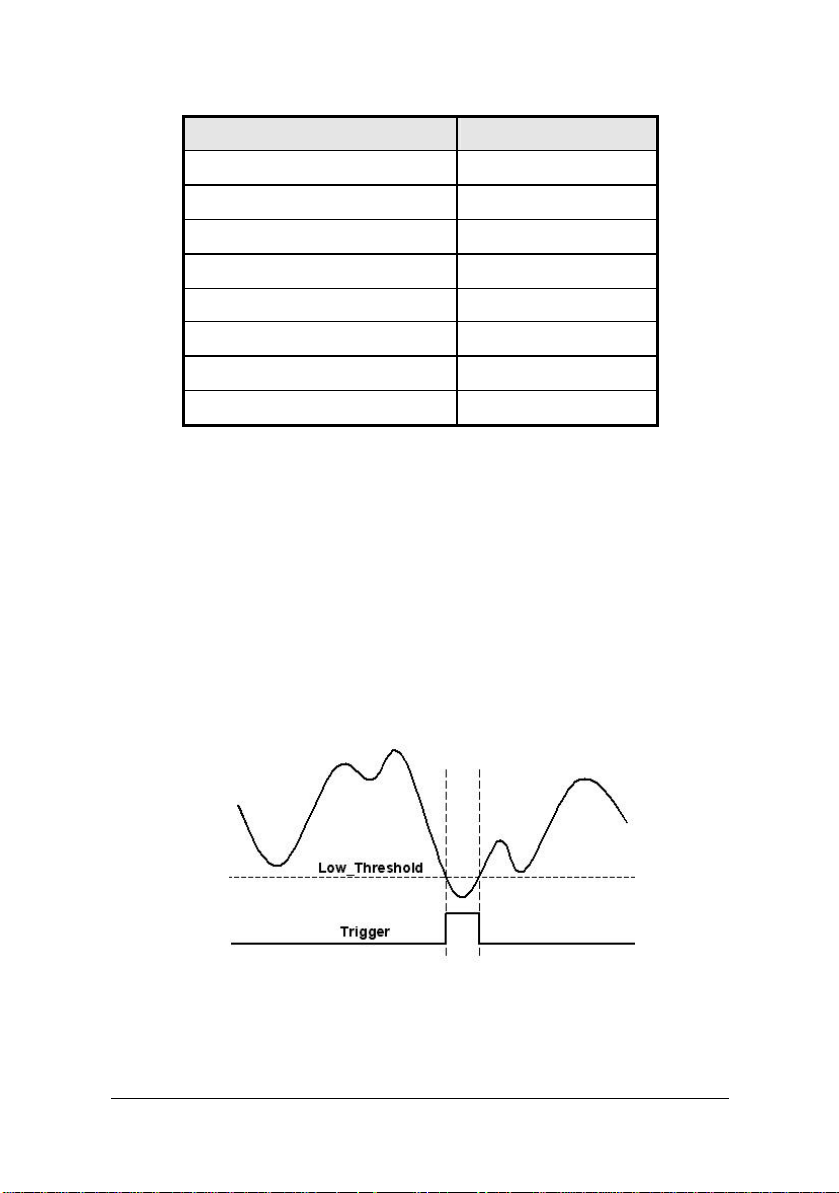

4.5.2.1 Below-Low analog trigger condition ........................................55

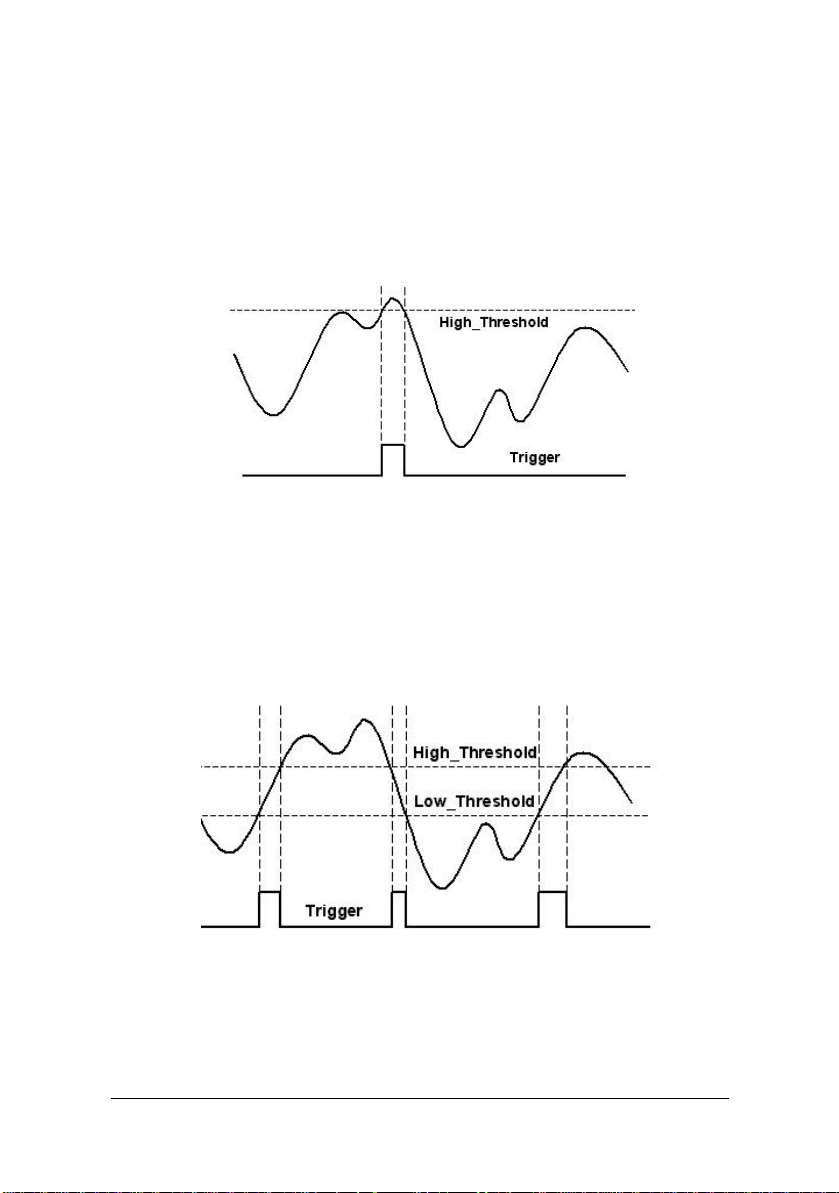

4.5.2.2 Above-High analog trigger condition .......................................56

4.5.2.3 Inside-Region analog trigger condition ....................................56

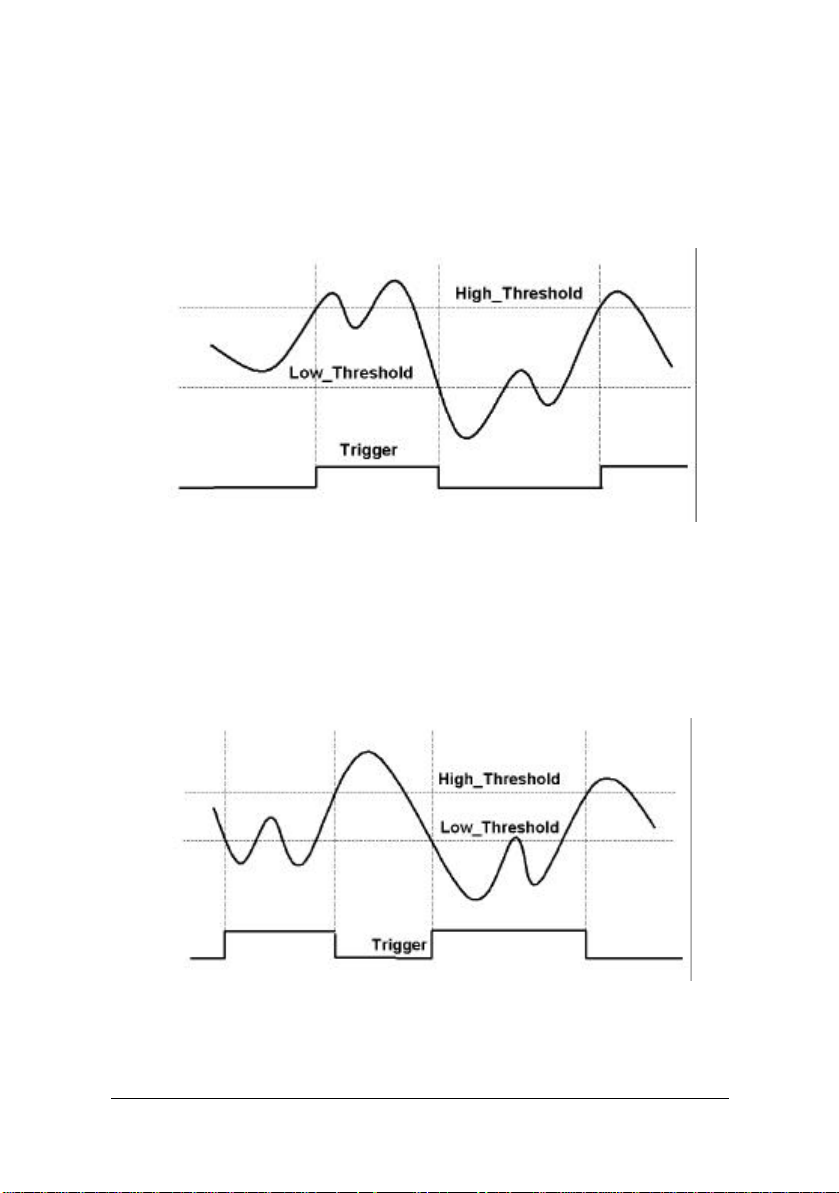

4.5.2.4 High-Hysteresis analog trigger condition.................................57

4.5.2.5 Low-Hysteresis analog trigger condition..................................57

4.5.3 External Digital Trigger...............................................................58

4.6 User-controllable Timing Signals...................................... 59

4.6.1 DAQ timing signals ......................................................................60

4.6.2 Auxiliary Function Inputs (AFI).................................................60

4.6.3 System Synchronization Interface .............................................. 63

Chapter 5 Calibration...........................................................66

5.1 Loading Calibration Constants .......................................... 66

5.2 Auto-calibration............................................................... 67

5.3 Saving Calibration Constants ............................................ 67

Warranty Policy.....................................................................68

Table of Contents • iii

Tables

Table 1: Programmable input range ...................................... 4

Table 2: -3dB small signal bandwidth ..................................5

Table 3: System Noise ........................................................6

Table 4: Input impedance .................................................... 6

Table 5: CMRR (DC to 60Hz).............................................6

Table 6: Settling time to full-scale step.................................7

Table 7: Legend of 68-pin VHDCI-type connectors............ 20

Table 8: Bipolar analog input range and the output digital

code on DAQ/PXI -2204....................................... 26

Table 9: Unipolar analog input range and the output digital

code on DAQ/PXI -2204....................................... 26

Table 10: Bipolar analog input range and the output digital

code on DAQ/PXI -2205/2206 .............................. 27

Table 11: Unipolar analog input range and the output digital

code on DAQ/PXI -2205/2206 .............................. 27

Table 12: Bipolar output code table ..................................... 40

Table 13: Unipolar output code table ................................... 40

Table 14: Analog trigger SRC1 ideal transfer characteristic... 55
Table 15: Auxiliary function input signals and the

corresponding functionalities ................................ 61

Table 16: Summary of SSI timing signals and the

corresponding functionalities as the master or slave63

iv • Tables

Figures

Figure 1: PCB Layout of DAQ -22XX................................. 15

Figure 2: PCB Layout of PXI -22XX................................... 16

Figure 3: Connector CN1 pin assignment ............................ 18

Figure 4: Connector CN2 pin assignment ............................ 19

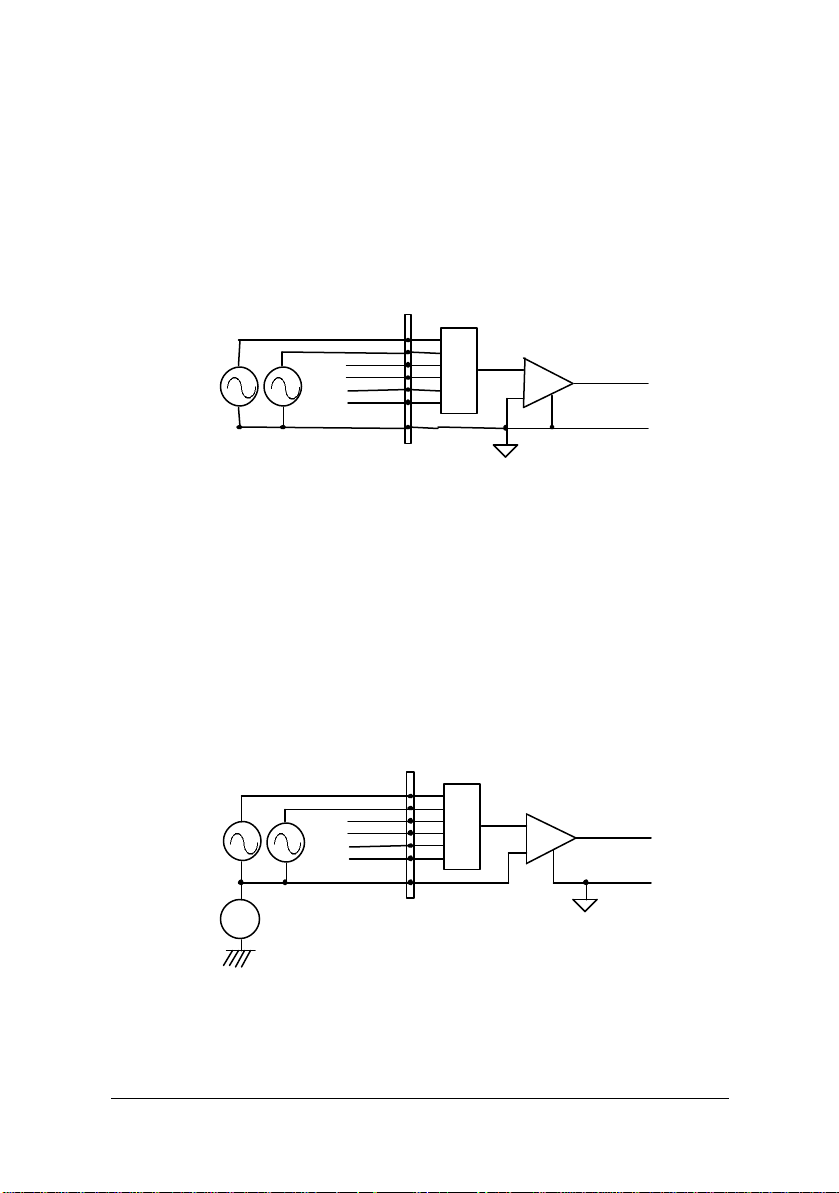

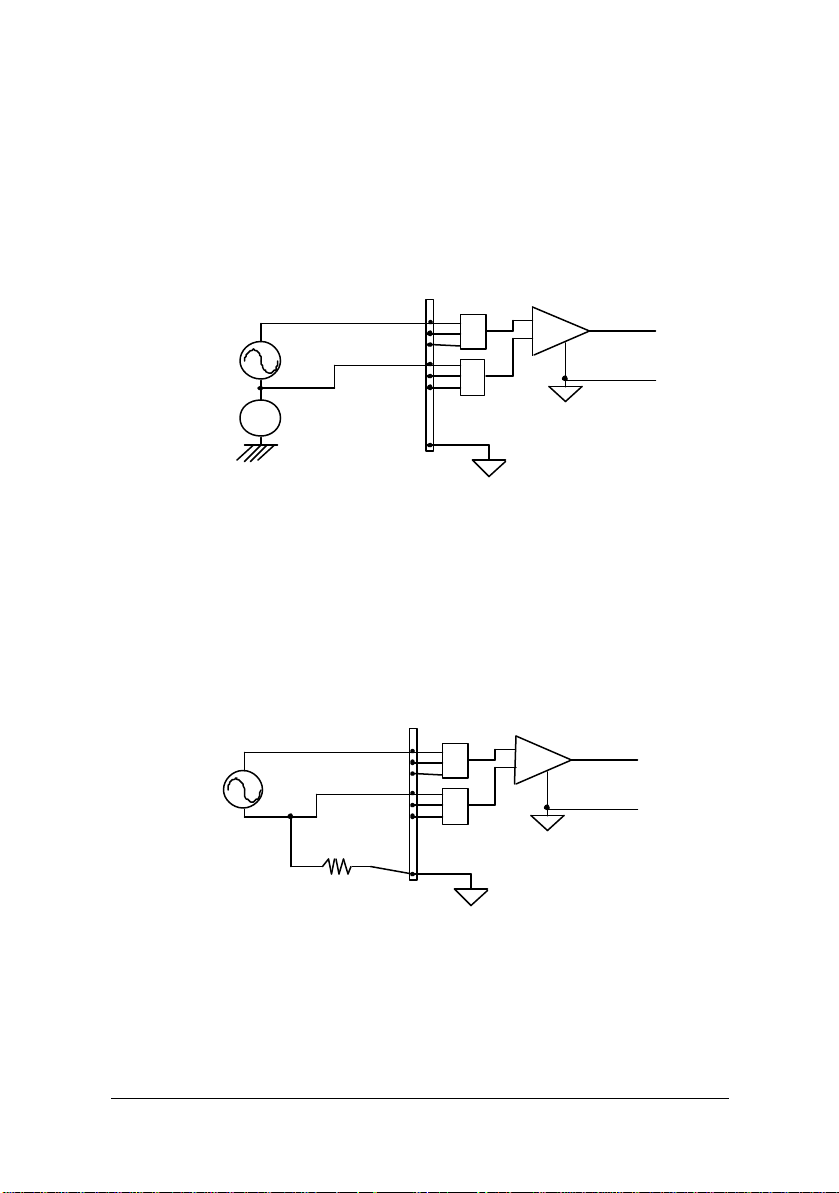

Figure 5: Floating source and RSE input connections .......... 22

Figure 6: Ground-referenced sources and NRSE input

Figure 7: Ground -referenced source and differential input.... 23

Figure 8: Floating source and differential input ................... 23

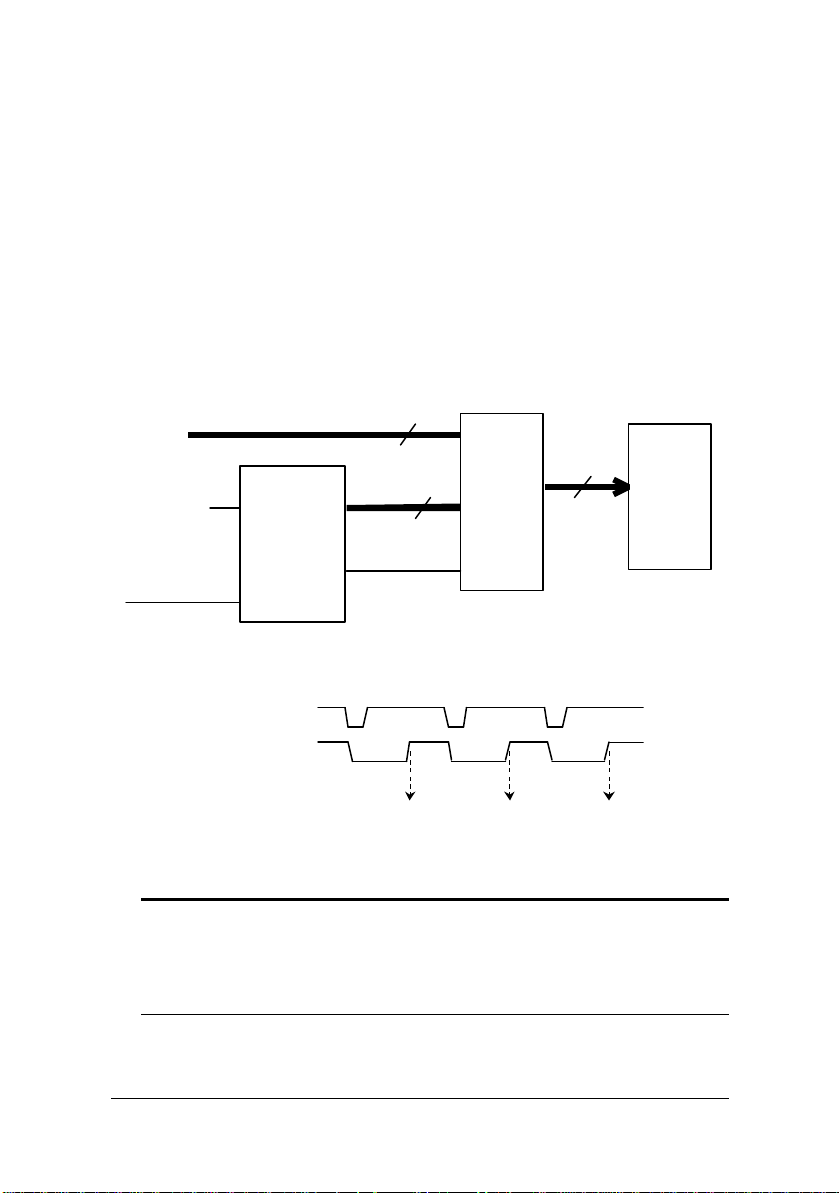

Figure 9: Synchronous Digital Inputs Block Diagram.......... 25

Figure 10: Synchronous Digital Inputs timing ....................... 25

Figure 11: Scan Timing ....................................................... 30

Figure 12: Pre-trigger (trigger occurs after M scans).............. 32

Figure 13: Pre-trigger (trigger with scan is in progress) ......... 33

Figure 14: Pre-trigger with M_enable = 0............................. 34

Figure 15: Pre-trigger with M_enable = 1............................. 34

Figure 16: Middle trigger with M_enable = 1........................ 35

Figure 17: Middle trigger..................................................... 36

Figure 18: Post trigger ......................................................... 36

connections ........................................................ 22

Figure 19: Delay trigger ...................................................... 37

Figure 20: Post trigger with retrigger .................................... 38

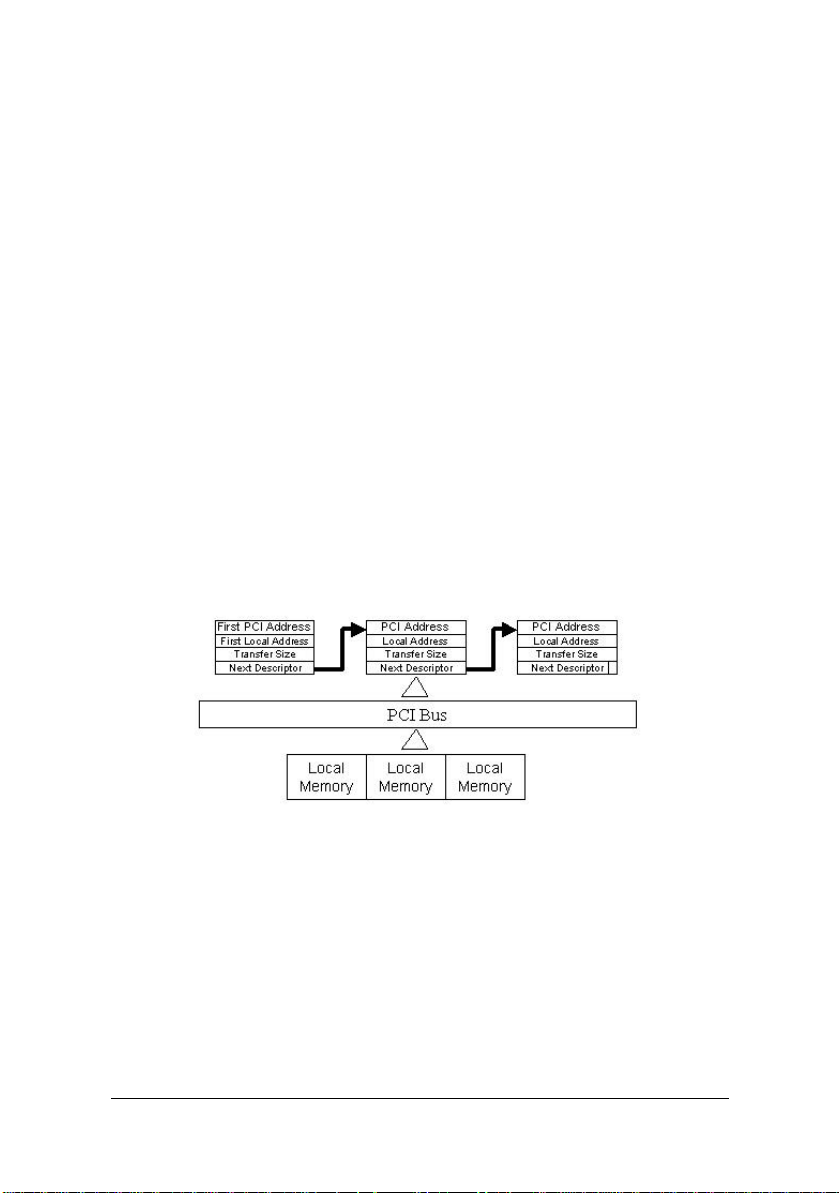

Figure 21: Scatter/gather DMA for data transfer.................... 39

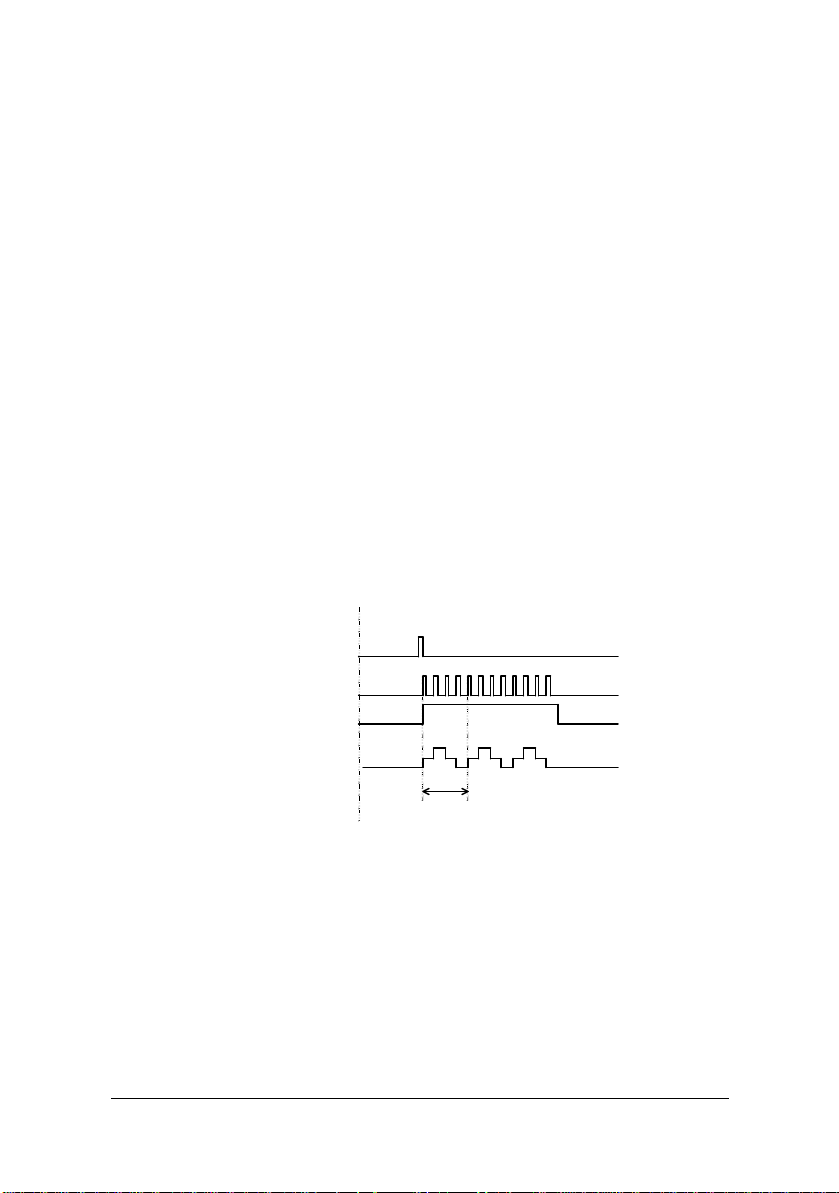

Figure 22: Typical D/A timing of waveform generation ......... 42

Figure 23: Post trigger waveform generation ......................... 43

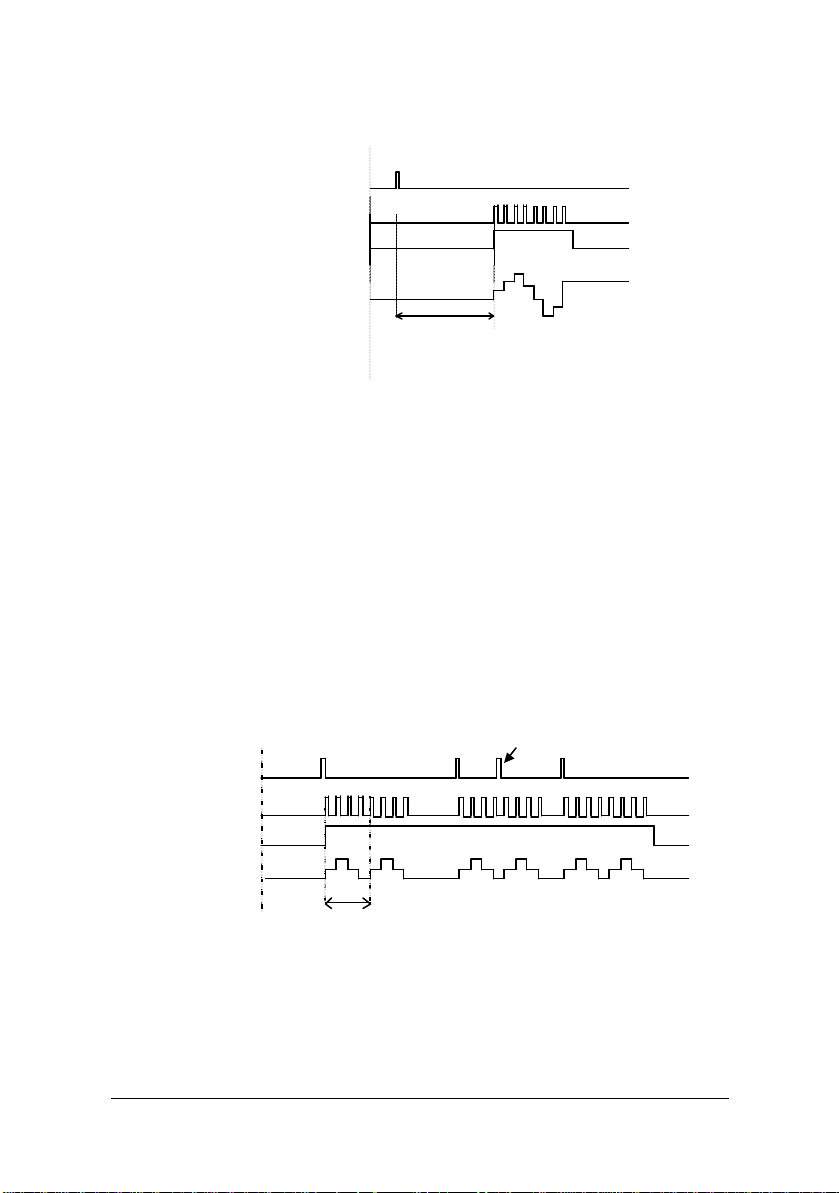

Figure 24: Delay trigger waveform generation ...................... 44

Figures • v

Figure 25: Re-triggered waveform generation with

Post-trigger and DLY2_Counter = 0..................... 44

Figure 26: Finite iterative waveform generation with

Post-trigger and DLY2_Counter = 0..................... 45

Figure 27: Infinite iterative waveform generation with

Post-trigger and DLY2_Counter = 0..................... 46

Figure 28: Stop mode I ........................................................ 47

Figure 29: Stop mode II....................................................... 47

Figure 30: Stop mode III ..................................................... 48

Figure 31: Mode 1 Operation............................................... 50

Figure 32: Mode 2 Operation............................................... 50

Figure 33: Mode 3 Operation............................................... 51

Figure 34: Mode 4 Operation............................................... 51

Figure 35: Mode 5 Operation............................................... 52

Figure 36: Mode 6 Operation............................................... 52

Figure 37: Mode 7 Operation............................................... 53

Figure 38: Mode 8 Operation............................................... 53

Figure 39: Analog trigger block diagram .............................. 54

Figure 40: Below-Low analog trigger condition.................... 55

Figure 41: Above-High analog trigger condition ................... 56

Figure 42: Inside-Region analog trigger condition ................. 56

Figure 43: High-Hysteresis analog trigger condition.............. 57

Figure 44: Low-Hysteresis analog trigger condition .............. 57

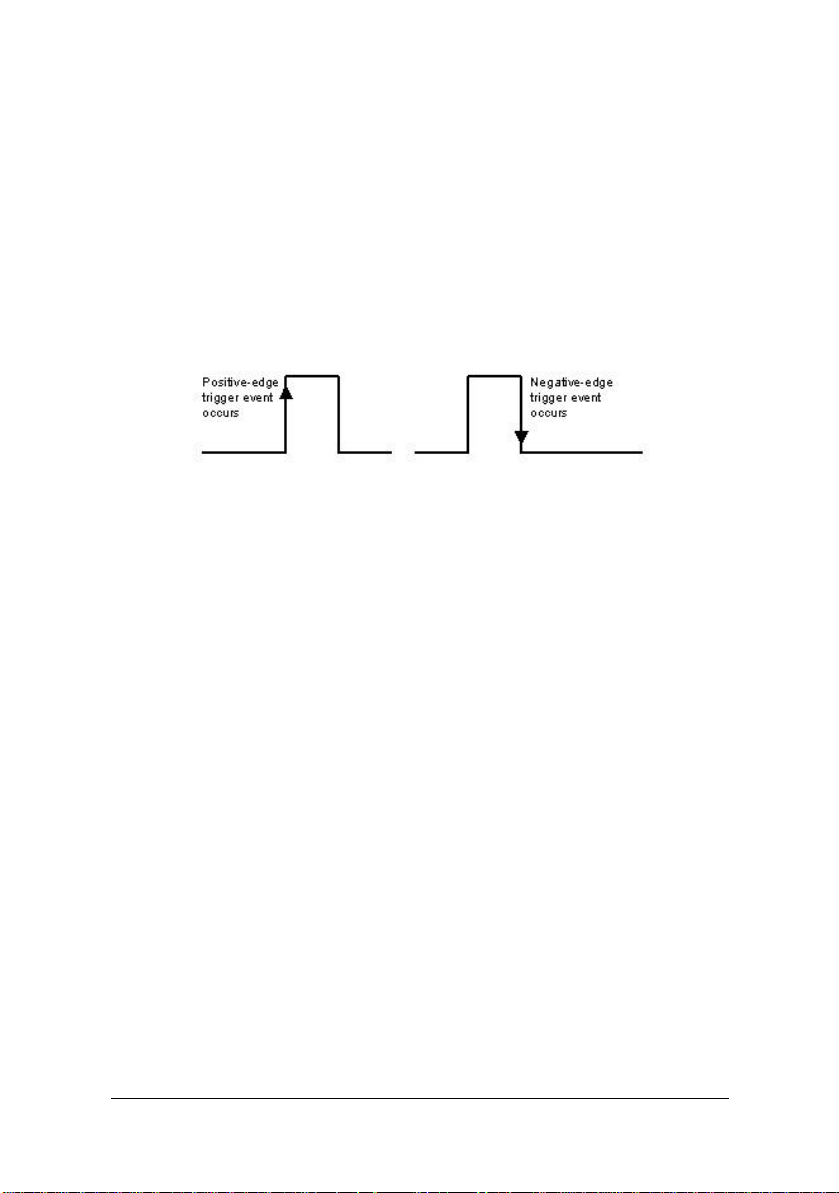

Figure 45: External digital trigger ........................................ 58

Figure 46: DAQ signals routing ........................................... 59

Figure 47: Summary of user-controllable timing signals and

the corresponding functionalities.......................... 59

vi • Figures

How to Use This Guide

This manual is designed to help you use/understand the DAQ/PXI-22XX.
The manual describes the versatile functions and the operation theory of
the DAQ/PXI-22XX. It is divided into five chapters:

Chapter 1, “Introduction,” gives an overview of the product features,

applications, and specifications.

Chapter 2, “Installation,” describes how to install DAQ/PXI-22XX.

The layout and the positions of all the connectors on
DAQ/PXI-22XX are shown.

Chapter 3, “Signal Connections,” describes the connector’s pin as-

signment and how to connect the outside signals to
DAQ/PXI-22XX.

Chapter 4, “Operation Theory,” describes how DAQ/PXI -22XX op-

erates. The A/D, D/A, GPIO, timer/counter, trigger and
timing signal routing are introduced.

Chapter 5, “Calibration,” describes how to calibrate the

DAQ/PXI-22XX for accurate measurements.

How to Use This Guide • vii

1

Introduction

The DAQ/PXI -22XX is an advanced data acquisition card based on the
32-bit PCI architecture. High performance designs and the state-of-the-art
technology make this card ideal for data logging and signal analysis ap­plications in medical, process control, etc.

1.1 Features

DAQ/PXI-22XX Advanced Data Acquisition Card provides the following

advanced features:

• 32-bit PCI -Bus, plug and play

• Up to 64 single-ended inputs or 32 differential inputs, mixing of SE and

DI analog input signals are possible

• 512 words analog input Channel Gain Queue configuration size

• DAQ/PXI-2204: 12-bit Analog input resolution with sampling rate up to

3MHz

• DAQ/PXI-2205: 16-bit Analog input resolution with sampling rate up to
500KHz

• DAQ/PXI-2206: 16-bit Analog input resolution with sampling rate up to
250KHz

• Programmable Bipolar/Unipolar analog input

Introduction • 1

• Programmable gain

P DAQ/PXI-2204: x1, x2, x4, x5, x8, x10, x20, x40, x50, x200.
P DAQ/PXI-2205/2206: x1, x2, x4, x8.

• A/D FIFO size: 1024 samples

• Versatile trigger sources: software trigger, external digital trigger,

analog trigger and trigger from System Synchronization Interface (SSI)

• A/D Data transfer: software polling & bus-mastering DMA with Scat­ter/Gather functionality

• Four A/D trigger modes: post-trigger, delay-trigger, pre-trigger and
middle-trigger

• 2 channel D/A outputs with waveform generation capability

• 1024 word length output data FIFO for D/A channels

• D/A Data transfer: software update and bus-mastering DMA with

Scatter/Gather functionality

• System Synchronization Interface (SSI)

• A/D and D/A fully auto-calibration

• Completely jumper-less and software configurable

2 • Introduction

1.2 Applications

• Automotive Testing

• Cable Testing

• Transient signal measurement

• ATE

• Laboratory Automation

• Biotech measurement

1.3 Specifications

♦ Analog Input (AI)

• Number of channels: (programmable)

P 64 single-ended (SE)
P 32 differential input (DI)
P Mixing of SE and DI analog signal sources (Software selectable per

channel)

• A/D converter

P 2204: LT1412 or equivalent
P 2205: AD7665 or equivalent
P 2206: AD7663 or equivalent

• Maximum sampling rate:

P 2204: 3MS/s (for single channel)
P 2205: 500KS/s
P 2206: 250KS/s

• Resolution:

P 2204: 12 bits, No missing codes
P 2205/2206: 16 bits, No missing codes

• Input coupling: DC

Introduction • 3

• Programmable input range:

Device Bipolar input range Unipolar input range

--

0~10V

0~5V
0~4V

0~2.5V

0~2V
0~1V

0~0.5V
0~0.4V
0~0.1V

0~10V

0~5V

0~2.5V

0~1.25V

2204

2205
2206

±10V

±5V

±2.5V

±2V

±1.25V

±1V

±0.5V

±0.25V

±0.2V

±0.05V

±10V

±5V

±2.5V

±1.25V

Table 1: Programmable input range

• Operational common mode voltage range: ± 11V maximum

• Overvoltage protection:

P Power on: continuous ± 30V
P Power off: continuous ± 15V

• FIFO buffer size: 1024 samples

• Data transfers:

P Programmed I/O
P Bus-mastering DMA with scatter/gather

• Channel Gain Queue configuration size: 512 words

4 • Introduction

• -3dB small signal bandwidth: (Typical, 25°C)

Device

2204

2205

2206

Input range Bandwidth (-3dB)

±10V

±5V

±2.5V

±1.25V

±2V

±0.5V

±1V

±0.25V

±0.2V

±0.05V

±10V

±5V

±2.5V

±1.25V

±10V

±5V

±2.5V

±1.25V

--

0~10V

0~5V

0~2.5V

0~4V
0~1V

0~2V

0~0.5V
0~0.4V

0~0.1V

0~10V 1600kHz

0~5V 1400kHz

0~2.5V 1000kHz

0~1.25V 600kHz

0~10V 760kHz

0~5V 720kHz

0~2.5V 610kHz

0~1.25V 450kHz

2000kHz

1450kHz

990kHz

240kHz

Table 2: -3dB small signal bandwidth

Introduction • 5

• System Noise (LSBrms, including Quantization, Typical, 25°C)

Device

2205

2206

• Input impedance

• CMRR (DC to 60Hz, Typical)

Device Input Range CMRR Input Range CMRR

Input

Range

±10V

±5V

±2.5V

±1.25V

±10V

±5V

±2.5V

±1.25V

Normal Power On Power Off Overload

1GΩ / 100pF 820Ω 820Ω

System Noise Input Range System Noise

0.95 LSBrms 0~10V 1.5 LSBrms

1.0 LSBrms 0~5V 1.6 LSBrms

1.1 LSBrms 0~2.5V 1.7 LSBrms

1.3 LSBrms 0~1.25V 1.9 LSBrms

0.8 LSBrms 0~10V 0.9 LSBrms

0.85 LSBrms 0~5V 1.0 LSBrms

0.85 LSBrms 0~2.5V 1.0 LSBrms

0.9 LSBrms 0~1.25V 1.2 LSBrms

Table 3: System Noise

Table 4: Input impedance

2204 All ranges 90dB -- --

±10V

2205
2206

6 • Introduction

±5V

±2.5V

±1.25V

Table 5: CMRR (DC to 60Hz)

83dB 0~10V 87dB
87dB 0~5V 90dB
90dB 0~2.5V 92dB
92dB 0~1.25V 93dB

• Settling time to full-scale step: (Typical, 25°C)

Device Input Range Condition Settling time

±10V

0~10V

2204

2205
2206

±5V

±2.5V

±2V

±1.25V

±0.5V

±2.5V

±1.25V

±0.5V

±0.25V 0~0.5V

±0.2V

±0.05V 0~0.1V

0~2.5V

±10V

±5V

±2V

0~2.5V

±1V

0~0.4V

All Ranges

All Ranges

0~10V

0~5V
0~4V

0~1V

0~5V
0~4V

0~1V
0~2V

Multiple channels,
multiple ranges.

All samples in Unipolar
OR Bipolar mode

Multiple channels,
multiple ranges.

All samples in Unipolar
AND/OR Bipolar mode

Multiple channels,
multiple ranges.

All samples in Unipolar
AND/OR Bipolar mode

Multiple channels,
multiple ranges.

All samples in Unipolar
AND/OR Bipolar mode

Multiple channels,
multiple ranges.

All samples in Unipolar
OR Bipolar mode

Multiple channels,
multiple ranges.

All samples in Unipolar
AND/OR Bipolar mode

1us to 0.1% error

1.25us to 0.1% error

2us to 0.1% error

5us to 0.1% error

2us to 0.1% error,

4us to 0.01% error

2us to 0.2% error,

4us to 0.01% error

Table 6: Settling time to full-scale step

Introduction • 7

• Time-base source: Internal 40MHz or External clock Input (f
40MHz, f

: 1MHz, 50% duty cycle)

min

• Trigger modes: post-trigger, delay-trigger, pre-trigger and mid­dle-trigger

• Offset error:

P Before calibration: ±60mV max
P After calibration: ±1mV max

• Gain error:

P Before calibration: ±0.6% of output max
P After calibration: ±0.03% of output max for DAQ/PXI-2204

±0.01% of output max for DAQ/PXI-2205/2206

♦ Analog Output (AO)

• Number of channels: 2 analog voltage outputs

• D/A converter: LTC7545 or equivalent

• Maximum update rate: 1MS/s

• Resolution: 12 bits

• FIFO buffer size:

P 512 samples per channel when both channels are enabled for

timed output.

P 1024 samples when only one channel is used for timed output.

max

:

• Data transfers:

P Programmed I/O,
P Bus-mastering DMA with scatter/gather

8 • Introduction

• Output range: ±10V, 0~10V, ±AOEXTREF, 0~AOEXTREF

• Settling time: 3µS to 0.5LSB accuracy

• Slew rate: 20V/uS

• Output coupling: DC

• Protection: Short-circuit to ground

• Output impedance: 0.1Ω. max.

• Output driving: ±5mA max.

• Stability: Any passive load, up to 1500pF

• Power-on state: 0V steady-state

• Power-on glitch: ±1V/500uS

• Offset error:

P Before calibration: ±80mV max
P After calibration: ±1mV max

• Gain error:

P Before calibration: ±0.8% of output max
P After calibration: ±0.02% of output max

♦ General Purpose Digital I/O (G.P. DIO, 82C55A)

• Number of channels: 24 programmable Input/Output

• Compatibility: TTL

• Input voltage:

P Logic Low: VIL=0.8 V max.; IIL=0.2mA max.
P High: VIH=2.0V max.; IIH=0.02mA max

• Output voltage:

P Low: VOL=0.5 V max.; IOL=8mA max.
P High: VOH=2.7V min; IOH=400µA

Introduction • 9

• Synchronous Digital Inputs (SDI): For DAQ/PXI-2204 only

• Number of channels: 4 digital inputs sampled simu ltaneously with the

analog signal input.

• Compatibility: TTL/CMOS

• Input voltage:

P Logic Low: VIL=0.8 V max.; IIL=0.2mA max.
P High: VIH=2.0V max.; IIH=0.02mA max

♦ General Purpose Timer/Counter (GPTC)

• Number of channels: 2 independent Up/Down Timer/Counters

• Resolution: 16 bits

• Compatibility: TTL

• Clock source: Internal or external

• Max source frequency: 10MHz

♦ Analog Trigger (A.Trig)

• Source: All analog input channels; external analog trigger

(EXTATRIG)

• Level: ±Full-scale, internal; ±10V external

• Resolution: 8 bits

• Slope: Positive or negative (software selectable)

• Hysteresis: Programmable

• Bandwidth: 400khz

• External Analog Trigger Input (EXTATRIG):

P Input impedance: 40KO for DAQ/PXI-2204

20KO for DAQ/PXI-2205/2206

• Coupling: DC

• Protection: Continuous ± 35V maximum

10 • Introduction

♦ Digital Trigger (D.Trig)

• Compatibility: TTL/CMOS

• Response: Rising or falling edge

• Pulse Width: 10ns min

♦ System Synchronous Interface (SSI)

• Trigger lines: 7

♦ Stability

• Recommended warm-up time: 15 minutes

• On-board calibration reference:

P Level: 5. 000V
P Temperature coefficient: ±2ppm/°C
P Long-term stability: 6ppm/1000Hr

♦ Physical

• Dimension:

P 175mm by 107mm for DAQ-22XX
P Standard CompactPCI form factor for PXI-22XX

• I/O connector: 68-pin female VHDCI type (e.g. AMP-787254-1)

♦ Power Requirement (typical)

• +5VDC:

P 3A for DAQ/PXI-2204
P 2A for DAQ/PXI-2205/2206

♦ Operating Environment

• Ambient temperature: 0 to 55°C

• Relative humidity: 10% to 90% non-condensing

♦ Storage Environment

• Ambient temperature: -20 to 70°C

• Relative humidity: 5% to 95% non-condensing

Introduction • 11

1.4 Software Support

ADLINK provides versatile software drivers and packages for users’ dif­ferent approach to building up a system. ADLINK not only provides pro­gramming libraries such as DLL for most Windows based sy stems, but also
provide drivers for other software packages such as LabVIEW®.

All software options are included in the ADLINK CD. Non -free software
drivers are protected with licensing codes. Without the software code, you
can install and run the demo version for two hours for trial/demonstration
purposes. Please contact ADLINK dealers to purchase the formal license.

1.4.1 Programming Library

For customers who are writing their own programs, we provide function
libraries for many different operating systems, including:

• D2K-DASK: Include device drivers and DLL for Windows 98,

Windows NT and Windows 2000. DLL is binary compatible

across Windows 98, Windows NT and Windows 2000. This means
all applications developed with D2K-DASK are compatible across
Windows 98, Windows NT and Windows 2000. The developing
environment can be VB, VC++, Delphi, BC5, or any Windows pro­gramming language that allows calls to a DLL. The user’s guide
and function reference manual of D2K-DASK are in the CD.
(\\Manual_PDF\Software\D2K-DASK)

• D2K-DASK/X: Include device drivers and shared library for Linux.

The developing environment can be Gnu C/C++ or any program­ming language that allows linking to a shared library. The user's
guide and function reference manual of D2K-DASK/X are in the
CD. (\Manual_PDF\Software\D2K-DASK-X.)

1.4.2 D2K-LVIEW: LabVIEW® Driver

D2K-LVIEW contains the VIs, which are used to interface with NI’s Lab­VIEW® software package. The D2K-LVIEW supports Windows 98/NT/2000.
The LabVIEW® drivers is shipped free with the card. You can i nstall and
use them without a license. For detailed information about D2K-LVIEW,
please refer to the user’s guide in the CD.

(\\Manual_PDF\Software\D2K-LVIEW)

12 • Introduction

1.4.3 PCIS-OCX: ActiveX Controls

We suggest customers who are familiar with ActiveX controls and
VB/VC++ programming use PCIS-OCX ActiveX control component libra r­ies for developing applications. PCIS-OCX is designed for Windows
98/NT/2000. For more detailed information about PCIS-OCX, please refer
to the user's guide in the CD.

(\Manual_PDF\Software\PCIS-OCX\PCIS-OCX.PDF)
The above software drivers are shipped with the card. Please refer to the

“Software Installation Guide” in the package to install these drivers.
In addition, ADLINK supplies ActiveX control software DAQBench.

DAQBench is a collection of ActiveX controls for measurement or auto­mation applic ations. With DAQBench, you can easily develop custom user
interfaces to display your data, analyze data you acquired or received from
other sources, or integrate with popular applications or other data sources.
For more detailed information about DAQBench, please refer to the user's
guide in the CD.

(\Manual_PDF\Software\DAQBench\DAQBenchManual.PDF)
You can also get a free 4-hour evaluation version of DAQBench from the

CD.
DAQBench is not free. Please contact ADLINK dealer or ADLINK to pur-

chase the software license.

Introduction • 13

2

Installation

This chapter describes how to install the DAQ/PXI-22XX. The contents of
the package and unpacking information that you should be aware of are
outlined first.

The DAQ/PXI -22XX performs an automatic configuration of the IRQ, and
port address. Users can use software utility, PCI_SCAN to read the system
configuration.

2.1 What You Have

In addition to this User's Guide, the package includes the following items:

• DAQ/PXI-22XX Multi-function Data Acquisition Card

• ADLINK All-in-one Compact Disc

• Software Installation Guide

If any of these items are missing or damaged, contact the dealer from
whom you purchased the product. Save the shipping materials and carton
in case you want to ship or store the product in the future.

14 • Installation

2.2 Unpacking

Your DAQ/PXI-22XX SERIES card contains electro-static sensitive com­ponents that can be easily be damaged by static electricity.

Therefore, the card should be handled on a grounded anti-static mat. The
operator should be wearing an anti-static wristband, grounded at the same
point as the anti-static mat.

Inspect the card module carton for obvious damages. Shipping and han­dling may cause damage to your module. Be sure there are no shipping
and handling damages on the modules carton before continuing.

After opening the card module carton, extract the system module and place
it only on a grounded anti-static surface with component side up.

Again, inspect the module for damages. Press down on all the socketed
IC's to make sure that they are properly seated. Do this only with the
module placed on a firm flat surface.

Note: DO NOT APPLY POWER TO THE CARD IF IT HAS BEEN

DAMAGED.

You are now ready to install your DAQ/PXI-22XX.

2.3 DAQ/PXI-22XX Layout

Figure 1: PCB Layout of DAQ-22XX

Installation • 15

Figure 2: PCB Layout of PXI-22XX

2.4 PCI Configuration

1. Plug and Play:

As a plug and play component, the card requests an interrupt
number via its PCI controller. The system BIOS responds with an
interrupt assignment based on the card information and on known
system parameters. These system parameters are determined by
the installed drivers and the hardware load seen by the system.

2. Configuration:

The board configuration is done on a board-by-board basis for all
PCI boards on your system. Because configuration is controlled by
the system and software, there is no jum per setting required for
base-address, DMA, and interrupt IRQ.

The configuration is subject to change with every boot of the sys­tem as new boards are added or removed.

3. Trouble shooting:

If your system doesn’t boot or if you experience erratic operation
with your PCI board in place, it’s likely caused by an interrupt con­flict (perhaps the BIOS Setup is incorrectly configured). In general,
the solution, once you determine it is not a simple oversight, is to
consult the BIOS docume ntation that comes with your system.

16 • Installation

3

Signal Connections

This chapter describes the connectors of the DAQ/PXI-22XX, and the
signal connection between the DAQ/PXI-22XX and external devices.

3.1 Connectors Pin Assignment

DAQ/PXI-22XX is equipped with two 68-pin VHDCI-type connectors
(AMP-787254-1). It is used for digital input / output, analog input / output,
and timer/counter signaling, etc. The pin assignment for the connectors are
illustrated in the Figure 3 and Figure 4

Signal Connections • 17

AI0 (AIH0)

AI1 (AIH1)

IH2)

AI3 (AIH3)

AI4 (AIH4)

AI5 (AIH5)

AI6 (AIH6)

AI7 (AIH7)

AI8 (AIH8)

) 10 44

AI10 (AIH10)

AI11 (AIH11)

AI12 (AIH12)

AI13 (AIH13)

AI14 (AIH14)

AI15 (AIH15)

AI16 (AIH16)

AI17 (AIH17)

AI18 (AIH18)

AI19 (AIH19)

AI20 (AIH20)

AI21 (AIH21)

AI22 (AIH22)

AI23 (AIH23)

AI24 (AIH24)

AI25 (AIH25)

AI26 (AIH26)

AI27 (AIH27)

AI28 (AIH28)

AI29 (AIH29)

AI30 (AIH30)

AI31 (AIH31)

EXTATRIG

1 35 (AIL0) AI32
2 36 (AIL1) AI33

AI2 (A

AI9 (AIH9

AISENSE 17 51 AIGND

Figure 3: Connector CN1 pin assignment

3 37 (AIL2) AI34
4 38 (AIL3) AI35
5 39 (AIL4) AI36
6 40 (AIL5) AI37
7 41 (AIL6) AI38
8 42 (AIL7) AI39
9 43 (AIL8) AI40

(AIL9) AI41
11 45 (AIL10) AI42
12 46 (AIL11) AI43
13 47 (AIL12) AI44
14 48 (AIL13) AI45
15 49 (AIL14) AI46
16 50 (AIL15) AI47

18 52 (AIL16) AI48
19 53 (AIL17) AI49
20 54 (AIL18) AI50
21 55 (AIL19) AI51
22 56 (AIL20) AI52
23 57 (AIL21) AI53
24 58 (AIL22) AI54
25 59 (AIL23) AI55
26 60 (AIL24) AI56
27 61 (AIL25) AI57
28 62 (AIL26) AI58
29 63 (AIL27) AI59
30 64 (AIL28) AI60
31 65 (AIL29) AI61
32 66 (AIL30) AI62
33 67 (AIL31) AI63
34 68 AIGND

* Symbols in “()” are for differential mode connection.

18 • Signal Connections

DA0OUT

DA1OUT

NC

DGND

EXTWFTRIG

EXTDTRIG

SSHOUT

RESERVED

RESERVED

AFI1 11 45

AFI0 12 46

GPTC0_SRC

_GATE

GPTC0_UPDOWN

GPTC0_OUT

GPTC1_SRC

GPTC1_GATE

GPTC1_UPDOWN

GPTC1_OUT

EXTTIMEBASE

PB7 22 56

PB5 23 57

PB3 24 58

PB1 25 59

PC7 26 60

PC5 27 61

DGND

PC3 29 63

PC1 30 64

PA7 31 65

PA5 32 66

PA3 33 67

PA1 34 68

1 35 AOGND
2 36 AOGND

AOEXTREF 3 37 AOGND

4 38 NC
5 39 DGND
6 40 DGND
7 41 DGND
8 42 SDI0 / DGND*
9 43 SDI1 / DGND*

10 44 SDI2 / DGND*

SDI3 / DGND*

DGND
13 47 DGND

GPTC0

Figure 4: Connector CN2 pin assignment

14 48 DGND
15 49 DGND
16 50 DGND
17 51 DGND
18 52 DGND
19 53 DGND
20 54 DGND
21 55 DGND

PB6

PB4

PB2

PB0

PC6

PC4
28 62 DGND

PC2

PC0

PA6

PA4

PA2

PA0

*Pin 42~45 are SDI<0..3> for DAQ/PXI-2204 ; DGND for DAQ/PXI-2205/2206

Signal Connections • 19

Legend:

Signal Name Reference Direction Description

Analog ground for AI. All three ground

AIGND -------- --------

AI<0..63> AIGND Input

AISENSE AIGND Input

EXTATRIG AIGND Input External AI analog trigger
DA0OUT AOGND Output AO channel 0
DA1OUT AOGND Output AO channel 1
AOEXTREF AOGND Input External reference for AO channels
AOGND -------- -------- Analog ground for AO
EXTWFTRIG DGND Input External AO waveform trigger
EXTDTRIG DGND Input External AI digital trigger

RESERVED -------- Output
SDI<0..3>

(for 2204 only)

GPTC<0,1>_SRC DGND Input Source of GPTC<0,1>
GPTC<0,1>_GATE DGND Input Gate of GPTC<0,1>
GPTC<0,1>_OUT DGND Input Output of GPTC<0,1>
GPTC<0,1>_UPDOWN DGND Input Up/Down of GPTC<0,1>
EXTTIMEBASE DGND Input External Timebase
DGND -------- -------- Digital ground
PB<7,0> DGND PIO* Programmable DIO of 8255 Port B
PC<7,0> DGND PIO* Programmable DIO of 8255 Port C
PA<7,0> DGND PIO* Programmable DIO of 8255 Port A

AFI0 DGND Input
AFI1 DGND Input

DGND Input

Table 7: Legend of 68-pin VHDCI-type connectors

references (AIGND, AOGND, and
DGND) are connected together on
board

Analog Input Channels 0~63. Each
channel pair,AI<i, i+32> (I=0..31) can
be configured either two single-ended
inputs or one differential input
pair(marked as AIH<0..31> and
AIL<0..31>)

Analog Input Sense. This pin is the
reference for any channels AI<0..63>
in NRSE input configuration

Reserved for future use. Please leave
it open

Synchronous digital inputs. These 4
digital inputs are sampled simultane­ously with the analog signal input

Auxiliary Function Input 0
(ADCONV, AD_START)
Auxiliary Function Input 1
(DAWR, DA_START)

20 • Signal Connections

3.2 Analog Input Signal Connection

The DAQ/PXI-22XX provides up to 64 single-ended or 32 differential
analog input channels. You can fill the Channel Gain Queue to get desired
combination of the input signal types. The analog signal can be converted
to digital value by the A/D converter. To avoid ground loops and obtain a
more accurate measurement from the A/D conversion, it is quite important
to understand the signal source type and how to choose the analog input
modes: RSE, NRSE, and DIFF mode.

3.2.1 Types of signal sources

Floating Signal Sources

A floating signal source means it is not connected in any way to the
buildings ground system. A device with an isolated output is a floating
signal source, such as optical isolator outputs, transformer outputs, and
thermocouples.

Ground-Referenced Signal Sources

A ground-referenced signal means it is connected in some way to the
buildings system. That is, the signal source is already connected to a
common ground point with respect to the DAQ/PXI-22XX, assuming that
the computer is plugged into the same power system. Non- isolated out­puts of instruments and devices that plug into the buildings power system
are ground-referenced signal sources.

3.2.2 Input Configurations

3.2.2.1 Single-ended Connections

A single-ended connection is used when the analog input signal is refe r­enced to a ground that can be shared with other analog input signals.
There are 2 different types for single-ended connections: RSE and NRSE
configuration. In RSE configuration, the DAQ/PXI-22XX board provides the
grounding point for the external analog input signals and is suitable for
floating signal sources. While in NRSE configuration the board doesn’t
provide the grounding point, the external analog input signal provides its
own reference grounding point and is suitable for ground -referenced sig­nals.

Signal Connections • 21

Source

V1 V2

V1 V2

Referenced Single-ended (RSE) Mode

In referenced single-ended mode, all the input signals are connected to the
ground provided by the DAQ/PXI-22XX. It is suitable for connections with
floating signal sources. Figure 5 shows an illustration. Note that when more
than two floating sources are connected, these sources will be referenced
to the same common ground.

Floating
Signal

n = 0, ...,63

AIn

CN1

Input Multipexer

AIGND

Instrumentation
Amplifier

To A/D
Converter

Figure 5: Floating source and RSE input connections

Non-Referenced Single-ended (NRSE) Mode

To measure ground-referenced signal sources, which are connected to the
same ground point, you can connect the signals in NRSE mode. Fig 6 il­lustrates the connection. The signals local ground reference is connected
to the negative input of the instrumentation Amplifier (AISENSE pin on CN1
connector), and the common-mode ground potential between signal
ground and the ground on board will be rejected by the instrumentation
amplifier.

Ground­Referenced
Signal Source

Common­mode noise &
Ground
potential

n = 0, ...,63

Vcm

AIn

Input Multipexer

Instrumentation
Amplifier

To A/D
Converter

AISENSE

Figure 6: Ground-referenced sources and NRSE input

connections

22 • Signal Connections

x = 0, ..., 31

Source

AIGND

+ -

Amplifier

x = 0, ..., 31

Source

AIGND

+ -

Amplifier

3.2.2.2 Differential input mode

The differential input mode provides two inputs that respond to signal
voltage difference between them. If the signal source is ground-referenced,
the differential mode can be used for the common -mode noise rejection.
Figure 7 shows the connection of ground-referenced signal sources under
differential input mode.

Ground
Referenced
Signal

Common­mode noise &
Ground
potential

AIxH

AIxL

Vcm

Input Multipexer

Instrumentation

To A/D
Converter

Figure 7: Ground-referenced source and differential input

Fig 8 shows how to connect a floating signal source to the DAQ/PXI-22XX
in differential input mode. For floating signal sources, you need to add a
resistor at each channel to provide a bias return path. The resistor value
should be about 100 times the equivalent source impedance. If the source
impedance is less than 100ohms, you can simply connect the negative
side of the signal to AIGND as well as the negative input of the Instru­mentation Amplifier without any resistors. In differential input mode, less
noise couples into the signal connections than in single-ended mode.

Ground
Referenced
Signal

AIxH

AIxL

Input Multipexer

Instrumentation

To A/D
Converter

Figure 8: Floating source and differential input

Signal Connections • 23

4

Operation Theory

The operation theory of the functions on the DAQ/PXI-22XX is described in
this chapter. The functi ons include the A/D conversion, D/A conversion,
Digital I/O and General Purpose Counter / Timer. The operation theory can
help you understand how to configure and program the DAQ/PXI-22XX.

4.1 A/D Conversion

When using an A/D converter, users should first know about the properties
of the signal to be measured. Users can decide which channel to use and
where to connect the signals to the card. Please refer to 3.2 for signal
connections. In addition, users should define and control the A/D signal
configurations, including channels, gains, and polarities (Unipolar/Bipolar).

The A/D acquisition is initiated by a trigger source; users must decide how
to trigger the A/D conversion. The data acquisition will start once a trigger
condition is matched.

After the end of an A/D conversion, the A/D data is buffered in a Data FIFO.
The A/D data can now be transferred into the PC's memory for further
processing.

Two acquisition modes, Software Polling and Scan acquisition are de­scribed below. Timing, trigger modes, trigger sources, and transfer met h­ods are included.

24 • Operation Theory

16

16 bits data(including AD<11..0> and SDI<3..0>

latched into AD Data FIFO

4.1.1 DAQ/PXI-2204 AI Data Format

4.1.1.1 Synchronous Digital Inputs (for DAQ/PXI-2204 only)

When each AD conversion is completed, the 12-bit converted digital data
accompanied with 4 bits of SDI<3..0> from CN2 will be latched into the
16-bit register and data FIFO, as shown in Fig 9 and Fig 10. Therefore,
users can simultaneously sample one analog signal with four digital signals.
The data format of every acquired 16-bit data is of the form:

D11, D10, D9 ....... D1, D0, b3, b2, b1, b0

Where

D11, D10, D9 ....... D1, D0: 2’s complement A/D 12-bit data

b3, b2, b1, b0: Synchronous Digital Inputs SDI<3..0>

ADC

nADBUSY

SDI<3..0>

AD<11..0>

nADBUSY

4

16-bit

Register

12

CLK

AD

Data

FIFO

SDI<3..0>
from CN2

From
Instrumentation
Amplifier

AD_conversion

Ain

nADCONV

Figure 9: Synchronous Digital Inputs Block Diagram

AD_conversion

nADBUSY

Figure 10: Synchronous Digital Inputs timing

Note: The analog signal is sampled when an AD conversion starts (falling

edge of signal AD_conversion), while SDI<3..0> are sa mpled right
after an AD conversion is completed (rising edge of signal nAD­BUSY). Precisely SDI<3..0> are sampled with 280ns lag to the
analog signal.

Operation Theory • 25

Table 8 and 9 illustrate the ideal transfer characteristics of some input
ranges.

Description Bipolar Analog Input Range Digital code

Full-scale Range ±10V ±5V ±2.5V ±1.25V
Least significant bit 4.88mV 2.44mV 1.22mV 0.61mV
FSR-1LSB 9.9951V 4.9976V 2.4988V 1.2494V
Midscale +1LSB 4.88mV 2.44mV 1.22mV 0.61mV
Midscale 0V 0V 0V 0V 000X
Midscale –1LSB -4.88mV -2.44mV -1.22mV -0.61mV

-FSR -10V -5V -2.5V -1.25V 800X

Table 8: Bipolar analog input range and the output digital code on

DAQ/PXI-2204 (Note that the last 4 digital codes are

SDI<3..0>

Description Unipolar Analog Input Range Digital code

Full-scale Range 0V to 10V 0 to +5V 0 to +2.5V
Least significant bit 2.44mV 1.22mV 0.61mV
FSR-1LSB 9.9976V 4.9988V 2.9994V 7FFX
Midscale +1LSB 5.00244V 2.50122V 1.25061V
Midscale 5V 2.5V 1.25V 000X
Midscale –1LSB 4.9976V 2.4988V 1.2494V FFFX

-FSR 0V 0V 0V 800X

Table 9: Unipolar analog input range and the output digital code on

DAQ/PXI-2204 (Note that the last 4 digital codes are

SDI<3..0>

7FFX
001X

FFFX

001X

26 • Operation Theory

cant

cant

4.1.2 DAQ/PXI-2205/2206 AI Data Format

The data format of the acquired 16-bit A/D data is 2’s Complement coding.
Table 10 and 11 shows the valid input ranges and the ideal transfer
characteristics.

Description Bipolar Analog Input Range Digital code

Full-scale
Range

Least signif i
bit

FSR-1LSB 9.999695V 4.999847V 2.499924V 1.249962V
Midscale +1LSB 305.2uV 152.6uV 76.3uV 38.15uV 0001
Midscale 0V 0V 0V 0V 0000
Midscale -1LSB -305.2uV -152.6uV -76.3uV -38.15uV

-FSR -10V -5V -2.5V -1.25V 8000

Table 10: Bipolar analog input range and the output digital code on

Description Unipolar Analog Input Range Digital code

Full-scale
Range

Least signif i
bit

FSR-1LSB 9.999847V 4.999924V 2.499962V 1.249981V
Midscale +1LSB 5.000153V 2.500076V 1.250038V 0.625019V
Midscale 5V 2.5V 1.25V 0.625V 0000

±10V ±5V ±2.5V ±1.25V

305.2uV 152.6uV 76.3uV 38.15uV
7FFF

FFFF

DAQ/PXI-2205/2206

0V to 10V 0 to +5V 0 to +2.5V

152.6uV 76.3uV 38.15uV 19.07uV

0 to

+1.25V

7FFF
0001

Midscale -1LSB 4.999847V 2.499924V 1.249962V 0.624981V

-FSR 0V 0V 0V 0V 8000

Table 11: Unipolar analog input range and the output digital code on

DAQ/PXI-2205/2206

FFFF

Operation Theory • 27

4.1.3 Software conversion with polling data transfer
acquisition mode (Software Polling)

This is the easiest way to acquire a single A/D data. The A/D converter
starts one conversion whenever the dedicated software command is
executed. Then the software would poll the conversion status and read the
A/D data back when it is available.

This method is very suitable for applications that needs to process A/D
data in real time. Under this mode, the timing of the A/D conversion is fully
controlled under software. However, it is difficult to control the A/D con­version rate.

4.1.3.1 Specifying Channels, Gains, and input configurations in the

In Software Polling and Programmable Scan Acquisition mode, the
channel, gain, polarity, and input configuration (RSE, NRSE, or DIFF) can
be specified in the Channel Gain Queue . You can fill the channel number
in the Channel Gain Queue in any order. The channel order of acqu isition
will be the same as the order you set in the Channel Gain Queue. There­fore, you can acquire data with user-defined channel orders and with dif­ferent settings on each channel.

When the specified channels have been sampled from the first data to the
last data in the Channel Gain Queue, the settings in Channel Gain Queue
are maintained. You don’t need to re-configure the Channel Gain Queue if
you want to keep on sampling data in the same order. The maximum
number of entries you can set in the Channel Gain Queue is 512.

Channel Gain Queue

Example:

First you can set entries in Channel Gain Queue:

Ch3 with bipolar ±10V, RSE connection
Ch1 with bipolar ±2.5V, DIFF connection
Ch2 with unipolar 5V, NRSE connection

Ch1 with bipolar ±2.5V, DIFF connection
If you read 10 data by software polling method
Then the acquisition sequence of channels is: 3, 1, 2, 1, 3, 1, 2, 1, 3, 1

28 • Operation Theory

4.1.4 Programmable scan acquisition mode

4.1.4.1 Scan Timing and Procedure

It's recommended that this mode be used if your applications need a fixed
and precise A/D sampling rate. You can accurately program the period
between conversions of individual channels. There are at least 4 counters,
which need to be specified:

SI_counter (24 bit): Specify the Scan Interval = SI_counter / Timebase
SI2_counter (16 bit): Specify the data Sampling Interval =

SI2_counter/Timebase
PSC_counter (24 bit): Specify Post Scan Counts after a trigger event
NumChan_counter (9 bit):Specify the Number of samples per scan

The acquisition timing and the meaning of the 4 counters are illustrated in
figure 11

Timebase Clock Source

In scan acquisition mode, all the A/D conversions start on the output of
counters, which use Timebase as the clock source. By software you can
specify the Timebase to be either an internal clock source (on-board
40MHz) or an external clock input (EXTTIMEBASE) on CN2. The external
clock is useful when you want to acquire data at rates not available with the
internal A/D sample clock. The external clock source should generate
TTL-compatible continuous clocks, and the maximum frequency is 40MHz
while the minimum is 1MHz.

Operation Theory • 29

Acquisition_in_progress

Scan_start

AD_conversion

(

SSHOUT

)(pin8 on CN2)

3 Scans, 4 Samples per scan
(PSC_Counter=3, NumChan_Counter=4)

( channel sequences are specified in Channel Gain Queue)

Ch2

Ch3

Ch1

Ch0

Ch2

Ch3

Ch1

Ch0

Ch2

Ch3

Ch1

Ch0

Scan_in_progress

Sampling Interval t=
SI2_COUNTER/TimeBase

Scan Interval T=
SI_COUNTER/TimeBase

Figure 11: Scan Timing

There are 4 trigger modes to start the scan acquisition, please refer to

4.1.4.3 for the details. The data tran sfer mode will be discussed in 4.1.4.4.

Note:

1. The maximum A/D sampling rate is 3MHz for DAQ/PXI-2204, 500kHz
for DAQ/PXI-2205 and 250kHz for DAQ/PXI-2206. Therefore, the
minimum setting for SI2_counter is 14 for DAQ/PXI-2204, 80 for
DAQ/PXI-2205 and 160 for DAQ/PXI -2206 while using the internal
Timebase.

2. The SI_counter is a 24-bit counter and the SI2_counter is a 16-bit
counter. Therefore, the maximum scan interval using the internal
Timebase = 224/40M s = 0.419s, and the maximum sampling interval
between 2 channels using the internal Timebase = 216/40M s =

1.638ms.

3. The scan interval can’t be smaller than the product of the data sam­pling interval and the NumChan_counter value. The relationship can
be represented as: SI_counter>=SI2_counter * NumChan_counter.

30 • Operation Theory

Scan with SSH

You can send the SSHOUT signal on CN2 to an external S&H circuits to
sample and hold all signals if you want to simultaneously sample all
channels in a scan, as illustrated in fig 11.

Note: The ‘SSHOUT’ signal is sent to exte rnal S&H circuits to hold the

analog signal. Users must implement external S&H circuits on their
own to carry out the S&H function. There are no on-board S&H
circuits.

4.1.4.2 Specifying Channels, Gains, and input configurations in the
Channel Gain Queue

Like software polling acquisition mode, the channel, gain, and input con­figurations can be specified in the Channel Gain Queue under the scan
acquisition mode. Please refer to 4.1.3.1. Note that in scan acquisition
mode the number of entries in the Channel Gain Queue is normally
equivalent to the value of NumChan_counter (that is, the number of sam­ples per scan).

Example:

Set
SI2_counter = 160
SI_counter = 640
PSC_counter = 3
NumChan_counter = 4
Timebase = Internal clock source
Channel entries in the Channel Gain Queue: ch1, ch2, ch0, ch2
Then

Acquisition sequence of channels: 1, 2, 0, 2, 1, 2, 0, 2, 1, 2, 0, 2
Sampling Interval = 160/40M s = 4 us
Scan Interval = 640/40M s = 16 us
Equivalent sampling rate of ch0, ch1: 62.5kHz
Equivalent sampling rate of ch2: 125kHz

Operation Theory • 31

(M_counter = M = 3, NumChan_counter=4, PSC_counter=0)

Aquired data

Operation start

4.1.4.3 Trigger Modes

DAQ/PXI-22XX provides 3 trigger sources (internal software, external
analog and digital trigger sources). You must select one of them as the
source of the trigger event. A trigger event occurs when the specified
condition is detected on the selected trigger source (For example, a rising
edge on the external digital trigger input).

There are 4 trigger modes (pre-trigger, post-trigger, middle-trigger, and
delay-trigger) working with the 4 trigger sources to initiate different scan
data acquisition timing when a trigger event occurs. They are described as
follows. For information of trigger sources, please refer to section 4.5.

Pre-Trigger Acquisition

Use pre-trigger acquisition in applications where you want to collect data
before a trigger event. The A/D starts when you execute the specified
function calls to begin the operation, and it stops when the external trigger
event occurs. Users must program the value M in M_counter (16bit) to
specify the amount of stored sca nned data before the trigger event. If an
external trigger occurs after M scans of data are converted, the program
only stores the last M scans of data, as illustrated in fig 12, where
M_counter = M =3, NumChan_counter =4, PSC_counter = 0. The total
stored amount of data = NumChan_counter *M_counter =12.

Trigger
Scan_start

AD_conversion

Scan_in_progress
(SSHOUT)(pin8 on CN2)

Acquisition_in_progress

Figure 12: Pre-trigger (trigger occurs after M scans)

32 • Operation Theory

Acquired & stored data
(M scans)

Aquired data

Operation start

Trigger occurs

Note that if a trigger event occurs when a scan is in progress, the data
acquisition won’t stop until the scan completes, and the st ored M scans of
data includes the last scan. Therefore, the first stored data will always

be the first channel entry of a scan (that is, the first channel entry in
the Channel Gain Queue if the number of entries in the Channel Gain
Queue is equivalent to the value of NumChan_counter), no matter when a
trigger signal occurs, as illustrated in Fig 13, where M_counter = M =3,

NumChan_counter = 4, PSC_counter = 0.

(M_counter = M = 3, NumChan_counter =4, PSC_counter=0)

Trigger
Scan_start

AD_conversion

Scan_in_progress
(SSHOUT)(pin8 on CN2)

Acquisition_in_progress

Acquired & stored data
(M scans)

Data acquisition
won’t stop until a
scan completes

Figure 13: Pre-trigger (trigger with scan is in progress)

When a trigger signal occurs before the first M scans of data are converted,
the amount of stored data could be fewer than the originally specified
amount in NumChan_counter * M_counter, as illustrated in fig 14. This
situation can be avoided by setting M_enable. If M_enable is set to 1, the
trigger signal will be ignored until the first M scans of data are converted,
and It assures user can get M scans of data under pre-trigger mode, as
illustrated in fig 4.1.5. However, if M_enable is set to 0, the trigger signal
will be accepted in any time, as illustrated in fig 15. Note that the total
amount of stored data is still always a multiple of NumChan_counter
(number of samples per scan) because the data acquisition won’t stop until
a scan is completed.

Operation Theory • 33

Operation start

Aquired data

Operation start

The first M scans

(M_Counter = M = 3 , NumChan_Counter=4, PSC_Counter=0)

Trigger
Scan_start

AD_conversion

Scan_in_progress
(SSHOUT)(pin8 on CN2)

Acquisition_in_progress

Acquired & stored data
(2 scans)

Figure 14: Pre-trigger with M_enable = 0 (trigger occurs before M

scans)

AD_conversion

Scan_in_progress
(SSHOUT)(pin2 on CN2)

(M_counter = M = 3, NumChan_counter=4, PSC_counter=0)

Trigger signals which occur in the shadow
region(the first M scans) will be ignored

Trigger
Scan_start

Acquisition_in_progress

Acquired & stored data
(M scans)

Figure 15: Pre-trigger with M_enable = 1

Note: The PSC_counter is set to 0 in pre-trigger acquisition mode.

34 • Operation Theory

Aquired data

Operation start

trigger

The first M scans

Middle-Trigger Acquisition

Use middle-trigger acquisition in appl ications where you want to collect
data before and after a trigger event. The number of scans (M) stored
before the trigger is specified by M_counter, while the number of scans (N)
after the trigger is specified by PSC_counter.

Like pre -trigger mode, the number of stored data could be fewer than the
specified amount of data (NumChan_counter *(M+N)) if an external trigger
occurs before M scans of data are converted. The M_enable bit in mid­dle-trigger mode takes the same effect as in pre-trigger mode. If M_enable
is set to 1, the trigger signal will be ignored until the first M scans of data are
converted, and It assures users can get (M+N) scans of data under mid­dle-trigger mode. However, if M_enable is set to 0, the trigger signal will be
accepted at any time. Fig 16 shows the acquisition timing with
M_enable=1.

(M_Counter=M=3, NumChan_Counter=4, PSC _Counter=N=1)

Trigger signals which occur in the shadow
region(the first M scans) will be ignored

Trigger
Scan_start

AD_conversion

Scan_in_progress
(SSHOUT)(pin8 on CN2)

Acquisition_in_progress

M scans before

Acquired & stored data
(M+N scans)

N scans
after trigger

Figure 16: Middle trigger with M_enable = 1

If a trigger event occurs when a scan is in progress, the stored N scans of
data would include this scan. And the first stored data will always be

the first channel entry of a scan, as illustrated in Fig 17.

Operation Theory • 35

Acquired data

Operation start

Operation start

AD_conversion

Scan_in_progress

SSHOUT

(

Acquisition_in_progress

(M_Counter=M=2, NumChan_Counter=4, PSC_Counter=N=2)

Trigger occurs when a scan is in progress

Trigger
Scan_start

)(pin8 on CN2)

M scans before
trigger

Acquired & stored data
(M+N scans)

N scans
after trigger

Figure 17: Middle trigger (trigger occurs when a scan is in

progress)

Post-Trigger Acquisition

Use post -trigger acquisition in applications where you want to collect data
after a trigger event. The number of scans after the trigger is specified in
PSC_counter, as illustrated in fig 18. The total acquired data length =
NumChan_counter *PSC_counter.

Scan_in_progress
(SSHOUT )(pin8 on CN2

Acquisition_in_progress

(NumChan_Counter=4, PSC_Counter=3)

Trigger
Scan_start

AD_conversion

Figure 18: Post trigger

Acquired & stored data
(3 scans)

36 • Operation Theory

Operat

ion start

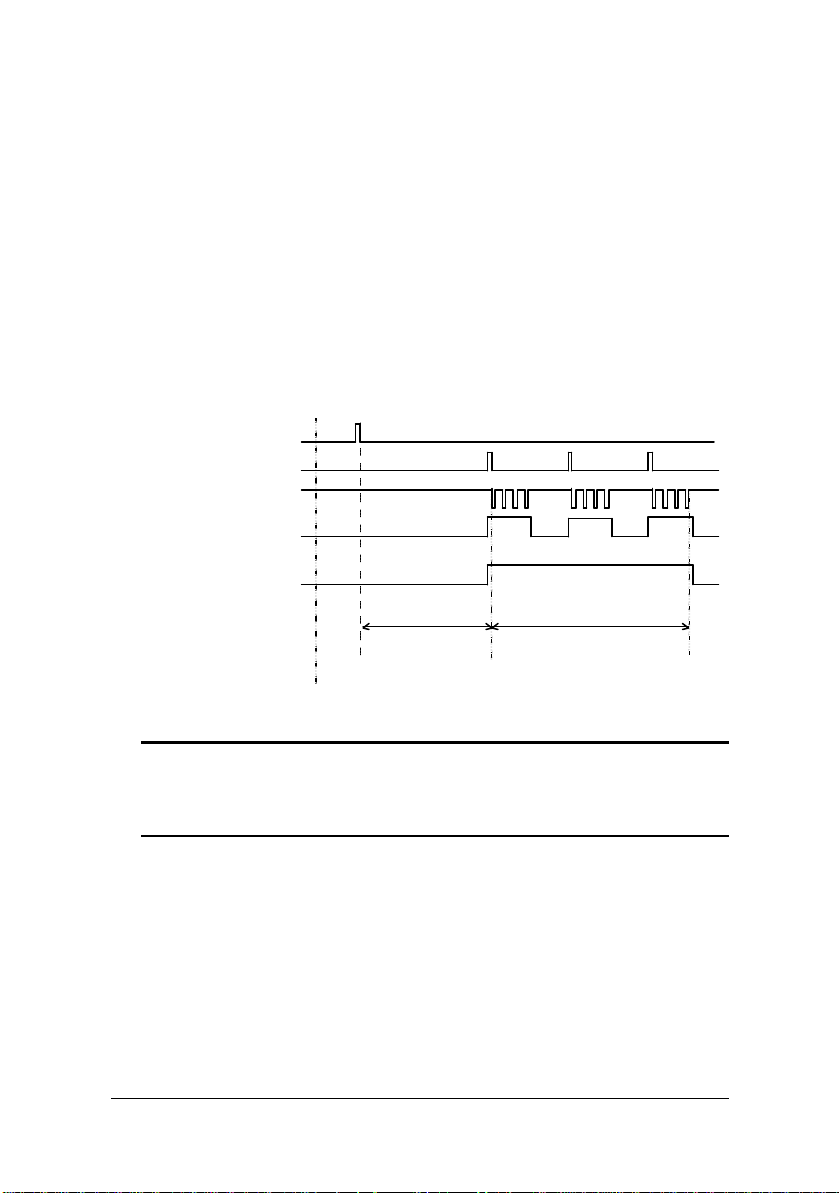

Delay Trigger Acquisition

Use delay trigger acquisition in applications where you want to delay the
data collecting process after the occurrence of a specified trigger event.
The delay time is controlled by the value, which is pre-loaded in the De-
lay_counter (16bit). The counter counts down on the rising edge of the
Delay_counter clock source after the trigger condition is met. The clock
source is software programmed and can be either the Timebase clock
(40MHz) or the A/D sampling clock (Timebase /SI2_counter). When the
count reaches 0, the counter stops and the board starts to acquire data.
The total acquired data length = NumChan_counter * PSC_counter.

AD_conversion

Scan_in_progress
(SSHOUT)(pin8 on CN2)

Acquisition_in_progress

(NumChan _Counter=4, PSC_Counter=3)

Trigger
Scan_start

Delay until
Delay_Counter
reaches 0

Acquired & stored data
(3 scans)

Figure 19: Delay trigger

Note: When the Delay_counter clock source is set to Timebase, the

maximum delay time = 216/40M s = 1.638ms, and when set to A/D
sampling clock, the maximum delay time can be higher (2

16

SI2_counter / 40M ).

Post-Trigger or Delay-trigger Acquisition with retrigger

Use post-trigger or delay-trigger acquisition with re-trigger function in ap­plications where you want to collect data after several trigger events. The
number of scans after each trigger is specified in PSC_counter, and users
could program Retrig_no to specify the re-trigger numbers. Fig 20 illus­trates an example. In this example, 2 scans of data is acquired after the
first trigger signal, then the board waits for the re-trigger signal (re -trigger
signals which occur before the first 2 scans of data acquired will be ig­nored). When the re-trigger signal occurs, the board scans 2 more scans of

Operation Theory • 37

*

Operation start

data. The process repeats until the specified amount of re-trigger signals
are detected. The total acquired data length = NumChan_counter *
PSC_counter * Retrig_no.

Scan_in_progress
(SSHOUT )(pin8 on CN2)

Acquisition_in_progress

(NumChan _Counter=4, PSC_Counter=2, retrig_no=3)

Trigger
Scan_start

AD_conversion

Acquired & stored data
(6 scans)

Figure 20: Post trigger with retrigger

4.1.4.4 Bus-mastering DMA Data Transfer

PCI bus-mastering DMA is necessary for high speed DAQ in order to utilize
the maximum PCI bandwidth. The bus-mastering controller, which is built
in the PLX IOP-480 PCI controller, controls the PCI bus when it becomes
the master of the bus . Bus mastering reduces the size of the on-board
memory and reduces the CPU loading because data is directly transferred
to the computer’s memory without host CPU intervention.

Bus-mastering DMA provides the fastest data transfer rate on PCI-bus.
Once th e analog input operation starts, control returns to your program.
The hardware temporarily stores the acquired data in the on-board AD
Data FIFO and then transfers the data to a user-defined DMA buffer
memory in the computer. Please note that even when the acquired data
length is less than the Data FIFO, the AD data will not be kept in the Data
FIFO but directly transferred into host memory by the bus-mastering DMA.

The DMA transfer mode is very complex to program. We recommend using
a high-level program library to configure this card. If users would like to
know more about programs/software’s that can handle the DMA bus
master data transfer, please refer to http://www.plxtech.com for more in­formation on PCI controllers.

By using a high-level programming library for high speed DMA data ac­quisition, users simply need to assign the sampling period and the number

38 • Operation Theory

of conversion into their specified counters. After the AD trigger condition is
matched, the data will be transferred to the system memory by the
bus -mastering DMA.

The PCI controller also supports the function of scatter/gather bus mas­tering DMA, which helps the users to transfer large amounts of data by
linking all the memory blocks into a continuous linked list.

In a multi-user or multi-tasking OS, like Microsoft Windows, Linux, and so
on, it is difficult to allocate a large continuous memory block to do the DMA
transfer. Therefore, the PLX IOP-480 provides the function of scatter
/gather or chaining mode DMA to link the non -continuous memory blocks
into a linked list so that users can transfer very large amounts of data
without being limited by the fragment of small size memory. Users can
configure the linked list for the input DMA channel or the output DMA
channel. Figure 21 shows a linked list that is constructed by three DMA
descriptors. Each descriptor contains a PCI address, a local address, a
transfer size, and the pointer to the next descriptor. Users can allocate
many small size memory blocks and chain their associative DMA de­scriptors altoget her by their application programs. DAQ/PXI-22XX software
driver provides simple settings of the scatter/gather function, and some
sample programs are also provided within the ADLINK all-in-one CD.

Figure 21: Scatter/gather DMA for data transfer

In non-chaining mode, the maximum DMA data transfer size is 2M double
words (8M bytes). However, by using chaining mode, scatter/gather, there
is no limitation on DMA data transfer size. Users can also link the de­scriptor nodes circularly to achieve a multi-buffered mode DMA.

Operation Theory • 39

4.2 D/A Conversion

There are 2 channels of 12-bit D/A output available in the DAQ/PXI-22XX.
When using D/A converters, users should assign and control the D/A
converter reference sources for the D/A operation mode and D/A channels.
Users could also select the output polarity: unipolar or bipolar.

The reference selection control lets users fully utilize the multiplying
characteristics of the D/A converters. Internal 10V reference and external
reference inputs are available in the DAQ/PXI-22XX. The range of the D/A
output is directly related to the reference. The digital codes that are up­dated to the D/A converters will multiply with the reference to generate the
analog output. While using internal 10V reference, the full range would
be –10V ~ +9.9951V in the bipolar output mode, and 0V ~ 9.9976V in the
unipolar output mode. While using an external reference, users can reach
different output ranges by connecting different references. For example, if
connecting a DC –5V with the external reference, then the users can get a
full range from –4.9976V to +5V in the bipolar output with inverting
characteristics due to the negative reference voltage. Users could also
have an amplitude modulated (AM) output by feeding a sinusoidal signal
into the reference input. The range of the external reference should be
within ±10V. Table 12 and 13 illustrates the relationship between digital
code and output voltages

Digital Code Analog Output

111111111111 Vref * (2047/2048)
100000000001 Vref * (1/2048)
100000000000 0V
011111111111 -Vref * (1/2048)
000000000000 -Vref

Table 12: Bipolar output code table(Vref=10V if internal reference is

selected)

Digital Code Analog Output

111111111111 Vref * (4095/4096)
100000000000 Vref * (2048/4096)
000000000001 Vref * (1/4096)
000000000000 0V

Table 13: Unipolar output code table (Vref=10V if internal reference is

selected)

40 • Operation Theory

The D/A conversion is initiated by a trigger source. Users must decide how
to trigger the D/A conversion. The data output will start when a trigger
condition is met. Before the start of D/A conversion, D/A data is tran sferred
from PC’s main memory to a buffering Data FIFO.

There are two modes of the D/A conversion: Software Update and Timed
Waveform Generation are described, including timing, trigger source con­trol, trigger modes and data transfer methods. Either mode may be ap-
plied to D/A channels independently. You can software update DA CH0
while generate timed waveforms on CH1 at the same time.

4.2.1 Software Update

This is the easiest way to generate D/A output. First, users should specify
the D/A output channels, set output polarity: unipolar or bipolar, and ref­erence source: internal 10V or external AOEXTREF. Then update the
digital values into D/A data registers through a software output command.

4.2.2 Timed Waveform Generation

This mode can provide your applications with a precise D/A output with a
fixed update rate. It can be used to generate an infinite or finite waveform.
You can accurately program the update period of the D/A converters.

The D/A output timing is provided through a combination of counters in the
FPGA on board. There are totally 5 counters to be specified. These
counters are:

UI_counter(24 bits): specify the DA Update Interval =

CHUI_counter/Timebase.

UC_counter(24 bits): specify the total Update Counts in a single

IC_counter(24 bits): specify the Iteration Counts of waveform.
DLY1_counter(16 bits): specify the Delay from the trigger to the first

DLY2_counter(16 bits): specify the Delay between two consecutive

waveform

update start.

waveform generations.

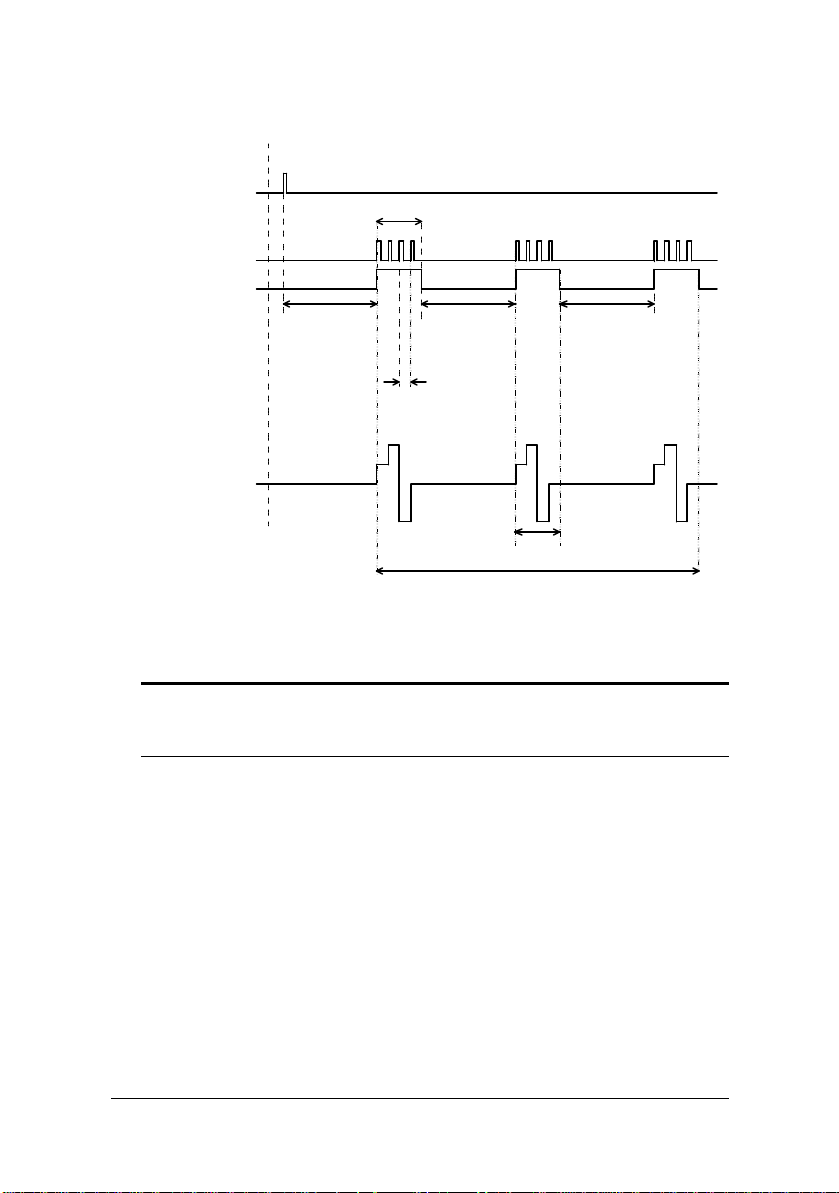

Figure 22 shows the typical D/A timing diagram. D/A updates its output on
each rising edge of DAWR. The meaning of the counters above is dis­cussed more in the following sections. For more information of Timebase,
please refer to 4.1.2.1.

Operation Theory • 41

reaches 0

Trigger

DAWR

WFG_in_progress

4 update counts, 3 iterations
(UC _Counter=4, IC_Counter=3)

UC_Counter=4

Output Waveform

Operation start

Delay until
DLY1_Counter

Delay until
DLY2_Counter
reaches 0

DA update_interval t=
UI_Counter/Timebase

A single waveform

IC_Counter = 3

Delay until
DLY2_Counter
reaches 0

Figure 22: Typical D/A timing of waveform generation

(Assuming the data in the data buffer are 2V, 4V, -4V, 0V)

Note: The maximum D/A update rate is 1MHz. Therefore; the minimum

setting of UI_counter is 40 while using the internal Timebase
(40MHz).

42 • Operation Theory

Operation start

4.2.2.1 Trigger Modes

Post-Trigger Generation

Use post trigger when you want to perform DA waveform right after a
trigger event occurs. In this trigger mode DLY1_Counter is not used and
you don’t need to specify it. Figure 23 shows a single waveform generated
right after a trigger signal is detected. The trigger signal could come from a
software command, an analog trigger or a digital trigger. Please refer to
section 4.5 for detailed information.

Trigger
DAWR

WFG_in_progress

Output Waveform

Figure 23: Post trigger waveform generation

(Assuming the data in the data buffer are 2V, 4V, 6V, 3V, 0V, -4V, -2V, 4V)

8 update counts, 1 iteration
(UC _Counter=8, IC_Counter=1)

Delay-Trigger Generation

Use delay trigger when you want to delay the waveform generation after a
trigger event. In figure 24, DA_DLY1_counter determines the delay time
from the trigger signal to the start of the waveform generation.
DLY1_counter counts down on the rising edge of its clock source after the
trigger condition is met. When the count reaches 0, the counter stops and
the DAQ/PXI-22XX starts the waveform generation. This DLY1_Counter is
16-bit’s wide and users can set the delay time in units of TIMEBASE (delay
time = DLY1_Counter/TIMEBASE) or in units of update period (delay time
DLY1_Counter * UI_counter/TIMEBASE), such that the delay time can
reach a wider range.

Operation Theory • 43

Operation start

Trigger
DAWR

WFG_in_progress

Output Waveform

8 update counts, 1 iteration
(UC _Counter=8, IC_Counter=1)

Delay until
DLY1_counter
reaches 0

Figure 24: Delay trigger waveform generation

(Assuming the data in the data buffer are 2V, 4V, 6V, 3V, 0V, -4V, -2V, 4V)

Post-Trigger or Delay-Trigger with Re-trigger

Use post -trigger or delay-trigger with re-trigger function when you want to
generate waveform after more than one trigger events. The re-trigger
function can be enabled or disabled by software setting. In figure 25, each
trigger signal will generate 2 single waveforms (since IC_Counter = 2), and
you can set Retrig_no to specify the number of the accepted re-trigger
signals. Note that a trigger would be ignored if it occurs during waveform
genera­tion.

Trigger

DAWR

4 update counts, 2 iterations

(UC _Counter=4, IC_Counter=2, retrig_no=3)

Ignored

WFG_in_progress

Output Waveform

Operation start

a single waveform

Figure 25: Re-triggered waveform generation with Post-trigger and

DLY2_Counter = 0

(Assuming the data in the data buffer are 2V, 4V, 2V, 0V)

44 • Operation Theory

Operation start

A single waveform

4.2.2.2 Iterative Waveform Generation

Set IC_Counter in order to generate iterative waveforms from the data of a
single waveform. The counter stores the iteration number, and the itera­tions could be finite (Figure 26) or infinite(Figure 27). Note that in infinite
mode the waveform generation won’t stop until software stop function is
executed, and IC_Counter is still meaningful when stop mode III is
selected. Please refer to 4.2.2.3 for details.

A data FIFO on board is used to buffer the digital data for DA output. If the
data size of a single waveform specified (That is, Update Counts in
UC_Counter) is less than the FIFO size, after initially transferring the data
from host PC memory to the FIFO on board, the data in FIFO will be
automatically re-transmitted whenever a single waveform is completed.
Therefore, it won’t occupy the PCI bandwidth when the iterative waveforms
are performed. However, if the data size of a single waveform specified is
more than the FIFO size, it needs to intermittently perform DMA to transfer
data from host PC memory to the FIFO on board when the iterative
waveforms are performed and occupies PCI bandwidth. The data FIFO
size on the DAQ/PXI-22XX is 1024(words) when one DA channel is en­abled, and 512(words) when both DA channels are enabled.

Trigger
DAWR

WFG_in_progress

Output Waveform

4 update coun ts, 3 iterations
(UC _Counter=4, IC_Counter=3)

Figure 26: Finite iterative waveform generation with Post-trigger

and DLY2_Counter = 0

(Assuming the data in the data buffer are 2V, 4V, 2V, 0V)

Operation Theory • 45

stop until software

Trigger

DAWR

WFG_in_progress

Output Waveform

4 update counts, infinite iterations
(UC _Counter=4, IC_Counter=3)

Operation start

waveform generation
won’t
stop function is
executed

Figure 27: Infinite iterative waveform generation with Post-trigger

and DLY2_Counter = 0

(Assuming the data in the data buffer are 2V, 4V, 2V, 0V)

Delay2 in iterative Waveform Generation

To stretch out the flexibility of the D/A waveform generation, we add a
DLY2 Counter to separate 2 consecutive waveforms in iterative waveform
generation. The time between two waveforms is assigned by setting the
value of DLY2_Counter. The DLY2_Counter counts down after a complete
waveform generation, and when it counts down to zero, the next waveform
generation will start. This DLY2_Counter is 16-bits wide and users can set
the delay time in the unit of Timebase (delay time =
DLY2_Counter/Timebase) or in the unit of update period (delay time =
DLY2_Counter * UI_Counter/Timebase), such that the delay time could
reach a wide range.

4.2.2.3 Stop Modes of Scan Update

You can call software stop function to stop waveform generation when it is
still in progress. Three s top modes are provided for timed waveform gen­eration, which means when is it to stop the waveform generation. You can
apply these 3 modes to stop waveform generation no matter infinite or finite
waveform generation mode is selected.

Figure 28 illustrates an example for stop mode I, in this mode the waveform
stops immediately when software command is asserted.

In stop mode II, after a software stop command is given, the waveform
generation won’t stop until a complete single waveform is finished. See
figure 29 for an example, since UC_Counter is set to 4, the total DA up­dates counts (that is, number of pulses of DAWR signal) must be a mu ltiple
of 4 (update counts = 20 in this example).

46 • Operation Theory

In stop mode III, after a software stop command is given, the waveform
generation won’t stop until the performed number of waveforms is a mul­tiple of IC_Counter. See figure 30 for an example, since IC_Counter is set
to 3, the total generated waveforms must be a multiple of 3 (waveforms = 6
in this example), and the total DA updat e counts must be a multiple of 12
(UC_Counter * IC_Counter). You can compare these three figures for their
differences.

Trigger

DAWR

WFG_in_progress

Output Waveform

4 update counts, infinite iterations
(UC _Counter=4, IC_Counter=3)

Operation start

Software stop command

Figure 28: Stop mode I

(Assuming the data in the data buffer are 2V, 4V, 2V, 0V)

Trigger

DAWR

WFG_in_progress

Output Waveform

4 update counts, infinite iterations
(UC _Counter=4, IC_Counter=3)

Operation start

Software stop command

Figure 29: Stop mode II

Operation Theory • 47

Trigger

DAWR

WFG_in_progress

Output Waveform

4 update counts, infinite iterations
(UC _Counter=4, IC_Counter=3)

Operation start

Software stop command

Figure 30: Stop mode III

4.3 Digital I/O

DAQ/PXI-22XX contains 24-lines of general -purpose digital I/O (GPIO),
which is provided through a 82C55A chip.

The 24-lines GPIO are separated into three ports: Port A, Port B and Port C.
Port A, Port B, Port C high nibble (bit -4 to bit-7), and low nibble (bit 0 to bit

3) can be programmed to be input or output individually. At system startup

and reset, all the I/O pins are all reset to be input configuration, that is, high
impedance.

DAQ/PXI-2204 also provides 4 digital inputs (SDI from CN2), which are
sampled simultaneously with the analog signal input and stored with the
12-bit AD data. Please refer to 4.1.1.1 for the details.

48 • Operation Theory

4.4 General Purpose Timer/Counter Operation

Two independ ent 16-bit up/down timer/counter are designed within FPGA
for various applications. They have the following features:

• Count up/down controlled by hardware or software

• Programmable counter clock source (internal or external clock up to

10MHz)

• Programmable gate selection (hardware or software control)

• Programmable input and output signal polarities (high active or low

active)

• Initial Count can be loaded from software

• Current count value can be read-back by software without affecting

circuit operation

4.4.1 Timer/Counter functions basics

Each timer/counter has three inputs that can be controlled via hardware or
software. They are clock input (GPTC_CLK), gate input (GPTC_GATE),
and up/down control input (GPTC_UPDOWN). The GPTC_CLK input
provides a clock source input to the timer/counter. Active edges on the
GPTC_CLK input make the counter increment or decrement. The
GPTC_UPDOWN input controls whether the counter counts up or down.
The GPTC_GATE input is a control signal which acts as a counter enable
or a counter trigger signal under different applications.

The output of timer/counter is GPTC_OUT. After power-up, GPTC_OUT is
pulled high by a pulled -up resister about 10K ohms. Then GPTC_OUT
goes low after the DAQ/PXI-22XX initialization.

All the polarities of input/output signals can be programmed by software. In
this chapter, for easy explanation, all GPTC_CLK, GPTC_GATE, and
GPTC_OUT are assumed to be active high or rising-edge triggered in the
figures.

4.4.2 General Purpose Timer/Counter modes

Eight programmable timer/counter modes are provided. All modes start
operating following a software-start signal that is set by the software. The
GPTC software reset initializes the status of the counter and re -loads the
initial value to the counter. The operation remains halted until the soft­ware-start is re-executed. The operating theories under di fferent modes
are described as below.

Operation Theory • 49

5 4 3 2 1 1 0

ffff

0 1 2 3 4 5 5

4.4.2.1 Mode1: Simple Gated -Event Counting

In this mode, the counter counts the number of pulses on the GPTC_CLK
after the software-start. Initial count can be loaded from software. Current
count value can be read -back by software any time without affecting the
counting. GPTC_GATE is used to enable/disable counting. When
GPTC_GATE is inactive, the counter halts the current count value. Figure
31 illustrates the operation with initial count = 5, count -down mode.

Software start
Gate
CLK

Count value

5

Figure 31: Mode 1 Operation

4.4.2.2 Mode2: Single Period Measurement

In this mode, the counter counts the period of the signal on GPTC_GATE in
terms of GPTC_CLK. Initial count can be loaded from software. After the
software-start, the counter counts the number of active edges on
GPTC_CLK between two active edges of GPTC_GATE. After the com­pletion of the period interval on GPTC_GATE, GPTC_OUT outputs high
and then current count value can be read-back by software. Figure 32
illustrates the operation where initial count = 0, count -up mode.

Software start

Gate
CLK

Count value

50 • Operation Theory

0

Figure 32: Mode 2 Operation

5

0 1 2 3 4 5 5

2 1 0 3 2 2 1 0

4.4.2.3 Mode 3: Single Pulse-width Measurement

In this mode the counter counts the pulse-width of the signal on
GPTC_GATE in terms of GPTC_CLK. Initial count can be loaded from
software. After the software-start, the counter counts the number of active
edges on GPTC_CLK when GPTC_GATE is in its active state. After the
completion of the pulse-width interval on GPTC_GATE, GPTC_OUT out­puts high and then current count value can be read-back by software.
Figure 33 illustrates the operation where initial count = 0, count -up mode.

Software start

Gate
CLK

Count value

0

Figure 33: Mode 3 Operation

4.4.2.4 Mode 4: Single Gated Pulse Generation

This mode generates a single pulse with programmable delay and pro­grammable pulse-width following the software -start. The two programma­ble parameters could be specified in terms of periods of the GPTC_CLK
input by software. GPTC_GATE is used to enable/disable counting. When
GPTC_GATE is inactive, the counter halts the current count value. Figure
34 illustrates the generation of a single pulse with a pulse delay of two and
a pulse -width of four.

Gate
CLK

Software start

5

Count value

OUT

2

Figure 34: Mode 4 Operation

Operation Theory • 51

2 1 0 3 2 1 0

Gate

1 0 3 2 1 0 2 2 1 0 3 2 1 0 2 2

C L K

C o u n t v a l u e

O U T S o f t w a r e s t a r t

4.4.2.5 Mode5: Single Triggered Pulse Generation

This function generates a single pulse with programmable delay and pro­grammable pulse -width following an active GPTC_GATE edge. You could
specify these programmable parameters in terms of periods of the
GPTC_CLK input. Once the first GPTC_GATE edge triggers the single
pulse, GPTC_GATE takes no effect until the software-start is re-executed.
Figure 35 illustrates the generation of a single pulse with a pulse delay of
two and a pulse -width of four.

Software start

CLK

Count value

2

OUT

Figure 35: Mode 5 Operation

4.4.2.6 Mode6: Re-triggered Single Pulse Generation

This mode is similar to mode5 except that the counter generates a pulse
following every active edge of GPTC_GATE. After the software-start, every
active GPTC_GATE edge triggers a single pulse with programmable delay
and pulse-width. Any GPTC_GATE triggers that occur when the prior pulse
is not completed would be ignored. Figure 36 illustrates the generation of
two pulses with a pulse delay of two and a pulse -width of four.

G a t e

2 2

I g n o r e d

Figure 36: Mode 6 Operation

52 • Operation Theory

4 3 2 1 0 2 1

S o f t w a r e s t a r t

0 3 2

G a t e C L K C o u n t v a l u e

O U T

3 3 2 1 0 2 1

S o f t w a r e s t a r t

1 0 3

G a t e C L K C o u n t v a l u e

O U T

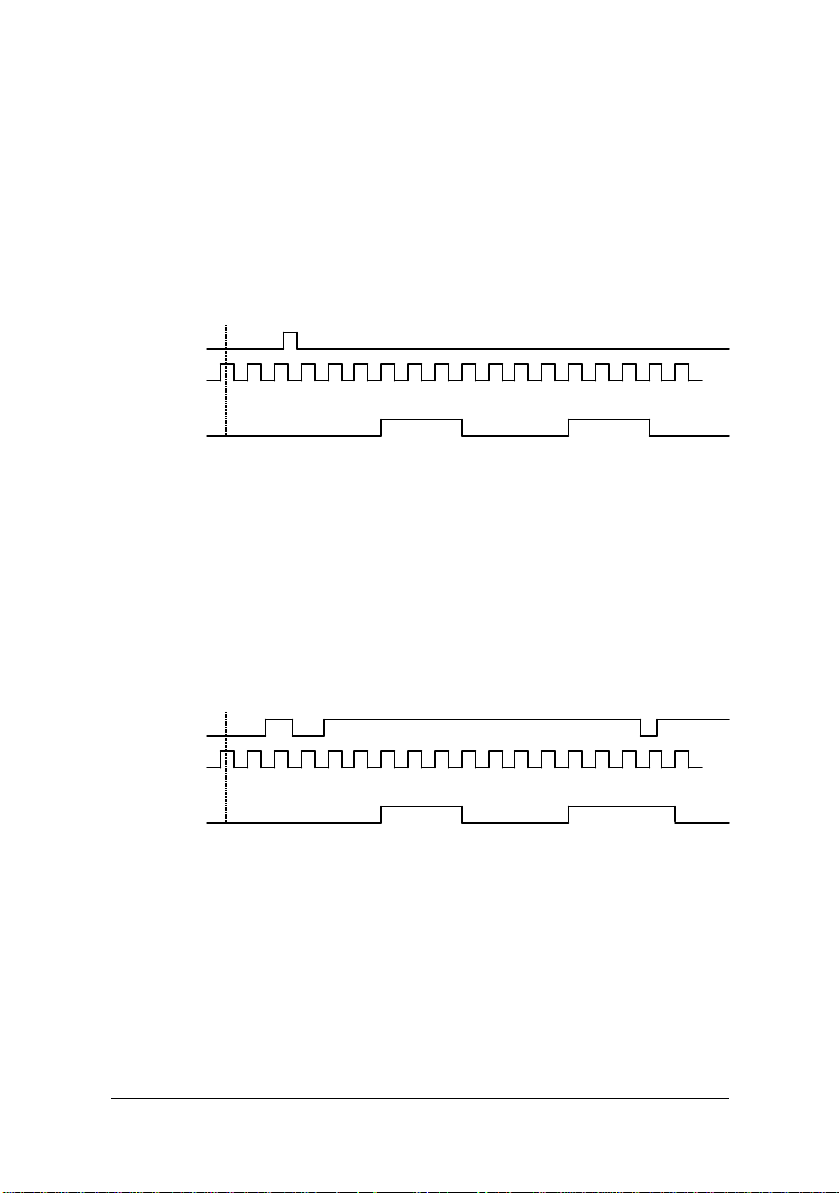

4.4.2.7 Mode7: Single Triggered Continuous Pulse Generation

This mode is similar to mode5 except that the counter generates con­tinuous periodic pulses with programmable pulse interval and pulse-width
following the first active edge of GPTC_GATE. Once the first GPTC_GATE
edge triggers the counter, GPTC_GATE takes no effect until the soft­ware-start is re-executed. Figure 37 illustrates the generation of two pulses
with a pulse delay of four and a pulse -width of three.

4 4

0 3 2 1 0 2 1

Figure 37: Mode 7 Operation

4.4.2.8 Mode8: Continuous Gated Pulse Generation

This mode generates periodic pulses with programmable pulse interval
and pulse-width following the software-start. GPTC_GATE is used to
enable/disable counting. When GPTC_GATE is inactive, the counter halts
the current count value. Figure 38 illustrates the generation of two pulses
with a pulse delay of four and a pulse -width of three.

4 4

0 3 2 1 0 2 1

Figure 38: Mode 8 Operation

Operation Theory • 53

MUX

4.5 Trigger Sources

We provide flexible trigger selections in the DAQ/PXI-22XXseries products.
In addition to the internal software trigger, DAQ/PXI-22XX also supports
external analog, digital triggers and SSI triggers. Users can configure the
trigger source by software for A/D and D/A processes individually. Note

that the A/D and the D/A conversion share the same analog trigger.

4.5.1 Software -Trigger

This trigger mode does not need any external trigger source. The trigger
asserts right after you execute the specified function calls to begin the
operation. A/D and D/A processes can receive an individual software
trigger.

4.5.2 External Analog Trigger

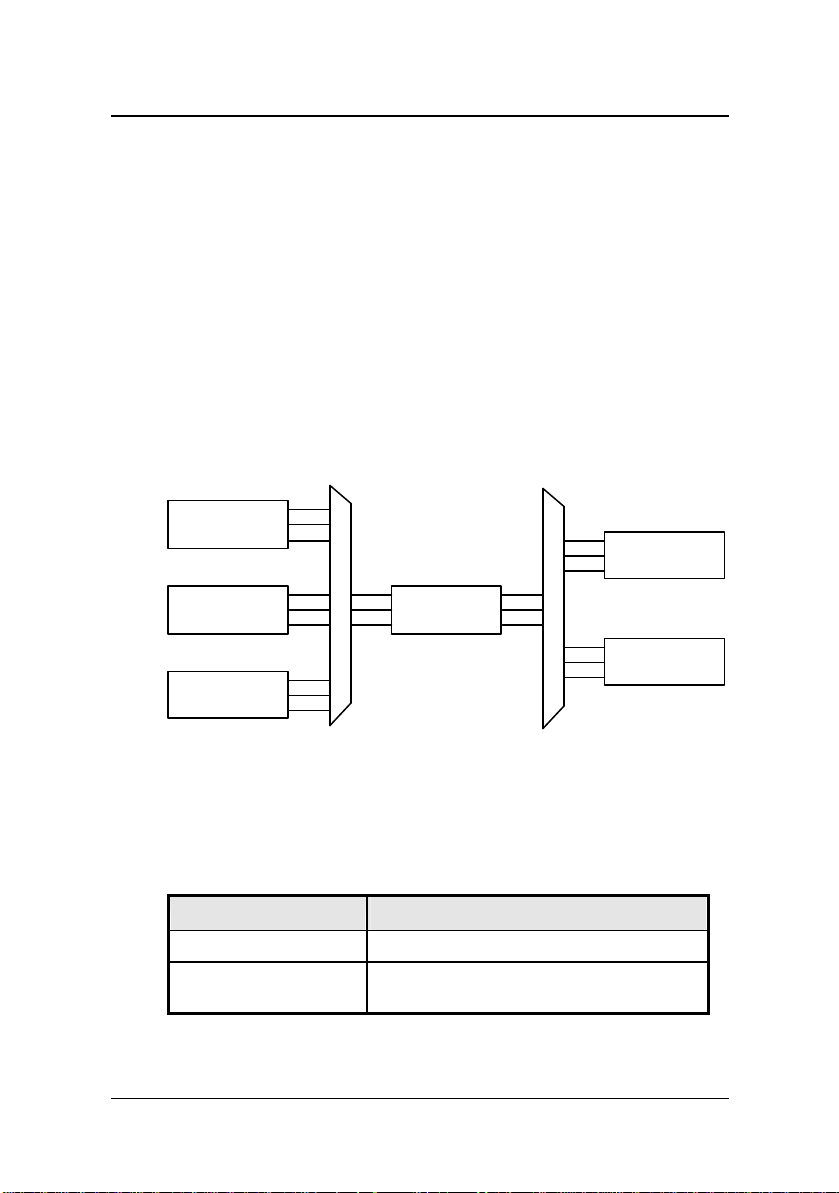

The analog trigger circuitry routing is shown in the figure 39. The analog
multiplexer could select either a direct analog input from the EXTATRIG pin
(SRC1 in figure 39) on the 68-pin connector CN1 or the input signal of ADC
(SRC2 in figure 39. That is, the first channel input you fill in the Channel
Gain Queue). SRC1 can be used for all trigger modes while SRC2 can only
be used for post and delay trigger modes. The range of trigger level for
SRC1 is ±10V and the resolution is 78mV (please refer to Table 14, the
valid code range is from 1 to 255), while the trigger range of SRC2 is the
full-scale range of the first channel inp ut in Channel Gain Queue, and the
resolution is the desired range divided by 256. For exa mple, if the first
channel input in Channel Gain Queue is CH0 with bipolar ±5V range, the
trigger voltage would be 4.96V when the trigger level code is set to 0xFF
while –4.96V when the code is set to 0x01.

AIn

Input Multipexer

CN1

Instrumentation
Amplifier

A/D
Converter

n = 0, ...,63

Figure 39: Analog trigger block diagram

54 • Operation Theory

SRC2

SRC1

Analog
Trigger

Circuit EXTATRIG

Trigger Level digital setting Trigger voltage

0xFF 9.92V
0xFE 9.84V

--- --­0x81 0.08V
0x80 0
0x7F -0.08V

--- --­0x01 -9.92V

Table 14: Analog trigger SRC1 (EXTATRIG) ideal transfer characteri stic

The trigger signal is generated when the analog trigger condition is satis­fied. There are five analog trigger conditions in DAQ/PXI-22XX.
DAQ/PXI-22XX uses 2 threshold voltages: Low_Threshold and High_
Threshold to build the 5 different trigger conditions. Users could configure
the trigger conditions easily by software.

4.5.2.1 Below-Low analog trigger condition

Figure 40 shows the below-low analog trigger condition, the trigger signal
is generated when the input analog signal is less than the Low_Threshold
voltage, and the High_Threshold setting is not used in this trigger condi­tion.

Figure 40: Below-Low analog trigger condition

Operation Theory • 55

4.5.2.2 Above-High analog trigger condition

Figure 41 shows the above-high analog trigger condition, the trigger signal
is generated when the input analog signal is higher than the
High_Threshold voltage, and the Low_Threshold setting is not used in this
trigger condition.

Figure 41: Above-High analog trigger condition

4.5.2.3 Inside-Region analog trigger condition

Figure 42 shows the inside-region analog trigger condition, the trigger
signal is generated when the input analog signal level falls in the range
between the High_Threshold and the Low_Threshold voltages.

Figure 42: Inside-Region analog trigger condition

56 • Operation Theory

4.5.2.4 High-Hysteresis analog trigger condition

Figure 43 shows the high -hysteresis analog trigger condition, the trigger
signal is generated when the input analog signal level is greater than the
High_Threshold voltage, and the Low_Threshold voltage determines the
hysteresis duration.

Figure 43: High-Hysteresis analog trigger condition

4.5.2.5 Low-Hysteresis analog trigger condition

Figure 44 shows the low-hysteresis analog trigger condition, the trigger
signal is generated when the input analog signal level is less than the
Low_Threshold voltage, and the High_Threshold voltage determines the
hysteresis duration.

Figure 44: Low-Hysteresis analog trigger condition

Operation Theory • 57

4.5.3 External Digital Trigger

An external digital trigger occurs when a rising edge or a falling edge is
detected on the digital signal connected to the EXTDTRIG or the
EXTWFTRG of the 68-pin connector for external digital trigger. The
EXTDTRIG is dedicated for A/D process, and the EXTWFTRG is used for
D/A process. Users can program the trigger polarity through ADLINK’s
software drivers easily. Note that the signal level of the external digital
trigger signals should be TTL-compatible, and the minimum pulse is 20ns.

Figure 45: External digital trigger

58 • Operation Theory

Internal timing

signals

DAQ timing

Signals

timing signals

4.6 User-controllable Timing Signals

In order to meet the requirements for user-specific timing and the re­quirements for synchronizing multiple cards, the DAQ/PXI -22XX series
provides flexible user-controllable timing signals to connect to external
circuitry or additional cards.

The whole DAQ timing of the DAQ/PXI-22XX series is composed of a
bunch of counters and trigger signals in the FPGA. These timing signals
are related to the A/D, D/A conversions and Timer/Counter appl ications.
These timing signals can be inputs to or outputs from the I/O connectors,
the SSI connector and the PXI bus. Therefore the internal timing signals
can be used to control external devices or circuitry’s.

We implemented signal multiplexers in the FPGA to individually choose the
desired timing si gnals for the DAQ operations, as shown in the figure 46.

SSI timing

SSI timing

Signals

signals

Trigger_Out

AFI timing

signals

Figure 46: DAQ signals routing

Users can utilize the flexible timing signals through our software drivers,
and simply and correctly connect the signals with the DAQ/PXI -22XX se­ries cards. Here is the summary of the DAQ timing signals and the corre­sponding functionalities for DAQ/PXI-22XX series.

Timing signal category

SSI/PXI signals Multiple cards synchronization

AFI signals Control DAQ/PXI-22XX by external timing

Corresponding functionality

signals

Figure 47: Summary of user-controllable timing signals and the

corresponding functionalities

Operation Theory • 59

4.6.1 DAQ timing signals

The user-controllable DAQ timing-signals contains: (Please refer to 4.1.4.1
for the internal timing signal definition)

1. TIMEBASE, providing TIMEBASE for all DAQ operations, which
could be from internal 40MHz oscillator, EXTTIMEBASE from I/O
connector or the SSI_TIMEBASE. Note that the frequency range of
the EXTTIMEBASE is 1MHz to 40MHz, and the EXTTIMEBASE
should be TTL-compatible.

2. AD_TRIG, the trigger signal for the A/D operation, which could come
from external digital trigger, analog trigger, internal software trigger
and SSI_AD_TRIG. Refer to Section 4.5 for detailed description.

3. SCAN_START, the signal to start a scan, which wo uld bring the fol­lowing ADCONV signals for AD conversion, and could come from the
internal SI_counter, AFI[0] and SSI_AD_START. This signal is syn­chronous to the TIMEBASE. Note that the AFI[0] should be
TTL-compatible and the minimum pulse width should be the pulse
width of the TIMEBASE to guarantee correct functionalities.

4. ADCONV, the conversion signal to initiate a single conversion, which
could be derived from internal counter, AFI[0] or SSI_ADCONV.
Note that this signal is edge-sensitive. When using AFI[0] as the
external ADCONV source, each rising edge of AFI[0] would bring an
effective conversion signal. Also note that the AFI[0] signal should be
TTL-compatible and the minimum pulse width is 20ns.

5. DA_TRIG, the trigger signal for the D/A operation, which could be
derived from external digital trigger, analog trigger, internal software
trigger and SSI_AD_TRIG. Refer to Section 4.5 for detailed de­scription.

6. DAWR, the update signal to initiate a single D/A conversion, which
could be derived from internal counter, AFI[1] or SSI_DAWR. Note
that this signal is edge-sensitive. When using AFI[1] as the external
DAWR source, each rising edge of AFI[1] would bring an effective
update signal. Also note that the AFI[1] signal should be
TTL-compatible and the minimum pulse width is 20ns.

4.6.2 Auxiliary Function Inputs (AFI)

Users could use the AFI in applications that take advantage of external
circuitry to directly control the DAQ/PXI-22XX cards. The AFI includes 2
categories of timing signals: one group is the dedic ated input, and the other
is the multi-function input. Table 15 illustrates this categoriz ation.

60 • Operation Theory

function

Summary of the auxiliary function input signals and the corresponding
functionalities

Category Timing si gnal Functionality Constraints

Replace the

internal

TIMEBASE

External digital

trigger input for

A/D operation

External digital

trigger input for

D/A operation

Replace the

internal

ADCONV

Replace the

internal

SCAN_START

Replace the

internal DAWR

Dedicated

input

Multi-

input

EXTTIMEBASE

EXTDTRIG

EXTWFTRG

AFI[0]

(Dual functions)

AFI[1]

Table 15: Auxiliary function input signals and the corresponding

functionalities

1. TTL-compatible

2. 1MHz to 40MHz

3. Affects on both A/D and
D/A operations

1. TTL-compatible

2. Minimum pulse width =
20ns

3. Rising edge or falling edge

1. TTL-compatible

2. Minimum pulse width =
20ns

3. Rising edge or falling edge

1. TTL-compatible

2. Minimum pulse width =
20ns

3. Rising–edge sensitive only

1. TTL-compatible

2. Minimum Pulse
width > 2/TIMEBASE

1. TTL-compatible

2. Minimum pulse width =
20ns

3. Rising–edge sensitive only

Operation Theory • 61

EXTDTRIG and EXTWFTRIG

EXTDTRIG and EXTWFTRIG are dedicated digital trigger input signals for
A/D and D/A operations respectively. Please refer to section 4.5.3 for de­tailed descriptions.

EXTTIMEBASE

When the applications needs specific sampling frequency or update rate
that the card could not generate from its internal TIMEBASE, the 40MHz
clock, users could utilize the EXTTIMEBASE with internal counters to
achieve the specific timing intervals for both A/D and D/A operations. Note
that once you choose the TIMEBASE source, both A/D and D/A operations
will be affected because A/D and D/A operations share the same
TIMEBASE

AFI[0]

Alternatively, users can also directly apply an external A/D conversion
signal to replace the internal ADCONV signal. This is another way to
achieve customized sampling frequencies. The external ADCONV signal
can only be inputted from the AFI[0]. As section 4.1 describes, the
SI_counter triggers the generation of the A/D conversion signal, ADCONV,
but when using the AFI[0] to replace the internal ADCONV signal, then the
SI_counter and the internally generated SCAN_START will not be effective.
By controlling the ADCONV externally, users can sample the data ac­cording to external events. In this mode, the Trigger signal and trigger
mode settings will are not available.

AFI[0] could also be used as SCAN_START signal for A/D operations.
Please refer to sections 4.1 and 4.6.1 for detailed descriptions of the
SCAN_START signal. When using external signal (AFI[0]) to replace the
internal SCAN_START signal, the pulse width of the AFI[0] must be greater
than two time of the period of Timebase. This feature is suitable for the
DAQ-2200/PXI-2200 series, which can scan multiple channels data con­trolled by an external event. Note that the AFI[0] is a multi-purpose input,
and it can only be utilized for one function at any one time.

62 • Operation Theory

SSI slave: accept the SSI_TIMEBASE to replace the internal

AFI[1]

Regarding the D/A operations, users could directly input the external D/A
update signal to replace the internal DAWR signal. This is another way to
achieve customized D/A update rates. The external DAWR signal can only
be inputted from the AFI[1]. Note that the AFI[1] is a multi -purpose input,
and it can only be utilized for one function at any one time. AFI[1] currently
only has one function. ADLINK reserves it for future development.

4.6.3 System Synchronization Interface

SSI (System Synchronization Interface) provides the DAQ timing syn­chronization between multiple cards. In DAQ/PXI-22XX series, we de­signed a bi-directional SSI I/O to provide flexible connectio n between cards
and allow one SSI master to output the signal and up to three slaves to
receive the SSI signal. Note that the SSI signals are designed for card
synchronization only, not for external devices.

SSI timing signal

SSI master: send the TIMEBASE out

Functionality

SSI_TIMEBASE

SSI_AD_TRIG

SSI_ADCONV

SSI_SCAN_START

SSI_DA_TRIG

SSI_DAWR

TIMEBASE signal.
Note: Affects on both A/D and D/A operations
SSI master: send the internal AD_TRIG out
SSI slave: accept the SSI_AD_TRIG as the digital trigger

signal.
SSI master: send the ADCONV out
SSI slave: accept the SSI_ADCONV to replace the internal

ADCONV signal.
SSI master: send the SCAN_START out
SSI slave: accept the SSI_SCAN_START to replace the

internal SCAN_START signal.
SSI master: send the DA_TRIG out.

SSI slave: accept the SSI_DA_TRIG as the digital trigger
signal.

SSI master: send the DAWR out.
SSI slave: accept the SSI_DAWR to replace the internal

DAWR signal.

Table 16: Summary of SSI timing signals and the corresponding func-

tionalities as the master or slave

Operation Theory • 63

In PCI form factor, there is a connector on the top right corner of the card
for the SSI. Refer to section 2.3 for the connector position. All the SSI si g­nals are routed to the 20-pin connector from the FPGA. To synchronize
multiple cards, users can connect a special ribbon cable (ACL-SSI) to all
the cards in a daisy-chain configuration

In PXI form factor, we utilize the PXI trigger bus built on the PXI backplane
to provide the necessary timing signal connections. All the SSI signals are
routed to the P2 connector. No additional cable is needed. For detailed
information of the PXI specifications, please refer to PXI specification Re­vision 2.0 from PXI System Alliance (www.pxisa.org).

The 6 internal timing signals could be routed to the SSI or the PXI trigger
bus through software drivers. Please refer to section 4.6.1 for detailed
information of the 6 internal timing signals. Physically the signal routings
are accomplished in the FPGA. Cards that are connected together through
the SSI or the PXI trigger bus, will still achieve synchronization on the 6
timing si gnals.

The mechanism of the SSI/PXI

1. 1. We adopt master-slave configuration for SSI/PXI. In a system,
for each timing signal, there shall be only one master, and other
cards are SSI slaves or with the SSI function disabled.

2. For each timing signal, the SSI master doesn’t have to be in a
single card.

For example:

We want to synchronize the A/D operation through the ADCONV
signal for 4 DAQ/PXI-22XX cards. Card 1 is the master, and Card
2, 3, 4 are slaves. Card 1 receives an external digital trigger to start
the post trigger mode acquisition. The SSI setting could be:

a. Set the SSI_ADCONV signal of Card 1 to be the master.
b. Set the SSI_ADCONV signals of Card 2, 3, 4 to be the slaves.
c. Set external digital trigger for Card 1’s A/D operation.
d. Set SI_counter, SI2_counter, NumChan_counter and the post

scan counter (PSC) on all other cards.

e. Start DMA operations for all cards, thus all the cards are

waiting for the trigger event.

64 • Operation Theory

When the digital trigger condition of Card 1 occurs, Card 1 will internally
generate the ADCONV signal and output this ADCONV signal to
SSI_ADCONV signal of Card 2, 3 and 4 through the SSI/PXI connectors.
Thus we can achieve 16-channel acquisition simultaneously.

You could arbitrarily choose each of the 6 timing signals as the SSI master
from any one of the cards. The SSI master can output the internal timing
signals to the SSI slaves. With the SSI, users could achieve better
card-to-card synchronization.

Note that when power-up or reset, the DAQ timing signals are reset to use
the internal generated timing signals.

Operation Theory • 65

5

Calibration

This chapter introduces the calibration process to minimize AD meas­urement errors and DA output errors.

5.1 Loading Calibration Constants

The DAQ/PXI-22XX is factory calibrated before shipment by writing the
associated calibration constants of TrimDACs to the on -board EEPROM.
TrimDACs are devices containing multiple DACs within a single package.
TrimDACs do not have memory capability. That means the calibration
constants do not retain their values after the system power is turned off.
Loading calibration constants is the process of loading the values of
TrimDACs stored in the on-board EEPROM. ADLINK provides software to
make it easy to read the calibration constants automatically when neces­sary.

There is a dedicated space for calibration constants In the EEPROM. In
addition to the default bank of factory calibration constants, there are three
extra user-modifiable banks. This means users can load the TrimDACs
values either from the original factory calibration or from a calibration that is
subsequently performed.

Because of the fact that errors in measurements and outputs will vary with
time and temperature, it is recommended re-calibratation when the card is
installed in the users environment. The auto -calibration function used to
minimize errors will be introduced in the next sub-section.

66 • Calibration

5.2 Auto-calibration

By using the auto-calibration feature of the DAQ/PXI-22XX, the calibration
software can measure and correct almost all the calibration errors without
any external signal connections, reference voltages, or measurement de­vices.

The DAQ/PXI -22XX has an on-board calibration reference to ensure the
accuracy of auto -calibration. The reference voltage is measured at the
factory and adjusted through a digital potentiometer by using an ul­tra-precision calibrator. The impedance of the digital potentiometer is
memorized after this adjustment. It is not reco mmended for users to adjust
the on-board calibration reference except when an ultra-precision cali­brator is available.

Note:

1. Before auto-calibration procedure starts, it is recommended to
warn up the card for at least 15 minutes.

2. Please remove the cable before an auto -calibration procedure is
initiated because the DA outputs would be changed in the process

of calibration.

5.3 Saving Calibration Constants

After an auto-calibration is completed, users can save the new calibration
constants into one of the three user-modifiable banks in the EEPROM. The
date and the temperature when you ran the auto-calibration will be saved
accompanied with the calibration constants. This means users can store
three sets of calibration constants according to three different environ­ments and re-load the calibration constants later.

.

Calibration • 67
