ADLINK cPCI-3970 User Manual

cPCI-3970/3971 Series

Performance 3U CompactPCI® PlusIO

Intel® Core™ i7 Processor Blade

User’s Manual

Manual Rev.: 2.03
Revision Date: July 29, 2013
Part No: 50-15078-10

30

Advance Technologies; Automate the World.

Revision History

Revision Release Date Description of Change(s)

2.00 2011/09/15 Initial release

2.01 2012/11/16

2.02 2013/03/29

2.03 2013/07/29

Add “Q”, “L” and “M” models; add Gold Cap
support

Correct “3.3V/5V” column headings in power
consumption tables

Correct J2 VGA pin definitions, cPCI-R3P00T
RTM Board Layout

cPCI-3970

Preface

Copyright 2011-13 ADLINK Technology Inc.

This document contains proprietary infor mation protected by copy­right. All rights are reserved. No part of this manual may be repro­duced by any mechanical, electronic, or other means in any form
without prior written permission of the manufacturer.

Disclaimer

The information in this document is subject to change without prior
notice in order to improve reliability, design, and function and does
not represent a commitment on the part of the manufa cturer.

In no event will the manufacturer be liable for direct, indirect, spe­cial, incidental, or consequential damages arising out of the use or
inability to use the product or documentation, even if advised of
the possibility of such damages.

Environmental Responsibility

ADLINK is committed to fulfill its social responsibility to global
environmental preservation through compliance with the Euro­pean Union's Restriction of Hazardous Substances (RoHS) direc­tive and Waste Electrical and Electronic Equipment (WEEE)
directive. Environmental protection is a top priority for ADLINK.
We have enforced measures to ensure that our products, manu­facturing processes, components, and raw materials have as little
impact on the environment as possible. When products are at their
end of life, our customers are encouraged to dispose of them in
accordance with the product disposal and/or recovery programs
prescribed by their nation or company.

Trademarks

Product names mentioned herein are used for identification pur­poses only and may be trademarks and/or registered trademarks
of their respective companies.

Preface iii

Using this Manual

Audience and Scope

The cPCI-3970 User’s Manual is intended for hardware

technicians and systems operators with knowledge of installing,
configuring and operating industrial grade single boar d computers.

Manual Organization

This manual is organized as follows:
Chapter 1, Introduction: Introduces the cPCI-3970, its features,

block diagrams, and package contents.
Chapter 2, Specifications: Presents detailed specification infor-

mation, power consumption, and technical drawings.
Chapter 3, Functional Description: Describes the cPCI-3970

main functions.
Chapter 4, Board Interfaces: Describes the cPCI-3970 board

interfaces.
Chapter 5, Getting Started: Describes the installation of compo-

nents to the cPCI-3970 and rear transition modules.
Chapter 6, Driver Installation: Provides information on how to

install the cPCI-3970 device drivers under Windows XP.
Chapter 7, Utilities: Describes the utilities of the cPCI-3970,

including watchdog timer and Trusted Platform Module.
Chapter 8, BIOS Setup Utility: Describes basic navigation for the

AMI EFI BIOS setup utility.
Chapter 9, IPMI User Guide: Provides information on the base-

board management controller (BMC) of the Intelligent Platform
Management Interface (IPMI).

Important Safety Instructions: Presents safety instructions all
users must follow for the proper setup, installation and usage of
equipment and/or software.

Getting Service: Contact information for ADLINK’s worldwide
offices.

iv Preface

cPCI-3970

Conventions

Take note of the following conventions used throughout this
manual to make sure that users perform certain tasks and
instructions properly.

Additional information, aids, and tips that help users perform
tasks.

NOTE:

NOTE:

Information to prevent minor physical injury, component dam­age, data loss, and/or program corruption when trying to com-

CAUTION:

WARNING:

plete a task.

Information to prevent serious physical injury, component
damage, data loss, and/or program corruption when trying to
complete a specific task.

Preface v

This page intentionally left blank.

vi Preface

cPCI-3970

Table of Contents

Revision History...................................................................... ii

Preface.................................................................................... iii

List of Figures........................................................................ xi

List of Tables........................................................................ xiii

1 Introduction ........................................................................ 1

1.1 Overview.............................................................................. 1

1.2 Features............................................................................... 1

1.3 Model Number Decoder....................................................... 2

1.4 Package Contents ............................................................... 5

2 Specifications..................................................................... 7

2.1 cPCI-3970 Processor Blade Specifications.................. .... ... 7

2.2 cPCI-R3P00(T) RTM Specifications.................................. 11

2.3 Block Diagrams.................................................................. 12

2.4 I/O Connectivity Table ....................................................... 19

2.5 Power Requirements.................... ... .... ... ... ... ... .... ... ... ... .... . 20

2.6 Thermal Requirements.................... .... ... ... ... ... .... ... ... ... .... . 22

3 Functional Description .................................................... 23

3.1 Processors......................................................................... 23

3.2 Platform Controller Hub ..................................................... 25

3.3 PMC/XMC.......................................................................... 25

3.4 Intel® Turbo Boost Technology......................................... 26

3.5 Intel® Hyper-Threading Technology.................................. 26

3.6 Trusted Platform Module ................................................... 26

3.7 Battery ............................................................................... 27

3.8 BIOS Recovery.................................................................. 28

Table of Contents vii

4 Board Interfaces................................................................ 29

4.1 cPCI-3970 Series Board Layout ..................................... ... 29

4.2 cPCI-3970 Blade Assembly Layout ................................... 30

4.3 cPCI-3970D Blade Assembly Layout................................. 31

4.4 cPCI-3970G Blade Assembly Layout................................. 32

4.5 cPCI-3970, cPCI-3970D, cPCI-3970G Faceplate.............. 33

4.6 cPCI-3970S, cPCI-3970P, cPCI-3970U Front Panel......... 34

4.7 cPCI-3970L, cPCI-3970M, cPCI-3970Q Front Panel......... 35

4.8 cPCI-R3P00 RTM Board Layout........................................ 37

4.9 cPCI-R3P00T RTM Board Layout...................................... 38

4.10 cPCI-R3P00(T) RTM Faceplate......................................... 39

4.11 Connector Pin Assignments............................................... 40

4.12 Jumper Settings................................................................. 66

5 Getting Started.................................................................. 67

5.1 CPU and Heatsink ............................................................. 67

5.2 Memory Module Installation............................................... 68

5.3 SATA Drive Installation...................................................... 70

5.4 CompactFlash Installation.................................................. 71

5.5 Converting from CF to CFast Slot...................................... 72

5.6 PMC/XMC Card Installation............................................... 77

5.7 Installing the cPCI-3970 to the Chassis............................. 81

5.8 RTM Installation - cPCI-R3P00(T)..................................... 82

6 Driver Installation.............................................................. 83

6.1 cPCI-3970 Drivers.............................................................. 83

6.2 USB-to-Serial Converter Driver (RTM) .............................. 86

6.3 LAN Driver for cPCI-R3P00T............................................. 90

7 Utilities............................................................................... 91

7.1 Watchdog Timer................................................................. 91

7.2 Using the Trusted Platform Module ................................... 97

7.3 BIOS Recovery........................ .... ... ... ... ........................... 101

7.4 BIOS Update...................................... ... .... ... ... ... ... .... ....... 103

viii Table of Contents

cPCI-3970

8 BIOS Setup Utility........................................................... 105

8.1 Starting the BIOS.......................... ... .... ... ... ...................... 105

8.2 Main Setup.......... ... .... ... ... ... .... ... ... ................................... 108

8.3 Advanced BIOS Setup..................................................... 110

8.4 Chipset Configuration ...................................................... 120

8.5 Boot Configuration........................................................... 124

8.6 Security Setup ................................................................. 125

8.7 Save & Exit...................................................................... 126

9 IPMI User Guide.............................................................. 129

9.1 Introduction...................................................................... 129

9.2 Summary of Commands Supported by BMR-AVR-cPCI. 129

9.3 OEM Commands Summary Table................................... 133

9.4 CompactPCI Address Map .............................................. 137

9.5 Communications with IPMC............................................. 137

9.6 IPMI Sensors List............................................................. 138

9.7 Relevant Documents ....................................................... 139

Important Safety Instructions............................................ 141

Getting Service.................................................................... 143

Table of Contents ix

This page intentionally left blank.

xTable of Contents

cPCI-3970

List of Figures

Figure 2-1: cPCI-3970 Blade Functional Block Diagram..................12

Figure 2-2: DB-3610L2 Daughter Board Functional Block Diagram 13
Figure 2-3: DB-3970L2 Daughter Board Functional Block Diagram 14
Figure 2-4: DB-LANL2-S Daughter Board Functional Block Diagram15

Figure 2-5: DB-Max Daughter Board Functional Block Diagram..... 16

Figure 2-6: cPCI-R3P00 RTM Functional Block Diagram................17

Figure 2-7: cPCI-R3P00T RTM Functional Block Diagram.............. 18

Figure 4-1: cPCI-3970 Series Board Layout....................................29

Figure 4-2: cPCI-3970 Blade Assembly Layout ...............................30

Figure 4-3: cPCI-3970D Blade Assembly Layout.............................31

Figure 4-4: cPCI-3970G Blade Assembly Layout ............................32

Figure 4-5: cPCI-3970, cPCI-3970D, cPCI-3970G Front Panel ...... 33

Figure 4-6: cPCI-3970S, cPCI-3970P, cPCI-3970U Front Panel .... 34

Figure 4-7: cPCI-3970L, cPCI-3970M, cPCI-3970Q Front Panel ...35

Figure 4-8: cPCI-R3P00 RTM Board Layout........................ ... ... .... .. 37

Figure 4-9: cPCI-R3P00 RTM Board Layout........................ ... ... .... .. 38

Figure 4-10: cPCI-R3P00(T) RTM Front Panel..................................39

Figure 7-1: Configuring the WDT over serial console ......................95

List of Figures xi

This page intentionally left blank.

xii List of Figures

cPCI-3970

List of Tables

Table 2-1: cPCI-3970 Processor Blade Specifications.....................7

Table 2-2: cPCI-R3P00(T) RTM Specifications..............................11

Table 4-1: cPCI-3970 Front Panel System LED Descriptions ........ 36

Table 4-2: USB Pin Definition......................................................... 40

Table 4-3: VGA Pin Definition ... ... ... .... ... ... ... .... ... ... ... ... .... ... ... .........40

Table 4-4: RJ-45 GbE Pin Definitions.............................................41

Table 4-5: LAN LED Status Definitions........................................... 41

Table 4-6: PS/2 Keyboard/Mouse Pin Definition.............................42

Table 4-7: cPCI-3970D/P COM1 (DB-9) Pin Definition...................42

Table 4-8: cPCI-3970D/P COM1 Mode Selection Switch Settings. 43

Table 4-9: cPCI-3970G/U COM1 (RJ-45) Pin Definition................. 44

Table 4-10: cPCI-3970G/U COM1 (DB-9 adapter) Pin Definition.....44

Table 4-11: RS-422/485 Adapter Dongle Pin Definition ................... 45

Table 4-12: cPCI-3970D/P COM1 with RS-422/485 Dongle Pin Def46

Table 4-13: cPCI-3970G/U COM2 Pin Header Definition..... ... ....... .. 46

Table 4-14: cPCI-R3P00 RTM COM4 Pin Definition ........................ 46

Table 4-15: cPCI-R3P00(T) RTM COM5 Pin Definition.................... 47

Table 4-16: cPCI-R3P00(T) RTM COM5 with RS-422/485 Dongle .47

Table 4-17: DisplayPort Pin Definition .............................................. 48

Table 4-18: cPCI-3970M 100- p i n I/O Conn e cto r Pin Definition ..... .. 49

Table 4-19: Serial ATA Connector on RTM Pin Definition................51

Table 4-20: Serial ATA Connector on DB-3610L2/3970L2 Pin Def..52

Table 4-21: CompactFlash Socket Pin Definition ............................. 53

Table 4-22: CFast Socket Pin Definition........................................... 54

Table 4-23: DB-3610L2 Connector Pin Definition............................. 55

Table 4-24: DB-3CFAST Connector Pin Definition...........................56

Table 4-25: DB-3970L2 Connector Pin Definition............................. 57

Table 4-26: DB-3UMC Connector Pin Definition............................... 58

Table 4-27: PMC Connector Pin Definitions................................... .. 59

Table 4-28: XMC Connector Pin Definition........... ... ... ... .... ... ... ....... .. 61

Table 4-29: CompactPCI J1 Connector Pin Definition...................... 62

Table 4-30: CompactPCI J2 Connector Pin Definition...................... 63

Table 4-31: cPCI-R3P00 rJ2 Connector Pin Definition.....................64

Table 4-32: cPCI-R3P00T rJ2 Connector Pin Definition...................65

Table 4-33: Load BIOS Default Jumper Settings........................ .... .. 66

Table 4-34: XMC VPWR Select Jumper Settings............................. 66

Table 4-35: PMC V(I/O) Select Jumper Settings..............................66

List of Tables xiii

This page intentionally left blank.

xiv List of Tables

1 Introduction

1.1 Overview

The ADLINK cPCI-3970 Series is a 3U CompactPCI® PlusIO
compatible processor blade with ECC memor y up to 16GB. The
ADLINK cPCI-3970 features an Intel® Core™ i7 processor with
Mobile Intel® QM67 Express Chipset, supports Satellite mode
operation as a standalone blade in peripheral slots and IPMI for
system health monitoring.

Front panel I/O includes 2x GbE, 2x USB, VGA, and additional
2x USB, COM, KB/MS, and Line-in/out for the 8HP cPCI-3970D
model, or 2x DisplayPort, COM and USB for the cPCI-3970G ver­sion. One optional PCI 32-bit/66 MHz PMC site or PCI-Express x1
XMC site is available on the 2nd or 3rd layer. The optional Rear
Transition Module (RTM) provides 3x SATA, 2x GbE, 2x USB,
2x COM and VGA.

The cPCI-3970 is a high performance solution for factory automa­tion and other industrial applications that require superior data
transfer capabilities and advanced computing power.

cPCI-3970

1.2 Features

X 3U CompactPCI blade in 4HP, 8HP or 12HP width form factor
X Supports Intel® Core™ i7-2715QE Processor (4 cores, 6M

cache, 2.10 GHz)

X Graphics and memory controllers integrated in processor
X Compatible with PICMG 2.30 PlusIO (3x SATA, PCIe x4, 3x

USB, 2x GbE to J2)

X Dual channel DDR3-1066/1333 SDRAM with ECC via two

SODIMM sockets, up to 16GB

X 32bit/33MHz CompactPCI Interface based on PCI specifica-

tions, universal V(I/O)

X Supports Satellite mode operation as a standalone blade in

peripheral slots

X Optional 32-bit/66MHz PMC or PCIe x1 XMC site
X Supports IPMI for system health monitoring

Introduction 1

X VGA port on front or switchable to rear I/O by BIOS setting
X Two PCIe Gigabit Ethernet egress ports
X Additional two Gigabit Ethernet ports on 80mm RTM

(cPCI-R3P00T)

X One CompactFlash socket
X Optional CFast socket for SATA interface storage (shares CF

socket site)

X Line-in and Line-out ports on front panel
X 2.5" SATA drive onboard on 8HP/12HP versions at 6 Gb/s

1.3 Model Number Decoder

Blades

cPCI-ET3970 D / 655L / M4G

(A) (B)(C) (D) (E)

(A) Operating Temperature Code

Z Blank = 0ºC to +60ºC
Z ET = -20ºC to +70ºC (for CPUs with TDP below 25W only)

(B) J2 Connector Type Code

Z 0 = HM connector
Z 1 = UHM connector (PICMG 2.30 PlusIO compliant)

(C) Configuration Code

Z Blank = Single slot width with CF socket, 2x USB, 2x GbE,

VGA

Z D = Dual slot width with CF socket, 2x USB, 2x GbE, VGA

on layer-1; 2x USB, COM, PS/2 KB/MS, Line-in, Line-out
and SATA on layer-2 DB-3610L2

Z G = Dual slot width with CF socket, 2x USB, 2x GbE, VGA

on layer-1, 2x DisplayPort, RJ-45 COM, PS/2 KB/MS, USB
and SATA on layer-2 DB-3970L2

2Introduction

cPCI-3970

Z S = Dual slot width with CF socket, 2x USB, 2x GbE, VGA

on layer-1; PMC/XMC site on layer-2 DB-3UMC.

Z P =Triple slot width with CF socket, 2x USB, 2x GbE, VGA

on layer-1; 2x USB, COM, PS/2 KB/MS, Line-in, Line-out
and SATA on layer-2 DB-3610L2; PMC/XMC site on layer-3
DB-3UMC

Z U = Triple slot width with CF socket, 2x USB, 2x GbE, VGA

on layer-1; 2x DisplayPort, RJ-45 COM, PS/2 KB/MS, USB
and SATA on layer 2 DB-3970L2 ; PMC/XMC site on laye r-3
DB-3UMC

Z Q = Dual Slot width with CF socket, 2x USB, 2x GbE, VGA

on layer-1; no I/O on layer-2. (for Core i7-2715QE an d Core
i52515E processor only)

Z L = Dual Slot width with CF socket, 2x USB, 2x GbE, VGA

on layer-1; 2x GbE, DB-9 COM, USB and SATA ports on
layer-2 DB-LAN2-S

Z M = Dual slot width with CF socket, 2x USB, 2x GbE, VGA

on layer-1; 100-pin density connector for audio, 2x DVI, 2x
USB, KB/MS, 2x COM and SA TA ports on layer-2 DB-Max

Z Other = ODM/OEM project code

(D) CPU Code

Z 715Q = Quad core Intel® i7-2715QE processor
Z 655L = Low voltage dual core Intel® i7-2655LE processor
Z 610U = Ultra low voltage dual core Intel® i7-2610UE pro-

cessor

Z 515E = Dual core Intel® i5-2515E processor

(E) Memory Size Code

Z M2G = 2x 1GB DDR3-1333 SO-CDIMM
Z M4G = 2x 2GB DDR3-1333 SO-CDIMM
Z M8G = 2x 4GB DDR3-1333 SO-CDIMM
Z M16G = 2x 8GB DDR3-1333 SO-CDIMM

(dependent on availability of memory modules)

Introduction 3

RTMs

cPCI- R3P00 T

(A)

(A) Model Code

Z Blank = dual slot width, 50mm depth 3U R TM with 2x COM,

2x USB, 3x SATA, VGA, 2x GbE (switched from processor
blade)

Z T = dual slot width, 80mm depth 3U RTM with 2x COM, 2x

USB, 3x SATA, VGA, 2x GbE (independent from processor
blade)

4Introduction

cPCI-3970

1.4 Package Contents

The cPCI-3970 is packaged with the following components. If any
of the following items are missing or damaged, retain the shipping
carton and packing material and contact the dealer for inspection.
Please obtain authorization before returning any product to
ADLINK. The packing contents of cPCI-3970 Series non-standard
configurations will vary depending on customer requests.

CPU module

X The cPCI-3970 Series Processor Blade

Z CPU and memory specifications will differ depending on

options selected

Z Thermal module is assembled on the board
X Y-cable for PS/2 combo port (8HP/12HP version only)
X 2.5" HDD accessory pack (8HP/12HP version only)
X RJ-45 to DB-9 COM adapter cable (cPCI-3970G version only)
X RS-422/485 DB-9-to-DB-9 dongle (cPCI-3970G version only)
X DisplayPort to DVI adapter cable (cPCI-3970G version only)
X ADLINK All-in-One DVD
X User’s manual

No I/O cables are included with the cPCI-3970M version.

NOTE:

NOTE:

Rear Transition Module

X cPCI-R3P00 or cPCI-R3P00T RTM
X RS-422/485 DB-9-to-DB-9 dongle

Optional Accessories

X DB-3CFAST adapter for CFast socket (P/N 91-37560-0000)
X DisplayPort to DVI adapter cable (P/N 30-01120-0000)
X DisplayPort to VGA adapter cable (P/N 30-01119-0000)
X DisplayPort to HDMI adapter cable (P/N 30-01121-0000)
X I/O cable for cPCI-3970M high density connector (contact

your ADLINK sales representative for order code)

Introduction 5

NOTE:

NOTE:

CAUTION:

The contents of non-standard cPCI-3970 configurations may

vary depending on the customer’s requirements.

This product must be protected from static discharge and phys-

ical shock. Never remove any of the components except at a

static-free workstation. Use the anti-static bag shipped with the

product when putting the board on a surface. Wear an

anti-static wrist strap properly grounded on one of the system's

ESD ground jacks when installing or servicing system compo-

nents.

6Introduction

2 Specifications

2.1 cPCI-3970 Processor Blade Specifications

cPCI-3970

CompactPCI®
Standards

Mechanical • Standard 3U CompactPCI®

Processor • Intel® Core™ i7-2715QE Processor, 2.1 GHz, 6MB LLC,

Chipset • IIntel® QM67 Platform Controller Hub (PCH)
Memory • Dual channel DDR3-1066/1333 ECC memory

CompactPCI
Bus

Gigabit
Ethernet

Serial Ports • Up to four serial ports

• PICMG® 2.0 CompactPCI® Rev. 3.0

• PICMG® 2.1 Hot Swap Specification Rev. 2.0

• PICMG® 2.9 System Management Rev. 1.0

• PICMG® 2.30 PlusIO compatible (cPCI-3971 supports full
PICMG 2.30 compliance - UHM type J2 connector)

• Board size: 100mm x 160mm

• Single slot (4HP, 20.32mm); Dual slot (8HP, 40.64mm);
Triple-slot (12HP, 60.96 mm)

• CompactPCI® connectors with J1, J2; HM type J2 connector
for cPCI-3970 models, UHM type J2 connector for cPCI-3971

FCBGA1023, TDP 45W

• Intel® Core™ i7-2655LE Processor, 2.2 GHz, 4MB LLC,
FCBGA1023, TDP 25W

• Intel® Core™ i7-2610UE Processor, 1.5 GHz, 4MB LLC,
FCBGA1023, TDP 17W

• Intel® Core™ i5-2515E Processor, 2.5 GHz, 3MB LLC,
FCBGA1023, TDP 35W

• Passive heatsink

• Two SO-CDIMM sockets

• Up to 16GB (dependent on availability of memory modules)

• PCI 32bit/ 33MHz; 3.3V, 5V universal V I/O

• Supports operation in system slot as master or in peripheral
slot as standalone blade without connectivity to CompactPCI
bus (Satellite mode)

• Two PCI-Express x1 Intel® 82574L Gigabit Ethernet
controllers

• Two egress 10/100/1000BASE-T ports switchable to J2
(cPCI-R3P00) by BIOS setting

• One RS-232/422/485 serial port on front panel

• Additional RS-232 10-pin header on layer-2 board
(cPCI-3970G only)

• Two serial ports on RTM

Table 2-1: cPCI-3970 Processor Blade Specifications

1

Specifications 7

Graphics • Integrated in Intel® Core™ processor

• DB-15 VGA port on front panel, switchable to J2 (RTM) by
BIOS setting

• Analog display up to QXGA 2048x1536 @75Hz, 32-bit

• Two DisplayPorts on front panel with resolution up to
2560x1600 @60Hz (cPCI-3970G/U only)

• Dual independent display

USB • Up to four USB 2.0 front panel ports, 3 USB 2.0 ports to J2

(RTM)

PMC/XMC • One 32-bit/66MHz PMC site or PCIe x1 XMC site if

DB-3UMC riser card is installed

Audio • One Line-in and one Line-out port on front panel

(cPCI-3970D only)

TPM Infineon SLB 9635 TT1.2 (not available on Ext. Temp. version)

• Over/Under voltage detection

• Low/High frequency sensor/filter

• Reset filter

• Memory Encryption/Decryption

Storage
Interface

2

• CompactFlash Type I or II socket on riser card

• Optional CFast Type I or II socket on riser card
(shares site with CF)

• One SA TA 6Gb/s direct connector for 2.5" onboard HDD/SDD
(8HP/12HP version only)

BIOS • AMI® EFI BIOS, 64Mbit SPI flash memory
OS

Compatibility

• Microsoft Windows XP Professional

• Microsoft Windows 7 64-bit

• Red Hat Enterprise Linux 6 64-bit

• Fedora 14 32-bit

• Other OS support upon request

Environmental • Operating Temperature (with forced air flow)3:

Standard: 0°C to 60°C
Extended Temperature: -20°C to 70°C (for Intel® Core™
i7-2655LE, i7-2610UE processors only, with forced air flow)

• Storage Temperature: -40°C to 85°C

• Humidity: 95% @60°C non-condensing

• Shock: 15G peak-to-peak, 11ms duration, non-operating

•Vibration

2

: 2Grms, 5-500Hz, each axis, operating (w/o hard

drive)

EMI • CE EN55022

• FCC Class A

T able 2-1: cPCI-3970 Processor Blade Specifications

8 Specifications

Faceplate I/O 4HP (cPCI-3970) & 8HP (cPCI-3970Q)

• 2x USB 2.0 ports

• 2x 10/100/1000BASE-T Ethernet ports

• Analog DB-15 VGA port

8HP (cPCI-3970D)

• 4x USB 2.0 ports

• 2x 10/100/1000BASE-T Ethernet ports

• Analog DB-15 VGA port

• DB-9 RS-232/422/485/485+ port

• PS/2 Keyboard/ Mouse combo port

• Line-in and Line-out port

8HP (cPCI-3970G)

• 2x DisplayPort

• 3x USB 2.0 ports

• 2x 10/100/1000BASE-T Ethernet ports

• Analog DB-15 VGA port

• RJ-45 RS-232/422/485 port

2

• PS/2 Keyboard/ Mouse combo port

8HP (cPCI-3970L)

• 3xUSB 2.0 ports

• 4x 10/100/1000BASE-T Ethernet ports

• Analog DB-15 VGA port

• DB-9 RS-232/422/485 port

• USB port

8HP (cPCI-3970M)

• 2xUSB 2.0 ports

• 2x 10/100/1000BASE-T Ethernet ports

• Analog DB-15 VGA port

• 100-pin I/O port for Line-in, Line-out, 2x DVI, 2xUSB,
2x RS-232/422/485, KB/MS

12HP (cPCI-3970P)

• 4x USB 2.0 ports

• 2x 10/100/1000BASE-T Ethernet ports

• Analog DB-15 VGA port

• DB-9 RS-232/422/485/485+ port

• PS/2 Keyboard/ Mouse combo port

• Line-in and Line-out port

• PMC/XMC site

Table 2-1: cPCI-3970 Processor Blade Specifications

cPCI-3970

Specifications 9

Faceplate I/O 12HP (cPCI-3970U)

• 2x DisplayPorts

• 3x USB 2.0 ports

• 2x 10/100/1000BASE-T Ethernet ports

• Analog DB-15 VGA port

• RJ-45 RS-232/422/485 port

4

• PS/2 Keyboard/ Mouse combo port

• PMC/XMC site

T able 2-1: cPCI-3970 Processor Blade Specifications

1. When using the cPCI-R3P00 RTM, LAN1/2 from the 82574L controllers
can be routed via J2 to the RTM. When using the cPCI-R3P00T RTM,
the cPCI-3970 front panel GbE ports change to LAN3/4 and the
cPCI-R3P00T GbE ports are LAN1/2 due to PCI-Express root port
sequence requirements of the PCH.

2. The storage device limits the operational vibration tolerance.
When the application requires higher specification for
anti-vibration, it is recommended to use a flash storage device.

3. ADLINK-certified thermal design. The thermal performance is depen­dent on the chassis cooling design. Sufficient forced air-flow is required
(see “Thermal Requirements” on page 22). Temperature limits of
optional mass storage devices may also affect the thermal specification.

4. A DB-9-to-DB-9 dongle to convert the cPCI-3970G RS-422/485 pin defi­nitions to common pin definitions is included in the package
(“cPCI-3970G/U Serial Ports” on page 44).

10 Specifications

2.2 cPCI-R3P00(T) RTM Specifications

Mechanical Board Size

• cPCI-R3P00: 100mm x 50mm

• cPCI-R3P00T: 100mm x 80mm
Dual-slot (8HP, 40.64mm)
(optional single slot upon request )

Gigabit
Ethernet

Serial Ports • Two serial ports on I/O panel from pin header

Storage
Interface

Faceplate I/O • 2x USB 2.0 ports

1. cPCI-R3P00T GbE ports are LAN1/2 due to PCI-Express root port

sequence requirements of the PCH; cPCI-3970 front panel GbE
ports change to LAN3/4 when using the cPCI-R3P00T.

2. A DB-9-to-DB-9 dongle to convert the cPCI-R3P00 RS-422/485

pin definitions to common pin definitions is in cluded i n the p ackage
(“COM5 Connector (DB-9)” on page 47).

• cPCI-R3P00: T w o GbE ports switched from front panel by
BIOS setting (LAN1/2)

• cPCI-R3P00T: Two GbE ports from independent Intel
82580DB GbE controller

1

• COM5 converted from USB supporting RS-232/422/485

• COM4 provides RS-232 Tx, Rx signals only

• Three 7-pin Serial ATA ports

• 2x 10/100/1000BASE-T Ethernet ports

• Analog DB-15 VGA port

• 2x COM ports

T able 2-2: cPCI-R3P00(T) RTM Specifications

cPCI-3970

2

Specifications are subject to change without prior notice.

NOTE:

NOTE:

Specifications 11

2.3 Block Diagrams

cPCI-3970 Blade

®

Intel

Core™ i7/i5

PCIe x1

PCIe x1

4-core or 2-core

DMI

Intel® QM67

PCH

LPC

SPI

SIO

PCIe x1

TPM

COM3

F
R
O
N
T

P
A

GbE 2

N
E

GbE 1

L

B2B

Conn.

2

COM2

VGA

Intel

82574L

USB

B2B

Conn.

1

PCIe x1

Intel

82574L

DVI-C/DP

DVI-B/DP

PCIe x1

USB7/8

SATA0

HD Audio

BIOS

COM1, KB/MS

DDR3-1066/1333

A

B

ECC SODIMM

ECC SODIMM

VGA

GbE 1

GbE 2

PCIe Gen2 1 x4 or 4 x1*

SATA2/3/4

SATA1

3x USB

COM4 (Tx, Rx)

CFAST/CF

PCIe-to-PCI

Bridge

ATMELGA128

PCI 32b/33M

IPMB 0/1

J2

J1

Figure 2-1: cPCI-3970 Blade Functional Block Diagram

*PCI Express to the J2 connector is set to PCIe x4 by default. If
you require 4x PCIe x1 at J2, please contact ADLINK for an

NOTE:

NOTE:

alternate BIOS version.

12 Specifications

DB-3610L2 Daughter Board

cPCI-3970

L2

F

R
O
N
T

P
A
N
E

L

PS/2, KB/MS

USB x2

Line-in, Line-out

2.5” HDD

COM

Codec

SATA0

Figure 2-2: DB-3610L2 Daughter Board Functional Block Diagram

B2B

Conn.

1

Specifications 13

DB-3970L2 Daughter Board

L2

USB

F
R
O

DVI/DP

N
T

P

DVI/DP

A
N
E

L

2.5” HDD/SSD

10-pin

SATA0

COM1

COM2

KB/MS

Figure 2-3: DB-3970L2 Daughter Board Functional Block Diagram

B2B

Conn.

1/2

14 Specifications

DB-LANL2-S Daughter Board

USB x1

L2

F
R

O

RS232/422/485

N

T

P
A
N

E

GbE 3

L

Horizontal

Type A

2.5” HDD

82574L

cPCI-3970

B2B

Conn.

USB x1

SATA0

GbE 4

82574L

Figure 2-4: DB-LANL2-S Daughter Board Functional Bl ock Diagram

Specifications 15

DB-Max Daughter Board

0

100-pin

high

density

connector

F

R
O
N

T

P

A
N

E

L

Line-in, Line-out

2x DVI/DP

2.5” HDD/Slim
SSD

2x USB 2.0

2x COM (RS232/422/485)

KB/MS

SATA

Figure 2-5: DB-Max Daught er Bo ard Functional Block Diagram

B2B

Conn.

16 Specifications

cPCI-R3P00 RTM

cPCI-3970

COM4 (Tx, Rx)

J2

2x USB

GbE 1/2

VGA

USB3

SATA3/4/5

FT232R

7 pin

7 pin

7 pin

COM5 RS-232/422/485

Figure 2-6: cPCI-R3P00 RTM Functional Block Diagram

R
E
A
R

P
A
N
E
L

Specifications 17

cPCI-R3P00T RTM

COM4 (Tx, Rx)

J2

2x USB

PCIe x4

3BSU

82580DB

SATA3/4/5

FT232R

7 pin

7 pin

GbE 1/2*

VGA

7 pin

COM5 RS-232/422/485

Figure 2-7: cPCI-R3P00T RTM Functional Block Diagram

*cPCI-R3P00T GbE ports are LAN1/2 due to PCI-Express root
port sequence requirements of the PCH; cPCI-3970 front panel

NOTE:

NOTE:

GbE ports change to LAN3/4 when using the cPCI-R3P00T.

R
E
A
R

P
A
N
E
L

18 Specifications

2.4 I/O Connectivity Table

cPCI-3970

cPCI-3970

Function

Gigabit
Ethernet

COM
USB 2.0 Y x2 Y x4 Y x3 Y x2

VGA
DisplayPort Y x2

Serial ATA Y(2.5"

CF/CFast YYY
PS/2

KB/MS
Line-in/out Y
System

LEDs
Reset

Button

(4HP)

Faceplate Onboard Faceplate Onboard Faceplate Onboard Faceplate Onboard

Y x2 Y x2 Y x2

YYY

Y x5 Y x5 Y x5

YYY

cPCI-3970D

(8HP)

Y

(DB-9)

HDD)

YY

cPCI-3970G

(8HP)

Y

(RJ-45)Y(10-pin)

Y (2.5"

HDD)

R3P00(T)

(RTM)

1

Y x2

Y x2

2

Y

(7-pin)

1. Switched from front ports for cPCI-R3P00, ports independent from
front panel for cPCI-R3P00T.

2. Switched from front port.

Yx3

Specifications 19

2.5 Power Requirements

In order to guarantee a stable functionality of the system, it is rec­ommended to provide more power than the system requires. An

industrial power supply unit should be able to provide at least
twice as much power as the entire system requires of each
voltage. An ATX power supply unit s hould be able to provide at

least three times as much power as the entire system requires of
each voltage.

The tolerance of the voltage lines described in the CompactPCI
specification (PICMG 2.0 R3.0) is +5%/-3% for 5, 3.3 V and ±5%
for ±12V. This specification is for power delivered to each slot and
it includes both the power supply and the backplane tolerance.

Voltage

5V +5.0 VDC +5% / -3% 50 mV

3.3V +3.3 VDC +5% / -3% 50 mV

+12V +12 VDC +5% / -5% 240 mV

-12V -12 VDC +5% / -5% 240 mV

V I/O (PCI I/O

Buffer Voltage)

GND

Nominal

Value

+3.3 VDC or

+5 VDC

Tolerance

+5% / -3% 50 mV

Max. Ripple

(P - P)

20 Specifications

cPCI-3970

Power Consumption

This section provides information on the power consumption of
cPCI-3970 Series when using the Intel® Core™ i7 processors with
2x 4GB DDR3-1066 SO-CDIMM memory and onboard 64GB SATA
flash disk. The cPCI-3970 is powered by 5V and 3.3V. Power con­sumption at 100% CPU usage was measured using the Intel Ther­mal Analysis Tool (TA T).

Intel® Core™i7-2715QE

OS/Mode Current 5V Current 3.3V Total Power

DOS/Idle mode 5.81 A 0.69 A 31.3W
Windows XP/Idle mode 4.94 A 0.69 A 27.0 W
Windows® XP, CPU 100% Usage 13.1 A 0.68 A 67.5 W

Intel® Core™i7-2655LE

OS/Mode Current 5V Current 3.3V Total Power

DOS/Idle mode 3.97 A 0.73 A 21.4 W
Windows XP/Idle mode 3.56 A 0.71 A 20.1 W
Windows® XP, CPU 100% Usage 6.97 A 0.71 A 37.2 W

Intel® Core™i7-2610UE

OS/Mode Current 5V Current 3.3V Total Power

DOS/Idle mode 2.89 A 0.73 A 16.8 W
Windows XP/Idle mode 2.54 A 0.73 A 15.1 W
Windows® XP, CPU 100% Usage 5.01 A 0.73 A 27.4 W

Intel® Core™i5-2515LE

OS/Mode Current 5V Current 3.3V Total Power

DOS/Idle mode 4.52 A 0.71 A 24.9 W
Windows XP/Idle mode 4.47 A 0.71 A 24.7 W
Windows® XP, CPU 100% Usage 8.72 A 0.71 A 45.9 W

Specifications 21

2.6 Thermal Requirements

Cooling of the CompactPCI blade and its components is provided
by the thermal module (passive heat sink) and is dep endent on suf­ficient airflow from the chassis. The amount of thermal energy that
can by dissipated from the board is dependent on the ambient air
temperature and the airflow rate of the chassis. Please refer to the
separate document cPCI-3970 Power Dissipation Guidelines
which gives information on the upper limits of operating conditions
and the maximum ambient air temperature as a function of airflow
rate for a given level of power consumption for the cPCI-3970
blade.

22 Specifications

3 Functional Description

The following sections describe the cPCI-3970 Series features
and functions.

3.1 Processors

The 2nd Generation Intel® Core™ processor family mobile is the
next generation of 64-bit, multi-core mobile processor built on 32­nanometer process technology. Based on a new micro-architecture,
the processor is designed for a two-chip platform. The two-chip plat­form consists of a processor and Platform Controller Hub (PCH). The
platform enables higher performance, lower cost, easier validation,
and improved x-y footprint. The processor includes Integrated Dis­play Engine, Processor Graphics and Integrated Memory Controller.

The cPCI-3970 Series supports the Intel® Core™ i7/i5 processors.
The

table below lists the general specifications and power ratings

of the CPUs supported by the

cPCI-3970 Series

.

cPCI-3970

Features

Clock 2.1GHz 2.2GHz 1.5GHz 2.5GHz
Max. Single Core

Turbo Freq.
Last Level Cache 6MB 4MB 4MB 3MB
No. of Core(s) 4 2 2 2
Max. Power (TDP1)
T

junction, MAX

Functional Description 23

2

1. The highest expected sustainable power while running known
power intensive applications. TDP is not the maximum power
that the processor can dissipate.

2. The maximum supported operating temperature.

Core™ i7-

2715QE

3GHz 2.9GHZ 2.4GHz 3.2GHz

45W 25W 17W 35W

100ºC 100ºC 100ºC 100ºC

Core™ i7-

2655LE

Core™ i7-

2610UE

Core™ i5-

2515E

Supported Technologies

X Intel® Virtualization Technology for Directed I/O (Intel®

VT-d)

X Intel® Virtualization Technology (Intel® VT-x)
X Intel® Hyper-Threading Technology
X Intel® 64 Architecture
X Execute Disable Bit
X Intel® Turbo Boost Technology

Interfaces

X Two channels of DDR3 memory with a maximum of one

SO-DIMM per channel

X Memory DDR3 data transfer rates of 1066 MT/s,

1333 MT/s, and 1600 MT/s

X 64-bit wide channels
X DDR3 I/O Volt age of 1.5 V
X 1Gb, 2Gb, and 4Gb DDR3 DRAM technologies are sup-

ported for x8 and x16 devices

X The PCI Express port(s) are fully-compliant with the PCI

Express Base Specification, Revision 2.0.

X 5 GT/s point-to-point DMI interface to PCH is supported
X The Processor Graphics contains a refresh of the sixth gen-

eration graphics core enabling substantial gains in perfor­mance and lower power consumption.

X DX10.1, DX10, DX9 support
X OGL 3.0 support
X FDI carries display traffic from the Processor Graphics in

the processor to the legacy display connectors in the PCH

24 Functional Description

cPCI-3970

3.2 Platform Controller Hub

The QM67 PCH provides extensive I/O support. functions and
capabilities include:

X PCI Express Base Specification, Revision 2.0 support for up

to eight ports with transfers up to 5 GT/s

X ACPI Power Management Logic Support, Revision 4.0a
X Enhanced DMA controller, interrupt controller, and timer

functions

X Integrated Serial ATA host controllers with independent

DMA operation on up to six ports

X USB host interface with two EHCI high-speed USB 2.0 Host

controllers and two rate

X matching hubs provide support for up to fourteen USB 2.0

ports

X Integrated 10/100/1000 Gigabit Ethernet MAC with System

Defense

X System Management Bus (SMBus) Specification, Version

2.0 with additional support for I2C devices

X Supports Intel® High Definition Audio (Intel® HD Audio)
X Supports Intel® Rapid Storage Technology (Intel® RST)
X Supports Intel® Virtualization Technology for Directed I/O

(Intel® VT-d)

X Integrated Clock Controller
X Analog and Digital Display ports
X Low Pin Count (LPC) interface
X Firmware Hub (FWH) interface support
X Serial Peripheral Interface (SPI) support

3.3 PMC/XMC

The cPCI-3970P/U/S models support one PMC or XMC site for
front panel I/O expansion. The PMC site provides a maximum
32-bit/66MHz PCI bus link using a Pericom PI7C9X110
PCI-Express-to-PCI bridge and PCI-Express x1 link. The PMC site
supports +3.3V signaling only. The XMC site provides a PCI
Express x1 lane.

Functional Description 25

3.4 Intel® Turbo Boost Technology

Intel Turbo Boost Technology is a feature that allows the processor
to opportunistically and automatically run faster than its rated
operating core and/or render clock frequency when there is suffi­cient power headroom, and the product is within specified temper­ature and current limits. The Intel Turbo Boost Technology feature
is designed to increase performance of both multi-threaded and
single-threaded workloads. The processor supports a Turbo mode
where the processor can use the thermal capacity associated with
package and run at power levels higher than TDP power for
short durations. This improves the system responsiveness for
short, bursty usage conditions.

Turbo Mode availability is independent of the number of active
cores; however, the Turbo Mode frequency is dynamic and depen­dent on the instantaneous application power load, the number of
active cores, user configurable settings, operating environment,
and system design. If the power, current, or thermal limit is
reached, the processor will automatically reduce the frequency to
stay with its TDP limit.

3.5 Intel® Hyper-Threading Technology

Intel® Hyper-Threading Technology allows an execution core to
function as two logical processors. While some execution
resources (such as caches, execution units, and buses) are
shared, each logical processor has its own architectura l state with
its own set of general-purpose registers and control registers. This
feature must be enabled using the BIOS and requires operating
system support. Intel recommends enabling Hyper-Threading
Technology with Microsoft Windows 7, Vista, and XP, and dis­abling Hyper-Threading Technology using the BIOS for all prev i­ous versions of Windows operating systems.

3.6 Trusted Platform Module

The cPCI-3970 integrates the Infineon SLB 9635 TT 1.2 Trusted
Platform Module (TPM), a security controller with cryptographic
functionality that provides users a secure en vironment in e-com­merce transactions and Internet communications.

26 Functional Description

cPCI-3970

The key features the TPM provides ar e:

X Hardware hash accelerator for SHA-1 algorithm.
X Advanced Crypto Engine (ACE) for asymmetric key opera-

tions (up to 2048-bit key length) to make hardware protec­tion.

X Tick counter to extend the time requir ed to decipher th e key.

In addition to an encryption key created by the user, the TPM also
provides security features to protect the TPM itself:

X Over/Under-voltage detection to monitor the system stabil-

ity. If the voltage fluctuates dramatically, this function can
block the data transfer and lock the chip.

X Low/High frequency sensor to detect the IC clock fre-

quency. If the frequency fluctuates dramatically, this func­tion can block the data transfer and lock the chip.

X Reset filter to filter reset signal in order to break the time se t

by tick counter is received.

X Memory encryption to protect memory.
X Physical shield in the IC to protect the die from intruding or

hacking by matching the data transferred on the 2 layer
metal shield on the IC. If the data is not matched, the IC
may be blocked.

The TPM does not support operation below 0ºC. Below this
temperature, the system may not boot. As a result, the

NOTE:

NOTE:

Extended Temperature version cPCI-ET3970 is not available
with TPM.

3.7 Battery

The cPCI-3970 is equipped with a 3.0V "coin cell" lithium battery
for the Real Time Clock (RTC). The battery socket is equipped on
the DB-3CAST/DB-3CF daughter board. The lithium battery must
be replaced with an identical battery or a battery type recom­mended by the manufacturer. A Rayovac BR2032 with -40°C to
+85°C operating temperature support is equipped on board by
default. The coin cell battery can be replaced with a Gold Cap type
by request.

Functional Description 27

3.8 BIOS Recovery

The cPCI-3970 Series features AMI® EFI BIOS with BIOS recov­ery. If the BIOS becomes corrupted and you are unable to boot
your system, follow the instructions in Section 7.3“BIOS Recovery”
on page 101.

28 Functional Description

4 Board Interfaces

This chapter illustrates the board layout, connector pin
assignments, and jumper settings to familiarize users with the
cPCI-3970 Series.

4.1 cPCI-3970 Series Board Layout

cPCI-3970

CN3

LAN

VGA1

CN1

USB3

CN5

CN4

CPU

CN2

PCH

CPU Intel® Core™ Processor J1 CompactPCI Connector J1
PCH Intel® QM67 PCH J2 cPCI J2 (UHM/HM)
CN4/5 Stacked SO-CDIMM socket LAN Dual Ethernet connectors
CN1 DB-3610L2/DB-3970L2

VGA1 DB-15 VGA connecto r

connector

CN2 DB-3CFAST connector USB3 USB ports
CN3 DB-3970L2 connector

Figure 4-1: cPCI-3970 Series Board Layout

J2

J1

Board Interfaces 29

4.2 cPCI-3970 Blade Assembly Layout

This section describes the final as sembly layout of the single slot
cPCI-3970 Blade.

BT1

JP1

Heatsink

CF1

DB-3CFAST

Figure 4-2: cPCI-3970 Blade Assembly Layout

BT1 Battery CF1 CF or CFast socket
JP1 Clear CMOS Jumper J2 cPCI J2 (UHM/HM)

30 Board Interfaces

cPCI-3970

4.3 cPCI-3970D Blade Assembly Layout

The dual-slot width cPCI-3970D Blade is comprised of the
cPCI-3970 single-slot main board and the DB-36 10L2 r i ser ca rd to
expand I/O connectivity with PS/2, COM, 2x USB ports, Line-in,
and Line-out ports .

COM1

USB2

USB3

SATA0

PS/2

CN6

CN8

CN7

2.5” SATA HDD

COM1 DB-9 COM port CN7 DB-3UMC connector
USB2/3 USB connectors CN6 Line-in port
PS2 PS/2 KB/Ms Combo port CN8 Line-out port
SATA0 22-pin SATA connector

Figure 4-3: cPCI-3970D Blade Assembly Layout

DB-3610L2

Board Interfaces 31

4.4 cPCI-3970G Blade Assembly Layout

The dual-slot width cPCI-3970D Blade is comprised of the
cPCI-3970 single-slot main board and the DB-3970L2 riser card to
expand I/O connectivity with PS/2, COM, USB ports, and 2x Dis­playPorts.

DP1

DP2

COM1

PS2

USB9

COM2

CN2

SATA0

2.5” SATA HDD

COM1 RJ-45 COM port CN2 DB-3UMC connector
COM2 10-pin COM port DP1/2 DisplayPort connectors
USB9 USB connector PS2 PS/2 KB/MS Combo port
SATA0 22-pin SATA connector

Figure 4-4: cPCI-3970G Blade Assembly Layout

DB-3970L2

32 Board Interfaces

cPCI-3970

4.5 cPCI-3970, cPCI-3970D, cPCI-3970 G Faceplate

cPCI-3970

Reset Button

cPCI-3970D

Reset Button

cPCI-3970G

Power LED

COM1

Power LED

DisplayPorts

WDT LED

USB 2.0

WDT LED

VGA

HDD LED

Overheat LED

PS/2

KB/MS

HDD LED O verheat LED

PS/2

COM1

KB/MS

0.2 BSU 2/1 EbG

GP LED

Line-in

Line-out

GP LED

USB 2.0

Reset Button

Power LED

WDT LED

HDD LED

Overheat LED

GP LED

Figure 4-5: cPCI-3970, cPCI-3970D, cPCI-3970G Front Panel Layout

(See cPCI-3970 Processor Blade Specifications, Note 1 on page 10 for LAN1/2 info.)

Board Interfaces 33

4.6 cPCI-3970S, cPCI-3970P, cPCI-3970U Front Panel

cPCI-3970S

ˣˠ˖˂˫ˠ˖

cPCI-3970P

ˣˠ˖˂˫ˠ˖

cPCI-3970U

ˣˠ˖˂˫ˠ˖

Figure 4-6: cPCI-3970S, cPCI-3970P, cPCI-3970U Front Panel Layout

34 Board Interfaces

4.7

cPCI-3970L, cPCI-3970M, cPCI-3970Q Front Panel

cPCI-3970L

cPCI-3970M

cPCI-3970

cPCI-3970Q

Figure 4-7: cPCI-3970L, cPCI-3970M, cPCI-3970Q Front Panel Layout

Board Interfaces 35

System LEDs

LED Color Condition Indication

Power1

1

WDT

Green/

Red

Orange

OFF System is off
Red System Power ready (PWGD)
Green Post OK
OFF No Watchdog event

Blinking Watchdog event alert

HDD

Overheat

Blue

1

Red

OFF No CF/CFast/SATA HDD activity
Blinking
OFF

ON

Data read/write in process for CF/CFast/
SATA HDD

CPU T
CPU T

temperature is under 100ºC

junction

temperature exceeds 100ºC

junction

GP

(General

Purpose)

1

Yellow

OFF No activity

ON/Blinking Defined by user

Table 4-1: cPCI-3970 Front Panel System LED Descriptions

1. Power, WDT, Overheat, GP LEDs are connected to GPIO pins
of IPMC.

36 Board Interfaces

4.8 cPCI-R3P00 RTM Board Layout

cPCI-3970

rJ2

SATA2

SATA3

SATA4

COM4

COM5* RS-232/422/485 port

COM5

LAN1/2

USB1

USB10

VGA1

LAN1/2 Dual Ethernet ports

(converted from USB)

COM4 RS-232 port (Tx, Rx only) VGA1 VGA port
SATA2/3/4 SATA ports USB1/10 USB ports
rJ2 CompactPCI connector

Figure 4-8: cPCI-R3P00 RTM Board Layout

*COM5 is incorrectly labeled COM3 on the A1 vers. PCB silk­screen.

NOTE:

NOTE:

Board Interfaces 37

4.9 cPCI-R3P00T RTM Board Layout

rJ2

SATA2

SATA4

SATA3

COM4

COM5* RS-232/422/485 port

COM5

LAN1/2

USB1

USB10

VGA1

LAN1/2 Dual Ethernet ports

(converted from USB)

COM4 RS-232 port (Tx, Rx only) VGA1 VGA port
SATA2/3/4 SATA ports USB1/10 USB ports
rJ2 CompactPCI connector

Figure 4-9: cPCI-R3P00 RTM Board Layout

*COM5 is incorrectly labeled COM3 on the A1 vers. PCB silk­screen.

NOTE:

NOTE:

38 Board Interfaces

4.10 cPCI-R3P00(T) RTM Faceplate

COM4 COM5

cPCI-3970

VGA

USB x2 GbE x2

Figure 4-10: cPCI-R3P00(T) RTM Front Panel

Board Interfaces 39

4.11 Connector Pin Assignments

USB Connectors

Pin # Signal Name

1Vcc
2UV0­3UV0+
4GND

Table 4-2: USB Pin Definition

DB-15 VGA Connector

Signal Name Pin # Pin # Signal Name

Red 1 2 Green

Blue 3 4 N.C.
GND 5 6 GND
GND 7 8 GND

+5V. 9 10 GND

N.C. 11 12 CRTDATA

HSYNC 13 14 VSYNC

CRTCLK 15

Table 4-3: VGA Pin Definition

40 Board Interfaces

RJ-45 Gigabit Ethernet Connectors

cPCI-3970

Pin #

10BASE-T/

100BASE-TX

1 TX+ LAN_TX0+
2 TX- LAN_TX0­3 RX+ LAN_TX1+
4 — LAN_TX2+
5 — LAN_TX2­6 RX- LAN_TX1­7 — LAN_TX3+
8 — LAN_TX3-

Table 4-4: RJ-45 GbE Pin Definitions

Speed

Status

Network link is not established

or system powered off

10 Mbps

100 Mbps

1000 Mbps

Link OFF ON

Active OFF Blinking

Link Green ON

Active Green Blinking

Link Orange ON

Active Orange Blinking

1000BASE-T

Activity

18

Speed LED

(Green/Orange)

OFF OFF

Activity LED

(Yellow)

Table 4-5: LAN LED Status Definitions

The cPCI-R3P00 RTM LAN LED signals are not passed
through from the main board. LAN status will be displayed on

NOTE:

NOTE:

the front faceplate LEDs.

Board Interfaces 41

PS/2 Keyboard/Mouse Connector

Pin # Signal Function

1 KBDATA Keyboard Data
2MSDATA Mouse Data
3 GND Ground
4+5V Power
5 KBCLK Keyboard Clock
6 MSCLK Mouse Clock

Table 4-6: PS/2 Keyboard/Mouse Pin Definition

cPCI-3970D/P Serial Ports

COM1 Connector (DB-9)

Pin # RS-232 RS-422 RS-485(+)

1 DCD-L TXD- TXD­2 RXD TXD+ TXD+
3 TXD RXD+ —
4 DTR-L RXD- —
5GNDGNDGND
6DSR-L — —
7RTS-L — —
8CTS-L — —
9RI-L — —

Table 4-7: cPCI-3970D/P COM1 (DB-9) Pin Definition

42 Board Interfaces

cPCI-3970

COM1 Mode Selection Switches (SW1~SW4)

These switches set the cPCI-3970D/P COM1 to RS-232 full
modem, RS-422, RS-485, or RS-485+ half-duplex mode.
Switches SW1~SW4 are located on the top edge of the
DB-3610L2 board. RS-232 full modem is set by default.

SW1 S W2 SW3 SW4

Mode Pin SW1 SW2 SW3 SW4

1ON ON ONOFF

RS-232

RS-422

RS-485

RS-485+

2OFFOFFOFFOFF
3 OFF ON ON OFF
4OFFOFFOFFOFF
1 OFF OFF OFF ON
2ON ON ONOFF
3 OFF OFF OFF ON
4 OFF ON ON OFF
1 OFF OFF OFF ON
2 OFF ON ON OFF
3ONOFFOFFON
4 OFF ON ON OFF
1OFFOFFOFFOFF
2 OFF ON ON ON
3ONOFFOFFOFF
4 OFF ON ON ON

Table 4-8: cPCI-3970D/P COM1 Mode Selection Switch Settings

The COM mode setting for cPCI-3970D/P models must be set
using the SW1~SW4 DIP switches above. The cPCI-3970G

NOTE:

NOTE:

COM1/2 Output BIOS setting is only used for cPCI-3970G/U
models.

Board Interfaces 43

cPCI-3970G/U Serial Ports

The COM mode setting for cPCI-3970G/U models are set in
the BIOS: “cPCI-3970G COM1/ 2 Output” on page 122.

NOTE:

NOTE:

COM1 Connector (RJ-45)

Pin # RS-232 RS-422 RS-485

1 DCD-L — —
2 RTS-L TXD+ TXD+
3DSR-L — —
4 TXD TXD- TXD­5 RXD RXD- —
6 Ground — —
7 CTS-L RXD+ —
8DTR-L — —
9RI-L — —

Table 4-9: cPCI-3970G/U COM1 (RJ-45) Pin Definition

COM1 Connector with DB-9 Adapter

An RJ-45 to DB-9 adapter cable is provided to breakout the
COM1 signals.

Pin # RS-232 RS-422 RS-485

1 DCD-L — —
2 RXD RXD- —
3 TXD TXD- TXD­4DSR-L — —
5 Ground — —
6DSR-L — —
7 RTS-L TXD+ TXD+
8 CTS-L RXD+ —
9———

Table 4-10: cPCI-3970G/U COM1 (DB-9 adapter) Pin Definition

44 Board Interfaces

cPCI-3970

The cPCI-3970G/U COM1 RS-422/485 pin definitions are differ­ent from the common DB-9 pin definitions. An RS-422/485 DB-9

NOTE:

NOTE:

male-female adapter dongle is provided to allow compatibility
with common RS-422/485 pin definitions.

RS-422/485 Adapter Dongle

A DB-9 male-female adapter dongle is provided to allow com­patibility with common RS-422/485 pin definitions

DB-9 (Female)

Signal Name

Pin #

DB-9 (Male)

Signal Name

NC 1 TXD-

RXD- 2 TXD+

TXD- 3 RXD+

NC 4 RXD­NC 5 NC
NC 6 NC

TXD+ 7 NC

RXD+ 8 NC

NC 9 NC

Table 4-11: RS-422/485 Adapter Dongle Pin Definition

COM1 with RS-422/485 Dongle (DB-9)

Pin # RS-422 RS-485

1 TXD- TXD­2 TXD+ TXD+
3RXD+ —
4RXD- —
5— —
6— —
7— —
8— —
9— —

Board Interfaces 45

Table 4-12: cPCI-3970D/P COM1 with RS-422/485 Dongle Pin Definition

COM2 Pin Header

Pin # RS-232 RS-422 RS-485

1 DCD-L — —
2DSR-L — —
3 RXD RXD- —

12

4 RTS-L TXD+ TXD+
5 TXD TXD- TXD­6 CTS-L RXD+ —

910

7DTR-L — —
8RI-L — —
9 Ground — —

10 NC — —

Table 4-13: cPCI-3970G/U COM2 Pin Header Definition

cPCI-R3P00(T) RTM Serial Ports

COM4 Connector (DB-9))

Pin # RS-232

1—
2RXD
3TXD
4—
5GND
6—
7—
8—
9—

Table 4-14: cPCI-R3P00 RTM COM4 Pin Definition

46 Board Interfaces

COM5 Connector (DB-9)

The cPCI-R3P00(T) RTM COM5 RS-422/485 pin definitions are
different from the common DB-9 pin definitions. An RS-422/485

NOTE:

NOTE:

DB-9 male-female adapter dongle is provided to allow compati­bility with common RS-422/485 pin definitions. See

Pin # RS-232 RS-422 RS-485

1DCD-L — —
2 RXD RXD- —
3 TXD TXD- TXD­4DTR-L — —
5GND — —
6DSR-L — —
7 RTS-L TXD+ TXD+
8CTS-LRXD+ —
9RI-L — —

Table 4-15: cPCI-R3P00(T) RTM COM5 Pin Definition

COM5 with RS-422/485 Dongle (DB-9)

cPCI-3970

Pin # RS-422 RS-485

1 TXD- TXD­2 TXD+ TXD+
3RXD+ —
4RXD- —
5— —
6— —
7— —
8— —
9— —

Table 4-16: cPCI-R3P00(T) RTM COM5 with RS-422/485 Dongle Pin Def’n

Board Interfaces 47

DisplayPort Connectors

Pin # Signal Pin # Signal

1 CN_DP0_P 2 Ground
3 CN_DP0_N 4 CN_DP1_P
5 Ground 6 CN_DP1_N
7 CN_DP2_P 8 Ground

9 CN_DP2_N 10 CN_DP3_P
11 Ground 12 CN_DP3_N
13 CN_CAD-L 14 CN_CEC
15 CN_AUX_P 16 Ground
17 CN_AUX_N 18 DDP_HPD
19 Ground 20 P3V3

Table 4-17: DisplayPort Pin Definition

1

2

19

20

48 Board Interfaces

cPCI-3970M 100-pin I/O Connector (CN4)

Pin # Signal Pin # Signal

1 GND 2 USB9_CN-N
3 USB9_CN-P 4 GND
5 USB1_CN-N 6 USB1_CN-P
7 GND 8 GND

9 TMDS_I2C_DATA 10 TMDS_I2C_CLK
11 GND 12 TMDSB_DATA2B
13 TMDSB_DATA2 14 GND
15 TMDSB_DATA1B 16 TMDSB_DATA1
17 GND 18 TMDSB_DATA0B
19 TMDSB_DATA0 20 GND
21 TMDSB_CLKB 22 TMDSB_CLK
23 GND 24 P5V_DVI1
25 TMDSB_HPD 26 GND
27

NC　
29 GND 30 TMDS_I2C_DA TA
31 TMDS_I2C_CLK 32 GND
33 TMDSB_DATA2B 34 TMDSB_DATA2
35 GND 36 TMDSB_DATA1B
37 TMDSB_DATA1 38 GND
39 TMDSB_DATA0B 40 TMDSB_DATA0
41 GND 42 TMDSB_CLKB
43 TMDSB_CLK 44 GND
45 P5V_DVI2 46 TMDSB_HPD
47 GND 48 NC
49 NC 50 GND
51 P5V_USB_1_9 52 P5V_USB_1_9
53 P5V_USB_1_9 54 P5V_USB_1_9
55 GND 56 GND
57 GND 58 P5V_KBMS
59 MSCLK_CN 60 MSDATA_CN

28 NC

cPCI-3970

2

1

99

10 0

Table 4-18: cPCI-3970M 100-pin I/O Connector Pin Definition

Board Interfaces 49

Pin # Signal Pin # Signal

61 KBCLK_CN 62 KBDATA_CN
63 GND 64 GND

65 COM1_RXD_CN 66
67 GND 68 COM1_TXD_CN

69 COM1_RTS-L_CN 70 GND
71 COM1_DTR-L_CN 72
73 COM1_DCD-L_CN 74 GND
75 COM2_RXD_CN 76
77 GND 78 COM2_TXD_CN

79 COM2_RTS-L_CN 80 GND
81 COM2_DTR-L_CN 82
83 COM2_DCD-L_CN 84 AGND_AU

85 NC 86 NC
87 NC 88 NC
89 NC 90 NC
91 NC 92 AGND_AU
93 L_IN_R 94 L_IN_L
95 L_IN_JD 96 AGND_AU
97 HP_R 98 HP_L
99 HP_JD 100 AGND_AU

COM1_CTS-L_C

N

COM1_DSR-L_C

N

COM2_CTS-L_C

N

COM2_DSR-L_C

N

Table 4-18: cPCI-3970M 100-pin I/O Connector Pin Definition

50 Board Interfaces

Serial ATA Connectors on RTM (CN4-R, CN5-R)

Pin # Signal

1GND
2TX+
3TX­4GND
5RX­6RX+
7GND

T able 4-19: Serial ATA Connector on RTM Pin Definition

1

7

cPCI-3970

Board Interfaces 51

Serial ATA Connector on DB-3610L2/3970L2

Pin # Signal

S1 GND
S2 TX+
S3 TX­S4 GND
S5 RX­S6 RX+
S7 GND
P1 NC
P2 NC
P3 NC
P4 GND
P5 GND
P6 GND
P7 5V
P8 5V
P9 5V

P10 GND

P11 NC

P12 GND

P13~P15 NC

S1

Signal

S7

P1

Power

P15

Table 4-20: Serial ATA Connector on DB-3610L2/3970L2 Pin Definition

52 Board Interfaces

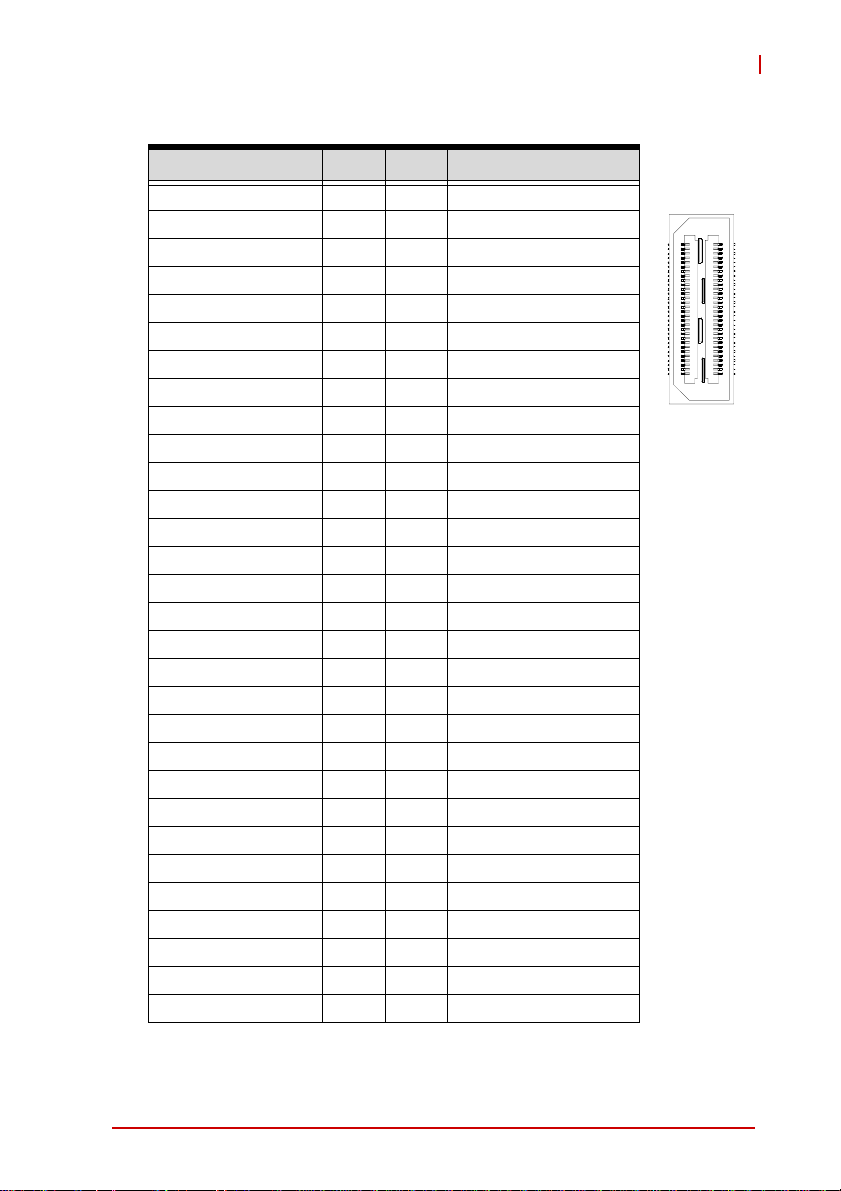

CompactFlash Socket (on DB-3CF)

Signal Name Pin# Pin# Signal Name

GND 1 26 GND

DD3 2 27 DD11
DD4 3 28 DD12
DD5 4 29 DD13
DD6 5 30 DD14

DD7 6 31 DD15
CS1J 7 32 CS3J
GND 8 33 GND
GND 9 34 SDIORJ
GND 10 35 SDIOWJ
GND 11 36 5V
GND 12 37 IRQ15

5V 13 38 5V
GND 14 39 PCSEL
GND 15 40 NC
GND 16 41 BRSTDRVJ
GND 17 42 SDIORDY

DA2 18 43 NC
DA1 19 44 SDACKJ
DA0 20 45 IDEACTJ
DD0 21 46 DIAG
DD1 22 47 DD8
DD2 23 48 DD9

IOIS16J 24 49 DD10

GND 25 50 GND

cPCI-3970

2650

125

1

Table 4-21: CompactFlash Socket Pin Definition

Board Interfaces 53

CFast Socket (on DB-3CFAST)

Pin # Signal Name

Ground S1

SATA_TX-P S2

SATA_TX-N S3

Ground S4
SATA_RX-N S5
SATA_RX-P S6

Ground S7

CFast_CDI P1

Ground P2

NC P3
NC P4
NC P5
NC P6

Ground P7

CFast_LED1 P8
CFast_LED2 P9

NC P10
NC P11

NC P12
P3V3 P13
P3V3 P14

Ground P15
Ground P16

CFast_CDO P17

24

1

S1P1

Table 4-22: CFast Socket Pin Definition

54 Board Interfaces

DB-3610L2 Connector (CN1)

Signal Name Pin # Pin # Signal Name

USB2-N 1 2 -12V
USB2-P 3 4 +12

GND 5 6 GND
USB3-N 7 8 HDA_SDIN0
USB3-P 9 10 HDA_R_SDOUT

GND 11 12 GND

SATA_ICH_RX-N0 13 14 HDA_R_SYNC
SATA_ICH_RX-P0 15 16 HDA_R_BIT_CLK

GND 17 18 GND

SATA_TX-P0 19 20 CK_L2_PCIE1-P
SATA_TX-N0 21 22 CK_L2_PCIE1-N

GND 23 24 GND

PCIE_TXN5 25 26 CK_L2_PCIE2-P
PCIE_TXP5 27 28 CK_L2_PCIE2-N

GND 29 30 GND

PCIE_RXN5 31 32 HDA_R_RST-L
PCIE_RXP5 33 34 SPKR

GND 35 36 L2_PCIE_RST-L

PCIE_RXN4 37 38 NC
PCIE_RXP4 39 40 USB_2_3_OC-L

GND 41 42 COM1_DCD-L

PCIE_TXN4 43 44 COM1_RI-L
PCIE_TXP4 45 46 COM1_CTS-L

GND 47 48 COM1_DTR-L

MSCLK 49 50 COM1_RTS-L

MSDATA 51 52 COM1_DSR-L

KBCLK 53 54 COM1_SOUT

KBCDATA 55 56 COM1_SIN

P5V 57 58 +3.3V
P5V 59 60 +3.3V

Table 4-23: DB-3610L2 Connector Pin Definition

cPCI-3970

60

12

59

Board Interfaces 55

DB-3CFAST Connector (CN2)

Signal Name Pin # Pin # Signal Name

PCH_SPKR 1 2 CLK33_TPM

SIO_SPKR 3 4 LPC_FRAME-L

GND 5 6 TPM_RST-L

CN_VCC_RTC 7 8 LPC_AD3

GND 9 10 LPC_AD2

NC 11 12 LPC_AD1
NC 13 14 LPC_AD0
NC 15 16 TPM_LPCPD
NC 17 18 PCH_SERIRQ
NC 19 20 TPM_CLKRUN
NC 21 22 TPM_GPIO
NC 23 24 NC
NC 25 26 NC
NC 27 28 NC
NC 29 30 NC
NC 31 32 NC
NC 33 34 NC
NC 35 36 NC

GND 37 38 NC
SATA_PCH_RX-N0 39 40 NC
SATA_PCH_RX-P0 41 42 NC

GND 43 44 NC
SATA_PCH_TX-N0 45 46 NC

SATA_PCH_TX-P0 47 48 NC

GND 49 50 NC

CFast_CDI 51 52 NC

CFast_CDO 53 54 NC

GND 55 56 NC

P5V 57 58 P3V3
P5V 59 60 P3V3

Table 4-24: DB-3CFAST Connector Pin Definition

60

12

59

56 Board Interfaces

DB-3970L2 Connector (CN3)

Signal Name Pin # Pin # Signal Name

NC 1 2 RS232_COM2_SEL-L
NC 3 4 COM2_DCD-L
NC 5 6 COM2_RI-L
NC 7 8 COM2_CTS-L
NC 9 10 COM2_DTR-L
NC 11 12 COM2_RTS-L
NC 13 14 COM2_DSR-L
NC 15 16 COM2_SOUT
NC 17 18 COM2_SIN
NC 19 20 NC
NC 21 22 NC

GND 23 24 GND

PCH_DDPD_AUXN 25 26 PCH_DDPC_AUXN

PCH_DDPD_AUXP 27 28 PCH_DDPC_AUXP

GND 29 30 GND
PCH_DDPD_0N 31 32 PCH_DDPC_0N
PCH_DDPD_0P 33 34 PCH_DDPC_0P

GND 35 36 GND
PCH_DDPD_1N 37 38 PCH_DDPC_1N
PCH_DDPD_1P 39 40 PCH_DDPC_1P

GND 41 42 GND
PCH_DDPD_2N 43 44 PCH_DDPC_2N
PCH_DDPD_2P 45 46 PCH_DDPC_2P

GND 47 48 GND
PCH_DDPD_3N 49 50 PCH_DDPC_3N
PCH_DDPD_3P 51 52 PCH_DDPC_3P

GND 53 54 GND

DDPD_CTRLCLK 55 56 DDPC_CTRLCLK

DDPD_CTRLDATA 57 58 DDPC_CTRLDATA

DDPD_HPD 59 60 DDPC_HPD

Table 4-25: DB-3970L2 Connector Pin Definition

cPCI-3970

60

12

59

Board Interfaces 57

DB-3UMC Connector on DB-3610L2/3970L2

Signal Name Pin # Pin # Signal Name

NC 1 2 -12V
NC 3 4 +12V

GND 5 6 GND

NC 7 8 NC
NC 9 10 NC

GND 11 12 GND

NC 13 14 NC
NC 15 16 NC

GND 17 18 GND

NC 19 20 CK_PCIE1_P
NC 21 22 CK_PCIE1_N

GND 23 24 GND
PCIE_TXN2 25 26 CK_PCIE2_P
PCIE_TXP2 27 28 CK_PCIE2_N

GND 29 30 GND

PCIE_R_RXN2 31 32 NC
PCIE_R_RXP2 33 34 NC

GND 35 36 PCIE_RST#

PCIE_R_RXN1 37 38 NC
PCIE_R_RXP1 39 40 NC

GND 41 42 NC
PCIE_TXN4 43 44 NC
PCIE_TXP4 45 46 NC

GND 47 48 NC

NC 49 50 NC
NC 51 52 NC
NC 53 54 NC

NC 55 56 NC
+5V 57 58 +3.3V
+5V 59 60 +3.3V

Table 4-26: DB-3UMC Connector Pin Definition

60

12

59

58 Board Interfaces

PMC Connector on DB-3UMC (JN1/2)

cPCI-3970

Pin# JN1 Signal JN2 Signal

1 PMC_TCK P12V
2 N12V PMC_TRST-L
3 GND PMC_TMS
4 PCIX_INTA-L NC (PMC_TDO)
5 PCIX_INTB-L PMC_TDI
6PCIX_INTC-L GND
7PMC_MOD-L1 GND
8P5V NC

9 PCIX_INTD-L NC
10 NC NC
11 GND PMC_MOD-L2
12 P3V3_PMCAUX P3V3
13 CLK66_PCIX_PMC PMC_RST-L
14 GND PMC_MOD-L3
15 GND P3V3
16 PCIX_GNT-L0 PMC_MOD-L4
17 PCIX_REQ-L0 PMC_PME-L
18 P5V GND
19 PMC_VIO PCIX_AD30
20 PCIX_AD31 PCIX_AD29
21 PCIX_AD28 GND
22 PCIX_AD27 PCIX_AD26
23 PCIX_AD25 PCIX_AD24
24 GND PCIX_AD23
25 GND PMC_IDSEL
26 PCIX_CBE-L3 PCIX_AD23
27 PCIX_AD22 P3V3
28 PCIX_AD21 PCIX_AD20
29 PCIX_AD19 PCIX_AD18
30 P5V GND
31 PCIX_FRAME-L PCIX_AD16
32 PCIX_AD17 PCIX_CBE-L2

Table 4-27: PMC Connector Pin Definitions

6364

12

Board Interfaces 59

Pin# JN1 Signal JN2 Signal

33 PCIX_FRAME-L GND
34 GND NC
35 GND PCIX_TRDY-L
36 PCIX_IRDY-L P3V3
37 PCIX_DEVSEL-L GND
38 P5V PCIX_STOP-L
39 PCIX_PCIXCAP PCIX_PERR-L
40 PCIX_LOCK-L GND
41 NC P3V3
42 NC PCIX_SERR-L
43 PCIX_PAR PCIX_CBE-L1
44 GND GND
45 PMC_VIO PCIX_AD14
46 PCIX_AD15 PCIX_AD13
47 PCIX_AD12 PCIX_M66EN
48 PCIX_AD11 PCIX_AD10
49 PCIX_AD9 PCIX_AD8
50 P5V P3V3
51 GND PCIX_AD7
52 PCIX_CBE-L0 NC
53 PCIX_AD6 P3V3
54 PCIX_AD5 NC
55 PCIX_AD4 NC
56 GND GND
57 PMC_VIO NC
58 PCIX_AD3 NC
59 PCIX_AD2 GND
60 PCIX_AD1 NC
61 PCIX_AD0 PCIX_ACK64-L
62 P5V P3V3
63 GND GND
64 PCIX_REQ64-L NC

Table 4-27: PMC Connector Pin Definitions (cont’d)

60 Board Interfaces

cPCI-3970

XMC Connector on DB-3UMC (JN3)

Pin# A B C D E F

1RXP RXN 3.3V NC NC VPWR
2 GND GND Not used GND GND PCIE_RST-L
3NC NC 3.3V NC NC VPWR
4 GND GND Not used GND GND Not used
5NC NC 3.3V NC NC VPWR
6 GND GND Not used GND GND +12V
7NC NC 3.3V NC NC VPWR
8 GND GND Not used GND GND -12V

9 NC NC Not used NC NC VPWR
10 GND GND Not used GND GND GA0
11 TXP TXN Not used NC NC VPWR
12 GND GND GA1 GND GND Not used
13 NC NC 3.3V NC NC VPWR
14 GND GND GA2 GND GND Not used
15 NC NC Not used NC NC VPWR
16 GND GND Not used GND GND Not used
17 NC NC Not used NC NC NC
18 GND GND Not used GND GND Not used
19 CK-P CK-N Not used Not used Not used Not used

Table 4-28: XMC Connector Pin Definition

Board Interfaces 61

CompactPCI J1 Connector

Pin Z A B C D E F

25 GND +5V REQ64# ENUM# +3.3V +5V GND
24 GND CPCI_AD1 +5V CPCI_VIO CPCI_AD0 ACK64# GND
23 GND P3V3 CPCI_AD4 CPCI_AD3 P5V CPCI_AD2 GND
22 GND CPCI_AD7 GND P3V3 CPCI_AD6 CPCI_AD5 GND
21 GND P3V3 CPCI_AD9 CPCI_AD8 CPCI_M66EN CPCI_CBE-L0 GND
20 GND CPCI_AD12 GND VIO CPCI_AD11 CPCI_AD10 GND
19 GND P3V3 CPCI_AD15 CPCI_AD14 GND CPCI_AD13 GND
18 GND CPCI_SERR-L GND P3V3 CPCI_PAR CPCI_CBE-L1 GND
17 GND P3V3 NC NC GND CPCI_PERR-L GND
16 GND CPCI_DEVSEL-L CPCI_PCIXCAP VIO CPCI_STOP-L CPCI_LOCK-L GND
15 GND P3V3 CPCI_FRAME-L CPCI_IRDY-L NC CPCI_TRDY-L GND

12-14 Key

11 GND CPCI_AD18 CPCI_AD17 CPCI_AD16 GND CPCI_CBE-L2 GND
10 GND CPCI_AD21 GND P3V3 CPCI_AD20 CPCI_AD19 GND

9 GND CPCI_CBE-L3 NC CPCI_AD23 GND CPCI_AD22 GND
8 GND CPCI_AD26 GND VIO CPCI_AD25 CPCI_AD24 GND
7 GND CPCI_AD30 CPCI_AD29 CPCI_AD28 GND CPCI_AD27 GND
6 GND CPCI_REQ-L0 GND P3V3 CPCI_CLK0 CPCI_AD31 GND
5 GND NC NC CPCI_RESET-L GND CPCI_GNT-L0 GND
4 GND NC CPCI_HEALTHY -L VIO NC NC GND
3 GND CPCI_IRQA-L CPCI_IRQB-L CPCI_IRQC-L P5V CPCI_IRQD-L GND
2 GND cPCI_TCK-L P5V cPCI_TMS-L NC cPCI_TDI-L GND
1 GND P5V NC cPCI_TRST-L P12V P5V GND

Table 4-29: CompactPCI J1 Connector Pin Definition

62 Board Interfaces

cPCI-3970

CompactPCI J2 Connector

Pin Z A B C D E F

22 GND GA4 GA3 GA2 GA1 GA0 GND
21 GND CLK6 GND 2_ETH_B+ 1_ETH_D+ 1_ETH_B+ GND
20 GND CLK5 GND 2_ETH_B- 1_ETH_D- 1_ETH_B- GND
19 GND GND GND 2_ETH_A+ 1_ETH_C+ 1_ETH_A+ GND
18 GND 2_ETH_D+ 2_ETH_C+ 2_ETH_A- 1_ETH_C- 1_ETH_A- GND
17 GND 2_ETH_D- 2_ETH_C- PRST# REQ6# GNT6# GND
16 GND 4PE_CLK- 2_PE_CLK+ DEG# GND +5V GND
15 GND 4PE_CLK+ 2_PE_CLK- FAL# REQ5# GNT5# GND
14 GND 3PE_CLK+ 1_PE_CLK+ 4_PE_CLKE# DDC_DAT +5V GND
13 GND 3PE_CLK- 1_PE_CLK- 3_PE_CLKE# VGA_HSY DDC_CLK GND
12 GND 4PE_RX00+ 1_PE_CLKE# 2_PE_CLKE# VGA_VSY 2_SATA_RX+ GND
11 GND 4PE_RX00- 4PE_TX00+ COM4_TX 2_SATA_TX+ 2_SATA_RX- GND
10 GND 3PE_RX00+ 4PE_TX00- COM4_RX 2_SATA_TX- 3_SATA_RX+ GND

9GND3PE_RX00- 3PE_TX00+ 0_USB+ 3_SATA_TX+ 3_SATA_RX- GND
8GND2PE_RX00+ 3PE_TX00- 0_USB- 3_SATA_TX- 4_SATA_RX+ GND
7GND2PE_RX00- 2PE_TX00+ 1_USB+ 4_SATA_TX+ 4_SATA_RX- GND
6GND1PE_RX00+ 2PE_TX00- 1_USB- 4_SATA_TX- RGB_RED GND
5GND1PE_RX00- 1PE_TX00+ 10_USB+
4GND VIO 1PE_TX00- 10_USB- USB1_10_OC RGB_BLUE GND
3 GND CLK4 GND GNT3# REQ4# GNT4# GND
2 GND CLK2 CLK3 SYSEN# GNT2# REQ3# GND
1 GND CLK1 GND REQ1# GNT1# REQ2# GND

Ta ble 4-30: CompactPCI J2 Connecto r Pin De fini tion

RS232_COM5_SEL-L

RGB_GREEN GND

Ethernet port
VGA
Serial ATA
PCI-Express

Serial port
USB port

Board Interfaces 63

cPCI-R3P00 rJ2 Connector

Pin Z A B C D E F

22 GND NC NC NC NC NC GND
21 GND NC GND 2_ETH_B+ 1_ETH_D+ 1_ETH_B+ GND
20 GND NC GND 2_ETH_B- 1_ETH_D- 1_ETH_B- GND
19 GND GND GND 2_ETH_A+ 1_ETH_C+ 1_ETH_A+ GND
18 GND 2_ETH_D+ 2_ETH_C+ 2_ETH_A- 1_ETH_C- 1_ETH_A- GND
17 GND 2_ETH_D- 2_ETH_C- NC NC NC GND
16 GND NC NC NC GND +5V GND
15 GND NC NC NC NC NC GND
14 GND NC NC NC DDC_DAT +5V GND
13 GND NC NC NC VGA_HSY DDC_CLK GND
12 GND NC NC NC VGA_VSY 2_SATA_RX+ GND
11 GND NC NC COM4_TX 2_SATA_TX+ 2_SATA_RX- GND
10 GND NC NC COM4_RX 2_SATA_TX- 3_SATA_RX+ GND

9 GND NC NC 0_USB+ 3_SATA_TX+ 3_SATA_RX- GND
8 GND NC NC 0_USB- 3_SATA_TX- 4_SATA_RX+ GND
7 GND NC NC 1_USB+ 4_SATA_TX+ 4_SATA_RX- GND
6 GND NC NC 1_USB- 4_SATA_TX- RGB_RED GND
5 GND NC NC 10_USB+
4 GND NC NC 10_USB- USB1_10_OC RGB_BLUE GND
3 GND NC GND NC NC NC GND
2 GND NC NC NC NC NC GND
1 GND NC GND NC NC NC GND

Table 4-31: cPCI-R3P00 rJ2 Connector Pin Definition

RS232_COM5_SEL-L

RGB_GREEN GND

Ethernet port
VGA
Serial ATA
Serial port

USB port

64 Board Interfaces

cPCI-3970

cPCI-R3P00T rJ2 Connector

Pin Z A B C D E F

22 GND NC NC NC NC NC GND
21 GND NC GND NC NC NC GND
20 GND NC GND NC NC NC GND
19 GND GND GND NC NC NC GND
18 GND NC NC NC NC NC GND
17 GND NC NC NC NC NC GND
16 GND 4PE_CLK- 2_PE_CLK+ NC GND +5V GND
15 GND 4PE_CLK+ 2_PE_CLK- NC NC NC GND
14 GND 3PE_CLK+ 1_PE_CLK+ 4_PE_CLKE# DDC_DAT +5V GND
13 GND 3PE_CLK- 1_PE_CLK- 3_PE_CLKE# VGA_HSY DDC_CLK GND
12 GND 4PE_RX00+ 1_PE_CLKE# 2_PE_CLKE# VGA_VSY 2_SATA_RX+ GND

11 GND 4PE_RX00- 4PE_TX00+ COM4_TX 2_SATA_TX+ 2_SA TA_RX- GND

10 GND 3PE_RX00+ 4PE_TX00- COM4_RX 2_SATA_TX- 3_SATA_RX+ GND

9GND 3PE_RX00- 3PE_TX00+ 0_USB+ 3_SATA_TX+ 3_SATA_RX- GND
8GND 2PE_RX00+ 3PE_TX00- 0_USB- 3_SATA_TX- 4_SATA_RX+ GND
7GND 2PE_RX00- 2PE_TX00+ 1_USB+ 4_SATA_TX+ 4_SATA_RX- GND
6GND 1PE_RX00+ 2PE_TX00- 1_USB- 4_SATA_TX- RGB_RED GND
5GND 1PE_RX00- 1PE_TX00+ 10_USB+
4 GND NC 1PE_TX00- 10_USB- USB1_10_OC RGB_BLUE GND
3 GND NC GND NC NC NC GND
2 GND NC NC NC NC NC GND
1 GND NC GND NC NC NC GND

Table 4-32: cPCI-R3P00T rJ2 Connector Pin Definition

RS232_COM5_SEL-L

RGB_GREEN GND

VGA
Serial ATA
PCI-Express
Serial port

USB port

Board Interfaces 65

4.12 Jumper Settings

Load BIOS Default Jumper (JP1)

The cPCI-3970 Load BIOS Default Jumper is located on the
DB-3CF/CFast daughter board. To load the default BIOS settings,
short pins 2-3 on JP1, then reinstall the jumper cap to pins 1-2.

BIOS Setting Connection JP1

Normal 1 – 2

Load default BIOS 2 – 3

Table 4-33: Load BIOS Default Jumper Settings

XMC VPWR Select Jumper on DB-3UMC (JPX1)

This jumper is located on the DB-3UMC board near JN1/2 and
selects the XMC VPWR setting. 5V is set by default.

This page intentionally left blank.

Mode Connection JPX1

+5V (Default) 1 – 2

+12V 2 – 3

Table 4-34: XMC VPWR Select Jumper Settings

PMC V(I/O) Select Jumper on DB-3UMC (JPX2)

This jumper is located on the DB-3UMC board near JN1/2 and
selects the PMC V(I/O) setting. 3.3V is set by default.

Mode Connection JPX2

+5V 1 – 2

+3.3V (Default) 2 – 3

Table 4-35: PMC V(I/O) Select Jumper Settings

66 Board Interfaces

5 Getting Started

This chapter describes the following installation procedur es fo r the
cPCI-3970 and rear transition module:

X CPU and Heatsink
X Memory modules
X 2.5" SATA storage drive
X CompactFlash card
X CFast card
X PCI Mezzanine Card
X Processor blade installation to chassis
X RTM installation to chassis

5.1 CPU and Heatsink

The cPCI-3970 Series come with CPU and heatsink pre-installed.
Removal of heatsink/CPU by users is not recommended. Please
contact your ADLINK service representative for assistance.

cPCI-3970

Getting Started 67

5.2 Memory Module Installation

The cPCI-3970 Series supports DDR3-1066/1333 ECC memory
modules via two stacked-type SO-CDIMM sockets. The
SO-CDIMM modules have a 204-pin footprint and are notched to
facilitate correct installation in the SO-DIMM sockets. At least one
memory module will be pre-installed in the lower socket as shown
below.

The front panel and the layer-2 daughter board (DB-3610L2,
DB-3970L2) must be removed before installing memory mod-

NOTE:

NOTE:

68 Getting Started

ules to the cPCI-3970D/G 2-slot version (see “Removing the
Layer-2 Daughter Board” on page 73), and both layer-2 and
layer 3 daughter boards should be removed before installing
to the cPCI-3970P/U 3-slot version (see “Removing the
Layer-3 Daughter Board” on page 72).

Installing the Memory Modules

Align the notch in the memory module with the key on the
SO-CDIMM slot. Press down on the module until is it is prop­erly seated in the socket.

key

cPCI-3970

Getting Started 69

5.3 SATA Drive Installation

The cPCI-3970D/G 2-slot version and cPCI-3970P/U 3-slot version
provide space to install a slim type 2.5" Serial-ATA storage drive.

Installing a SATA Drive - cPCI-3970D/G(P/U)

1. Drive mounting brackets and screws are provided in the
accessory kit. Secure the brackets to the SATA drive
with the four M3 screws provided.

2. Align the SATA drive assembly with the onboard SATA
connector on the cPCI-3970 as shown and push it in
until it is properly seated. Secure the drive assemb ly to
the layer-2 daughter board (DB-3610L2 or DB-3970L2)
as shown using the four M2.5 screws provided.

70 Getting Started

cPCI-3970

5.4 CompactFlash Installation

The CompactFlash socket is located on the DB-3CF daughter
board mounted on layer-1. To install a CF card, orient the card so
that the bottom side is facing up and align with the CF socket as
shown. Insert the CF card into the socket until it is fully seated and
flush with the ejector button.

Getting Started 71

5.5 Converting from CF to CFast Slot

DB-3CFAST is an optional accessory for the cPCI-3970 series. To
change the CF1 slot from CompactFlash to CFast, follow the
instructions below. For cPCI-3970 models with 2 or 3 slots, the
layer-2 and layer-3 daughter boards and front panel must first be
removed. For single slot models skip ahead to Installing the

DB-3CFAST Daughter Board

Removing the Layer-3 Daughter Board

For "P/U" models, follow the instructions below to remove the
layer-3 daughter board. For "D/G" 2-slot models, skip ahead to

Removing the Layer-2 Daughter Board

1. Remove the two screws on either side of the PMX/XMC

slot on the "P/U" front panel.

cPCI-3970P

below.

ˣˠ˖˂˫ˠ˖

below.

cPCI-3970U

ˣˠ˖˂˫ˠ˖

2. Remove the 4 screws securing the DB-3UMC daughter
board to the layer-2 daughter board.

3. Lift the DB-3UMC daughter board from the cPCI-3970
assembly.

72 Getting Started

Removing the Layer-2 Daughter Board

1. Remove the screws on the front panel as shown below

(6 screws on "D/P" model, 5 screws on the "G/U" model).

cPCI-3970D

cPCI-3970

cPCI-3970G

2. Remove the screw next to the handle on the solder side

of the cPCI-3970.

Getting Started 73

3. Remove the 5 screws securing the DB-3970L2 or
DB-3610L2 layer-2 daughter board to the blade assembly.

4. Remove the front panel from the blade assembly.

5. Lift the DB-3970L2 or DB-3610L2 daughter board to
remove it from the blade assembly.

74 Getting Started

Installing the DB-3CFAST Daughter Board

1. Remove the three screws securing the DB-3CF daugh-

ter board as shown and lift it from the blade assembly.

2. Install the DB-3CFAST daughter board by aligning it with

the board-to-board connector (CN2) on the cPCI-3970
main board and pressing down firmly.

cPCI-3970

Getting Started 75

3. Secure the DB-3CFAST by tightening the three screws
shown below.

4. Reinstall the layer-2 daughter board, front panel and
layer-3 daughter board as required by reversing the
steps described above.

76 Getting Started

cPCI-3970

5.6 PMC/XMC Card In stallation

The cPCI-3970P/U provides one PMC/XMC slot designed to sup­port 3.3V or 5V V(I/O) (default 3.3V) and 5V or 12V VPWR (default
5V). Before you install the PMC/XMC card on the cPCI-3970P/U,
please make sure that the PMC V(I/O) jumper JPX2 and XMC
VPWR jumper JPX1 have been correctly set (see page 66).

1.

To install a PMC/XMC card on the cPCI-3970P/U, the front
panel and layer-3 DB-3UMC daughter board must first be
disassembled. To remove the front panel, loosen
securing it to the blade assembly as shown,
additional screw under the ejector handle.

cPCI-3970P

ˣˠ˖˂˫ˠ˖

the screws

including one

cPCI-3970U

Getting Started 77

ˣˠ˖˂˫ˠ˖

2. Remove the DB-3UMC daughter board from the blade
assembly by unscrewing the four screws securing it to
the layer-2 daughter board as shown below.

3.3V Key

3. There is a 3.3V key on board by default, if the PMC/XM C
card you wish to install is 5V signaling, please remove
the key and set the PMC V(I/O) jumper JPX2 to the 5V
setting (see “PMC V(I/O) Select Jumper on DB-3UMC
(JPX2)” on page 66).

78 Getting Started

cPCI-3970

4. Align the male connectors of the PMC/XM C card (com-

ponent-side down) to the female connectors of the
DB-3UMC and press down.

5. Secure the PMC/XMC card to the DB-3UMC by attach-

ing four screws (provided with the card) from the under­side of the daughter board.

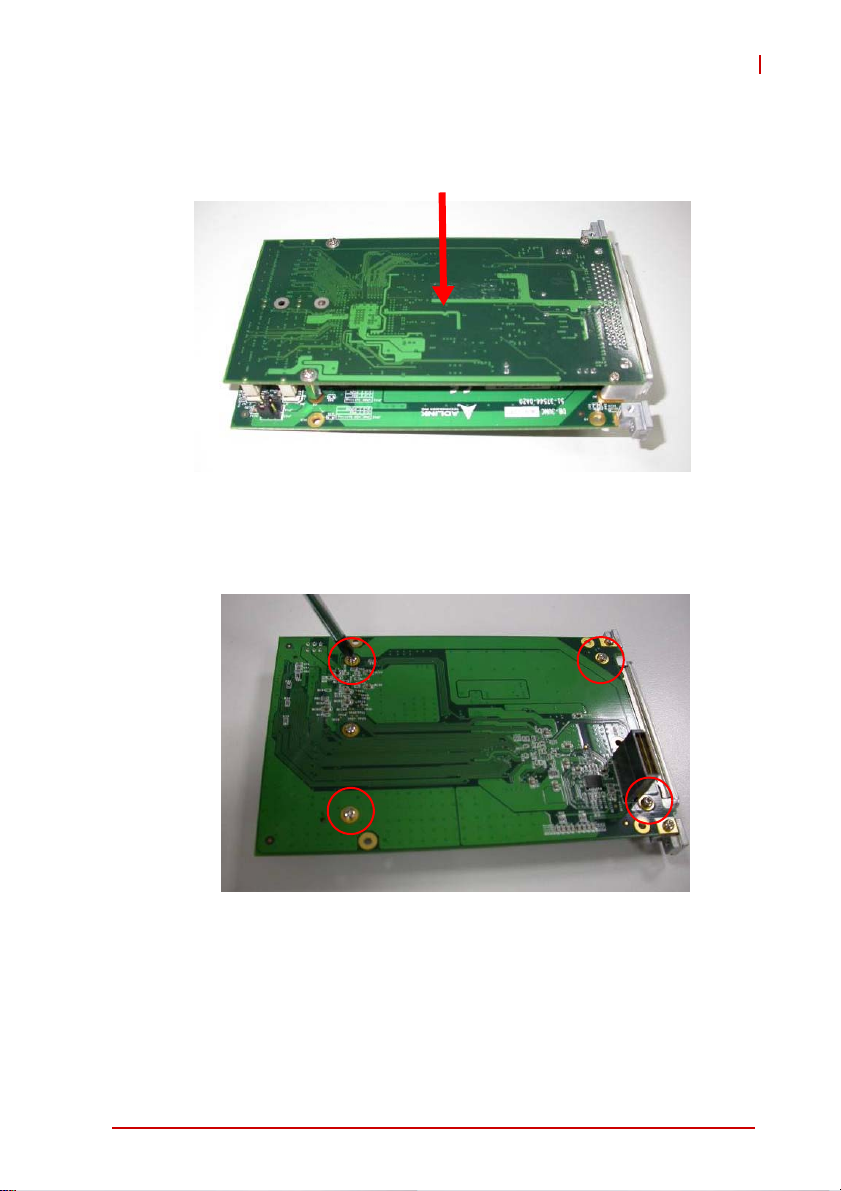

Getting Started 79

6. Align the male board-to-board connector (CN1) of the
PMC/XMC assembly to the female board-to-board connec­tor (CN7) of the layer-2 daughter board and press down.

7. Secure the PMC/XMC assembly to the layer-2 daughter
board using the four screws removed in Step 2 above.

8. Remove the PMC filler faceplate from the front panel.

9. Install the front panel to the cPCI-3970P/U by reversing
Step 1.

80 Getting Started

cPCI-3970

5.7 Installing the cPCI-3970 to the Chassis

The cPCI-3970 may be installed in a system or peripheral slot of a
3U CompactPCI chassis. These instructions are for reference
only. Refer to the user guide that comes with the chassis for more
information.

1. Be sure to select the correct slot depending on the oper-

ational purpose of the module. The system power may
now be powered on or off.

2. Remove the blank face cover from the selected slot, if

necessary.

3. Press down on the release catches of the cPCI-3970

ejector handles.

4. Remove the black plastic caps securing the mounting

screws to the front panel.

5. Align the module’s top and bottom edges to the chassis

card guides, and then carefully slide the module into the
chassis. A slight resistance may be felt when inserting
the module. If the resistance it too strong, check if there
are bent pins on the backplane or if the board’s connec­tor pins are not properly aligned with connectors on the
backplane. Then push the board until it is completely
flush with the chassis.

6. Push the ejector handles outwards to secure the module

in place, and then fasten the screws on the module front
panel.

7. Connect the cables and peripherals to the board, and

then turn the chassis on if necessary.

Getting Started 81

5.8 RT M Installation - cPCI-R3P00(T)

The installation and removal procedures for a RTM are the same
as those for CompactPCI boards. Because they are shorter than
front boards, pay careful attention when inserting or removing
RTMs.

Refer to previous sections for peripheral connectivity of all
I/O ports on the RTM. When installing the cPCI-3970 Series and
related RTMs, make sure the RTM is the correct matching model.

You must install the correct RTM to enable functions (I/O inter­faces) on the rear panel. Installation of non-compatible RTMs

NOTE:

NOTE:

may damage the system board and/or other RTMs.

82 Getting Started

6 Driver Installation

The cPCI-3970 drivers are available from the ADLINK All-In-One
DVD at X:\cPCI\cPCI-3970\, or from the ADLINK website
(http://www.adlinktech.com). ADLINK provides validated driv­ers for Windows XP Professional and Windows 7. We recommend
using these drivers to ensure compatibility. The VxWorks BSP can
be downloaded from the cPCI-3970 product page on the ADLINK
website

6.1 cPCI-3970 Drivers

The following describes the cPCI-3970 driver installation proce­dures for Windows XP.

1. Install the Windows operating system before installing any

driver. Most standard I/O device drivers are installed during
Windows installation.

In order to enable AHCI mode, you must pre-install the Intel®
Rapid Storage Technology driver using the F6 installation

NOTE:

NOTE:

method described in

2. Install the chipset driver by extracting and running the pro-

gram in ...\Chipset\Intel_Chipset_Device_Software

_AllOS_9.2.0.1015.zip.

…\AHCI\F6Readme.txt.

cPCI-3970

3. Install the Microsoft .NET Framework utilities (required for the

graphics utility) by extracting and running the program in

...\Chipset\Microsoft_Net_Framework_v3.5_SP1.zip.

4. Install the grap hics driver and utilities by extracting and run-

ning the program in ...\Graphics\Intel_HD_Graphics
_Family_WinXP_6.14.10.5313.zip.

5. Install the LAN drivers by extracting and running the program

in …\LAN\Intel_82574L_Gigabit_Network_WINXP
_11.4.7.0.zip.

6. Install the In tel Rapid Storage Technology Utility by extract-

ing and running the program in …\AHCI\

Intel_Rapid_Storage_Technology_10.1.0.1008.zip

.

7. Install the TPM driver by extracting and r unning the program in

…\TPM\Infineon_Trusted_Platform_Module_2.1.1.0.zip.

Driver Installation 83

8. Install the audio driver and utilities by extracting and running
the program in …\Audio\RealTek_High_Definition_Audio
_WINXP_5.10.0.6029.zip.

9. Install the Intel® Management Engine Interface driver to
remove the "question mark" from Other Devices in Windows
Device Manager.

The cPCI-3970 does not support Intel® Active Management
Technology. The purpose of installing this driver is to remove

NOTE:

NOTE:

the ""question mark" from Windows Device Manager.

Z R-click on My Computer, select Manage, and open the

Device Manager.

Z Under Other Devices you will see a "question mark" next

to PCI Simple Communication Controller. R-click on

PCI
Simple Communication Controller and click on Update
Driver to start the Hardware Update Wizard.

Z When asked to let Windows Update search for software ,

select "No, not at this time" and click

84 Driver Installation

Next.

cPCI-3970

Z Select "Install from a list or specific location (Advanced)"

and click

Z Extract the contents of …\cPCI-3970\Chipset\Intel

Next.

_Management_Engine_Interface_AllOS_7.0.0.1144.zip.
Select "Search for the best driver in these locations" and
"Include this location in the search". Click

Browse and navi­gate to the folder "MEI" where you extracted the contents of
the zip file, and then click

OK. Click Next to continue.

Z When driver installation has completed, click Finish to

close the wizard.

Driver Installation 85

6.2 USB-to-Serial Co nverter Driver (RTM)

The COM5 serial port on the cPCI-R3P00(T) is converted from the
USB3 port by a USB-to-serial converter (see “cPCI-R3P00 RTM”
on page 17). To install the driver for the converter, follow the pro­cedure below. The installation consists of two parts: USB Serial
Converter and USB Serial Port.

1. R-click on
Device Manager.

2. Under Other Devices you will see a "question mark" next to
FT2332R USB UART. R-click on
click on

3. When asked to let Windows Update search fo r softwar e, select
"No, not at this time" and click

My Computer, select Manage, and open the

FT2332R USB UART and

Update Driver to start the Hardware Update Wizard.

Next.

86 Driver Installation
