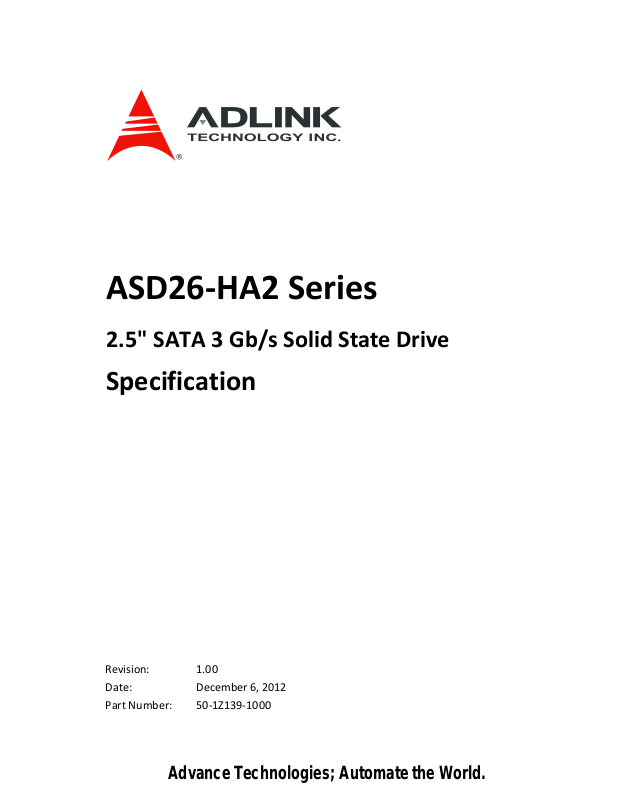

ASD26-HA2 Series
2.5" SATA 3 Gb/s Solid State Drive
Specification
Revision: 1.00
Date: December 6, 2012
Part Number: 50-1Z139-1000
Advance Technologies; Automate the World.
Document History
Revision Date Changes
1.00 2012/12/06 Initial Release
2 Specification
Copyright 2012 ADLINK Technology, Inc.
Disclaimer
The information in this document is subject to change without prior notice in order to improve
reliability, design, and function and does not represent a commitment on the part of the
manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental,
or consequential damages arising out of the use or inability to use the product or documentation,
even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright.
All rights are reserved. No part of this document may be reproduced by any mechanical,
electronic, or other means in any form without prior written permission of ADLINK Technology,
Inc.
Specification 3
Table of Contents
1 Introduction .........................................................................5
1.1 Overview................................................................................................. 5
1.2 Product Specification................................................................................... 5
1.3 Functional Block Diagram............................................................................11
1.4 Product Image .........................................................................................11
1.5 Mechanical Drawing:..................................................................................12
1.6 Architecture ............................................................................................13
1.7 Hot Plug Support ......................................................................................13
2 Pin Locations and Signal Descriptions .................................14
2.1 Pin Locations...........................................................................................14
2.2 Signal Descriptions.................................................................................... 14
3 ATA Command Sets ............................................................16
3.1 ATA Command ........................................................................................16
3.2 Power Management Command Set................................................................. 20
3.3 Security Mode Feature Set...........................................................................21
3.4 SMART Command Set ...............................................................................21
3.5 Host Protected Area Command Set.................................................................22
3.6 48-Bit Address Command Set .......................................................................23
3.7 Device Configuration Overlay Command Set......................................................23
3.8 General Purpose log Command Set ................................................................23
4 SATA Command Sets...........................................................24
4.1 SATA Command.......................................................................................24
5 References..........................................................................25
6 Getting Service ...................................................................26
4 Specification
1 Introduction
1.1 Overview
The ASD26-HA2 series 2.5" SATA 3 Gb/s Solid State Drive (SSD) delivers leading performance in an industry
standard 2.5" form factor while simultaneously improving system responsiveness for mobile applications over
standard rotating drive media or hard disk drives. By combining leading NAND flash memory technology with
our innovative high performance firmware, ADLINK delivers a SSD for native Serial Advanced Technology
Attachment (SATA) hard disk drive drop-in replacement with enhanced performance, reliability, ruggedness and
power savings. Since there are no rotating platters, moving heads, fragile actuators, or unnecessary delays due
to spin-up time or positional seek time that can slow down the storage subsystem, significant I/O and
throughput performance improvement is achieved as compared to rotating media or hard disk drives. This
document describes the specifications of the ASD26-HA2 series 2.5" SATA 3 Gb/s SSD in 2.5" form factors.
The ASD26-HA2 series 2.5" SATA 3 Gb/s SSD primarily targets SATA based servers, fanless laptop PCs, highly
rugged mobile client devices, as well as thin and light mini/sub-notebooks. Key attributes include high
performance, low power, increased system responsiveness, high reliability, and enhanced ruggedness as
compared to standard mobile SATA hard drives. The ASD26-HA2 series 2.5" SATA 3 Gb/s SSD is available in a
2.5" form factor that is electrically, mechanically, and software compatible with existing 2.5” Serial ATA slots
and cables. Our flexible design allows interchangeability with existing mobile hard drives based on the SATA
interface standard.
1.2 Product Specification
1.2.1. Form Factor: 2.5” SSD form factor
1.2.2. Capacity: 16 GB (ASD26-HA2016-ET)
32 GB (ASD26-HA2032-ET)
CT: Commercial Temperature 0 to +70°C, ET: Extend Temperature ‐40°C to +85°C
Unformatted capacity
16 GB 30,932,992
32 GB 61,865,984
Table 1: User Addressable Sectors
Notes: 1. 1GB=1,000,000,000 bytes and not all of the memory can be used for storage.
2. 1 Sector = 512 bytes
1.2.3. Flash: Single-Level model Cell (SLC model) component with Toggle-Mode (24nm)
Total user addressable sectors
in LBA mode
Specification 5
1.2.4. Band Performance (CrystalDiskMark)
Capacity Access Type MB/s
Sequential Read Up to 190 (SATA 3 Gb/s)
16 GB
32 GB
Table 2: Maximum Sustained Read and Write Bandwidth
Notes: 1). Performance measured using CrystalDiskMark, ATTO.
2). 1 MB/sec = 1,048,576 bytes/sec is used in measuring sequential performance. If
1 MB/sec = 1,000,000 bytes/sec is used, performance values become 4.85% higher.
Sequential Write Up to 100 (SATA 3 Gb/s)
ATTO: read up to 190MB/s, write up to 100 MB/s
Sequential Read Up to 190 (SATA 3 Gb/s)
Sequential Write Up to 100 (SATA 3 Gb/s)
ATTO: read up to 195MB/s, write up to 105 MB/s
3). Test platform: Sandy Bridge (Windows 7 64-bit)
4). Actual performance dependent on specific application.
1.2.5. Read and Write IOPS (IOMETER)
Capacity Access Type IOPS
16 GB
32 GB
Table 3: Random Read/Write Input/Output Operations per Second
Notes: 1. Performance measured using IOMETER Pro with queue depth set to 32, Crystal Disk Mark QD32
2. Write cache enabled
3. Test platform: Sandy Bridge (Windows 7, 64-bit)
4K Read (IOPS) 3,900 (SATA 6 Gb/s)
4K Write (IOPS) 660 (SATA 6 Gb/s)
CDM QD32 IOPS up to Read 3,900, Write 660
4K Read (IOPS) 4000 (SATA 3 Gb/s)
4K Write (IOPS) 700 (SATA 3 Gb/s)
CDM QD32 IOPS up to Read 4000, Write 700
6 Specification
1.2.6. Power On to Ready:
Notes: 1. Write cache enabled
2. Device measured using Drive Master
3. Power on to ready time assumes proper shutdown
(Power removal preceded by STANDBY command)
1.2.7. Compatibility
-- SATA Revision 3.0 compliant
Compatible with SATA 1.5 Gb/s, 3.0 Gb/s & 6.0 Gb/s interfaces
Type Average Latency
Power on to Ready 1s
Table 4: Latency Specifications
-- SATA Revision 2.0 compliant (ASD26-HA2XXX-ET)
Compatible with SATA 1.5 Gb/s, 3.0 Gb/s interfaces
-- ATA/ATAPI- 8 compliant
-- SSD enhanced SMART ATA feature set
-- Native Command Queuing (NCQ) command set
-- TRIM supported
1.2.8. Certifications
Certification Description
CE compliant
RoHS compliant Restriction of Hazardous Substance Directive
1.2.9. Power Management
-- 5V SATA
-- SATA interface power management
-- OS-aware hot plug/removal
Indicates conformity with the essential health and safety
requirements set out in European Directives Low voltage
Directive and EMC Directive
Table 6: Device Certifications
Specification 7
1.2.10. Power Consumption
Capacity Description Min Max Unit
16 GB Operating voltage for 5V (+/- 5%) 4.75 5.25 V
32 GB Operating voltage for 5V (+/- 5%) 4.75 5.25 V
Capacity Mode Type Unit
16 GB
Table 7: Operating Voltage
Active (average) 0.95 W
Idle (average) 0.55 W
Note: Active power is measured using IOMETER Power Consumption using Data Logger _No
DIPM
1.2.11. Temperature
Note: Measured without condensation
1.2.12. Reliability
Mean Time between Failure (MTBF) > 1,500,000 hours
32 GB
Environment Mode Min Max Units
Ambient
Temperature
Humidity
Table 9: Temperature Relative Specifications
Parameter Value
Active (average) 0.95 W
Idle (average) 0.55 W
Table 8: Typical Power Consumption
Operating 0 70 °C
Non-operating -40 85 °C
Operating 5 95 %
Non-operating 5 95 %
Power on/off cycles 50,000 cycles
Minimum useful life 3 years
Table 10: Reliability specifications
8 Specification
1.2.13. Shock and Vibration:
Item Mode Timing/Frequency Max
Non-operating At 0.5 msec 1500G
Shock1
Vibration2
Notes:
1. Shock specifications assume that the SSD is mounted securely with the input vibration
applied to the drive mounting screws. Stimulus may be applied in the X, Y or Z axis
2. Vibration specifications assume that the SSD is mounted securely with the input
vibration applied to the drive mounting screws. Stimulus may be applied in the X, Y or Z
axis. The measured specification is in root mean squared form.
Non-operating At 1 msec 1500G
Non-operating At 2 msec 1000G
Operating 7~800 Hz 2.17Grms
Non-operating 7~800 Hz 3.08Grms
Table11: Shock and Vibration
Specification 9
1.2.14. Electromagnetic Immunity:
Electromagnetic Immunity tests assume the SSD is properly installed in the representative host system. The
drive operates properly without errors degradation in performance when subjected to radio frequency (RF)
environments defined in the following table.
Test Description Performance criteria Reference standard
Electrostatic discharge
Contact, HCP, VCP: ±8KV
Air: ±15KV
80~1000MHz, 3V/m,
80% AM with 1 KHz sine
Radiated RF immunity
900 MHz, 3 V/m, 50%
pulse modulation at
200Hz
Electrical fast transient
Surge immunity
Conducted RF immunity
±1KV on AC mains
±0.5KV on external I/O
±1KV differential ±2KV
common, AC mains
150KHz~80 MHz, 3 Vrms,
80% AM with 1KHz sine
0% open, 5 sec
Voltage dips, interrupts
0% short, 5 sec
40%, 0.10 sec
70%, 0.01 sec
Table 12: Radio Frequency Specifications
Notes:
1. Performance criterion A = The device shall continue to operate as intended, i.e.,
normal unit operation with no degradation of performance.
2. Performance criterion B = The device shall continue to operate as intended after
completion of test, however, during the test, some degradation of performance is
allowed as long as there is no data loss operator intervention to restore device
function.
3. Performance criterion C = Temporary loss of function is allowed. Operator
intervention is acceptable to restore device function.
4. Contact electrostatic discharge is applied to drive enclosure.
1.2.15. Weight: 80 g (with enclosure)
1.2.16. Dimension: 100.0mm x 69.8mm x 9.5 mm (L x W x H)
1.2.17. Part Numbers:
Standard Operating Temperature Range: -40°C to 85°C
Product Name Part No.
ASD26-HA2016-ET
ASD26-HA2032-ET 92-99059-6310
B EN 61000-4-2:95
A
B EN 61000-4-4:95
B EN 61000-4-5:95
A EN 61000-4-6:97
C
C
C
B
92-99059-6210
EN 61000-4-3:96
ENV 50204:95
EN 61000-4-11:94
10 Specification
1.3 Functional Block Diagram
SATA
Host
Interface
Flash Memory
Controller
NAND
Flash
Array
1.4 Product Image
Specification 11
1.5 Mechanical Drawing:
Dimensions: 100.0 x 69.8mm x 9.5 mm (L x W x H)
12 Specification
1.6 Architecture
The ASD26-HA2 series 2.5" SATA 3 Gb/s Solid State Drive (SSD) utilizes a cost effective system-on-chip
(SoC) design to provide a full 6 Gb/s bandwidth with the host while managing multiple flash memory
devices on multiple channels internally.
1.7 Hot Plug Support
Hot Plug insertion and removal are supported when the correct connector and an appropriate operating
system (OS) are used as described in the SATA 3.0 Specification. This product supports asynchronous signal
recovery and will establish communications with a host system without hardware device detection by
issuing an unsolicited COMINIT when first mated with a powered connector.
Specification 13
2 Pin Locations and Signal Descriptions
2.1 Pin Locations
The data and power connector pin locations of the ASD26-HA2 series 2.5" SATA 3 Gb/s SSD are as shown
below.
2.2 Signal Descriptions
Data Connector:
Name Type Description
S1
S2
S3
S4
S5
S6
S7
GND
A+
A-
GND
B-
B+
GND
Table 13: Serial ATA Data Connector Pin Definitions
Differential Signal Pair A
Differential Signal Pair B
14 Specification
Power Connector:
Name Type Description
P1 V33 3.3V Power
P2 V33 3.3V Power
P3 V33 3.3V Power, Pre-change
P4 GND
P5 GND
P6 GND
P7 V5 5V Power, Pre-change
P8 V5 5V Power
P9 V5 5V Power
P10 GND
P11 DAS/DSS
P12 GND
P13 V12 12V Power, Pre-change
P14 V12 12V Power
P15 V12 12V Power
Table 14: Serial ATA Power Connector Pin Definitions
Device Activity Signal /
Disable Staggered Spin up
Note:
1. All pins are in a single row, with a 1.27mm (0.05”) pitch
2. Pins P1, P2 and P3 are connected together, although they are not connected internally to
the device. The host may put 3.3v on these pins.
3. The mating sequence is
- The ground pins P4-P6, P10, P12 and the 5V power pin P7
- The signal pins and the rest of the 5V power pins P8-P9
4. Ground connectors P4 and P12 may contact before the other 1st mate pins in both the
power and signal connectors to discharge ESD in a suitably configured backplane connector.
5. Power pins P7, P8 and P9 are internally connected to one another within the device.
6. The host may ground P11 if it is not used for Device Activity Signal (DAS)
7. Pins P13, P14, P15 are connected together, although they are not connected internally to
the device.
Specification 15
3 ATA Command Sets
3.1 ATA Command
The ASD26-HA2 series 2.5" SATA 3 Gb/s SSD supports all the mandatory ATA commands defined in the
ATA/ATAPI-8 specification.
3.1.1 ATA General Feature Command Set
The ASD26-HA2 series 2.5" SATA 3 Gb/s SSD supports the ATA General feature Command set (non-
packet), which consists of
．EXECUTE DEVICE DIAGNOSTIC
．FLUSH CACHE
．IDENTIFY DEVICE
．READ DMA
．READ SECTOR(S)
．READ VERIFY SECTORS(S)
．SEEK
．SET FEATURES
．WRITE DMA
．WRITE SECTOR(S)
．READ MULTIPLE
．SET MULTIPLE MODE
．WRITE MULTIPLE
The ASD26-HA2 series 2.5" SATA 3 Gb/s SSD supports all the following optional commands
．READ BUFFER
．WRITE BUFFER
．NOP
．DOWNLOAD MICROCODE
16 Specification
3.1.2 Identify Device Data
The following table details the sector data returned after issuing an IDENTIFY DEVICE command.
F=Fixed
Word
0 F 0040h
1 X 3FFFh Obsolete-Number of logical cylinders (16,383)
2 V C837h Specific configuration
3 X 0010h Obsolete-Number of logical heads (16)
4-5 X 0h Retired
6 X 003Fh
7-8 V 0h
9 X 0h Retired
V=Variable
X=Both
Default Value Description
General configuration bit-significant
information
Obsolete-Number of logical sectors per logical
track (63)
Reserved for assignment by the Compact
Flash Association
10-19 F varies Serial number (20 ASCII characters)
20-21 X 0h Retired
22 X 0h Obsolete
23-26 F varies Firmware revision (8 ASCII characters)
27-46 F varies Model number
47 F 8010h
48 F 0h Reserved
49 F 2F00h Capabilities
50 F 4000h Capabilities
51-52 X 0h Obsolete
53 F 0007h Words 88 and 70:64 valid
54 X 3FFFh
55 X 0010h Obsolete - Number of logical heads (16)
56 X 003Fh
57-58 X 00FBFC10h Obsolete
59 F 0101h
60-62 125,045,424
F
63
(64GB)
7:0 – Maximum number of sectors transferred
per interrupt on multiple commands
Obsolete - Number of logical cylinders
(16,383)
Obsolete - Number of logical sectors per
logical track (63)
Number of sectors transferred per interrupt
on multiple commands
Total number of user addressable sectors
Specification 17
F=Fixed
Word Default Value Description
64 F 0007h Multi-word DMA modes supported/selected
65 F 0003h PIO modes supported
66 F 0078h
67 F 0078h
68 F 0078h
69-70 F 0078h
71-74 F 0h
75 F 0h
76 F 001Eh Queue depth
V=Variable
X=Both
Minimum multiword DMA transfer cycle time
per word
Manufacture’s recommended multiword
DMA transfer cycle time
Minimum PIO transfer cycle time without flow
control
Minimum PIO transfer cycle time with IORDY
flow control
Reserved (for future command overlap and
queuing)
Reserved for the IDENTIFY packet DEVICE
command
77 F 0106h Serial ATA capabilities
78 F 0h Reserved for future Serial ATA definition
79 F 0048h Serial ATA features supported
80 V 0040h Serial ATA features enabled
81 F 00FCh Major Version Number
82 F 001Ah Minor Version Number
83 F 746Bh Command set supported
84 F 7C01h Command sets supported
85 F 6123h Command set /feature supported extension
86 V 7469h Command set /feature enabled
87 V BC01h Command set /feature enabled
88 V 6123h Command set /feature default
89 V 407Fh Ultra DMA modes
90 F 0001h
91 F 0001h
92 V 0h Current advanced power management value
Time required for security erase unit
completion
Time required for enhanced security erase
completion
93 V 0FFFEh Master Password Revision Code
Hardware reset result. The contents of bits
94 F 0h
(12:0) of this word shall change only during
the execution of a hardware reset.
18 Specification
F=Fixed
Word Default Value Description
95 V 0h
96 F 0h Stream Minimum Request Size
97 V 0h Streaming Transfer Time - DMA
98-99 V 0h Streaming Access Latency - DMA and PIO
100-103 F 0h Streaming Performance Granularity
V=Variable
X=Both
Vendor’s recommended and actual acoustic
management value
104 125,045,424
V
105
106 V 0h Streaming Transfer Time - PIO
107 F 0h Reserved
108-111 F 4000h Physical sector size/logical sector size
112-115 F 0h
116 F varies Unique ID
117-118 F 0h
119 V 0h Reserved for technical report
120 F 0h Words per logical sector
121-126 F 401Ch Supported settings
127 F 401Ch Command set/feature enabled/Supported
128 F 0h Reserved
129-159 F 0h
160 V 0021h Security status
(64GB)
Maximum user LBA for 48-bit Address feature
set
Inter-seek delay for ISO-7779 acoustic testing
in microseconds
Reserved for word wide name extension to
128 bits
Removable Media Status Notification feature
set support
161-175 X 0h Vendor specific
176-205 F 0h
206-216 X 0h Reserved for assignment by the CFA
217 V 0h Current media serial number
218-221 F 0h Reserved
222 F 0001h Non-rotating media device
223-233 F 0h Reserved
234 F 101F Reserved
Compact Flash Association (CFA) power mode
1
Specification 19
F=Fixed
Word Default Value Description
235 F 0h Reserved
236-254 0001h Reserved
255 02A0h Reserved
236-254 F 0h Reserved
255 X varies Integrity word (checksum and signature)
Notes:
1. F=Fixed. The content of the word is fixed and does not change for removable media devices,
V=Variable
X=Both
Table 15: Returned Sector Data
these values may change when media is Removed or changed.
2. V=Variable. The state of at least one bit in a word is variable and may change depending on
the state of the device or the commands executed by the device.
3. X=F or V. The content of the word may be fixed or variable.
3.2 Power Management Command Set
The ASD26-HA2 series 2.5" SATA 3 Gb/s SSD supports the power management command set, which
consists of
．CHECK POWER MODE
．IDLE
．IDLE IMMEDIATE
．SLEEP
．STANDBY
．STANDBY IMMEDIATE
20 Specification
3.3 Security Mode Feature Set
The ASD26-HA2 series 2.5" SATA 3 Gb/s SSD supports the Security Mode command set, which consist of
．SECURITY SET PASSWORD
．SECURITY UNLOCK
．SECURITY ERASE PREPARE
．SECURITY ERASE UNIT
．SECURITY FREEZE LOCK
．SECURITY DISABLE PASSWORD
3.4 SMART Command Set
The ASD26-HA2 series 2.5" SATA SSD supports the SMART command set, which consist of
．SMART ENABLE OPERATIONS
．SMART DISABLE OPERATIONS
．SMART ENABLE/DISABLE AUTOSAVE
．SMART RETURN STATUS
The ASD26-HA2 series 2.5" SATA 3 Gb/s SSD supports the the following optional commands.
．SMART EXECUTE OFF-LINE IMMEDIATE
．SMART READ DATA
．SMART READ LOG
．SMART WRITE LOG
The table below lists the SMART commands.
Specification 21
Subcommand Code LBA Low value
SMART ATTRIBUTE VALUES (READ DATA) D0h
READ ATTRIBUTE THRESHOLDS D1h
ENABLE/DISABLE ATTRIBUTE AUTOSAVE D2h
SAVE ATTRIBUTE VALUES D3h
EXECUTE OFF-LINE IMMEDIATE D4h
EXECUTE SMART OFF-LINE ROUTINE
EXECUTE SMART SHORT SELF-TEST ROUTINE (OFFLINE)
EXECUTE SMART EXTENDED SELF-TEST ROUTINE (OFFLINE)
ABORT OFF-LINE ROUTINE
EXECUTE SMART SHORT SELF-TEST ROUTINE (CAPTIVE)
EXECUTE SMART EXTENDED SELF-TEST ROUTINE (CAPTIVE)
READ LOG SECTOR D5h
WRITE LOG SECTOR D6h
ENABLE SMART OPERATIONS D8h
DISABLE SMART OPERATIONS D9h
RETURN SMART STATUS DAh
00h
01h
02h
7Fh
81h
82h
Table 16: SMART commands
3.5 Host Protected Area Command Set
The ASD26-HA2 series 2.5" SATA 3 Gb/s SSD supports the Host Protected Area command set which consists
of
．READ NATIVE MAX ADDRESS
．SET MAX ADDRESS
．READ NATIVE MAX ADDRESS EXT
．SET MAX ADDRESS EXT
The ASD26-HA2 series 2.5" SATA 3 Gb/s SSD supports the following optional commands.
．SET MAX SET PASSWORD
．SET MAX LOCK
．SET MAX FREEZE LOCK
．SET MAX UNLOCK
22 Specification
3.6 48-Bit Address Command Set
The ASD26-HA2 series 2.5" SATA 3 Gb/s SSD supports the Host Protected Area command set, which
consists of
．READ NATIVE MAX ADDRESS
．FLUSH CACHE EXT
．READ DMA EXT
．READ NATIVE MAX ADDRESS EXT
．READ SECTOR(S) EXT
．READ VERIFY SECTOR(S) EXT
．SET MAX ADDRESS EXT
．WRITE DMA EXT
．WRITE MULTIPLE EXT
．WRITE SECTOR(S) EXT
3.7 Device Configuration Overlay Command Set
The ASD26-HA2 series 2.5" SATA 3 Gb/s SSD supports the Device configuration Overlay command set,
which consists of
．DEVICE CONFIGURATION FREEZE LOCK
．DEVICE CONFIGURATION IDENTITY
．DEVICE CONFIGURATION RESTORE
．DEVICE CONFIGURATION SET
3.8 General Purpose log Command Set
The ASD26-HA2 series 2.5" SATA 3 Gb/s SSD supports the general purpose log command set, which
consists of
．READ LOG EXT
．WRITE LOG EXT
Specification 23
4 SATA Command Sets
4.1 SATA Command
The SATA 3.0 Specification is a super set of the ATA/ATAPI-8 specification with regard to supported
commands. The ASD26-HA2 series 2.5" SATA 6.0 Gb/s SSD supports the following features which are
unique to the SATA 3.0 Specification.
4.1.1. Software Settings Preservation
The ASD26-HA2 series 2.5" SATA 3 Gb/s SSD supports the SET FEATURES parameter to enable/disable the
preservation of software settings.
4.1.2. Native Command Queuing
The ASD26-HA2 series 2.5" SATA 3 Gb/s SSD supports the Native Command Queuing (NCQ) command set,
which includes.
．READ FPDMA QUEUED
．WRITE FPDMA QUEUED
Note: with a maximum queue depth equal to 31
24 Specification
5 References
This document references standards defined by a variety of organizations as listed below.
Date Title Location
Dec 2008 VCCI
July 2007 ROHS
July 2007 SFF-8144, 1.8” drive form factor http://www.sffcommittee.org
February 2007 Serial ATA Revision 2.6 http://www.sata-io.org
http://www.vcci.or.jp/vcci_e/general/jo
Search for material description
datasheet at http://intel.pcnalert.com
in/index.html
May 2006
May 2005 SFF-8201, 2.5” drive form factor http://www.sffcommittee.org
April 2004 ATA-7 Spec. Volume 1 http://www.t13.org/
Aug. 2009 ATA-8 Spec. Rev 2 http://www.t13.org/
1995
1996
1995
1995
1997
1994
1995
SFF-8223, 2.5” Drive w/Serial Attachment
Connector
International Electro Technical Commission
EB61000
4-2 Personnel Electrostatic Discharge Immunity
4-3 Electromagnetic compatibility (EMC)
4-4 Electromagnetic compatibility (EMC)
4-5 Electromagnetic compatibility (EMC)
4-6Electromagnetic compatibility (EMC)
4-11 (Voltage variations)
ENV 50204 (Radiated electromagnetic field
from digital radio telephones)
Table 17: Standards References
http://www.sffcommittee.org
http://www.iec.ch
http://www.iec.ch
Specification 25
6 Getting Service
Contact us should you require any service or assistance.
ADLINK Technology, Inc.
Address: 9F, No.166 Jian Yi Road, Zhonghe District
New Taipei City 235, Taiwan
新北市中和區建一路 166 號 9 樓
Tel: +886-2-8226-5877
Fax: +886-2-8226-5717
Email: service@adlinktech.com
Ampro ADLINK Technology, Inc.
Address: 5215 Hellyer Avenue, #110, San Jose, CA 95138, USA
Tel: +1-408-360-0200
Toll Free: +1-800-966-5200 (USA only)
Fax: +1-408-360-0222
Email: info@adlinktech.com
ADLINK Technology (China) Co., Ltd.
Address: 上海市浦东新区张江高科技园区芳春路 300 号 (201203)
300 Fang Chun Rd., Zhangjiang Hi-Tech Park,
Pudong New Area, Shanghai, 201203 China
Tel: +86-21-5132-8988
Fax: +86-21-5132-3588
Email: market@adlinktech.com
ADLINK Technology Beijing
Address: 北京市海淀区上地东路 1 号盈创动力大厦 E 座 801 室(100085)
Rm. 801, Power Creative E, No. 1, B/D
Shang Di East Rd., Beijing, 100085 China
Tel: +86-10-5885-8666
Fax: +86-10-5885-8625
Email: market@adlinktech.com
ADLINK Technology Shenzhen
Address: 深圳市南山区科技园南区高新南七道 数字技术园 A1栋 2 楼 C 区 (518057)
2F, C Block, Bldg. A1, Cyber-Tech Zone, Gao Xin Ave. Sec. 7,
High-Tech Industrial Park S., Shenzhen, 518054 China
Tel: +86-755-2643-4858
Fax: +86-755-2664-6353
Email: market@adlinktech.com
26 Specification
LiPPERT ADLINK Technology GmbH
Address: Hans-Thoma-Strasse 11, D-68163, Mannheim, Germany
Tel: +49-621-43214-0
Fax: +49-621 43214-30
Email: emea@adlinktech.com
ADLINK Technology, Inc. (French Liaison Office)
Address: 15 rue Emile Baudot, 91300 Massy CEDEX, France
Tel: +33 (0) 1 60 12 35 66
Fax: +33 (0) 1 60 12 35 66
Email: france@adlinktech.com
ADLINK Technology Japan Corporation
Address: 〒101-0045 東京都千代田区神田鍛冶町 3-7-4
神田 374 ビル 4F
KANDA374 Bldg. 4F, 3-7-4 Kanda Kajicho,
Chiyoda-ku, Tokyo 101-0045, Japan
Tel: +81-3-4455-3722
Fax: +81-3-5209-6013
Email: japan@adlinktech.com
ADLINK Technology, Inc. (Korean Liaison Office)
Address:
서울시 서초구 서초동 1675-12 모인터빌딩 8 층
8F Mointer B/D,1675-12, Seocho-Dong, Seocho-Gu,
Seoul 137-070, Korea
Tel: +82-2-2057-0565
Fax: +82-2-2057-0563
Email: korea@adlinktech.com
ADLINK Technology Singapore Pte. Ltd.
Address: 84 Genting Lane #07-02A, Cityneon Design Centre,
Singapore 349584
Tel: +65-6844-2261
Fax: +65-6844-2263
Email: singapore@adlinktech.com
ADLINK Technology Singapore Pte. Ltd. (Indian Liaison Office)
Address: 1st Floor, #50-56 (Between 16th/17th Cross) Margosa Plaza,
Margosa Main Road, Malleswaram, Bangalore-560055, India
Tel: +91-80-65605817, +91-80-42246107
Fax: +91-80-23464606
E mail: india@adlinktech.com
Specification 27
Loading...
