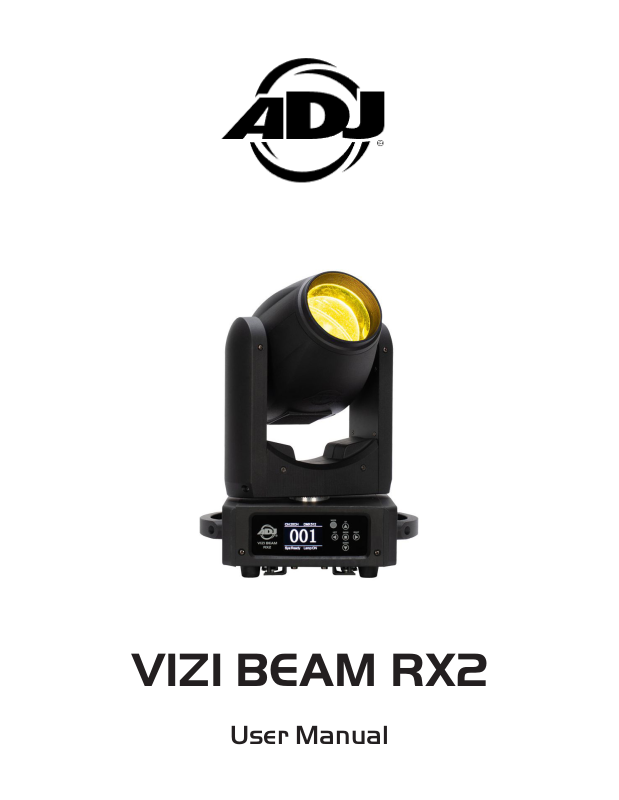

American DJ VIZI BEAM RX2 User guide

VIZI BEAM RX2

User Manual

©2024 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and

instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod­uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed
includes all forms and matters of copyrightable materials and information now allowed by statutory or
judicial law or hereinafter granted. Product names used in this document may be trademarks or regis­tered trademarks of their respective companies and are hereby acknowledged. All non-ADJ Products,
LLC brands and product names are trademarks or registered trademarks of their respective compa­nies.

ADJ Products, LLC and all afliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insufcient and negligent assembly, installation, rigging, and opera­tion of this product.

Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn off all electrical products
when they are not in use. To avoid power consumption in idle mode, disconnect all electrical equip­ment from power when not in use. Thank you!

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of
this document may be available online.
Please check www.adj.com for the latest revision/update of this manual
before beginning installation and/or programming.

Date

04/24/2024 1.0 0.0.1 16 / 20 Ch Initial release

Document

Version

Software

Version

DMX Channels Notes

2

CONTENTS

Introduction 4
Limited Warranty (USA Only) 5
Warranty Registration | Features 6
Safety Precautions 7
Overview 9
Lamp Warnings 10
Lamp Replacement 12
Color and Gobos 13
Installation 14
Remote Device Management (RDM) 18
Control Panel 19
System Menu 20
DMX Set Up 23
DMX Traits 25
Primary-Secondary Set Up | Multi Unit Power Linking 31
Maintenance Guidelines 32
Error Codes 33
Dimensional Drawings 34
Specifications 35

3

INTRODUCTION

Unpacking: Thank you for purchasing the Vizi Beam RX2 by ADJ Products, LLC. Every device has
been thoroughly tested and has been shipped in perfect operating condition. Carefully check the ship­ping carton for damage that may have occurred during shipping. If the carton appears to have been
damaged, carefully inspect your xture for any damage and be sure all accessories necessary to oper­ate the unit have arrived intact. In the event that damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Do not return this unit to your

dealer without rst contacting customer support.

Introduction: The ADJ Lighting Vizi Beam RX2 is a compact, high-performance moving head beam

xture that features a 100W Osram Sirius HRI discharge lamp, a razor-sharp 2-degree beam, two prism

effects, and a host of high-performance features for the modern lighting professional. This product is
intended to be used by professionally trained personnel only and is not suitable for private use.

Customer Support: Contact ADJ Service for any product related service and support needs. Also visit

forums.adj.com with questions, comments or suggestions.

Parts: To purchase parts online visit:

http://parts.adj.com (US)
http://www.adjparts.eu (EU)

ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: [phone] | [email protected]

ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: [phone] | Fax: [phone] | [email protected]

ADJ PRODUCTS LLC USA

6122 S. Eastern Ave. Los Angeles, CA. 90040

323-582-2650 | Fax [phone] | www.adj.com | [email protected]

ADJ SUPPLY Europe B.V

Junostraat 2 6468 EW Kerkrade, The Netherlands
[phone] | Fax [phone]

www.adj.eu | [email protected]

ADJ PRODUCTS GROUP Mexico

AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000

[phone]

For software updates, please contact ADJ service!

Warning! This unit is intended for indoor use only! Do not expose to rain or moisture!

CAUTION! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,

as doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service,

please contact ADJ Products, LLC.

Do not discard the shipping cartoon in the trash. Please recycle when ever possible.

4

LIMITED WARRANTY (USA ONLY)

A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of

manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see

specic warranty period on reverse). This warranty shall be valid only if the product is purchased within the
United States of America, including possessions and territories. It is the owner’s responsibility to establish

the date and place of purchase by acceptable evidence, at the time service is sought.

B. For warranty service, you must obtain a Return Authorization number (RA#) before sending the product

back—please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to
the ADJ Products, LLC factory. All shipping charges must be prepaid. If the requested repairs or service
(including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return ship­ping charges only to a designated point within the United States. If the entire instrument is sent, it must be
shipped in its original package and packaging material. No accessories should be shipped with the product.
If any accessories are shipped with the product, ADJ Products, LLC shall incur no liability whatsoever for
loss of or damage to any such accessories, nor for the safe return thereof.

C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is

modied in any manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the

product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory
unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is dam­aged because it was not properly maintained as set forth in the product instructions, guidelines and/or user
manual.

D. This is not a service contract, and this warranty does not include maintenance, cleaning, or periodic check-

up. During the period specied above, ADJ Products, LLC will replace defective parts at its expense with
new or refurbished parts, and will absorb all expenses for warranty service and repair labor by reason of

defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this warranty shall
be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ
Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear
identifying marks to that effect.

E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products

without any obligation to include these changes in any products theretofore manufactured.

F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with

products described above. Except to the extent prohibited by applicable law, all implied warranties made by
ADJ Products, LLC in connection with this product, including warranties of merchantability or tness, are
limited in duration to the warranty period set forth above. And all warranties, whether expressed or implied,
including warranties of merchantability or tness, are limited in duration to the warranty period set forth
above. The consumer’s and/or dealer’s sole remedy shall be such repair or replacement as is expressly

provided above; and under no circumstances shall ADJ Product, LLC be liable for any loss and/or damage,
direct and/or consequential arising out of the use of, and/or inability to use this product.

G. This warranty is the only written warranty applicable to ADJ Products, LLC products, and supersedes all

prior warranties and written descriptions of warranty terms and conditions heretofore published.

MANUFACTURER’S LIMITED WARRANTY PERIODS:

• Non-LED Lighting Products = 1-Year (365 Days) (Including Special Effect Lighting, Intelligent Lighting,
UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands,

Power/Data Distribution, etc. excluding LED and lamps)

• Laser Products = 1-Year (365 Days) (excluding laser diodes which have a 6-Month Limited Warranty)

• LED Products = 2-Year (730 Days) (excluding batteries which have a 180 Day Limited Warranty)

• NOTE: 2-Year (730 Days) Limited Warranty ONLY applies to product purchased within the United States.

StarTec Series = 1-Year (365 Days) (excluding batteries which have a 180 Day Limited Warranty)

• ADJ DMX Controllers = 2 Year (730 Days)

• American Audio Products = 1 Year (365 Days)

5

WARRANTY REGISTRATION

Please fill out the enclosed warranty card to validate your purchase. All returned service items,
whether under warranty or not, must be freight pre-paid and accompanied by a return authorization
(R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief
description of the problem as well as the R.A. number must also be written down on a piece of paper
included in the shipping carton. If the unit is under warranty, you must provide a copy of your proof of
purchase invoice. You may obtain an R.A. number by contacting our customer support team. All pack­ages returned to the service department not displaying an R.A. number on the outside of the package
will be returned to the shipper.

FEATURES

• On-Board Wireless DMX

• Motorized Focus + 16-bit fine focus

• 2-degree beam angle

• Frost Filter to create wash effect

• High quality glass lens

• 2 Rotating prisms

• 0-100% smooth dimming

• Various strobe speeds

• OTA, wireless, firmware updates

• Fan cooled

INCLUDED ITEMS

• Omega Brackets (x2)

• Outdoor Locking Power Cord (x1)

6

SAFETY PRECAUTIONS

RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION!

FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV
COLOR FILTER.

WEAR PROPER EYE AND SKIN PROTECTION. AVOID PROLONGED PERIODS OF EXPOSURE
TO UV COLOR FILTER.

AVOID WEARING WHITE COLOR CLOTHING AND/OR USING UV PAINTS ON SKIN. AVOID
DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES LESS THAN 11 feet (3.3m).

DO NOT OPERATE FIXTURE WITH DAMAGED/MISSING EXTERNAL COVERS.

DO NOT LOOK DIRECTLY INTO THE UV LIGHT AND/OR VIEW UV LIGHT DIRECTLY WITH
OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION OUTPUT.

INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE
DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY EXPERIENCE
DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET UV LIGHT EMITTED FROM THE UV LED.

7

SAFETY PRECAUTIONS

PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.

THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT

ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S

WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE
AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS

MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO

ANY WARRANTY CLAIMS AND/OR REPAIRS.

NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

• Ambient operating temperature is 32°F to 104°F (0°C to 40°C)!

• DO NOT TOUCH the fixture housing during operation. Disconnect the power and allow approxi­mately 15 minutes for the fixture to cool down before servicing.

• DO NOT shake the fixture, and avoid brute force when installing and/or operating the fixture.

• DO NOT operate the fixture if the power cord has become frayed, crimped and/or damaged. If the
power cord is damaged, replace immediately with a new one of the same power rating.

• DO NOT attempt to remove or break off the ground prong from the electrical cord. This prong is
used to reduce the risk of electrical shock and fire in case of an internal short.

• DO NOT attempt to operate this unit if it has been damaged in any way.

• Disconnect from main power before making any type of connection.

• DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked.

Allow approx. 6” (15cm) between fixture and other devices or a wall for proper cooling.

• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall.

• This device is intended for indoor use only! Outdoors usage voids all manufacturer’s warranties.

• DO NOT remove the cover for any reason.

• When installing fixture in a suspended enviroment, always use mounting hardware that is no less

than M10 x 25mm, and always install fixture with an appropriately rated safety cable.

• Never plug this unit in to a dimmer pack.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched by

items placed upon or against them, paying particular attention to the point where they exit from the

unit.

• Cleaning - The fixture should be cleaned only as recommended by the manufacturer.

• Heat - The appliance should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug have been damaged.
B. Objects have fallen onto, or liquids have been spilled into, the fixture.
C. The fixture does not appear to operate normally or exhibits a marked change in performance.
D. The fixture has fallen and/or has been subjected to extreme handling.

8

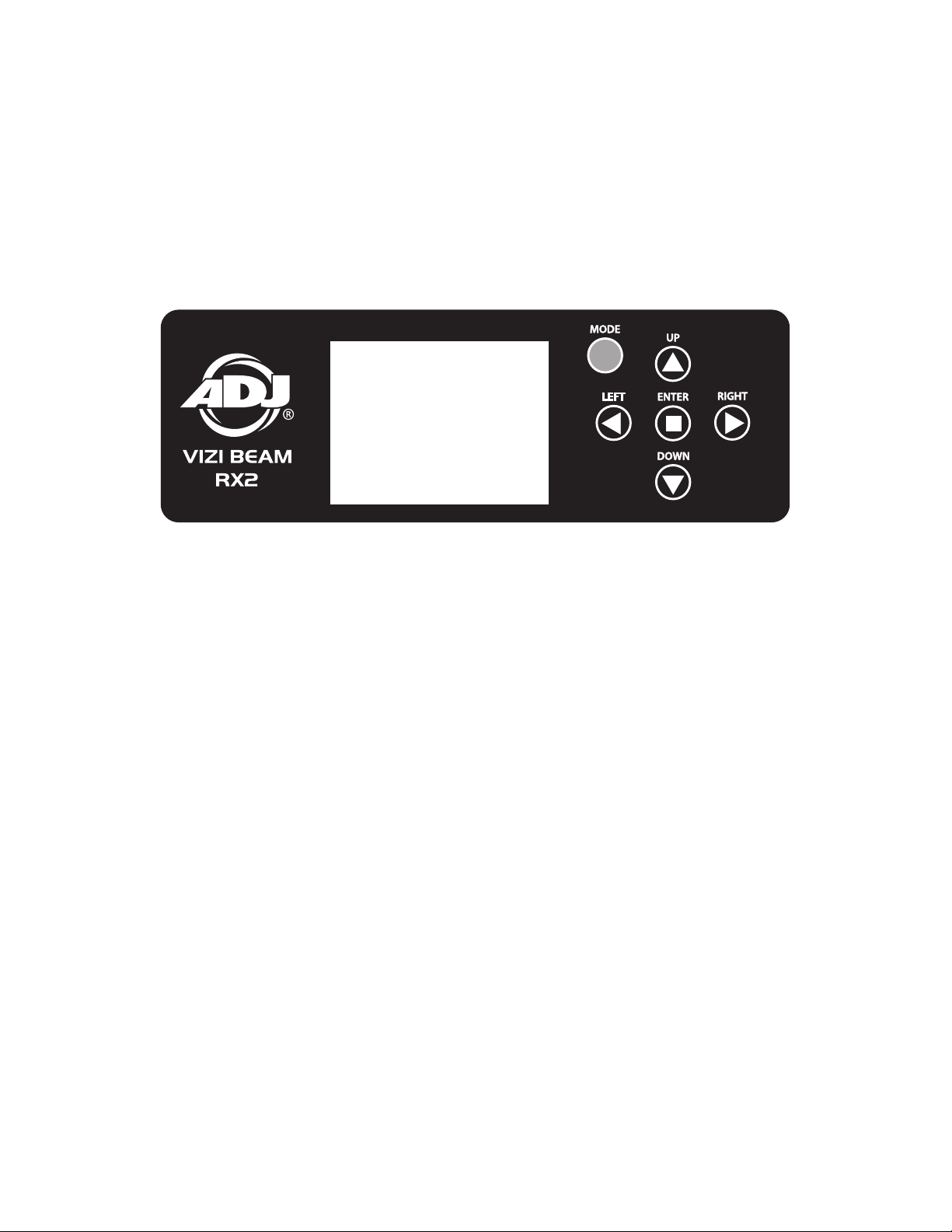

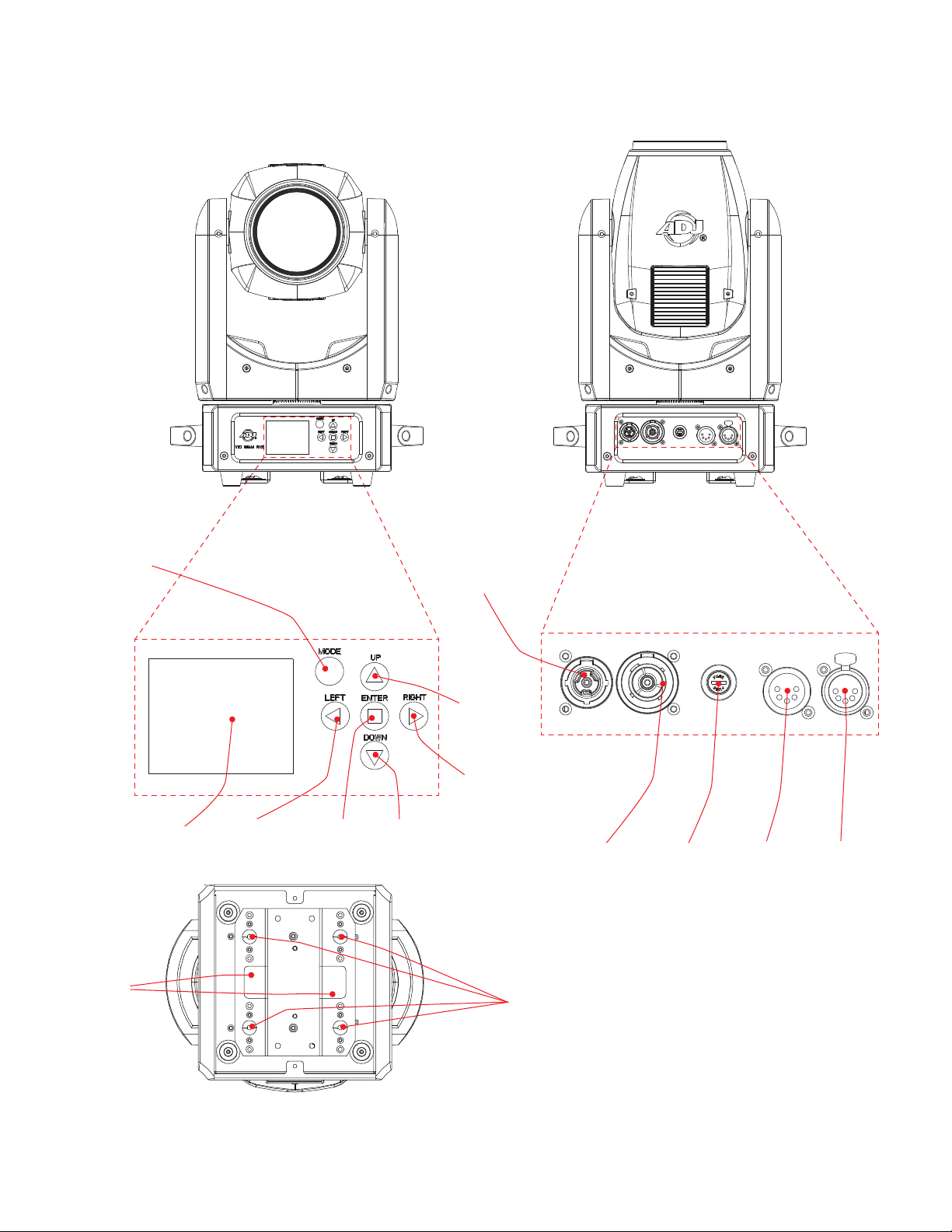

OVERVIEW

Mode

Button

Safety

Cable

Slots

Display

Screen

Left

Button

Enter

Button

Down

Button

Power

In

Up

Button

Right

Button

Omega

Bracket

Mounting

Holes

Power

Out

Fuse

T5A

DMX

In

DMX

Out

9

LAMP WARNINGS

This xture is tted with a discharge lamp which is highly susceptible to damage if
improperly handled. NEVER touch the lamp with your bare ngers, as the oil from
your hands will shorten lamp life. Also, never move the xture until the lamps have
had ample time to cool. Avoid switching the xture ON and OFF repeatedly in short

intervals, as this will reduce lamp life and intensity. To achieve the intensity associ­ated with discharge lamps, these lamps use gas sealed in a high-pressure environ­ment to emit a brilliant output.

Due to the high pressure involved with the construction of the lamp, IT MAY EXPLODE DUR-
ING PROLONGED EXTENSIVE USE. This risk is increased with age; added care is encouraged
when dealing with older lamps. Thus, the lamp must always be replaced at the end of their recom-

mended duty cycle. Extreme caution should be used when operating this or any xture tted with a

gas discharge lamp.

UV RADIATION NOTICE

THIS FIXTURE EMITS INTENSE UV RADIATION, WHICH IS HARMFUL TO THE EYES
AND SKIN. THE INTENSE LUMINESCENCE OF THE LAMP CAN CAUSE SEVERE
DAMAGE TO THE RETINA. NEVER OPERATE THIS FIXTURE WITH ANY OF THE
PROTECTIVE COVERS REMOVED. THESE COVERS HAVE BEEN SPECIALLY
DESIGNED TO SHIELD AGAINST UV RADIATION.

LAMP REPLACEMENT

USE ONLY GENUINE ORIGINAL OSRAM™ LAMPS. OTHER BRAND LAMPS WILL
CAUSE DAMAGE AND WILL VOID FIXTURE WARRANTY!

DISCONNECT THE MAIN POWER SUPPLY BEFORE REPLACING LAMP! FIXTURE
MUST COOL FOR 15 minutes BEFORE REPLACING LAMP! NEVER TOUCH LAMP
WITH BARE HANDS, ALWAYS WEAR GLOVES! OIL FROM HANDS WILL SHORTEN
LIFE OF LAMP!

MAKE SURE ALL COVERS/FIXTURES ARE REPLACED/SECURED BEFORE
OPERATING FIXTURE TO PREVENT ANY RISK AND/OR DAMAGE TO EYE RETINA
FROM UV RADIATION EXPOSURE!

10

LAMP WARNINGS

LAMP REPLACEMENT WARNING:
This is for your safety and the life length of the unit. The Osram® Sirius HRI Discharge lamp
has lifetime of 6000 hours.

ADJ recommends periodically checking the lamp running time (see the “Lamp Time” sub-section of

the System Menu section of this manual). When the lamp approaches or reaches the 6000 hour
mark, the lamp should be removed and replaced with a fresh unit.

Replace the lamp following the instructions shown in the Lamp Replacement section of this manual.

After replaceing the lamp you must clear the LAMP TIME (see the “Lamp Time” sub-section of the

System Menu section of this manual).

Warning: DO NOT use this lamp for more then 6000 hours. Using the lamp any longer then the
set life could seriously damage your unit.

WARNING! CAUTION! FIRE HAZARD! DUE TO THE EXTREME HEAT CAUSED BY THIS LAMP,
THE MINIMUM DISTANCE TO LIGHTED OBJECTS IS 12 METERS (39.5FT).

11

LAMP REPLACEMENT

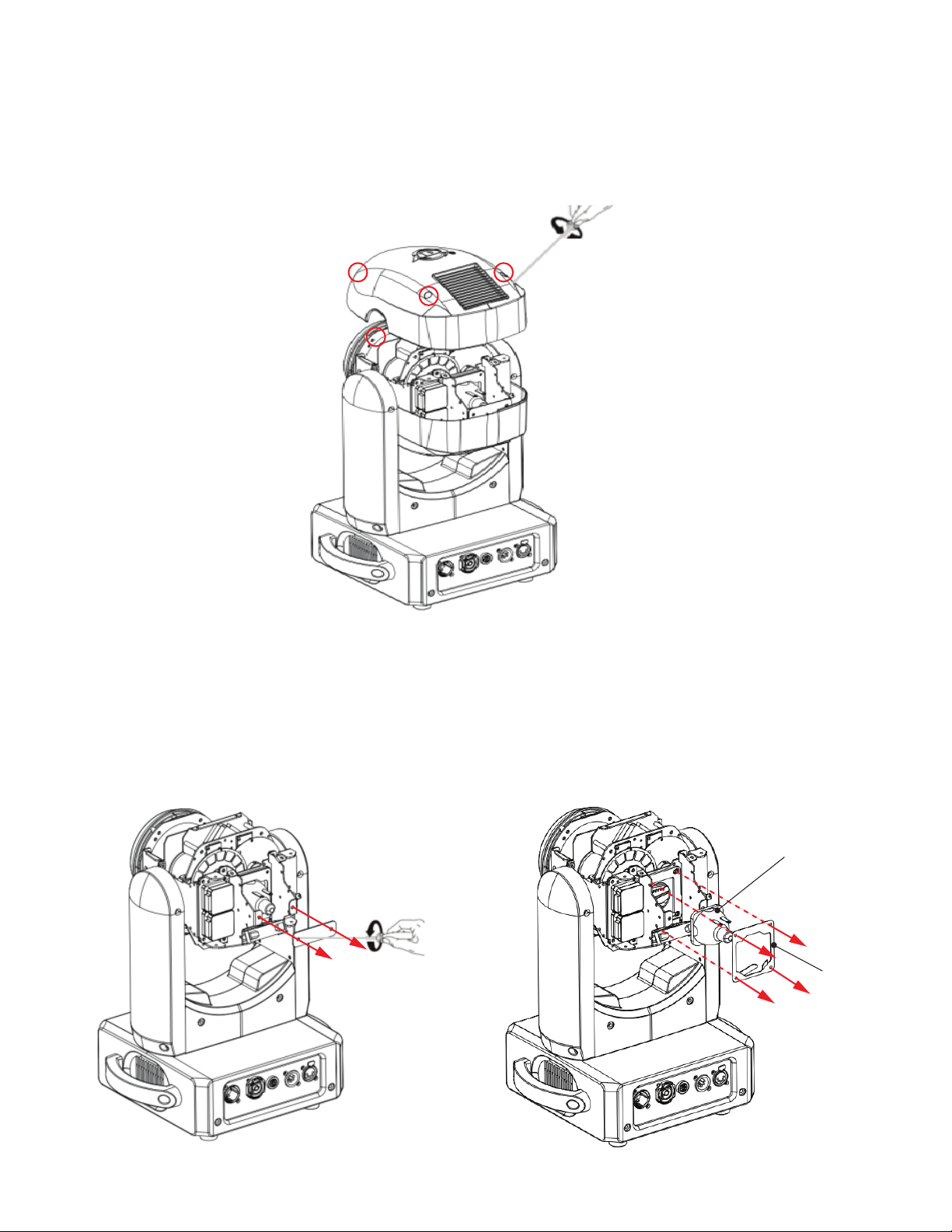

Follow the steps below to replace the Osram Sirius HRI discharge lamp.

1. Power down the xture and disconnect from the power source. Allow at least 15 minutes for the
xture to cool, and make sure all components are cool enough to handle before beginning this

procedure. Loosen the four (4) screws on each half of the head casing, and remove both halves of
the casing.

2. Loosen the two (2) screws on the lamp pro­tector plate located directly behind the lamp,
then remove the protector plate.

3. Loosen the four (4) screws on the lamp x­ing plate, then remove the plate. Remove the
lamp from its socket, disconnect the lamp, and
replace with a fresh unit. Re-assemble the unit
by reversing these steps.

Lamp

Fixing

Plate

12

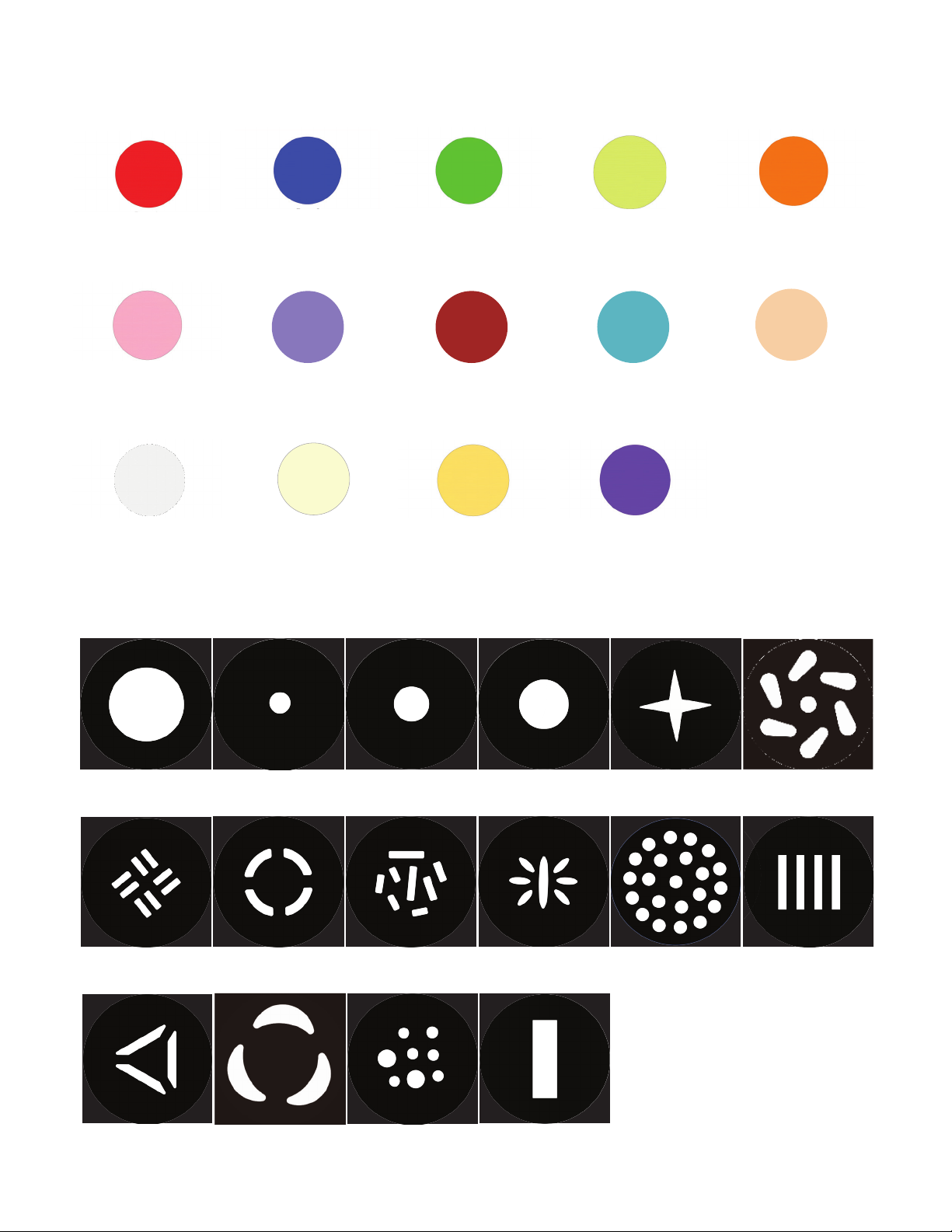

COLORS AND GOBOS

COLORS

Position 1

Position 6

Position 11

CTB 9000K

GOBOS

Red

Pink

Position 2

Blue

Position 7

Lavender

Position 12

4500K

Position 3

Green

Position 8

Medium Red

Position 13

CTO 3200K

Position 4

Lime

Position 9

Aqua

Position 14

UV

Position 5

Orange

Position 10

Amber

Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6

Gobo 7 Gobo 8 Gobo 9 Gobo 10 Gobo 11 Gobo 12

Gobo 13 Gobo 14 Gobo 15 Gobo 16

13

INSTALLATION

DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!

Fixture MUST be installed following all local, national, and country commercial electrical and construc­tion codes and regulations.

When installing the unit, the trussing or area of installation must be able to hold 10 times the weight of

the unit and any attached accessories without any deformation. The unit must be secured with a sec­ondary safety attachment, e.g. an appropriately-rated safety cable.

Before rigging/mounting a single fixture to any metal truss/structure or placing the fixture(s) on any

surface, a professional equipment installer MUST be consulted to determine if the metal truss/structure

or surface is properly certified to safely hold the combined weight of the fixture(s), clamps, cables, and

accessories.

Ambient operating temperature is range -32°F to 104°F (0°C to 40°C). Do not operate this device
when ambient temperature falls outside of this range.

Fixture(s) should be installed away from walking paths, seating areas, or areas where unauthorized
personnel might reach the fixture by hand.

NEVER stand directly below the fixture(s) when rigging, removing, or servicing.

Overhead fixture installation must always be secured with a secondary safety attachment, such as an
appropriately rated safety cable that can hold 10 times the weight of the fixture.

Overhead mounting requires extensive experience, including calculating working load limits, knowl-

edge of installation material being used, and perodic safety inspection of all installation material as
well as the unit itself. If you lack these qualifications, do not attempt the installation yourself.

The installation should be checked by a skilled person once a year.

14

INSTALLATION

CLAMP MOUNTING

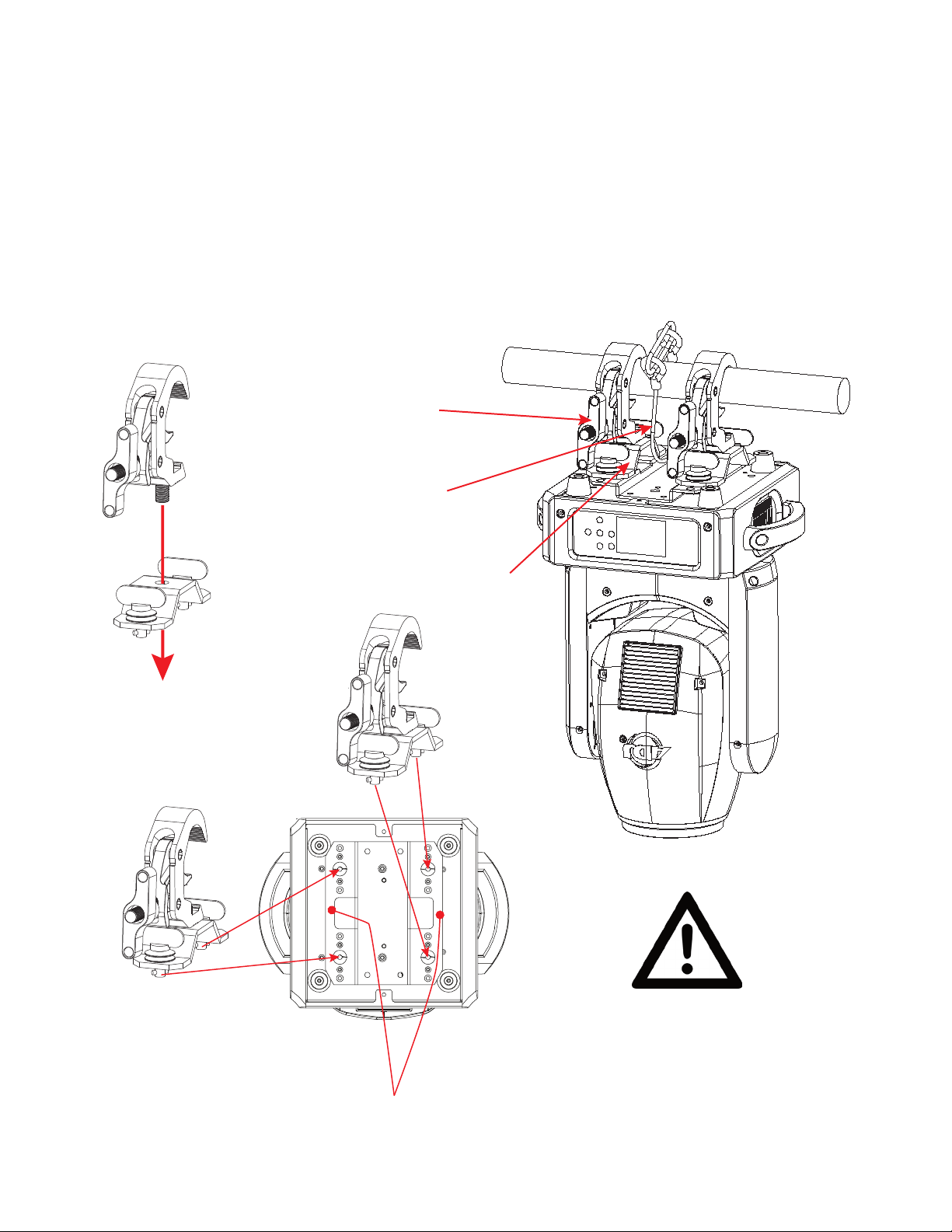

This fixture features mounting holes on the underside for the attachment of Omega clamps. When
mounting the fixture to a truss or any other suspended structure, be sure to secure an appropriate
rated clamp (not included) to each Omega bracket. Insert a bolt of appropriate size through the bot-

tom of the mounting clamp and the central hole on the mounting bracket, and secure them together

with a matching nut. Then insert the twist lock fasteners of the Omega bracket into the mounting
holes on the fixture, and twist to secure in place. Please note that two mounting clamps and two

Omega brackets are required to securely install this unit. Additionally, a safety cable of the appro­priate weight rating should be secured to at least one of the two available locations on the underside

of the fixture base.

MOUNTING

CLAMP

SAFETY

CABLE

OMEGA

BRACKET

Safety Cable

Attachment Points

SAFETY CABLE:

ALWAYS ATTACH A SAFETY CABLE

WHENEVER INSTALLING THIS FIXTURE

IN A SUSPENDED ENVIRONMENT TO

ENSURE THAT THE FIXTURE WILL NOT

FALL IF THE CLAMP FAILS.

15

INSTALLATION

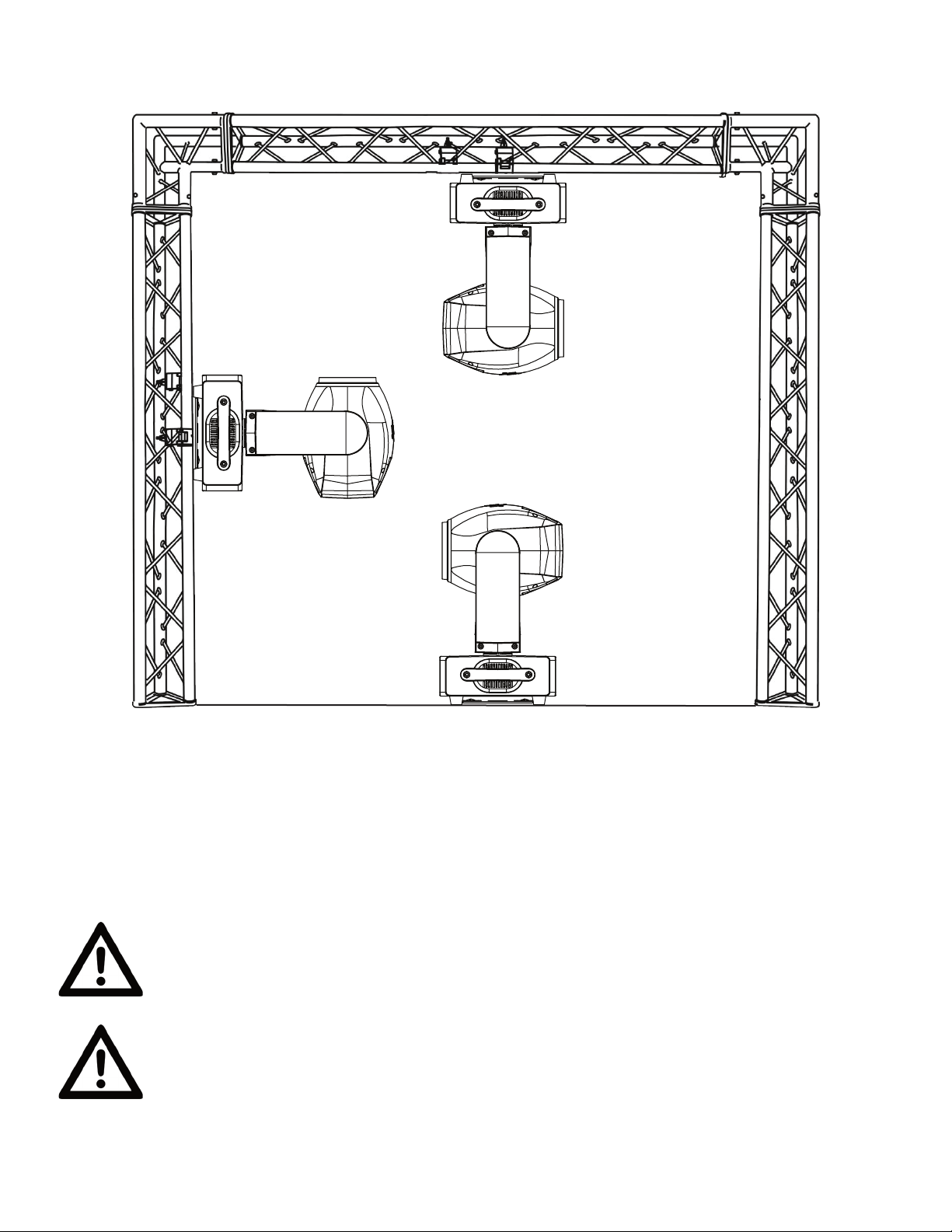

The unit is fully operational in three different mounting positions: hanging upside-down from the ceil-

ing or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least

12m (40ft) away from any flammable materials (decorations, etc). Always use and install a safety
cable (not included) as a safety measure to prevent accidental damage and/or injury in the event the
clamp fails. Never use the carrying handles for secondary attachment.

FALLING FIXTURES CAN CAUSE SEVERE INJURY OR SERIOUS EQUIPMENT
DAMAGE! FOR THIS REASON, FIXTURES SHOULD BE INSTALLED AND INSPECTED
ONLY BY QUALIFIED PERSONNEL. DO NOT INSTALL THE UNIT IF YOU LACK THE
QUALIFICATIONS TO DO SO, OR IF YOU HAVE DOUBTS ABOUT THE SAFETY AND
SECURITY OF THE INSTALLATION SETUP OR LOCATION!

ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A
SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL NOT FALL IF
THE CLAMP FAILS.

16

INSTALLATION

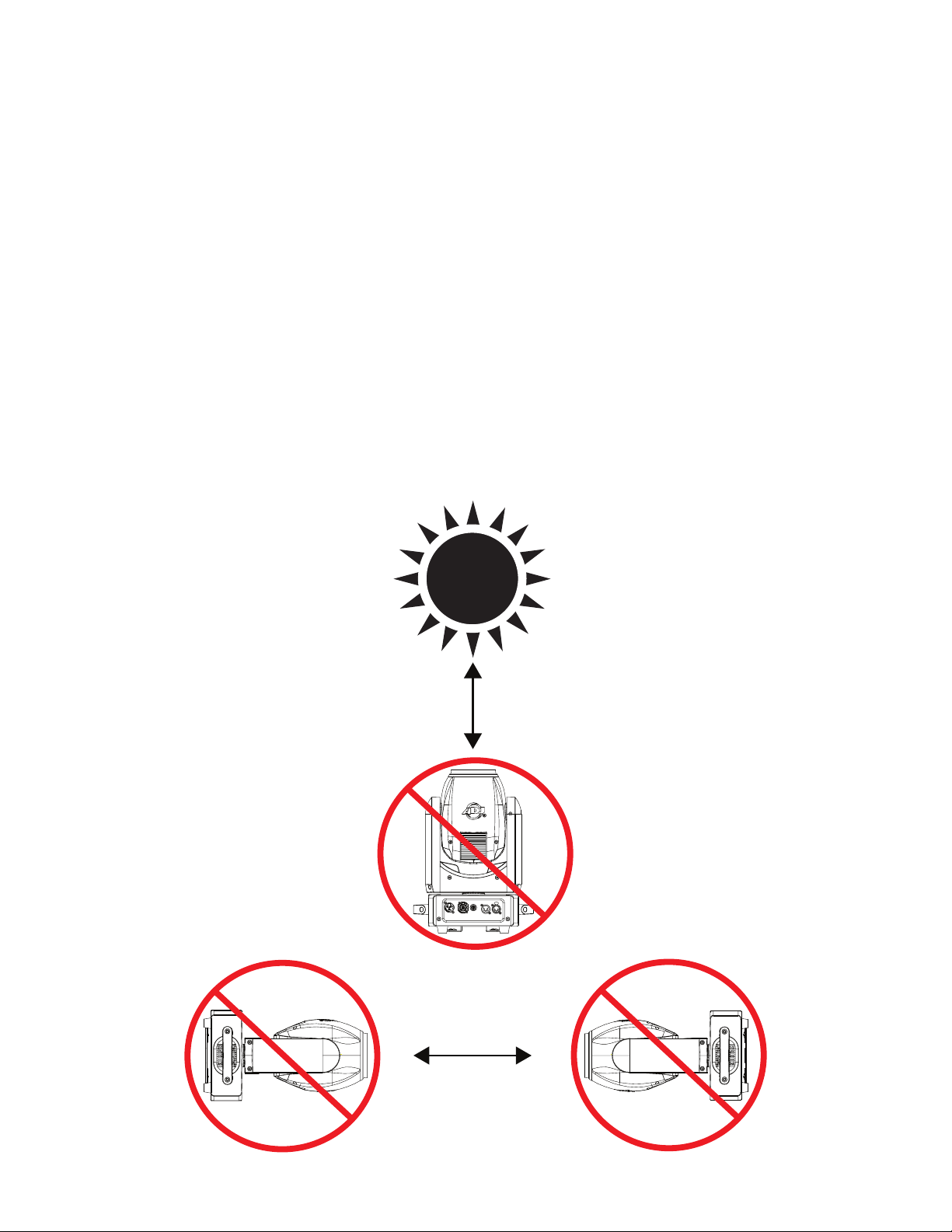

POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS

External sources of light beams from direct sunlight, lighting moving head xtures, and lasers, which
are focused directly towards the exterior housing and/or penetrate the front lens opening of ADJ lighting
xtures, can cause severe internal damage including burning to optics, dichroic color lters, glass
and metal gobos, prisms, animation wheels, frost lters, iris, shutters, motors, belts, wiring, discharge

lamps, and LEDs.

This issue is not specic only to ADJ lighting xtures, it is a common issue with lighting xtures from all

manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines
below can prevent any potential damage from occurring if followed. Contact ADJ Service for more
details.

DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM
DIRECT SUNLIGHT, OTHER LIGHTING MOVING HEAD FIXTURES, AND LASERS WHILE
UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS
A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.

17

REMOTE DEVICE MANAGEMENT (RDM)REMOTE DEVICE MANAGEMENT (RDM)

NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout
the entire system, including DMX data splitters and wireless systems.

Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for

lighting, allowing the DMX systems of the xtures to be modied and monitored remotely. This proto-

col is ideal for instances in which a unit is installed in a location that is not easily accessible.

With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled con­troller to send out a signal to devices on the wire, as well as allowing the xture to respond (known as

a GET command). The controller can then use its SET command to modify settings that would typi-

cally have to be changed or viewed directly via the unit’s display screen, including the DMX Address,

DMX Channel Mode, and Temperature Sensors.

FIXTURE RDM INFORMATION:

RDM Code Device ID Device Model ID Personality ID

0x1900

Generated
by MCU ID

0x0102

16Ch (1)
20Ch (2)

Please be aware that not all RDM devices support all RDM features, and therefore it is important
to check beforehand to ensure that the equipment that you are considering includes all of the fea­tures that you require.

Disc Unique Branch [0x0001] Manufact Label [0x0081]
Disc Mute [0x0002] Device Label [0x0082]
Disc Un Mute [0x0003] DMX Personality [0x00E0]
Supported Parameters [0x0050] DMX Personality Description [0x00E1]
Parameter Description [0x0051] Device Hours [0x0400]
Device Info [0x0060] Lamp Hours [0x0401]
Software Version Label [0x00C0] Lamp Strikes [0x0402]
DMX Start Address [0x00F0] Pan Invert [0x0600]
Identify Device [0x1000] Tilt Invert [0x0601]
Device Model Description [0x0080] Pan Tilt Swap [0x0602]

18

CONTROL PANEL

This unit features a display screen with a 4-button control pad, which can be used to easily adjust any
device settings.

Pressing the MODE button will cycle through the various Main Menu options. When the desired Main

Menu option is displayed on the screen, press the ENTER button to enter the sub-menu, then use the

UP, DOWN, LEFT, and RIGHT buttons to navigate through sub-menu options. In some cases, there

will be a second sub-menu that can be navigated in the same way.

19

SYSTEM MENU

MAIN MENU OPTIONS / VALUES

Address 001 - 512 Set DMX starting address

DMX CH Mode 16Ch / 20Ch Select DMX channel mode

Hold Last

DMX
SETTINGS

No DMX Status

Prim/Sec Mode Primary / Secondary Set unit as primary or secondary
Select Signal DMX or Aria / Aria and DMX Out Select signal source

Aria Settings

PERSONALITY

Status Settings

Reset Motors

Blackout

Manual

Aria Enable On / Off Enable or disable Aria

Set Aria
Channel

Mesh On / Off Enable or disable mesh
RDM On / Off Enable or disable RDM
Bluetooth On / Off Enable or disable Bluetooth
Repeater On / Off Enable or dsiable repeater

Starting TTL 0 - 7 Set starting TTL

Rsequence 000 - 255 Set R Sequence

Repeater Count 000 - 255 Set repeater count
Severity On / Off Enable or disable severity

Sub-GHz

Channel
Is Primary On / Off Set as Aria primary

Pan Invert On / Off Enable or disable pan inversion

Tilt Invert On / Off Enable or disable tilt inversion

P/T Feedback On / Off Enable or disable pan/tilt feedback

P/T Speed

Hibernation

Reset All Motors Yes / No
Pan/Tilt Reset Yes / No
Color Reset Yes / No
Gobo Reset Yes / No
Frost Reset Yes / No
Prism Reset Yes / No

0 - 14 Select Aria channel

0 - 9 Set sub-GHz channel

Speed 1

Speed 2

Off, 01min - 99

min, default =

15min

Unit holds last settings received if
DMX signal is lost or interrupted

Unit takes all channels to 0 if DMX
signal is lost or interrupted

Unit defaults to pre-selected
manual mode if DMX signal is lost
or interrupted

Select pan/tilt movement speed

The unit goes into standby mode
after the selected period without
DMX signal

Reset the selected motor(s)

20

SYSTEM MENU

MAIN MENU OPTIONS / VALUES

Intensity 1 - 10 Adjust display brightness

Auto

Display Invert

Screen Saver
Delay

Effects Adjust

Color Adjust

Factory Restore Yes / No

Yes Inverted display orientation

No Standard display orientation

Off - 10min

Pan

-127 ~ 127

Tilt

-127 ~ 127

Color

-127 ~ 127

...

Focus

-127 ~ 127

Color 1

-127 ~ 127

Color 2

-127 ~ 127

...

Color15

-127 ~ 127

PERSONALITY
(continued)

MANUAL
CONTROL

Display

Service
Passcode = 050

Pan 000 - 255

Pan Fine 000 - 255

Tilt 000 - 255

Tilt Fine 000 - 255

Color 000 - 255

Gobo 000 - 255

Prism 000 - 255

Prism Rot 000 - 255

... ...

P/T Speed 000 - 255

Special 000 - 255

Display automatically orients itself
to remain upright

Screen goes into standby mode
after selected period of inactivity

Effects adjustment. Note: Do NOT

adjust while performing a fac­tory reset at the same time.

Color adjustment

Reset unit to factory default set­tings

Manually congure each unit pa­rameter

21

SYSTEM MENU

MAIN MENU OPTIONS / VALUES

Lamp On/Off On / Off Manual lamp on/off control

LAMP
CONTROL

INFORMATION

Lamp On with

Power

Lamp On via

DMX

Lamp Off via

DMX

Fixture Life Time

Total Lamp Time

Fan Info (RPM)

DMX Values

Error Logs

Software Ver­sion

On / Off

On / Off

On / Off

Power On Time xxxxxx Hours

P-On Time-R xxxxxx Hours

P-On Time

Reset

Lamp On Time xxxxxx Hours

Lamp On Time-

R

Lamp On Time

Reset

Base Fan xxxx Base Fan Speed

Lamp Fan xxxx Lamp Fan Speed

Pan

Pan Fine

Tilt

...

Special

Fixture Errors Display xture errors one by one

Reset Error Log Passcode = 050 Clear error log

Vx.xx Display current software version

Passcode = 050 Reset P-On Time-R value

xxxxxx Hours

Passcode = 050

Lamp automatically turns on when
unit is powered on

Allows lamp on/off via DMX

Total lifetime hours xture has

been powered on

Hours xture has been powered on

since last reset

Resets to 0 when lamp is replaced
and reset

Display current DMX value for
selected parameter

22

DMX SET UP

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu-

nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions
from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via
the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have
a DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be

linked together and operate from a single controller, as long as all fixtures and the controller are

DMX compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible

when linking several DMX fixtures. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is

assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.

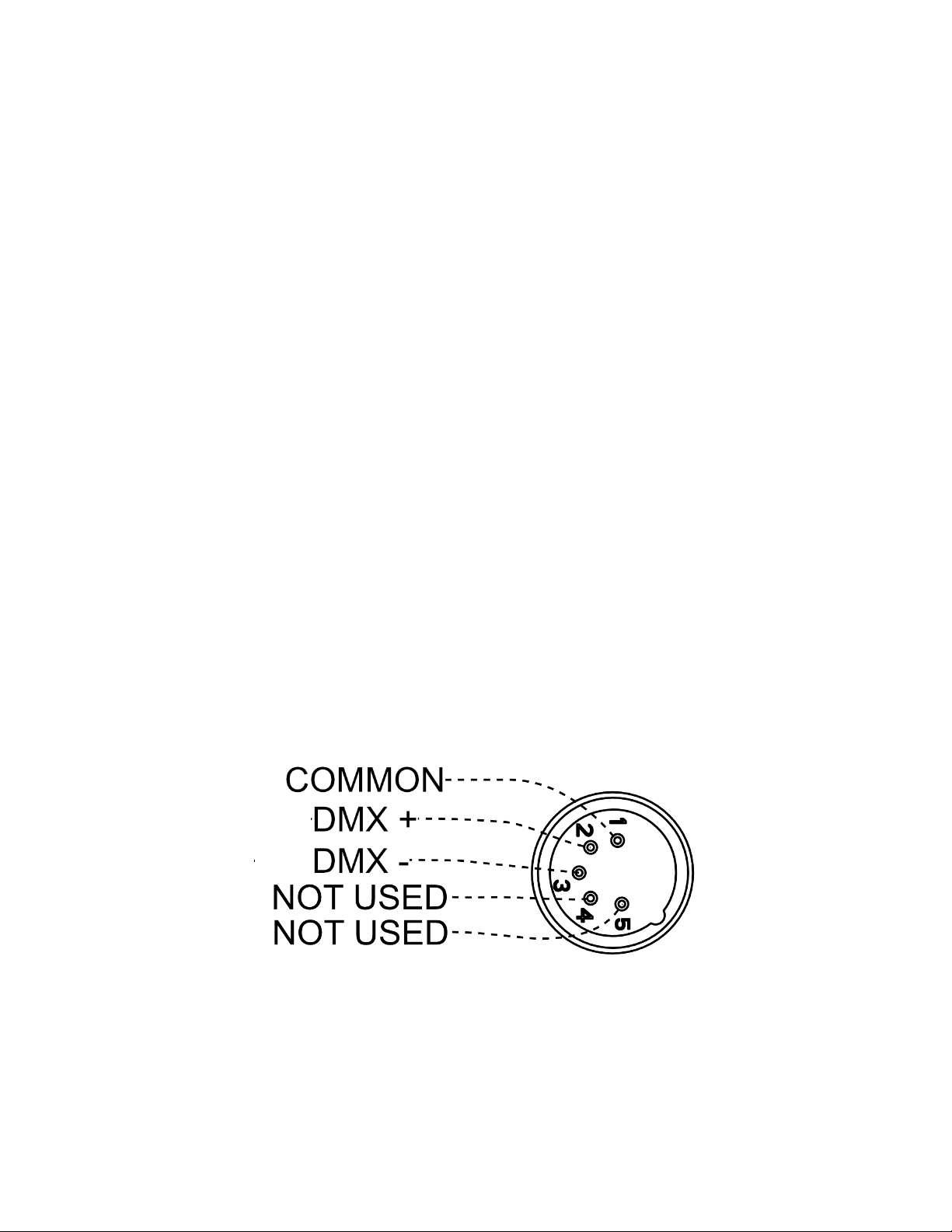

Data Cable (DMX Cable) Requirements (For DMX Operation): This unit can be controlled via DMX­512 protocol. The DMX address is set on the rear panel of the unit. Your unit and your DMX controller

require a standard 5-pin XLR connector for data input and data output. We recommend Accu-Cable
DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded

cable (This cable may be purchased at almost all pro lighting stores). Your cables should be made
with a male XLR connector at one end and a female XLR connector at the other. Also remember that
DMX cable must be daisy chained and cannot be split.

Notice: Be sure to follow fthe illustration below when making your own cables. Do not use the ground

lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the
shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a

short circuit and erratic behavior.

23

DMX SET UP

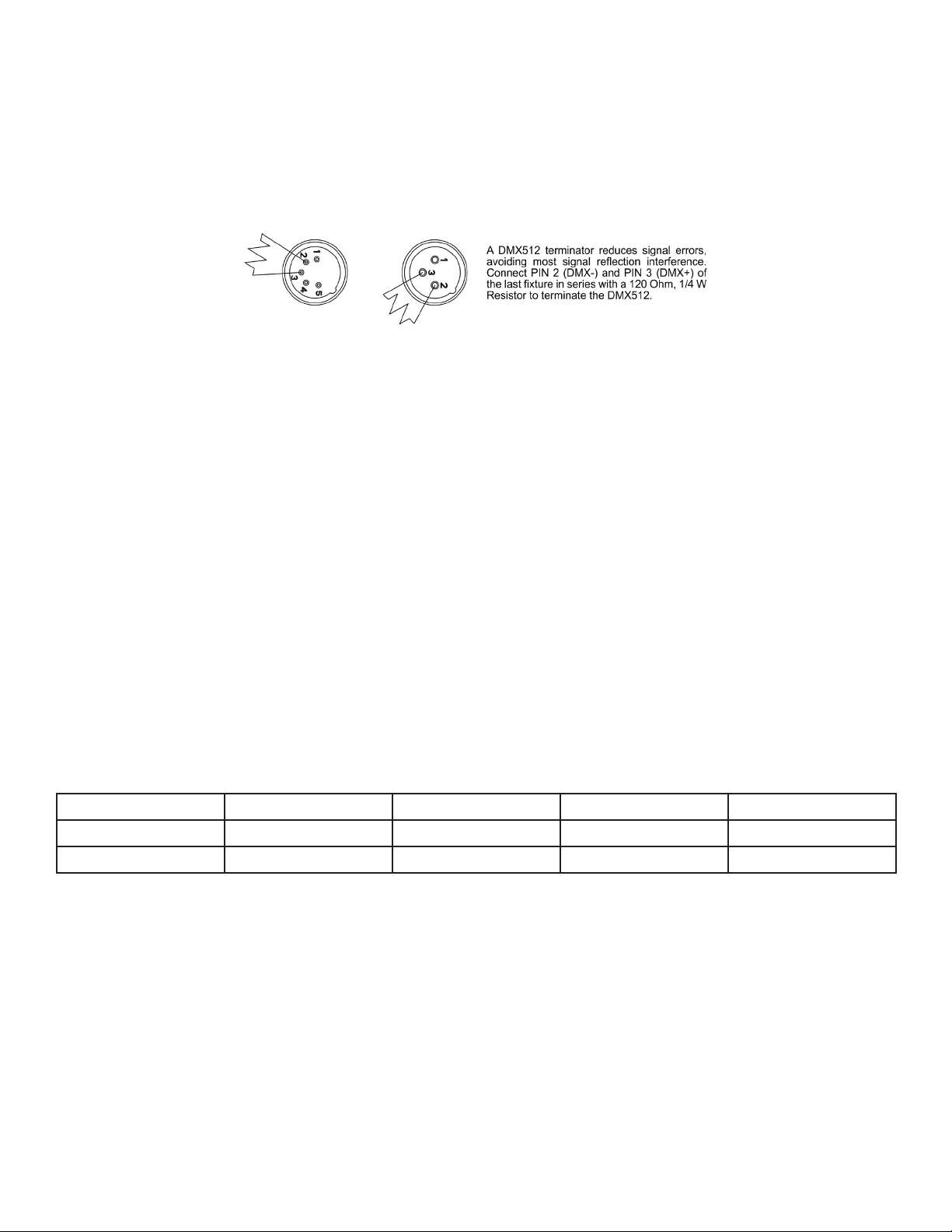

Special Note: Line Termination. When longer runs of cable are used, you may need to use a termi-
nator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is
connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted
in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable
terminator (ADJ part number Z-DMX/T) will reduce the risk of erratic behavior.

DMX ADDRESSING.

All fixtures should be given a DMX starting address when using a DMX controller, so the correct fix­ture responds to the correct control signal. This digital starting address is the channel number from

which the fixture starts to “listen” to the digital control signal sent out from the DMX controller. The

assignment of this starting DMX address is achieved by setting the correct DMX address on the digi-

tal control display on the fixture.

You can set the same starting address for all fixtures or a group of fixtures, or set different addresses
for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react
in the same way. In other words, changing the settings of one channel will affect all the fixtures simul-

taneously.

If you set each fixture to a different DMX address, each unit will start to “listen” to the channel number
you have set, based on the quantity of DMX channels of each fixture. That means changing the set­tings of one channel will only affect the selected fixture.

For example, when this unit is operating in 16 channel mode, you should set the starting DMX

address of the first unit to 1, the second unit to 17 (1 + 16), the third unit to 33 (1 + 16 + 16), and so
on. See the chart below for more details.

CHANNEL MODE UNIT 1 ADDRESS UNIT 2 ADDRESS UNIT 3 ADDRESS UNIT 4 ADDRESS

16Ch 1 17 33 49
20Ch 1 21 41 61

24

DMX TRAITS

CHANNEL

16Ch 20Ch

1 1

2 2

3

4

3 5

DMX

VALUES

000 - 255 Pan

000 - 255 Pan Fine

000 - 255 Tilt

000 - 255 Tilt Fine

000 - 003 White
004 - 007 Red

008 - 011 Blue
012 - 015 Green
016 - 019 Lime
020 - 023 Orange
024 - 027 Pink
028 - 031 Lavender
032 - 035 Medium Red
036 - 039 Aqua
040 - 043 Amber
044 - 047 CTB 9000K
048 - 051 4500K
052 - 055 CTO 3200K
056 - 059 UV
060 - 061 White
062 - 063 White to Red
064 - 065 Red
066 - 067 Red to Blue
068 - 069 Blue
070 - 071 Blue to Green
072 - 073 Green
074 - 075 Green to Lime
076 - 077 Lime
078 - 079 Lime to Orange
080 - 081 Orange

FUNCTION

Pan

Pan Fine

Tilt

Tilt Fine

Color

082 - 083 Orange to Pink
084 - 085 Pink

25

DMX TRAITS

CHANNEL

16h 20Ch

3 5

4 6

DMX

VALUES

086 - 087 Pink to Lavender
088 - 089 Lavender
090 - 091 Lavender to Medium Red
092 - 093 Medium Red
094 - 095 Medium Red to Aqua
096 - 097 Aqua
098 - 099 Aqua to Amber
100 - 101 Amber
102 - 103 Amber to CTB 9000K
104 - 106 CTB 9000K
107 - 109 CTB 9000K to 4500K

110 - 112 4500K

113 - 115 4500K to CTO 3200K

116 - 118 CTO 3200K

119 - 121 CTO 3200K to UV
122 - 124 UV
125 - 127 UV to White
128 - 189 Clockwise Rotation, fast to slow
190 - 193 Stop
194 - 255 Counter-Clockwise Rotation, slow to fast

000 - 014 Open
015 - 017 Gobo 1
018 - 020 Gobo 2
021 - 023 Gobo 3
024 - 026 Gobo 4
027 - 029 Gobo 5
030 - 032 Gobo 6
033 - 035 Gobo 7
036 - 038 Gobo 8
039 - 041 Gobo 9
042 - 044 Gobo 10
045 - 047 Gobo 11
048 - 050 Gobo 12

FUNCTION

Color (continued)

Static Gobo

051 - 053 Gobo 13
054 - 056 Gobo 14

26

DMX TRAITS

CHANNEL

16Ch 20Ch

4 6

5 7

6 8

DMX

VALUES

057 - 059 Gobo 15
060 - 063 Open Shake, slow to fast
064 - 067 Gobo 1 Shake, slow to fast
068 - 071 Gobo 2 Shake, slow to fast
072 - 075 Gobo 3 Shake, slow to fast
076 - 079 Gobo 4 Shake, slow to fast
080 - 083 Gobo 5 Shake, slow to fast
084 - 087 Gobo 6 Shake, slow to fast
088 - 091 Gobo 7 Shake, slow to fast
092 - 095 Gobo 8 Shake, slow to fast
096 - 099 Gobo 9 Shake, slow to fast
100 - 103 Gobo 10 Shake, slow to fast
104 - 107 Gobo 11 Shake, slow to fast

108 - 111 Gobo 12 Shake, slow to fast

112 - 115 Gobo 13 Shake, slow to fast

116 - 119 Gobo 14 Shake, slow to fast
120 - 127 Gobo 15 Shake, slow to fast
128 - 189 Clockwise Rotation, fast to slow
190 - 193 Stop
194 - 255 Counter-Clockwise Rotation, slow to fast

000 - 007 Prism 1 and Prism 2 Out
008 - 127 Prism 1 In
128 - 255 Prism 2 In

000 - 127 0% ~ 100%
128 - 189 Clockwise Rotation, fast to slow
190 - 193 Stop
194 - 255 Counter-Clockwise Rotation, slow to fast

FUNCTION

Static Gobo (continued)

Prism

Prism Rotation

27

DMX TRAITS

CHANNEL

16Ch 20Ch

7 9

8 10

11

9 12

13

10 14

11 15

DMX

VALUES

000 - 031 Close
032 - 063 Open
064 - 095 Strobe, slow to fast
096 - 127 Open
128 - 159 Pulse Effect in sequence
160 - 191 Open
192 - 223 Random Strobe, slow to fast
224 - 255 Open

000 - 255 0% ~ 100%

000 - 255 0% ~ 100%

000 - 255 0% ~ 100%

000 - 255 0% ~ 100%

000 - 015 Off
016 - 255 On

000 - 007 Off
008 - 015 Macro 1
016 - 023 Macro 2
024 - 031 Macro 3
032 - 039 Macro 4
040 - 047 Macro 5
048 - 055 Macro 6
056 - 063 Macro 7
064 - 071 Macro 8
072 - 079 Macro 9
080 - 087 Macro 10
088 - 095 Macro 11
096 - 103 Macro 12

104 - 111 Macro 13

FUNCTION

Shutter

Dimmer

Dimmer Fine

Focus

Focus Fine

Frost

Pan/Tilt Macros

112 - 119 Macro 14
120 - 127 Macro 15

28

DMX TRAITS

CHANNEL

16Ch 20Ch

11 15

12 16

13 17

14 18

15 19

16 20

DMX

VALUES

128 - 135 Macro 16
136 - 143 Macro 17
144 - 151 Macro 18
152 - 159 Macro 19
160 - 167 Macro 20
168 - 175 Macro 21
176 - 183 Macro 22
184 - 191 Macro 23
192 - 199 Macro 24
200 - 207 Macro 25
208 - 215 Macro 26
216 - 223 Macro 27
224 - 231 Macro 28
232 - 239 Macro 29
240 - 247 Macro 30
248 - 255 Macro 31

000 - 255 Fast to Slow

000 - 255 Fast to Slow

000 - 255 Fast to Slow

000 - 255 Fast to Slow

000 - 019 No Function

020 - 029

030 - 039 Disable color wheel indexing

040 - 059

060 - 069 Disable frost indexing
070 - 079 Enable blackout while pan/tilt moving
080 - 089 Disable blackout while pan/tilt moving

FUNCTION

Pan/Tilt Macros (continued)

Pan/Tilt Macro Speed

Color Time

Gobo Time

Pan/Tilt Speed

Special Function

Enable color wheel indexing - the color wheel shall move in incre­ments of 1, allowing the user to set their desired color split between
DMX values of 1 and 255

Enable frost indexing - the frost lter shall move in increments of 1,

allowing the user to produce a more linear frost effect between DMX
values of 16 and 255

29

DMX TRAITS

CHANNEL

16Ch 20Ch

16 20

DMX

VALUES

090 - 099 Enable blackout while color changing
100 - 109 Disable blackout while color changing

110 - 119 Enable blackout while gobo changing
120 - 129 Disable blackout while gobo changing
130 - 139 Lamp On
140 - 149 Reset XY
150 - 159 Reset Effect
160 - 169 Reset Color
170 - 199 No Function
200 - 209 Reset All
210 - 229 No Function
230 - 239 Lamp Off
240 - 255 No Function

FUNCTION

Special Function (continued)

30

PRIMARY-SECONDARY SET UP

This function allows you to link units together to run in a Primary-Secondary set-up, in which one unit

will act as the controlling unit and the others will react to the controlling unit’s built-in programs. Any

unit can be configured to act as a Primary or as a Secondary, but only one unit in a given system can
be programmed to act as the Primary.

Primary-Secondary Connections and Settings:

1. Daisy chain your units via the XLR connectors on the rear panels of each unit. Use standard XLR
data cables to link your units together. Remember that the male XLR connector is the input and
the female XLR connector is the ouput. The first unit in the chain (primary) will use the female XLR
connector only. The last unit in the chain will use the male XLR connector only.

2. Use the display screen and control panel to navigate to Personality > Prim/Sec Mode. Select

this sub-menu using the ENTER button, and use the UP and DOWN buttons to toggle between
“Primary” and “Secondary”. Press ENTER to confirm your selection.

3. Repeat Step 2 for each unit in the system. Make sure that only one unit is designated as the
Primary, while all other units are designated as Secondaries.

4. The secondary units will now follow the behavior of the primary unit.

NOTES:

• Only one unit should be congured as the primary, while all the other units should be congured
as secondaries.

• All units should be set to the same DMX channel mode.

• If xtures fail to sync, verify that all settings mentioned above are the same, then power all devices
off, then switch them on again to re-establish the link.

MULTI UNIT POWER LINKING

This features allows you to connect the fixtures to one another using the power cable input and output

sockets.

The maximum number of units that can be linked in this manner is as follows:

• 5 units @ 110V power

• 10 units @ 220V power

DO NOT EXCEED THIS MAXIMUM NUMBER WHEN POWER LINKING UNITS!

All linked units must be of the same make and model type. Do not mix and match units!

31

MAINTENANCE GUIDELINES

DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!

CLEANING

Frequent cleaning is recommended to ensure proper function, optimized light output, and an extend­ed life. The frequency of cleaning depends on the environment in which the fixture operates: damp,
smoky, or particularly dirty environments can cause greater accumulation of dirt on the fixture’s optics.
Clean the external lens surface regularly with a soft cloth to avoid dirt/debris accumulation.

NEVER use alcohol, solvents, or ammonia-based cleaners.

MAINTENANCE

Regular inspections are recommended to ensure proper function and extended life. There are no
user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ

service technician. Should you need any spare parts, please order genuine parts from your local ADJ
dealer.

Please refer to the following points during routine inspections:
A. A detailed electrical check by an approved electrical engineer every three months, to make sure

the circuit contacts are in good condition and prevent overheating.

B. Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out

during normal operation, resulting in damage or injury as larger parts could fall.

C. Check for any deformations on the housing, color lenses, rigging hardware, and rigging points

(ceiling, suspension, trussing). Deformations in the housing could allow for dust to enter into the

fixture. Damaged rigging points or unsecured rigging could cause the fixture to fall and seriously

injure a person(s).

D. Electric power supply cables must not show any damage, material fatigue, or sediments.

NEVER remove the ground prong from the power cable.

32

ERROR CODES

ERROR GROUP ERROR CODE DESCRIPTION

Encoder Error

Sensor Error

Communication
Error

Fan Error

Lamp Error

Pan Encoder Error Encoder Error: Pan
Tilt Encoder Error Encoder Error: Tilt
Pan Sensor Error Sensor Error: Pan
Tilt Sensor Error Sensor Error: Tilt
Color Sensor Error Sensor Error: Color
Gobo Sensor Error Sensor Error: Gobo
Prism Sensor Error Sensor Error: Prism
Prism Rot Sensor Error Sensor Error: Prism Rotation
Focus Sensor Error Sensor Error: Focus
CPU-B Error Lost Connection: Pan / Tilt
CPU-C Error Lost Connection: Effects
Base-Fan Error Fan Error: Base-Fan
Lamp-Fan Error Fan Error: Lamp-Fan
Lamp Communication Error Lamp Error: Communication
Lamp Ignite Failed Error Lamp Error: Ignite Failed

33

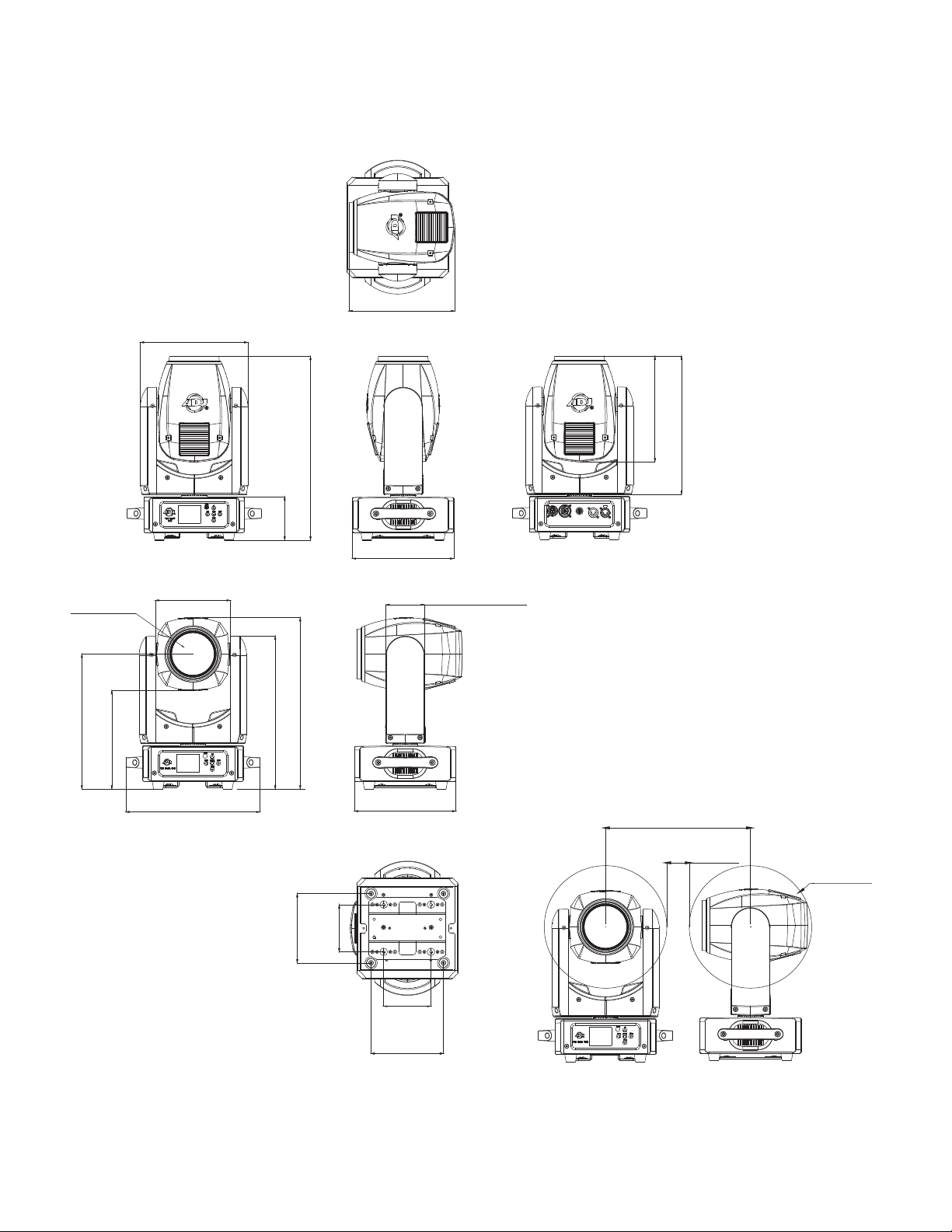

DIMENSIONAL DRAWINGS

9.6in (243.6mm)

ø3.9in

(ø100mm)

12in (305.6mm)

8.8in (223mm)

VIZI BEAM

RX2

6.7in

(169.6mm)

9.4in (239.6mm)

16.3in (416mm)

3.8in (98mm)

9in (230mm)

15.2in (388mm)

13.6in (346mm)

9.4in (239.6mm)

12.3in (313mm)

3.4in (87.5mm)

12in (304mm)

4.2in
(107mm)

6.4in (164mm)

6.4in (164mm)

9in (230mm)

4.2in

(107mm)

34

12.9in (327.8mm)

2in (50.8mm)

ø10.9in

(ø277mm)

SPECIFICATIONS

Light Source:

• OSRAM Sirius HRI 100W Discharge Lamp
(6,000 hr.)

• Color temperature: 9000K (+/- 300K)

Features:

• On-Board Wireless DMX

• Motorized Focus + 16-bit fine focus

• 2-degree beam angle

• Frost Filter to create wash effect

• High quality glass lens

• 2 Rotating prisms:

• 0-100% smooth dimming

• Various strobe speeds

• OTA, wireless, firmware updates

• Fan cooled

Color Wheel:

• 14 dichroic colors + white (Includes CTO
(3200K), CTO (4500K), CTB (9000k) & UV)

• Indexable color wheel for split colors

Pan/Tilt:

• Pan: 540 degrees (plus 16-bit fine pan)

• Tilt: 270 degrees (plus 16-bit fine tilt)

• 3 Phase, High Speed, Pan/Tilt motors

Connections:

• DMX Connections: 5-pin DMX In/Out (Data link
max: 32 fixtures)

• Power Connections: Outdoor locking In/Out
connections to daisy chain power

Electrical:

• Multi-voltage operation: 100-240V, 50/60Hz

• Max power consumption: 168W (@120V),

157W (@230V)

• Fuze Protected: 3.15A

Dimensions & Weight:

• Dimension: 9” (L) x 12” (W) x 16.3” (H) (230 x
304 x 416mm)

• Weight: 16.5 lbs. / 7.5 kg.

GOBO Wheel:

• 15 static GOBOs + open (3 GOBOs are
beam reducers)

• GOBO Shake Effect

Prism Wheels:

• 2 Rotating prisms

• 16 facet circular and 4 facet linear prisms

Control:

• Protocols: DMX512 & RDM

• Control Mode: DMX512 & Manual (On-board
Controls)

• 2 DMX Channel Modes: 16/20 Channels

• Color LCD display with 4-button function
menu

• 0-100% smooth dimming

• Various strobe speeds

• With Wired Digital Communication Network

Approvals / Ratings

• CE

• cETLus (Pending)

Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any

prior written notice.

35
