Reflex™ Introduction

Unpacking:

Thank you for purchasing the Reflex™ by American DJ

damage that may have occurred during shipping. If the carton appears

to be damaged, carefully inspect your unit for damage and be sure all

accessories necessary to operate the unit have arrived intact. In the

event damage has been found or parts are missing, please contact

our toll free customer support number for further instructions. Please

do not return this unit to your dealer without first contacting customer

support at the number listed below.

Introduction:

The Reflex™ is a unique multi-colored effects fixture.

The unit comes with two moving heads that operate independently

of each other. This unit creates multi-colored beams in a moonflower

operated in three different modes (see page 5 for operating modes).

To optimize beam intensity use this fixture with a fog machine or other

type of special effect smoke.

Customer Support:

American DJ

provides a toll free customer

support line, to provide set up help and to answer any question should

you encounter problems during your set up or initial operation. You

can DJ

Service Hours are Monday through Friday 9:00 a.m. to 5:00

Voice:

(800) 322-6337

(323) 582-2610

[email protected]

To prevent or reduce the risk of electrical shock or fire, do

Caution!

There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures

warranty. In the unlikely event your unit may require service please

contact your nearest American DJ dealer.

PLEASE do not discard the shipping carton in the trash. Please

recycle when ever possible.

American DJ

- www.americandj.com - Re ex™ Instruction Manual Page 2

Page 2

American DJ

- www.americandj.com - Re ex™ Instruction Manual Page 4

American DJ

- www.americandj.com - Re ex™ Instruction Manual Page 3

Safety Issues:

This unit may blow a fuse if the maximum allotted load

of 2 amps is reached. If the fuse needs replacement please refer to the

fuse replacement instructions on page 5.

To reduce the risk of electrical shock or  re, do not expose this

frayed or broken

electrical cord. This prong is used to reduce the risk of electrical

shock and  re in case of an internal short

doors voids all warranties written or implied.

Reflex™ Features

The Reflex™ carries a one year (365 days) limited warranty. Please fill

out the enclosed warranty card to validate your purchase. All returned

service items whether under warranty or not, must be freight pre-paid

and accompany a return authorization (R.A.) number. The R.A. num-

customer support team on our toll free customer support number. All

Power Supply:

voltage in your area matches the required voltage for your American

Re ex™ before attempting operation.

General Operation:

Just plug this light in, and watch it go. This fix-

ture is designed to operate as a stand alone unit. It has been tested

and the lamp has been installed at the factory there is no assembly

There is no power switch, after plugging the unit in the unit will imme-

diately begin to run to sound. Please note that tapping on the unit,

or high pitched sounds may not trigger the unit, the unit is designed

to react to low frequencies (bass). Also note that the music sensitiv-

fashion the unit will operate will depended on the mode setting, see

operating modes below.

Operating Modes:

This unit comes with a 3-way multi-operating

switch located on the bottom of the unit. The switch controls three

different sound-active operating modes.

Switch in the "I" position: Mode 1 - In this mode the two internal

dichroic colored glass dishes will rotate continuously regardless of an

audio source. The two external reflecting mirrors will only react to an

audio source via the units internal microphone.

Switch in the “O” position: Mode 2 - In this mode the two internal

dichroic colored glass dishes will remain static regardless of an audio

source. The two external reflecting mirrors will only react to an audio

source via the units internal microphone.

Switch in the “II” position: Mode 3 - In this mode both the two internal

dichroic colored glass dishes and the two external reflecting mirrors

will only react to an audio source via the units internal microphone.

thoroughly before attempting to operate this unit. These instructions

contain important safety information regarding the use and mainte-

Reflex™ Warranty Registration

Reflex™ General Instructions

Reflex™ Operation

Reflex™ Precautions

Page 3

Reflex™ Fuse & Lamp Replacement

Caution:

Always replace with the exact same type lamp and fuse,

techni-

cian. Replace with anything other than the specified part can damage

your unit and will void your manufactures warranty.

tinue to blow either one, STOP using the unit. Contact customer sup-

vicing. Continuing to use the unit may cause serious damage.

Fuse Replacement:

(located on the bottom of the unit). Turn the screwdriver in a coun-

ter-clockwise direction to remove the fuse holder. Remove the old

fuse and discard it, replace the fuse with the same type. Insert the

fuse holder back into it’s housing and turn in a clockwise direction to

secure the holder in place.

Lamp Replacement:

Caution! Never open the unit when in use.

Always disconnect the main power and allow the fixture ample time

to cool before attempting to replace the lamp. Lamp replacement has

a single thumb screws. Again, please remember to always replace

with the exact same type lamp.

Once the thumb screw has been remove, pull back the lamp

assembly cover plate to expose the lamps.

American DJ

- www.americandj.com - Re ex™ Instruction Manual Page 6

American DJ

- www.americandj.com - Re ex™ Instruction Manual Page 5

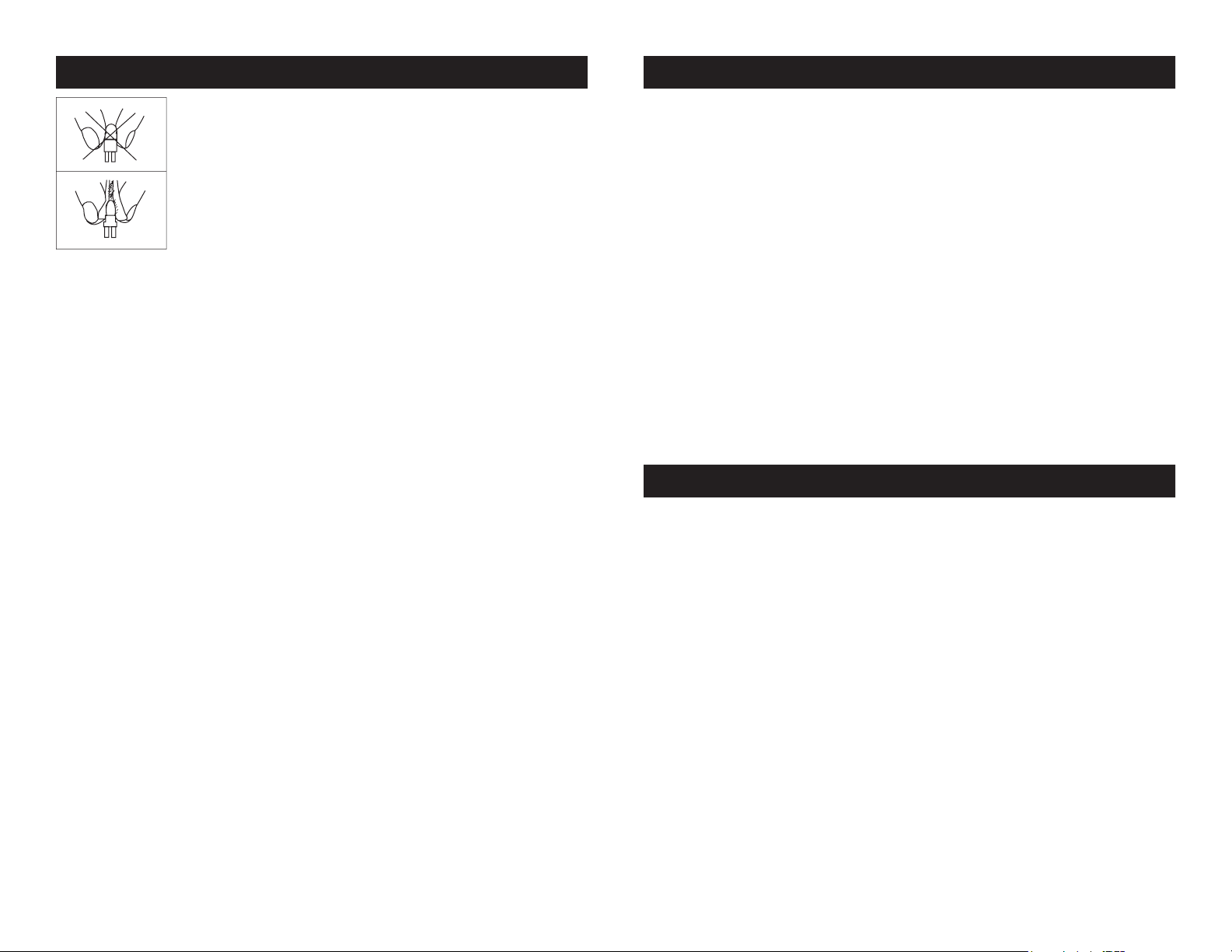

Halogen Lamp Warning!

This fixture is fitted with

age if improperly handled. Never touch the lamps

with your bare fingers as the oil from your hands will

shorten lamp life. Also, never move the fixture until

the lamps have had ample time to cool. Remember,

Fixture Cleaning:

cally to optimize light output.

side casing.

2. Use a soft brush to clean out the cooling vents

3. Clean the external optics with glass cleaner and a soft cloth every

20 days.

4. Clean the internal optics with glass cleaner and a soft cloth every

30-60 days.

5. Always be sure to dry all parts completely before plugging the unit

back in.

Cleaning frequency depends on the environment in which the fixture

operates (I.e. smoke, fog residue, dust, dew). In heavy use we recom-

gevity, and crisp beam output.

Trouble Shooting:

try before contacting customer support. For all other issues please

contact customer support.

Unit rotates but has no light output from the unit;

sockets properly. Occasionally lamps become loose during ship-

Heads do not rotate and lamps do not turn on;

ed on the bottom panel of the unit.

and the outlet has power.

Reflex™ Cleaning

Reflex™ Trouble Shooting

Page 4

American DJ

- www.americandj.com - Re ex™ Instruction Manual Page 7

American DJ

A Division of the American DJ Group of Companies

American DJ

World Headquarters:

4295 Charter Street Los Angeles, CA 90058 USA

Tel: 323-582-2650 / Fax: 323-582-2610

Web: www.americandj.com / E-mail: [email protected]

Model: Reflex™

Lamps:

2 x LL-64610 12v/50w

Fuse:

2 Amp GMA (1 Amp 220v)

Dimensions:

Colors:

Effect:

3 User Operating Modes

9 Lbs.

* Voltage is preset at the factory and is not user selectable.
