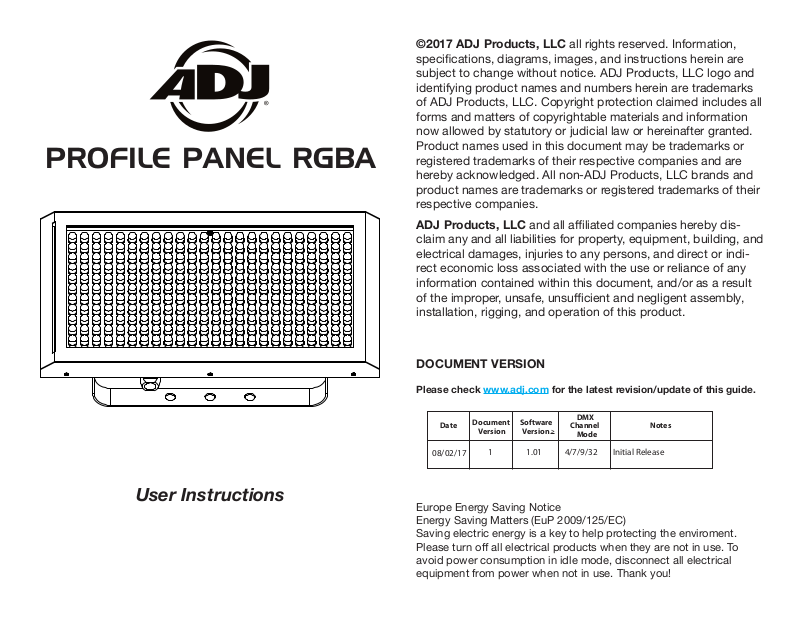

PROFILE PANEL RGBA
©2017 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property, equipment, building, and
electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any
information contained within this document, and/or as a result
of the improper, unsafe, unsucient and negligent assembly,
installation, rigging, and operation of this product.
User Instructions
DOCUMENT VERSION
Please check www.adj.com for the latest revision/update of this guide.
Date
08/02/17
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
Document
Version
1 1.01
Software
Version
DMX
Channel
>
Mode
4/7/9/32 Initial Release
Notes
Profile Panel RGBA Introduction
Profile Panel RGBA General Instructions
Unpacking: Thank you for purchasing the Prole Panel RGBA by ADJ
Products, LLC. Every Prole Panel RGBA has been thoroughly tested
and has been shipped in perfect operating condition. Carefully check
the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your xture for any damage and be sure all accessories necessary to operate
the unit has arrived intact. In the case damage has been found or parts
are missing, please contact our toll free customer support number for
further instructions. Do not return this unit to your dealer without rst
contacting customer support.
Introduction: The Profile Panel RGBA is part of American DJ’s con-
tinuing pursuit for creating high quality affordable intelligent fixtures.
The Profile Panel RGBA is a DMX intelligent LED stage panel/wash.
This wash can be used in a stand alone mode or connected in a Master/
Slave conguration. The unit can also be controlled via DMX controller.
This wash has six operating modes: Sound Active mode, Built-In Program mode, Auto Run mode, Static Color mode, RGBA Dimmer mode,
and DMX control mode.
Customer Support: ADJ Products, LLC provides a toll free cus-
tomer support line, to provide set up help and to answer any question
should you encounter problems during your set up or initial operation.
You may also visit us on the web at www.adj.com for any comments
or suggestions. Service Hours are Monday through Friday 9:00 a.m. to
4:30 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures warranty. In the unlikely event your unit may require service please contact
ADJ®.
PLEASE recycle the shipping carton when ever possible.
To optimize the performance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations
of this unit. These instructions contain important safety information
regarding the use and maintenance of this unit. Please keep this manual
with the unit, for future reference.
Profile Panel RGBA Features
• 288 Ultra Bright LEDs
• Multi-Colors
• Color Strobe
• Electronic Dimming 0-100%
• Built in Microphone
• DMX-512 protocol
• 4 DMX Channel Modes: 4, 7, 9, & 32 DMX Channels
• Multiple Unit Power Linking (See page 26)
Profile Panel RGBA Warranty Registration
The Profile Panel RGBA carries a 2 year (730 days) limited warranty.
Please fill out the enclosed warranty card to validate your purchase
and warranty. You may also register your product online at www.
americandj.com. All returned service items whether under warranty or
not, must be freight pre-paid and accompany a return authorization
(R.A.) number. If the unit is under warranty you must provide a copy
of your proof of purchase invoice. Please contact American DJ® customer support for a R.A. number.
Profile Panel RGBA Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out periodically to optimize light
output.
1. Use normal glass cleaner and a soft cloth to wipe down the
outside casing.
2. Clean the external optics with glass cleaner and a soft cloth
every 20 days.
3. Always be sure to dry all parts completely before plugging
the unit back in.
Cleaning frequency depends on the environment in which the fixture
operates (i.e. smoke, fog residue, dust, dew).
ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 4ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 3
Profile Panel RGBA Safety Precautions
Profile Panel RGBA DMX Set Up
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt age for your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken. Do not attempt to remove or break o the ground
prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out`
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by
t he manufacturer. See page 4 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (inclu d ing amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the fixture.
C. The fixture has been exposed to rain or water.
D. The fixture does not appear to operate normally or exhibits a
marked change in performance.
Power Supply: The ADJ Prole Panel RGBA contains an electronic
voltage switch, which will auto sense the voltage when it is plugged
into the power source. With the voltage switch you do not need to
worry about wall voltage, this unit can be plugged in anywhere. Also be
sure to only use the included powerCON cable supplied with the unit.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used as a form of communication between intelligent fixtures
and controllers. A DMX controller sends DMX data instructions from
the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a DATA
“OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of
dierent manufactures to be linked together and operate from a single
controller, as long as all xtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several
DMX fixtures try to use the shortest cable path possible. The order
in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1
may be placed anywhere in a DMX line, at the beginning, at the end,
or anywhere in the middle. When a fixture is assigned a DMX address
of 1, the DMX controller knows to send DATA assigned to address 1
to that unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation):
The Prole Panel RGBA has 4 DMX channel modes. The DMX address
is set on the back panel of the Prole Panel RGBA. Your unit and your
DMX controller require a approved DMX-512 110 Ohm Data cable for
data input and data output (Figure 1). We recommend Accu-Cable
DMX cables. If you are making your own cables,
be sure to use standard 110-120 Ohm shielded
cable (This cable may be purchased at almost
all professional sound and lighting stores). Your
cables should be made with a male and female
XLR connector on either end of the cable. Also
remember that DMX cable must be daisy chained
and cannot be split.
Figure 1
ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 5
ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 6
Profile Panel RGBA DMX Set Up
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
POWER
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
Profile Panel RGBA Operating Instructions
Notice: Be sure to follow gures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
1
2
XLR Male Socket
1 Ground
Figure 3
DMX512 OT
3-PIN XLR
2 Cold
3 Hot
Special Note: Line Termination.
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
Termination reduces signal errors and
1
avoids signal transmission problems
3
and interference. It is always advisable
2
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
5-Pin XLR DMX Connectors.
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
xtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
3-Pin XLR to 5-Pin XLR Conversion
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Ground/Shield
Data Compliment (- signal)
Data True (+ signal)
Not Used
Not Used
3
XLR Female Socket
2 Cold
COMMON
DMX +
DMX -
3
1
2
DMX512 IN
3-PIN XLR
Figure 2
XLR Pin Conguration
1 Ground
3 Hot
Pin 1 = Ground
Pin 2 = Data Compliment (negative)
Pin 3 = Data True (positive)
When longer runs of cable are
Figure 4
Some manufactures use 5-pin DMX-
Pin 1
Pin 2
Pin 3
Pin 1
Pin 2
Pin 3
Do Not Use
Do Not Use
LED Display On/Off:
To set the LED display to turn off after 10 seconds, press the MODE
button until “dXX” is displayed. “XX” represents either “on” or “oFF”.
Press the UP or DONW buttons so that “doff” is displayed. Now the
display will disappear after 10s. Press any button to turn the display on
again. Be advised though that the display will turn off automatically after
10 seconds.
“don” = LED display on at all times.
“doFF” = LED display shuts off after 10 seconds.
LED Display Inversion:
Follow these instructions to flip the display 180° so that the display can
be read upside down.
1. Plug the fixture in and press the MODE button until “dXX” is
displayed. “XX” represents either “on” or “oFF”.
2. Press the SET UP button until “Stnd” is displayed.
3. Press the UP or DOWN buttons to “flip” the display 180°.
Operating Modes:
You can use the Profile Panel RGBA in either a stand alone mode or
a master/slave configuration, there are 6 modes to choose from:
• Built-In Program - There are 22 built-in programs to choose from
with multiple adjustments.
• Auto Run - Random programs will run with adjustable fade speed
and strobe.
• Sound Active mode - The unit will react to sound, chasing through
the built in programs.
• RGBA Dimmer mode - Choose one of the three colors to remain
static or adjust the intensity of each color to make your desired
color.
• Static Color Mode - Choose 1 of 47 color macros.
• DMX control mode - This function will allow you to control each
individual fixtures traits with a standard DMX 512 controller.
ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 8ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 7
Profile Panel RGBA Operating Instructions
Profile Panel RGBA Operating Instructions
DMX Mode:
There are four DMX Modes to choose from: 4 Channels, 7 Channels,
9 Channels, and 32 Channels. Operating through a DMX controller
give the user the freedom to create their own programs tailored to
their own individual needs.
1. Press the MODE button until “dXXX” is displayed. “XXX” repre sents the displayed DMX address. Use the UP and DOWN but tons to find your desired DMX address.
2. Once you have found your desired DMX address press the SET
UP button to select you desired DMX channel mode. Use the UP
and DOWN buttons to find you desired channel mode.
• To run the 4 Channel Mode, press the MODE button until “Ch04”
is displayed. This is the 4 Channel Mode.
• To run the 7 Channel Mode, press the MODE button until “Ch07”
is displayed. This is the 7 Channel Mode.
• To run the 9 Channel Mode, press the MODE button until “Ch09”
is displayed. This is the 9 Channel Mode.
• To run the 32 Channel Mode, press the MODE button until “Ch32”
is displayed. This is the 32 Channel Mode.
3. Please see pages 15-20 for DMX values and traits.
4. After you have found your desired DMX mode and set the DMX
address, plug in the fixture via the XLR connections to any stan dard DMX controller.
Sound Active Mode:
1. Plug the fixture in and press the MODE button until “SUXX” is
displayed. “XX” represents the sound sensitivity level.
2. Use the UP or DOWN buttons to adjust the sound sensitivity.
“SU00” is off, “SU01 is the lowest sensitivity, and “SU31” is the
highest. After adjusting the sound sensitivity, press SET UP if you
wish to activate the Flash mode.
3. “FS.XX” will now be displayed, this is Flash mode. The Flash can
be adjusted between “FS00” (flash off) to “FS15” (fastest flash).
RGBA Dimmer Mode:
In this mode you can select and adjust the intensity of the red, green,
blue, or amber colors to make your own desired color.
1. Plug the fixture in and press the MODE button until “MANUAL” is
displayed.
2. When “rXXX” is displayed you are in Red dimming mode.
Press the UP and DOWN buttons to adjust intensity. After you
have finished adjusting the intensity, or if you would like to skip to
the next color, press the SET UP button.
3. When “GXXX” is displayed you are in Green dimming mode.
Press the UP and DOWN buttons to adjust intensity.
4. When “bXXX” is displayed you are in Blue dimming mode.
Press the UP and DOWN buttons to adjust intensity.
5. When “UXXX” is displayed you are in Amber dimming mode.
Press the UP and DOWN buttons to adjust intensity.
6. After you have adjusted the colors to make your desired color
you can then activate strobing by pressing the SET UP button to
enter the strobe mode.
7. “FSXX” will be displayed, this is strobe mode. The strobe can be
adjusted between “00” (flash off) to “15” (fastest flash).
Auto Run Mode:
In this mode the Profile Panel RGBA will run a auto program.
1. Plug the fixture in and press the MODE button until “AUTO” is dis-
played.
2. After you have activated Auto Run mode, press the SET UP but ton to adjust the fade time.
3. When you press SET UP, “FdXX” should be displayed. Use the
UP or DOWN buttons to set the fade speed to either “Fd.00” (fade
off) or between “Fd01” (fastest speed) and “Fd99” (slowest
speed). After adjusting the fade speed, press SET UP if you
wish to activate the Flash mode.
4. “FS.XX” will now be displayed, this is Flash mode. The Flash can
be adjusted between “FS00” (flash off) to “FS15” (fastest flash).
ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 10ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 9
Profile Panel RGBA Operating Instructions
Profile Panel RGBA Operating Instructions
Built-In Program Mode:
1. Plug the fixture in and press the MODE button until “PrXX” is dis played. “XX” represents a number from 1-22. Use the UP or DOWN
buttons to scroll through the 22 programs. Programs 21 and 22
have adjustable colors. Once you have found your desired program
press the SET UP button.
2. Pressing the SET UP button will display “SPXX”. When this is dis played you can adjust the running speed of your desired program.
Use the UP or DOWN button to adjust the speed between “SP.01”
(slowest) and “SP99” (fastest). Once you have set your desired run ning speed, you can press the SET UP button to to enter the Fade
adjustment mode.
3. Pressing the SET UP button will display “FdXX”. When this is dis played you can adjust the fade speed of your desired program.
Use the UP or DOWN button to adjust the speed between “Fd.01”
(fastest) and “Fd99” (slowest) or “Fd00” (Off). Once you have set
your desired fade speed, you can press the SET UP button to to
enter the Flash (Strobe) mode.
4. After pressing SET UP, “FSXX” will be displayed, this is Flash mode.
The Flash can be adjusted between “FS00” (flash off) to “FS15”
(fastest flash).
• PROGRAMS 21 & 22 - If you have chosen programs 21 or 22, after
the Flash mode, press the SET UP button. “C1XX” will be displayed.
This is the base color, use the UP and DOWN buttons to scroll
through the 7 colors. Once you have chosen your base color, press
the SET UP button again so that “C2XX” is displayed. This is the
moving color, use the UP and DOWN buttons to scroll through the 7
colors.
Static Color Mode:
1. Plug the fixture in and press the MODE button until “CLXX” is
displayed.
2. There are 47 colors to choose from. Select your desired color by
pressing the UP and DOWN buttons. After you have selected
your desired color you can activate strobing by pressing the SET
UP button to enter the Flash (strobe) mode.
3. “FSXX” will now be displayed, this is Flash mode. The Flash can
be adjusted between “FS00” (flash off) to “FS15” (fastest flash).

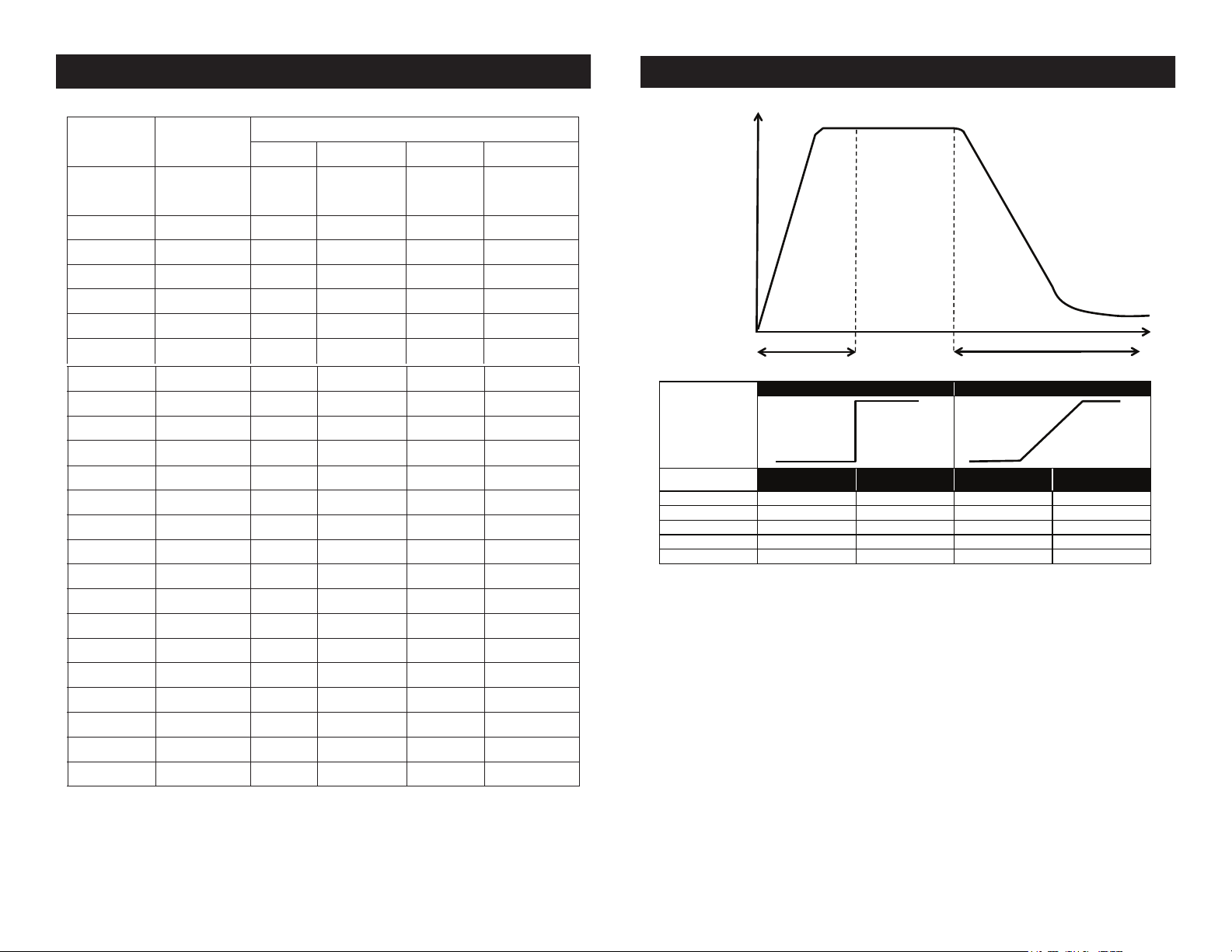

Dimmer Curve:
This is used to set the dimming curve used with DMX mode. See
page 24 for the different dimming curves.
1. Plug the fixture in and press the MODE button until the current
DMX address is displayed.
2. Press the SET UP button until “dr-X” is displayed. “X” represents
the displayed dimmer curve (0-4).
• 0 - Standard
• 1 - Stage
• 2 - TV
• 3 - Architectural
• 4 - Theatre
3. Press the UP or DOWN buttons to scroll through and select your
desired dimming curve.
ADJ Remote Activation:
This function is used to activate and deactivate the IR sensor. When
this function is activated you can control the fixture using either the
ADJ UC IR or Airstream App. Please see page 14 for the controls and
functions.
1. Plug the fixture in and press the MODE button until “dXX” is dis played. “XX” represents either “on” or “oFF”.
2. Press the SET UP button until “IrXX” is displayed. “XX” represents
either “on” or “oF”.
3. Press the UP or DOWN buttons to either activate the remote func tion (On) or deactivate it (Off).
Default Running Mode:
This is a default running mode. When this mode is activated all modes
will return to their default settings and a Auto program will run.
1. Plug the fixture in and press the MODE button until “dXX” is dis played. “XX” represents either “on” or “oFF”.
2. Press the SET UP button until “dEFA” is displayed.
3. Press the UP and DOWN buttons at the same time.
ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 11
ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 12
Profile Panel RGBA Master-Slave Configuration
Profile Panel RGBA UC IR Control and Airstream IR
Master-Slave Configuration:
This function will allows you to link units together to run in a MasterSlave set up. In a Master-Slave set up one unit will act as the control-
ling unit and the others will react to the controlling units built-in programs. Any unit can act as a Master or as a Slave however, only one
unit can be programmed to act as the “Master.”
Master-Slave Connections and Settings:
1. Daisy chain your units via the XLR connector on the rear of
the unit. Use standard XLR data cables to link your units together.
Remember that the Male XLR connector is the input and the
Female XLR connector is the ouput. The first unit in the chain
(master) will use the female XLR connector only. The last unit in
the chain will use the male XLR connector only.
2. Set the “Master” unit to your desired operating mode and then
connect the “Slave” unit or units.
3. For the “Slave” unit(s) press the MODE button until “SLAu” is dis played. The “Slave” unit(s) will now follow the “Master” unit.

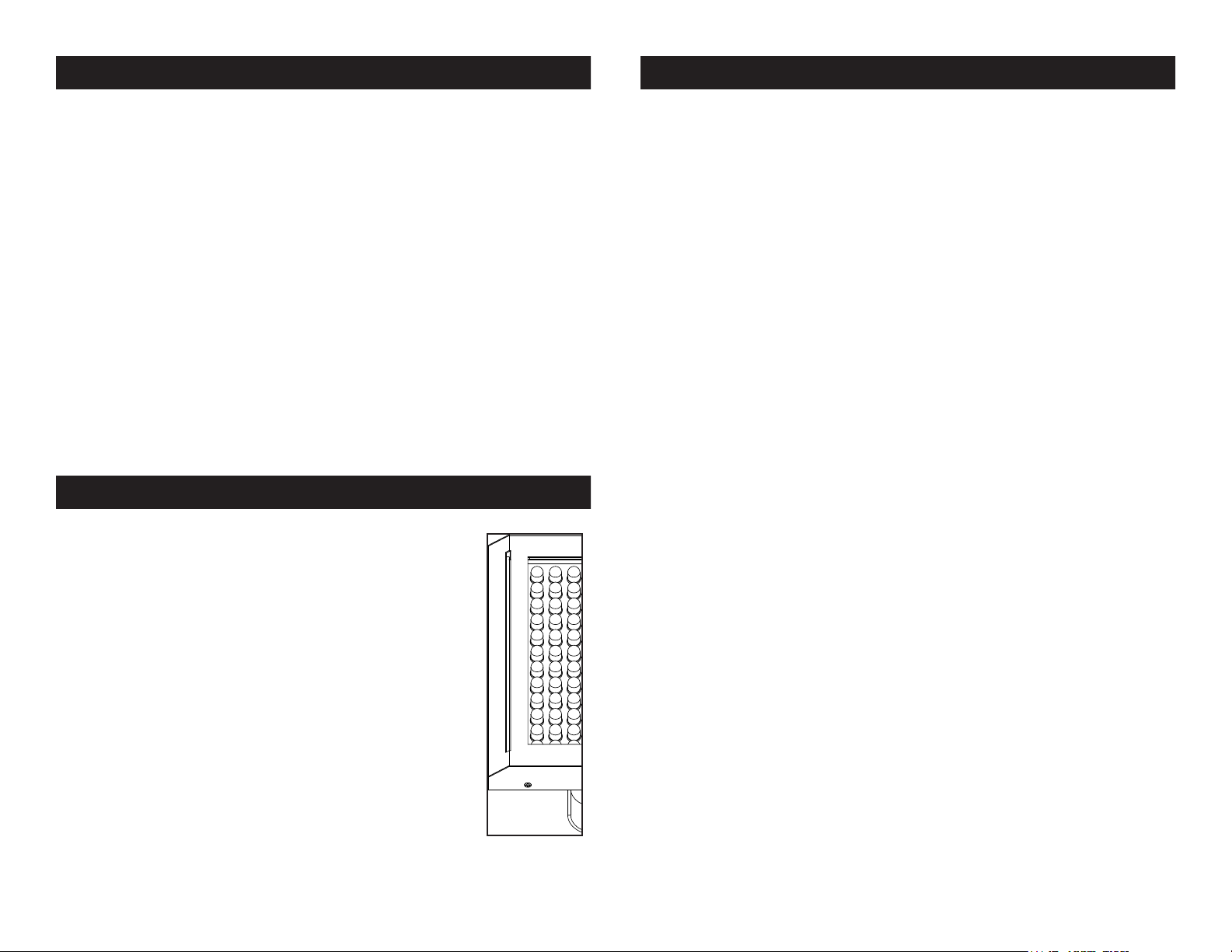

Profile Panel RGBA Frost Filter Slot
The Prole Panel RGBA features a Frost Filter slot
on the face of the unit, which can support a frost
lter sheet the size of:
8.2” x 14.7” / 210 x 375mm
Frost lter sheets can be purchased through ADJ.
Note: The sheets are not cut to size for the unit.
Sheets:
LSF 20-22 - 20 Degree Beam Angle
Sheet Size: 24” x 22”
LSF 30-24 - 30 Degree Beam Angle
Sheet Size: 22” x 24”
LSF 60-24 - 60 Degree Beam Angle
Sheet Size: 20” x 24”
The UC IR infrared remote gives you control of various functions (See
below). To control the fixture you must aim the remote at the front of
the fixture and be no more than 30 feet away. To use the ADJ UC IR
you must first activate the fixtures infrared sensor, to activate the sensor please see the instructions on page 12.
The Airstream IR remote transmitter plugs into the headphone jack
of your iOS phone or tablet. To control your IR fixture you must raise
the volume to the maximum on your iOS phone or tablet and aim the
transmitter at the fixture sensor and be no more than 15 feet away.
The app is a free download from the app store for your iOS phone
or tablet. The app comes with 3 pages of control depending on the
fixture you are using. Please see below for IR functions including the
corresponding app page.
Works with App page 1.
STAN D BY - Pressing this button will blackout the fixture. Press the but-
ton again to return to the initial state.
FULL ON - Press this button to fully light up the unit. Press this button
again to return to the unit back to its previous state.
FADE/GOBO - This button is invalid for this fixture.
“DIMMER +” and “DIMMER -” - Use these buttons to adjust the output
intensity in color mode.
STROBE - Press this button to activate strobing. Use buttons 1-4 to ad-
just the strobe speed. “1” being the slowest, “4” being the fastest. Press
this button again to deactivate strobing.
COLOR - Press this button to activate color mode. Use buttons 1-9 to
find your desired color.
1-9 - Use buttons 1-9 to select your desired color when color mode is
active. Use buttons 1-4 to select your desired strobe speed.
SOUND ON & OFF - Use the buttons to activate and deactivate sound
active mode.
SHOW 0 - Press this button to activate show mode. Use buttons 1-9
to select your desired show. Press this button twice for show 10. Press
button 1 twice for show 11.
ADJ Products, LLC - www.adj.com - Prole Panel RGBA Instruction Manual Page 13 ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 14
Profile Panel RGBA 4 Channel Mode
Profile Panel RGBA 9 Channel Mode
Channel Value Function
1 RED
0 - 255 0% - 100%
2 GREEN
0 - 255 0% - 100%
3 BLUE
0 - 255 0% - 100%
4 AMBER
0 - 255 0% - 100%
Profile Panel RGBA 7 Channel Mode
Channel Value Function
1 RED
0 - 255 0% - 100%
2 GREEN
0 - 255 0% - 100%
3 BLUE
0 - 255 0% - 100%
4 AMBER
0 - 255 0% - 100%
5 COLOR MACROS
0 - 255 (See Color Macro Chart pages 22-23)
6 STROBING
0 - 31 LED OFF
32 - 63 LED ON
64 - 95 STROBING SLOW - FAST
96 - 127 LED ON
128 - 159 PULSE STROBING SLOW - FAST
160 - 191 LED ON
192 - 223 RANDOM STROBING SLOW - FAST
224 - 255 LED ON
7 MASTER DIMMER
0 - 255 0% - 100%
Channel Value Function
1 RED
0 - 255 0% - 100%
2 GREEN
0 - 255 0% - 100%
3 BLUE
0 - 255 0% - 100%
4 AMBER
0 - 255 0% - 100%
5 COLOR MACROS
0 - 255 (See Color Macro Chart pages 22-23)
9 Channel mode continued on the next page
ADJ Products, LLC® - www.adj.com - Prole Panel RGBA User Manual Page 15 ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 16
Profile Panel RGBA 9 Channel Mode
Profile Panel RGBA 9 Channel Mode
Channel Value Function
6 PROGRAMS
0 - 15 OFF
16 - 25 PROGRAM 1
26 - 35 PROGRAM 2
36 - 45 PROGRAM 3
46 - 55 PROGRAM 4
56 - 65 PROGRAM 5
66 - 75 PROGRAM 6
76 - 85 PROGRAM 7
86 - 95 PROGRAM 8
96 - 105 PROGRAM 9
106 - 115 PROGRAM 10
116 - 125 PROGRAM 11
126 - 135 PROGRAM 12
136 - 145 PROGRAM 13
146 - 155 PROGRAM 14
156 - 165 PROGRAM 15
166 - 175 PROGRAM 16
176 - 185 PROGRAM 17
186 - 195 PROGRAM 18
196 - 205 PROGRAM 19
206 - 215 PROGRAM 20
216 - 225 PROGRAM 21
226 - 235 PROGRAM 22
236 - 245 AUTO RUN
246 - 255 SOUND ACTIVE
7 PROGRAM SPEED/SOUND SENSITIVE
0 - 255 SLOW - FAST
0 - 255 LEAST SENSITIVE - MOST SENSITIVE
When Channel 6 is between the values of 16-235, Channel 7 will control the
program speed.
When Channel 6 is between the values of 246-255, Channel 7 will control the
sound sensitivity.
Channel Value Function
8 STROBING
0 - 31 LED OFF
32 - 63 LED ON
64 - 95 STROBING SLOW - FAST
96 - 127 LED ON
128 - 159 PULSE STROBING SLOW - FAST
160 - 191 LED ON
192 - 223 RANDOM STROBING SLOW - FAST
224 - 255 LED ON
9 MASTER DIMMER
0 - 255 0% - 100%
ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 17 ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 18
Profile Panel RGBA 32 Channel Mode
Channel Value Function
Profile Panel RGBA 32 Channel Mode
Channel Value Function
1 RED SECTION 1
0 - 255 0% - 100%
2 GREEN SECTION 1
0 - 255 0% - 100%
3 BLUE SECTION 1
0 - 255 0% - 100%
4 AMBER SECTION 1
0 - 255 0% - 100%
5 RED SECTION 2
0 - 255 0% - 100%
6 GREEN SECTION 2
0 - 255 0% - 100%
7 BLUE SECTION 2
0 - 255 0% - 100%
8 AMBER SECTION 2
0 - 255 0% - 100%
9 RED SECTION 3
0 - 255 0% - 100%
10 GREEN SECTION 3
0 - 255 0% - 100%
11 BLUE SECTION 3
0 - 255 0% - 100%
12 AMBER SECTION 3
0 - 255 0% - 100%
13 RED SECTION 4
0 - 255 0% - 100%
14 GREEN SECTION 4
0 - 255 0% - 100%
15 BLUE SECTION 4
0 - 255 0% - 100%
16 AMBER SECTION 4
0 - 255 0% - 100%
See Page 21 for the Section Layout
17 RED SECTION 5
0 - 255 0% - 100%
18 GREEN SECTION 5
0 - 255 0% - 100%
19 BLUE SECTION 5
0 - 255 0% - 100%
20 AMBER SECTION 5
0 - 255 0% - 100%
21 RED SECTION 6
0 - 255 0% - 100%
22 GREEN SECTION 6
0 - 255 0% - 100%
23 BLUE SECTION 6
0 - 255 0% - 100%
24 AMBER SECTION 6
0 - 255 0% - 100%
25 RED SECTION 7
0 - 255 0% - 100%
26 GREEN SECTION 7
0 - 255 0% - 100%
27 BLUE SECTION 7
0 - 255 0% - 100%
28 AMBER SECTION 7
0 - 255 0% - 100%
29 RED SECTION 8
0 - 255 0% - 100%
30 GREEN SECTION 8
0 - 255 0% - 100%
31 BLUE SECTION 8
0 - 255 0% - 100%
32 AMBER SECTION 8
0 - 255 0% - 100%
See Page 21 for the Section Layout
ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 19 ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 20
Color No. DMX
VAULE
RGBA COLOR INTENSITY
RED GREEN BLUE AMBER
Color25 136-140 254 5 97
0
Color26 141-145 175 77 173 0
Color27 146-150 119 130 199
0
Color28 151-155 147 164 212 0
Color29 156-160 88 2 163
0
Color30 161-165 0 38 86 0
Color31 166-170 0 142 208
0
Color32 171-175 52 148 209 0
Color33 176-180 1 134 201
0
Color34 181-185 0 145 212 0
Color35 186-190 0 121 192
0
Color36 191-195 0 129 184 0
Color37 196-200 0 83 115
0
Color38 201-205 0 97 166 0
Color39 206-210 1 100 167
0
Color40 211-215 0 40 86 0
Color41 216-220 209 219 182
0
Color42 221-225 42 165 85 0
Color43 226-230 0 46 35
0
Color44 231-235 8 107 222 0
Color45 236-240 107 156 231
0
Color46 241-245 165 198 247 0
Color47 246-250 0 0 189
0
Color48 251-255 165 35 1 0

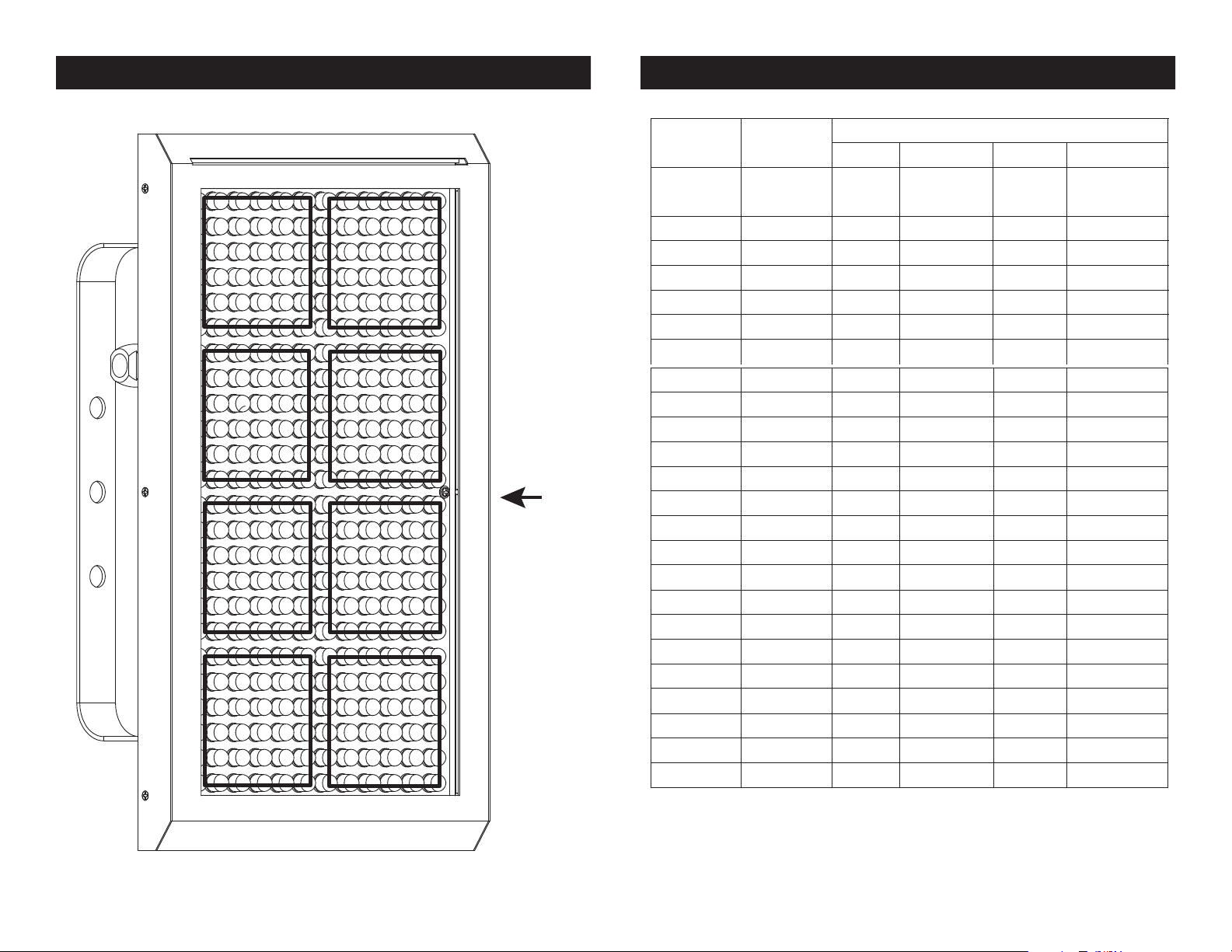

Profile Panel RGBA Panel Sections
Profile Panel RGBA Color Macro Chart
Color No. DMX
VAULE
Color1
(off)
Color2 21-25 255 0 0 0
Color3 26-30 0 255 0 0
SECTION 8SECTION 7
SECTION 6
SECTION 5
ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 21 ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 22
SECTION 1SECTION 2
SECTION 3
SECTION 4
LED DISPLAY
Color4 31-35 0 0 255 0
Color5 36-40 0 0 0 255
Color6 41-45 255 255 0 0
Color7 46-50 255 0 255 0
Color8 51-55 255 0 0 255
Color9 56-60 0 255 255 0
Color10 61-65 0 255 0 255
Color11 66-70 0 0 255 255
Color12 71-75 255 255 255 0
Color13 76-80 255 255 0 255
Color14 81-85 0 255 255 255
Color15 86-90 255 0 255 255
Color16 91-95 255 255 255 255
Color17 96-100
Color18 101-105 254 177 153 0
Color19 106-110 254 192 138
Color20 111-115 254 165 98 0
Color21 116-120 254 121 0
Color22 121-125 176 17 0 0
Color23 126-130 96 0 11
Color24 131-135 234 139 171 0
0-20 0 0 0 0
RED GREEN BLUE AMBER
255 206 143 0
RGBA COLOR INTENSITY
0
0
0
Profile Panel RGBA Color Macro Chart
DIMMER
Profile Panel RGBA Dimmer Curves
Color No. DMX
VAULE
RED GREEN BLUE AMBER
RGBA COLOR INTENSITY
Color25 136-140 254 5 97
Color26 141-145 175 77 173 0
Color27 146-150 119 130 199
Color28 151-155 147 164 212 0
Color29 156-160 88 2 163
Color30 161-165 0 38 86 0
Color31 166-170 0 142 208
Color32 171-175 52 148 209 0
Color33 176-180 1 134 201
Color34 181-185 0 145 212 0
Color35 186-190 0 121 192
Color36 191-195 0 129 184 0
Color37 196-200 0 83 115
Color38 201-205 0 97 166 0
Color39 206-210 1 100 167
Color40 211-215 0 40 86 0
Color41 216-220 209 219 182
Color42 221-225 42 165 85 0
Color43 226-230 0 46 35
Color44 231-235 8 107 222 0
Color45 236-240 107 156 231
Color46 241-245 165 198 247 0
Color47 246-250 0 0 189
Color48 251-255 165 35 1 0
100%
0
50%
0
10%
0
0
0
Dimming Curve
Ramp Effect
0
0
0
Standard (default) 0 0 0 0
Stage 780 1100 1540 1660
TV 1180 1520 1860 1940
Architectural 1380 1730 2040 2120
Theatre 1580 1940 2230 2280
0%
Rise Time Down Time
0 Sec
0 sec Fade Time 1 sec Fade Time
0 0
Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms)
255 255
Time (ms)
0
0
0
0
ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 23 ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 24
16.73”/425mm

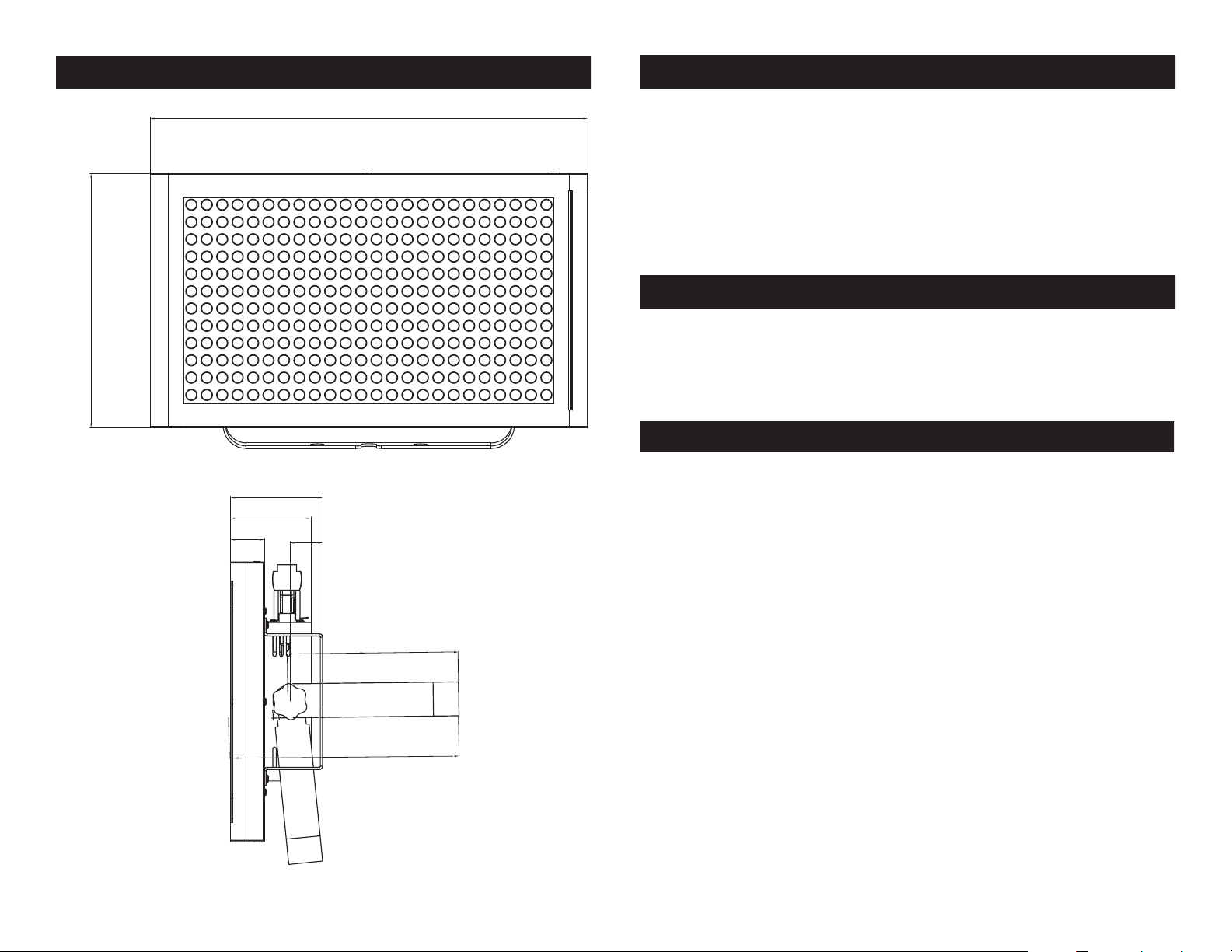

Profile Panel RGBA Dimensional Drawing
Profile Panel RGBA Multiple Unit Power Linking
9.72”/247mm
16.73”/425mm
3.2”/81.5mm
2.8”/71.5mm
1.18”/30mm
1.14”/29mm
5.88”/149.5mm
With this feature you can connect the xtures to one another
using the powerCON input and output sockets. The quantity
xtures that can be connected is 20 @ 120V and 35 @ 240V maximum. After the maximum connected xtures you will need to use
a new power outlet.
NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES
TO THE PROFILE PANEL RGBA AS THE POWER CONSUMPTION
OF OTHER LIGHTING FIXTURES WILL VARY!
Profile Panel RGBA Fuse Replacement
Disconnect the unit from its power source. Remove the power cord
from the unit. Use a flat head head screwdriver to remove the fuse
holder. Remove the fuse located inside the fuse holder and replace it
with the new fuse. Install the fuse holder and new fuse and secure it.
Profile Panel RGBA Trouble Shooting
Listed below are a few common problems the user may encounter,
with solutions.
Unit not responding to DMX:
1. Check that the DMX cables are connected properly and are
wired correctly (pin 3 is “hot”; on some other DMX devices
pin 2 may be ‘hot’). Also, check that all cables are connected
to the right connectors; it does matter which way the inputs
and outputs are connected.
2. Some DMX modes have a dimmer channel. Make sure the dim mer channel is not at 0%
Unit does not respond to sound:
1. Quiet or high pitched sounds will not activate the unit.
2. Check the sound sensitivity level. See Sound Active mode.
8”/203.2mm
If problems are not resolved; Contact ADJ® for service.
1-800-322-6337
ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 25 ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 26
Profile Panel RGBA Warranty
MANUFACTURER’S LIMITED WARRANTY
A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products
to be free of manufacturing defects in material and workmanship for a prescribed period from
the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the
product is purchased within the United States of America, including possessions and
territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable
evidence, at the time service is sought.
B. For warranty service you must obtain a Return Authorization number (RA#)
before sending back the product–please contact ADJ Products, LLC Service Department
at 800-322-6337. Send the product only to the ADJ Products, LLC factory. All
shipping charges must be pre-paid. If the requested repairs or service (including
parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return
shipping charges only to a designated point within the United States. If the entire instrument is
sent, it must be shipped in it’s original package. No accessories should be shipped with the product. If
any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for
loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the serial number has been altered or removed; if the product is modified in any
manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the
product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior
written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because
not properly maintained as set forth in the instruction manual.
D. This is not a service contract, and this warranty does not include maintnance, cleaning or periodic check
up. During the period specified above, ADJ Products, LLC will replace defective parts at its expense
with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by
reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this
warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole
discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August
15, 2012, and bear indentifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products
without any obligation to include these changes in any products theretofore manufactured.
No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with
products described above. Except to the extent prohibited by applicable law, all implied warranties made
by ADJ Products, LLC in connection with this product, including warranties of merchantability or fitness,
are limited in duration to the warranty period set forth above. And no warranties, whether expressed or
implied, including warranties of merchantability or fitness, shall apply to this product after said period
has expired. The consumer’s and/or Dealer’s sole remedy shall be such repair or replacement as is
expressly provided above; and under no circumstances shall ADJ Products, LLC be liable for any loss or
damage, direct or consequential, arising out of the use of, or inability to use, this product.
This warranty is the only written warranty applicable to ADJ Products, LLC Products and
supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore
published.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
•NonL.E.D.LightingProducts=1-year(365days)LimitedWarranty(Such as: Special Effect
Lighting, Intelligent Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par
Cans, Trussing, Lighting Stands etc. excluding LED and lamps)
•LaserProducts=1Year(365Days)LimitedWarranty(excluding laser diodes which have a 6 month
limited warranty)
•L.E.D.Products=2-year(730days)LimitedWarranty(excluding batteries which have a 180 day lim-
ited warranty). Note:2YearWarrantyonlyappliestopurchaseswithintheUnitedStates.
•StarTecSeries=1YearLimitedWarranty(excluding batteries which have a 180 day limited warranty).
•ADJDMXControllers=2Year(730Days)LimitedWarranty
ADJ Products, LLC - www.adj.com - Prole Panel RGBA User Manual Page 27
Profile Panel RGBA Specifications
Model:
SPECIFICATIONS:
Profile Panel RGBA
LEDs: 288 x 1W LEDs: 72 Red, 72 Green,
72 Blue, and 72 Amber
Working Position: Any safe working position
Voltage: 100~240V 47Hz/63Hz
Power Linking: 20 Fixtures Max @ 120V
35 Fixtures Mas @ 240V
Power Consumption: 33W
Beam Angle: 30 Degrees
Fuse: 2 Amp
Weight: 8 lbs./ 3.5Kgs.
Dimensions: 16.75” (L) x 3.2” (W) x 9.75” (H)
425 (L) x 81.5 (W) x 247 (H) mm
Colors: RGBA Color Mixing
DMX Channels: 4, 7, 9, & 32
Warranty: 2 Year (730 days)
Please Note: Specications and improvements in the design of
this unit and this manual are subject to change without any prior
written notice.
ADJ Products, LLC
6122 S. Eastern Ave. Los Angeles, CA 90040 USA
Tel: 323-582-2650 / Fax: 323-725-6100
Web: www.adj.com / E-mail: info@americandj.com
A.D.J. Supply Europe B.V.
Junostraat 2
6468 EW Kerkrade
Netherlands
service@adjgroup.eu / www.adj.eu
Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99
Loading...
