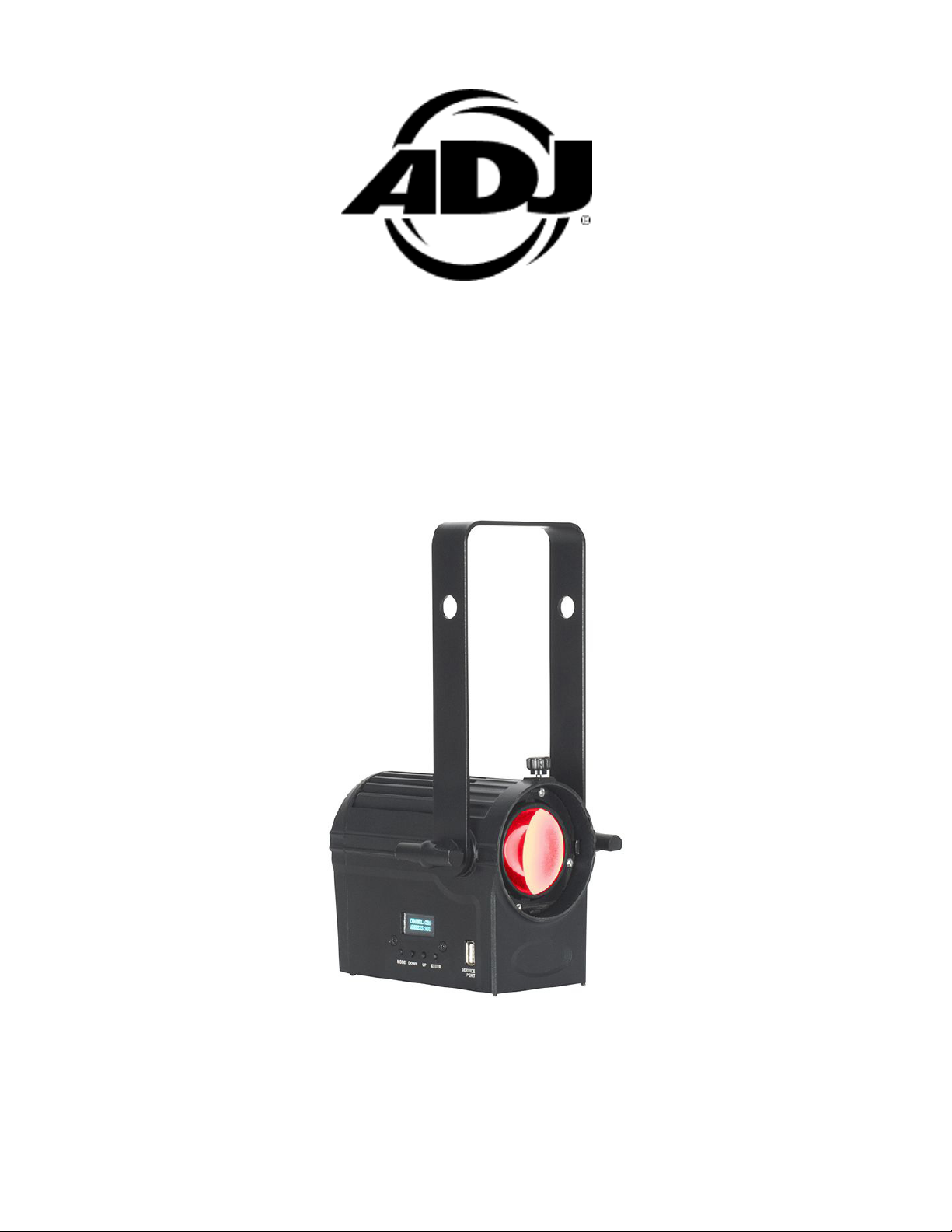

ENCORE PROFILE
MINI COLOR
User Manual
Page 2
©2023 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed
includes all forms and matters of copyrightable materials and information now allowed by statutory or
judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-ADJ Products,
LLC brands and product names are trademarks or registered trademarks of their respective companies.
ADJ Products, LLC and all afliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insufcient and negligent assembly, installation, rigging, and operation of this product.
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of
this document may be available online.
Please check www.adj.com for the latest revision/update of this manual
before beginning installation and/or programming.
Date
01/16/2023 1.0 1.00
05/30/2023 1.1 N/C No Change Updated Specifications.
08/10/2023 1.2 N/C No Change
12/14/2023 1.3 N/C No Change Updated Accessory Information
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn off all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!
Document
Version
Software
Version
DMX Channels Notes
2 / 4 / 5 / 6 / 13 / 14 /
16 channels
Initial Release.
Updated Specifications,
Dimensional Drawings.
2
Page 3
TABLE OF CONTENTS
Introduction 4
Limited Warranty (USA Only) 5
Warranty Registration | Features 6
Safety Guidelines 7
Overview 8
Installation 9
Accessory Installation 13
Gobo 15
Operation 17
Remote Device Management (RDM) 18
Control Panel 19
System Menu 20
DMX Setup 23
DMX Traits 25
Dim Modes 29
Color Macros Chart 30
Daisy Chain Power Linking | Cleaning & Maintenance 31
Dimensional Drawing 32
Specifications 35
Error Codes | Accessory Information 36
3
Page 4
INTRODUCTION
Unpacking: Thank you for purchasing the Encore Prole Mini Color by ADJ Products, LLC. Every unit
has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the
shipping carton for damage that may have occurred during shipping. If the carton appears to be dam-
aged, carefully inspect your xture for any damage and be sure all accessories necessary to operate
the unit have arrived intact. In the event that damage has been found or parts are missing, please contact our toll free customer support number for further instructions. Do not return this unit to your dealer
without rst contacting customer support.
Introduction: The ADJ Encore Prole Mini Color is a DMX intelligent, feature-packed color-mixing
ellipsoidal. To optimize the performance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. These instructions contain important
safety information regarding the use and maintenance of this unit. Please keep this manual with the
unit for future reference.
Customer Support: Contact ADJ Service for any product related service and support needs. Also visit
forums.adj.com with questions, comments or suggestions.
Parts: To purchase parts online visit:
http://parts.adj.com (US)
http://www.adjparts.eu (EU)
ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: 323-582-2941 | [email protected]
ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: +31 45 546 85 60 | Fax: +31 45 546 85 96 | [email protected]
ADJ PRODUCTS LLC USA
6122 S. Eastern Ave. Los Angeles, CA. 90040
323-582-2650 | Fax 323-532-2941 | www.adj.com | [email protected]
ADJ SUPPLY Europe B.V
Junostraat 2 6468 EW Kerkrade, The Netherlands
+31 (0)45 546 85 00 | Fax +31 45 546 85 99
www.americandj.eu | [email protected]
ADJ PRODUCTS GROUP Mexico
AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000
+52 (728) 282-7070
CAUTION! To reduce risk of shock or re, do not expose this unit to rain or moisture! This unit is
intended only for use in dry, indoor applications.
CAUTION! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
as doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service,
please contact ADJ Products, LLC.
Do not discard the shipping cartoon in the trash. Please recycle when ever possible.
4
Page 5
LIMITED WARRANTY (USA ONLY)
A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of
manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see
specic warranty period on reverse). This warranty shall be valid only if the product is purchased within the
United States of America, including possessions and territories. It is the owner’s responsibility to establish
the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, you must obtain a Return Authorization number (RA#) before sending the product
back—please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to
the ADJ Products, LLC factory. All shipping charges must be prepaid. If the requested repairs or service
(including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be
shipped in its original package and packaging material. No accessories should be shipped with the product.
If any accessories are shipped with the product, ADJ Products, LLC shall incur no liability whatsoever for
loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is
modied in any manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the
product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory
unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because it was not properly maintained as set forth in the product instructions, guidelines and/or user
manual.
D. This is not a service contract, and this warranty does not include maintenance, cleaning, or periodic check-
up. During the period specied above, ADJ Products, LLC will replace defective parts at its expense with
new or refurbished parts, and will absorb all expenses for warranty service and repair labor by reason of
defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this warranty shall
be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ
Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear
identifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products
without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with
products described above. Except to the extent prohibited by applicable law, all implied warranties made by
ADJ Products, LLC in connection with this product, including warranties of merchantability or tness, are
limited in duration to the warranty period set forth above. And all warranties, whether expressed or implied,
including warranties of merchantability or tness, are limited in duration to the warranty period set forth
above. The consumer’s and/or dealer’s sole remedy shall be such repair or replacement as is expressly
provided above; and under no circumstances shall ADJ Product, LLC be liable for any loss and/or damage,
direct and/or consequential arising out of the use of, and/or inability to use this product.
G. This warranty is the only written warranty applicable to ADJ Products, LLC products, and supersedes all
prior warranties and written descriptions of warranty terms and conditions heretofore published.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
• Non-LED Lighting Products = 1-Year (365 Days) (Including Special Effect Lighting, Intelligent Lighting,
UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands,
Power/Data Distribution, etc. excluding LED and lamps)
• Laser Products = 1-Year (365 Days) (excluding laser diodes which have a 6-Month Limited Warranty)
• LED Products = 2-Year (730 Days) (excluding batteries which have a 180 Day Limited Warranty)
• NOTE: 2-Year (730 Days) Limited Warranty ONLY applies to product purchased within the United States.
StarTec Series = 1-Year (365 Days) (excluding batteries which have a 180 Day Limited Warranty)
• ADJ DMX Controllers = 2 Year (730 Days)
• American Audio Products = 1 Year (365 Days)
5
Page 6
WARRANTY REGISTRATION
This fixture carries a 2 year limited warranty. Please ll out the enclosed warranty card to validate
your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and
accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the
outside of the return package. A brief description of the problem as well as the R.A. number must also
be written down on a piece of paper included in the shipping carton. If the unit is under warranty, you
must provide a copy of your proof of purchase invoice. You may obtain an R.A. number by contacting our customer support team on our customer support number. All packages returned to the service
department not displaying an R.A. number on the outside of the package will be returned to the shipper.
FEATURES
The ADJ Encore Profile Mini Color is a feature-packed ellipsoidal that is ideal for applications where
space is at a premium. It features an LED engine comprised of 16 x 3.5W RGBWAL (red / green / blue
/ white / amber / lime) LEDs, which offers an output of 300 Lumens and a CRI of >86. For maximum
versatility, it can be used with a choice of two manual zoom lens options and is supplied with a holder
for “E” size GOBOs. This small, but perfectly formed, luminaire is suitable for a wide range of applications, including small theatres, bar stages, museums, theme park attractions and window displays.
INCLUDED ITEMS
• Power Cable (x1)
6
Page 7
SAFETY GUIDELINES
THIS FIXTURE IS COMPOSED OF SOPHISTICATED ELECTRONIC COMPONENTS. TO GUARANTEE
SMOOTH OPERATION, IT IS IMPORTANT TO FOLLOW ALL INSTRUCTIONS AND GUIDELINES IN
THIS MANUAL. ADJ PRODUCTS, LLC IS NOT RESPONSIBLE FOR INJURY AND/OR DAMAGES
RESULTING FROM THE MISUSE OF THIS FIXTURE DUE TO THE DISREGARD OF THE INFORMATION
PRINTED IN THIS MANUAL. ONLY QUALIFIED AND/OR CERTIFIED PERSONNEL SHOULD PERFORM
INSTALLATION OF THIS FIXTURE AND ONLY THE ORIGINAL RIGGING PARTS INCLUDED WITH THIS
FIXTURE SHOULD BE USED FOR INSTALLATION. ANY MODIFICATIONS TO THE FIXTURE AND/OR
THE INCLUDED MOUNTING HARDWARE WILL VOID THE ORIGINAL MANUFACTURER’S WARRANTY
AND INCREASE THE RISK OF DAMAGE AND/OR PERSONAL INJURY. ONLY CERTIFIED PERSONNEL
SHOULD PERFORM INSTALLATION OF THIS FIXTURE.
• PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.
• THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
• DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFACTURER’S
WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE
DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE
MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR
REPAIRS.
• DO NOT PLUG FIXTURE INTO A DIMMER PACK!
• NEVER OPEN THIS FIXTURE WHILE IN USE!
• UNPLUG POWER BEFORE SERVICING FIXTURE!
• NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!
• KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
• NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
• RETINA INJURY RISK - MAY INDUCE BLINDNESS!
• SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
• MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS)
• AMBIENT TEMPERATURE RANGE IS 14° F TO 113° F (-10°C TO 45°C). DO NOT OPERATE THE
DEVICE WHEN AMBIENT TEMPERATURE FALLS OUTSIDE OF THIS RANGE.
• MINIMUM DISTANCE TO FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6 FEET (0.5 METER).
• DO NOT TOUCH the xture housing during operation. Turn OFF the power and allow approximately 60
minutes for the xture to cool down before serving.
• DO NOT shake xture, and avoid brute force when installing and/or operating xture.
• DO NOT operate xture if the power cord is frayed, crimped, damaged and/or if any of the power cord con-
nectors are damaged and do not insert into the xture securely with ease. NEVER force a power cord connector into the xture. If the power cord or any of its connectors are damaged, replace it immediately with a
new one of the same power rating.
• DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked. Allow
approx. 6” (15cm) between xture and other devices or a wall for proper cooling.
• When installing xture in a suspended environment, always use mounting hardware that is no less than
M10 x 25 mm, and always install xture with an appropriately rated safety cable.
• Always disconnect xture from main power source before performing any type of service and/or cleaning
procedure.
• Only handle the power cord by the plug end. Never pull out the plug by tugging the wire portion of the cord.
• During the initial operation of this xture, a light smoke or smell may emit from the interior of the xture.
This is a normal process and is caused by excess paint in the interior of the casing burning off from the
heat associated with the lamp and will decrease gradually over time.
• Consistent operational breaks will ensure xture will function properly for many years.
• ONLY Use original packaging and materials to transport the xture in for service.
7
Page 8

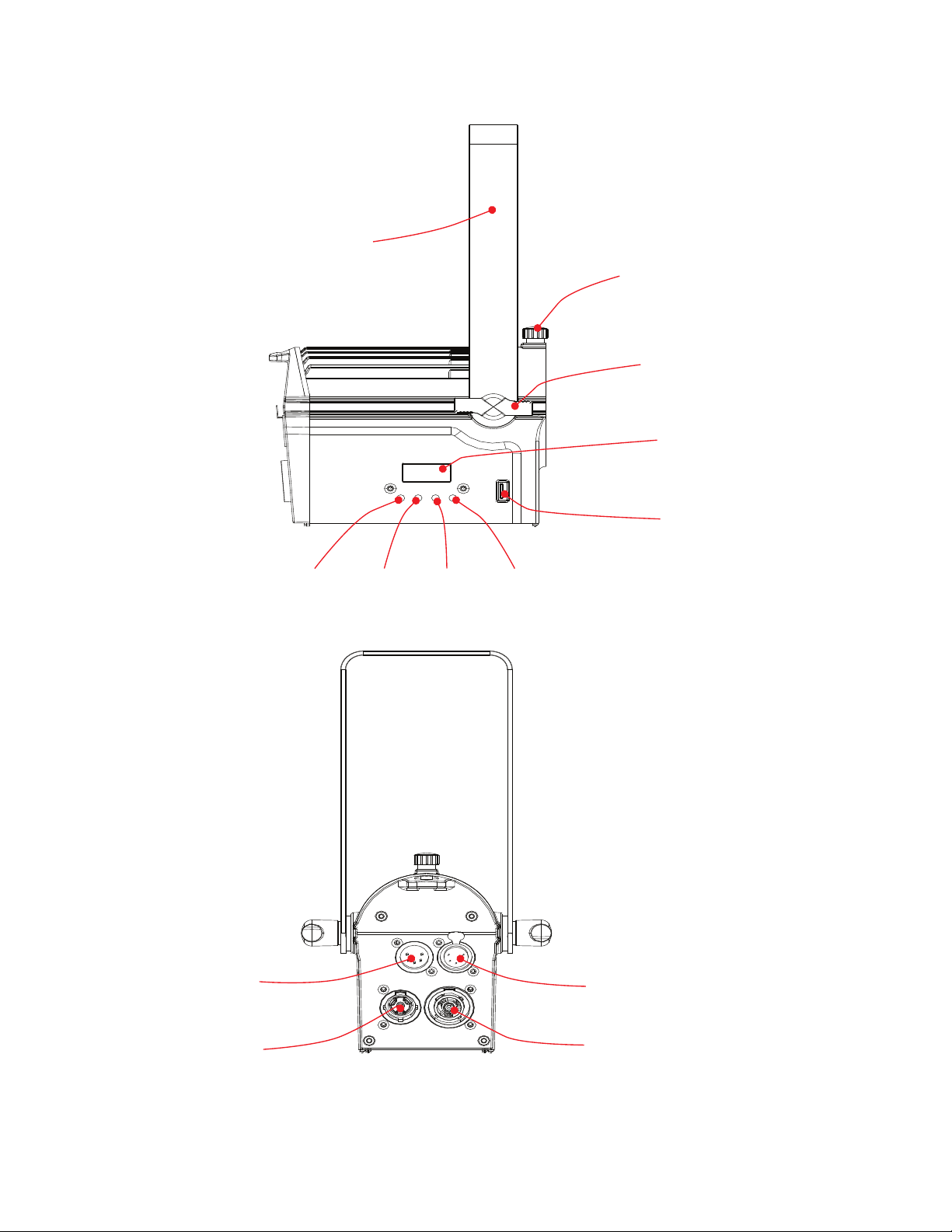

OVERVIEW
Mounting
Yoke
Barrel Installation
Thumb Screw
Yoke
Adjustment
Knob
Display
Screen
Service
Port
DMX
In
Mode
Button
Down
Button
Up
Button
Enter
Button
DMX
Out
Power
In
Power
Out
8
Page 9
INSTALLATION
FLAMMABLE MATERIAL WARNING
Keep xture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics.
ELECTRICAL CONNECTIONS
A qualied electrician should be used for all electrical connections and/or installations.
USE CAUTION WHEN POWER LINKING FIXTURES OF OTHER MODEL TYPES, AS
THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE
MAX POWER OUTPUT ON THIS FIXTURE. CHECK SILK SCREEN FOR MAX AMPS.
MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS).
MINIMUM DISTANCE OF INFLAMMABLE MATERIALS FROM THE SURFACE IS 1.6
FEET (0.5 METER)
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
• Fixture MUST be installed following all local, national, and country commercial electrical and con-
struction codes and regulations.
• Before rigging/mounting a single xture or multiple xtures to any metal truss/structure or placing
the xture(s) on any surface, a professional equipment installer MUST be consulted to determine
if the metal truss/structure or surface is properly certied to safely hold the combined weight of the
xture(s), clamps, cables, and accessories.
• Ambient operating temperature range is 14°F to 113°F (-10°C to 45°C). Do not use operate the
fixture when ambient temperature falls outside of this range!
• Fixture(s) should be installed in areas outside walking paths, seating areas, or areas were unauthorized personnel might reach the xture by hand.
• NEVER stand directly below the xture(s) when rigging, removing or servicing.
• Overhead xture installation must always be secured with a secondary safety attachment, such as
an appropriately rated safety cable.
• Allow approximately 60 minutes for the xture to cool down before servicing.
RIGGING
Overhead rigging requires extensive experience, including calculating working load limits,
installation material being used, and periodic safety inspection of all installation material and
the fixture, among other skills. If you lack these qualifications, do not attempt the installation
yourself. Improper installation can result in bodily injury.
9
Page 10
INSTALLATION
CLAMP INSTALLATION

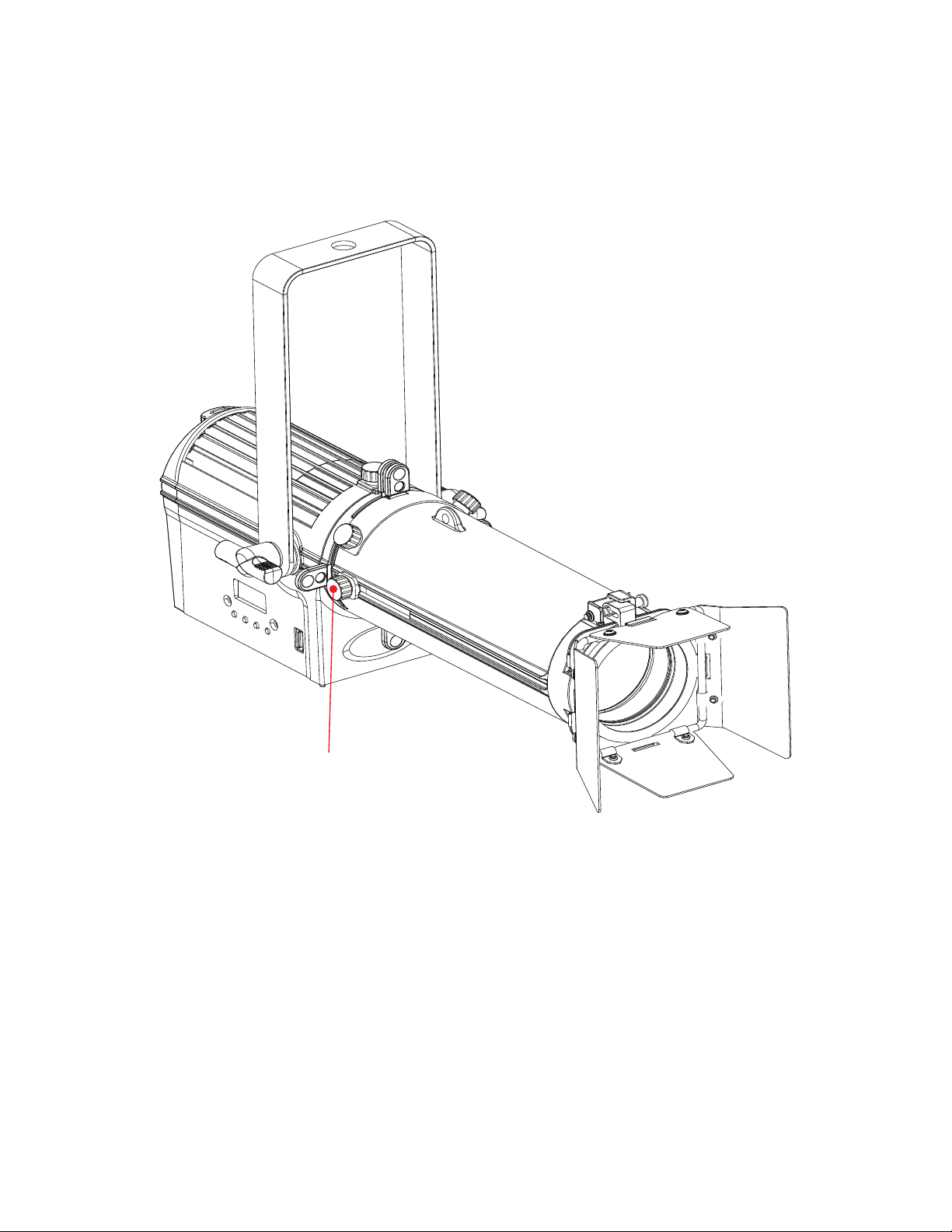

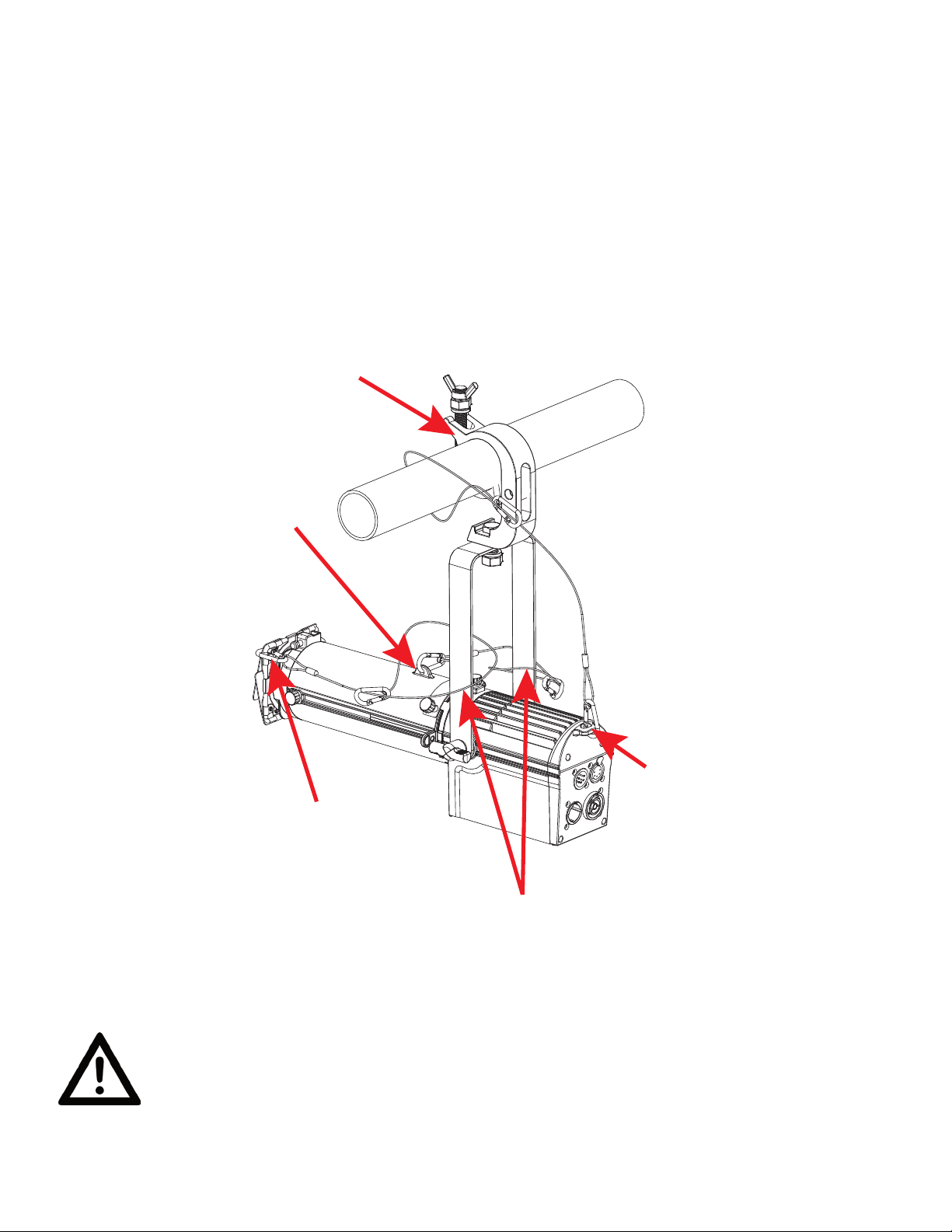

This fixture features a mounting point on the yoke for the attachment of a mounting clamp. There is
also a safety cable loop located on the rear of the fixture above the DMX ports (see the illustration
below). When mounting the fixture to a truss or any other suspended or overhead installation, be sure
to secure an appropriately rated clamp (not included) to the yoke, and attach a separate SAFETY
CABLE of the appropriate weight rating to the safety cable loop. If the barrel and/or barndoor acces-
sories are attached, each accessory must also be secured using its own appropriately rated safety
cable, securely and independently looped around the fixture’s mounting yoke as shown in the illustration below. Please refer to the Accessory Installation section of this manual for detailed information
regarding the installation process for these accessories.
MOUNTING
CLAMP
BARREL
SAFETY
CABLE
LOOP
FIXTURE
SAFETY
BARNDOOR
SAFETY
CABLE
LOOP
SAFETY CABLES
FOR ACCESSORIES
LOOPED AROUND
YOKE
CABLE
LOOP
SAFETY CABLE:
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A
SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL NOT FALL IF
THE CLAMP FAILS. WHEN BARREL AND/OR BARNDOORS ARE INSTALLED, EACH
ACCESSORY MUST ALSO BE FITTED WITH ITS OWN SEPARATE SAFETY CABLE.
10
Page 11
INSTALLATION
STAND MOUNTING

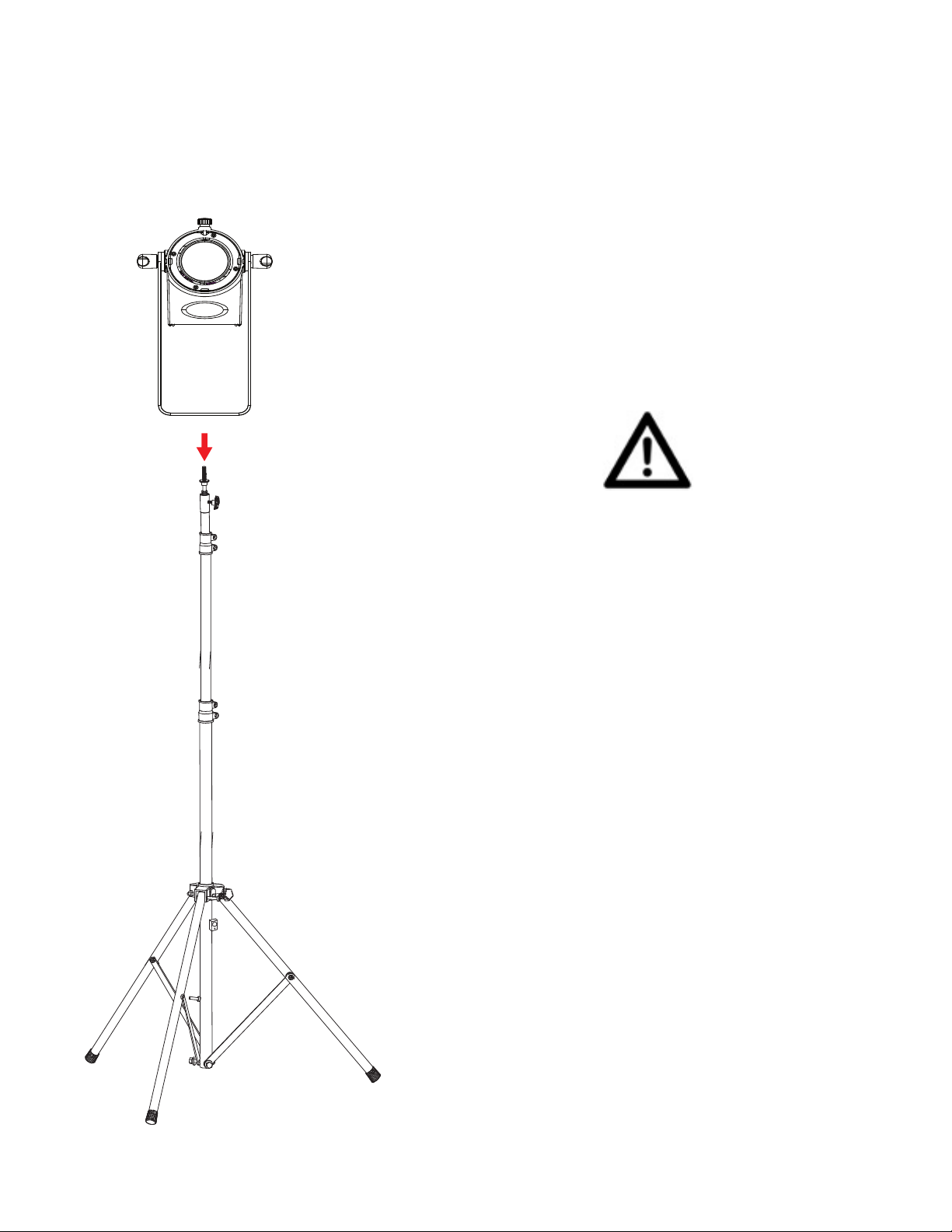

This unit can also be installed atop a tripod stand. Simply insert the threaded bolt on the top of the
tripod stand through the hole in the mounting yoke. Tighten the nut onto the threaded bolt to secure
the mounted device in place.
CAUTION!
MAKE SURE THAT THE TRIPOD LEGS AND ALL TELE-
SCOPING ELEMENTS OF THE TRIPOD STAND ARE
LOCKED IN PLACE BEFORE INSTALLING THE DEVICE
ATOP THE STAND!
POSITION THE TRIPOD STAND AND MOUNTED DEVICE ONLY ON FLAT, STABLE SURFACES! DEPLOY
TRIPOD LEGS FULLY IN ORDER TO MAXIMIZE STABIL-
ITY!
11
Page 12
INSTALLATION

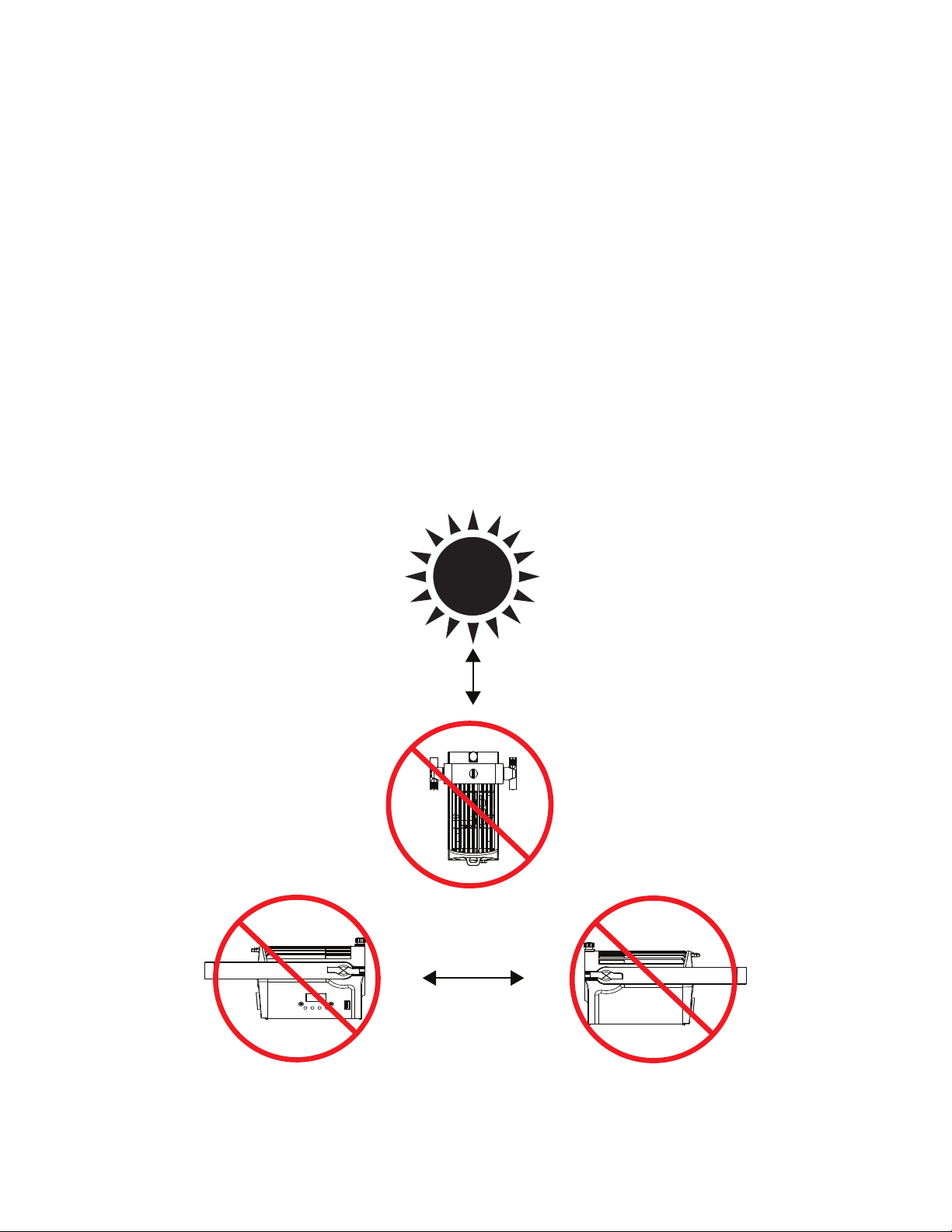

POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS
External sources of light beams from direct sunlight, lighting moving head fixtures, and lasers which
are focused directly towards the exterior housing and/or penetrate the front lens opening of ADJ lighting fixtures can cause severe internal damage including burning of optics, dichroic color filters, glass
and metal gobos, prisms, animation wheels, frost filters, irises, shutters, motors, belts, wiring, discharge lamps, and LEDs.
This issue is not unique to ADJ lighting fixtures; it is a common issue with lighting fixtures from all
manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can reduce the risk of any potential damage if followed. Contact ADJ Service for more
details.
DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM
DIRECT SUNLIGHT, OTHER LIGHTING MOVING HEAD FIXTURES, AND LASERS DURING
UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS
A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.
12
Page 13

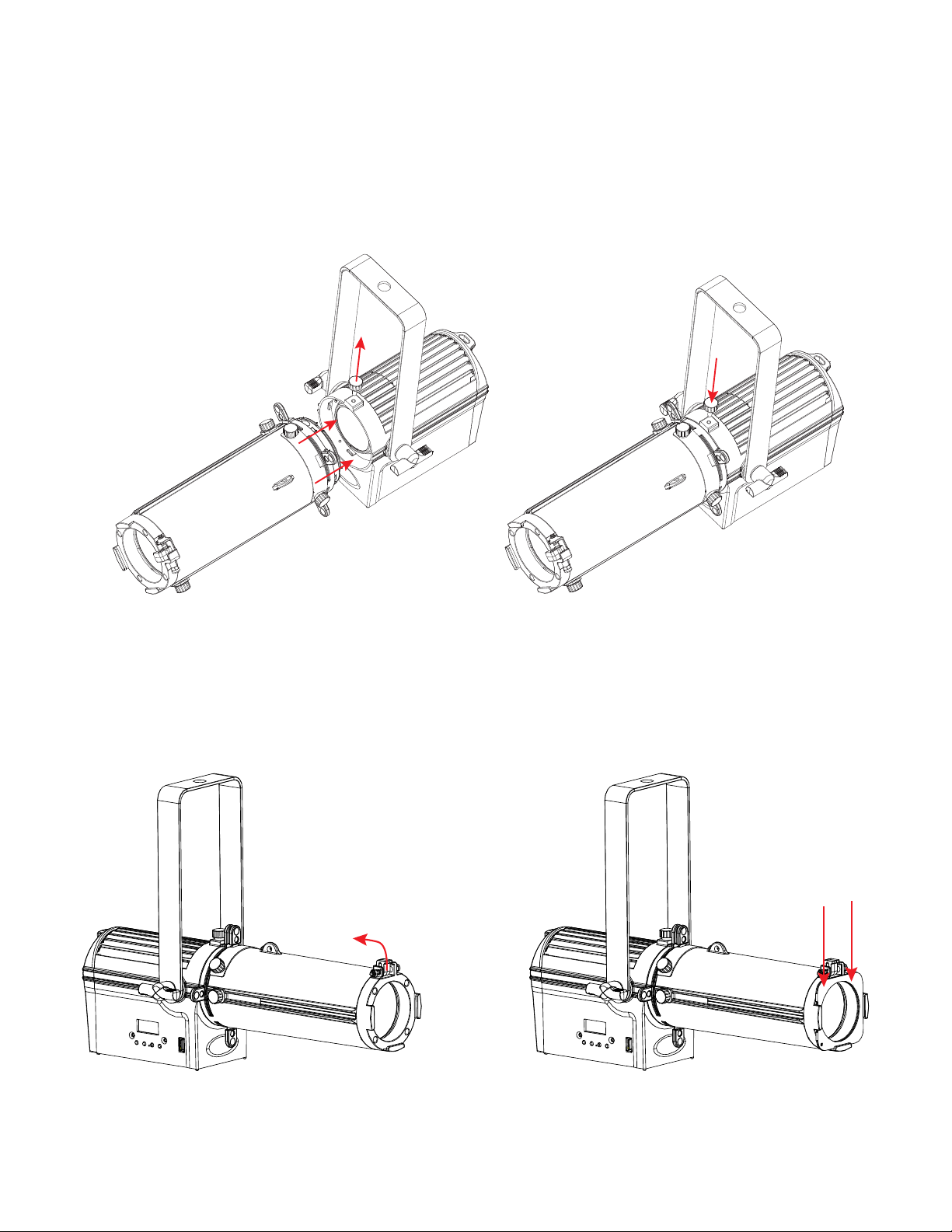

ACCESSORY INSTALLATION
BARREL

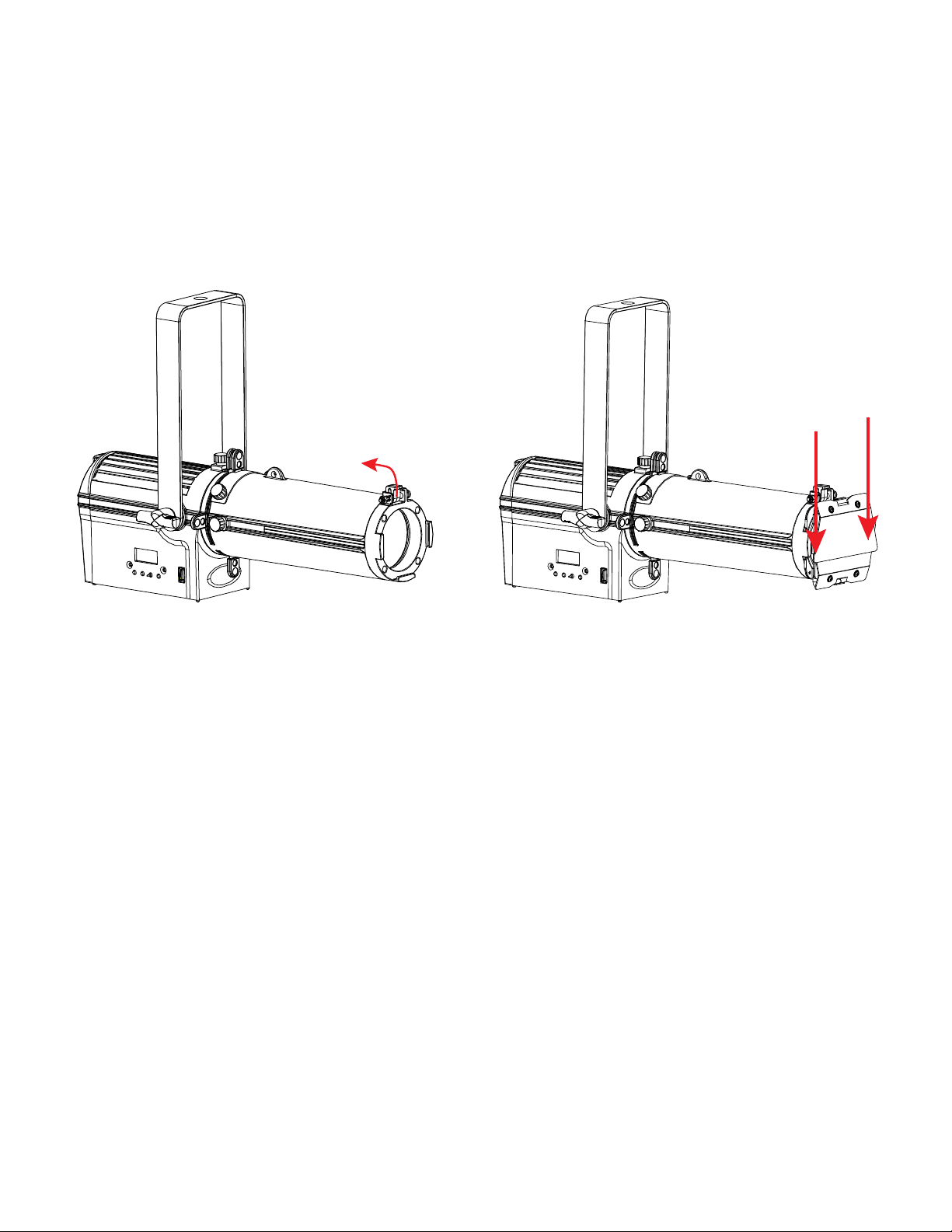

To install the barrel, remove the thumbscrew located at the top of the fixture’s lens frame, then insert
the back end of the barrel (the side closest to the gobo holder) into the lens frame, making sure that
the hole on the barrel is aligned with the thumbscrew hole on the lens frame (Fig. 1). Then insert and
tighten the thumbscrew to secure the barrel in place (Fig. 2). Please note that the barrel requires
its own separate safety cable when installed in a suspended setting.
1
GEL FRAME
To install the gel frame, press the release on the retainer clip at the end of the barrel, and flip the clip
open (Fig. 1). Slide the gel frame into the slot at the end of the barrel (Fig. 2), then close the retainer
slip to secure it in place.
2
1 2
13
Page 14
ACCESSORY INSTALLATION
BARNDOORS
To install the barndoors, press the release on the retainer clip at the end of the barrel, and flip the
clip open (Fig. 1). Slide the barndoors into the slot at the end of the barrel (Fig. 2). If the gel frame
has already been installed, then the barndoors should be installed over the gel frame (the gel frame
should be closer to the frame of the barrel). Close the retainer slip to secure the barndoors in place.
Please note that the barndoors require their own separate safety cable when installed in a suspended setting.
1 2
14
Page 15
GOBO

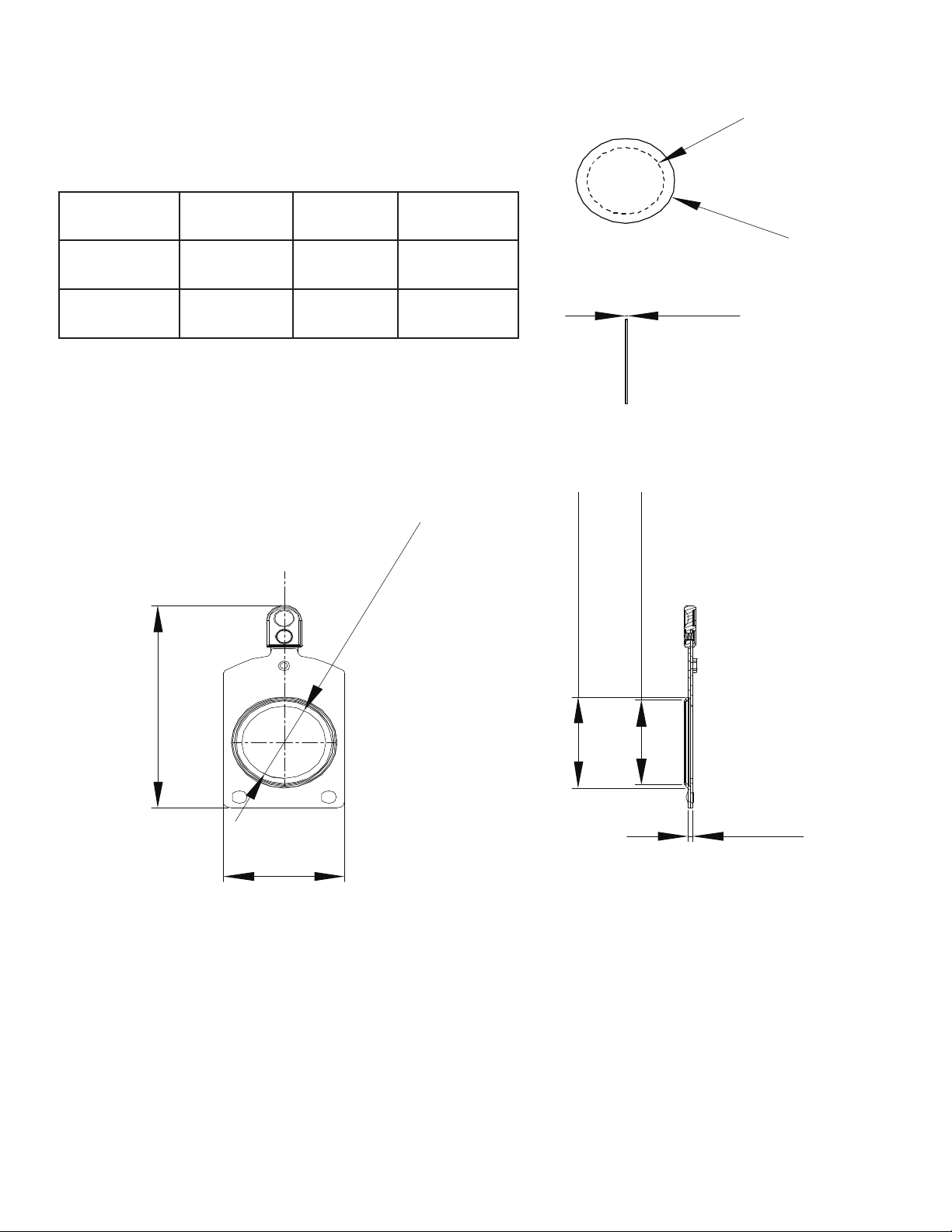

GOBO DIMENSIONS
Diameter
Gobo Type
Metal
Glass
Outer
Diameter
1.772 in
(45mm)
1.555 in
(39.5mm)
Diameter
GOBO HOLDER DIMENSIONS
1.220 in
(31mm)
1.220 in
(31mm)
Ø 1.299in
Ø (33mm)
Thickness
0.008 in
(0.2mm)
0.039 in
(1mm)
1.630in (41.4mm)
1.520in (38.6mm)
Outer
Diameter
Thickness
3.642in (92.5mm)
1.874in
(47.6mm)
Please note that gobo holder is compatible with “E” size gobos.
0.063in
(1.6mm)
15
Page 16
GOBO
INSTALLATION

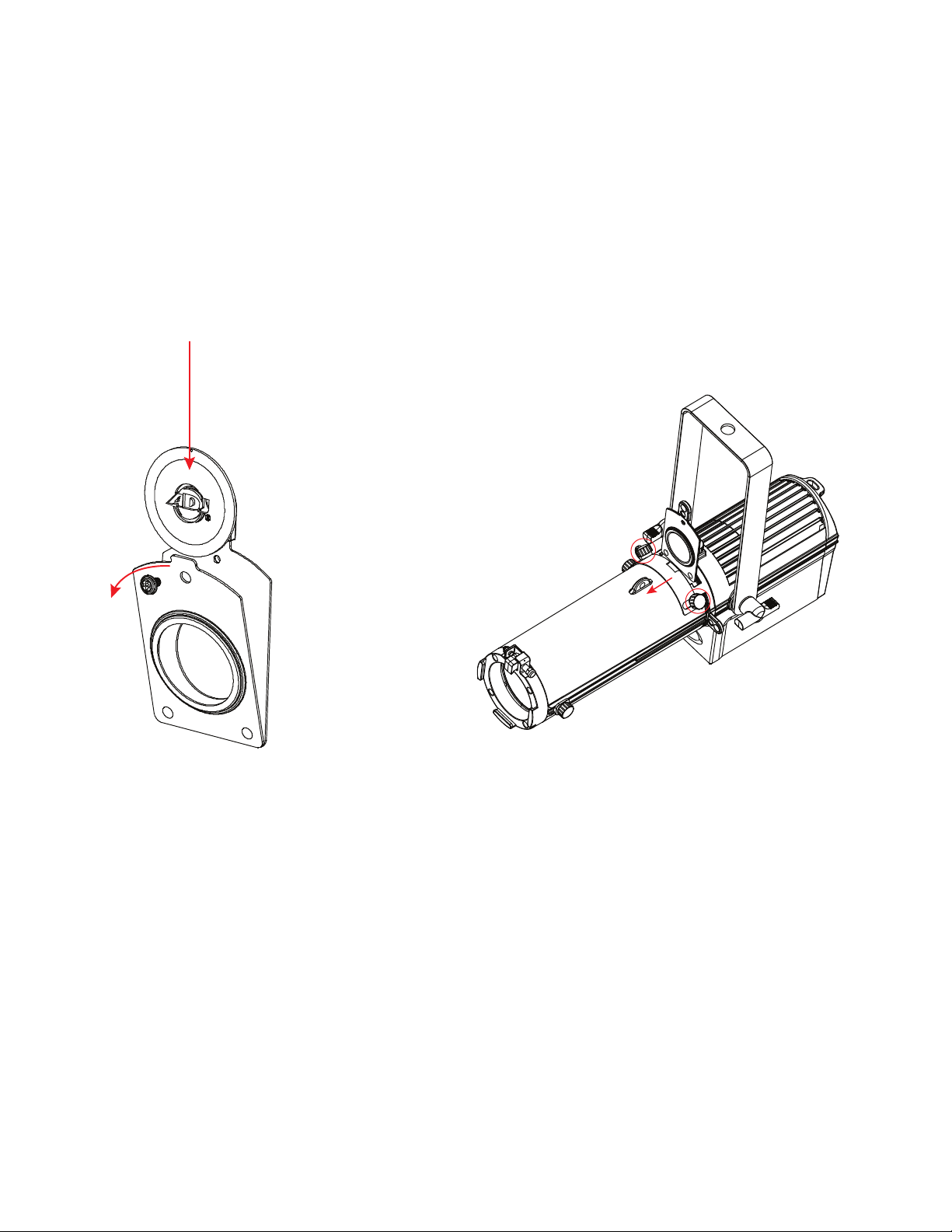

Remove the screw from the gobo holder, and open up the two halves of the gobo holder (Fig. 1).
Please note that the half of the gobo holder with the raised surface is the front, while the half
with the flat surface and the handle is the back. Insert the gobo, making sure that the front face of
the gobo is facing the front of the gobo holder, then re-insert and tighten the screw to close the gobo
holder. Next, locate the plate on the barrel near the safety cable loop that is held in place with two
knobs. Loosen that knobs and slide the plate forward to expose the gobo slot (Fig. 2). Insert the gobo
holder into the gobo slot, making sure that the front of the gobo holder is facing towards the front of
the barrel. Slide the plate back into place and tighten the knobs to secure the gobo holder in place.
1
16
2
Page 17
OPERATION
ZOOM FUNCTION
The zoom function on this fixture is adjusted manually using a sliding knob located on the side of the
barrel, as shown in the illustration below. Push the sliding knob towards the front of the barrel to zoom
out, or backwards to zoom in.
Zoom Knob
17
Page 18
REMOTE DEVICE MANAGEMENT (RDM)
NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout
the entire system, including DMX data splitters and wireless systems.
Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for
lighting, allowing the DMX systems of the fixtures to be modified and monitored remotely. This proto-
col is ideal for instances in which a unit is installed in a location that is not easily accessible.
With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled controller to send out a signal to devices on the wire, as well as allowing the fixture to respond (known as a
GET command). The controller can then use its SET command to modify settings that would typically
have to be changed or viewed directly via the unit’s display screen, including the DMX Address, DMX
Channel Mode, and Temperature Sensors.
FIXTURE RDM INFORMATION:
RDM Code Device ID Model ID Personality IDs
02Ch (1), 04Ch (2),
0x1900 0031-FFFF 31
05Ch (3), 06Ch (4),
13Ch (5), 14Ch (6),
16Ch (7)
Please be aware that not all RDM devices support all RDM features, and therefore it is important
to check beforehand to ensure that the equipment that you are considering includes all of the features
that you require.
The following parameters are accessible in RDM on this device:
[0x0011] Proxied Device Count [0x0405] Device Power Cycles
[0x0200] Sensor Denition [0x0600] Pan Invert
[0x0201] Sensor Value [0x0601] Tilt Invert
[0x0080] Device Model Description [0x0602] Pan Tilt Swap
[0x0081] Manufacturer Label [0x0500] Display Invert
[0x0082] Device Label [0x0501] Display Level
[0x00E0] DMX Personality [0x1010] Power State
[0x00E1] DMX Personality Description [0x1031] Preset Playback
[0x0400] Device Hours [0x0122] Default Slot Value
[0x0015] Comms Status [0x00B0] Language
[0x0031] Status ID Description [0x00A0] Language Capabilities
[0x0032] Clear Status ID [0x00C2] Boot Software Version Label
[0x0401] Lamp Hours [0x00C1] Boot Software Version ID
[0x0402] Lamp Strikes [0x0070] Product Detail ID List
[0x0403] Lamp State [0x0030] Status Messages
[0x0404] Lamp On Mode [0x0603] Realtime Clock
18
Page 19

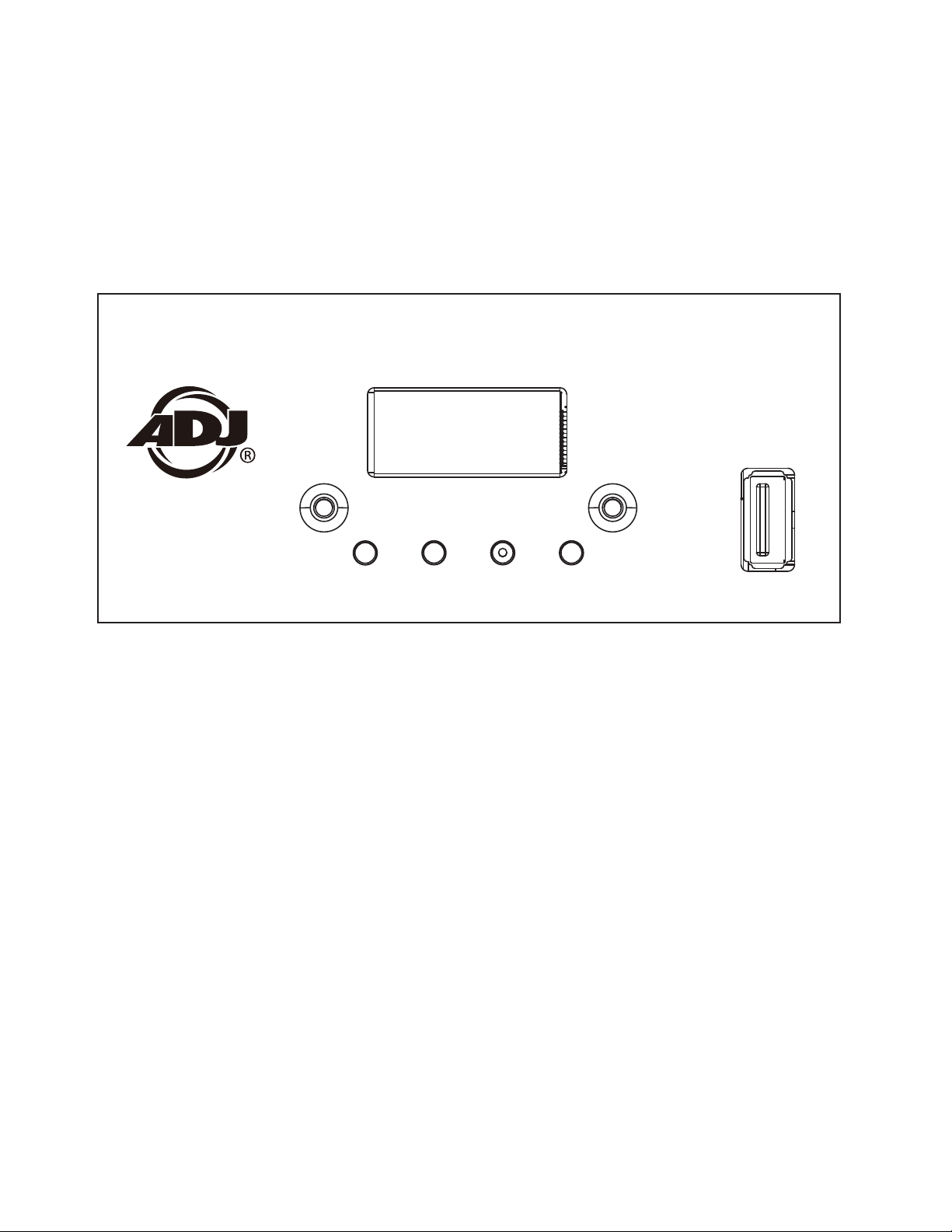

CONTROL PANEL
The xture includes an easy to navigate system menu control panel display where all necessary settings and adjustments are made. (See image below)
• MODE: Cycles through the main menu options and/or return to previous menu without making
changes.
• DOWN/UP: Scroll through options in the selected menu.
• ENTER: Select highlighted option and/or confirm selection.
ENCORE PROFILE
MINI COLOR
www.adj.com
MODE DOWN UP ENTER
AUTO LOCK
As configured from the factory, the unit will automatically lock the display screen controls after 2 minutes of inactivity. The inactivity period before the controls automatically lock can be adjusted in the
System Menu by navigating to PERSONALITY > DISPLAY > AUTO LOCK. To unlock the display
screen controls, simply press and hold the Mode button until the controls unlock.
SOFTWARE PORT / SOFTWARE UPDATES
Please contact ADJ customer support for the latest software and updating instructions.
SERVICE
PORT
19
Page 20
SYSTEM MENU
DMX SETTINGS
PERSONALITY
DMX
Address
DMX
Channel
Mode
No DMX
Dim Modes
Dim Curves
PWM
Freq
Display
001 - 511
2Ch
4Ch
5Ch
6Ch
13Ch
14Ch
16Ch
Hold
Blackout
Manual
Standard
Stage
TV
Architectural
Theatre
Stage 2
Dim Speed 0.0s ~ 10s
Square
Linear
Square Inverse
S-Curve
900~1500Hz, 2500Hz, 4000Hz, 5000Hz,
6000Hz, 10KHz, 15KHz, 20KHz, 25KHz
Screen Display Off, 1min - 9min
Auto Lock Off - 10min
Flip Display Yes / No
Set DMX address of the
unit.
Select DMX channel
mode
If DMX signal is lost,
unit holds last settings
If DMX signal is lost,
unit takes all channels
to 0
If DMX signal is lost,
unit defaults to pre-selected manual mode
Default = 1200Hz
Screen goes to sleep
after pre-set period of
inactivity
Screen controls lock
after pre-set period of
inactivity, default =
2min
Invert display orientation
CONTINUED ON NEXT PAGE
20
Page 21
SYSTEM MENU
PERSONALITY
(continued)
MANUAL
Service
Passcode =
050
Red 000 - 255
Green 000 - 255
Blue 000 - 255
White 000 - 255
Amber 000 - 255
Lime 000 - 255
Color Temp
Linear
Color Temp
Presets
Red to
Green Shift
64 Color
Macros
Red
Green
Blue
White
Amber
Lime
Red2
Green2
Blue2
White2
Amber2
Lime2
USB Update On / Off
Factory Restore Yes / No
000 - 255
0, 2700K, 3200K, 4000K, 5600K, 6500K
000 - 255
0, Macro 1, Macro 2,....Macro 64
Individual color calibration
CCT white balance
calibration
Select whether to
power up service port in
preparation for software
updates
Restore unit to factory
default settings
Manual control
INFORMATION
Strobe 000 - 255
Dimmer 000 - 255
Life Time Power On Time xxxxxx Hours Total lifetime run hours
Last Run
Time
Total Lamp
Hours
Power On Tim Able
Res
Power On Time
Reset
xxxxxx Hours Lamp on hours
CONTINUED ON NEXT PAGE
21
xxxxxx Hours
Passcode = 038
Run hours since last
reset
Reset Power On Tim
Able Res hours
Page 22
SYSTEM MENU
INFORMATION
(continued)
Fixture
Temp
Software
Version
Current xxx F / xxx C
Max Resettable xxx F / xxx C
Last Max Temp
Reset
Vx.xx
Passcode = 038
Current xture temperature
Max xture temperature
since last reset
Reset Max Resettable
temperature
22
Page 23
DMX SETUP
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communi-
cation between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from
the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the
DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a
DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be
linked together and operate from a single controller, as long as all xtures and the controller are
DMX compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible
when using several DMX fixtures. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation):This fixture can be controlled via
DMX-512 protocol, and features multiple DMX channel modes. Your unit and your DMX controller
require 5-pin XLR connectors for data input and data output. If you are making your own cables, be
sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro
lighting stores). Your cables should be made with a male XLR connector at one end and a female
XLR connector on the other. Also remember that DMX cable must be daisy chained and cannot be
split.

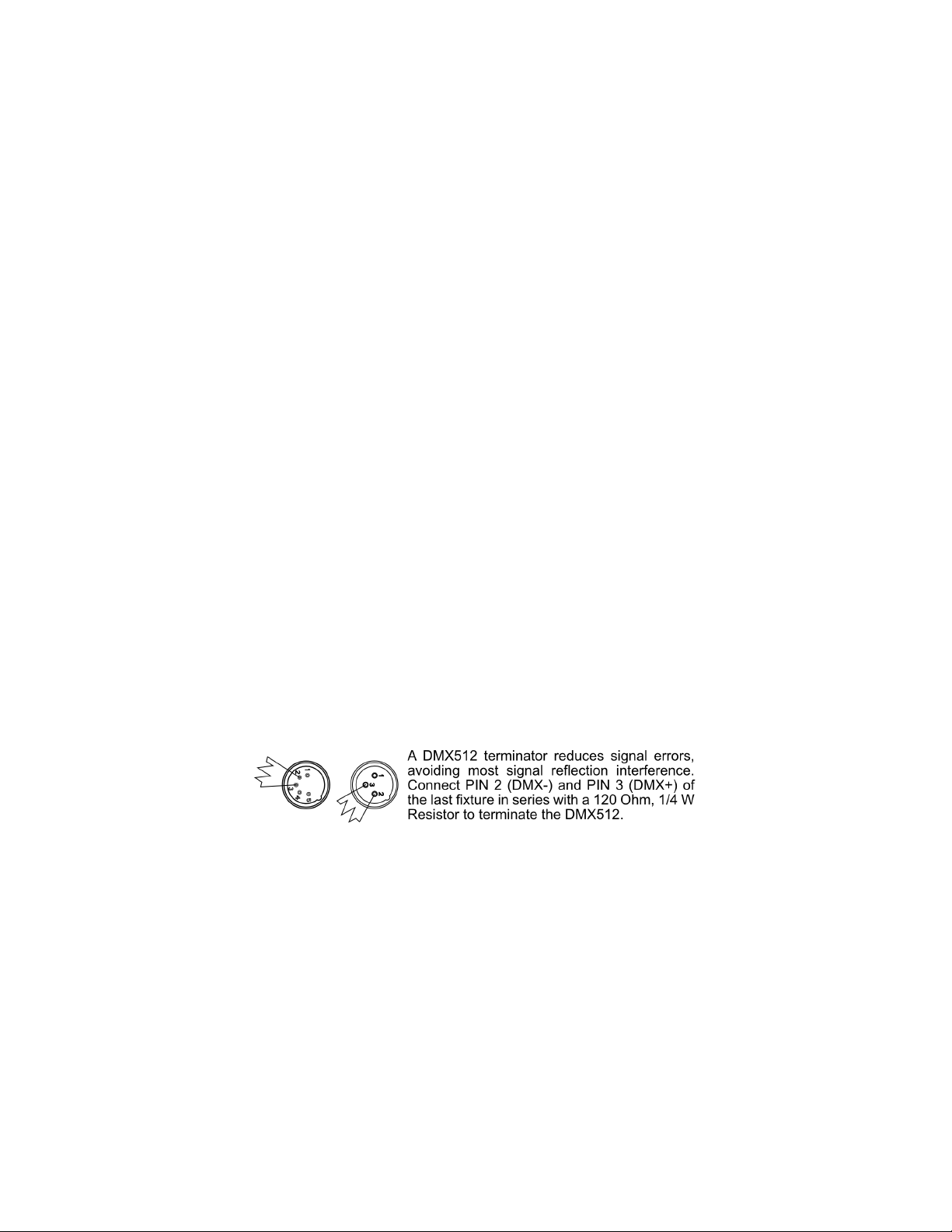

Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is
connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted
in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable
terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior.
23
Page 24
DMX SETUP
DMX ADDRESSING
All fixtures should be given a DMX starting address when operating with a DMX controller, in order
to ensure that the correct fixture responds to the correct control signal. This digital starting address is
the channel number from which the fixture starts to “listen” to the digital control signal sent out from
the DMX controller. The assignment of this starting DMX address is achieved by setting the correct
DMX address on the digital control display on the fixture.
You can set the same starting address for all fixtures or a group of fixtures, or set different addresses
for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react
in the same way. In this case, please note that changing the settings of one channel will affect all the
fixtures simultaneously.
If you set each fixture to a different DMX address, each unit will start to “listen” to the channel number
you have set, based on the quantity of DMX channels of each fixture. That means changing the settings of one channel will only affect the selected fixture.
As an example, when operating this device in 2 channel mode, you should set the starting DMX
address of the first unit to 1, the second unit to 3 (1 + 2), the third unit to 5 (1 + 2 + 2), and so on.
(See the chart below for more details.)
Channel Mode Unit 1 Address Unit 2 Address Unit 3 Address Unit 4 Address
2 Channels 1 3 5 7
4 Channels 1 5 9 13
5 Channels 1 6 11 16
6 Channels 1 7 13 19
13 Channels 1 14 27 40
14 Channels 1 15 29 43
16 Channels 1 17 33 49
24
Page 25
DMX TRAITS
CHANNEL
2CH 4CH 5CH 6CH 13CH 14CH 16CH
1 1 1 1 000 - 255 Red, 0% to 100%
2 2 2 2 000 - 255 Green, 0% to 100%
3 3 3 3 000 - 255 Blue, 0% to 100%
4 4 4 4 000 - 255 White, 0% to 100%
5 5 5 5 000 - 255 Amber, 0% to 100%
6 6 6 6 000 - 255 Lime, 0% to 100%
1 1 7 7 7 000 - 255 Color Temperature, Linear 2500K - 10000K
2 2 8 8 8
9 9 9
3 10 10 10 000 - 255
11 11 11
1 3 4 12 12 12 000 - 255 Dimmer Intensity, 0% to 100%
2 4 5 13 13 13 000 - 255 Dimmer Fine
14 14
DMX VALUE FUNCTION
Color Temperature Presets
000 - 031 No Function
032 - 076 2700K
077 - 121 3200K
122 - 166 4000K
167 - 211 5600K
212 - 255 6500K
Color Temperature Red to Green
000 No Function
001 - 255 Shift CT, red to green
64 Color Macros, see Color Macros Chart section
of this manual
Shutter
000 - 031 Shutter Closed (LEDs Off)
032 - 063 Shutter Open (LEDs On)
064 - 095 Strobe Effect, slow to fast
096 - 127 Shutter Open (LEDs On)
128 - 159 Pulse Effect in Sequences
160 - 191 Shutter Open (LEDs On)
192 - 223 Random Strobe Effect, slow to fast
224 - 255 Shutter Open (LEDs On)
Dim Modes
000 - 020 Default to unit setting
021 - 040 Standard
041 - 060 Stage
061 - 080 TV
081 - 100 Architectural
101 - 120 Theatre
121 - 140 Stage 2
CONTINUED ON NEXT PAGE
25
Page 26
DMX TRAITS
CHANNEL
2CH 4CH 5CH 6CH 13CH 14CH 16CH
14 14
15
16
CONTINUED ON NEXT PAGE
DMX VALUE FUNCTION
Dimming Speed
141 0.1s
142 0.2s
143 0.3s
144 0.4s
145 0.5s
146 0.6s
147 0.7s
148 0.8s
149 0.9s
150 1.0s
151 1.5s
152 2.0s
153 3.0s
154 4.0s
155 5.0s
156 6.0s
157 7.0s
158 8.0s
159 9.0s
160 10.0s
161 - 255 Default to unit setting
Dim Curves
000 - 020 Square
021 - 040 Linear
041 - 060 Inv. Squa
061 - 080 S. Curve
081 - 255 No function
LED Refresh Rates
000 - 010 Default Refresh Rate (1200 Hz)
011 900 Hz
012 910 Hz
013 920 Hz
014 930 Hz
015 940 Hz
016 950 Hz
017 960 Hz
018 970 Hz
019 980 Hz
020 990 Hz
021 1000 Hz
26
Page 27
DMX TRAITS
CHANNEL
2CH 4CH 5CH 6CH 13CH 14CH 16CH
16
CONTINUED ON NEXT PAGE
DMX VALUE FUNCTION
LED Refresh Rates (continued)
022 1010 Hz
023 1020 Hz
024 1030 Hz
025 1040 Hz
026 1050 Hz
027 1060 Hz
028 1070 Hz
029 1080 Hz
030 1090 Hz
031 1100 Hz
032 1110 Hz
033 1120 Hz
034 1130 Hz
035 1140 Hz
036 1150 Hz
037 1160 Hz
038 1170 Hz
039 1180 Hz
040 1190 Hz
041 1210 Hz
042 1220 Hz
043 1230 Hz
044 1240 Hz
045 1250 Hz
046 1260 Hz
047 1270 Hz
048 1280 Hz
049 1290 Hz
050 1300 Hz
051 1310 Hz
052 1320 Hz
053 1330 Hz
054 1340 Hz
055 1350 Hz
056 1360 Hz
057 1370 Hz
058 1380 Hz
059 1390 Hz
060 1400 Hz
061 1410 Hz
27
Page 28
DMX TRAITS
CHANNEL
2CH 4CH 5CH 6CH 13CH 14CH 16CH
16
DMX VALUE FUNCTION
LED Refresh Rates (continued)
062 1420 Hz
063 1430 Hz
064 1440 Hz
065 1450 Hz
066 1460 Hz
067 1470 Hz
068 1480 Hz
069 1490 Hz
070 1500 Hz
071 2500 Hz
072 4000 Hz
073 5000 Hz
074 6000 Hz
075 10 KHz
076 15 KHz
077 20 KHz
078 25 KHz
079 - 255 No Function
28
Page 29

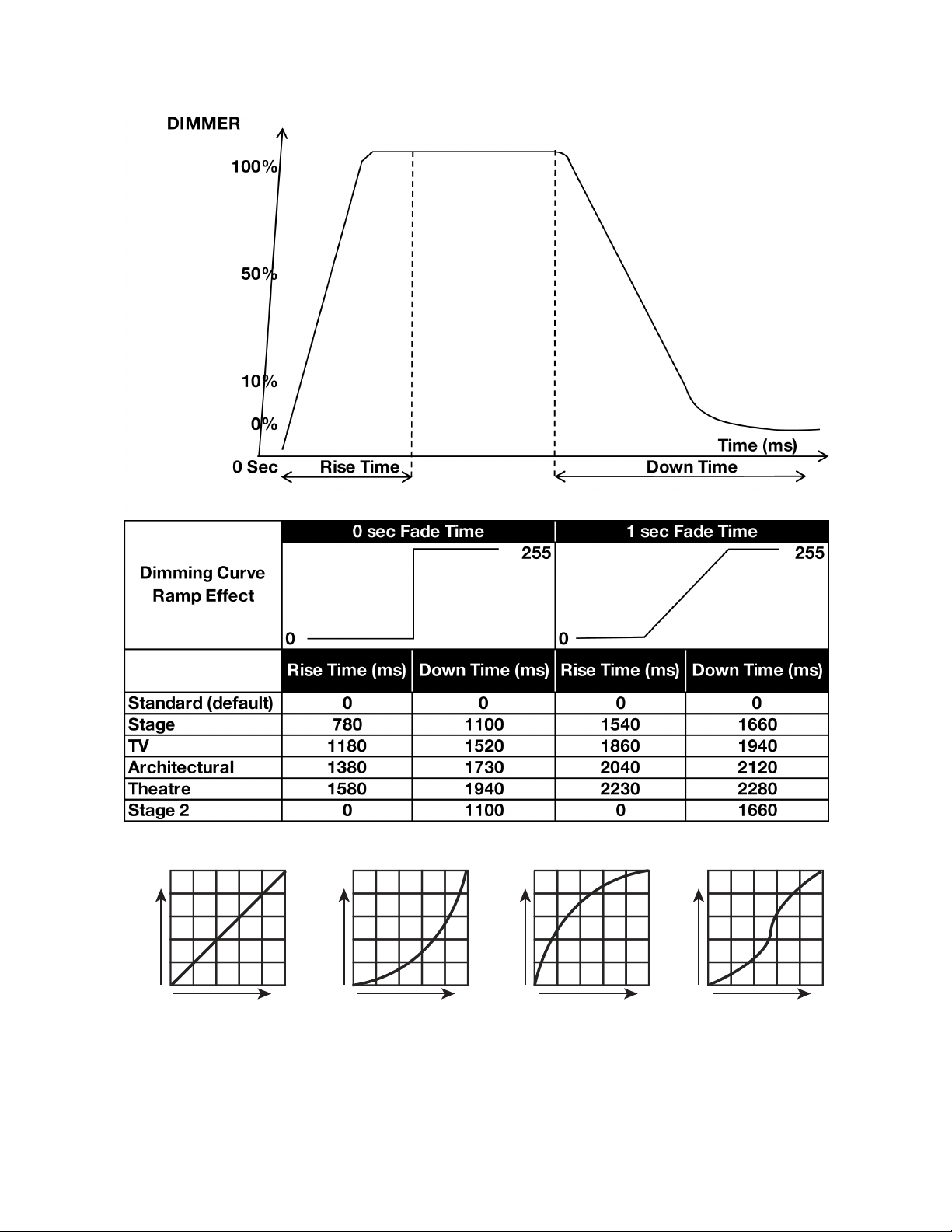

DIM MODES
DIMMER
100%
50%
10%
0%
Time (ms)
0 Sec
255 255
0 0
Standard (default) 0 0 0 0
Stage 780 1100 1540 1660
TV 1180 1520 1860 1940
Architectural 1380 1730 2040 2120
Theatre 1580 1940 2230 2280
Stage 2 0 1100 0 1660
Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms)
Rise Time Down Time
Dimming Curve
Ramp Effect
0 sec Fade Time
1 sec Fade Time
100%
Output
0
DMX % DMX % DMX % DMX %
LINEAR SQUARE INVERSE SQUARE S-CURVE
100%
Output
0
100%
Output
0
100%
Output
0
29
Page 30
COLOR MACROS CHART
COLOR
MACRO
Off 000 0 0 0 0
1 001 - 004 80 255 234 80
2 005 - 008 80 255 164 80
3 009 - 012 77 255 112 77
4 013 - 016 117 255 83 83
5 017 - 020 160 255 77 77
6 021 - 024 223 255 83 83
7 025 - 028 255 243 77 77
8 029 - 032 255 200 74 74
9 033 - 036 255 166 77 77
10 037 - 040 255 125 74 74
11 041 - 044 255 97 77 74
12 045 - 048 255 71 77 71
13 049 - 052 255 83 134 83
14 053 - 056 255 93 182 93
15 057 - 060 255 96 236 96
16 061 - 064 238 93 255 93
17 065 - 068 196 87 255 87
18 069 - 072 150 90 255 90
19 073 - 076 100 77 255 77
20 077 - 080 77 100 255 77
21 081 - 084 67 148 255 67
22 085 - 088 77 195 255 77
23 089 - 092 77 234 255 77
24 093 - 096 158 255 144 144
25 097 - 100 255 251 153 153
26 101 - 104 255 175 147 147
27 105 - 108 255 138 186 138
28 109 - 112 255 147 251 147
29 113 - 116 151 138 255 138
30 117 - 120 99 0 255 100
31 121 - 124 138 169 255 138
32 125 - 128 255 255 255 255
33 129 - 132 255 206 143 0
34 133 - 136 254 177 153 0
35 137 - 140 254 192 138 0
36 141 - 144 254 165 98 0
37 145 - 148 254 121 0 0
38 149 - 152 176 17 0 0
39 153 - 156 96 0 11 0
40 157 - 160 234 139 171 0
41 161 - 164 224 5 97 0
DMX
VALUE
RED GREEN BLUE W/A
COLOR
MACRO
42 165 - 168 175 77 173 0
43 169 - 172 11 9 130 199 0
44 173 - 176 147 164 212 0
45 177 - 180 88 2 163 0
46 181 - 184 0 38 86 0
47 185 - 188 0 142 208 0
48 189 - 192 52 148 209 0
49 193 - 196 1 134 201 0
50 197 - 200 0 145 212 0
51 201 - 204 0 121 192 0
52 205 - 208 0 129 184 0
53 209 - 212 0 83 115 0
54 213 - 216 0 97 166 0
55 217 - 220 1 100 167 0
56 221 - 224 0 40 86 0
57 225 - 228 209 219 182 0
58 229 - 232 42 165 85 0
59 233 - 236 0 46 35 0
60 237 - 240 8 107 222 0
61 241 - 244 255 0 0 0
62 245 - 248 0 255 0 0
63 249 - 252 0 0 255 0
64 253 - 255 0 0 0 255
DMX
VALUE
RED GREEN BLUE W/A
30
Page 31
DAISY CHAIN POWER LINKING
These units have the capability to be daisy chained together via the power in/out ports. The maximum number of units that can be linked together in this manner is as follows:
• 28 units maximum when running on 120V power.
• 57 units maximum when running on 230V power.
DO NOT EXCEED THE NUMBER OF UNITS LISTED ABOVE.
DO NOT MIX MAKE AND MODEL TYPES WHEN DAISY CHAINING! All units that are connected in
this manner must be of the same make and model type.
CLEANING AND MAINTENANCE
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to ensure proper function, optimized light output, and an
extended life. The frequency of cleaning depends on the environment in which the xture operates:
damp, smoky, or particularly dirty environments can cause greater accumulation of dirt on the xture’s
optics. Clean the external lens surface periodically with a soft cloth to avoid dirt/debris accumulation.
NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to ensure proper function and extended life. There are no user
serviceable parts inside this xture. Please refer all other service issues to an authorized ADJ service
technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.
Please refer to the following points during routine inspections:
• A detailed electrical check by an approved electrical engineer every three months, to make sure
the circuit contacts are in good condition and prevent overheating.
• Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out
during normal operation, resulting in damage or injury as larger parts could fall.
• Check for any deformations on the housing, color lenses, rigging hardware, and rigging points
(ceiling, suspension, trussing). Deformations in the housing could allow for dust or liquids to enter
into the xture. Damaged rigging points or unsecured rigging could cause the xture to fall and
seriously injure a person(s).
• Electric power supply cables must not show any damage, material fatigue, or sediments.
• NEVER remove the ground prong from the power cable.
31
Page 32

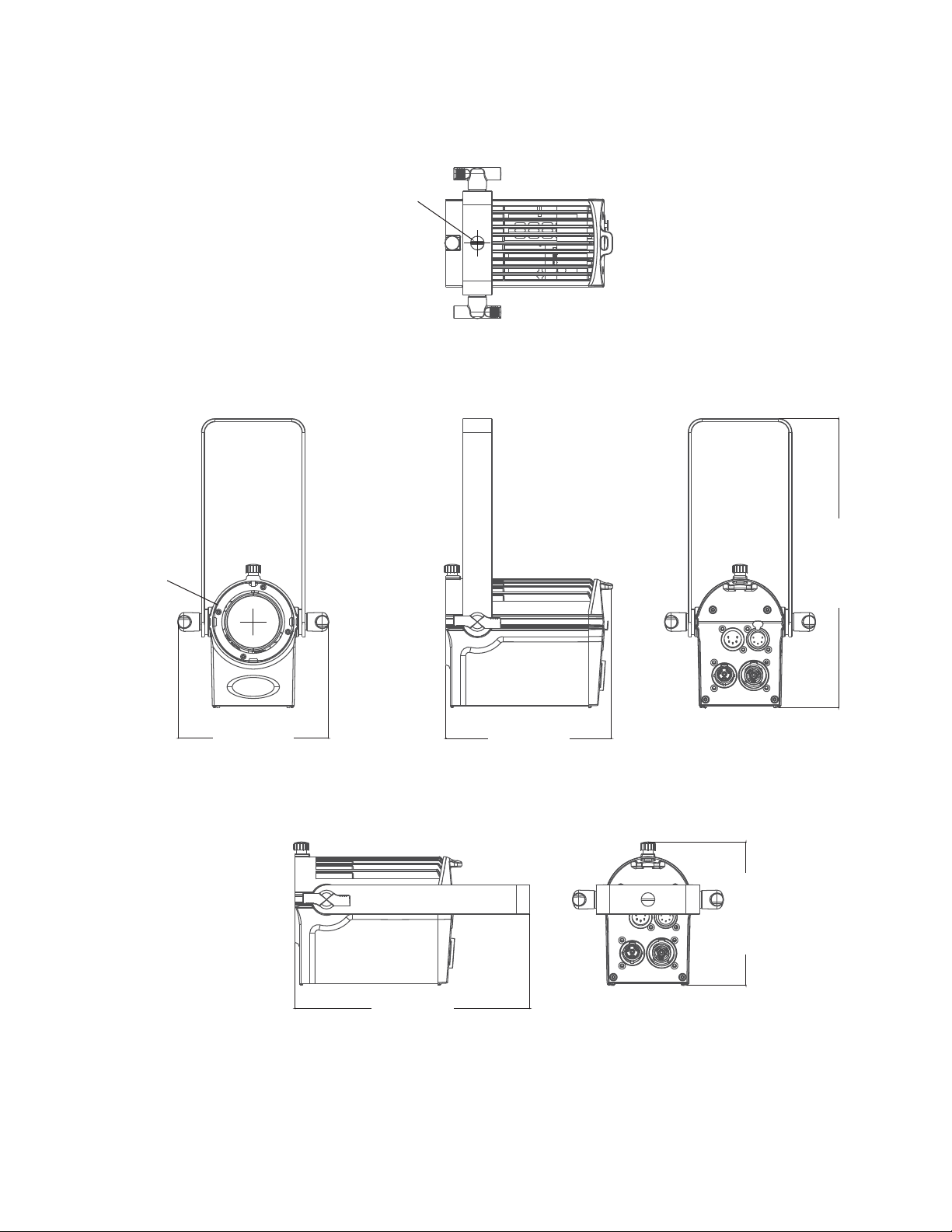

DIMENSIONAL DRAWINGS
FIXTURE ONLY
Ø13mm
[Ø0.5in]
Ø78mm
[Ø3.1in]
144mm [5.7in]
276mm [10.9in]
158mm [6.2in]
137mm [5.4in]
224mm [8.8in]
Note: Height may depend on
thumb screw tightness. Overall
height when fully tightened is
137mm (5.4in) as shown below.
Overall height with thumb screw
loosened is 140mm (5.5in).
32
Page 33

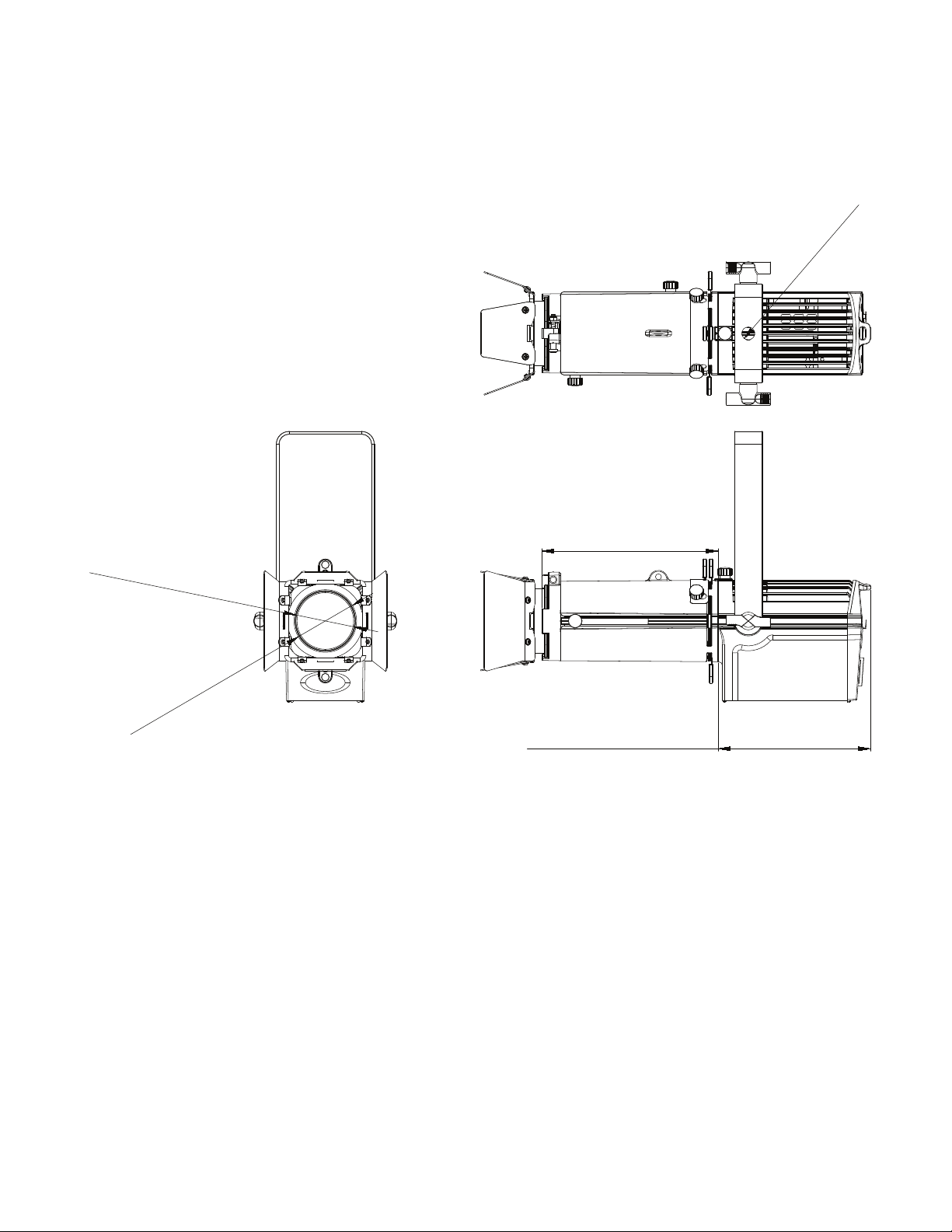

DIMENSIONAL DRAWINGS

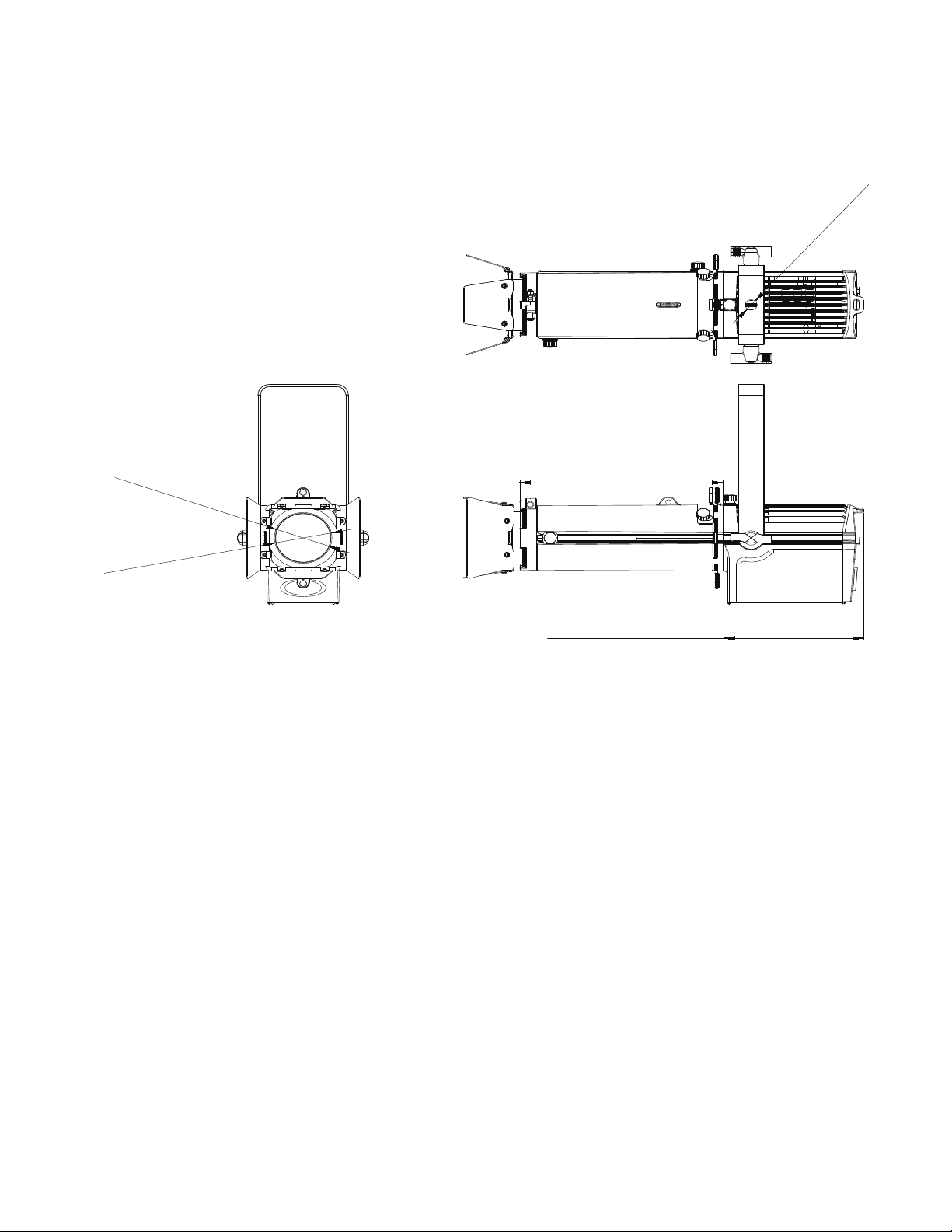

15-30 LENS INSTALLED
Ø 2.378in
Ø (60.4mm)
Ø 0.512in
Ø (13mm)
8.760in (222.5mm)
Ø 2.480in
Ø (63mm)
6.024in (153mm)
33
Page 34
DIMENSIONAL DRAWINGS
25-50 LENS INSTALLED
Ø 2.378in
Ø (60.4mm)
Ø 0.512in
Ø (13mm)
6.988in
(177.5mm)
Ø 2.480in
Ø (63mm)
6.024in (153mm)
34
Page 35
SPECIFICATIONS
SOURCE
• 16x3.5W RGBWAL (Red/Green/Blue/White/Amber/Lime) LED Engine (one of the two lens options must be used for the
fixture to work properly - see the optional accessories section below)
• 50,000 Hour Average LED Life*
• *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage,
Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
• >86CRI 300 Total Lumens (4,200 CT)
EFFECTS
• Electronic Strobe and Dimming
• Variable Dimming Curves and Dimming Modes
• Independent dynamic white fader feature that achieves white color temperatures from 2700K to 6500K
GOBOS
• Supports “E” Size Gobo’s
• Metal Gobo Dimensions: Outer Diameter 45mm, Image Diameter 31mm
• Glass Gobo Dimensions: Outer Diameter 39.5mm, Image Diameter 31mm
• Gobo Holder is included
• Gobo’s are sold separately
CONTROL / CONNECTIONS
• (7) DMX Channel Modes (2 / 4 / 5 / 6 / 13 / 14 / 16)
• Adjustable Refresh Rates (900-1500, 25,000 Hz)
• 4 Button Control Panel
• OLED Menu Display
• Locking 5pin XLR Connector In/Out
• IP65 Locking Power In/Out
• With Wired Digital Communication Network
• RDM (Remote Device Management)
• USB Service Port
SIZE / WEIGHT
• Length: 8.8” (224mm) (NO LENS)
• Width: 5.7” (144mm)
• Vertical Height: 10.9” (276mm)
• Weight: 4.0 lbs. (1.8 kg)
ELECTRICAL / THERMAL
• Convection Cooling
• AC 100-240V - 50/60Hz
• 55W Max Power Consumption @ 120V
• Power Linking: 28pcs Max @120V / 57pcs Max @230V
• 14° to 113°F (-10° to 45°C)
APPROVALS / RATINGS
• CE | cETLus (Control #4010765) | IP20
Specifications and manual are subject to improvement without prior written notice.
35
Page 36
ERROR CODES
CODE DESCRIPTION
LED Temp LED Temperature Error
ACCESSORY INFORMATION
SKU (US) SKU (EU) DESCRIPTION
EPL113 1237000328 EP Mini Lens, 15- to 30-degree Manual Zoom Lens
EPL126 1237000329 EP Mini Lens, 25- to 50-degree Manual Zoom Lens
EPL166 Pending
EPL153 1237000330
SIP064 1621000074 1.64-ft IP65 male to female twist lock power link cable
SIP113 1621000075 3-ft IP65 male to female twist lock power link cable
SIP126 1621000076 5-ft IP65 male to female twist lock power link cable
SIP139 1621000077 10-ft IP65 male to female twist lock power link cable
SIP152 Pending 16-ft IP65 male to female twist lock power link cable
SIP165 1621000079 25-ft IP65 male to female twist lock power link cable
SIP178 1621000080 50-ft IP65 male to female twist lock power link cable
SIP191 1621000081 100-ft IP65 male to female twist lock power link cable
EP Mini Fresnel Lens: Beam Angle, 14- to 26-degree
Lens
EP Mini BDA barn door assembly
36
Page 37
This page intentionally left blank.
37
Page 38
Loading...
