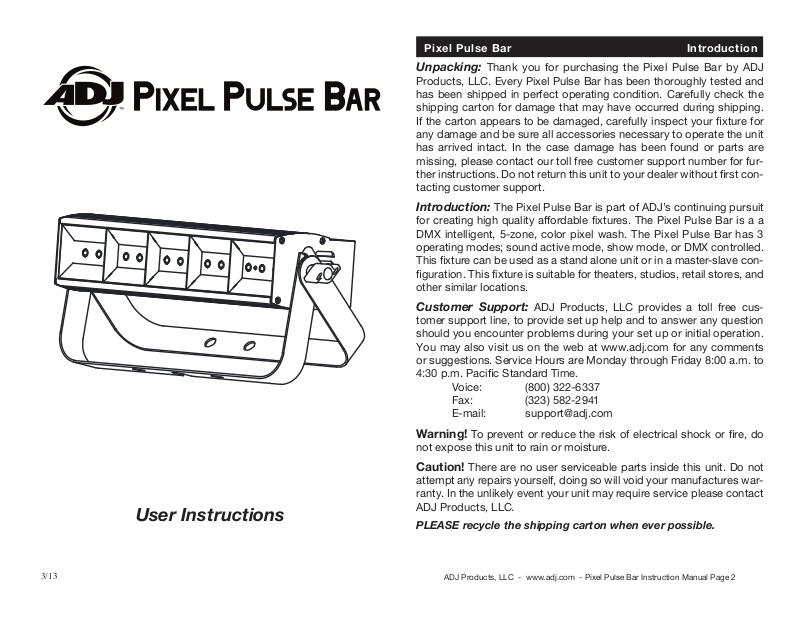

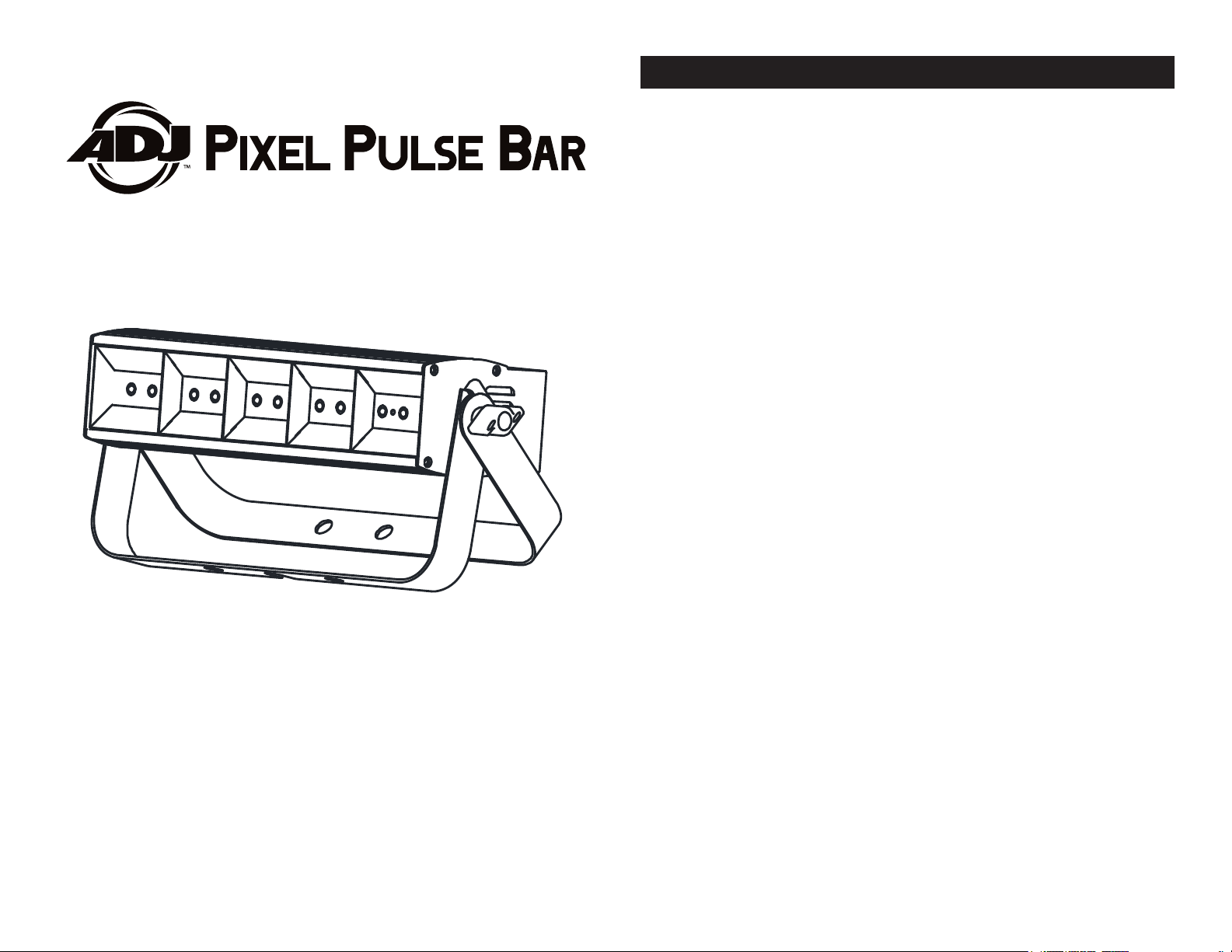

Pixel Pulse Bar Introduction
Unpacking: Thank you for purchasing the Pixel Pulse Bar by ADJ
Products, LLC. Every Pixel Pulse Bar has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping.
any damage and be sure all accessories necessary to operate the unit has arrived intact. In the case damage has been found or parts are missing, please contact our toll free customer support number for fur­ther instructions. Do not return this unit to your dealer without rst con­tacting customer support.
Introduction: The Pixel Pulse Bar is part of ADJ’s continuing pursuit
for creating high quality affordable fixtures. The Pixel Pulse Bar is a a DMX intelligent, 5-zone, color pixel wash. The Pixel Pulse Bar has 3 operating modes; sound active mode, show mode, or DMX controlled.
This xture can be used as a stand alone unit or in a master-slave con­guration. This fixture is suitable for theaters, studios, retail stores, and
other similar locations.
Customer Support: ADJ Products, LLC provides a toll free cus-
tomer support line, to provide set up help and to answer any question should you encounter problems during your set up or initial operation. You may also visit us on the web at www.adj.com for any comments or suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacic Standard Time.
Voice: (800) 322-6337 Fax: (323) 582-2941 E-mail: [email protected]
3/13
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war­ranty. In the unlikely event your unit may require service please contact ADJ Products, LLC.
User Instructions
PLEASE recycle the shipping carton when ever possible.
ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 2
Page 2
Pixel Pulse Bar General Instructions
Pixel Pulse Bar Safety Precautions
To optimize the performance of this product, please read these operat­ing instructions carefully to familiarize yourself with the basic operations of this unit. These instructions contain important safety information regarding the use and maintenance of this unit. Please keep this manual with the unit, for future reference.
Pixel Pulse Bar Features
• 15 x 3W 3-in-1 RGB TRI LEDs
• 3 Operating Modes (Sound Active, Show Mode, or DMX Control)
• Electronic Dimming 0-100%
• Built in Microphone
• DMX-512 protocol
• 3-Pin DMX Connection
• 3 DMX Modes: 1 Channel Mode, 4 Channel Mode, and 17 Channel
Mode.
• Power Cord Daisy Chain (See page 17)
Pixel Pulse Bar Warranty Registration
The Pixel Pulse Bar carries a 3 year (1095 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase and warranty. You may also register your product online at www. americandj.com. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. If the unit is under warranty you must provide a copy of your proof of purchase invoice. Please contact ADJ customer sup-
port for a R.A. number.
Pixel Pulse Bar Installation
The unit should be mounted using a mounting clamp (not provided),
afxing it to the mounting bracket that is provided with the unit. Always ensure that the unit is rmly xed to avoid vibration and slip-
ping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times the unit’s weight. Also, always use a safety cable that can hold
12 times the weight of the unit when installing the xture.
The equipment must be installed by a professional, and it must be installed in a place where it is out of the reach of people’s grasp.
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken. Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out`
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them, paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by
t he manufacturer. See page 17 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (inclu­ d ing amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged. B. Objects have fallen, or liquid has been spilled into the appliance. C. The appliance has been exposed to rain or water. D. The appliance does not appear to operate normally or exhibits a marked change in performance.
ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 4ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 3
Page 3
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and avoids signal transmission problems and interference. It is always advisable to connect a DMX terminal, (Resistance 120 Ohm 1/4 W) between PIN 2 (DMX-) and PIN 3 (DMX +) of the last fixture.
POWER
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
and PIN 3 (DMX +) of the last fixture.
Pixel Pulse Bar DMX Set Up Pixel Pulse Bar DMX Set Up
Power Supply: The ADJ Pixel Pulse Bar contains a automatic voltage switch, which will auto sense the voltage when it is plugged into the power source. With this switch there is no need to worry about the cor­rect power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that trav­els from fixture to fixture via the DATA “IN” and DATA “OUT” XLR ter­minals located on all DMX fixtures (most controllers only have a DATA
“OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all xtures and the controller are DMX compli­ant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end,
or anywhere in the middle. When a fixture is assigned a DMX address
of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.

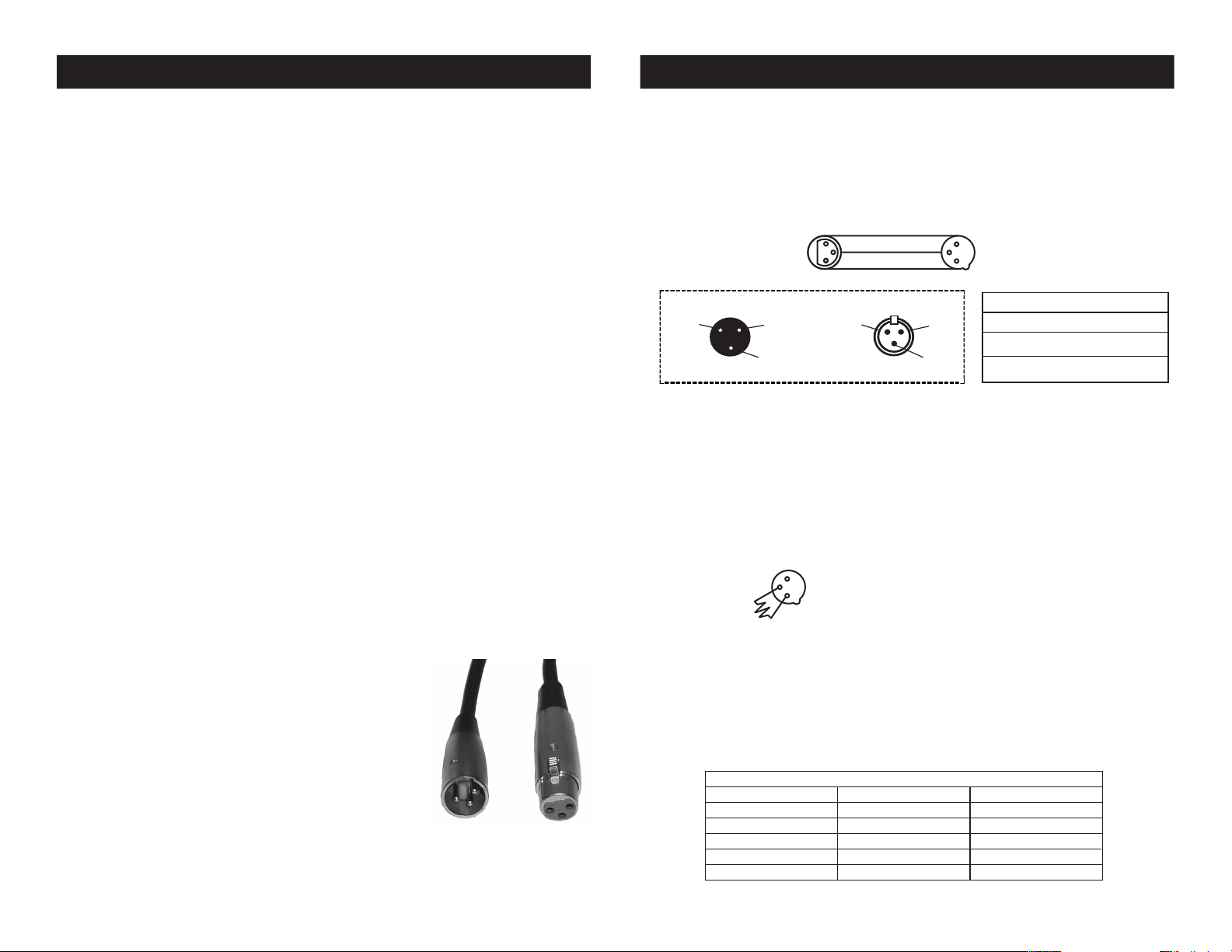

Data Cable (DMX Cable) Requirements (For DMX Operation):
The Pixel Pulse Bar can be controlled via DMX-512 protocol. The Pixel Pulse Bar has 3 DMX channel modes. The DMX address is set on the back panel of the Pixel Pulse Bar. Your unit and your DMX controller
require a standard 3-pin XLR connector for data input and data output (Figure 1). We recommend Accu-Cable DMX
cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores). Your cables should be made with a male
and female XLR connector on either end of the
cable. Also remember that DMX cable must be daisy chained and cannot be split.
ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 5 ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 6
Figure 1
Notice: Be sure to follow gures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con­nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
COMMON
1
DMX512 IN
3
3-PIN XLR
2
Figure 2
XLR Pin Conguration
1 Ground
3 Hot
Pin 1 = Ground
Pin 2 = Data Compliment (negative)
Pin 3 = Data True (positive)
When longer runs of cable are
Figure 4
Pin 1
Pin 2
Pin 3
Do Not Use
Do Not Use
XLR Male Socket
1 Ground
DMX512 OUT
3-PIN XLR
2 Cold
3 Hot
1
3
2
DMX +
DMX -
XLR Female Socket
2 Cold
Figure 3
Special Note: Line Termination.
used, you may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
5-Pin XLR DMX Connectors.
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX xtures may be implemented in a 3-pin DMX line. When inserting stan­dard 5-pin data cables in to a 3-pin line a cable adaptor must be used, these adaptors are readily available at most electric stores. The chart below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Ground/Shield
Data Compliment (- signal)
Data True (+ signal)
Not Used
Not Used
Termination reduces signal errors and
1
avoids signal transmission problems
3
and interference. It is always advisable
2
to connect a DMX terminal, (Resistance 120 Ohm 1/4 W) between PIN 2 (DMX-)
Some manufactures use 5-pin DMX-
3-Pin XLR to 5-Pin XLR Conversion
Pin 1
Pin 2
Pin 3
Page 4

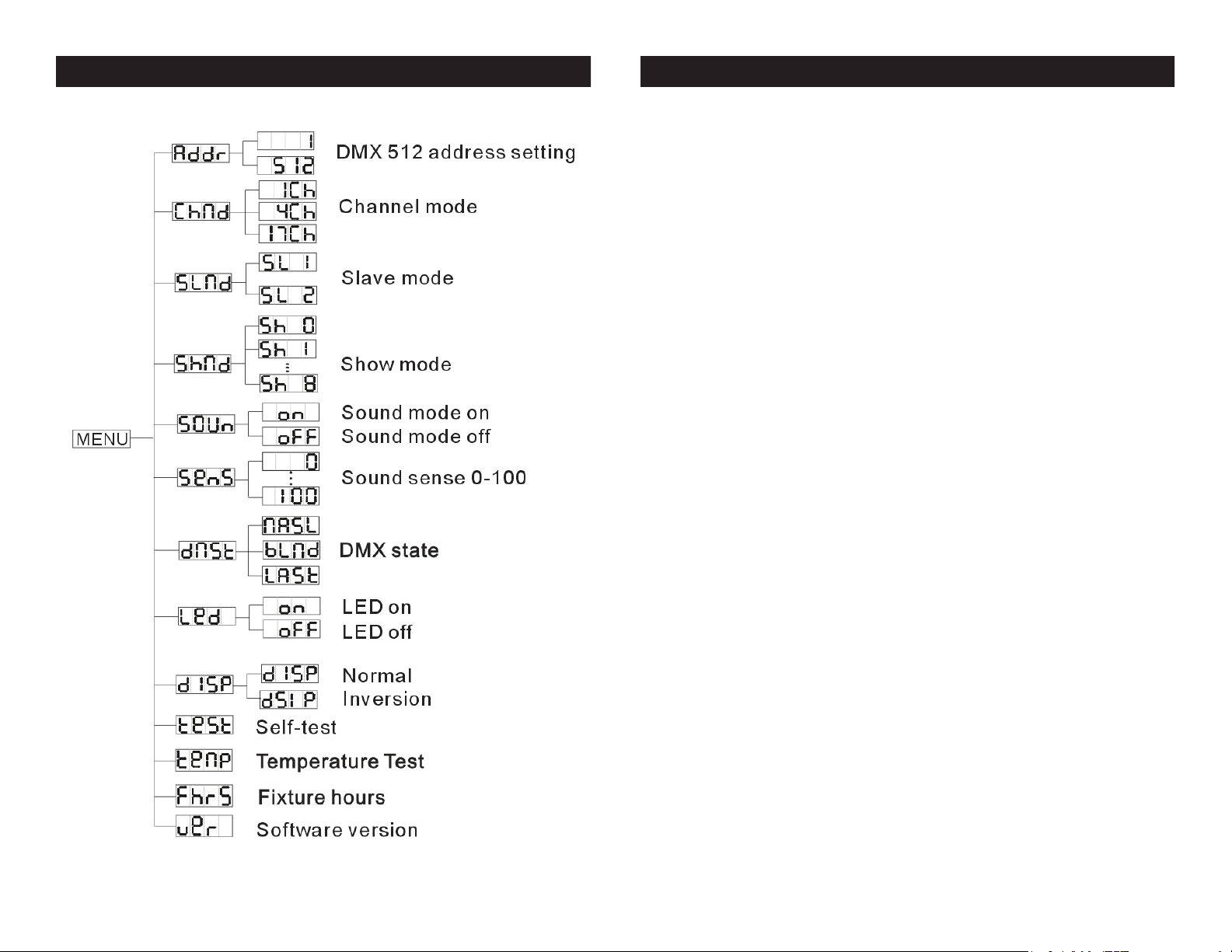

Pixel Pulse Bar System Menu Pixel Pulse Bar System Menu
ADDR - DMX Address Setting via control board.
1. Press the MENU button until “ADDR” is displayed, press ENTER.
2. “X” will now be displayed, “X” represents the displayed address.
Press the UP or DOWN buttons to nd your desired address.
3. Press ENTER to conrm, then connect your DMX controller.
NOTE: If after you connect your DMX controller the unit does not
fall into DMX mode, press and hold the MENU button for at least
3 seconds.
CHND - This will let select your desired DMX channel
mode.
1. Press the either the MENU button until “CHND” is displayed, press ENTER. Either “1CH”, “4CH”, or “17CH” will be displayed
2. Press the UP or DOWN buttons to nd your desired DMX channel mode and press ENTER to conm and exit.
SLND - This will let you set unit as a master or slave in a
master/slave conguration.
1. Press the MENU button until “SLND” is displayed, press ENTER. Either “SL 1” or “SL 2” will be displayed.
2. Press the UP or DOWN buttons until your desired setting is displayed, press ENTER to conm.
NOTE: In a Master/Slave conguration you can set one xture to Slave 1 (SL 1) and then set the next xture to Slave 2 (SL 2), in doing this the xtures will now have contrast movement to
each other.
SHND: SH 0 - SH 8 - Show modes 0 - 8
1. Press the MENU button until “SHND” is displayed, press
ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 7 ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 8
Page 5
Pixel Pulse Bar System Menu
ENTER.
Pixel Pulse Bar System Menu
applied.
2. “SH X” will now be displayed. “X” representing a number between 0-8. Shows 1-8 are preset shows, while “SH 0” is random
show. Press the UP or DOWN buttons to nd your desired show.
3. Once you have found your desired show press ENTER, and then press and hold the MENU button for at least 3 seconds to conrm.
SOUN - In this submenu you can activate sound active
mode.
1. Press the MENU button until “SOUN” is displayed, press ENTER.
2. Either “ON” or “OFF” will now be displayed. Press the UP or DOWN buttons to select one or the other.
3. When you have made your selection, press the ENTER, and then press and hold the MENU button for at least 3 seconds to conrm.
SENS - Sound sensitivity control
1. Press the MENU button until “SENS” is displayed, press ENTER.
2. The display will show a number between 0-100. Press the UP or DOWN buttons to adjust the sound sensitivity. 0 being the least sensi-
tive and 100 the most sensitive.
3. Press the ENTER, and then press and hold the MENU button for at least 3 seconds to conrm.
1. Press the MENU button until “DNST” is displayed, press ENTER.
2. Either “MASL”, “BLND”, or “LAST” will be displayed. Choose
an operating mode you would like the unit to start up in when power is applied or the DMX signal is lost.
• MASL (Master Slave) - If the DMX signal is lost or power is
applied, the unit will automatically go into Master Slave mode.
• BLND (Blackout) - If the DMX signal is lost or power is applied,
the unit will automatically go into stand by mode.
• LAST (Last State) - If the DMX signal is lost the xture will stay
in the last DMX set up. If power is applied and this mode is set, the unit will automatically go into the last DMX set up.
3. Press ENTER to conrm your desired set up.
LED - With this function the LED display will turn off after 2
minutes.
1. Press the MENU button until “LED” is displayed, press ENTER.
2. Either “ON” or “OFF” will now be displayed. Press the UP or DOWN buttons to select “ON” to keep the LED display on at all
times, or “OFF” to allow the LED display to turn off after 2 min­utes. Press any button to turn on the LED display again.
3. Press ENTER, and then press and hold the MENU button for at
least three seconds to conrm.
DNST - This mode can be used as a precaution mode, that
in case the DMX signal is lost, the operating mode chosen in
the setup is the running mode the xture will go into when
the DMX signal is lost. You can also set this as the operat­ing mode you would like the unit to return to when power is
ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 9 ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 10
DISP - This will “ip” the LED display
1. Press the MENU button until “DISP” is displayed, press ENTER.
2. When “DISP” is displayed the LED display will remain normal,
Page 6
Pixel Pulse Bar System Menu
when “DSIP” is displayed, the LED display will be “ipped”. Use the ENTER button to nd your desired display set up, then press MENU to conrm and exit.
TEST - This function will run a self test program.
1. Press the MENU button until “TEST” is displayed, press ENTER.
2. The xture will now run a self test. Press the MENU button to
exit.
TEMP - With this function you can check the current tem-
perature of the xture.
1. Tap the MENU button until “TEMP” is displayed, press ENTER.
2. The current temperature of the xture will now be displayed. Press MENU to exit.
Pixel Pulse Bar Operation
Universal DMX Control: This function allows you to use a Elation®
universal DMX-512 controller to control the chases and patterns, dim­mer and strobe. A DMX controller allows you to create unique pro­grams tailored to your individual needs.
1. The Pixel Pulse Bar has 3 DMX Modes; a 1 Channel Mode, 4 Channel Mode, & 17 Channel Mode. See pages 14-16 for a detailed description of the DMX traits.
2. To control your fixture in DMX mode, follow the set-up procedures on pages 5-6 as well as the set-up specifications that are included with your DMX controller.
3. Use the controller’s faders to control the various DMX fixture traits.
This will allow you to create your own programs.
4. Follow the instructions on page 8 to select your desired DMX Mode and to set the DMX address. After you have selected your DMX mode and set the address, then connect your DMX control­ ler.
5. For longer cable runs (more than a 100 feet) use a terminator on the last fixture.
6. For help operating in DMX mode consult the manual included with your DMX controller.
FHRS - With this function you can display the running
time of the unit.
1. Press the MENU button until “FHRS” is displayed, press ENTER.
2. The running time of the xture will now be displayed. Press MENU to exit.
VER - This will display the software version
1. Press the MENU button until “VER” is displayed. Press the ENTER button and the software vesion will be displayed.
2. Press the MENU button to leave this function.
ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 11
Sound Active Mode: This mode allows a single unit or several units
linked together, to run to the beat of the music.
1. Press the MENU button until “SOUN” is displayed, and press ENTER.
2. Press the UP or DOWN buttons until “ON” is displayed and press ENTER, and then press and hold the MENU button to conrm.
3. To adjust the sound sensitivity press the MENU button until “SENS” is displayed. Use the UP or DOWN buttons to adjust sen-
sitivity. See page 9 for more info.
Show Mode: This mode allows a single unit or several units linked
together, to run a selected show.
1. Press the MENU button until “SHND” is displayed, and press ENTER.
2. Press the UP or DOWN buttons until you nd your desired show, press ENTER, then press and hold the MENU button to conrm.
Please see pages 8-9 for more info about Show Mode.
ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 12
Page 7
Pixel Pulse Bar Master-Slave Configuration
Master-Slave Conguration: This function will allow you to link up
to 16 units together and operate without a controller. In Master-Slave operation one unit will act as the controlling unit and the others will react to the controlling units programs. Any unit can act as a Master or as a Slave.
1. Using appropriate XLR cables, daisy chain your units together via the XLR connector on the rear of the units. Remember the Male XLR connector is the input and the Female XLR connector is the output. The rst unit in the chain (master) will use the female XLR con nector only - The last unit in the chain will use the male XLR
con nector only. For longer cable runs we suggest a terminator at the last fixture.
2. Set the Master unit to your desired operational mode.
3. On the slave units tap the MENU button until “SLND” is display-
ed, and Press ENTER. Use the UP or DOWN buttons to switch
between either “SL 1” or “SL 2”. Once you have made your
choice, press ENTER. For more info see page 8.
4. The slave units will now follow the Master unit.
Pixel Pulse Bar UC3 Control
erutxif eht tuokcalBtuokcalB
Function
Mode Sound (LED OFF)
1.Synchronous Strobe in white
2.Sound strobe in white
3.Sound strobe in color
Strobe
Select color
1.color1-color7
2.color8-Sound Change Color
Manual Color
(LED ON)
Select Show
1-8
Show
(LED slow blinking)
Pixel Pulse Bar 1 Channel Mode
Channel Value Function
1 SHOWS 0 - 7 BLACKOUT 8 - 37 SHOW 1 38 - 67 SHOW 2 68 - 97 SHOW 3 98 - 127 SHOW 4 128 - 157 SHOW 5 158 - 187 SHOW 6 188 - 217 SHOW 7 218 - 247 SHOW 8 248 - 255 RANDOM SHOW
Pixel Pulse Bar 4 Channel Mode
Channel Value Function
1 RED 0 - 255 0% - 100% 2 GREEN 0 - 255 0% - 100% 3 BLUE 0 - 255 0% - 100% 4 STROBING 0 - 8 NO FUNCTION 9 - 131 STROBING SLOW - FAST 132 - 139 NO FUNCTION 140 - 181 SLOW OPEN - FAST CLOSE 182 - 189 NO FUNCTION 190 - 231 FAST OPEN - SLOW CLOSE 232 - 239 NO FUNCTION 240 - 247 SOUND ACTIVE STROBING 248 - 255 NO FUNCTION
ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 13
ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 14
Page 8
Pixel Pulse Bar 17 Channel Mode
Pixel Pulse Bar 17 Channel Mode
Channel Value Function
1 RED 1
0 - 255 0% - 100% 2 GREEN 1 0 - 255 0% - 100% 3 BLUE 1 0 - 255 0% - 100% 4 RED 2 0 - 255 0% - 100% 5 GREEN 2 0 - 255 0% - 100% 6 BLUE 2 0 - 255 0% - 100% 7 RED 3 0 - 255 0% - 100% 8 GREEN 3 0 - 255 0% - 100% 9 BLUE 3 0 - 255 0% - 100% 10 RED 4 0 - 255 0% - 100% 11 GREEN 4 0 - 255 0% - 100% 12 BLUE 4 0 - 255 0% - 100% 13 RED 5 0 - 255 0% - 100% 14 GREEN 5 0 - 255 0% - 100% 15 BLUE 5 0 - 255 0% - 100% 16 MASTER DIMMER 0 - 255 0% - 100%
Channel Value Function
16 STROBING 0 - 8 NO FUNCTION 9 - 131 STROBING SLOW - FAST 132 - 139 NO FUNCTION 140 - 181 SLOW OPEN - FAST CLOSE 182 - 189 NO FUNCTION 190 - 231 FAST OPEN - SLOW CLOSE 232 - 239 NO FUNCTION 240 - 247 SOUND ACTIVE STROBING 248 - 255 NO FUNCTION
ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 15
ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 16
Page 9
Pixel Pulse Bar Power Cord Daisy Chain
With this feature you can connect the xtures to one another
using the IEC input and output sockets. The quantity that can be
connected is 6 xtures maximum. After 6 xtures you will need to use a new power outlet. They must be the same xtures. DO NOT mix xtures.
Pixel Pulse Bar Fuse Replacement
First unplug the power. The fuse holder is located next to the power
inlets. Using a flat-head screw driver unscrew the fuse holder. Remove the bad fuse and replace with a new one.
Pixel Pulse Bar Cleaning
Due to fog residue, smoke, and dust cleaning the internal and exter­nal optical lenses must be carried out periodically to optimize light output.
Pixel Pulse Bar Warranty
MANUFACTURER’S LIMITED WARRANTY
A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service you must obtain a Return Authorization number (RA#) before sending back the product–please contact ADJ Products, LLC Service Department at 800-322-6337. Send the pro­ duct only to the ADJ Products, LLC factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in it’s original package. No accessories should be shipped with the product. If any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the serial number has been altered or removed; if the product is modified in any manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual.
1. Use a soft cloth to wipe down the outside casing.
Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue, dust, dew).
Pixel Pulse Bar Trouble Shooting
Listed below are a few common problems the user may encounter, with solutions.
Unit not responding to DMX:
1. Check that the DMX cables are connected properly and are wired correctly (pin 3 is “hot”; on some other DMX devices pin 2 may be ‘hot’). Also, check that all cables are connected to the right connectors; it does matter which way the inputs and outputs are connected.
Unit does not respond to sound:
1. Quiet or high pitched sounds will not activate the unit.
If problems are not resolved; Contact ADJ Products, LLC for service. 1-800-322-6337
ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 17
D. This is not a service contract, and this warranty does not include maintenance, cleaning or periodic check up. During the period specified above, ADJ Products, LLC will replace defective parts at its expense with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear indentifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon it’s products without any obligation to include these changes in any products theretofore manufactured.
No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products described above. Except to the extent prohibited by applicable law, all implied warranties made by ADJ Products, LLC in connection with this product, including warranties of merchantability or fitness, are limited in duration to the warranty period set forth above. And no warranties, whether expressed or implied, including warranties of merchantability or fitness, shall apply to this product after said period has expired. The consumer’s and/or Dealer’s sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall ADJ Products, LLC be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
This warranty is the only written warranty applicable to ADJ Products, LLC Products and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published. This warranty was revised after December 1, 2012.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
•LightingProducts=1-year(365days)LimitedWarranty(Such as: Special Effect Lighting, Intelligent
Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands etc. excluding LED, Laser Products and lamps)
•LaserProducts=90-DayLimitedWarranty  •L.E.D.Products=3-year(1095days)LimitedWarranty(excluding motors, PCB boards, and power
supplies, which have a 1-year (365 day Limited Warranty) and batteries which have a 180 day limited warranty). Only the L.E.D.s carry a 3-year warranty
ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 18
Page 10
Pixel Pulse Bar Specifications
Model:
Voltage: 100V~240V 50/60Hz
LEDs: 15 x 3W TRI LEDs Power Consumption: 61W
Power Cord Daisy Chain: 6 Fixtures Max. Fuse: 7Amp
Weight: 7 lbs./ 3.2 Kgs. Dimensions 21.5” (L) x 7.25” (W) x 5.75” (H)
388 x 178.5 x 143mm
Colors: RGB Working Position: Any safe working position Warranty: 3 Years (1095 days)
Pixel Pulse Bar
Auto Sensing Voltage: This xture contains a automatic volt-
age switch, which will auto sense the voltage when it is plugged into the power source.
Please Note: Specications and improvements in the design of
this unit and this manual are subject to change without any prior written notice.
ADJ Products, LLC - www.adj.com - Pixel Pulse Bar Instruction Manual Page 19
ADJ Products, LLC
6122 S. Eastern Ave. Los Angeles, CA 90040 USA
Tel: 323-582-2650 / Fax: 323-725-6100
Web: www.adj.com / E-mail: [email protected]
A.D.J. Supply Europe B.V.
Junostraat 2
6468 EW Kerkrade
Netherlands
[email protected] / www.adj.com
Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99
Loading...
