INNO POCKET Z4
©2015 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property, equipment, building,
and electrical damages, injuries to any persons, and direct or
indirect economic loss associated with the use or reliance of
any information contained within this document, and/or as a
result of the improper, unsafe, unsucient and negligent assembly, installation, rigging, and operation of this product.
7/15
User Instructions
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
Page 2
Inno Pocket Z4 General Information
Inno Pocket Z4 General Instructions
Unpacking: Thank you for purchasing the Inno Pocket Z4 by ADJ
Products, LLC. Every Inno Pocket Z4 has been thoroughly tested and
has been shipped in perfect operating condition. Carefully check the
shipping carton for damage that may have occurred during shipping.
If the carton appears to be damaged, carefully inspect your xture for
any damage and be sure all equipment necessary to operate the unit
has arrived intact. In the event damage has been found or parts are
missing, please contact our toll free customer support number for further instructions. Please do not return this unit to your dealer without
contacting customer support rst.
Introduction: The Inno Pocket Z4 is a DMX intelligent, zooming,
moving head, mini LED fixture. The Inno Pocket Z4 can operate as
a stand alone fixture or in a Master/Slave set up. The Inno Pocket Z4
has three operating modes; sound active mode, show mode, DMX
controlled. This fixture is suitable for theaters, studios, retail stores,
and other similar locations. For best results use fog or special effects
smoke to enhance the beams projections.
Customer Support: ADJ Products, LLC provides a toll free cus-
tomer support line, to provide help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.adj.com for any comments or
suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: [email protected]
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly
into the light source at all times!
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
Inno Pocket Z4 Features
• DMX-512 Protocol Compatible (3 DMX Channel Modes: 16 Chan-
nels, 19 Channels, & 22 Channels)
• 3 Operating Modes - Sound Active, Show Mode, & DMX Control
• 5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)
• Internal Microphone
• Digital Display for Address and Function Setting
• 4 Preprogrammed Shows
• UC IR Compatiable (Not Included)
Inno Pocket Z4 Warranty Registration
The Inno Pocket Z4 carries a 2 year (730 days) limited warranty.
Please fill out the enclosed warranty card to validate your purchase
and warranty. You may also register your product online at www. adjproducts.com. All returned service items whether under warranty or
not, must be freight pre-paid and accompany a return authorization
(R.A.) number. If the unit is under warranty you must provide a copy
of your proof of purchase invoice. Please contact ADJ Products, LLC
customer support for a R.A. number.
Inno Pocket Z4 Handling Precautions
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact ADJ Products, LLC.
During operation the housing may become extremely hot. Avoid
touching the unit with bare hands while in use.
ADJ Products, LLC will not accept any liability for any resulting damages caused by the non-observance of this manual or any unauthor-
ized modication to this unit.
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 3ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 2
Page 3
Inno Pocket Z4 Safety Precautions
Inno Pocket Z4 Mounting
For Your Own Personal Safety, Please Read and Understand This
Manual Completely Before You Attempt To Install Or Operate
This Unit!
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt age for your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken.
• Do not attempt to remove or break o the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out doors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience recep tacles, and the point where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 29 for cleaning details.
• Heat -This fixture should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits
a marked change in performance.
When installing the unit, the trussing or area of installation must be
able to hold 10 times the weight without any deformation. When
installing the unit must be secured with a secondary safety attachment, e.g. and appropriate safety cable. Never stand directly below
the unit when mounting, removing, or servicing the unit.
Overhead mounting requires extensive experience, including calculating working load limits, installation material being used, and perodic
safety inspection of all installation material and unit. If you lack these
qualications, do not attempt the installation yourself.
The installaiton should be checked by a skilled person once a year.
The Inno Pocket Z4 is fully operational in three dierent mounting
positions, hanging upside-down from a ceiling, set on a at level
surface, or on its side attached to trussing. Be sure this xture is kept
at least 0.5m away from any ammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure
to prevent accidental damage and/or injury in the event the clamp
fails (see next page).
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 5ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 4
Page 4
Inno Pocket Z4 Mounting
Inno Pocket Z4 DMX Set Up
NOTICE: The suitable enviromental temperature for this light-
ing xture is between -25˚ C to 45˚ C. Do not place this lighting
xture in an enviroment where the temperatures are under or
above the temperatures stated above. This will allow the xture
to run at its best and help prolong the xture life.
Power Supply: The ADJ Inno Pocket Z4 contains a automatic volt-
age switch, which will auto sense the voltage when it is plugged into
the power source. With this switch there is no need to worry about the
correct power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used by most lighting and controller manufactures as a form of
communication between intelligent fixtures and controllers. A DMX
controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX
fixtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models
of dierent manufactures to be linked together and operate from a
single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using
several DMX fixtures try to use the shortest cable path possible. The
order in which fixtures are connected in a DMX line does not influence
the DMX addressing. For example; a fixture assigned a DMX address
of 1 may be placed anywhere in a DMX line, at the beginning, at the
end, or anywhere in the middle. Therefore, the first fixture controlled
by the controller could be the last fixture in the chain. When a fixture
is assigned a DMX address of 1, the DMX controller knows to send
DATA assigned to address 1 to that unit, no matter where it is located
in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Master/Slave
Operation): The Inno Pocket Z4 can be controlled via DMX-512 proto-
col. The Inno Pocket Z4 three DMX channel modes; 16 channel mode,
19 channel mode, & 22 channel mode. The DMX
Screw one clamp via a M12 screw and nut to the included
bracket. Attach the bracket using the included screws to the
bottom of the Inno Pocket Z4. Attach the eyehole screw to the
bottom of the base and pull the safety-cable through the screw
and over the trussing system or a safe xation spot. Insert the
end in the carabine and tighten the safety screw.
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 6 ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 7
address is set electronically using the controls on
the front panel of the unit. Your unit and your DMX
controller require a approved DMX-512 110 Ohm
Data cable for data input and data output (Figure
1). We recommend Accu-Cable DMX cables. If you
are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may
be purchased at almost all professional sound and
Figure 1
Page 5
Inno Pocket Z4 DMX Set Up
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
POWER
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
Inno Pocket Z4 DMX Set Up
lighting stores). Your cables should be made with a male and female
XLR connector on either end of the cable. Also remember that DMX
cable must be daisy chained and cannot be split.
Notice: Be sure to follow gures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
COMMON
1
DMX512 IN
3
3-PIN XLR
2
Figure 2
XLR Pin Conguration
Pin 1 = Ground
Pin 2 = Data Compliment (negative)
Pin 3 = Data True (positive)
XLR Male Socket
1 Ground
Figure 3
DMX512 OUT
3-PIN XLR
2 Cold
3 Hot
1
3
2
XLR Female Socket
2 Cold
DMX +
DMX -
1 Ground
3 Hot
5-Pin XLR DMX Connectors.
Some manufactures use 5-pin DMX-
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
xtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
3-Pin XLR to 5-Pin XLR Conversion
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Ground/Shield
Data Compliment (- signal)
Data True (+ signal)
Not Used
Not Used
Pin 1
Pin 2
Pin 3
Pin 1
Pin 2
Pin 3
Pin 4 - Do Not Use
Pin 5 - Do Not Use
Special Note: Line Termination.
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
When longer runs of cable are
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
Termination reduces signal errors and
1
avoids signal transmission problems
3
and interference. It is always advisable
2
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
Figure 4
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 9ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 8
Page 6

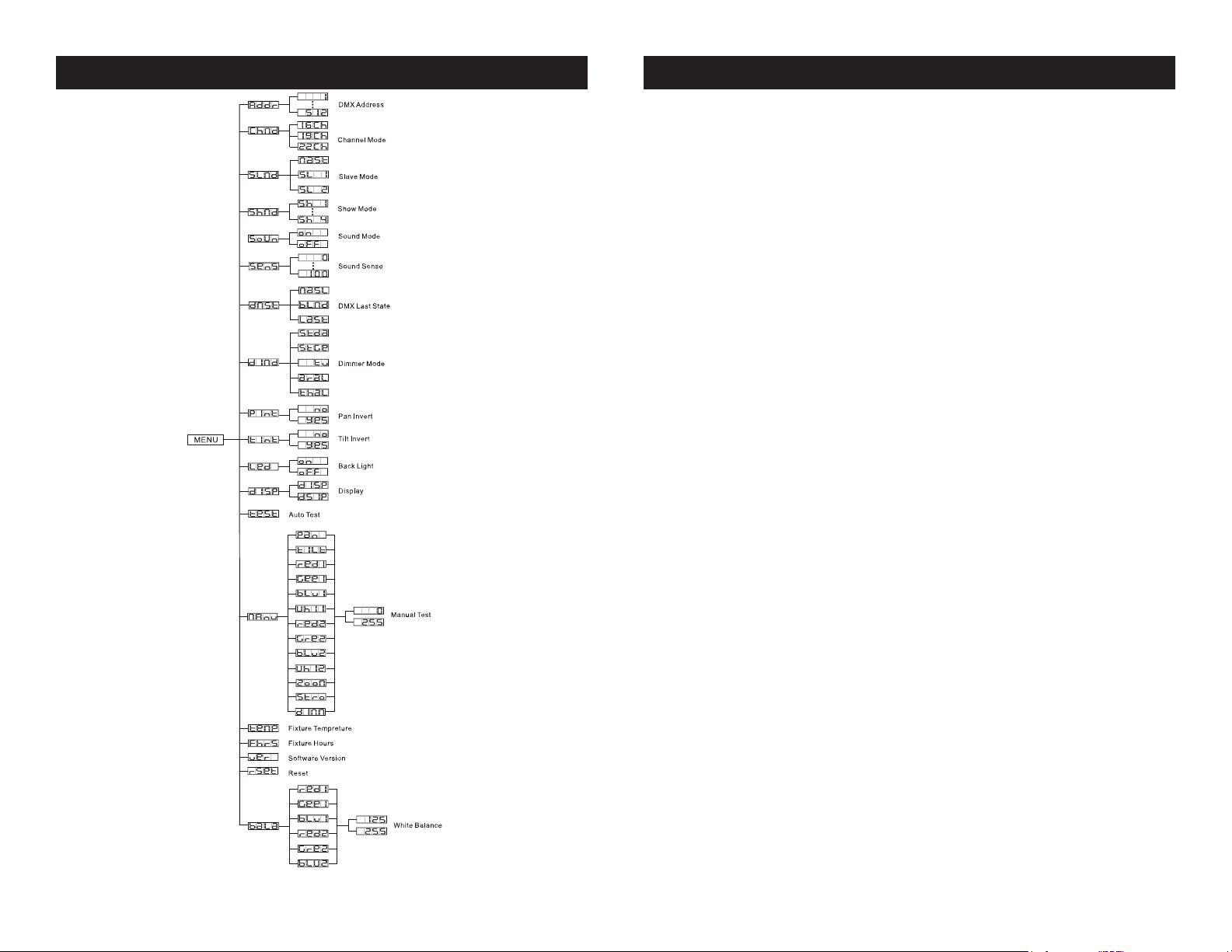

Inno Pocket Z4 System Menu
Inno Pocket Z4 System Menu
System Menu: When making adjustments press ENTER to
conrm your setup then press and hold the MENU button
for at least 3 seconds. To exit without making any adjust-
ments press the MENU button. The display will lock after 30
seconds, press the MENU button for 3 seconds to unlock.
ADDR - DMX Address Setting.
1. Press the either the MENU, UP, or DOWN buttons until
“ADDR” is displayed, press ENTER.
2. The current address will now be displayed and ashing.
Press the UP or DOWN buttons to nd your desired address.
Press ENTER to set your desired DMX address.
CHND - This will let select your desired DMX channel
mode.
1. Press the either the MENU button until “CHND” is displayed,
press ENTER. The current DMX channel mode will be dis-
played.
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 10
2. Press the UP or DOWN buttons to nd your desired DMX
channel mode and press ENTER to conm and exit.
SLND - This will let you set unit as a master or slave in a
master/slave conguration.
1. Press the MENU button until “SLND” is displayed, press
ENTER. Either “MAST”, “SL 1”, or “SL 2” will be displayed.
2. Press the UP or DOWN buttons until your desired setting is
displayed, press ENTER to conm.
NOTE: In a Master/Slave conguration you can set one xture
to Master and then set the next xture to “SL 2”, the xtures
will now have contrast movement to each other.
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 11
Page 7
Inno Pocket Z4 System Menu
Inno Pocket Z4 System Menu
SHND - Show modes 1-4. Show mode can run with or
without sound active mode active.
1. Press the MENU button until “SHND” is displayed, press
ENTER.
2. “Sh X” will now be displayed, “X” representing a number
between 1-4. Use the UP or DOWN buttons to nd your desired
show.
3. When you have found your desired show press ENTER, then
press and hold the MENU button for at least 3 seconds to acti-
vate.
SOUN - Sound Active mode.
1. Press the MENU button until “SOUN” is displayed, press
ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or
DOWN buttons to select “ON” to activate sound active mode,
or “OFF” to deactivate sound active mode.
3. Press ENTER to conrm.
DNST - This mode can be used as a precaution mode,
that in case the DMX signal is lost, interrupted, or power is
lost, the operating mode chosen in the setup is the running
mode the xture will go into when the DMX signal is lost. You
can also set this as the operating mode you would like the
unit to return to when power is applied.
1. Press the MENU button until “DNST” is displayed, and either
“MASL”, “BLND”, or “LAST” will be displayed beneath.
2. Press ENTER and the bottom choice will begin to ash. Use
the UP or DOWN buttons to choose an operating mode you
would like the unit to start up in when power is applied or the
DMX signal is lost.
• LAST - If the DMX signal is lost the xture will stay in the last
DMX setting. If power is applied and this mode is set, the unit will
automatically go into the last DMX set up.
• MASL (Master Slave) - If the DMX signal is lost or power is
applied, the unit will automatically go into Master Slave mode
and run a built-in show.
• BLND (Blackout) - If the DMX signal is lost or interrupted, the
unit will automatically go into stand by mode.
SENS - In this mode you can adjust the sound sensitiv-
ity.
1. Press the MENU button until “SENS” is displayed, press
ENTER.
2. A number between 0-100 will be displayed. Press the UP or
DOWN buttons to adjust the sound sensitivity. 0 being the least
sensitive, and 100 being the most sensitive.
3. When you have found your desired setting press ENTER to
conrm.
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 12 ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 13
3. Press ENTER to conrm your desired set up.

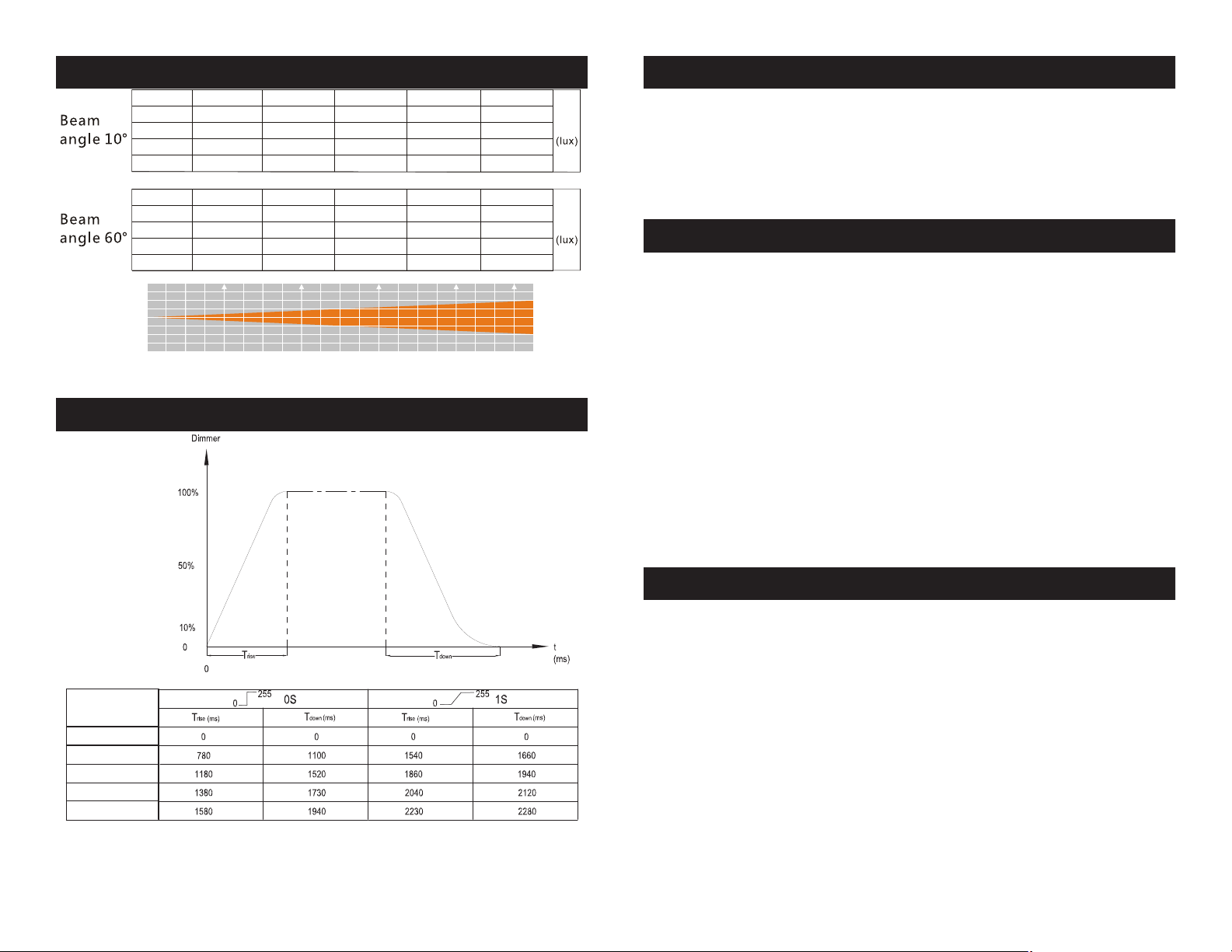

DIND - This will let select your desired dimmer curve.
1. Press the MENU button until “DIND” is displayed, and press
ENTER. 1 of 5 dimmer curves will be displayed. “STDA” (standard), “STGE” (stage), “TV” (TV), “ARAL” (Architectural), or
“THAL” (Theatre). See the dimmer curve chart on page 28 for
more info.
2. Press the UP or DOWN buttons to nd your desired dimmer
curve and press ENTER to conm and exit.
Page 8
Inno Pocket Z4 System Menu
Inno Pocket Z4 System Menu
PINT - Pan Inversion
1. Press the MENU button until “PINT” is displayed, press
ENTER. Either “Yes” or “No” will be displayed.
2. To activate the Pan inversion press the UP or DOWN buttons
until “Yes” is displayed, press ENTER to conm. To deactivate
Pan inversion, select “No” and press Enter.
TINT - Tilt Inversion
1. Press the MENU button until “TINT” is displayed, press
ENTER. Either “Yes” or “No” will be displayed.
2. To activate the tilt inversion press the UP or DOWN buttons
until “Yes” is displayed, press ENTER to conm. To deactivate
tilt inversion, select “No” and press Enter.
LED - With this function you can have the display back-
light turn off after 10 seconds.
1. Press the MENU button until “LED” is displayed, press
ENTER.
again. Press ENTER when you have made your desired setup.
TEST - This function will run a self test program.
1. Press the MENU button until “TEST” is displayed, press
ENTER.
2. The xture will now run a self test.
MANU - In this submenu you are able to test the different
functions; pan, tilt, LEDs, zoom, dimmer, and strobe.
1. Press the MENU button until “MANU” is displayed, press
ENTER.
2. Use the UP and DOWN buttons to scroll through the various
functions able for testing. Once you have found your desired
function you would like to test press ENTER.
3. After you have pressed ENTER, use the UP and DOWN buttons to adjust the values and test the function. To exit press the
MENU button.
2. The display will show either “ON” or “OFF”. Press the UP or
DOWN buttons to select “ON” to keep the LED display on at
all times, or “OFF” to switch to have the LED display switch o
after 10 seconds.
3. Press ENTER to conrm. To make you LED display reappear
again press any button.
DISP - This function will reverse the display 180º.
1. Press the MENU button until “DISP” is displayed, press
ENTER.
2. Press ENTER to “ip” the display. Press ENTER to “ip” it
TEMP - With this function you can check the temperature
of the xture.
1. Press the MENU button until “TEMP” is displayed, press
ENTER.
2. The xture temperature will now be displayed. Press MENU
to exit.
FHRS - With this function you can display the running
time of the unit.
1. Press the MENU button until “FHRS” is displayed, press
ENTER.
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 15ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 14
Page 9
Inno Pocket Z4 System Menu
2. The running time of the xture will now be displayed. Press
MENU to exit.
VER - Use this function to display the Software version of
the unit.
1. Press the either the MENU button until “VER” is displayed,
press ENTER.
2. The display will show the software version.
RSET - Use this function to reset the unit.
1. Press the MENU button until “RSET” is displayed, press
ENTER.
2. The xture will now reset.
BALA - With this function you can adjust the RGB colors
to make your desired color.
1. Press the MENU button until “BALA” is displayed, press
ENTER.

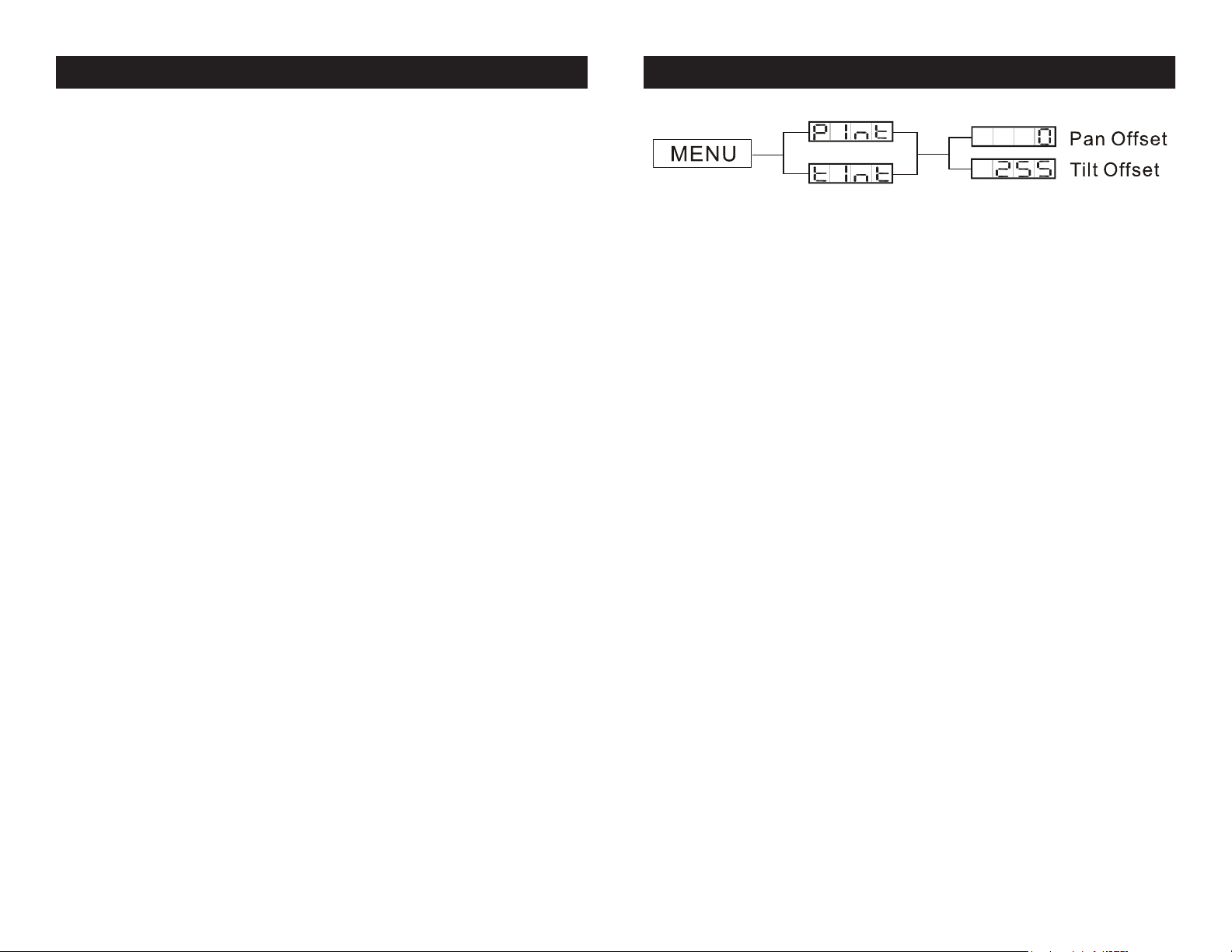

Inno Pocket Z4 Home Adjustment Menu
To enter the home position adjustment menu, unlock the display by pressing the MODE button for at least 3 seconds. Then
press the ENTER button for at least 3 seconds to enter the
home adjustment menu. In this submenu you are able to adjust
the original position of the pan position and tilt position.
PINT - Adjustment of the pan position.
1. Press the ENTER button for at least 5 seconds, then press
the UP or DOWN buttons so that “PINT” is displayed, press
ENTER.
2. Use the UP and DOWN buttons to make your adjustments,
and then press ENTER to conrm. Press the MENU button for
one second to exit.
TINT - Adjustment of the tilt position.
2. Use the UP or DOWN buttons to nd the color you wish to
adjust.
3. Once you nd the color you want to adjust press ENTER, the
displayed value will begin to ash. Use the UP or DOWN buttons to adjust the value. Once you have made your adjustment
press ENTER.
4. Repeat steps 2-3 until satised.
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 16 ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 17
1. Press the ENTER button for at least 5 seconds, then press
the UP or DOWN buttons so that “TINT” is displayed, press
ENTER.
2. Use the UP and DOWN buttons to make your adjustments,
and then press ENTER to conrm. Press the MENU button for
one second to exit.
Page 10
Inno Pocket Z4 Operation
Inno Pocket Z4 Master-Slave Set Up
Universal DMX Control: This function allows you to use a Elation®
universal DMX-512 controller to control the chases and patterns,
dimmer and strobe. A DMX controller allows you to create unique
programs tailored to your individual needs.
1. The Inno Pocket Z4 has 3 DMX channel modes; 16 channel
mode, 19 channel mode, and 22 channel mode. See pages 21-27
for detailed description of the DMX values and traits.
2. To control your fixture in DMX mode, follow the set-up procedures
on pages 7-9 as well as the set-up specifications that are includ ed with your DMX controller.
3. Use the controller’s faders to control the various DMX fixture traits.
4. This will allow you to create your own programs.
5. Follow the instruction on page 11 to set the DMX address.
6. For longer cable runs (more than a 100 feet) use a terminator on
the last fixture.
7. For help operating in DMX mode consult the manual included
with your DMX controller.
Sound Active Mode: This mode allows either single unit or several
units linked together, to run to the beat of the music.
1. Press the MENU button until “SOUN” is displayed, and press
ENTER. Press the UP or DOWN buttons so that “ON” is dis-
played and press ENTER.
2. Press the MENU button until “SENS” is displayed, and press
ENTER. Use the UP and DOWN buttons to adjust the sound
sensitivity. Press ENTER when you have found your desired sensi-
tivity level.
Master-Slave Operation This function will allow you to link up to 16
units together and operate without a controller. The units will be sound
activated. In Master-Slave operation one unit will act as the controlling
unit and the others will react to the controlling units programs. Any unit
can act as a Master or as a Slave.
1. Using approved DMX data cables, daisy chain your units togeth-
er via the XLR connector on the rear of the units. Remember the
Male XLR connector is the input and the Female XLR connector
is the output. The rst unit in the chain (master) will use the female
XLR connector only - The last unit in the chain will use the male
XLR connector only. For longer cable runs we suggest a termina tor at the last fixture.
2. On the Master unit press the MENU button until “SLND” is dis played, and press ENTER. Use the UP and DOWN buttons to
scroll to the “MAST” setting and press ENTER.
3. After setting the Master unit to the master setting find and set
your desired operating mode.
4. On the slave units press the MENU button until “SLND” is dis played, and press ENTER. Choose either “SL 1” or “SL 2” and
press ENTER. See page 11 for more info.
5. The slave units will now follow the Master unit.
Show Mode: This mode allows either a single unit or several units
linked together, to run one of four shows that you choose.
1. Press the MENU button until “SHND” is displayed, and press
ENTER.
2. Press the UP or DOWN buttons to nd your desired show, and
press ENTER.
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 18 ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 19
Page 11
Inno Pocket Z4 UC IR Operation Inno Pocket Z4 16 Channel Mode
The ADJ UC IR (sold separately) infrared remote gives you control of various functions (See below). To control the fixture you must
aim the remote at the front of the fixture and be no more then 30 feet
away.
STAND BY - Pressing this button will blackout the fixture.
FULL ON - Hold this button down to fully light up the unit. When you
let the button go, the unit will return to its previous state.
FADE/GOBO - Press this button to activate Fade mode.
“DIMMER +” and “DIMMER -” - Use these buttons to adjust the out-
put intensity in Color mode.
STROBE - This button will activate the strobe effect. Press and hold
this button to activate strobing and release the button to stop strob-
ing.
COLOR - Press this button to enter Dimmer mode. Use the 1-9 but-
tons to select your desired color. Adjust the output intensity using the
“DIMMER +” and “DIMMER -” buttons.
1-9 - In color mode, these buttons will allow you to select a desired
color. In show mode, these buttons will allow you to select a desired
show.
SOUND ON & OFF - These buttons activate and deactivate the
sound active mode.
SHOW - This activates the show mode. Use buttons 1-4 to select
your desired show.
Channel Value Function
1 0 - 255 PAN MOVEMENT 0°-540°
2 0 - 255 PAN FINE
3 0 - 255 TILT MOVEMENT 0°-180°
4 0 - 255 TILT FINE
5 0 - 255 RED 1 0% - 100%
6 0 - 255 GREEN 1 0% - 100%
7 0 - 255 BLUE 1 0% - 100%
8 0 - 255 WHITE 1 0% - 100%
9 0 - 255 RED 2 0% - 100%
10 0 - 255 GREEN 2 0% - 100%
11 0 - 255 BLUE 2 0% - 100%
12 0 - 255 WHITE 2 0% - 100%
13 0 - 255 ZOOM 10°- 60°
14 SHUTTER/STROBE
0 - 7 CLOSED
8 - 15 OPEN
16 - 131 STROBING SLOW - FAST
132 - 139 OPEN
140 - 181 FAST CLOSE - SLOW OPEN
182 - 189 OPEN
190 - 231 SLOW CLOSE - FAST OPEN
232 - 239 OPEN
240 - 247 RANDOM STROBING
248 - 255 OPEN
15 0 - 255 MASTER DIMMER 0% - 100%
16 SPECIAL FUNCTIONS
0 - 69 NO FUNCTION
70 - 79 BLACKOUT W/ PAN/TILT MOVEMENT
80 - 89 DISABLE BLACKOUT WITH PAN/TILT
MOVEMENT
90 - 199 NO FUNCTION
200 - 209 RESET ALL
210 - 255 NO FUNCTION
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 20 ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 21
Page 12
Inno Pocket Z4 19 Channel Mode
Inno Pocket Z4 19 Channel Mode
Channel Value Function
1 0 - 255 PAN MOVEMENT 0°-540°
2 0 - 255 PAN FINE
3 0 - 255 TILT MOVEMENT 0°-180°
4 0 - 255 TILT FINE
5 0 - 255 RED 1 0% - 100%
6 0 - 255 GREEN 1 0% - 100%
7 0 - 255 BLUE 1 0% - 100%
8 0 - 255 WHITE 1 0% - 100%
9 0 - 255 RED 2 0% - 100%
10 0 - 255 GREEN 2 0% - 100%
11 0 - 255 BLUE 2 0% - 100%
12 0 - 255 WHITE 2 0% - 100%
13 COLOR MACROS
0 - 7 NO FUNCTION
8 - 11 COLOR MACRO 1
12 - 15 COLOR MACRO 2
16 - 19 COLOR MACRO 3
20 - 22 COLOR MACRO 4
23 - 26 COLOR MACRO 5
27 - 30 COLOR MACRO 6
31 - 34 COLOR MACRO 7
35 - 37 COLOR MACRO 8
38 - 41 COLOR MACRO 9
42 - 45 COLOR MACRO 10
46 - 48 COLOR MACRO 11
49 - 52 COLOR MACRO 12
53 - 56 COLOR MACRO 13
57 - 60 COLOR MACRO 14
61 - 63 COLOR MACRO 15
64 - 67 COLOR MACRO 16
68 - 71 COLOR MACRO 17
72 - 75 COLOR MACRO 18
76 - 79 COLOR MACRO 19
80 - 82 COLOR MACRO 20
83 - 85 COLOR MACRO 21
86 - 89 COLOR MACRO 22
Channel Value Function
13 COLOR MACROS
90 - 93 COLOR MACRO 23
94 - 97 COLOR MACRO 24
98 - 101 COLOR MACRO 25
102 - 104 COLOR MACRO 26
105 - 108 COLOR MACRO 27
109 - 112 COLOR MACRO 28
113 - 115 COLOR MACRO 29
116 - 119 COLOR MACRO 30
120 - 123 COLOR MACRO 31
124 - 127 COLOR MACRO 32
128 - 191 COLOR CHANGING
192 - 255 COLOR FADING
14 COLOR CHANGE/FADE SPEED
0 - 255 SLOW - FAST
15 0 - 255 ZOOM 10°- 60°
16 SHUTTER/STROBE
0 - 7 CLOSED
8 - 15 OPEN
16 - 131 STROBING SLOW - FAST
132 - 139 OPEN
140 - 181 FAST CLOSE - SLOW OPEN
182 - 189 OPEN
190 - 231 SLOW CLOSE - FAST OPEN
232 - 239 OPEN
240 - 247 RANDOM STROBING
248 - 255 OPEN
17 0 - 255 MASTER DIMMER 0% - 100%
18 SPECIAL FUNCTIONS
0 - 69 NO FUNCTION
70 - 79 BLACKOUT W/ PAN/TILT MOVEMENT
80 - 89 DISABLE BLACKOUT WITH PAN/TILT
MOVEMENT
90 - 199 NO FUNCTION
200 - 209 RESET ALL
210 - 255 NO FUNCTION
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 23ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 22
Page 13
Inno Pocket Z4 19 Channel Mode
Inno Pocket Z4 22 Channel Mode
Channel Value Function
19 DIMMER CURVES
0 - 20 STANDARD
21 - 40 STAGE
41 - 60 TV
61 - 80 ARCHITECTURAL
81 - 100 THEATRE
101 - 255 DEFAULT DIMMER SETTING
Channel Value Function
1 0 - 255 PAN MOVEMENT 0°-540°
2 0 - 255 PAN FINE
3 0 - 255 TILT MOVEMENT 0°-180°
4 0 - 255 TILT FINE
5 0 - 255 RED 1 0% - 100%
6 0 - 255 GREEN 1 0% - 100%
7 0 - 255 BLUE 1 0% - 100%
8 0 - 255 WHITE 1 0% - 100%
9 0 - 255 RED 2 0% - 100%
10 0 - 255 GREEN 2 0% - 100%
11 0 - 255 BLUE 2 0% - 100%
12 0 - 255 WHITE 2 0% - 100%
13 COLOR MACROS
0 - 7 NO FUNCTION
8 - 11 COLOR MACRO 1
12 - 15 COLOR MACRO 2
16 - 19 COLOR MACRO 3
20 - 22 COLOR MACRO 4
23 - 26 COLOR MACRO 5
27 - 30 COLOR MACRO 6
31 - 34 COLOR MACRO 7
35 - 37 COLOR MACRO 8
38 - 41 COLOR MACRO 9
42 - 45 COLOR MACRO 10
46 - 48 COLOR MACRO 11
49 - 52 COLOR MACRO 12
53 - 56 COLOR MACRO 13
57 - 60 COLOR MACRO 14
61 - 63 COLOR MACRO 15
64 - 67 COLOR MACRO 16
68 - 71 COLOR MACRO 17
72 - 75 COLOR MACRO 18
76 - 79 COLOR MACRO 19
80 - 82 COLOR MACRO 20
83 - 85 COLOR MACRO 21
86 - 89 COLOR MACRO 22
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 24 ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 25
Page 14
Inno Pocket Z4 22 Channel Mode
Inno Pocket Z4 22 Channel Mode
Channel Value Function
13 COLOR MACROS
90 - 93 COLOR MACRO 23
94 - 97 COLOR MACRO 24
98 - 101 COLOR MACRO 25
102 - 104 COLOR MACRO 26
105 - 108 COLOR MACRO 27
109 - 112 COLOR MACRO 28
113 - 115 COLOR MACRO 29
116 - 119 COLOR MACRO 30
120 - 123 COLOR MACRO 31
124 - 127 COLOR MACRO 32
128 - 191 COLOR CHANGING
192 - 255 COLOR FADING
14 COLOR CHANGE/FADE SPEED
0 - 255 SLOW - FAST
15 PAN/TILT MACROS
0 - 15 NO FUNCTION
16 - 35 MACRO 1
36 - 55 MACRO 2
56 - 75 MACRO 3
76 - 95 MACRO 4
96 - 115 MACRO 5
116 - 135 MACRO 6
136 - 155 MACRO 7
156 - 175 MACRO 8
176 - 195 MACRO 9
196 - 215 MACRO 10
216 - 235 MACRO 11
236 - 255 MACRO 12
16 PAN/TILT MACRO SPEED
0 - 255 SLOW - FAST
17 0 - 255 ZOOM 10°- 60°
18 SHUTTER/STROBE
0 - 7 CLOSED
8 - 15 OPEN
16 - 131 STROBING SLOW - FAST
Channel Value Function
18 SHUTTER/STROBE
132 - 139 OPEN
140 - 181 FAST CLOSE - SLOW OPEN
182 - 189 OPEN
190 - 231 SLOW CLOSE - FAST OPEN
232 - 239 OPEN
240 - 247 RANDOM STROBING
248 - 255 OPEN
19 0 - 255 MASTER DIMMER 0% - 100%
20 PAN/TILT MOVEMENT SPEED
0 - 255 FAST - SLOW
21 SPECIAL FUNCTIONS
0 - 69 NO FUNCTION
70 - 79 BLACKOUT W/ PAN/TILT MOVEMENT
80 - 89 DISABLE BLACKOUT WITH PAN/TILT
MOVEMENT
90 - 199 NO FUNCTION
200 - 209 RESET ALL
210 - 255 NO FUNCTION
22 DIMMER CURVES
0 - 20 STANDARD
21 - 40 STAGE
41 - 60 TV
61 - 80 ARCHITECTURAL
81 - 100 THEATRE
101 - 255 DEFAULT DIMMER SETTING
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 26 ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 27
Page 15
Inno Pocket Z4 Photometric Chart
Distance(m)
R
G
B
W
RGBW
R
G
B
W
RGBW
0 5.0
3510 958
9065
386
9378 2445
21210
322 92
840
46
846 233
1885
1.0 2.0 3.0 4.0
2365 1051 627 406
108 58 38
5731 2581 1431 950
229 113 72 52
20 17 15
541 261 153 102
435
1077 648
52
116 73
243
35
160
30
410
27
13
52
Inno Pocket Z4 Dimmer Curve Chart
Inno Pocket Z4 Fuse Replacement
Locate and remove the unit’s power cord. Once the cord has been
removed located the fuse holder located inside the power socket.
Insert a flat-head screw driver into the power socket and gently pry
out the fuse holder. Remove the bad fuse and replace with a new one.
The fuse holder has a built-in socket for a spare fuse be sure not to
confuse the spare fuse with active fuse.
Inno Pocket Z4 Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates (I.e. smoke, fog residue, dust,
dew). In heavy club use we recommend cleaning on a monthly basis.
Periodic cleaning will ensure longevity, and crisp output.
1. Use normal glass cleaner and a soft cloth to wipe down the out-
side casing.
2. Use a brush to wipe down the cooling vents and fan grill.
3. Clean the external optics with glass cleaner and a soft cloth every
20 days.
4. Clean the internal optics with glass cleaner and a soft cloth every
30-60 days.
5. Always be sure to dry all parts completely before plugging the unit
back in.
Ramp Effect
Standard
Stage
TV
Architectural
Theatre
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 28
(Fade Time) (Fade Time)
Inno Pocket Z4 Trouble Shooting
Trouble Shooting: Listed below are a few common problems that
you may encounter, with solutions.
No light output from the unit;
1. Be sure the external fuse has not blown. The fuse is located on
the rear panel of the unit.
2. Be sure the fuse holder is completely and properly seated.
Unit does not respond to sound;
1. Low frequencies (bass) should cause the unit to react to sound.
Tapping on the microphone, quiet or high pitched sounds may
not activate the unit.
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 29
Page 16
Inno Pocket Z4 Warranty
MANUFACTURER’S LIMITED WARRANTY
A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products
to be free of manufacturing defects in material and workmanship for a prescribed period from
the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the
product is purchased within the United States of America, including possessions and
territories. It is the owner ’s responsibility to establish the date and place of purchase by acceptable
evidence, at the time service is sought.
B. For warranty service you must obtain a Return Authorization number (RA#)
before sending back the product–please contact ADJ Products, LLC Service Department
at 800-322-6337. Send the product only to the ADJ Products, LLC factory. All
shipping charges must be pre-paid. If the requested repairs or service (including
parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return
shipping charges only to a designated point within the United States. If the entire instrument is
sent, it must be shipped in it’s original package. No accessories should be shipped with the product. If
any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for
loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the serial number has been altered or removed; if the product is modified in any
manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the
product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior
written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because
not properly maintained as set forth in the instruction manual.
D. This is not a service contract, and this warranty does not include maintnance, cleaning or periodic check
up. During the period specified above, ADJ Products, LLC will replace defective parts at its expense
with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by
reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this
warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole
discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August
15, 2012, and bear indentifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products
without any obligation to include these changes in any products theretofore manufactured.
No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with
products described above. Except to the extent prohibited by applicable law, all implied warranties made
by ADJ Products, LLC in connection with this product, including warranties of merchantability or fitness,
are limited in duration to the warranty period set forth above. And no warranties, whether expressed or
implied, including warranties of merchantability or fitness, shall apply to this product after said period
has expired. The consumer’s and/or Dealer’s sole remedy shall be such repair or replacement as is
expressly provided above; and under no circumstances shall ADJ Products, LLC be liable for any loss or
damage, direct or consequential, arising out of the use of, or inability to use, this product.
This warranty is the only written warranty applicable to ADJ Products, LLC Products and
supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore
published.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
•LightingProducts=1-year(365days)LimitedWarranty(Such as: Special Effect Lighting, Intelligent
Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing,
Lighting Stands etc. excluding LED and lamps)
•LaserProducts=1Year(365Days)LimitedWarranty(excluding laser diodes which have a 6 month
limited warranty)
•L.E.D.Products=2-year(730days)LimitedWarranty(excluding motors, PCB boards, and power
supplies, which have a 1-year (365 day Limited Warranty) batteries which have a 180 day limited war-
ranty). Only the L.E.D.s carry a 2-year warranty (excludingStarTecSerieswhichacarriesa1Year
LimitedWarranty)
•ADJDMXControllers=2Year(730Days)LimitedWarranty(excluding faders and tact switches)
ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 30
Inno Pocket Z4 Specifications
Model: Inno Pocket Z4
Voltage: 100 - 240V, 50/60Hz
LED: 4 x 10W 4-in-1 RGBW LEDs
Power Consumption: 67W
Dimensions: 5.5”(L) x 6.75”(W) x 9.75”(H)
141 x 174 x 247mm
Weight: 7 Lbs. / 3.2 kgs.
Beam Angle: 10 - 60 Degrees
Fuse: 3.15 Amp
Duty Cycle: None
DMX: 3 DMX Channel Modes: 16/19/22
Colors: RGBW Color Mixing
Sound Active: Ye s
Working Position: Any Safe, Secure Position
Warranty: 2 Year (730 days)
Please Note: Specications and improvements in the design
of this unit and this manual are subject to change without any
prior written notice.
Auto Sensing Voltage: This xture contains a automatic volt-
age switch, which will auto sense the voltage when it is plugged
into the power source.
ADJ Products, LLC
6122 S. Eastern Ave. Los Angeles, CA 90040 USA
Tel: 323-582-2650 / Fax: 323-725-6100
Web: www.adj.com / E-mail: [email protected]
A.D.J. Supply Europe B.V.
Junostraat 2
6468 EW Kerkrade
Netherlands
[email protected] / www.adj.eu
Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99
Loading...
