Page 1
ENCORE LP32IP
User Manual
Page 2
©2022 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed
includes all forms and matters of copyrightable materials and information now allowed by statutory or
judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-ADJ Products,
LLC brands and product names are trademarks or registered trademarks of their respective companies.
ADJ Products, LLC and all afliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insufcient and negligent assembly, installation, rigging, and operation of this product.
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of
this document may be available online.
Please check www.adj.com for the latest revision/update of this manual
before beginning installation and/or programming.
Date
06/24/2022 1.0 1.01
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn off all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!
Document
Version
Software
Version
DMX Channels Notes
4 / 7 / 8 / 13 / 16 / 32 /
35 / 41 / 44 / 64 ch.
2
Initial Release
Page 3
TABLE OF CONTENTS
Introduction 4
Limited Warranty (USA Only) 5
Warranty Registration | Features 6
Safety Precautions 7
Overview 8
Installation 9
Wireless Setup 15
Remote Device Management (RDM) 16
Control Panel 17
System Menu 18

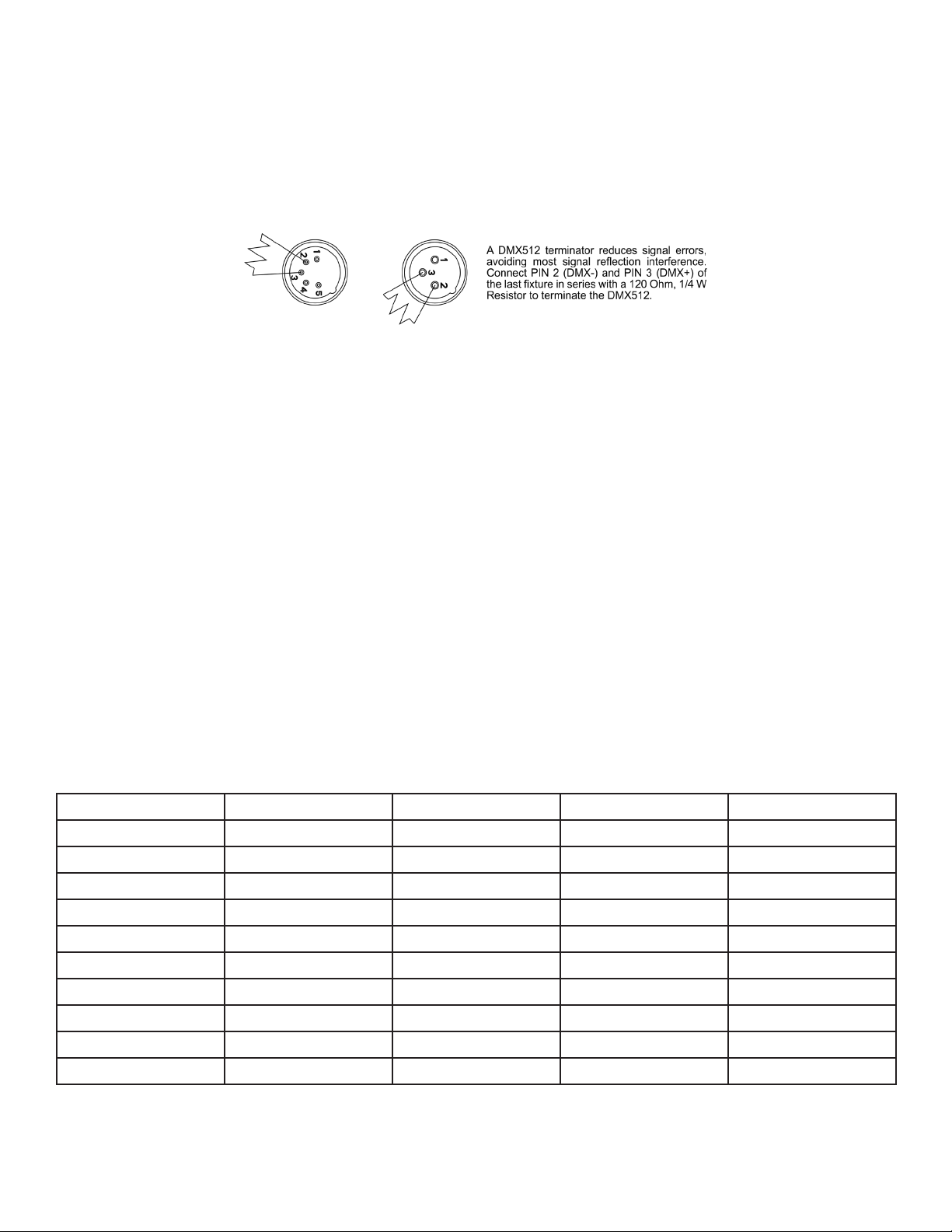

DMX Set Up 22
DMX Traits 24
Pixel Zones 29
Color Macros Chart 30

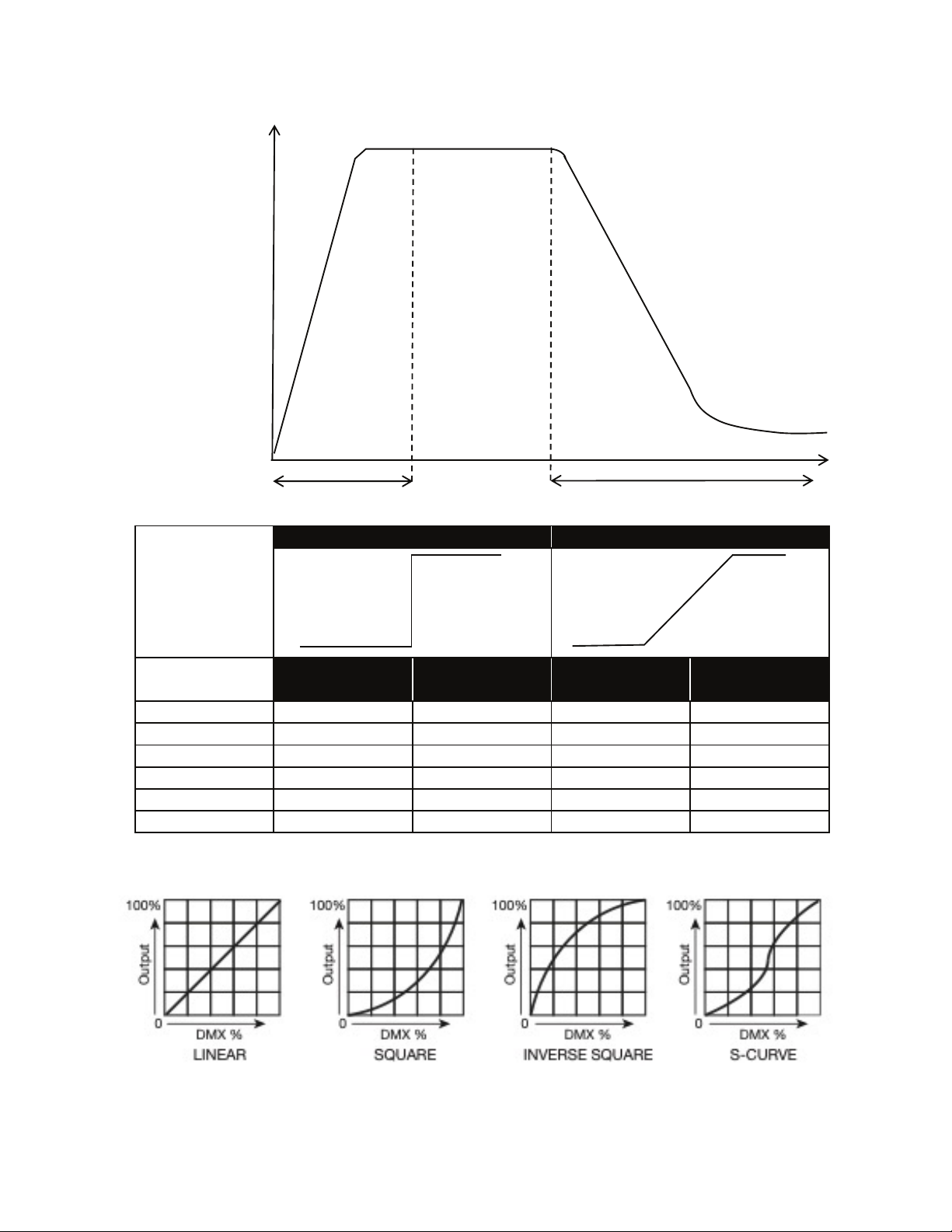

Dim Speeds 32
Dim Modes 33
Primary-Secondary Set Up | Multi Unit Power Linking 34
Maintenance Guidelines 35

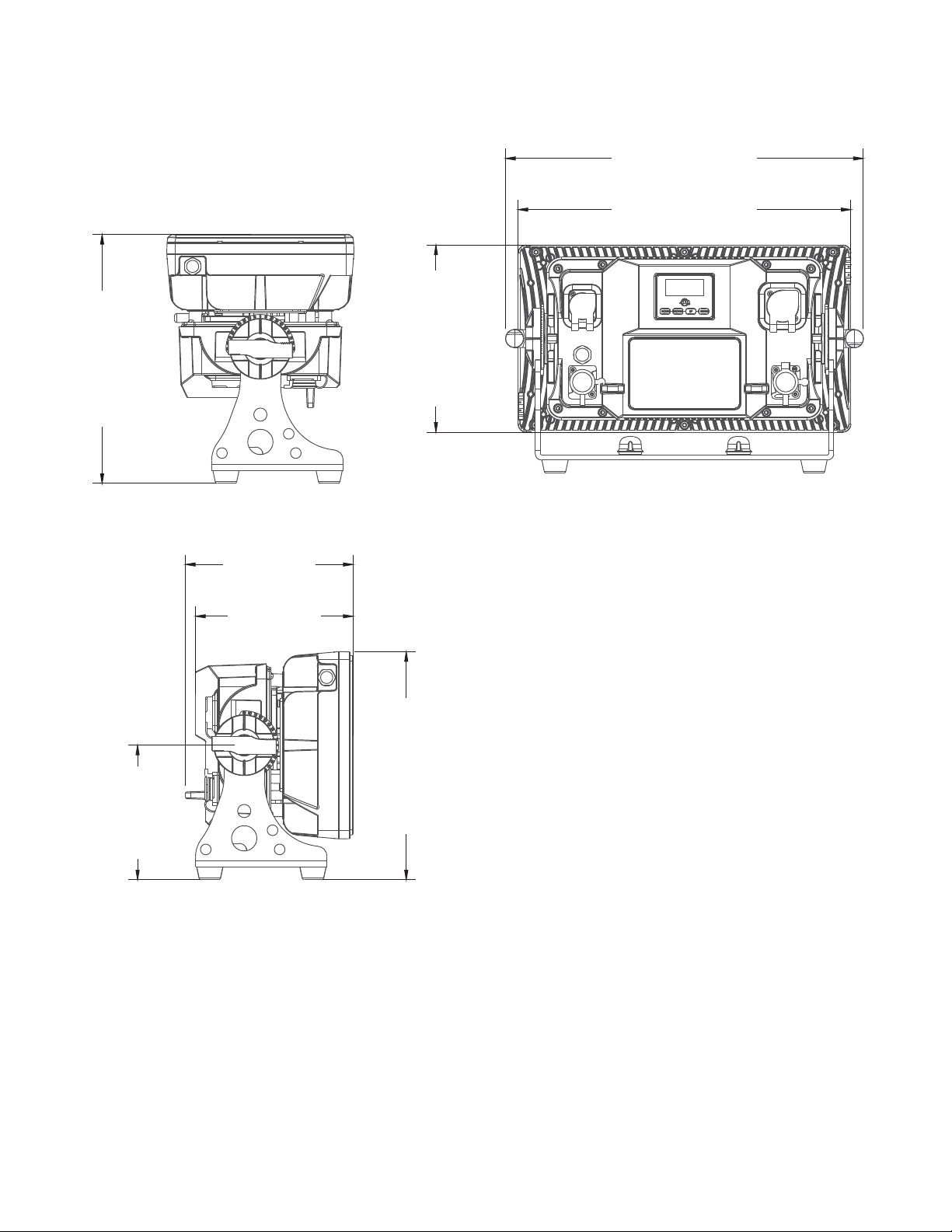

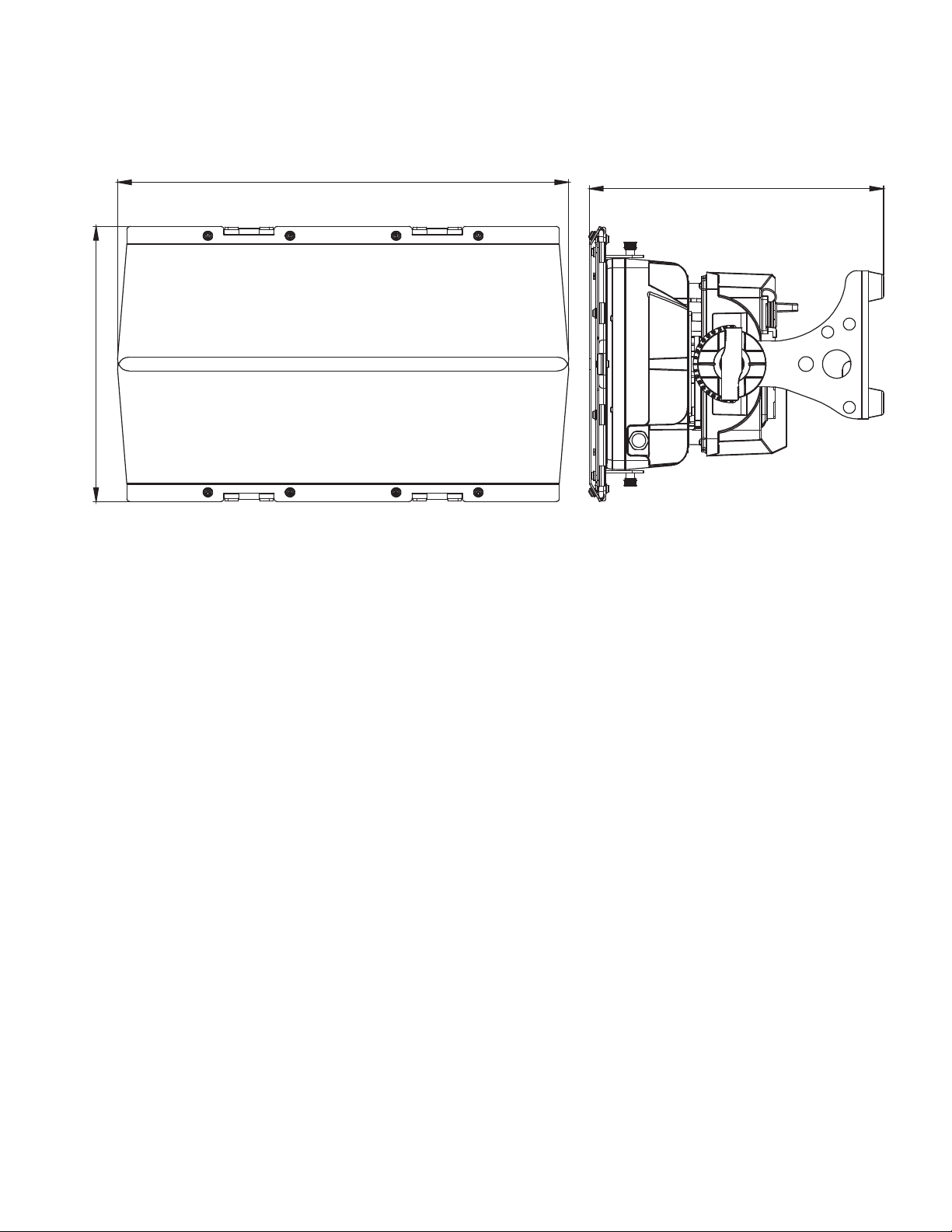

Dimensional Drawings 36
Specifications 38
3
Page 4
INTRODUCTION
Unpacking: Thank you for purchasing the Encore LP32IP by ADJ Products, LLC. Every device has
been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to have been
damaged, carefully inspect your xture for any damage and be sure all accessories necessary to operate the unit have arrived intact. In the event that damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Do not return this unit to your
dealer without rst contacting customer support.
Introduction: The Encore LP32IP is a multi-functional IP65-rated professional wash lighting xture. It
features 32 x 20-Watt 4-in-1 (red, green, blue, lime) color mixing LEDs arranged into 8 individually controllable sections.. This product is intended to be used by professionally trained personnel only
and is not suitable for private use.
Customer Support: Contact ADJ Service for any product related service and support needs. Also visit
forums.adj.com with questions, comments or suggestions.
Parts: To purchase parts online visit:
http://parts.adj.com (US)
http://www.adjparts.eu (EU)
ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: 323-582-2941 | [email protected]
ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: +31 45 546 85 60 | Fax: +31 45 546 85 96 | [email protected]
ADJ PRODUCTS LLC USA
6122 S. Eastern Ave. Los Angeles, CA. 90040
323-582-2650 | Fax 323-532-2941 | www.adj.com | [email protected]
ADJ SUPPLY Europe B.V
Junostraat 2 6468 EW Kerkrade, The Netherlands
+31 (0)45 546 85 00 | Fax +31 45 546 85 99
www.americandj.eu | [email protected]
ADJ PRODUCTS GROUP Mexico
AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000
+52 (728) 282-7070
CAUTION! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
as doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service,
please contact ADJ Products, LLC.
Do not discard the shipping cartoon in the trash. Please recycle when ever possible.
4
Page 5
LIMITED WARRANTY (USA ONLY)
A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of
manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see
specic warranty period on reverse). This warranty shall be valid only if the product is purchased within the
United States of America, including possessions and territories. It is the owner’s responsibility to establish
the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, you must obtain a Return Authorization number (RA#) before sending the product
back—please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to
the ADJ Products, LLC factory. All shipping charges must be prepaid. If the requested repairs or service
(including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be
shipped in its original package and packaging material. No accessories should be shipped with the product.
If any accessories are shipped with the product, ADJ Products, LLC shall incur no liability whatsoever for
loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is
modied in any manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the
product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory
unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because it was not properly maintained as set forth in the product instructions, guidelines and/or user
manual.
D. This is not a service contract, and this warranty does not include maintenance, cleaning, or periodic check-
up. During the period specied above, ADJ Products, LLC will replace defective parts at its expense with
new or refurbished parts, and will absorb all expenses for warranty service and repair labor by reason of
defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this warranty shall
be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ
Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear
identifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products
without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with
products described above. Except to the extent prohibited by applicable law, all implied warranties made by
ADJ Products, LLC in connection with this product, including warranties of merchantability or tness, are
limited in duration to the warranty period set forth above. And all warranties, whether expressed or implied,
including warranties of merchantability or tness, are limited in duration to the warranty period set forth
above. The consumer’s and/or dealer’s sole remedy shall be such repair or replacement as is expressly
provided above; and under no circumstances shall ADJ Product, LLC be liable for any loss and/or damage,
direct and/or consequential arising out of the use of, and/or inability to use this product.
G. This warranty is the only written warranty applicable to ADJ Products, LLC products, and supersedes all
prior warranties and written descriptions of warranty terms and conditions heretofore published.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
• Non-LED Lighting Products = 1-Year (365 Days) (Including Special Effect Lighting, Intelligent Lighting,
UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands,
Power/Data Distribution, etc. excluding LED and lamps)
• Laser Products = 1-Year (365 Days) (excluding laser diodes which have a 6-Month Limited Warranty)
• LED Products = 2-Year (730 Days) (excluding batteries which have a 180 Day Limited Warranty)
• NOTE: 2-Year (730 Days) Limited Warranty ONLY applies to product purchased within the United States.
StarTec Series = 1-Year (365 Days) (excluding batteries which have a 180 Day Limited Warranty)
• ADJ DMX Controllers = 2 Year (730 Days)
• American Audio Products = 1 Year (365 Days)
5
Page 6
WARRANTY REGISTRATION
Please fill out the enclosed warranty card to validate your purchase. All returned service items,
whether under warranty or not, must be freight pre-paid and accompanied by a return authorization
(R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief
description of the problem as well as the R.A. number must also be written down on a piece of paper
included in the shipping carton. If the unit is under warranty, you must provide a copy of your proof of
purchase invoice. You may obtain an R.A. number by contacting our customer support team. All packages returned to the service department not displaying an R.A. number on the outside of the package
will be returned to the shipper.
FEATURES
• 32 x 20-Watt 4-in-1 (red, green, blue, lime) color mixing LEDs

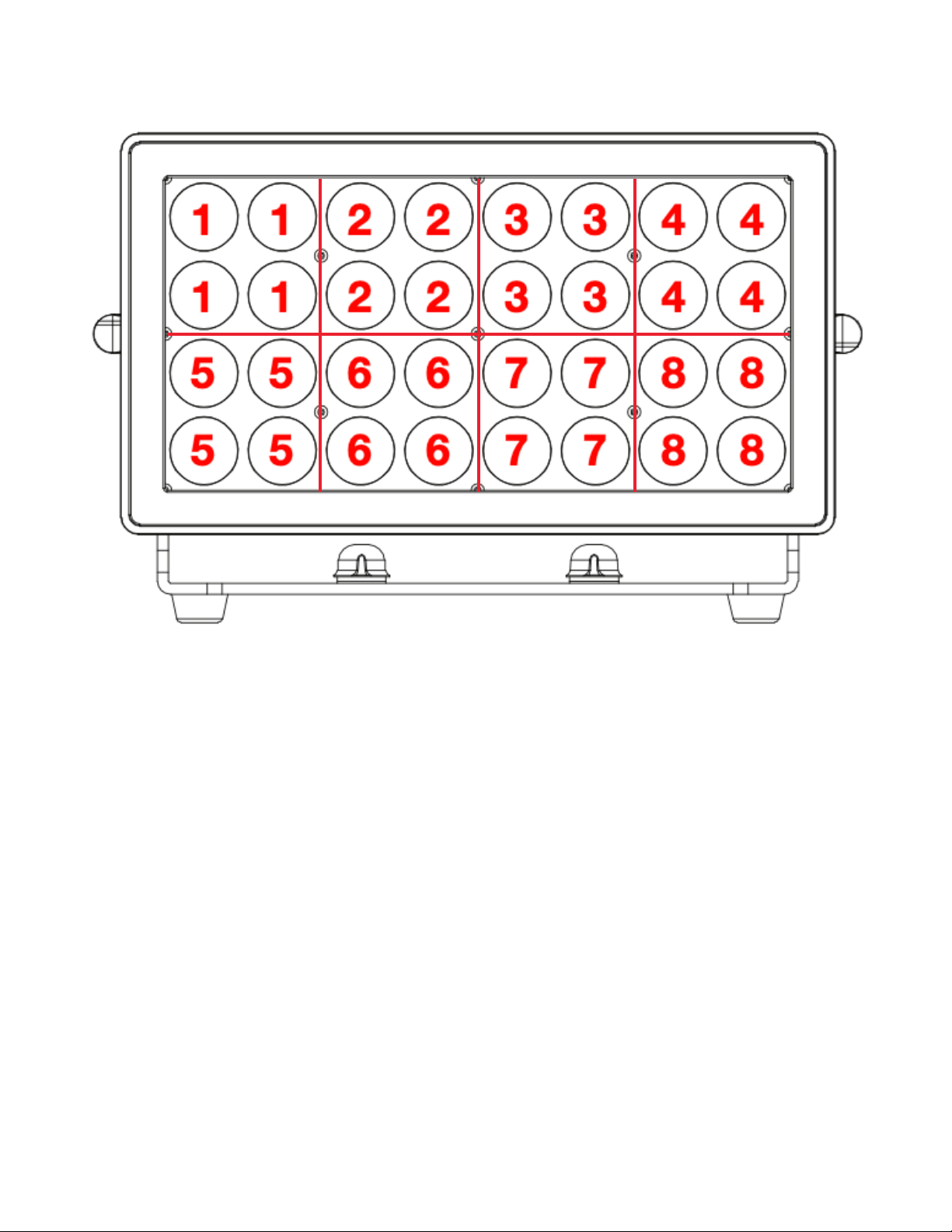

• 8 individually controllable sections
• 10.5 degree concise beam angle

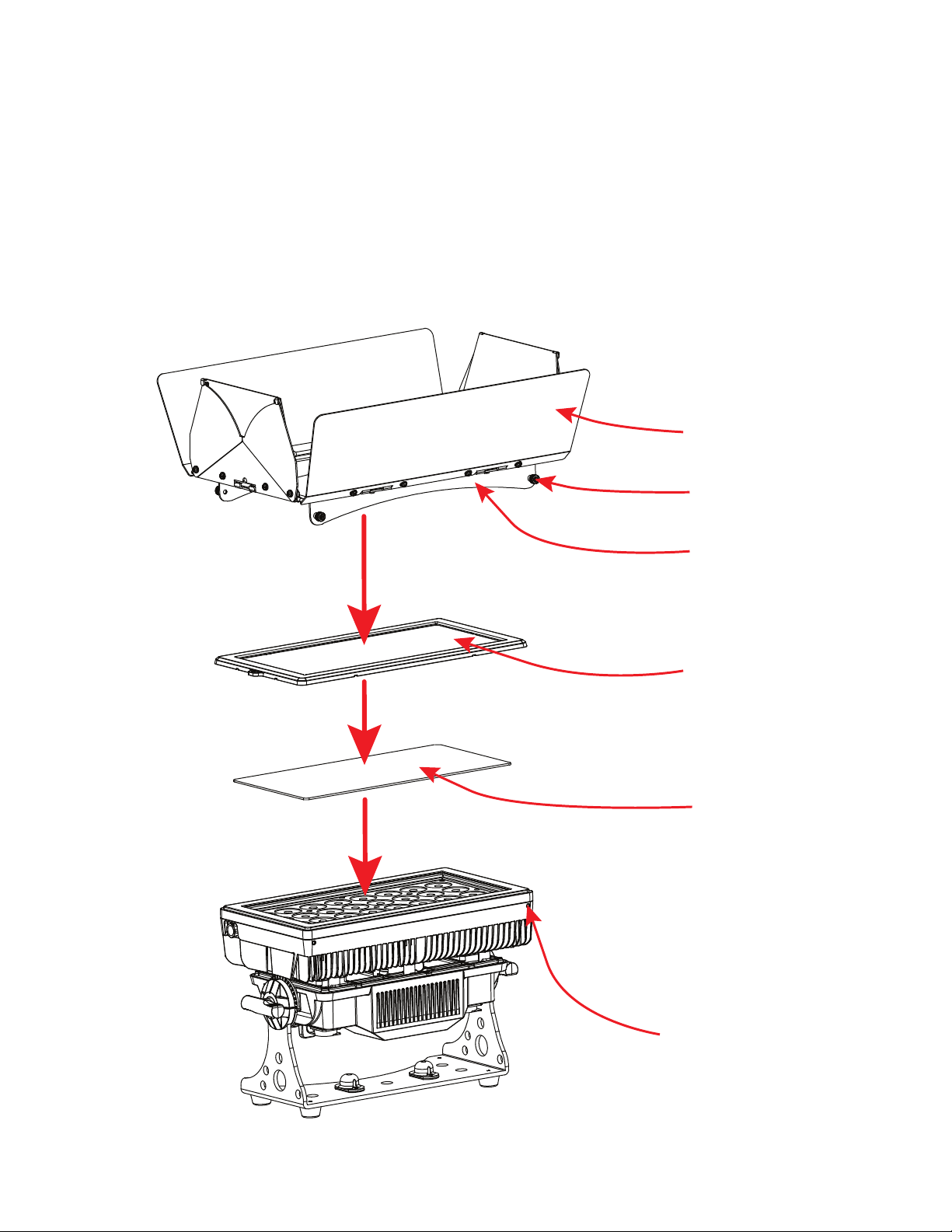

• Diffusion filter and magnetic filter frame allows widening of beam angle to 24.8 degrees
• Suitable for use indoors or outdoors
INCLUDED ITEMS
• Frost Filter (x1)
• Power Cable (x1)
IP RATING
An IP rated lighting fixture is commonly installed in outdoor environments and has been designed with
an enclosure that effectively protects the ingress (entry) of external foreign objects such as dust and
water. The Ingress Protection (IP) rating system is commonly expressed as “IP” followed by two numbers (i.e. IP65), where the numbers define the degree of protection. The first digit (Foreign Bodies
Protection) indicates the extent of protection against particles entering the fixture and the second digit
(Water Protection) indicates the extent of protection against water entering the fixture. An IP65 rated
lighting fixture, such as this one, has been designed and tested to protect against the ingress
of dust (6) and low-pressure water jets from any direction (5).
6
Page 7
SAFETY PRECAUTIONS
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT
ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S
WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE
AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS
MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO
ANY WARRANTY CLAIMS AND/OR REPAIRS.
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
• Maximum ambient operating temperature is 113° F (45° C)!
• DO NOT TOUCH the fixture housing during operation. Disconnect the power and allow approximately 15 minutes for the fixture to cool down before servicing.
• DO NOT shake the fixture, and avoid brute force when installing and/or operating the fixture.
• DO NOT operate the fixture if the power cord has become frayed, crimped and/or damaged. If the
power cord is damaged, replace immediately with a new one of the same power rating.
• DO NOT attempt to remove or break off the ground prong from the electrical cord. This prong is
used to reduce the risk of electrical shock and fire in case of an internal short.
• DO NOT attempt to operate this unit if it has been damaged in any way.
• DO NOT spill water or other liquids into or on to your unit.
• Disconnect from main power before making any type of connection.
• DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked.
Allow approx. 6” (15cm) between fixture and other devices or a wall for proper cooling.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall.
• DO NOT remove the cover for any reason.
• When installing fixture in a suspended enviroment, always use mounting hardware that is no less
than M10 x 25mm, and always install fixture with an appropriately rated safety cable.
• Never plug this unit in to a dimmer pack.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to the point where they exit from the
unit.
• Cleaning - The fixture should be cleaned only as recommended by the manufacturer.
• Heat - The appliance should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug have been damaged.
B. Objects have fallen onto, or liquid has been spilled into, the fixture.
C. The fixture does not appear to operate normally or exhibits a marked change in performance.
D. The fixture has fallen and/or has been subjected to extreme handling.
7
Page 8

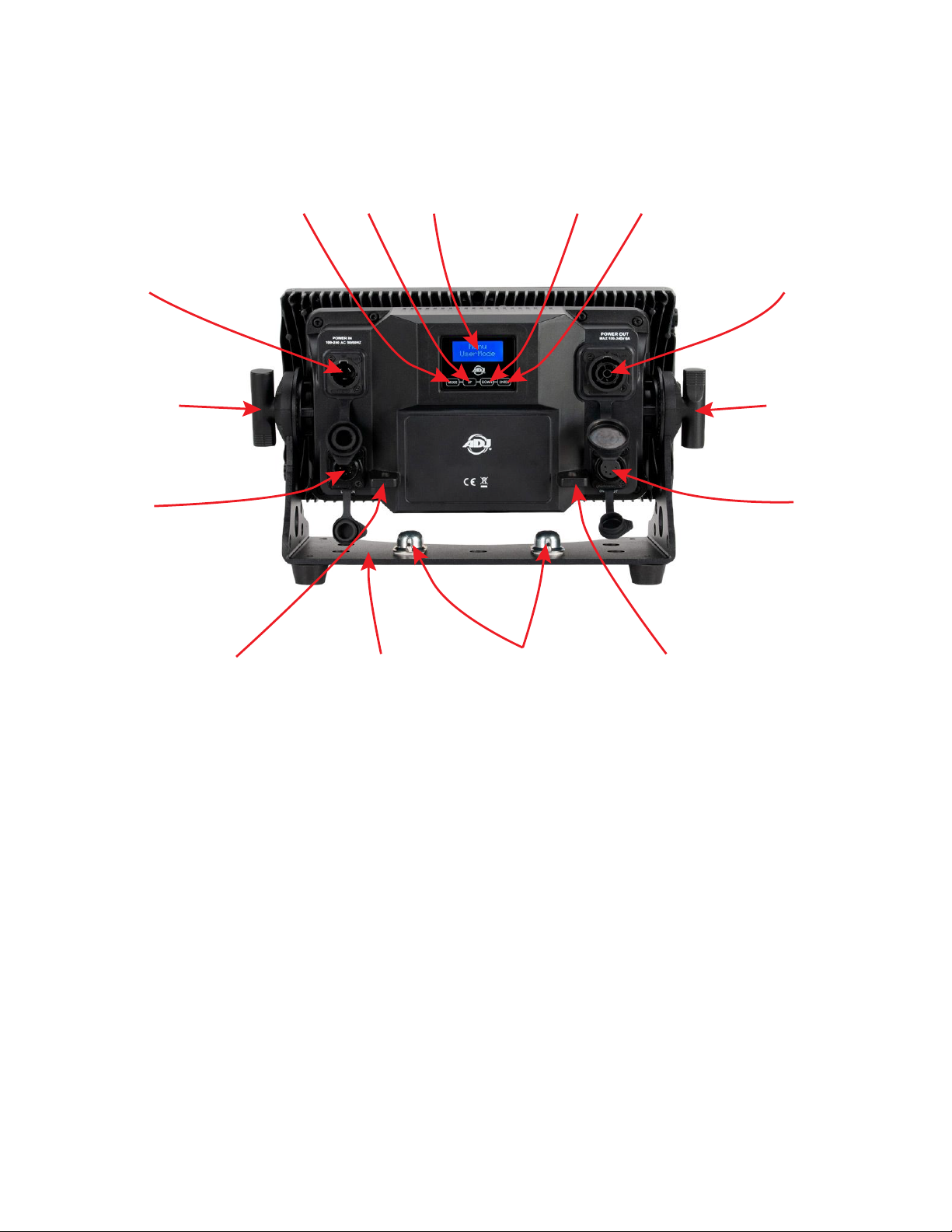

OVERVIEW
Power
In
Yoke
Adjustment
Knob
DMX
In
Mode
ButtonUpButton
Display
Screen
Down
Button
Enter
Button
Power
Out
Yoke
Adjustment
Knob
DMX
Out
Safety
Cable
Loop
Mounting
Yoke
Omega
Bracket
Mount
Safety
Cable
Loop
8
Page 9

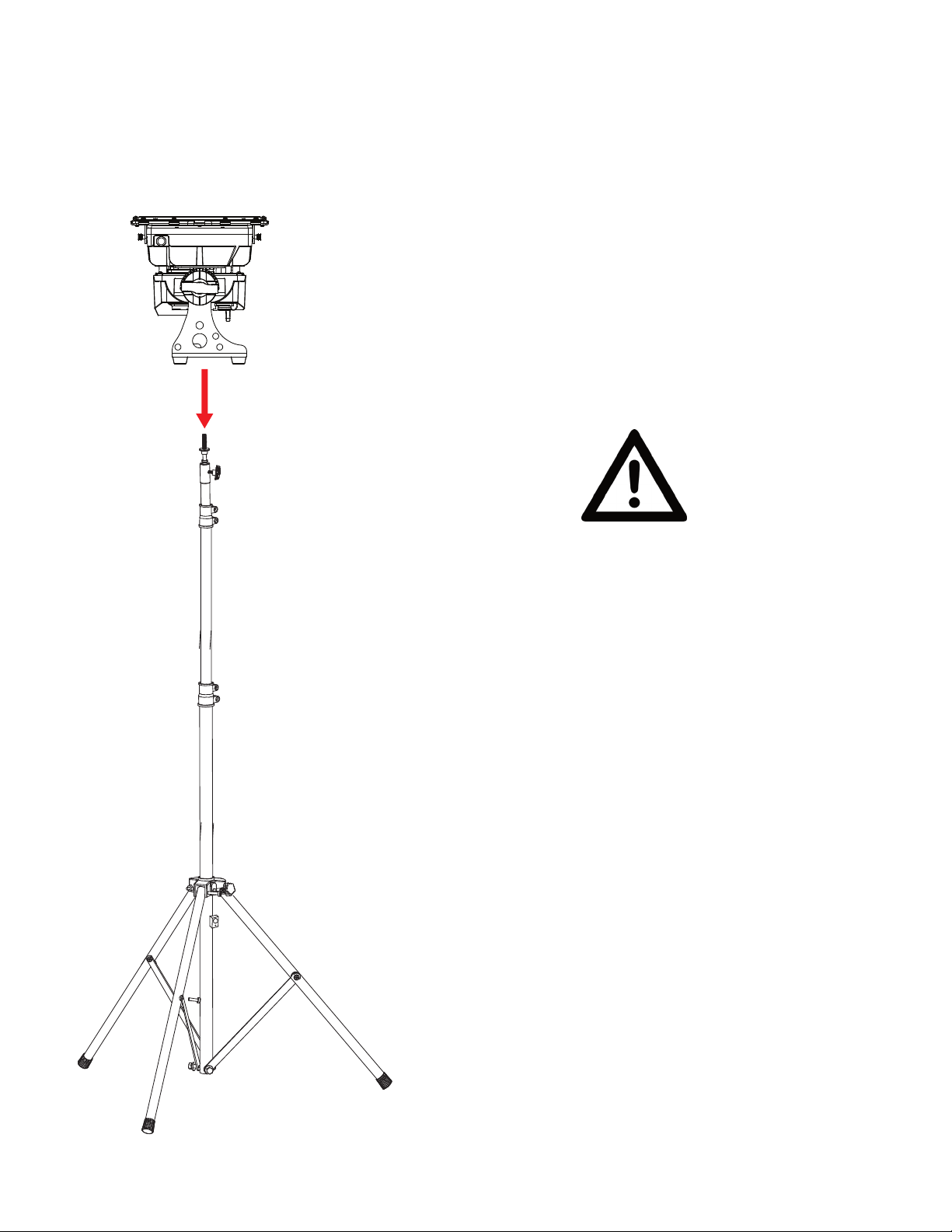

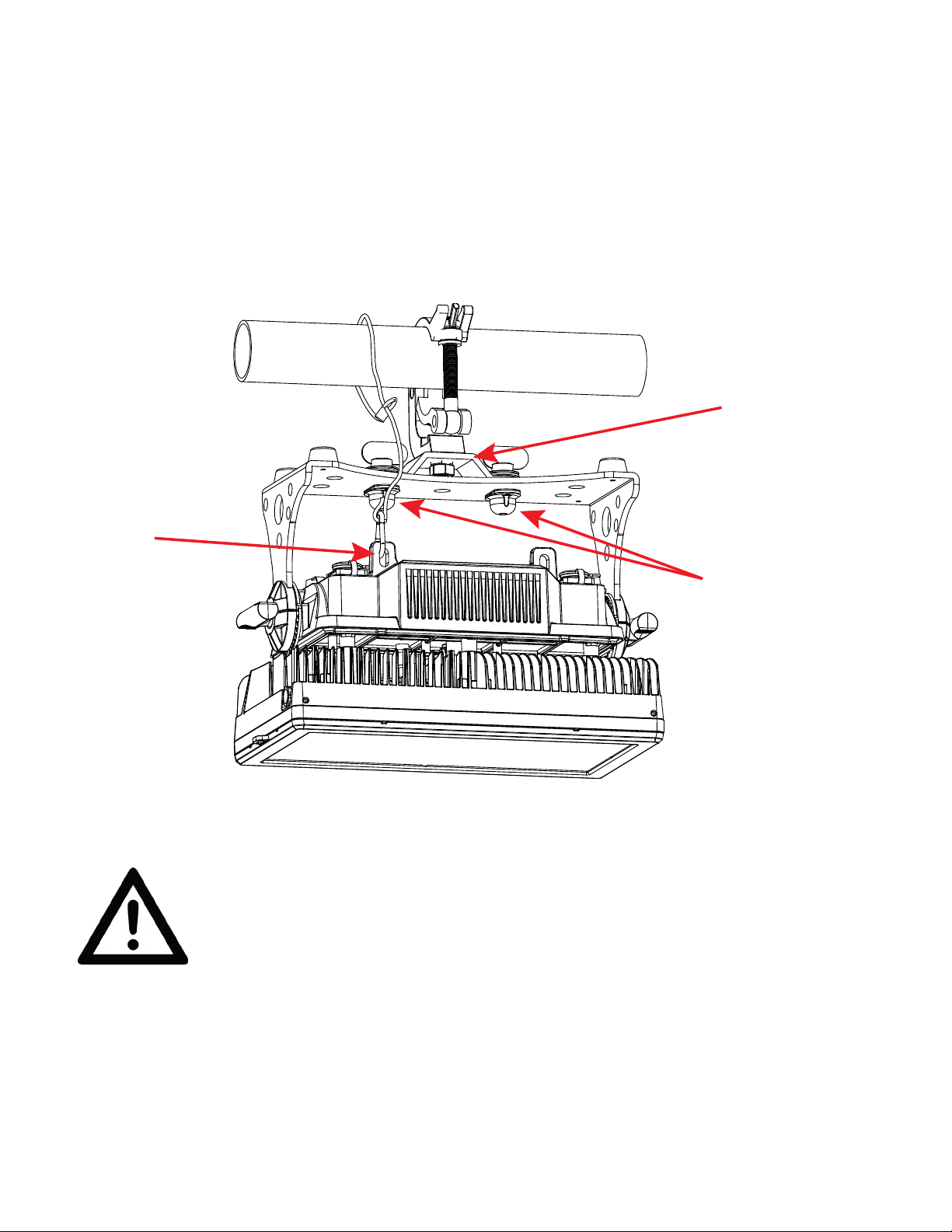

INSTALLATION
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
Fixture MUST be installed following all local, national, and country commercial electrical and construction codes and regulations.
When installing the unit, the trussing or area of installation must be able to hold 10 times the weight of
the unit and any attached accessories without any deformation. The unit must be secured with a secondary safety attachment, e.g. an appropriately-rated safety cable.
Before rigging/mounting a single fixture to any metal truss/structure or placing the fixture(s) on any
surface, a professional equipment installer MUST be consulted to determine if the metal truss/structure
or surface is properly certified to safely hold the combined weight of the fixture(s), clamps, cables, and
accessories.
Maximum ambient operating temperature is 113°F (45°C).
Fixture(s) should be installed away from walking paths, seating areas, or areas where unauthorized
personnel might reach the fixture by hand.
NEVER stand directly below the fixture(s) when rigging, removing, or servicing.
Overhead fixture installation must always be secured with a secondary safety attachment, such as an
appropriately rated safety cable that can hold 10 times the weight of the fixture.
Overhead mounting requires extensive experience, including calculating working load limits, knowledge of installation material being used, and perodic safety inspection of all installation material as
well as the unit itself. If you lack these qualifications, do not attempt the installation yourself.
The installaiton should be checked by a skilled person once a year.
9
Page 10
INSTALLATION
CLAMP MOUNTING
This fixture features two mounting points for the attachment of an Omega bracket, which are located
on the adjustable mounting yoke. Additionally, the unit also features two safety cable loops on the
rear face (see the illustration below). When mounting the fixture to a truss or any other suspended
or overhead installation, be sure to secure an appropriately rated clamp (not included) to the Omega
bracket, and attach a separate SAFETY CABLE of the appropriate weight rating to at least one of the
provided safety cable loops.
OMEGA
BRACKET
SAFETY
CABLE
LOOP
OMEGA
BRACKET
ATTACHMENT
POINTS
SAFETY CABLE:
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIX-
TURE IN A SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE
WILL NOT FALL IF THE CLAMP FAILS.
10
Page 11
INSTALLATION
STAND MOUNTING
This unit can also be installed atop a tripod stand. Simply secure the Omega bracket to the bottom
face of the device, then insert the threaded bolt on the top of the tripod stand through the hole in the
Omega bracket. Tighten the nut onto the threaded bolt to secure the mounted device in place.
CAUTION!
MAKE SURE THAT THE TRIPOD LEGS AND ALL
TELESCOPING ELEMENTS OF THE TRIPOD STAND
ARE LOCKED IN PLACE BEFORE INSTALLING THE
DEVICE ATOP THE STAND!
POSITION THE TRIPOD STAND AND MOUNTED
DEVICE ONLY ON FLAT, STABLE SURFACES!
DEPLOY TRIPOD LEGS FULLY IN ORDER TO
MAXIMIZE STABILITY!
11
Page 12
INSTALLATION

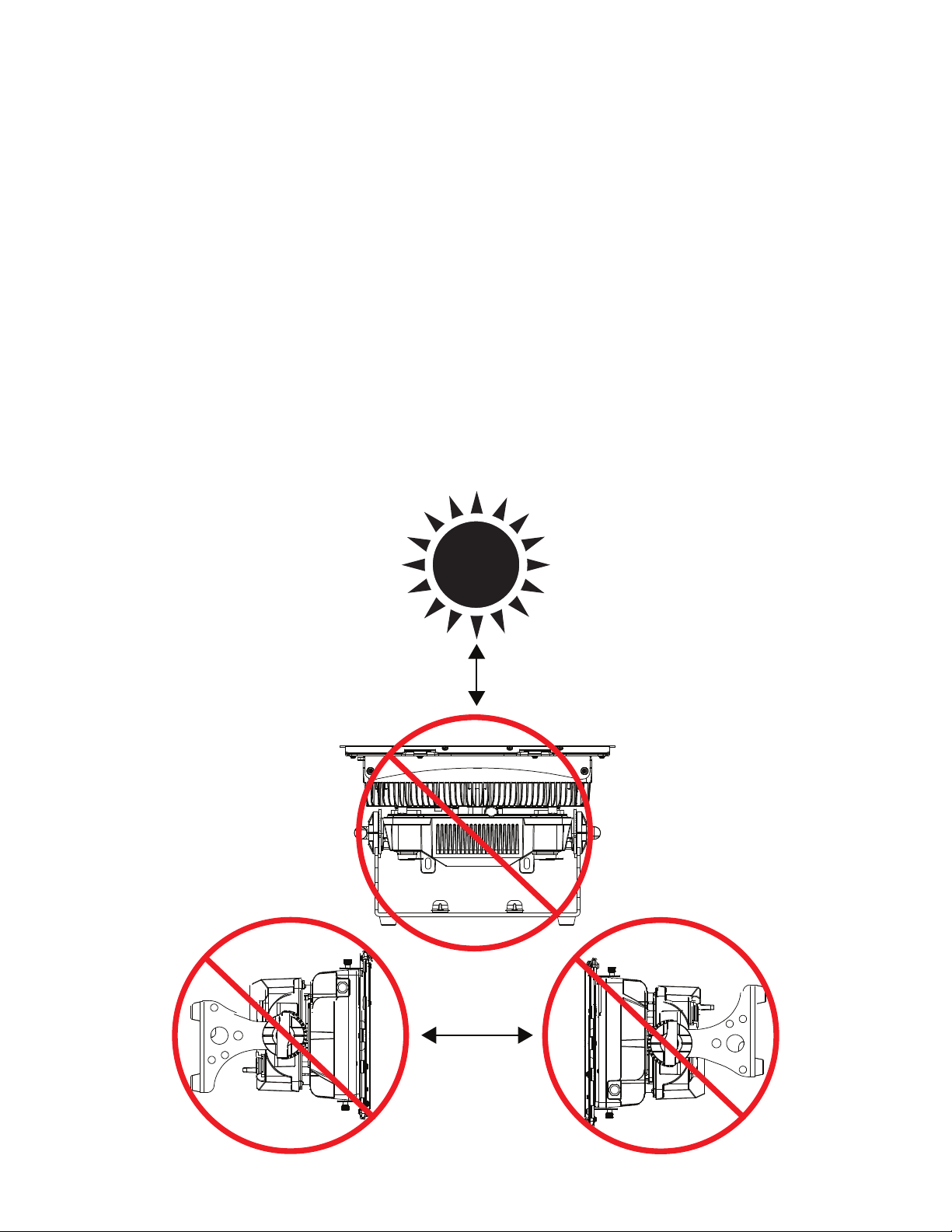

POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS
External sources of light beams from direct sunlight, lighting and moving head fixtures, and lasers,
which are focused directly towards the exterior housing and/or penetrate the front lens opening of ADJ
lighting fixtures, can cause severe internal damage including burning of optics, dichroic color filters,
glass and metal gobos, prisms, animation wheels, frost filters, iris, shutters, motors, belts, wiring, discharge lamps, and LEDs.
This issue is not specific only to ADJ lighting fixtures, but rather it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening,
the guidelines below can reduce the risk of potential damage. Contact ADJ Service for more details.
DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM
DIRECT SUNLIGHT, OTHER LIGHTING OR MOVING HEAD FIXTURES, AND LASERS DURING
UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS
A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.
12
Page 13
INSTALLATION
NOTICE: The maximum ambient operational temperature for this lighting fixture is 113˚ F (45˚ C).
Do not place this lighting fixture in an enviroment where the temperatures exceed this value. This will
allow the fixture to run at its best and help prolong the fixture life.

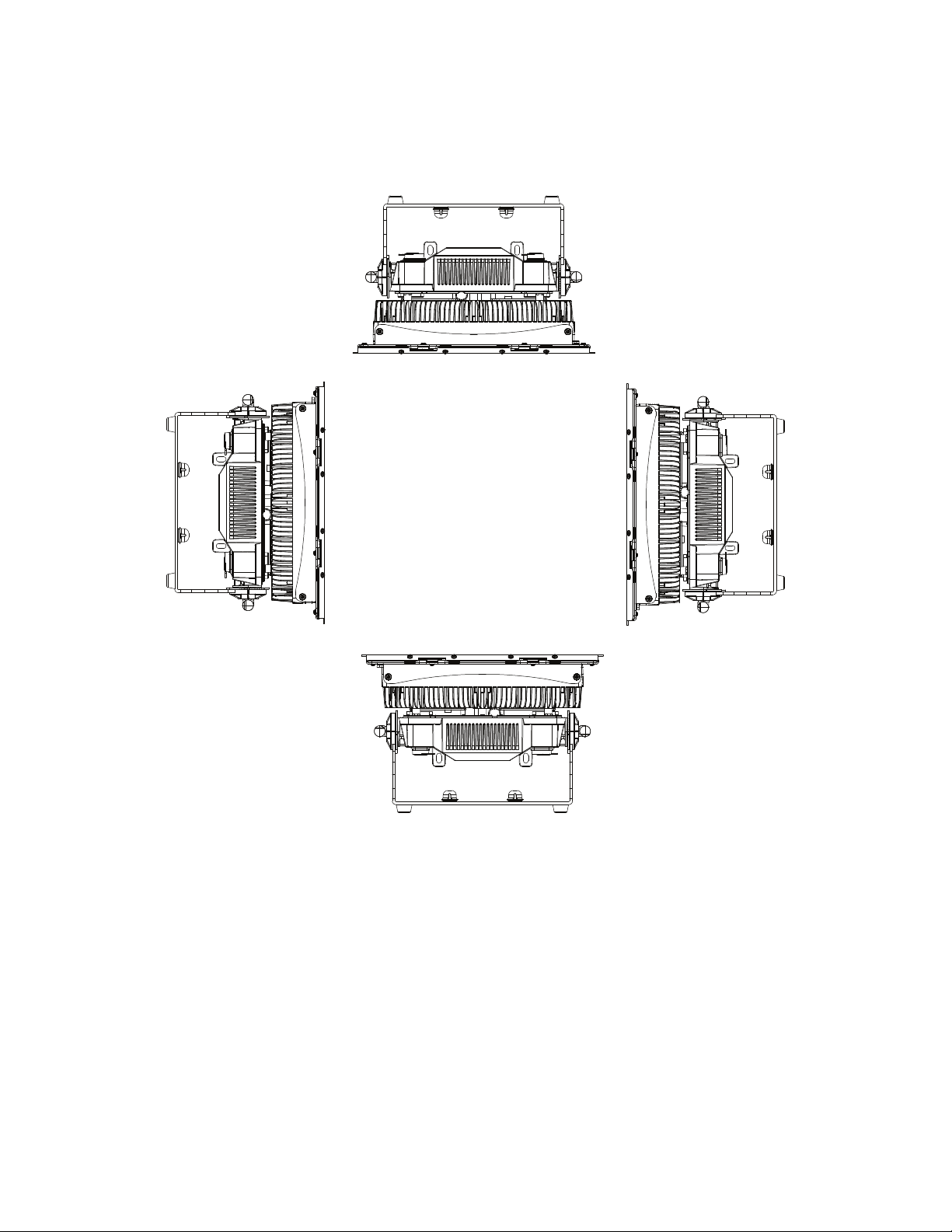

The unit is fully operational in three different mounting positions: hanging upside-down from the ceiling or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least
12m (40ft) away from any flammable materials (decorations, etc). Always use and install a safety
cable (not included) as a safety measure to prevent accidental damage and/or injury in the event the
clamp fails. Never use the carrying handles for secondary attachment.
13
Page 14
INSTALLATION
ACCESSORY INSTALLATION
Available accessories include a set of barndoors, as well as multiple frost filters.
1. To install the frost filter, slot the filter into place directly in front of the device’s LED array.
2. Attach the frost filter frame in place on top of the frost filter to secure it in place.
3. If desired, the barndoors can then be installed atop the frost filter frame.
4. To secure the barndoors in place, align the screws on the barndoor mounting flanges with the
threaded holes in the side of the fixture head, then tighten the screws. See the illustration below
for reference.
Barndoors
Mounting
Screw
Mounting
Flange
Frost
Filter
Flange
Frost
Filter
14
Screwhole
for Barndoor
Page 15
WIRELESS SETUP
There are many factors that can affect and/or interrupt a wireless signal, including walls, glass, metal,
objects, and people. Therefore, the following guidelines are recommended in order to maximize the
chances of having a clear path for the wireless signal to reach the device:

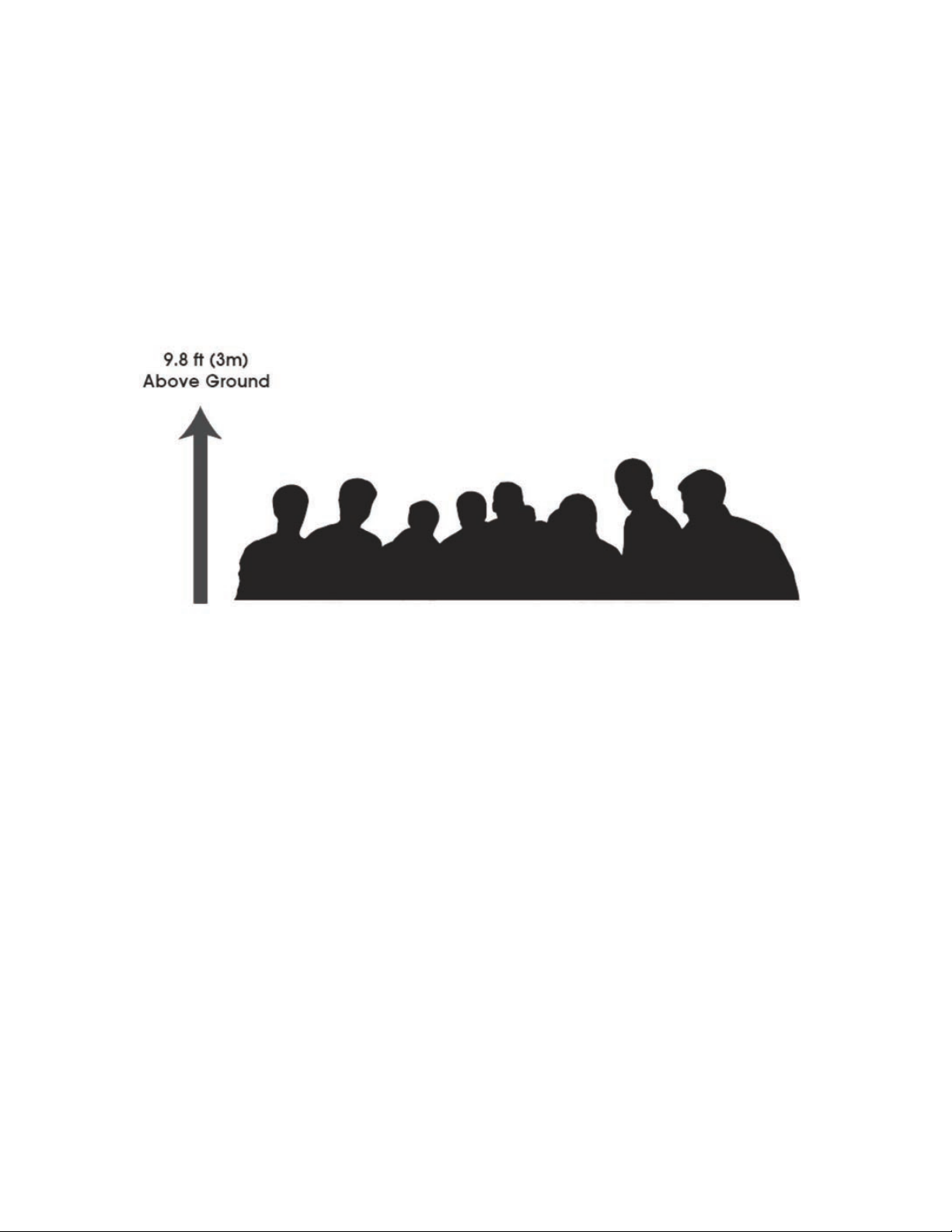

• Install the device a minimum of 9.8 ft (3m) above audiences and/or ground level.
• Arrange the wireless antenna in an upright, vertical position.
• Position devices in direct line of sight of the transmitting controller.
Careful planning and testing of the selected installation location is critical to ensure optimum and reliable wireless operation.
15
Page 16
REMOTE DEVICE MANAGEMENT (RDM)
NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout
the entire system, including DMX data splitters and wireless systems.
Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for
lighting, allowing the DMX systems of the xtures to be modied and monitored remotely. This proto-
col is ideal for instances in which a unit is installed in a location that is not easily accessible.
With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled con-
troller to send out a signal to devices on the wire, as well as allowing the xture to respond (known as
a GET command). The controller can then use its SET command to modify settings that would typi-
cally have to be changed or viewed directly via the unit’s display screen, including the DMX Address,
DMX Channel Mode, and Temperature Sensors.
FIXTURE RDM INFORMATION:
RDM Code Device ID Device Model ID Personality ID
0x1900 a0001 a
4ch (1); 7ch (2); 8ch (3); 13ch (4); 16ch (5);
32ch (6); 35ch (7); 41ch (8); 44ch (9); 64ch (a)
Please be aware that not all RDM devices support all RDM features, and therefore it is important
to check beforehand to ensure that the equipment that you are considering includes all of the features that you require.
Proxied Device Count Lamp On Mode
Sensor Denition Device Power Cycles
Sensor Value Display Invert
Device Model Description Display Level
Manufacturer Label Real Time Clock
Device Label Power State
DMX Personality Preset Playback
DMX Personality Description Default Slot Value
Device Hours Language
Comms Status Language Capabilities
Status ID Description Boot Software Version Label
Clear Status ID Boot Software Version ID
Lamp Hours Product Detail ID List
Lamp Strikes Status Messages
Lamp State
16
Page 17
CONTROL PANEL
The Encore LP32IP features a display screen with a 4-button control pad, which can be used to easily
adjust any device settings.
Pressing the MODE button will cycle through the various Main Menu options. When the desired Main
Menu option is displayed on the screen, press the SETUP button to enter the sub-menu, then use the
UP and DOWN buttons to scroll through sub-menu options. In some cases, there will be a second
sub-menu that can be navigated in the same way.
GROUP OF COMPANIES
17
Page 18
SYSTEM MENU
DMX SET
PERSONALITY
Address 001 - 512
4ch
7ch
8ch
13ch
Ch. Mode
No DMX
Prim/Sec Mode Primary / Secondary
Select Signal
Wiy Settings
Fan Set
16ch
32ch
35ch
41ch
44ch
64ch
Hold
Blackout
Manual
Internal Programs
DMX or Wiy
Wiy and DMX Out
Wiy Enable On / Off
Set Wiy Chan-
nel
Auto
High
Silent
00 - 14
Set DMX address
Select DMX
channel mode
Unit holds last
channel values
when DMX signal is lost
Unit takes all
channels to 0
when DMX signal is lost
Unit defaults to
Manual settings
when DMX signal is lost
Unit defaults to
Internal Program
when DMX signal is lost
DMX has priority; green LED
when Wiy connected and red
LED when Wiy
not connected
DMX XLR output sends DMX
signal out
CONTINUED ON NEXT PAGE
18
Page 19
SYSTEM MENU
Dim Mode
Dim Curve
LED Refresh
Display
PERSONALITY
(continued)
Service Passcode = 050 Calibrat
Standard
Stage
TV
Archi
Theatre
Stage 2
Dim Speed 0.1s - 10s
Linear
Square
Inv. Squa
S Curve
900, 1000, 1100, 1200, 1300, 1400, 1500, 2500,
4000, 5000, 10k, 15k, 20k, 25k
Save Dlay 1 - 10
Lock Off, 30 sec, 1min - 10min
All Red
000 - 255
All Green
000 - 255
All Blue
000 - 255
All Lime
000 - 255
Red1
000 - 255
Green1
000 - 255
Blue1
000 - 255
Lime1
000 - 255
...
Red8
000 - 255
Green8
000 - 255
Blue8
000 - 255
Lime8
000 - 255
Screen saver
delay
Screen locks
after pre-set period of inactivity
CONTINUED ON NEXT PAGE
19
Page 20
SYSTEM MENU
PERSONALITY
(continued)
MANUAL
INT PROGS
INFO Hours
Service
(continued)
Red 000 - 255
Blue 000 - 255
Green 000 - 255
Lime 000 - 255
Clr Macro 00 - 64
Clr Temp 000 - 255
Strobe 000 - 255
Mastr Dim 000 - 255
Auto Prog 000 - 255
Prog Spd 000 - 255
Prog Fade 000 - 255
Prog 0
Prog 1
... ... ...
Prog 13
USB Powr On / Off
Passcode = 050
(continued)
Speed 000 - 255
Fade 000 - 255
Speed 000 - 255
Fade 000 - 255
Speed 000 - 255
Fade 000 - 255
Pwr On Hr 1 xxxxxx Hours
Pwr On Hr 2 xxxxxx Hours
Pwr On Rst Passcode = 050
S Update Yes / No Update software
Restore Yes / No
Restore to factory default;
passcode = 011
Manually select
color macro
Manually adjust
color temperature
Manually adjust
master dimmer
Manually select
automatic program
Manually adjust
program speed
Manually adjust
program fade
Lifetime total
hours xture has
been powered
on; cannot be
reset
Hours xture
has been powered on since
last reset
Reset power on
hours
CONTINUED ON NEXT PAGE
20
Page 21
SYSTEM MENU
INFO
(continued)
xxx°
Max Temp 1 xxx F / xxx C
Temp
Max Temp 2 xxx F / xxx C
Temp Rst Yes / No Passcode = 050 Reset max temp
Humidity xxx% Humidity in head
Fan 1 RPM xxxx
Fan Info
Fan 2 RPM xxxx
Red
Green
DMX Value
...
Auto Prog
Soft Vers x.xx
xxx F / xxx C
Max temp since
last reset
All time max
temp; cannot be
reset
Displays current
value for each
DMX channel
Display current
software version
21
Page 22
DMX SET UP
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu-
nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions
from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via
the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have
a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be
linked together and operate from a single controller, as long as all fixtures and the controller are
DMX compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible
when linking several DMX fixtures. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation): This unit can be controlled via DMX512 protocol. The DMX address is set on the rear panel of the unit. Your unit and your DMX controller
require a standard 5-pin XLR connector for data input and data output. We recommend Accu-Cable
DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded
cable (This cable may be purchased at almost all pro lighting stores). Your cables should be made
with a male XLR connector at one end and a female XLR connector at the other. Also remember that
DMX cable must be daisy chained and cannot be split.

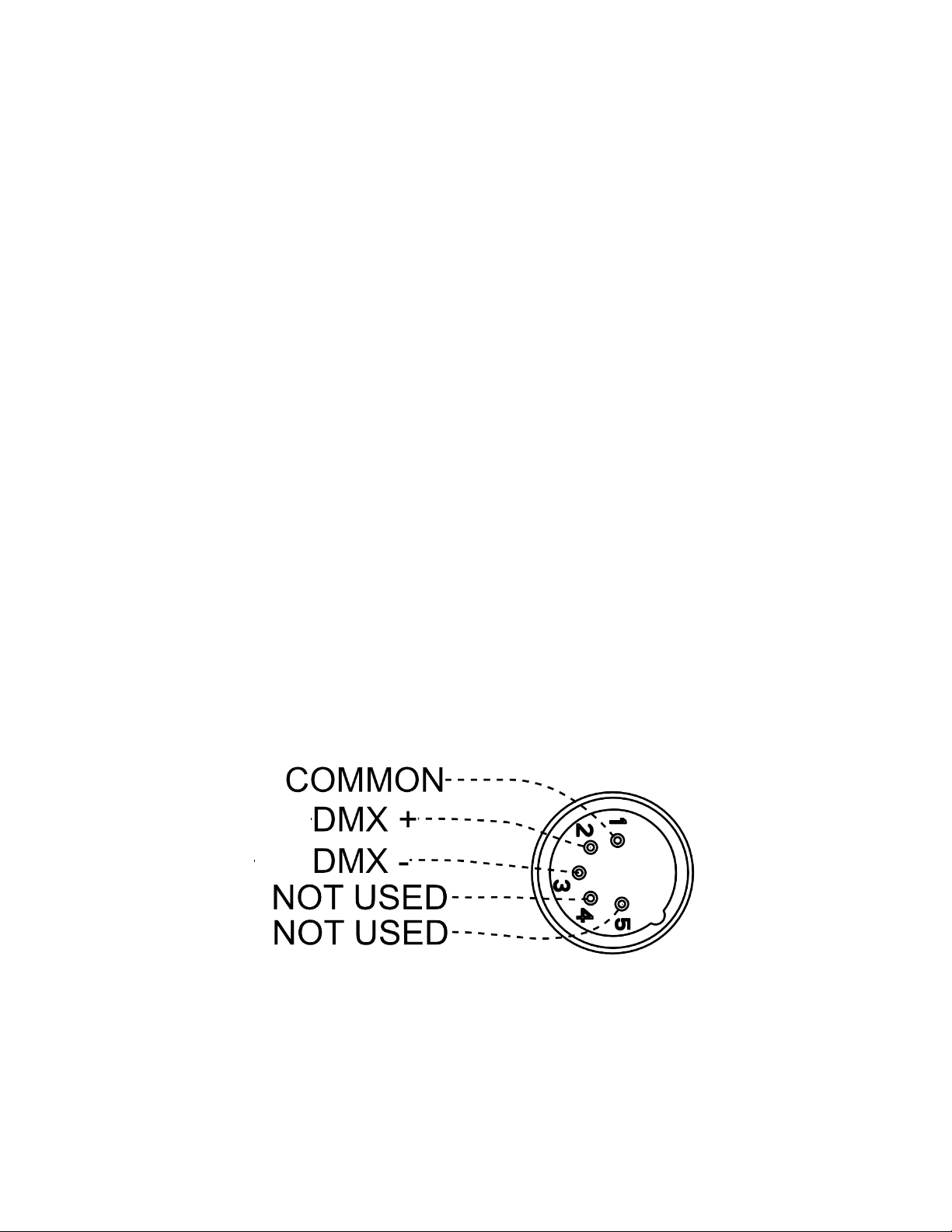

Notice: Be sure to follow fthe illustration below when making your own cables. Do not use the ground
lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the
shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a
short circuit and erratic behavior.
22
Page 23
DMX SET UP
Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is
connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted
in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable
terminator (ADJ part number Z-DMX/T) will reduce the risk of erratic behavior.
DMX ADDRESSING.
All fixtures should be given a DMX starting address when using a DMX controller, so the correct fixture responds to the correct control signal. This digital starting address is the channel number from
which the fixture starts to “listen” to the digital control signal sent out from the DMX controller. The
assignment of this starting DMX address is achieved by setting the correct DMX address on the digital control display on the fixture.
You can set the same starting address for all fixtures or a group of fixtures, or set different addresses
for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react
in the same way. In other words, changing the settings of one channel will affect all the fixtures simultaneously.
If you set each fixture to a different DMX address, each unit will start to “listen” to the channel number
you have set, based on the quantity of DMX channels of each fixture. That means changing the settings of one channel will only affect the selected fixture.
For example, when this unit is operating in 4 channel mode, you should set the starting DMX address
of the first unit to 1, the second unit to 5 (1 + 4), the third unit to 9 (1 + 4 + 4), and so on. See the
chart below for more details.
CHANNEL MODE UNIT 1 ADDRESS UNIT 2 ADDRESS UNIT 3 ADDRESS UNIT 4 ADDRESS
4 Ch 1 5 9 13
7 Ch 1 8 15 22
8 Ch 1 9 17 25
13 Ch 1 14 27 40
16 Ch 1 17 33 49
32 Ch 1 33 65 97
35 Ch 1 36 71 106
41 Ch 1 42 83 124
44 Ch 1 45 89 133
64 Ch 1 65 129 193
23
Page 24
DMX TRAITS
CHANNEL
4CH 7CH 8CH 13CH 16CH 32CH 35CH 41CH 44CH 64CH
1 1 1 1 1 000 - 255 All Red, 0% to 100%
2 000 - 255 All Red Fine
2 2 3 2 2 000 - 255 All Green, 0% to 100%
4 000 - 255 All Green Fine
3 3 5 3 3 000 - 255 All Blue, 0% to 100%
6 000 - 255 All Blue Fine
4 4 7 4 4 000 - 255 All Lime, 0% to 100%
8 000 - 255 All Lime Fine
1 1 1 1 1 000 - 255 Red 1, 0% to 100%
2 000 - 255 Red 1 Fine
2 2 2 2 3 000 - 255 Green 1, 0% to 100%
4 000 - 255 Green 1 Fine
3 3 3 3 5 000 - 255 Blue 1, 0% to 100%
6 000 - 255 Blue 1 Fine
4 4 4 4 7 000 - 255 Lime 1, 0% to 100%
8 000 - 255 Lime 1 Fine
5 5 5 5 9 000 - 255 Red 2, 0% to 100%
10 000 - 255 Red 2 Fine
6 6 6 6 11 000 - 255 Green 2, 0% to 100%
12 000 - 255 Green 2 Fine
7 7 7 7 13 000 - 255 Blue 2, 0% to 100%
14 000 - 255 Blue 2 Fine
8 8 8 8 15 000 - 255 Lime 2, 0% to 100%
16 000 - 255 Lime 2 Fine
9 9 9 9 17 000 - 255 Red 3, 0% to 100%
18 000 - 255 Red 3 Fine
10 10 10 10 19 000 - 255 Green 3, 0% to 100%
20 000 - 255 Green 3 Fine
11 11 11 11 21 000 - 255 Blue 3, 0% to 100%
22 000 - 255 Blue 3 Fine
12 12 12 12 23 000 - 255 Lime 3, 0% to 100%
24 000 - 255 Lime 3 Fine
13 13 13 13 25 000 - 255 Red 4, 0% to 100%
26 000 - 255 Red 4 Fine
14 14 14 14 27 000 - 255 Green 4, 0% to 100%
28 000 - 255 Green 4 Fine
15 15 15 15 29 000 - 255 Blue 4, 0% to 100%
30 000 - 255 Blue 4 Fine
16 16 16 16 31 000 - 255 Lime 4, 0% to 100%
32 000 - 255 Lime 4 Fine
17 17 17 17 33 000 - 255 Red 5, 0% to 100%
DMX
VALUES
FUNCTION
CONTINUED ON NEXT PAGE
24
Page 25
DMX TRAITS
CHANNEL
4CH 7CH 8CH 13CH 16CH 32CH 35CH 41CH 44CH 64CH
34 000 - 255 Red 5 Fine
18 18 18 18 35 000 - 255 Green 5, 0% to 100%
36 000 - 255 Green 5 Fine
19 19 19 19 37 000 - 255 Blue 5, 0% to 100%
38 000 - 255 Blue 5 Fine
20 20 20 20 39 000 - 255 Lime 5, 0% to 100%
40 000 - 255 Lime 5 Fine
21 21 21 21 41 000 - 255 Red 6, 0% to 100%
42 000 - 255 Red 6 Fine
22 22 22 22 43 000 - 255 Green 6, 0% to 100%
44 000 - 255 Green 6 Fine
23 23 23 23 45 000 - 255 Blue 6, 0% to 100%
46 000 - 255 Blue 6 Fine
24 24 24 24 47 000 - 255 Lime 6, 0% to 100%
48 000 - 255 Lime 6 Fine
25 25 25 25 49 000 - 255 Red 7, 0% to 100%
50 000 - 255 Red 7 Fine
26 26 26 26 51 000 - 255 Green 7, 0% to 100%
52 000 - 255 Green 7 Fine
27 27 27 27 53 000 - 255 Blue 7, 0% to 100%
54 000 - 255 Blue 7 Fine
28 28 28 28 55 000 - 255 Lime 7, 0% to 100%
56 000 - 255 Lime 7 Fine
29 29 29 29 57 000 - 255 Red 8, 0% to 100%
58 000 - 255 Red 8 Fine
30 30 30 30 59 000 - 255 Green 8, 0% to 100%
60 000 - 255 Green 8 Fine
31 31 31 31 61 000 - 255 Blue 8, 0% to 100%
62 000 - 255 Blue 8 Fine
32 32 32 32 63 000 - 255 Lime 8, 0% to 100%
64 000 - 255 Lime 8 Fine
5 5 33 33 000 - 255
6 6 34 34 000 - 255
DMX
VALUES
FUNCTION
Color Macros, see Color Macros Chart section of this manual
Color Temperature, 2700K to
7000K Linear
CONTINUED ON NEXT PAGE
25
Page 26
DMX TRAITS
CHANNEL
4CH 7CH 8CH 13CH 16CH 32CH 35CH 41CH 44CH 64CH
7 7 35 35
5 8 8 33 36 36
6 9 9 34 37 37 000 - 255 Dimmer Intensity, 0% to 100%
7 10 10 35 38 38 000 - 255 Dimmer Fine
11 39
12 40 000 - 255
13 41 000 - 255
DMX
VALUES
000 Off
001 - 042 2700K
043 - 085 3200K
086 - 128 4000K
129 - 171 5600K
172 - 214 6500K
215 - 255 7000K
000 - 031 LEDs Off
032 - 063 LEDs On
064 - 095 Strobe Effect, slow to fast
096 - 127 LEDs On
128 - 159 Pulse Effect in Sequences
160 - 191 LEDs On
192 - 223
224 - 255 LEDs On
000 - 010 Off
011 - 026 Auto Program 1
027 - 043 Auto Program 2
044 - 060 Auto Program 3
061 - 076 Auto Program 4
077 - 093 Auto Program 5
094 - 110 Auto Program 6
111 - 126 Auto Program 7
127 - 143 Auto Program 8
144 - 160 Auto Program 9
161 - 176 Auto Program 10
177 - 193 Auto Program 11
194 - 210 Auto Program 12
211 - 226 Auto Program 13
227 - 255 No Function
FUNCTION
Color Temperature Macros
Shutter, Strobe
Random Strobe Effect, slow to
fast
Auto Programs
Auto Programs Speed, slow to
fast
Auto Programs Fade, least to
most
CONTINUED ON NEXT PAGE
26
Page 27
DMX TRAITS
CHANNEL
4CH 7CH 8CH 13CH 16CH 32CH 35CH 41CH 44CH 64CH
11 14 39 42
12 15 40 43
13 16 41 44
CONTINUED ON NEXT PAGE
DMX
VALUES
000 - 020 Default to Unit Setting
021 - 040 Standard
041 - 060 Stage
061 - 080 TV
081 - 100 Architectural
101 - 120 Theatre
121 - 140 Stage 2
141 0.1s
142 0.2s
143 0.3s
144 0.4s
145 0.5s
146 0.6s
147 0.7s
148 0.8s
149 0.9s
150 1.0s
151 1.5s
152 2.0s
153 3.0s
154 4.0s
155 5.0s
156 6.0s
157 7.0s
158 8.0s
159 9.0s
160 10.0s
161 - 255 Default to Unit Setting
000 - 020 Linear
021 - 040 Square
041 - 060 Inv Squa
061 - 080 S Curve
081 - 255 No Function
000 - 015 Default to Unit Setting
016 - 030 900 Hz
031 - 045 1000 Hz
046 - 060 1100 Hz
FUNCTION
Dim Mode
Dim Speed
Dim Curves
Refresh Rates
27
Page 28
DMX TRAITS
CHANNEL
4CH 7CH 8CH 13CH 16CH 32CH 35CH 41CH 44CH 64CH
13 16 41 44
DMX
VALUES
061 - 075 1200 Hz
076 - 090 1300 Hz
091 - 105 1400 Hz
106 - 120 1500 Hz
121 - 135 2500 Hz
136 - 150 4000 Hz
151 - 165 5000 Hz
166 - 180 10000 Hz
181 - 195 15000 Hz
196 - 210 20000 Hz
211 - 225 25000 Hz
226 - 255 No Function
FUNCTION
Refresh Rates (continued)
28
Page 29
PIXEL ZONES
29
Page 30
COLOR MACROS CHART
COLOR
MACRO
NUMBER
Off 000 0 0 0 0
1 001 - 004 80 255 234 80
2 005 - 008 80 255 164 80
3 009 - 012 77 255 112 77
4 013 - 016 117 255 83 83
5 017 - 020 160 255 77 77
6 021 - 024 223 255 83 83
7 025 - 028 255 243 77 77
8 029 - 032 255 200 74 74
9 033 - 036 255 166 77 77
10 037 - 040 255 125 74 74
11 041 - 044 255 97 77 74
12 045 - 048 255 71 77 71
13 049 - 052 255 83 134 83
14 053 - 056 255 93 182 93
15 057 - 060 255 96 236 96
16 061 - 064 238 93 255 93
17 065 - 068 196 87 255 87
18 069 - 072 150 90 255 90
19 073 - 076 100 77 255 77
DMX VALUES RED GREEN BLUE LIME
20 077 - 080 77 100 255 77
21 081 - 084 67 148 255 67
22 085 - 088 77 195 255 77
23 089 - 092 77 234 255 77
24 093 - 096 158 255 144 144
25 097 - 100 255 251 153 153
26 101 - 104 255 175 147 147
27 105 - 108 255 138 186 138
28 109 - 112 255 147 251 147
29 113 - 116 151 138 255 138
30 117 - 120 99 0 255 100
31 121 - 124 138 169 255 138
32 125 - 128 255 255 255 255
33 129 - 132 255 206 143 0
34 133 - 136 254 177 153 0
35 137 - 140 254 192 138 0
CONTINUED ON NEXT PAGE
30
Page 31
COLOR MACROS CHART
COLOR
MACRO
NUMBER
36 141 - 144 254 165 98 0
37 145 - 148 254 121 0 0
38 149 - 152 176 17 0 0
39 153 - 156 96 0 11 0
40 157 - 160 234 139 171 0
41 161 - 164 224 5 97 0
42 165 - 168 175 77 173 0
43 169 - 172 119 130 199 0
44 173 - 176 147 164 212 0
45 177 - 180 88 2 163 0
46 181 - 184 0 38 86 0
47 185 - 188 0 142 208 0
48 189 - 192 52 148 209 0
49 193 - 196 1 134 201 0
50 197 - 200 0 145 212 0
51 201 - 204 0 121 192 0
52 205 - 208 0 129 184 0
53 209 - 212 0 83 115 0
54 213 - 216 0 97 166 0
55 217 - 220 1 100 167 0
DMX VALUES RED GREEN BLUE LIME
56 221 - 224 0 40 86 0
57 225 - 228 209 219 182 0
58 229 - 232 42 165 85 0
59 233 - 236 0 46 35 0
60 237 - 240 8 107 222 0
61 241 - 244 255 0 0 0
62 245 - 248 0 255 0 0
63 249 - 252 0 0 255 0
64 253 - 255 0 0 0 255
31
Page 32
DIM SPEEDS
DMX VALUES DELAY TIME
141 0.1 sec
142 0.2 sec
143 0.3 sec
144 0.4 sec
145 0.5 sec
146 0.6 sec
147 0.7 sec
148 0.8 sec
149 0.9 sec
150 1.0 sec
151 1.5 sec
152 2.0 sec
153 3.0 sec
154 4.0 sec
155 5.0 sec
156 6.0 sec
157 7.0 sec
158 8.0 sec
159 9.0 sec
160 10.0 sec
32
Page 33
DIM MODES
DIMMER
100%
50%
10%
0%
255 255
0 0
Stage 2 0 1100 0 1660
Rise Time
Down Time
0 sec Fade Time
1 sec Fade Time
Time (ms)
0 Sec
Dimming Curve
Ramp Effect
Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms)
Standard (default) 0 0 0 0
Stage 780 1100 1540 1660
TV 1180 1520 1860 1940
Architectural 1380 1730 2040 2120
Theatre 1580 1940 2230 2280
33
Page 34
PRIMARY-SECONDARY SET UP
This function allows you to link units together to run in a Primary-Secondary set-up, in which one unit
will act as the controlling unit and the others will react to the controlling unit’s built-in programs. Any
unit can be configured to act as a Primary or as a Secondary, but only one unit in a given system can
be programmed to act as the Primary.
Primary-Secondary Connections and Settings:
1. Daisy chain your units via the XLR connectors on the rear panels of each unit. Use standard XLR
data cables to link your units together. Remember that the male XLR connector is the input and
the female XLR connector is the ouput. The first unit in the chain (primary) will use the female XLR
connector only. The last unit in the chain will use the male XLR connector only.
2. Use the display screen and control panel to navigate to Personality > PrimSec Mode. Select
this sub-menu using the ENTER button, and use the arrows to toggle between “Primary” and
“Secondary”. Press ENTER to confirm your selection.
3. Repeat Step 2 for each unit in the system. Make sure that only one unit is designated as the
Primary, while all other units are designated as Secondaries.
4. The secondary units will now follow the behavior of the primary unit.
MULTI UNIT POWER LINKING
This features allows you to connect the fixtures to one another using the power cable input and output
sockets.
The maximum number of units that can be linked in this manner is as follows:
• 2 units when running on 110V power.
• 7 units when running on 240V power.
DO NOT EXCEED THIS MAXIMUM NUMBER WHEN POWER LINKING UNITS!
All linked units must be of the same make and model type. Do not mix and match units!
34
Page 35
MAINTENANCE GUIDELINES
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to ensure proper function, optimized light output, and an extended life. The frequency of cleaning depends on the environment in which the fixture operates: damp,
smoky, or particularly dirty environments can cause greater accumulation of dirt on the fixture’s optics.
Clean the external lens surface regularly with a soft cloth to avoid dirt/debris accumulation.
NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to ensure proper function and extended life. There are no
user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ
service technician. Should you need any spare parts, please order genuine parts from your local ADJ
dealer.
Please refer to the following points during routine inspections:
A. A detailed electrical check by an approved electrical engineer every three months, to make sure
the circuit contacts are in good condition and prevent overheating.
B. Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out
during normal operation, resulting in damage or injury as larger parts could fall.
C. Check for any deformations on the housing, color lenses, rigging hardware, and rigging points
(ceiling, suspension, trussing). Deformations in the housing could allow for dust to enter into the
fixture. Damaged rigging points or unsecured rigging could cause the fixture to fall and seriously
injure a person(s).
D. Electric power supply cables must not show any damage, material fatigue, or sediments.
NEVER remove the ground prong from the power cable.
SOFTWARE UPDATES
Please contact ADJ service for assistance with updating your device’s software.
35
Page 36
DIMENSIONAL DRAWINGS
FIXTURE ONLY
9.7in. [246.0mm]
13.9in. [353.4mm]
13.0in. [328.9mm]
7.3in. [184.9mm]
5.2in.
[133.0mm]
6.5in.
[165.5mm]
6.1in.
[155.5mm]
8.9in. [225.4mm]
Drawings not shown to scale.
36
Page 37
DIMENSIONAL DRAWINGS
BARNDOOR INSTALLED
9.5 in (241mm)
15.6 in (395mm)
Drawings not shown to scale.
10.1 in (258mm)
37
Page 38
SPECIFICATIONS
Light Source:
• LED: 32 x 20W RGBL LED’s (50,000 hr.)
• Beam Angle: 11°, 25° with Frost Filter
• Field Angle: 23.7°, 47° with Frost Filter
• LUX: 157,491 @ 1M, 6,300 @ 5M (Full On); 28,363 @ 1M, 1,135 @ 5M (Full On) with Frost Filter
Features:
• IP65 rated – protects from dust, sand, moister, water
• All metal construction with black housing
• Includes heavy duty floor / mounting bracket with omega clamp receivers
• Sure-lock locking bracket system (securely locks every 10°)
• Includes magnetic removable filter frame to add a diffusion filter
• Flicker free for film and broadcast
• Linear variable white temperature control (2700K - 7000K)
• Built-in antenna for WiFLY EXR Wireless DMX
Construction:
• Display: OLED display with function buttons
• Data In/Out: IP65 Locking 5-pin XLR, DMX In/Out (with rubber protective covers over connections)
• Power In/Out: IP65 Locking Power In/Out (with rubber protective covers over connections)
• All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications
Control:
• WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)
• Multiple DMX channel modes
• 8 individually controlled sections with Pixel Zone Control
• 0-100% Dimming + smooth 16-bit Dimming
• 6 Dim Modes
• 4 Dim Curves
• User settable Dim Speed control
• Control Mode: DMX512, RDM (Remote Device Management)
• LED Refresh Rate: 900Hz - 25Khz
• With Wired Digital Communication Network
• Selectable Fan Modes: Silent, Auto or High
Electrical:
• Power voltage: AC100-240V, 47/63Hz (Multi-voltage)
• Daisy chain up to 2 fixtures max (@ 120V); 6 fixtures max (@ 240V)
• Power consumption: 334W Max
Dimensions & Weight:
• Dimensions: 13.9”x 9.7” x 6.5” / 353.4 x 246.0 x 165.5mm
• Weight: 24.25 lbs. / 11kg.
Approvals / Rating:
• CE Certified
4010765
Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without
any prior written notice.
38
Page 39
39
Page 40
Loading...
