Page 1
12PX HEX/12PX HEX PEARL
401076 5
User Instructions
Page 2
©2018 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying
product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by
statutory or judicial law or hereinafter granted. Product names used in this document may be
trademarks or registered trademarks of their respective companies and are hereby acknowledged.
All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of
their respective companies.
ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, unsucient and negligent assembly, installation, rigging, and operation of this product.
DOCUMENT VERSION
Please check www.adj.com for the latest revision/update of this guide.
Date
6/17/18
Document
Version
1 1.10
Software
Version
>
DMX
Channel
Mode
6/7/8/12 Initial Release
Notes
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when they are not in use. To avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
Page 3
12PX Hex/12PX Hex Pearl Table of Contents
Introduction
Features/Warranty Registration/Installation
Safety Precautions
Layout
DMX Set Up
DMX Addressing
DMX Channel Modes
Color Macro Chart
System Menu
Operating Instructions
Master-Slave Conguration
3
4
5
7
8
10
11
12
14
15
17
Dotz Par RF Operation

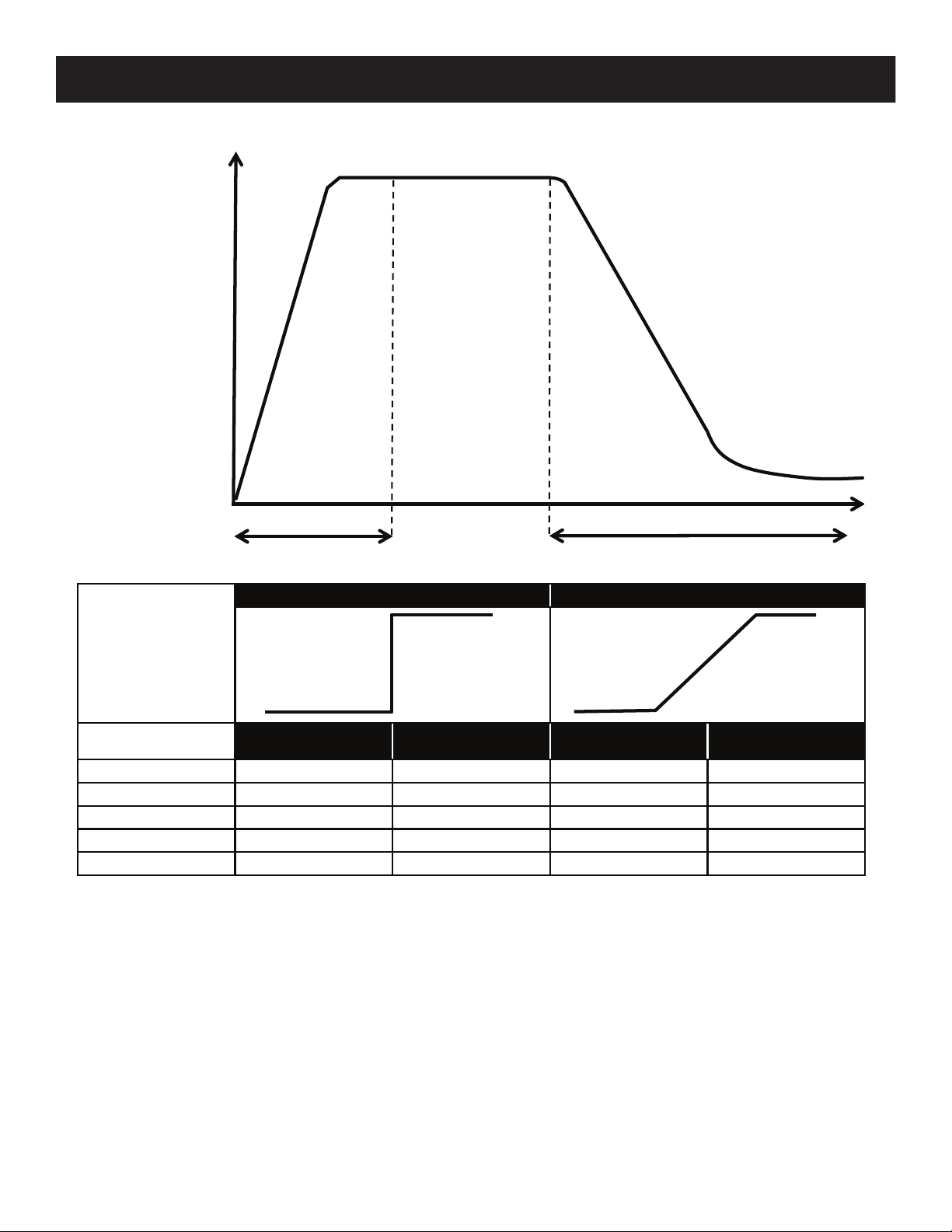

Dimmer Curve Chart

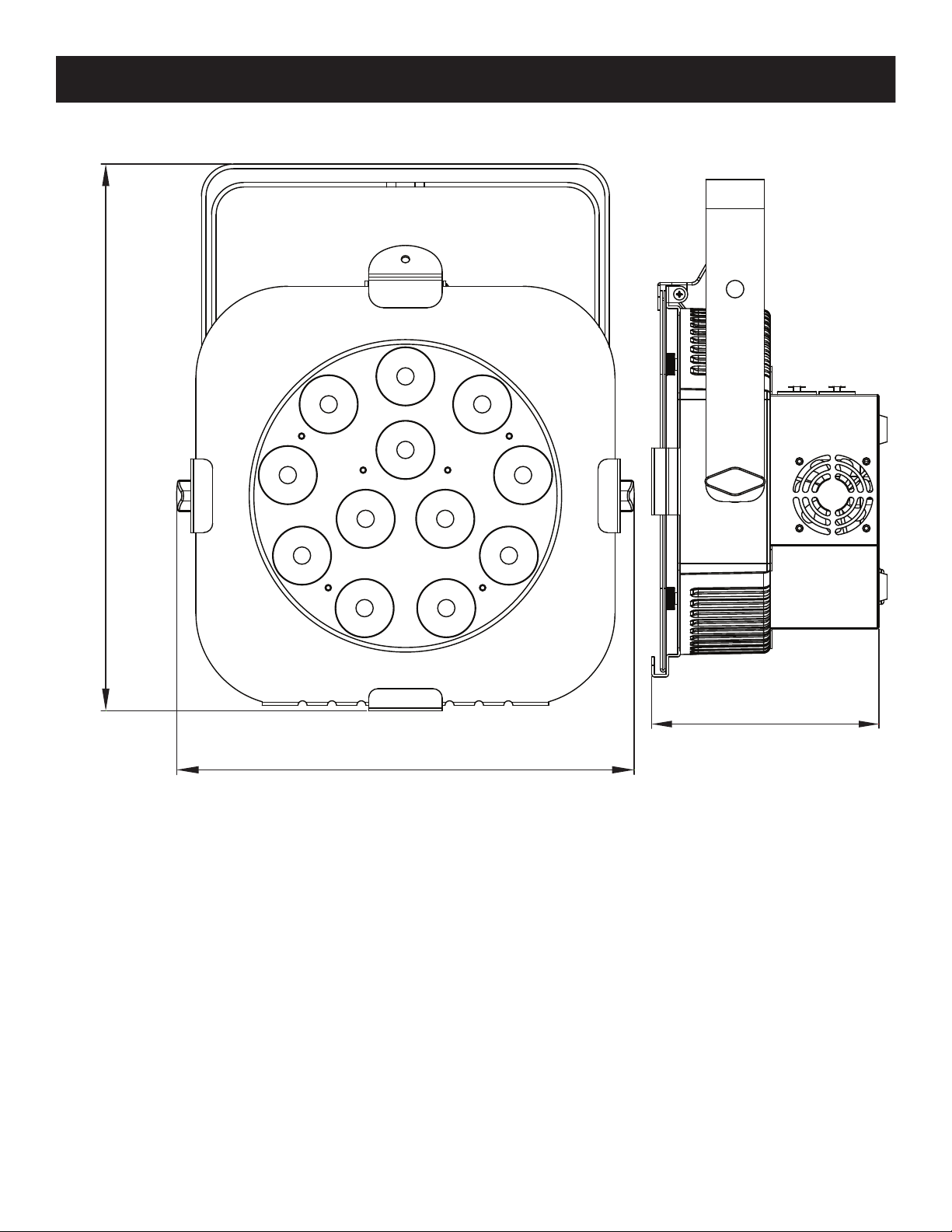

Dimensional Drawings
Power Linking/Trouble Shooting/Cleaning
Warranty
Specications
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 2
18
19
20
21
22
23
Page 4
12PX Hex/12PX Hex Pearl Introduction
Unpacking: Thank you for purchasing the 12PX Hex/12PX Hex Pearl by ADJ Products, LLC. Every
12PX Hex/12PX Hex Pearl has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your xture for any damage and be sure all accessories necessary to operate the unit has arrived intact. In the case damage has been found or parts are
missing, please contact our toll free customer support number for further instructions. Do not return
this unit to your dealer without rst contacting customer support.
Introduction: The 12PX Hex/12PX Hex Pearl is a DMX intelligent, LED par fixture. This xture can be
used in a stand alone mode or connected in a Master/Slave conguration. This par has five operating
modes: Sound Active mode, Program mode, RGBWA + UV dimmer mode, Static Color mode, and
DMX control mode. The 12PX Hex/12PX Hex Pearl have 4 DMX channel modes; 6, 7, 8, & 12.
Customer Support: ADJ Products, LLC provides a customer support line, to provide set up help and
to answer any question should you encounter problems during your set up or initial operation. You
may also visit us on the web at www.adj.com for any comments or suggestions. Service Hours are
Monday through Friday 8:00 a.m. to 4:30 p.m. Pacic Standard Time.
Voice: (323) 582-2650
Fax: (323) 582-2941
E-mail: support@americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or
moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
doing so will void your manufactures warranty. In the unlikely event your unit may require service
please contact ADJ Products, LLC.
PLEASE recycle the shipping carton when ever possible.
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 3
Page 5
12PX Hex/12PX Hex Pearl Features
• Multi-Colors
• Five Operating Modes
• Electronic Dimming 0-100%
• 5 Dimmer Curves
• DMX-512 protocol
• 3-Pin & 5-Pin DMX Connection
• Four DMX Modes: 6 Channel Mode, 7 Channel Mode, 8 Channel Mode, and 12 Channel Mode.
• Dotz Par RF Compatiable (Not Included)
• Multiple Unit Power Linking (See page 21)
Included:
1 x Power Cable
1 x Gel Frame Holder & Gel Frame
12PX Hex/12PX Hex Pearl Warranty Registration
The 12PX Hex and 12PX Hex Pearl carry a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must
be freight pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be
clearly written on the outside of the return package. A brief description of the problem as well as the
R.A. number must also be written down on a piece of paper included in the shipping carton. If the unit
is under warranty, you must provide a copy of your proof of purchase invoice. You may obtain a R.A.
number by contacting our customer support team on our customer support number. All packages
returned to the service department not displaying a R.A. number on the outside of the package will be
returned to the shipper.
12PX Hex/12PX Hex Pearl Installation
The unit should be mounted using a mounting clamp (not provided), axing it to the mounting
bracket that is provided with the unit. Always ensure that the unit is rmly xed to avoid vibration
and slipping while operating. Always ensure that the structure to which you are attaching the unit is
secure and is able to support a weight of 10 times the unit’s weight. Also, always use a safety cable
that can hold 12 times the weight of the unit when installing the xture. The equipment must be
installed by a professional, and it must be installed in a place where it is out of the reach of people’s
grasp.
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 4
Page 6
12PX Hex/12PX Hex Pearl Safety Precautions
• To reduce the risk of electrical shock or re, do not expose this unit rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to
remove or break o the ground prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product outdoors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See page 21
for cleaning details.
• Heat -The appliance should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the fixture.
C. The fixture has been exposed to rain or water.
D. The fixture does not appear to operate normally or exhibits a marked change in performance.
E. The fixture has fallen and/or subjected to extreme handling.
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 5
Page 7
12PX Hex/12PX Hex Pearl Safety Precautions
RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION!
FIXTURE EMITS HIGH INTENSITY ULTRAVIOLET (UV) LIGHT FROM THE UV LED.
WEAR PROPER EYE AND SKIN PROTECTION.
AVOID PROLONGED PERIODS OF EXPOSURE TO THE UV LED.
AVOID WEARING WHITE COLOR CLOTHING AND/OR USING (UV) PAINTS ON SKIN.
AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES SHORTER THAN 11 feet (3.3m).
DO NOT OPERATE FIXTURE WITH DAMAGED OR MISSING EXTERNAL COVER.
DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW (UV) LIGHT DIRECTLY WITH
OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION OUTPUT.
INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE
DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY RECEIVE
DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE.
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 6
Page 8
12PX Hex/12PX Hex Pearl Layout
Power In Port
Power Out Port
3-Pin XLR Out Port
3-Pin XLR In Port
5-Pin XLR Out Port
5-Pin XLR In Port
LCD Screen
Mode Button
Up Button
Down Button
Enter Button
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 7
Page 9
12PX Hex/12PX Hex Pearl DMX Set Up
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication
between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from
the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the
DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a
DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of dierent manufactures to be
linked together and operate from a single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use
the shortest cable path possible. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.

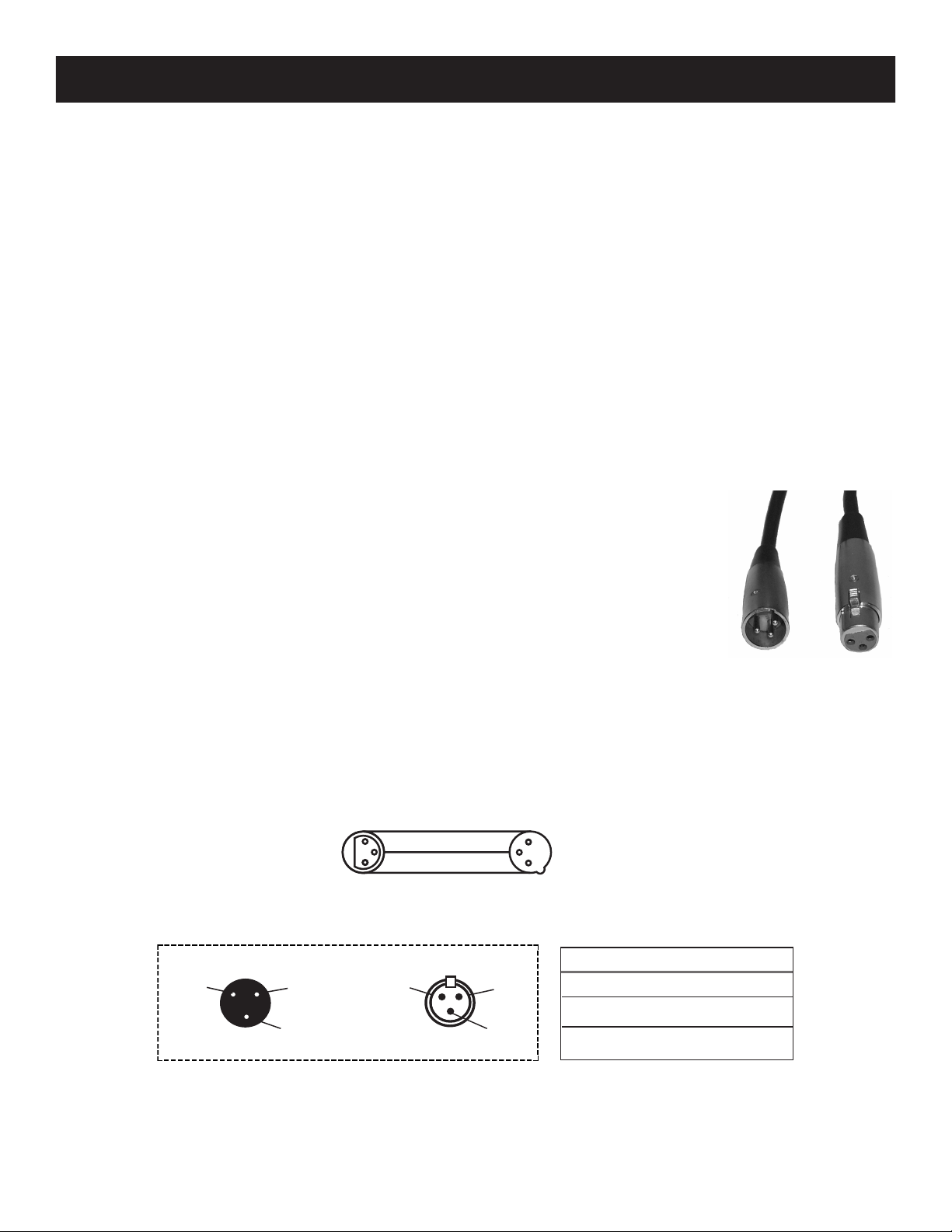

Data Cable (DMX Cable) Requirements (For DMX Operation): The 12PX Hex and 12PX Hex Pearl can
be controlled via DMX-512 protocol. The 12PX Hex/12PX Hex Pearl has 4 DMX channel modes. The
DMX address is set on the back panel of the 12PX Hex/12PX Hex Pearl. Your unit and your DMX controller
require a standard 3-pin or 5-pin XLR connector for data input and data output (Figure 1). We recommend
Accu-Cable DMX cables. If you are making your own cables, be sure to use standard
110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores). Your cables should be made with a male and female XLR connector
on either end of the cable. Also remember that DMX cable must be daisy chained
and cannot be split.
Figure 1
Notice: Be sure to follow gures two and three when making your own cables. Do not use the ground
lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the
shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a
short circuit and erratic behavior.
XLR Male Socket
1 Ground
Figure 3
DMX512 OT
3-PIN XLR
2 Cold
3 Hot
1
3
2
XLR Female Socket
2 Cold
COMMON
DMX +
DMX -
1 Ground
3 Hot
1
DMX512 IN
3
3-PIN XLR
2
Figure 2
XLR Pin Conguration
Pin 1 = Ground
Pin 2 = Data Compliment (negative)
Pin 3 = Data True (positive)
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 8
Page 10
12PX Hex/12PX Hex Pearl DMX Set Up
POWER
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
and PIN 3 (DMX +) of the last fixture.

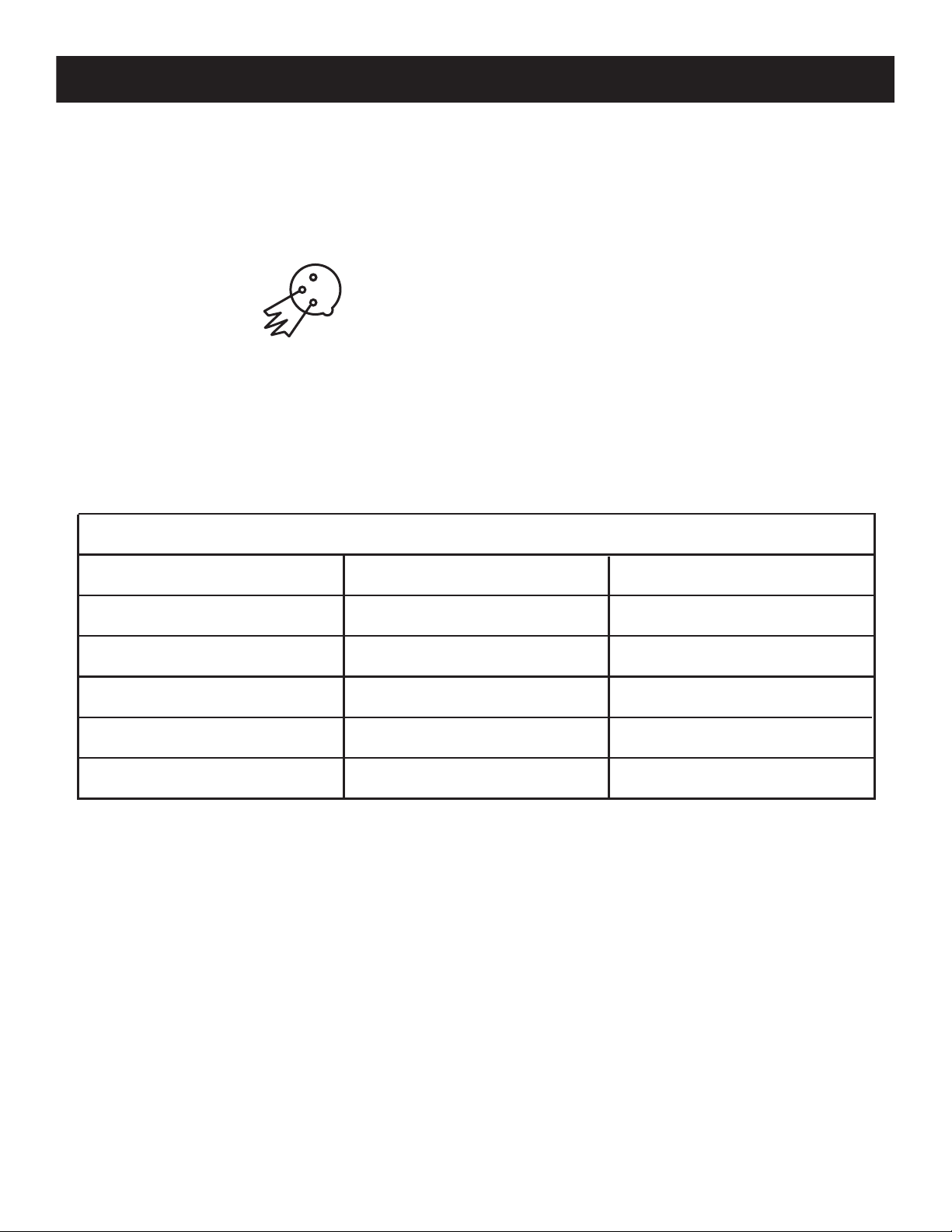

Special Note: Line Termination.
When longer runs of cable are used, you may need to use a terminator
on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is
connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted
in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable
terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
Termination reduces signal errors and
1
3
avoids signal transmission problems
and interference. It is always advisable
2
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
Figure 4
5-Pin XLR DMX Connectors.
Some manufactures use 5-pin DMX-512 data cables for DATA transmission in
place of 3-pin. 5-pin DMX xtures may be implemented in a 3-pin DMX line. When inserting standard
5-pin data cables in to a 3-pin line a cable adaptor must be used, these adaptors are readily available
at most electric stores. The chart below details a proper cable conversion.
3-Pin XLR to 5-Pin XLR Conversion
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Ground/Shield
Data Compliment (- signal)
Data True (+ signal)
Not Used
Not Used
Pin 1
Pin 2
Pin 3
Pin 1
Pin 2
Pin 3
Do Not Use
Do Not Use
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 9
Page 11
12PX Hex/12PX Hex Pearl DMX Addressing
All xtures should be given a DMX starting address when using a DMX controller, so the correct xture
responds to the correct control signal. This digital starting address is the channel number from which
the xture starts to “listen” to the digital control signal sent out from the DMX controller. The assignment
of this starting DMX address is achieved by setting the correct DMX address on the digital control
display on the xture.
You can set the same starting address for all xtures or a group of xtures, or set dierent addresses
for each individual xture. Setting all xtures to the same DMX address will cause all xtures to react
in the same way, in other words, changing the settings of one channel will aect all the xtures
simultaneously.
If you set each xture to a dierent DMX address, each unit will start to “listen” to the channel number
you have set, based on the quantity of DMX channels of each xture. That means changing the settings
of one channel will only aect the selected xture.
In the case of the 12PX Hex/12PX Hex Pearl, when in 12 channel mode you should set the starting
DMX address of the rst unit to 1, the second unit to 13 (12 + 1), the third unit to 25 (13 + 12), and so
on. (See chart below for more details.)
Channel Mode
6 channels 1 7 13 19
7 channels 1 8 15 22
8 channels 1 9 17 25
12 channels 1
Unit1
Address
Unit2
Address
13 25
Unit3
Address
Unit4
Address
37
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 10
Page 12
12PX Hex/12PX Hex Pearl DMX Traits & Values
10
6CH 7CH 8CH 12CH
1 1 1 1
2 2 2 2
3 3 3 3
4 4 4 4
5 5 5 5
6 6 6 6
7 7
8 8
7
9
11
12
0 -255 0~100%
0 -255 0~100%
0 -255 0~100%
0 -255 0~100%
0 -255 0~100%
0 -255 0~100%
0 -255 0 ~100%
0 - 31
32 - 63
64 - 95
96 - 127
128 - 159
160 - 191
192 - 223
224 - 255
0 - 255
0 - 20
21 - 40
41 - 60
61 - 80
81 - 100
101 - 120
121 - 140
141 - 255
0 - 255
0 - 255
0 - 20
21- 40
41- 60
61- 80
81- 100
101- 255
Red
Green
Blue
White
Amber
UV
Master Dimmer
Strobe
LED O
LED On
Strobe Slow - Fast
LED On
Strobe Pulse Slow - Fast
LED On
Random Strobe
LED On
Color Macro
See pages 12-13 for the Color Macro Chart
Programs
No Function
30 Color Change
6 Color Change
Color Fade
Sound Active 30 Color Change
Sound Active 6 Color Change
Sound Active 6 Color Fade
No Function
Program Speed/Sound Sensitivity
Slow - Fast
Least Sensitive - Most Sensitive
Dimmer Modes
Standard
Stage
TV
Architectural
Theatre
Default to unit setting
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 11
Page 13
12PX Hex/12PX Hex Pearl Color Macro Chart
Color No. DMX
VALUE
Color33 129-132 255 206 143 0
Color34 133-136 254 177 153 0
Color35 137-140 254 192 138 0
Color36 141-144 254 165 98 0
Color37 145-148 254 121 0 0
Color38 149-152 176 17 0 0
Color39 153-156 96 0 11 0
Color40 157-160 234 139 171 0
Color41 161-164 224 5 97 0
Color42 165-168 175 77 173 0
Color43 169-172 119 130 199 0
Color44 173-176 147 164 212 0
Color45 177-180 88 2 163 0
Color46 181-184 0 38 86 0
Color47 185-188 0 142 208 0
Color48 189-192 52 148 209 0
Color49 193-196 0 46 35 0
Color50 197-200 8 107 222 0
Color51 201-204 107 156 231 0
Color52 205-208 165 198 247 0
Color53 209-212 0 83 115 0
Color54 213-216 0 97 166 0
Color55 217-220 1 100 167 0
Color56 221-224 0 40 86 0
Color57 225-228 209 219 182 0
Color58 229-232 42 165 85 0
Color59 233-236 255 0 0 0
Color60 237-240 0 255 0 0
Color61 241-244 0 0 255 0
Color62 245-248 0 0 0 255
Color63 249-252 0 0 0 0
Color64 253-255 0 0 0 0
Color No. DMX
VALUE
OFF 0 0 0 0 0
Color1 1-4 80 255 234 80
Color2 5-8 80 255 164 80
Color3 9-12 77 255 112 77
Color4 13-16 117 255 83 83
Color5 17-20 160 255 77 77
Color6 21-24 223 255 83 83
Color7 25-28 255 243 77 77
Color8 29-32 255 200 74 74
Color9 33-36 255 166 77 77
Color10 37-40 255 125 74 74
Color11 41-44 255 97 77 74
Color12 45-48 255 71 77 71
Color13 49-52 255 83 134 83
Color14 53-56 255 93 182 93
Color15 57-60 255 96 236 96
Color16 61-64 238 93 255 93
Color17 65-68 196 87 255 87
Color18 69-72 150 90 255 90
Color19 73-76 100 77 255 77
Color20 77-80 77 100 255 77
Color21 81-84 67 148 255 67
Color22 85-88 77 195 255 77
Color23 89-92 77 234 255 77
Color24 93-96 158 255 144 144
Color25 97-100 255 251 153 153
Color26 101-104 255 175 147 147
Color27 105-108 255 138 186 138
Color28 109-112 255 147 251 147
Color29 113-116 151 138 255 138
Color30 117-120 100 138 255 138
Color31 121-124 138 169 255 138
Color32 125-128 255 255 255 255
RED GREEN BLUE WHITE
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 12
RGBWA+UV COLOR INTENSITY
AMBER UV
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Page 14
12PX Hex/12PX Hex Pearl Color Macro Chart
Color No. DMX
VALUE
Color33 129-132 255 206 143 0
Color34 133-136 254 177 153 0
Color35 137-140 254 192 138 0
Color36 141-144 254 165 98 0
Color37 145-148 254 121 0 0
Color38 149-152 176 17 0 0
Color39 153-156 96 0 11 0
Color40 157-160 234 139 171 0
Color41 161-164 224 5 97 0
Color42 165-168 175 77 173 0
Color43 169-172 119 130 199 0
Color44 173-176 147 164 212 0
Color45 177-180 88 2 163 0
Color46 181-184 0 38 86 0
Color47 185-188 0 142 208 0
Color48 189-192 52 148 209 0
Color49 193-196 0 46 35 0
Color50 197-200 8 107 222 0
Color51 201-204 107 156 231 0
Color52 205-208 165 198 247 0
Color53 209-212 0 83 115 0
Color54 213-216 0 97 166 0
Color55 217-220 1 100 167 0
Color56 221-224 0 40 86 0
Color57 225-228 209 219 182 0
Color58 229-232 42 165 85 0
Color59 233-236 255 0 0 0
Color60 237-240 0 255 0 0
Color61 241-244 0 0 255 0
Color62 245-248 0 0 0 255
Color63 249-252 0 0 0 0
Color64 253-255 0 0 0 0
RED GREEN BLUE WHITE
RGBWA+UV COLOR INTENSITY
AMBER UV
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
255
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
255
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 13
Page 15
12PX Hex/12PX Hex Pearl System Menu
Channel
Standard (dC00)
MENU SUB MENU OPTIONS/VALUES DESCRIPTION
Display
Menu
Menu
Function
V110
Set ADDR
001
Mode
Dimmer
Curve
NO DMX
Hold
Program
Mode
Color Macros
Dimmer
Mode
A001-512
6/7/8/12
Stage (dC01)
TV (dC02)
DMX Addressing
DMX Channel Modes
Dimmer Curve Setting
Architec (dC03)
Theatre (dC04)
Hold /blc (Blackout)/ Soun (Sound Active)
P-01~07
C-00~63
DMX Lost Setting
Auto Run Programs
Color Macro Mode
r：000~255
g
：000~255
b：000~255
u：000~255
Dimmer Mode
A：000~255
U：000~255
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 14
Sound Active
Remote
Activation
Slave
So00~30
rFon or rFoF
SLAV
Sound Active Mode
Remote Sensor
Activation
Slave Setting
Page 16
12PX Hex/12PX Hex Pearl Operating Instructions
Control Panel Lock:
The control panel will lock itself after 30 seconds if nothing is pressed. To unlock the control panel,
press the MODE button for 3 seconds.
Operating Modes:
The 12PX Hex/12PX Hex Pearl has five operating modes:
• DMX control mode - This function will allow you to control each individual fixtures traits with a
standard DMX 512 controller.
• RGBWA + UV Dimmer Mode - Choose one of the six colors to remain static or adjust the intensity
of each color to make your own color.
• Sound Active mode - The unit will react to sound, chasing through the built in programs.
The sound sensitivity is adjustable
• Program Mode - There are 7 built-in programs to choose from. Color change and color fade
speeds are adjustable.
• Static Color Mode - There are 63 colors to choose from.
RGBWA + UV Dimmer Mode:
In this mode you can adjust the individual colors to make your desired color.
1. Plug the fixture in and press the MODE button until:
2. When “r.XXX” is displayed you are in Red dimming mode. Use the UP and DOWN buttons to
adjust the intensity. After you have finished adjusting the intensity, or if you would like to skip to
the next color, press the ENTER button.
3. When “GXXX” is displayed you are in Green dimming mode. Use the UP and DOWN buttons to
adjust the intensity.
4. When “bXXX” is displayed you are in Blue dimming mode. Use the UP and DOWN buttons to
adjust the intensity.
5. When “uXXX” is displayed you are in White dimming mode. Use the UP and DOWN buttons to
adjust the intensity.
6. When “AXXX” is displayed you are in Amber dimming mode. Use the UP and DOWN buttons to
adjust intensity.
7. When “UXXX” is displayed you are in UV dimming mode. Use the UP and DOWN buttons to
adjust the intensity.
Program Mode:
In this mode you can choose 1 of 7 programs to run
adjustable.
1. Plug the fixture in and press the MODE button until “P-XX” is displayed. “XX” is the current
program number displayed.
2. Use the UP of DOWN button to find your desired program.
3. Press the ENTER button to adjust the fade speed, “00” being the slowest, “30” the fastest.
4. Press the ENTER button again to adjust the color change speed, “00” being the slowest, “30” the
fastest.
. The fade speed and program speed are both
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 15
Page 17
12PX Hex/12PX Hex Pearl Operating Instructions
DMX Mode:
Operating through a DMX controller gives the user the freedom to create their own programs tailored
to their own individual needs. The 12PX Hex/12PX Hex Pearl have 4 DMX modes: 6 Channel mode,
7 Channel mode, 8 Channel mode, and a 12 Channel mode. See page 11 for each mode’s DMX traits.
1. This function will allow you to control each individual fixture’s traits with a standard DMX 512
controller.
2. To run your fixture in DMX mode press the MODE button until “AXXX” is displayed. “XXX” represents
the current displayed address. Use the UP or DOWN buttons to select your desired DMX
address, then press the ENTER button to select your DMX Channel mode.
3. Use the UP or DOWN buttons to scroll through the DMX Channel modes. The Channel modes
are listed below:
• To run the 6 Channel Mode, press the MODE button until “Ch06” is displayed. This is the
6 Channel DMX Mode.
• To run the 7 Channel Mode, press the MODE button until “Ch07” is displayed. This is the
7 Channel DMX Mode.
• To run the 8 Channel Mode, press the MODE button until “Ch08” is displayed. This is the
8 Channel DMX Mode.
• To run the 12 Channel Mode, press the MODE button until “Ch12” is displayed. This is the
12 Channel DMX Mode.
4. Please see page 11 for DMX values and traits.
5. After you have chosen your desired DMX Channel mode plug in the fixture via the XLR connections
to any standard DMX controller.
Sound Active Mode:
In this mode the 12PX Hex/12PX Hex Pearl will react to sound, and chase through the different colors.
1. Plug the fixture in and press the MODE button until “SoXX” is displayed. “XX” represents the
sound sensitivity level. Use the UP and DOWN buttons to adjust the sensitivity. “00” is the lowest
sensitivity, “30” is the highest.
Static Color Mode:
1. Plug the fixture in and press the MODE button until “C-XX” is displayed. “XX” is the color number
currently displayed.
2. There are 63 colors to choose from. Use the UP and DOWN buttons to find your desired color.
Dimmer Curve:
This is used to set the dimmer curve used with DMX mode. See the Dimmer Curve chart on page 19
for more information.
1. Plug the fixture in and press the MODE button until the DMX address is displayed.
2. Press the ENTER button until “dCXX” is displayed. This is the dimmer setting. “XX” represents
the current dimming mode.
3. Use the UP and DOWN buttons to find your desired dimmer curve. Press ENTER when you are
finished.
• dC00 - Standard
• dC01 - Stage
• dC02 - TV
• dC03 - Architectural
• dC04 - Theater
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 16
Page 18
12PX Hex/12PX Hex Pearl Operating Instructions
Activate RF Control:
This function is used to activate and deactivate the RF Remote Control. When this function is activated
you can control the fixture using the Dotz Par RF remote. Please see the next page for remote controls
and functions.
1. Plug the fixture in and press the MODE button until “rFXX” is displayed. “XX” represents either
“on” or “oFF”.
2. Press the UP or DOWN buttons to either activate the remote function (On) or deactivate it (Off).
DMX State:
This mode is used as a precaution mode, that in case the DMX signal is lost, the operating mode
chosen in this setup is the running mode the xture will go into when the DMX signal is lost. You can
also set this as the operating mode you would like the unit to return to when power is applied.
1. Press the MODE button until the DMX address is displayed. Press the ENTER button until either
“Soun”, “HOLd”, or “blC” is displayed.
2. Use the UP or DOWN buttons to nd the mode you want incase of power loss or DMX loss.
• “blC” (Blackout) - If the DMX signal is lost or interrupted, the unit will automatically go into stand by
mode.
• “HOLd” (Last State) - If the DMX signal is lost or interrupted, the xture will stay in the last DMX set
up. If power is applied and this mode is set, the unit will automatically go into the last DMX set up.
• “Soun” (Sound Active) - If the DMX signal is lost or interrupted, the unit will automatically go into
sound active mode.
3. Find your desired setting and press ENTER. Your setting will be saved automatically.
12PX Hex/12PX Hex Pearl Master-Slave Configuration
Master-Slave Configuration:
This function will allows you to link units together to run in a Master-Slave mode. In Master-Slave
operation one unit will act as the controlling unit and the others will react to the controlling units
built-in programs. Any unit can act as a Master or as a Slave however, only one unit can be
programmed to act as the “Master.”
Master-Slave Connections and Settings:
1. Daisy chain your units via the XLR connector on the rear of the unit. Use standard XLR data
cables to link your units together. Remember that the Male XLR connector is the
input and the Female XLR connector is the ouput. The first unit in the chain (master) will use the
female XLR connector only. The last unit in the chain will use the male XLR connector only.
2. Set the “Master” unit to your desired mode of operation.
3. Connect the rst “Slave” unit to the “Master.”
4. On the “Slave” unit press the MODE button until “SLAV” is displayed. The “Slave” unit will now
follow the “Master”.
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 17
Page 19
12PX Hex/12PX Hex Pearl Dotz Par RF Operation
The Dotz Par RF remote (sold separately) has many different functions and allows you to control your
fixture from long distance. The remote can control your system up to 25 meters. To use the remote
you must first activate the fixtures receiver, to activate the receiver please see the instructions on
page 17.
BLACKOUT - Pressing this button will blackout the fixture.
FADE - This button will activate the fade program.
COLOR - This button will activate the static color mode. Use the “+” and “-” buttons to scroll through
the colors and find your desired color.
PROGRAMS - This button will activate the built-in programs mode. Use the “+” and “-” buttons to
scroll through the 7 programs and find your desired program.
SOUND ACTIVE - This button activates sound active mode.
AUTO RUN - When in program mode, press this button and use the “+” and “-” buttons to adjust the
speed of the built-in programs. You can also use this button to activate program mode.
“+” and “-” - Use these buttons to adjust the speed of the built-in program, scroll through the built-in
programs, and scroll through the static colors.
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 18
Page 20
12PX Hex/12PX Hex Pearl Dimmer Curve Chart
DIMMER
100%
50%
10%
0%
0 Sec
Rise Time Down Time
Time (ms)
0 sec Fade Time 1 sec Fade Time
255 255
Dimming Curve
Ramp Effect
0 0
Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms)
Standard (default) 0 0 0 0
Stage 780 1100 1540 1660
TV 1180 1520 1860 1940
Architectural 1380 1730 2040 2120
Theatre 1580 1940 2230 2280
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 19
Page 21
12PX Hex/12PX Hex Pearl Dimensional Drawing
11.7”/297.4mm
9.8”/249mm
5.34”/135.8mm
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 20
Page 22
12PX Hex/12PX Hex Pearl Multiple Unit Power Linking
With this feature you can connect the xtures to one another using the power cable input and
output sockets.
NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES AS THE POWER
CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON
THIS FIXTURE! CHECK SILK SCREEN FOR MAX AMPS.
12PX Hex/12PX Hex Pearl Trouble Shooting
Listed below are a few common problems the user may encounter, with solutions.
Unit not responding to DMX:
1. Check that the DMX cables are connected properly and are wired correctly (pin 3 is “hot”; on
some other DMX devices pin 2 may be ‘hot’). Also, check that all cables are connected to the
right connectors; it does matter which way the inputs and outputs are connected.
Unit does not respond to sound:
1. Quiet or high pitched sounds will not activate the unit.
2. Make sure that Sound Active mode is activated.
12PX Hex/12PX Hex Pearl Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried
out periodically to optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
2. Clean the external optics with glass cleaner and a soft cloth every 20 days.
3. Always be sure to dry all parts completely before plugging the unit back in.
Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue,
dust, dew).
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 21
Page 23
12PX Hex/12PX Hex Pearl Warranty
MANUFACTURER’S LIMITED WARRANTY
A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products
to be free of manufacturing defects in material and workmanship for a prescribed period from
the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the
product is purchased within the United States of America, including possessions and
territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable
evidence, at the time service is sought.
B. For warranty service you must obtain a Return Authorization number (RA#)
before sending back the product–please contact ADJ Products, LLC Service Department
at 800-322-6337. Send the product only to the ADJ Products, LLC factory. All
shipping charges must be pre-paid. If the requested repairs or service (including
parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return
shipping charges only to a designated point within the United States. If the entire instrument is
sent, it must be shipped in it’s original package. No accessories should be shipped with the product. If
any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for
loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the serial number has been altered or removed; if the product is modified in any
manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the
product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior
written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because
not properly maintained as set forth in the instruction manual.
D. This is not a service contract, and this warranty does not include maintnance, cleaning or periodic check
up. During the period specified above, ADJ Products, LLC will replace defective parts at its expense
with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by
reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this
warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole
discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August
15, 2012, and bear indentifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products
without any obligation to include these changes in any products theretofore manufactured.
No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with
products described above. Except to the extent prohibited by applicable law, all implied warranties made
by ADJ Products, LLC in connection with this product, including warranties of merchantability or fitness,
are limited in duration to the warranty period set forth above. And no warranties, whether expressed or
implied, including warranties of merchantability or fitness, shall apply to this product after said period
has expired. The consumer’s and/or Dealer’s sole remedy shall be such repair or replacement as is
expressly provided above; and under no circumstances shall ADJ Products, LLC be liable for any loss or
damage, direct or consequential, arising out of the use of, or inability to use, this product.
This warranty is the only written warranty applicable to ADJ Products, LLC Products and
supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore
published.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
•NonL.E.D.LightingProducts=1-year(365days)LimitedWarranty(Such as: Special Effect
Lighting, Intelligent Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par
Cans, Trussing, Lighting Stands etc. excluding LED and lamps)
•LaserProducts=1Year(365Days)LimitedWarranty(excluding laser diodes which have a 6 month
limited warranty)
•L.E.D.Products=2-year(730days)LimitedWarranty(excluding batteries which have a 180 day lim-
ited warranty). Note:2YearWarrantyonlyappliestopurchaseswithintheUnitedStates.
•StarTecSeries=1YearLimitedWarranty(excluding batteries which have a 180 day limited warranty).
•ADJDMXControllers=2Year(730Days)LimitedWarranty
ADJ Products, LLC - www.adj.com - 12PX Hex/12PX Hex Pearl User Manual Page 22
Page 24
12PX Hex/12PX Hex Pearl Specifications
with the included instructions, may cause harmful interference to radio communications. However, there is
Model:
12PX Hex/12PX Hex Pearl
Voltage: 100V ~ 240V/50~60Hz
LEDs: 12 x 12W 6-in-1 HEX LED’s
Working Position: Any safe working position
Power Draw: 133W
Weight: 8.7 lbs./ 4 Kgs.
Dimensions: 5.34” (L) x 9.8” (W) x 11.7” (H)
135.8 x 249 x 297.4mm
Colors: RGBWA+UV Color Mixing
DMX Channels: 4 DMX Modes: 6 Channel Mode,
7 Channel Mode, 8 Channel Mode
& 12 Channel Mode
Warranty: 2 Year (730 days)
Please Note: Specications and improvements in the design of
this unit and this manual are subject to change without any prior
written notice.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS
This product has been tested and found to comply with the limits as per Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This device uses and can radiate radio frequency energy and, if not installed and used in accordance
no guarantee that interference will not occur in a particular installation. If this device does cause harmful
interference to radio or television reception, which can be determined by turning the device off and on, the
user is encouraged to try to correct the interference by one or more of the following methods:
· Reorient or relocate the device.
· Increase the separation between the device and the receiver.
· Connect the device to an electrical outlet on a circuit different from which the radio receiver is
connected.
· Consult the dealer or an experienced radio/TV technician for help.
6122 S. Eastern Ave. Los Angeles, CA 90040 USA
Tel: 323-582-2650 / Fax: 323-582-2941
www.adj.com / info@americandj.com
A.D.J. Supply Europe B.V.
www.adj.eu / support@adjgroup.eu
Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99
ADJ Products, LLC
Junostraat 2
6468 EW Kerkrade
The Netherlands
Loading...
