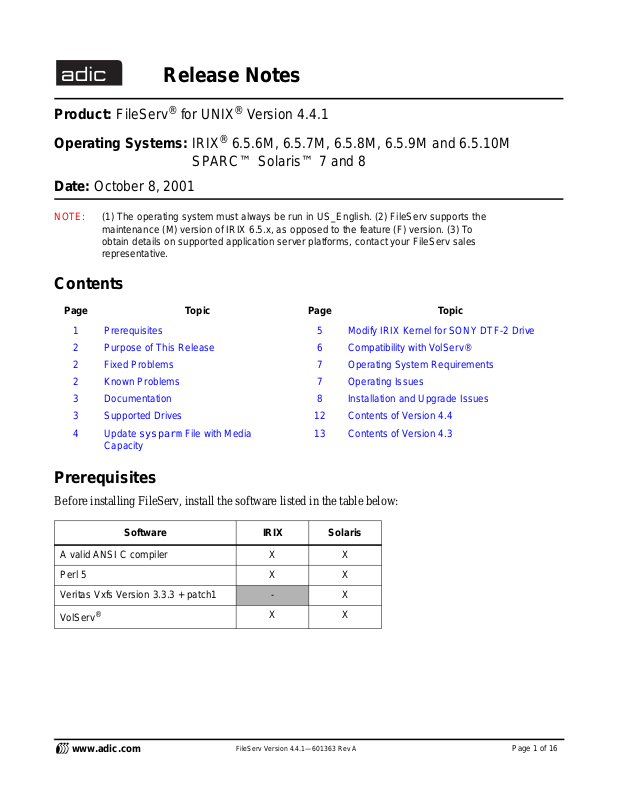

Release Notes

Product: FileServ® for UNIX® Version 4.4.1

®

Operating Systems: IRIX

SPARC™ Solaris™ 7 and 8

Date: October 8, 2001

NOTE: (1) The operating system must always be run in US_English. (2) FileServ supports the

maintenance (M) version of IRIX 6.5.x, as opposed to the feature (F) vers ion. (3) To
obtain details on supported application server platforms, contact your FileServ sales
representative.

Contents

Page Topic Page Topic

1 Prerequisites 5 Modify IRIX Kernel for SONY DTF-2 Drive
2 Purpose of This Release 6 Compatibility with VolSer v®
2 Fixed Problems 7 Operating System Requirements
2 Known Problems 7 Operating Issues
3 Documentation 8 Installation and Upgrade Issues

6.5.6M, 6.5.7M, 6.5.8M, 6.5.9M and 6.5.10M

3 Supported Drives 12 Contents of Version 4.4
4 Update sysparm File with Media

Capacity

13 Contents of Version 4.3

Prerequisites

Before installing FileServ, install the software listed in the table below:

Software IRIX Solaris

A valid ANSI C compiler X X
Perl 5 X X
Veritas Vxfs Version 3.3.3 + patch1

VolServ

®

-X

XX

www.adic.com

FileServ Version 4.4.1—601363 Rev A Page 1 of 16

Purpose of This Release

This release contains corrections to problems encountered in previous versions.

Fixed Problems

The following table lists fixed problems:

Operating

System

All 564 When the db map is created in fsaudit

All 568 fsrecover was failing because of memory requirements that were caused by

All 570 For veritas vxfs filesystems, an ov erwrite of an existing file that has a valid tape

All 572 Changed the EMASS logo to the ADIC logo on the FileServ graphical user

Problem

Number

Description of Problems Fixed in Version 4.4.1

The update_mask field in the db map entry indicates whether or not the
directory should be there. This field was not being initialized, so directories
were occasionally being reported as missing even though they existed.

the journal_table being calloc for every record in the journal but not being freed
before the calloc. fsrecover is now freeing the journal_table memory.

copy will generate two events: a create and a truncate. The file object is locked
by the filesystem until both events are processed. This causes a potential
deadlock in the dmapi process if the create list is processed before the
truncate event is processed. To prevent this deadlock, the dmapi process was
modified so the create list is processed by a separate thread.

interface (fswin gui).

Known Problems

The following table lists unresolved problems:

, all directories in dirdb are added.

Operating

System

IRIX
Solaris

IRIX
Solaris

Page 2 of 16 FileServ Version 4.4.1—601363 Rev A

Problem

Number

588
936
958

904 Occasionally, the

When

fsundelete command is executed, occasionally it does not completely

undelete all the files on the undelete list because of a timing issue.
Workaround: To overcome this problem, run the

on the unrestored file(s). The fsundelete command does not retrieve any
secondary copies of files that were deleted, only the primary copy is retrieved.
Do not use the
disk only. The command will fail and an error message will appear instructing
you how to correctly execute the command.

removed a file . This happens if th e file is open and
file.

Workaround: To ensure that the file was removed, run
successfully run the
write or execute permissions.

Description of Known Problems in Version 4.4.1

-f option (force) with the command on a file that resides on

fsrmcopy command incorrectly reports that it successfully

fsrmcopy command on a file, the user must have read,

fsundelete command again

fsrmdiskcopy is run on that

fsfileinfo again. To

www.adic.com

Documentation

In addition to the FileServ software, the distribution CD contains the FileServ technical documentation as

®

PDF files as well as an Adobe
electronic book files yet preserves the page design and graphics from the printed books.

Order Printed Books

To order additional printed books, complete this form and send it to your ADIC Sales Representative:

Version 4.4 Book Quantity Version 4.4 Book Quantity

FileServ Overview, #6 01341 Error Messages, #601345
Installing FileServ, #601342 Quick Reference Card, #601346

Acrobat® Reader. The Reader allows you to view and navigate the

Command Reference, #601343
Administrative Tasks, #601344
Please print Name:
Company:
Address:
Telephone: Email:

Complete Set. Contains all 5 books
and one Quick Reference Card.

Related Publications

To receive access to the secured site on our home page containing technical product information (Release
Notes, Product Alerts, Product Bulletins, FAQs), visit http://partners.adic.com/ and follow the password
request procedure. In return, ADIC will send you instructions and a password.

Supported Drives

FileServ supports the following drives on the specified platforms:

Drive Type

Supported

on IRIX

Supported

on Solaris

Ampex DST 310
Ampex DST 312
See NOTE below.

Fujitsu M8100. Configure this drive as an IBM 3590B1A. Yes Yes
HP 2600FX MO

HP 5200EX MO
IBM 3590B1A

IBM 3590E1A. Do not configure these drives on an RS-422 port.
IBM 3580 LTO No Yes

www.adic.com

FileServ Version 4.4.1—601363 Rev A Page 3 of 16

Yes

Yes

Yes Yes

No

No

Drive Type

Supported

on IRIX

Supported

on Solaris

Quantum DLT 4000
Quantum DLT 7000. Configure this drive as a DLT 4000.
Quantum DLT 8000. Configure this drive as a DLT 4000.

Sony AIT-1 SDX-300
Sony AIT-2 SDX-500

Sony GY-10
Sony GY-2120
Sony GY-8240.See “Modify IRIX Kernel for SONY DTF-2 Drive” on

page 5 of these"Release Notes."

During initial configuration on VolServ, set these drives up to support
both DTF1 and DTF2 media types.

Storage Technology 4480
Storage Technology Timberline 9490-E
Storage Technology 9840

NOTE: To tune the kernel for DST drives, follow the steps below:
Step 1: Login as
Step 2: Run
Step 3: Enter

root.

systune -i.

maxdmasz 513.

Yes Yes

Yes

Yes

Yes Yes

Yes

Yes

Step 4: Enter
Step 5: Reboot the system.

quit.

Update sysparm File with Media Capacity

After an initial installation, if you add or change a Sony AIT-2, IBM 3590E1A, Quantum DLT 7000, or
Quantum DLT 8000 drive type, update the system parameters to reflect the new media capacity by
following the steps below:

Step 1. Log in as
Step 2. Edit the fs_sysparms file.

# vi /$FS_HOME/sysparms/fs_sysparms

Step 3. If you are adding an AIT-2 drive, update the

shown below if you are using 170m tape:

DEF_MED_SPC_AIT=35000000000;

root.

DEF_MED_SPC_AIT parameter definition to be as

Page 4 of 16 FileServ Version 4.4.1—601363 Rev A

www.adic.com

If you are adding an AIT-2 drive, update the DEF_MED_SPC_AIT parameter definition to be as
shown below if you are using 230m tape:

DEF_MED_SPC_AIT=50000000000;

If you are adding an 3590E1A drive, update the DEF_MED_SPC_3590 parameter definition to
be as shown below:

DEF_MED_SPC_3590=20000000000;

If you are adding a DLT 7000 drive, update the DEF_MED_SPC_CTIV parameter definition to be
as shown below:

DEF_MED_SPC_CTIV=35000000000;

If you are adding a DLT 8000 drive, update the DEF_MED_SPC_CTIV parameter definition to be
as shown below:

DEF_MED_SPC_CTIV=40000000000;

Step 4. Save the changes and quit the edit session.

Modify IRIX Kernel for SONY DTF-2 Drive

IRIX only: Update the SGI kernel to be aware of the SONY DTF-2 drive, by following the steps below:
Step 1. Log in as root.

# su root

Step 2. Search the scsi file and look for the words “GY-8240.”

# vi /var/sysgen/master.d/scsi

Step 3. If that text is not found, add the following entry to the file for your drive:

/* SONY GY-8240 drive */
{ SONYGY, TPGY2120, 4, 7, "SONY", "GY-8240", 0, 0, {0, 0, 0, 0},
MTCAN_BSF|MTCAN_BSR|MTCANT_RET|MTCAN_CHKRDY|MTCAN_PREV|
MTCAN_SEEK|MTCAN_APPEND|MTCAN_SILI|MTCAN_VAR|MTCAN_SETSZ|
MTCAN_CHTYPEANY | MTCAN_COMPRESS,
20, 100*60, 10*60, 9*60, 9*60, 16384, 256*1024,
tpsc_default_dens_count, tpsc_default_hwg_dens_names,
tpsc_default_alias_dens_names,
{0}, 0, 0, 0,
0, (u_char *)0 },

www.adic.com

FileServ Version 4.4.1—601363 Rev A Page 5 of 16

Step 4. Rebuild the kernel.

# autoconfig -f

Step 5. Reboot the machine.

Compatibility with VolServ®

FileServ VolServ

Version 4.4.1
Version 4.4
Version 4.3
Version 4.2
Version 4.1
Version 4.0

Version 3.5.2
Version 3.5.1
Version 3.5.0

Version 3.4.3 Version 2.3.3

Version 3.4.2
Version 3.4.1

Version 3.4 Version 2.3.1

Version 5.0
V ers ion 4.1 NOTE: The release numbering scheme has been changed

on VolServ to correlate with the release numbers on FileServ.

Version 3.0
Version 2.3.3

Version 2.3.3
Version 2.3.2
Version 2.3.1

Version 2.3.2
Version 2.3.1

Version 2.3.2
Version 2.3.1

Page 6 of 16 FileServ Version 4.4.1—601363 Rev A

www.adic.com

Operating System Requirements

Patches

NOTE: ADIC recommends that you install all required Y2K pa tches for your machine.

Make sure you install all the patches that your vendor recommends for your kernel, operating system,
network, hardware, media, drive type, and storage devices.

Additionally, ADIC requires the patches, filesets, or packages listed below to successfully operate
FileServ. Obtain these patches from the appropriate vendor.

Platform Patch Description

IRIX 6.5.8f SG0004026 Fixes lost read events. Even though the feature release is not officially

supported, if you choose this release you must have this patch.

Solaris 7 Update

2107022-04
107587-01 System accounting, (Usr).
Recommended

Patch Cluster
09/02/1999

Maintenance update.

Includes nine patches.

YEAR 2000 COMPLIANT (CR #237)

When FileServ is running on Y2K-compliant operating systems, including systems with Y2K-compliant
patches, FileServ is Y2K Option 1-compliant. This means that a year is designated as a four-digit number ,
for example, 2000. (FileServ has been Y2K-compliant since Version 3.5.)

Operating Issues

fileserv -t -y LEAVES UNWANTED PROCESSES RUNNING (CR #921)

• Running

sysparm value configured in the $FS_TERMTIMEOUT_VALUE parameter. After FileServ terminates,

there may be unwanted processes still running. To check for these processes, type the following:

fileserv -t -y unconditionally exits after the number of seconds specified in the

# ps -elf | grep fs_
# ps -elf | grep fsadm

Look for processes that should not be running, and determine which ones need to be terminated.

fsloglevel COMMAND (CR #829)

• The

fsloglevel command does not affect all log messages. A more reliable method for changing

the logging level is to modify the FS_LOG_LEVEL variable in the $FS_HOME/sysparm/fs_sysparm
file.

www.adic.com

FileServ Version 4.4.1—601363 Rev A Page 7 of 16

fspolicy COMMAND

• Running the fspolicy -w command on a large (greater than 500,000 entries) file system can take
several hours to complete. If the fspolicy command is unable to store or truncate files, or if the

fspolicy command is killed or terminates abnormally, run fspolicy -w to rebuild the candidate

files.

GUI PERFORMANCE (CR #296)

• Before running another command in the GUI, select the <Dismiss> button and the remove the Status
Window. Performance problems may occur if this is not done.

Installation and Upgrade Issues

If you are installing FileServ or upgrading an existing FileServ installation, revie w the follo wing topics to
make sure FileServ is correctly installed. For complete and detailed installation instructions, refer to the
Installing FileServ book.

Topic Page

Turn off mediad on SGI Platforms 8
Upgrading from FileServ Version 3.4.2 and Later 9
Upgrading from FileServ Earlier than Version 3.4.2 9
Installing FileServ and AMASS on the Same Platform 11

Turn off mediad on SGI Platforms

If you install FileServ on an SGI platforms running IRIX 6.5.x, turn off the mediad for FileServ-managed
storage devices by following the steps below:

Step 1. Log in as root.

# su root

Step 2. Edit the

# vi /etc/config/mediad.config

Step 3. Add the following statement for each FileServ-managed storage device:

ignore device device_name
...
ignore device device_name

mediad.config file.

Page 8 of 16 FileServ Version 4.4.1—601363 Rev A

www.adic.com

where:

Option Description

device_name Path to the storage device. For example,

/dev/rmt/tps0d6nrv.

Step 4. Save the changes and quit the edit session.
Step 5. Stop the mediad process.

# mediad -k

Step 6. Re-start the mediad process.

# mediad

Upgrading from FileServ Version 3.4.2 and Later

The V ista Database locking type wa s modified to use the IP locking mechanism. Therefore, to reinitialize
the transaction activity file, follow the steps below:

Step 1. Stop FileServ.
Step 2. Run checkpoint.
Step 3. Install the latest versions of FileServ.
Step 4. Run $FS_HOME/util/buildtaf -i.
Step 5. Execute “D” option.
Step 6. Quit the program.
Step 7. Restart FileServ.

Upgrading from FileServ Earlier than Version 3.4.2

Changing to the new V ista Database caused some changes to the database definition (dbd) f iles in existing
FileServ sites. Therefore, to synchronize the database, follow the steps below:

Step 1. Stop FileServ.
Step 2. Run
Step 3. Run checkpoint.

checkDBAll to make sure no errors exist in the FileServ database.

Step 4. Install the latest version of FileServ.

www.adic.com

FileServ Version 4.4.1—601363 Rev A Page 9 of 16

Step 5. Change directory to $FS_HOME/internal/fsdb and move each file with a .dbd extension to

the same name .dbd.old. There should be one fs1_#.dbd and fs5_#.dbd file for each file
system managed by FileServ.

cd $FS_HOME/internal/fsdb
mv fileserv2.dbd fileserv2.dbd.old
mv fileserv3.dbd fileserv3.dbd.old
mv fileserv4.dbd fileserv4.dbd.old
mv fs1_4.dbd fs1_4.dbd.old
mv fs5_4.dbd fs5_4.dbd.old
...

Step 6. Change directory to DDL and modify the fs3.ddl file by changing the 4 “long” references in

mediadir_rec to “a_u32_t”.

Step 7. If a fs2.ddl.sgi file exists, do the following:

mv fs2.ddl fs2.ddl.old
mv fs2.ddl.sgi fs2.ddl

Step 8. Run the following commands shown below:

ddlp fs2.ddl
ddlp fs3.ddl
ddlp fs4.ddl

Step 9. Remove fileserv*.h; move fileserv*.dbd, and change directory:

rm fileserv*.h
mv fileserv*.dbd ..
cd ..

Step 10. Modify the "fs1.ddl" file as follows:

a) Find the "record fileattr_rec {" line

b) Modify the following line from:

char fadmhdl[64]; /* DMIG handle binary data */

to:

char fadmhdl[64][1]; /* DMIG handle binary data */

c) Find the "record dirdb_rec {" line

d) Modify the following line from:

char drdmhdl[64]; /* DMIG handle binary data */

Page 10 of 16 FileServ Version 4.4.1—601363 Rev A

www.adic.com

to:

char drdmhdl[64][1]; /* DMIG handle binary data */

Step 11. Get the numbers for both the fileserv5 and fileserv1 databases to be regenerated by using ls

fs1_*.dbd.old.

For example, if fs1_4.dbd.old and fs5_4.dbd.old are returned the
number is 4. There should be one pair of these files for each file system associated with
FileServ . If the fs5_#.dbd.old f ile does not exist, mak e a note and do NO T run the ddlp for the
fs5.ddl in Step 11 for this number (the fs1_4.dbd should still be run).

Step 12. For each of the numbers obtained above, modify the fs1.ddl and fs5.ddl files by changing

the number to the current new number. For example, the fs1.ddl file will have a line similar
to what is shown below:

database fs1_5 {

It should be changed to:

database fs1_4 {

Continue modifying all _5 names to _4 (there should be 17 of them for fs1.ddl file and 14
in the fs5.ddl file).

Step 13. Run both ddlp fs1.ddl and ddlp fs5.ddl commands to generate fs1_#.dbd and

fs1_#.dbd files. Be sure to skip the fs5_#.dbd files if the corresponding fs5_#.dbd.old f ile did

not exist in Step 9.

Step 14. Repeat Step 12. and Step 13. for all the numbers obtained in Step 11.
Step 15. Run $FS_HOME/util/buildtaf -i. At the prompt, type D.
Step 16. Start lockmgr: lm_start.
Step 17. Run

checkDBAll and validate that no errors exist.

Installing FileServ and AMASS on the Same Platform

Step 1. If you have FileServ and AMASS on the same platform, start the FileServ processes before

the AMASS processes (CR #1780).

Step 2. If the

autostart scripts are enabled for both FileServ and AMASS, run the FileServ

autostart script before the AMASS autostart script. To accomplish this, assign a name to

the FileServ
example of the FileServ and AMASS

autostart script so it will start before the AMASS autostart script. An

autostart script names in the /etc/rc2.d directory is

shown below. In the example, the S95fileserv script will execute before the S99amass
script.

lrwxrwxr-x 1 root sys 25 Jan 16 08:58 S95fileserv -> /etc/init.d/auto_fileserv
lrwxrwxr-x 1 root sys 25 Jan 16 08:58l S99amass -> /etc/init.d/amass

www.adic.com

FileServ Version 4.4.1—601363 Rev A Page 11 of 16

Contents of Version 4.4

OPERATING SYSTEMS

•IRIX® 6.5.6M, 6.5.7M, 6.5.8M, 6.5.9M and 6.5.10M

• SPARC™ Solaris™ 7 and 8

FIXED PROBLEMS

The following table lists fixed problems:

Operating

System

All 539 The fsmedcopy command fails for some clustered tapes.
All 541 Cannot send a recover command to DTF drives with fs_scsi.
All 543 Return codes need to be MRS codes.
All 544 Overwrite occurs if clustering is enabled and un expected EOT is hit.
All 545 Changes to decrease memory usage.
All 546 Space recalculation is not correct when EOT is hit.
All 547 A core dump occurs if open fails for fs_dump.file

Problem

Number

Description of Problems Fixed in Version 4.4

Page 12 of 16 FileServ Version 4.4.1—601363 Rev A

www.adic.com

Contents of Version 4.3

OPERATING SYSTEMS

®

•IRIX

• SPARC™ Solaris™ 2.6, 7, and 8

NEW DRIVE SUPPORT

• Additional drives supported by this release of FileServ include the following:

- IBM 3580 LTO - Solaris only until supported by IRIX tpsc device driver

MAXIMUM NUMBER OF TAPE COPIES RAISED(#493)

• The maximum number of tape copies for a file has been raised to four.

FILESTEERING BY DRIVEPOOL(#517)

• The capability to specify which drives are used in making individual tape copies has been added to
the filesteering filesize.conf ig file. This capability allo ws a user with multiple archi v es to steer where
different tape copies are made. This can be accomplished by creating different storage drivepools for
each archive and then specifing the drivepool to be used for each copy in the filesize.config file.

6.2, 6.5.4M, 6.5.5M, 6.5.6M, and 6.5.10M

FIXED PROBLEMS

- The following table lists fixed problems:

Operating

System

All 393 Install Script - Change default syslog to 5
All 439 The fs_bld_maplist script fails on upgrade & not run on install
All 456 fileserv started as fsadm does not produce cores

Solaris 486 Cannot map filesystem due to buffer size

IRIX 487 Block reservation is lost after mount

All 488 File create and immediate rename leaves it unassociated
All 489 Fix memory leaks
All 490 fs_dump command can fail if a file is removed while it is running
All 491 Fix auto_fileserv to work with root shell of sh

IRIX 492 Add a check for DST to verify position

All 495 Crtl-C during a fsretrieve while mo is flipping causes crash

Problem

Number

Description of Problems Fixed in Version 4.3

All 496 DTF/DTF2 fs_sysparm Comment Wrong
All 497 fs_copyman not intializing move requests properly
All 498 Memory overwrite in scsi code when using scsi pass through device

www.adic.com

FileServ Version 4.4.1—601363 Rev A Page 13 of 16

Operating

System

Problem

Number

Description of Problems Fixed in Version 4.3

All 499 Policy will trashcan file if db valid tape != disk
All 500 Checkpoint tar command needs to follow links
All 503 Mapping has /fs link hardcoded instead of using $FS_HOME
All 504 fs_dump fails if mount point not at root
All 505 fsckp script doesn’t handle /mnt/vol05 mntpt
All 506 fspolicy not initializing hash lists
All 508 Change fs_bld_maplist to space out fs_map_dir
All 509 Add logfile to newfslog script
All 510 mda2 perf point causes fs_slave core on bmap
All 511 A Crtl-C causes fs_map_dir to core
All 512 Fix additional memory leaks
All 513 For DTF drives check sense for "recover" status and pe rform auto recover
All 514 Update install manual errors
All 516 fsup Alias Need To Be Modified for fslock3
All 518 During install the fsvsinstall fails with a syntax error
All 519 fsmederr man page out of date
All 520 Verification of drive type names is incorrect
All 521 fsrecover fails - fd leak, mem alignment problems
All 524 fs_cron_template needs to be updated
All 525 Install Script - Mapping directory not explained
All 531 Add check for were perl is installed
All 532 Wrong makefile included for api examples

Page 14 of 16 FileServ Version 4.4.1—601363 Rev A

www.adic.com

Previous FileServ Releases

For information about previous features and fixes to the base software code, refer to prior “Release
Notes.” These Notes:

• Can be found on the secured site. See “Related Publications” on page 3 of these"Release Notes."

• Or, contact your FileServ sales representative.

Scheduled for Retirement

For a detailed list of operating systems and drives scheduled to be removed from future releases, refer to
the list of “Discontinued Devices” available from your FileServ sales representative. Customers should
plan to accommodate changes by the stated discontinued date.

www.adic.com

FileServ Version 4.4.1—601363 Rev A Page 15 of 16

Copyright  2000, 2001 by ADIC, Advanced Digital Information Corporation. All rights reserved. ADIC, AMASS, CentraVision, DataMgr, EMASS, FileServ, and
VolServ are either trademarks or registered trademarks of ADIC. All other brand or product names are trademarks or registered trademarks of their respective
companies. Direct comments to: ADIC, 10949 East Peakview Avenue, Englewood, CO 80111 USA, Phone: [phone], FAX: [phone]. www.adic.com,
Software publications: [e-mail], Technical support: [e-mail].

Page 16 of 16 FileServ Version 4.4.1—601363 Rev A

www.adic.com
